Week 5 Challenge- Creating a test case in OpenFOAM

Creating a test case in OpenFOAM:

1. Create a .cpp file starting with:

#include "fvCFD.H"
int main( int argc, char *argv[] )
{
Foam::argList::noBanner();
Foam::argList args(argc, argv);
...
}

ANS:

#include "fvCFD.H"
//using namespace Foam;

int main(int argc, char *argv[])
{
    //Foam::argList::noBanner(); //if you turn it off, this will print the OpenFOAM banner on the screen

    Foam::argList args(argc, argv);

    Foam::Time runTime
    (
        //Foam::Time::controlDictName,
        args.rootPath(),
        args.caseName()
    );

    IOdictionary ioDictObj
    (
        IOobject
        (
            "thermalProperties",
            //runTime.constant(),
            runTime,
            //mesh,
            IOobject::MUST_READ,
            IOobject::NO_WRITE
        )
    );

    /*double nu,T;
    nu=ioDictObj.lookup("nu");
    T=ioDictObj.lookup("T");*/

    scalar T = readScalar(ioDictObj.lookup("T"));
    scalar nu = readScalar(ioDictObj.lookup("nu"));

    /*vector nu = vector( ioDictObj.lookup("nu"));
    vector T = vector( ioDictObj.lookup("T"));*/

    Info<

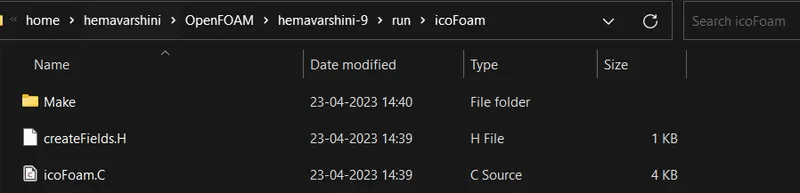

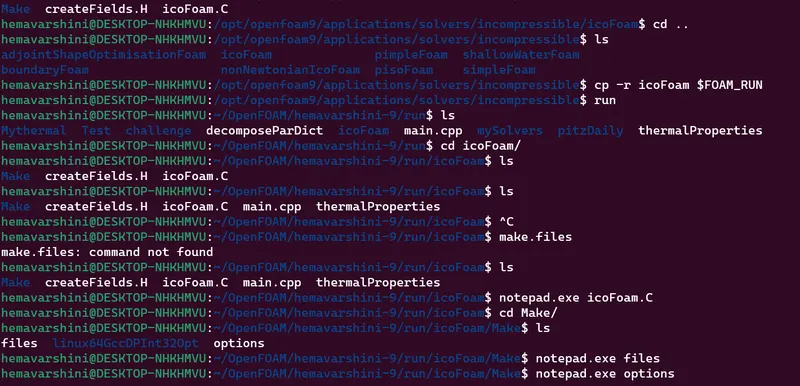

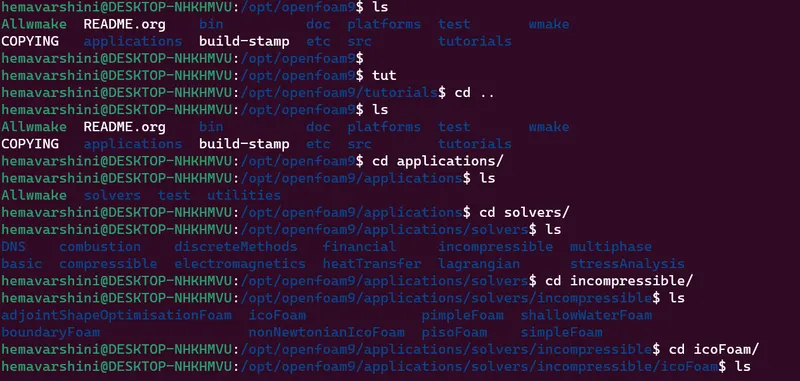

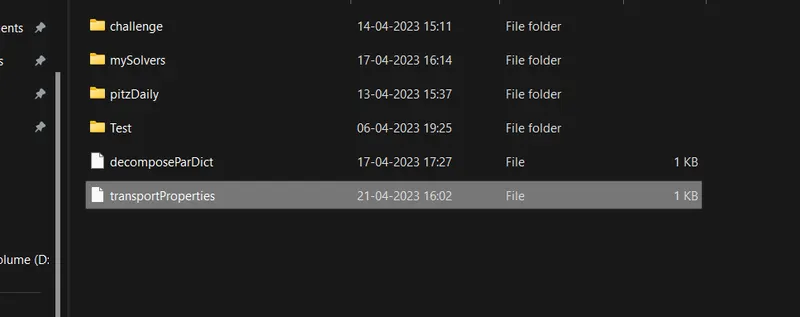

Copy the cavity problem from $FOAM_TUTORIALS/incompressible/icoFoam. Find the value assigned to: transportModel & kinematic viscosity (nu) stored in a dictionary file transportProperties.

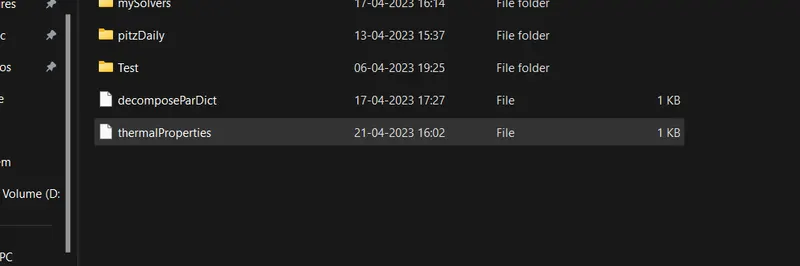

Rename the file transportProperties to thermalProperties

• Add variable T in the dictionary and assign a value to it
• Print the value of all the constituent variables in thermalProperties file



Rename the file transportProperties to thermalProperties

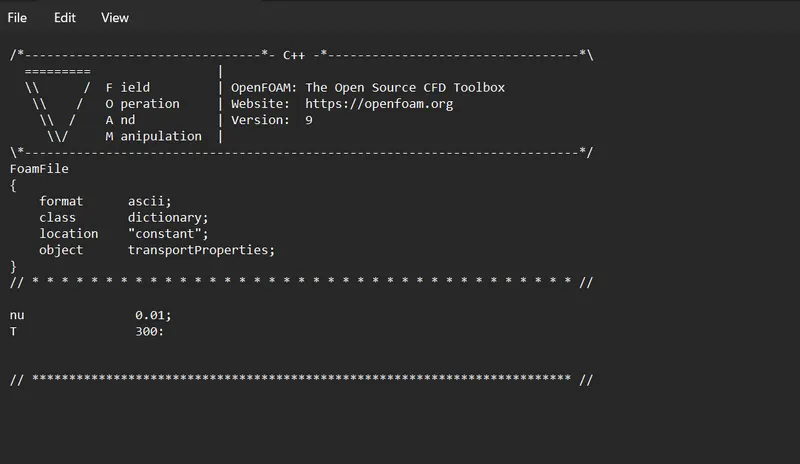

Add variable T in the dictionary and assign a value to it

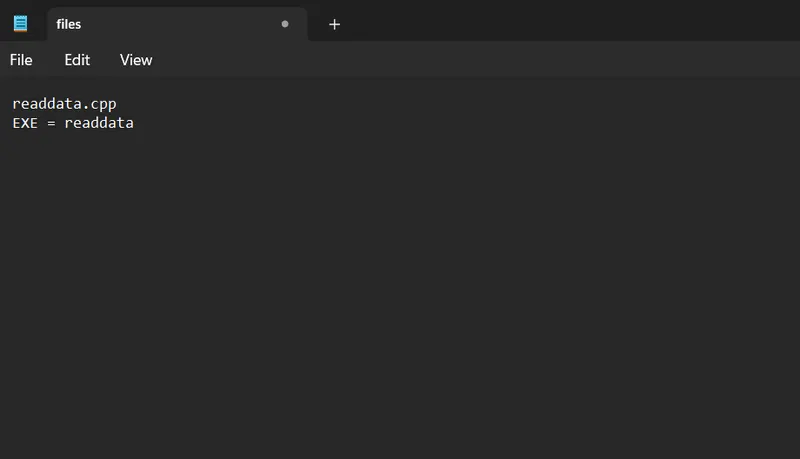

Make ->files

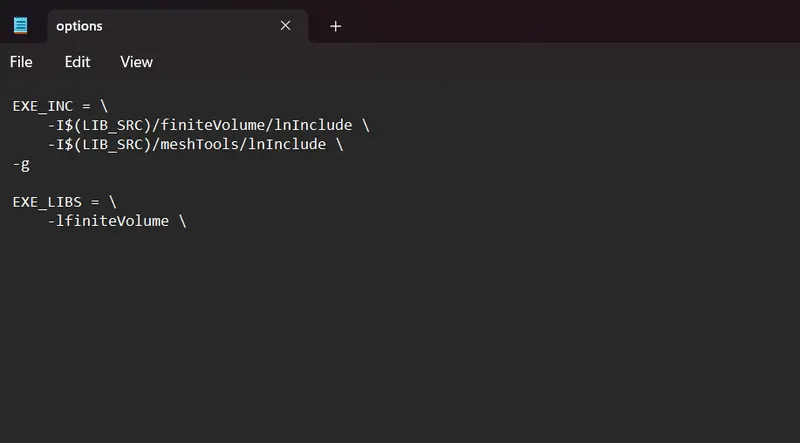

Make->options:

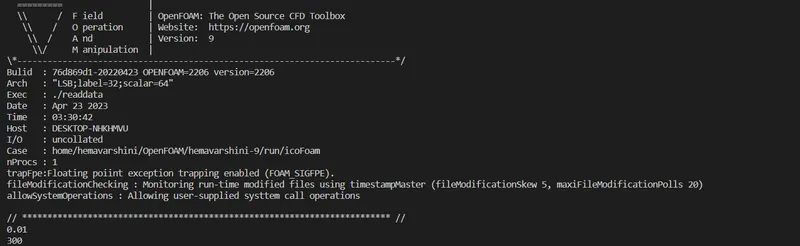

After Execution:

We can find here, the value of the constituent variables in thermalProperties file after execution = 0.01, 300
