Week 5 Bending of iPhone

AIM:

For this challenge, simulate the bending of iPhone as per the given cases below

Case 1: Simulate the model as it is given in the video

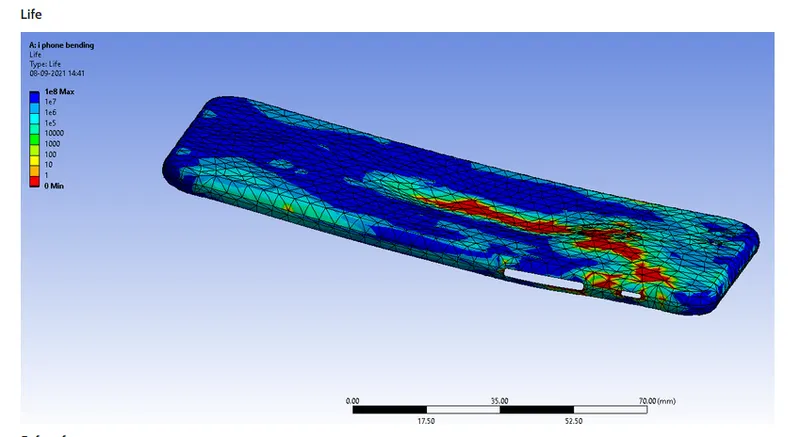

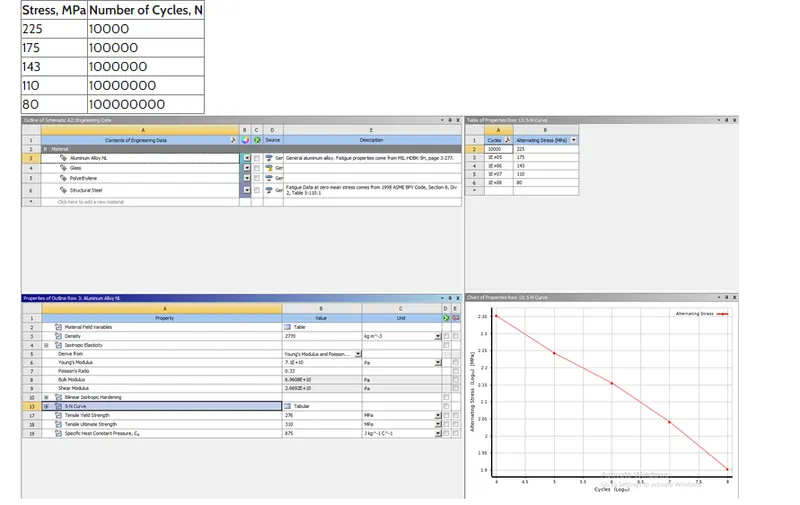

Case 2: Move the bottom fingers from their defined position to the given position X= 22.5mm & Z= 10mm and obtain the results for the simulation. Also define the S-N curve for the Aluminium Alloy material as per values given below and determine the fatigue life results for the same.

PROCEDURE:

• Open the Ansys work bench and import the given geomentry.

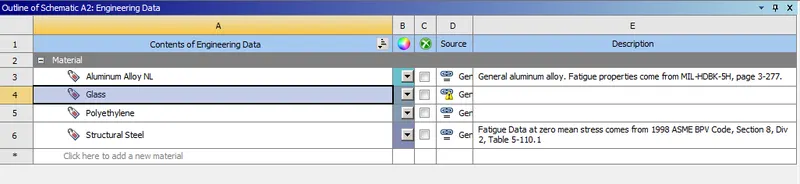

• Give the Engineering material properties like Aluminium,Polyethene,Glass.
•

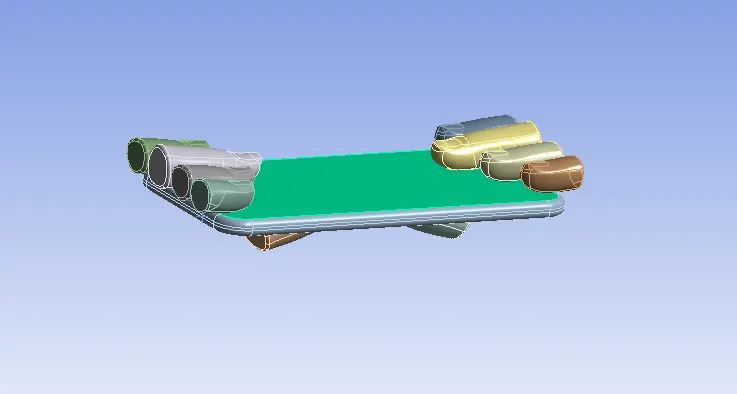

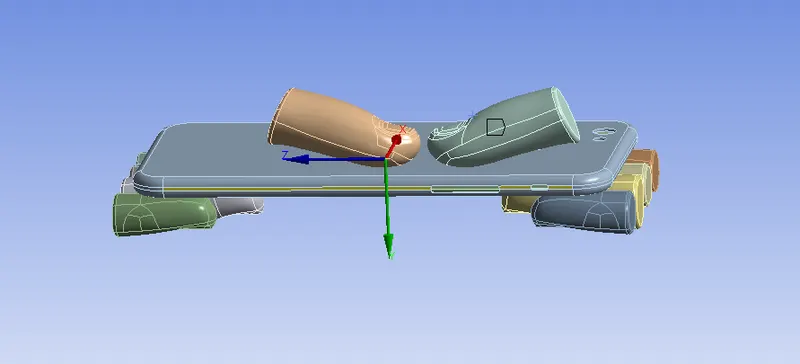

• open the edit space claim and import the given model and modify if the changes in the model.
• Give the name of the given model and edit the model names as per the given model.
•
•
• Give the material for the given model and like Glass,aluminium etc.

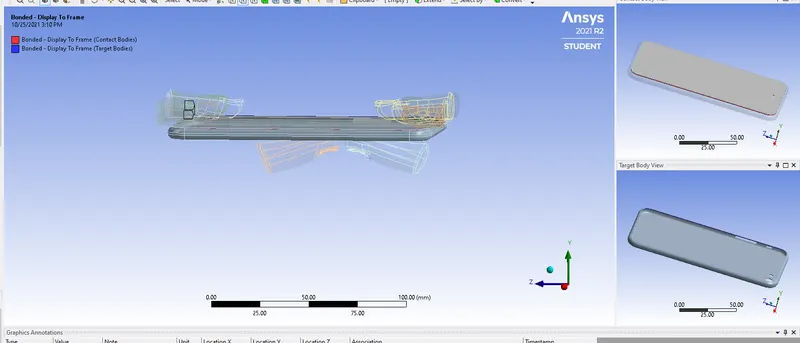

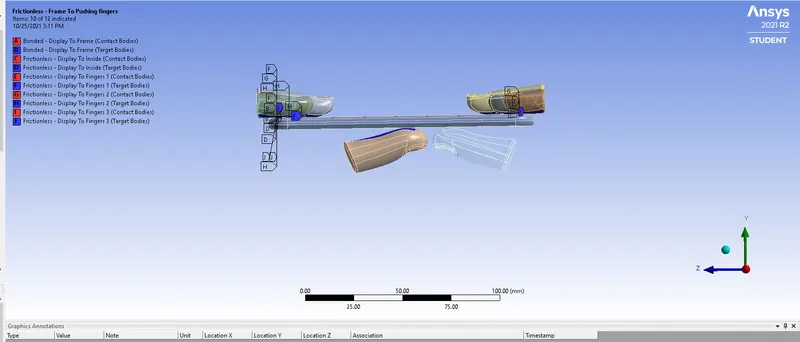

• Give the connection for the given model for the finger and select the contact and target face of thr given model.
•
•

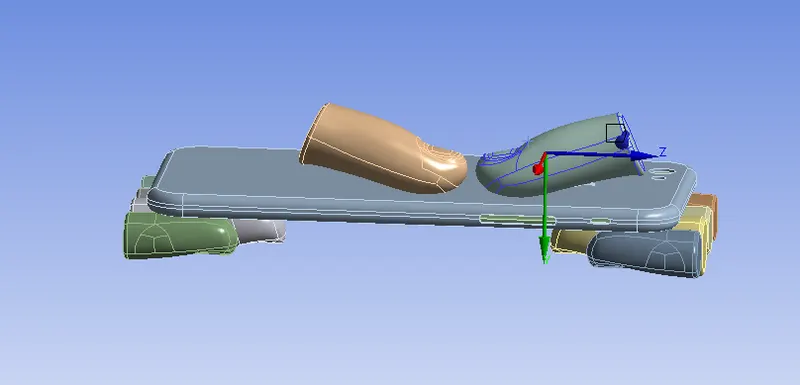

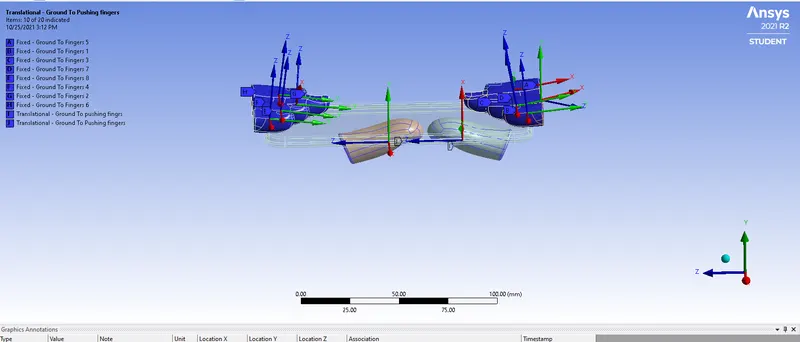

• Give the joints for the fingers in the model fixed and traslantion for the given model.
•

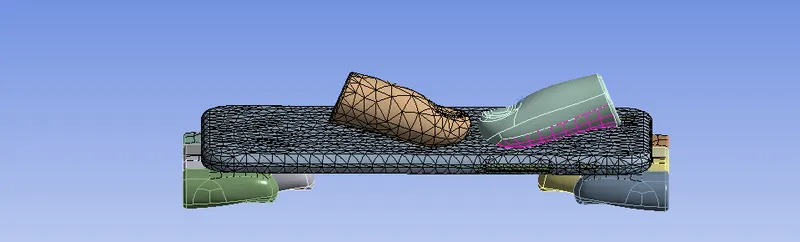

• we should have to generate the mesh for the given model.Give the sizing of the element of the target element size as 2mm.
•

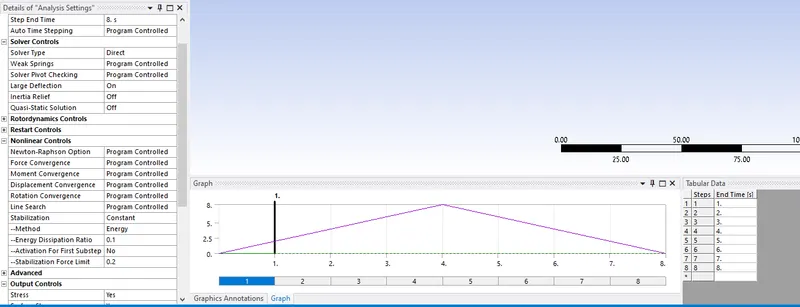

• we should go to the analysis setting 8 time steps and give the large deformation on and have the energy dispaction as the 0.1 in the non linearity.
•

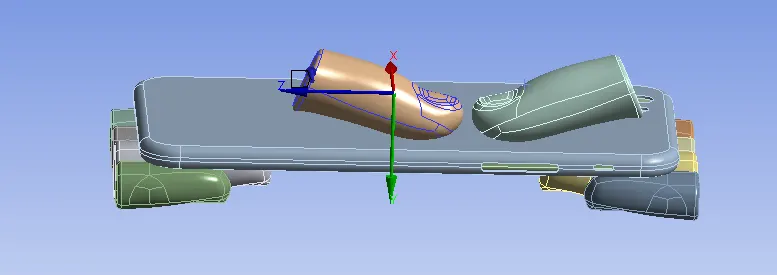

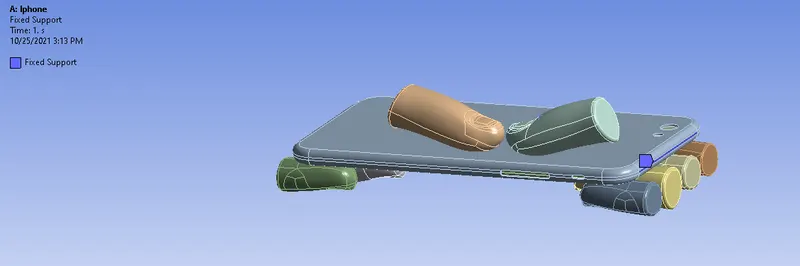

• we should have to give displacement ,fixed supports and joint displacement.
•
•
•
•
• we should have to assign the defomation,stress,strain.
•
•
•

Case 2:

•
•
•
•
•

Comparsions:

case 1:

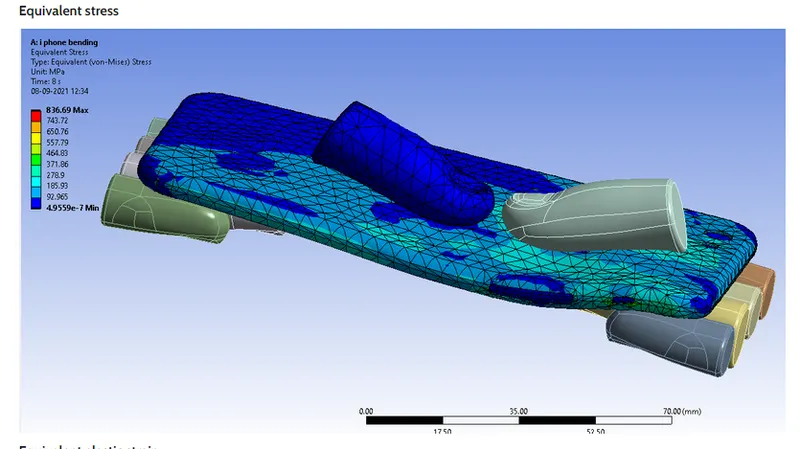

Equivalent Stress=836.69Mpa

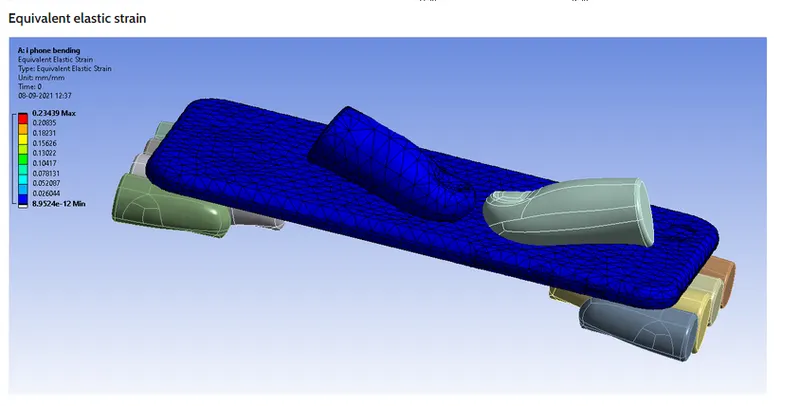

Equivalent Strain=0.23439Mpa

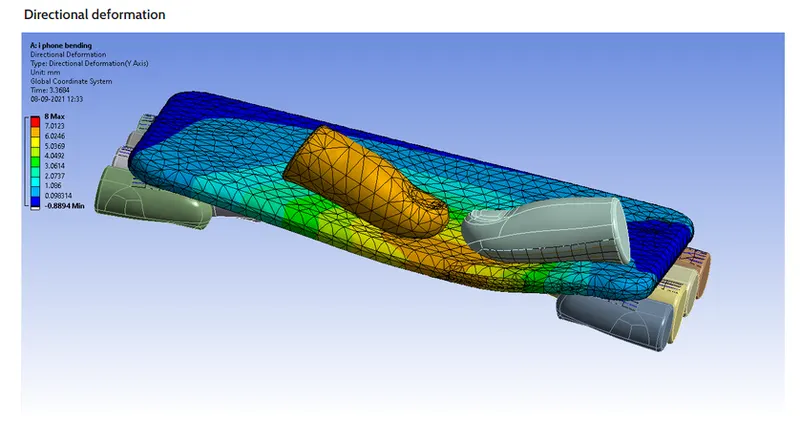

Directional Deformation=8

case 2:

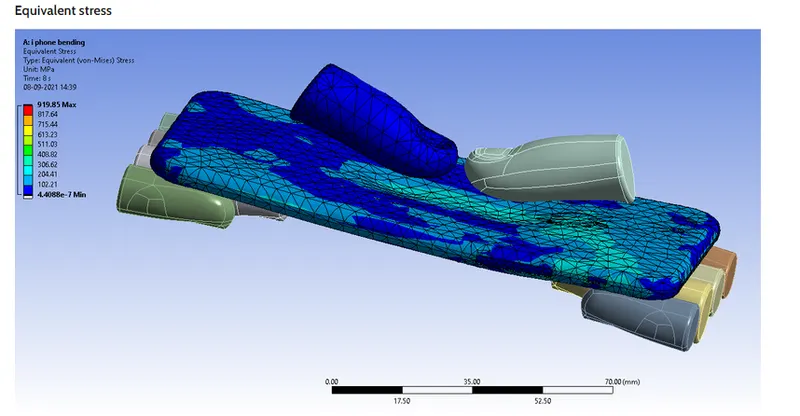

Equivalent Stress=919.85Mpa

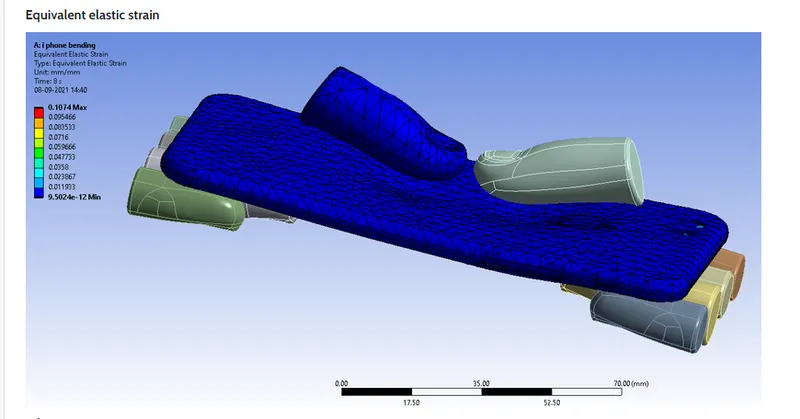

Equivalent Strain=0.1074Mpa

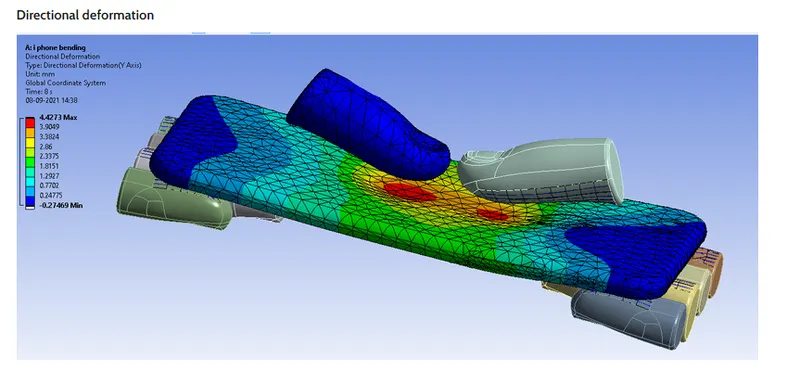

Directional Deformation=4.4273

By observating the aboce results case 2 gives the best results for the directional deformation and equivalent strain in the model.
