Week 5 Bending of iPhone

Objective: The objective is to simulate the bending of an I-phone and calculate the deformation of the i-phone, Life and factor of safety of frame.

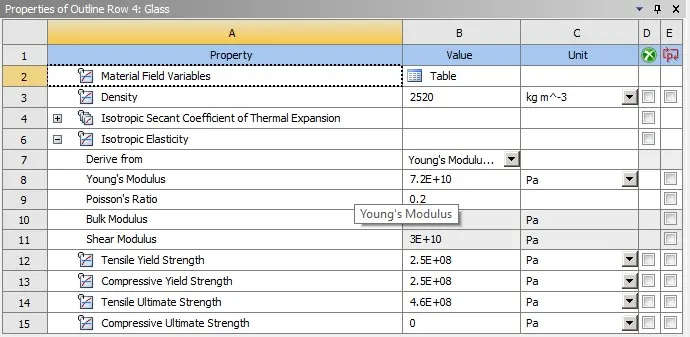

Materials:

• Display-Glass:

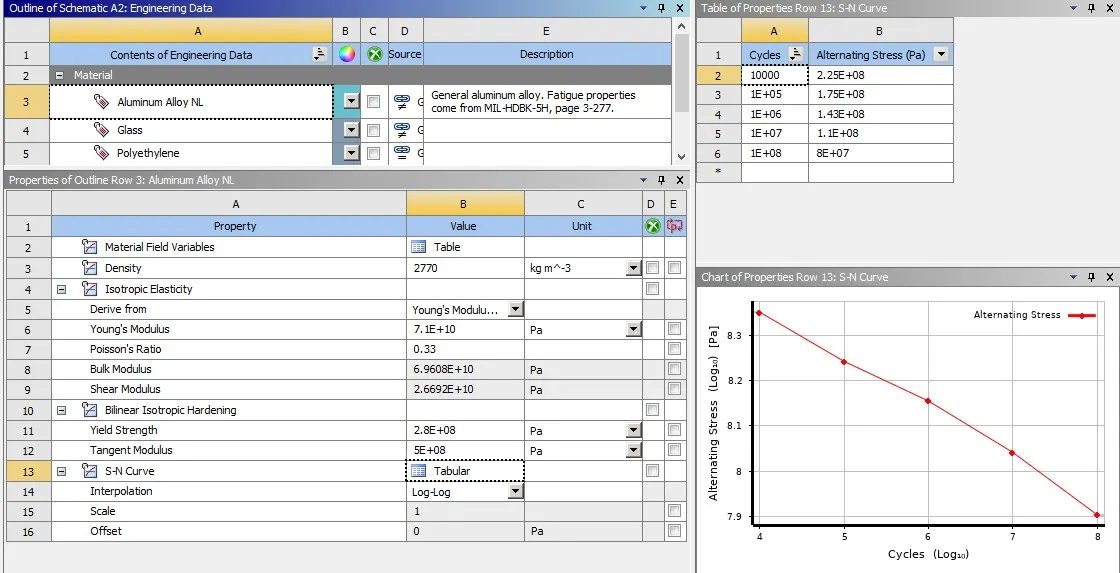

• Frame - Aluminium Alloy NL:

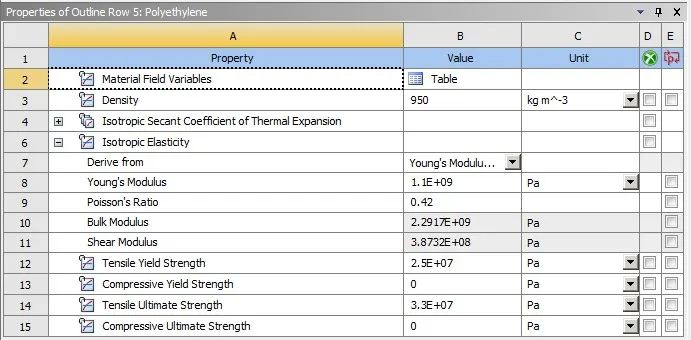

• Inside - polyethylene:

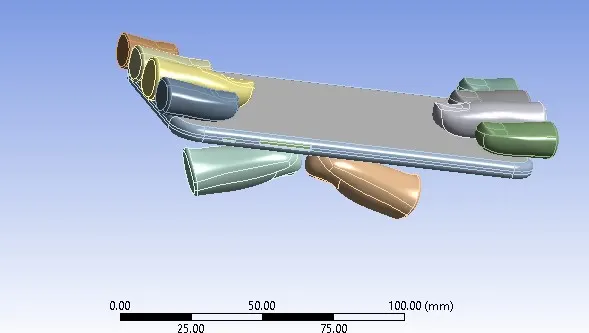

Geometry: The geometry used in both the cases are different.

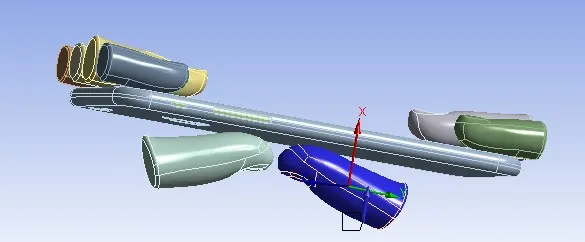

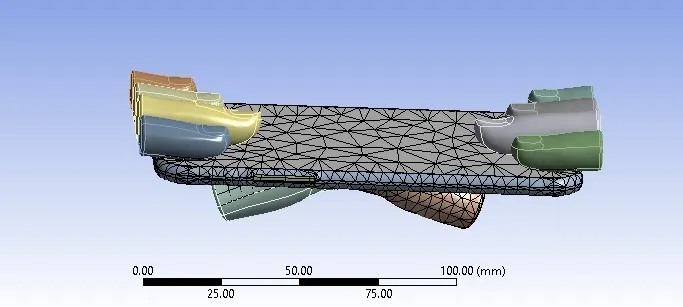

Case 1:

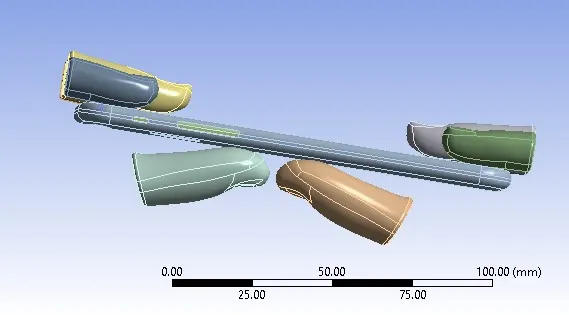

Case 2: With respect to the geometry from case 1, the pushing fingers are shifted by X=22.5mm and Z=10mm.

Connections:

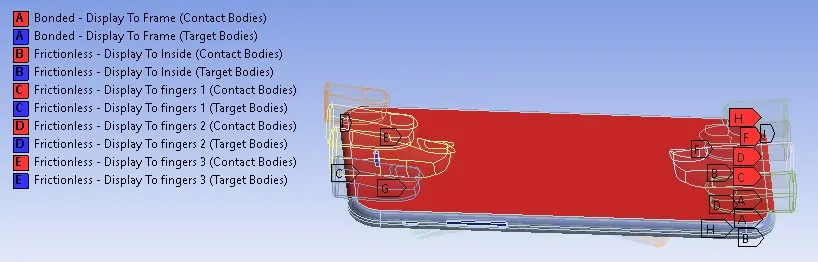

1.Contact Sets:

2.Joints:

a.Fixed:

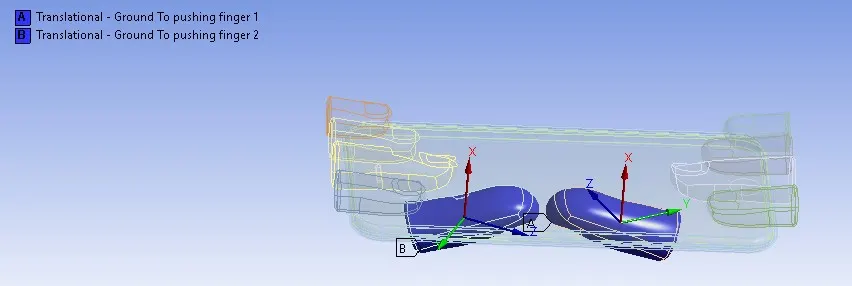

b.Translational:

Mesh:

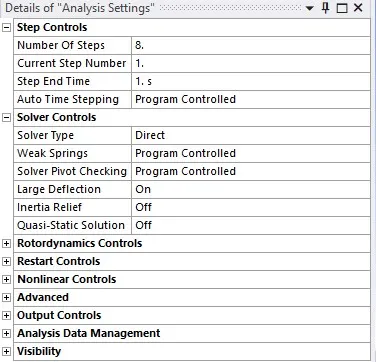

Analysis Settings:

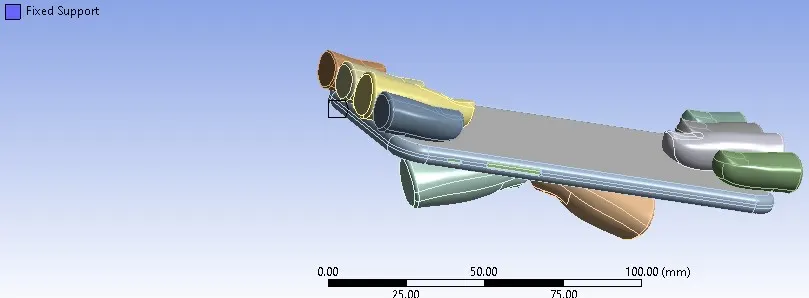

1.Fixed Support:

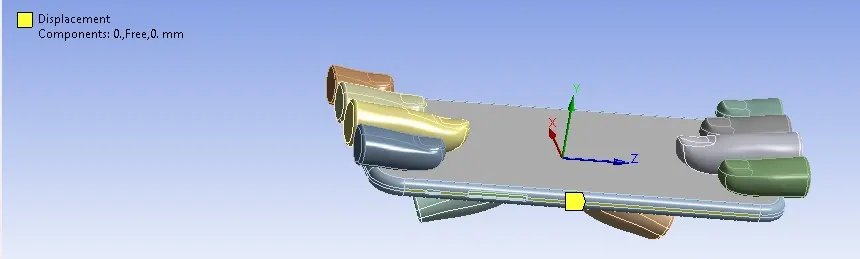

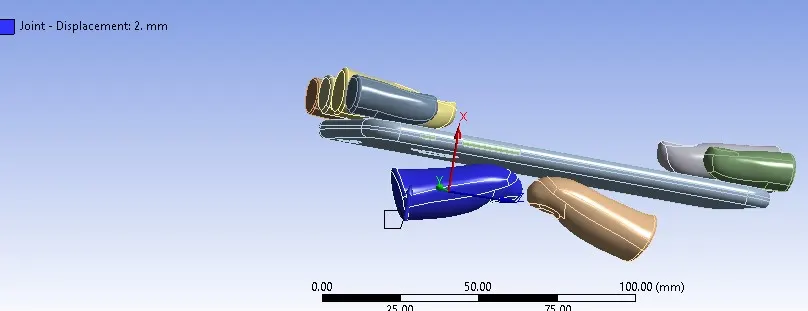

2. Displacement: The displacement along X and Z-axis is kept constant(0).

3.Joints:

Results:

Case 1:

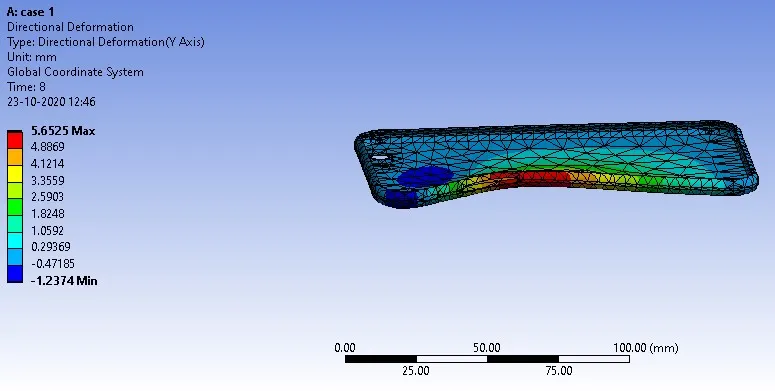

Directional Deformation:

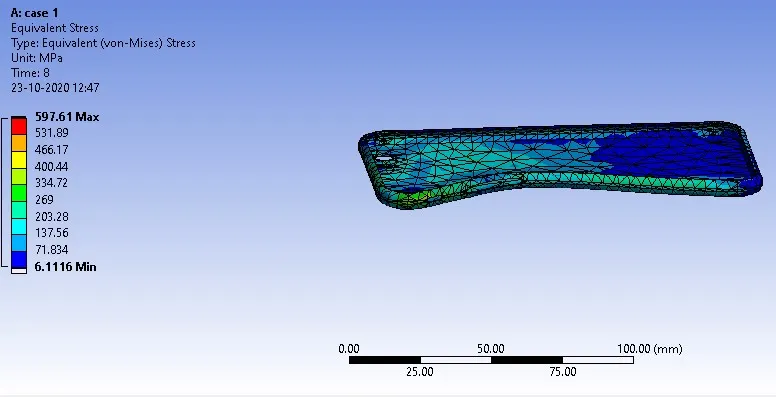

Stress:

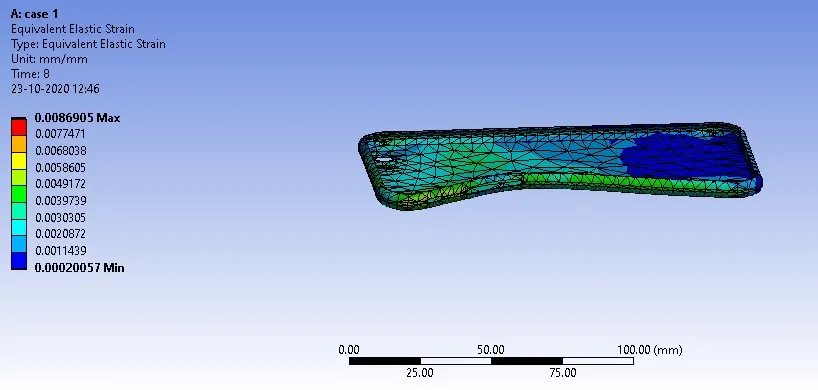

Strain:

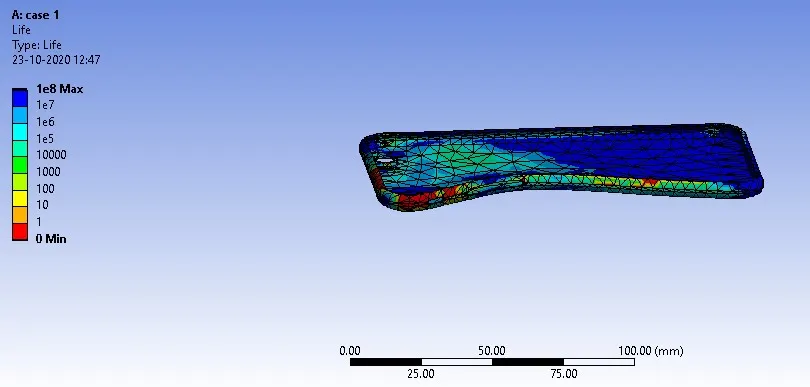

Life of Frame:

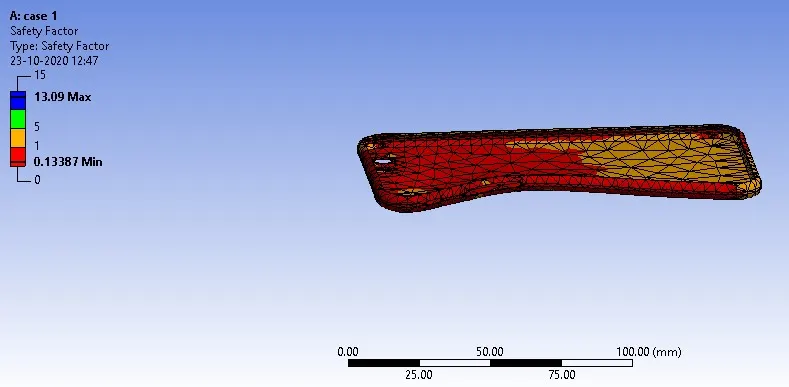

Factor of Safety of Frame:

Case 2:

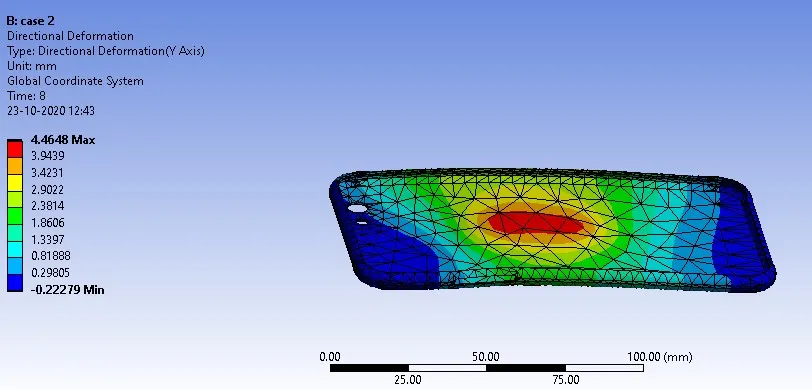

Directional Deformation:

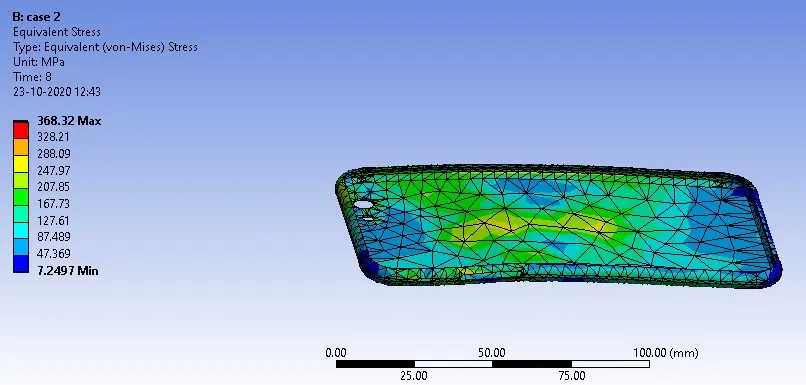

Stress :

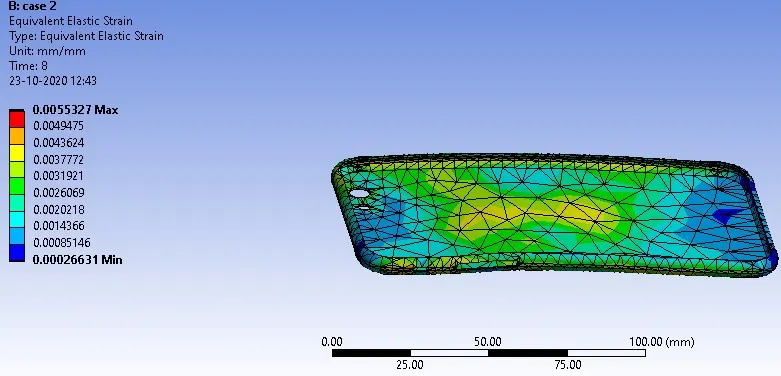

Strain:

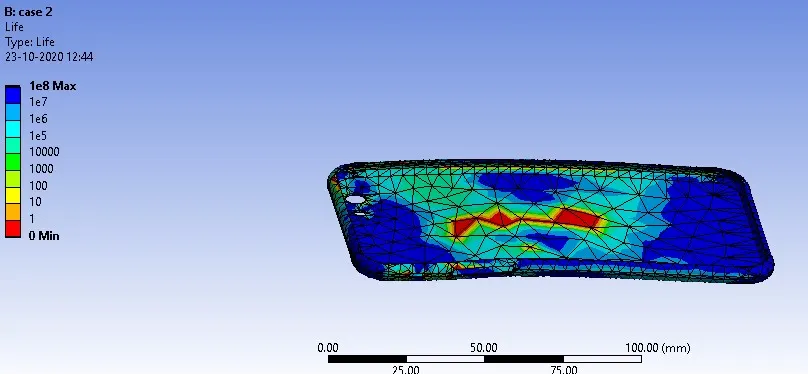

Life of Frame:

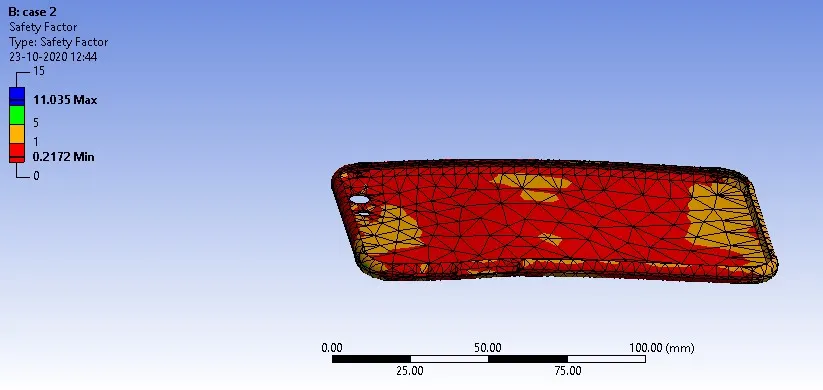

Safety of factor of frame:

	Directional deformation(mm)	Stress(MPa)	Strain	Life of frame	Factor of safety of frame(Max and Min)
Case 1:	5.6525	597.64	0.0086905	1E+08	13.09 and 0.13387
Case 2:	4.4648	368.32	0.0055327	1E+08	11.035 and 0.2172
