Week 5.1 - Compact Notation Derivation for a simple Mechanism

Aim -->

We need to find the net reaction rate for all four reactions using reactant and product matrices. Then find the production of each species using matrix notation w.r.t net reaction rate.

It is compulsory to use the equation editor to type your answers for report submission.

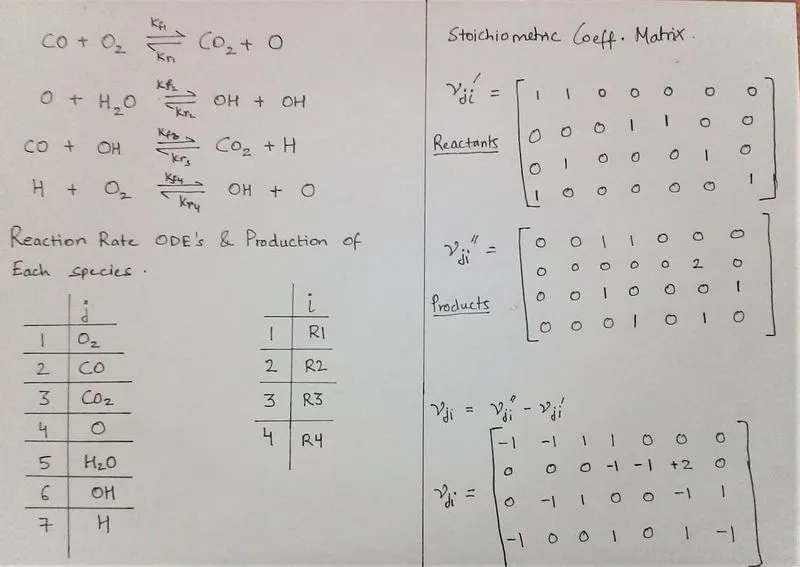

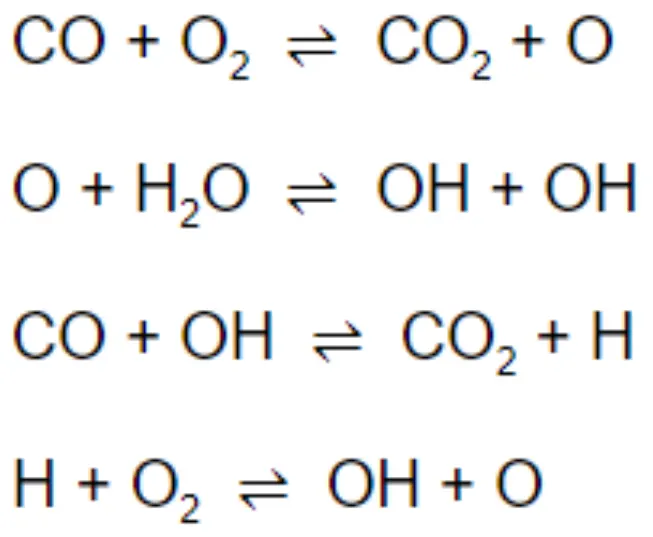

Reaction Mechanism

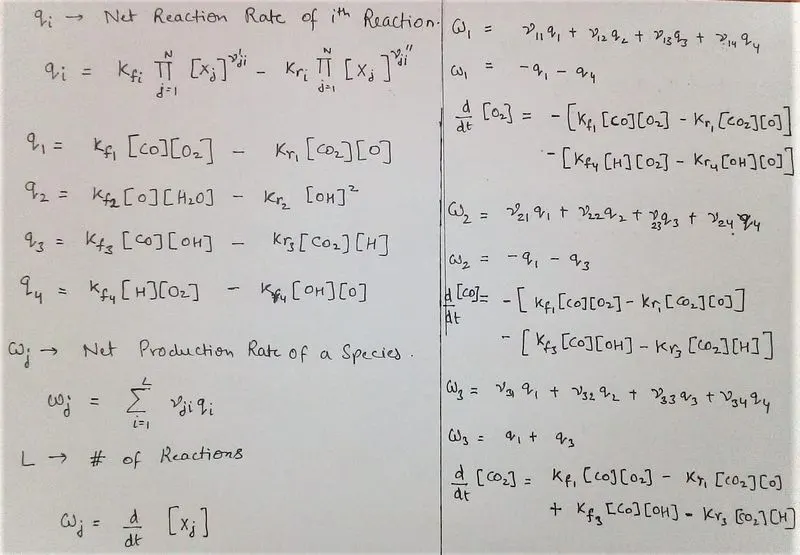

Following is the procedure to find the rate of production of a species in a reaction.

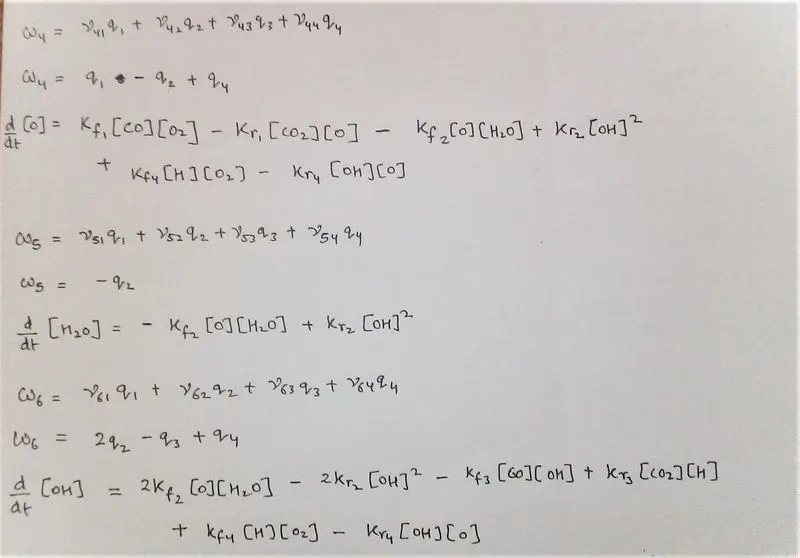

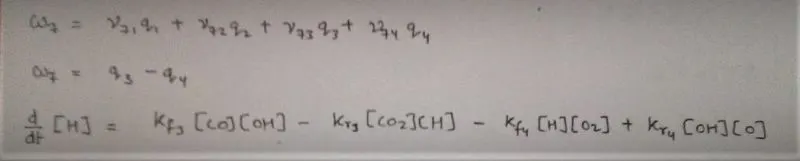

Following is the coupled 1st order ODE that represents the rate of production of a species.

1.

2.

3.

4.

5.

6.

7.
