Wire Bending
Aim:
To perform an analysis to simulate the bending of a wire in ANSYS-WORKBENCH.
Objective:
We will be using Copper Alloy (Non Linear), Aluminium Alloy (Non Linear) and Magnesium Alloy (Non Linear) for the wire alone and we need to find out the Equivalent stress and Equivalent strain on the wire alone and compare the results.
Procedure:

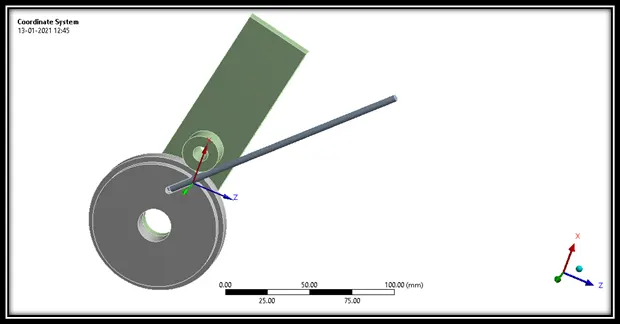

Initially we will providing a separate Co-ordinate System than the General Co-ordinate System in order to give a separate mesh where the contact of wire bending process will be happening to get better results.
Then we will proceed to give connections of contacts and joints of the case setup model.

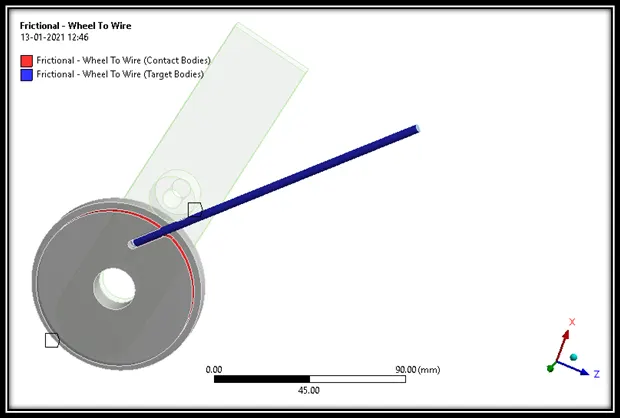

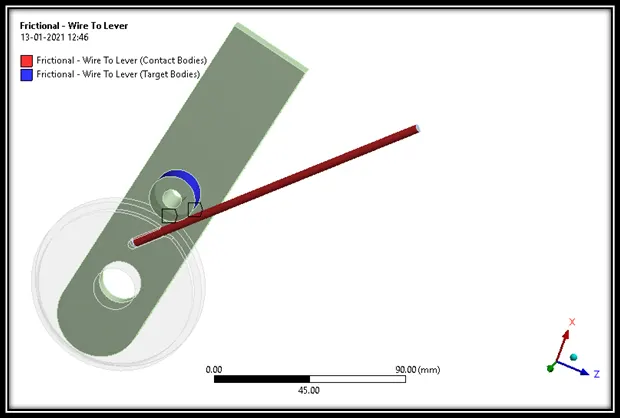

First contact connections will be frictional between the wire surface and the lever surface as shown in the image below.
Then we will be providing contact connections which will be frictional between the wheel surface and the wire surface as shown in the image below.

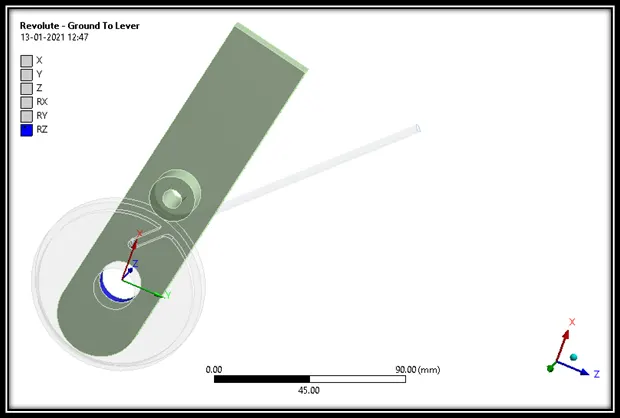

Finally we will be giving joints in revolute from ground to lever for the rotation in tabular data with values in angles.
Now, we will be providing boundary conditions for the case setup model to make the process of wire bending happen.

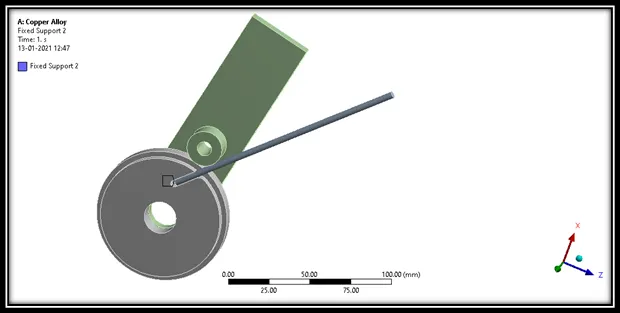

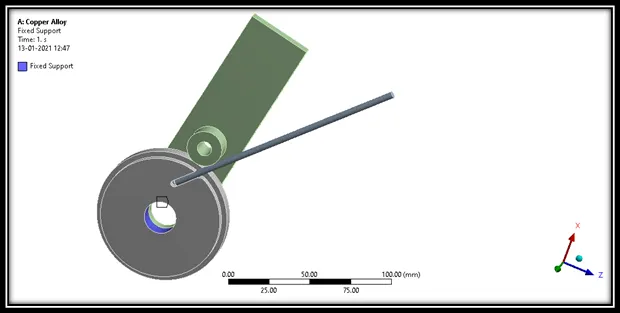

Now we will be providing fixed supports in the surfaces mentioned in the images to arrest the movement in the model as shown in the two images below.

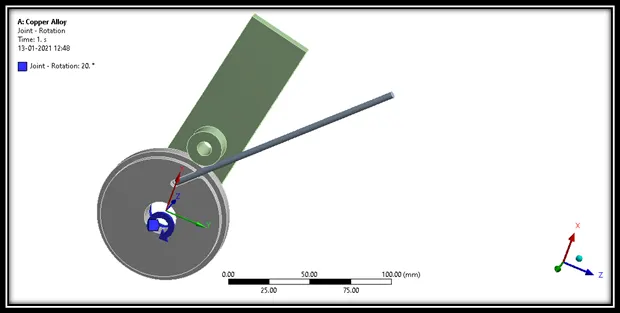

Then we will be providing joint rotation in angles where the revolute contact connections were given for the model.

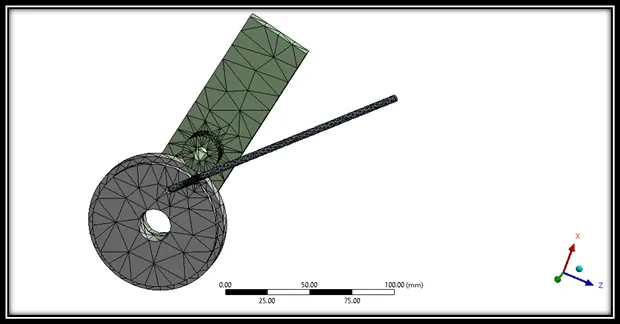

Finally, we will be providing meshes with face sizing methods to get refined meshes at the point of contacts of the surfaces where it will be contacted. We will providing refined meshes on the wire and lever surfaces. And then we will be using the created Co-ordinate System to select it and provide sphere area of refined mesh for the area where the process of wire bending happens.
Simulation:
Case 1:

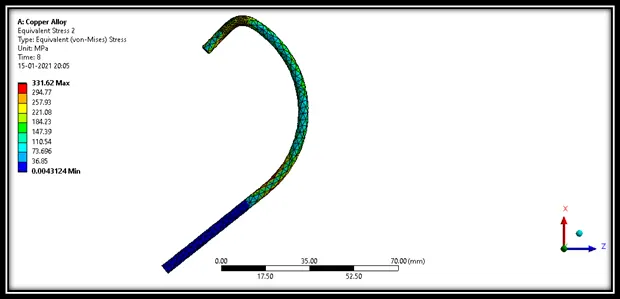

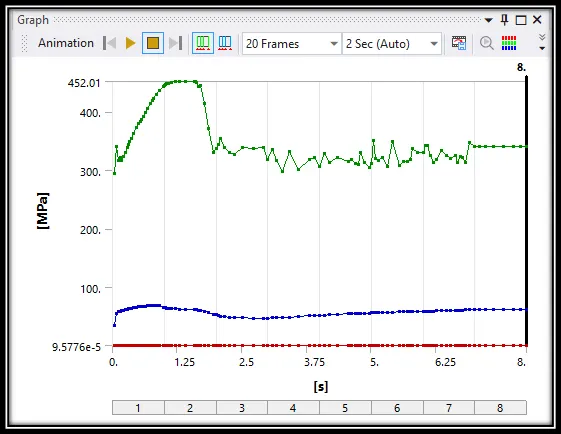

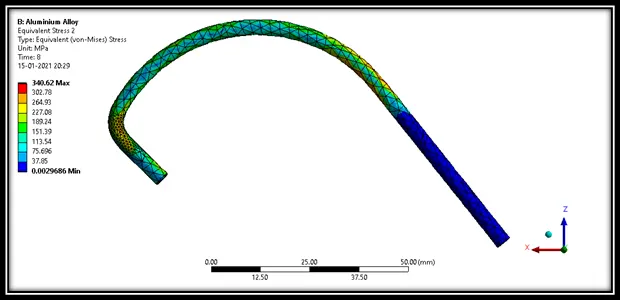

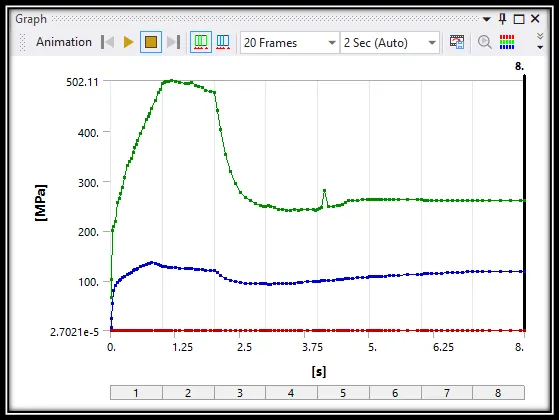

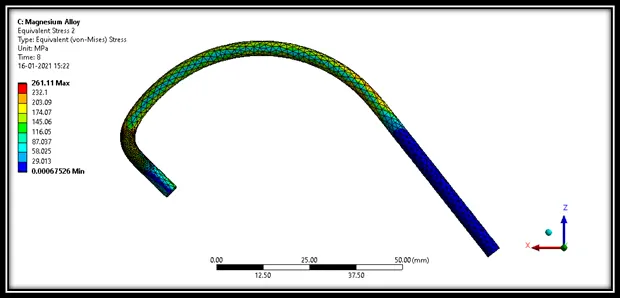

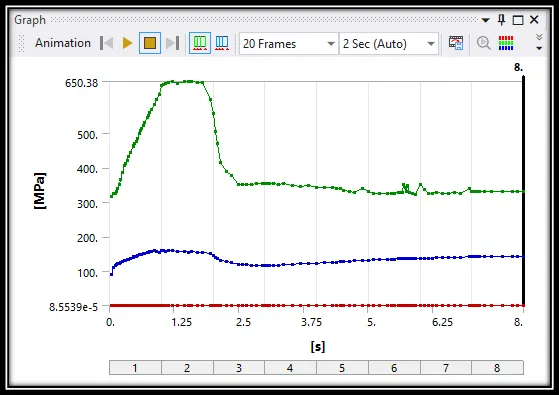

Equivalent Stress:
|
Time [s] |
Minimum [MPa] |
Maximum [MPa] |
Average [MPa] |
|
|
1 |
3.50E-02 |
8.55E-05 |
315.14 |
89.262 |
|
2 |
7.00E-02 |
5.42E-04 |
324.41 |
111.04 |
|
3 |
0.1225 |
6.18E-04 |
325.64 |
117.31 |
|
4 |
0.14088 |
8.61E-04 |
332.37 |
119.15 |
|
5 |
0.15925 |
9.23E-04 |
339.46 |
120.81 |
|
6 |
0.18681 |
9.48E-04 |
352.64 |
123.08 |
|
7 |
0.21437 |
1.32E-03 |
366.3 |
125.3 |
|
8 |
0.25572 |
1.50E-03 |
387.15 |
127.58 |
|
9 |
0.29706 |
2.19E-03 |
405.58 |
129.89 |
|
10 |
0.31877 |
2.22E-03 |
413.35 |
131.36 |
|
11 |
0.34047 |
2.58E-03 |
420.66 |
132.72 |
|
12 |
0.37303 |
2.82E-03 |
432.51 |
134.78 |
|
13 |
0.40559 |
2.99E-03 |
443.21 |
136.75 |
|
14 |
0.45443 |
3.25E-03 |
460.67 |
139.65 |
|
15 |
0.47152 |
3.63E-03 |
464.9 |
140.9 |
|
16 |
0.48861 |
3.79E-03 |
469 |
141.84 |
|
17 |
0.51425 |
3.95E-03 |
475.73 |
143.38 |
|
18 |
0.53989 |
3.96E-03 |
485.4 |
144.88 |
|
19 |
0.57835 |
4.34E-03 |
500.34 |
146.71 |
|
20 |
0.59854 |
4.54E-03 |
506.67 |
148.18 |
|
21 |
0.61873 |
4.75E-03 |
513.08 |
149.26 |
|
22 |
0.64902 |
5.07E-03 |
523.25 |
150.61 |
|
23 |
0.67931 |
5.11E-03 |
532.58 |
151.97 |
|
24 |
0.72474 |
5.38E-03 |
546.03 |
153.61 |
|
25 |
0.74859 |
5.38E-03 |
552.79 |
155.1 |
|
26 |
0.77244 |
5.43E-03 |
559.21 |
156.1 |
|
27 |
0.80822 |
5.62E-03 |
568.38 |
157.12 |
|
28 |
0.86188 |
6.29E-03 |
583.14 |
158.41 |
|
29 |
0.91554 |
1.17E-02 |
598.07 |
155.98 |
|
30 |
0.95777 |
7.15E-03 |
612.85 |
153.22 |
|
31 |
1 |
6.25E-03 |
637.9 |
159.27 |
|
32 |
1.0422 |
6.70E-03 |
642.59 |
159.17 |
|
33 |
1.0845 |
6.70E-03 |
644.95 |
157.79 |
|
34 |
1.1478 |
1.05E-02 |
647.15 |
158.59 |
|
35 |
1.2111 |
1.24E-02 |
649.02 |
158.58 |
|
36 |
1.3062 |
1.58E-02 |
645.85 |
157.81 |
|
37 |
1.4487 |
1.52E-02 |
649.1 |
157 |
|
38 |
1.5187 |
7.82E-03 |
650.16 |
154.99 |
|
39 |
1.5887 |
7.50E-03 |
650.38 |
155.86 |
|
40 |
1.6937 |
1.08E-02 |
646.87 |
154.8 |
|
41 |
1.7987 |
9.92E-03 |
648.4 |
154.58 |
|
42 |
1.9562 |
7.94E-03 |
597.92 |
149.58 |
|
43 |
2 |
8.10E-03 |
558.85 |
145.71 |
|
44 |
2.0438 |
6.63E-03 |
504.83 |
140.65 |
|
45 |
2.0877 |
7.19E-03 |
469.39 |
135.91 |
|
46 |
2.1534 |
8.32E-03 |
415.78 |
131.18 |
|
47 |
2.252 |
8.36E-03 |
388.16 |
126.67 |
|
48 |
2.3506 |
7.70E-03 |
377.97 |
123.87 |
|
49 |
2.4986 |
8.45E-03 |
351.23 |
120.06 |
|
50 |
2.5686 |
8.51E-03 |
350.17 |
118.42 |
|
51 |
2.6386 |
7.53E-03 |
351.41 |
117.89 |
|
52 |
2.7436 |
9.69E-03 |
352.31 |
117.14 |
|
53 |
2.8486 |
8.34E-03 |
353.33 |
116.53 |
|
54 |
2.9536 |
8.35E-03 |
353.33 |
116.59 |
|
55 |
3 |
7.65E-03 |
353.59 |
116.48 |
|
56 |
3.0464 |
8.10E-03 |
353.51 |
116.42 |
|
57 |
3.0929 |
8.55E-03 |
353.86 |
116.53 |
|
58 |
3.1625 |
8.40E-03 |
354 |
116.7 |
|
59 |
3.267 |
6.03E-03 |
351.87 |
117.2 |
|
60 |
3.3715 |
7.06E-03 |
354.18 |
117.96 |
|
61 |
3.5282 |
6.18E-03 |
349.39 |
119.23 |
|
62 |
3.685 |
4.74E-03 |
345.12 |
120.93 |
|
63 |
3.8417 |
5.43E-03 |
347.35 |
122.05 |
|
64 |
4 |
4.55E-03 |
343.92 |
123.04 |
|
65 |
4.1583 |
2.94E-03 |
342.28 |
124.3 |
|
66 |
4.3166 |
2.99E-03 |
342.15 |
125.75 |
|
67 |
4.3866 |
3.48E-03 |
340.09 |
125.88 |
|
68 |
4.4566 |
3.19E-03 |
338.56 |
126.7 |
|
69 |
4.5266 |
3.77E-03 |
335.22 |
127.82 |
|
70 |
4.6316 |
3.18E-03 |
329.91 |
129.08 |
|
71 |
4.7366 |
3.51E-03 |
328.87 |
129.97 |
|
72 |
4.8941 |
3.70E-03 |
340.54 |
131.53 |
|
73 |
5 |
3.58E-03 |
329.83 |
131.82 |
|
74 |
5.1059 |
2.42E-02 |
325.73 |
132.61 |
|
75 |
5.2118 |
1.84E-03 |
325.12 |
133.06 |
|
76 |
5.3706 |
4.79E-04 |
325.42 |
134.35 |
|
77 |
5.4406 |
7.92E-04 |
324.74 |
134.46 |
|
78 |
5.5106 |
5.29E-04 |
325.14 |
134.75 |
|
79 |
5.5806 |
2.44E-03 |
328.33 |
135.23 |
|
80 |
5.6331 |
4.04E-04 |
327.39 |
135.14 |
|
81 |
5.6593 |
5.72E-04 |
328.32 |
135.39 |
|
82 |
5.6856 |
4.63E-03 |
351.45 |
136.03 |
|
83 |
5.7118 |
8.88E-04 |
341.65 |
136.16 |
|
84 |
5.7381 |
9.75E-04 |
330.25 |
135.73 |
|
85 |
5.7643 |
4.98E-04 |
348.67 |
136.04 |
|
86 |
5.8037 |
1.03E-03 |
327.41 |
136.19 |
|
87 |
5.8628 |
2.64E-03 |
324.96 |
136.43 |
|
88 |
5.9218 |
5.23E-04 |
323.29 |
136.29 |
|
89 |
6 |
1.49E-03 |
350.85 |
137.05 |
|
90 |
6.0782 |
4.95E-04 |
336.95 |
137.13 |
|
91 |
6.1564 |
2.32E-03 |
324.79 |
137.16 |
|
92 |
6.2345 |
1.90E-03 |
326.2 |
137.53 |
|
93 |
6.3127 |
9.20E-03 |
326.97 |
137.98 |
|
94 |
6.43 |
2.96E-03 |
325.21 |
138.54 |
|
95 |
6.5473 |
4.42E-03 |
325.86 |
139.03 |
|
96 |
6.6646 |
6.48E-03 |
326.84 |
139.64 |
|
97 |
6.7818 |
3.34E-03 |
325.83 |
140.1 |
|
98 |
6.9577 |
6.39E-03 |
340.76 |
141.03 |
|
99 |
7 |
5.62E-03 |
332.05 |
141.05 |
|
100 |
7.0423 |
4.34E-03 |
331.7 |
141.04 |
|
101 |
7.0845 |
4.33E-03 |
331.65 |
141.03 |
|
102 |
7.1479 |
4.32E-03 |
331.63 |
141.02 |
|
103 |
7.243 |
4.31E-03 |
331.62 |
141.03 |
|
104 |
7.3856 |
4.31E-03 |
331.62 |
141.03 |
|
105 |
7.5856 |
4.31E-03 |
331.62 |
141.03 |
|
106 |
7.7856 |
4.31E-03 |
331.62 |
141.03 |
|
107 |
7.8928 |
4.31E-03 |
331.62 |
141.03 |
|
108 |
8 |
4.31E-03 |
331.62 |
141.03 |
Simulation Video - https://drive.google.com/file/d/1Ggb3Q5e1n0bR8GtFLrlwcwYy__AeIa38/view?usp=sharing

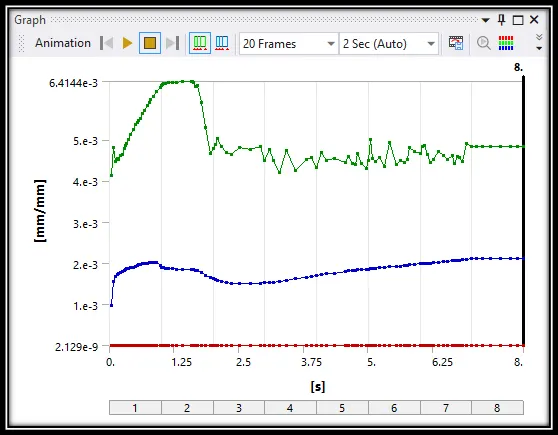

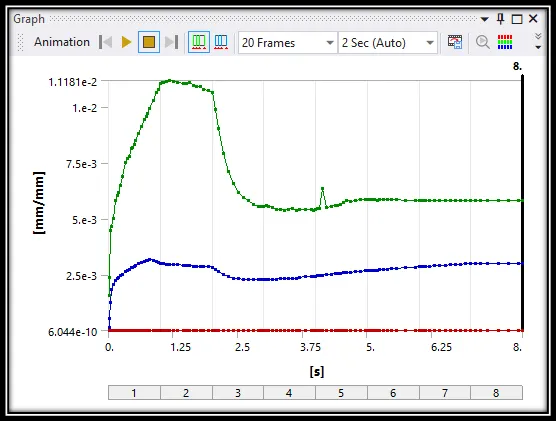

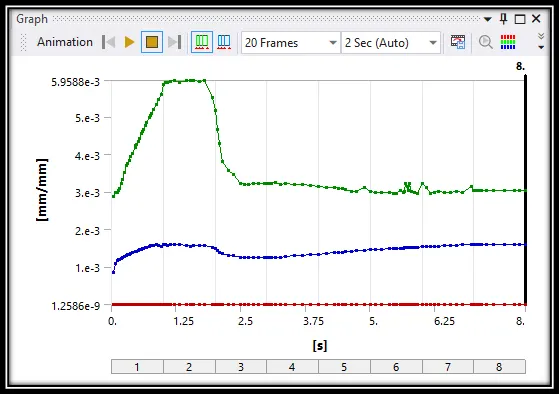

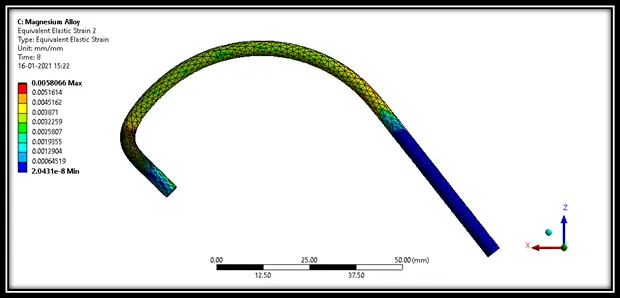

Equivalent Elastic Strain:
|
