WEEK 4 = PIN UNIT DESIGN CHALLENGE

AIM = Design Fixed pin unit and Retractable pin unit with Pins, Risers, Blade, Cylinder and Block. Write a detailed report describing the process and attatc relevant images.

DESCRIPTION

• TYPES OF PIN UNITS:

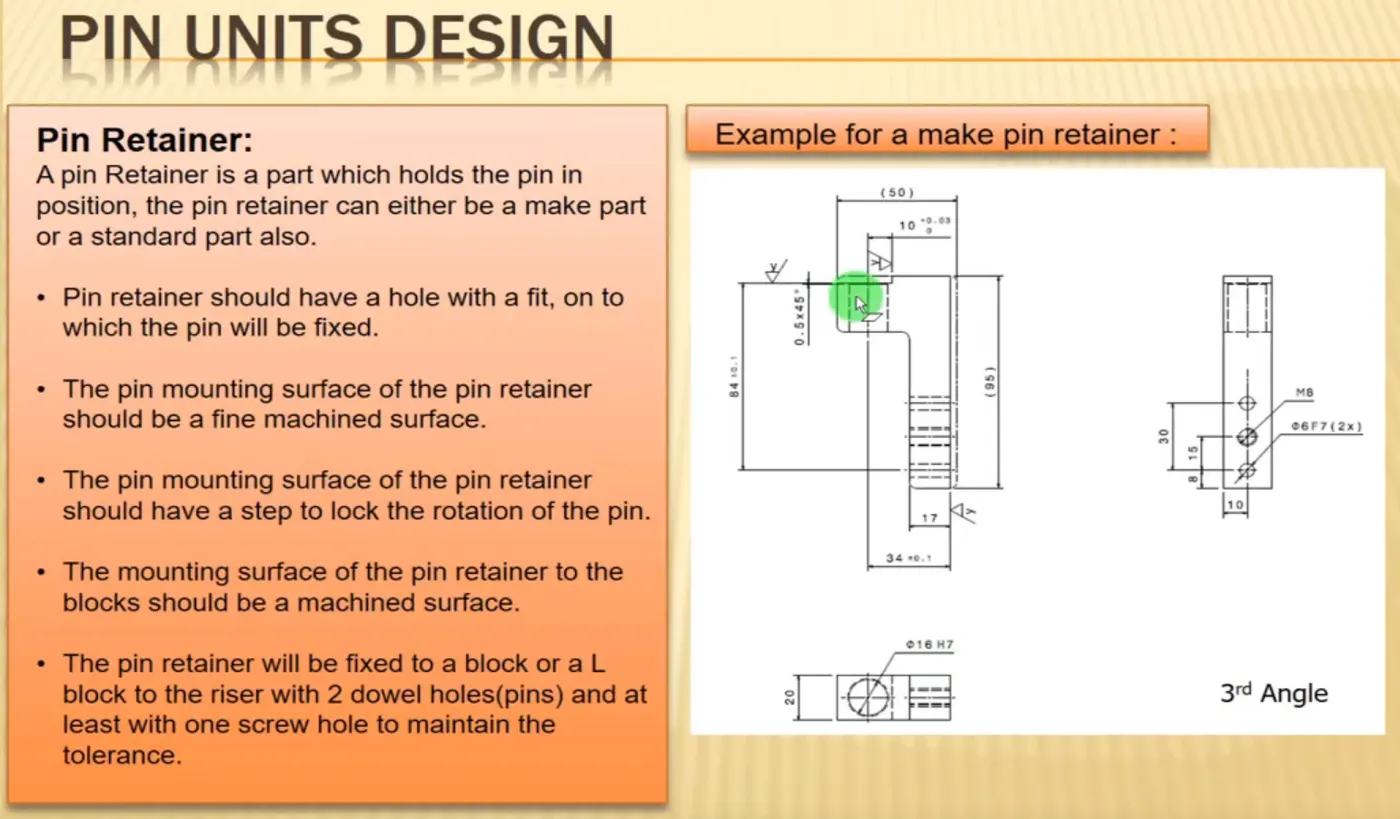

  • Fixed pin unit- Pin is fixed by means of a pin retainer & riser.

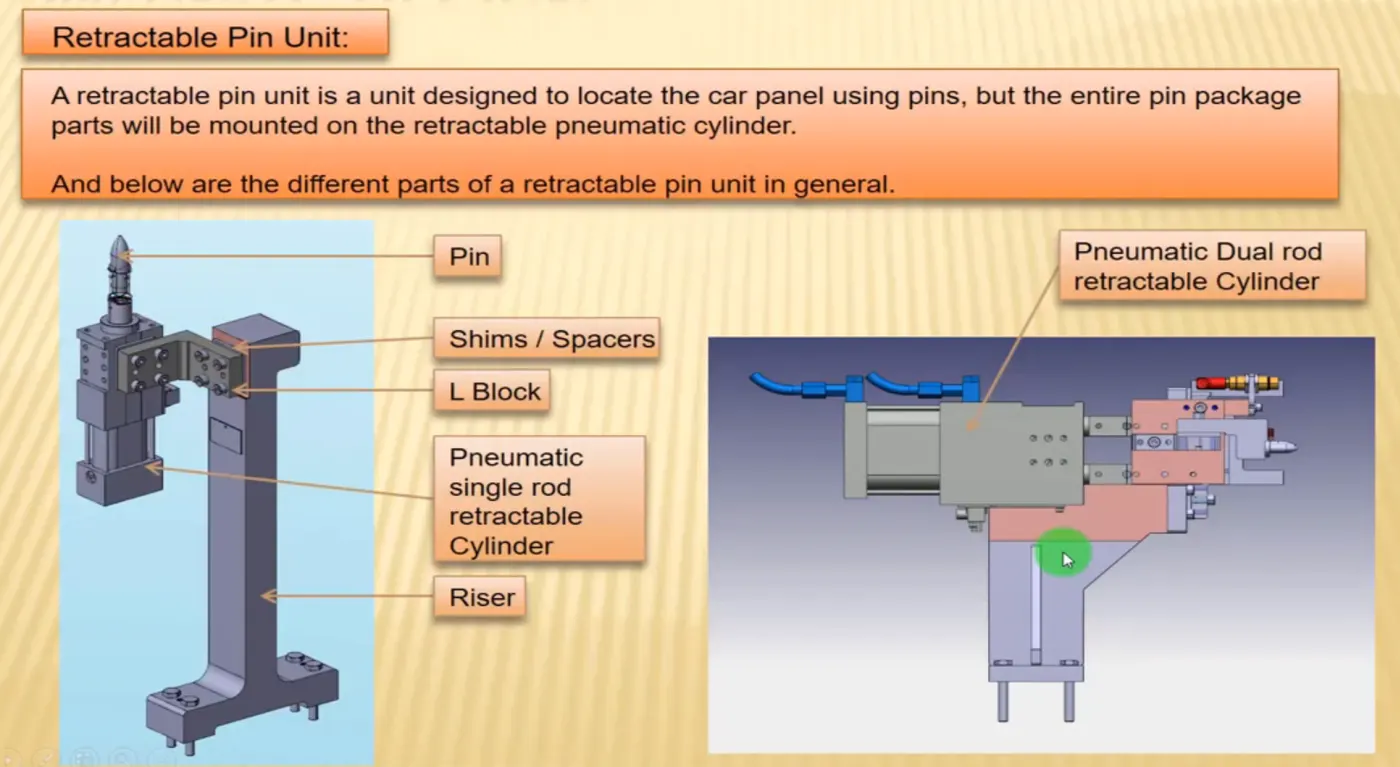

  • Retractable pin unit- Not been fixed, there is the provision of moving of pin in the up-down direction.
• FORMULA & CALCULATION:
  • Length of the screw = [1.5 X (std. hole size)] + {distance between the surface of the part to the first surface of the other part}
• PURPOSE OF PIN UNIT:
  • As by the 3-2-1 locating principle, the introduction of two pins helps to arrest the 6 degrees of freedom (4 axial & 2 radial movements) whereas the other 6 degrees of freedom are arrested by introducing a minimum of three supports.
  • Typically, the locating pins are used to locate a body part in a position sufficiently accurate to execute a welding process. The body part is constrained by a set of appropriately locating pin so total constraint by locating pin should be fully constrained at all times to prevent any movement.

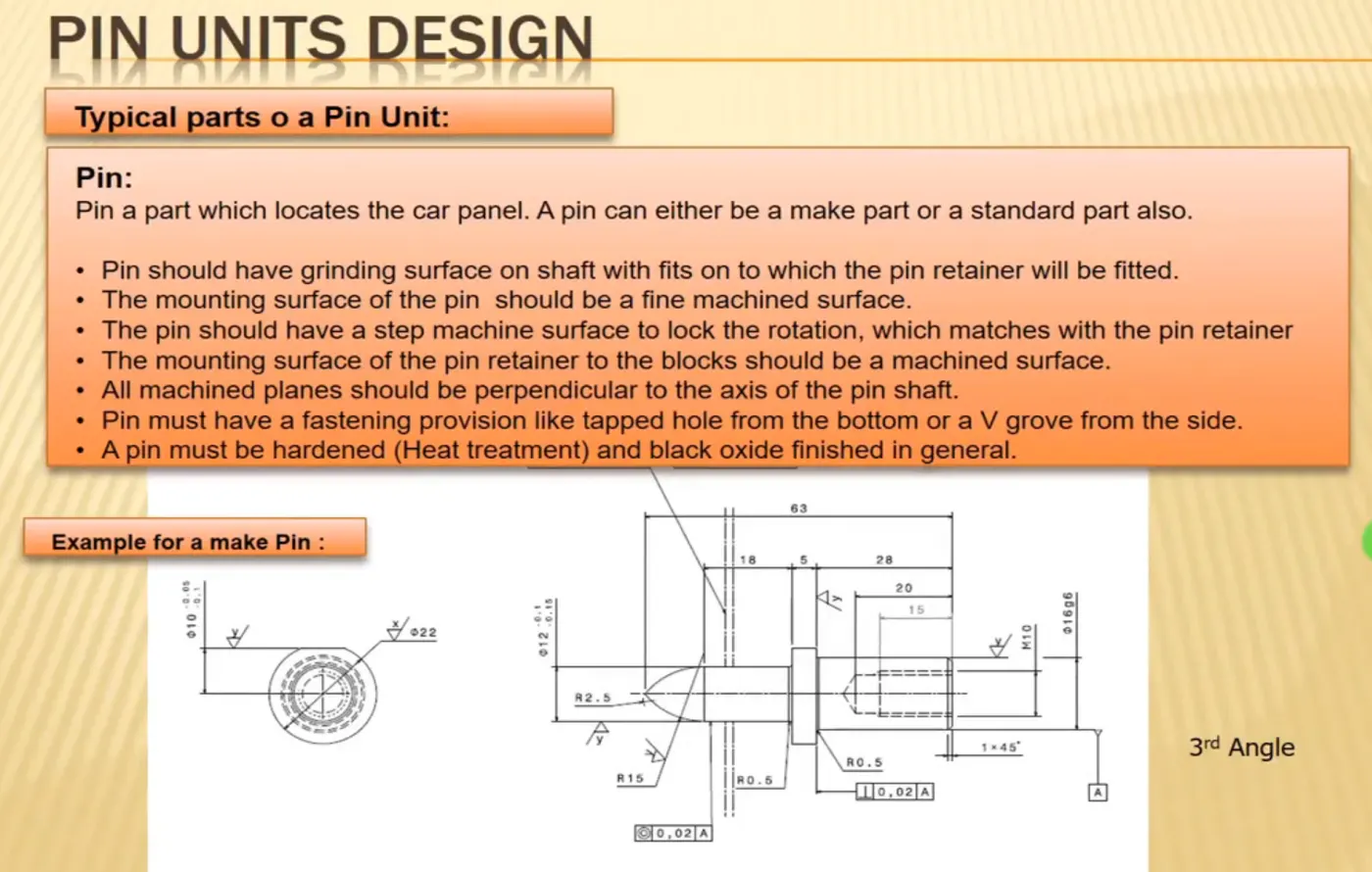

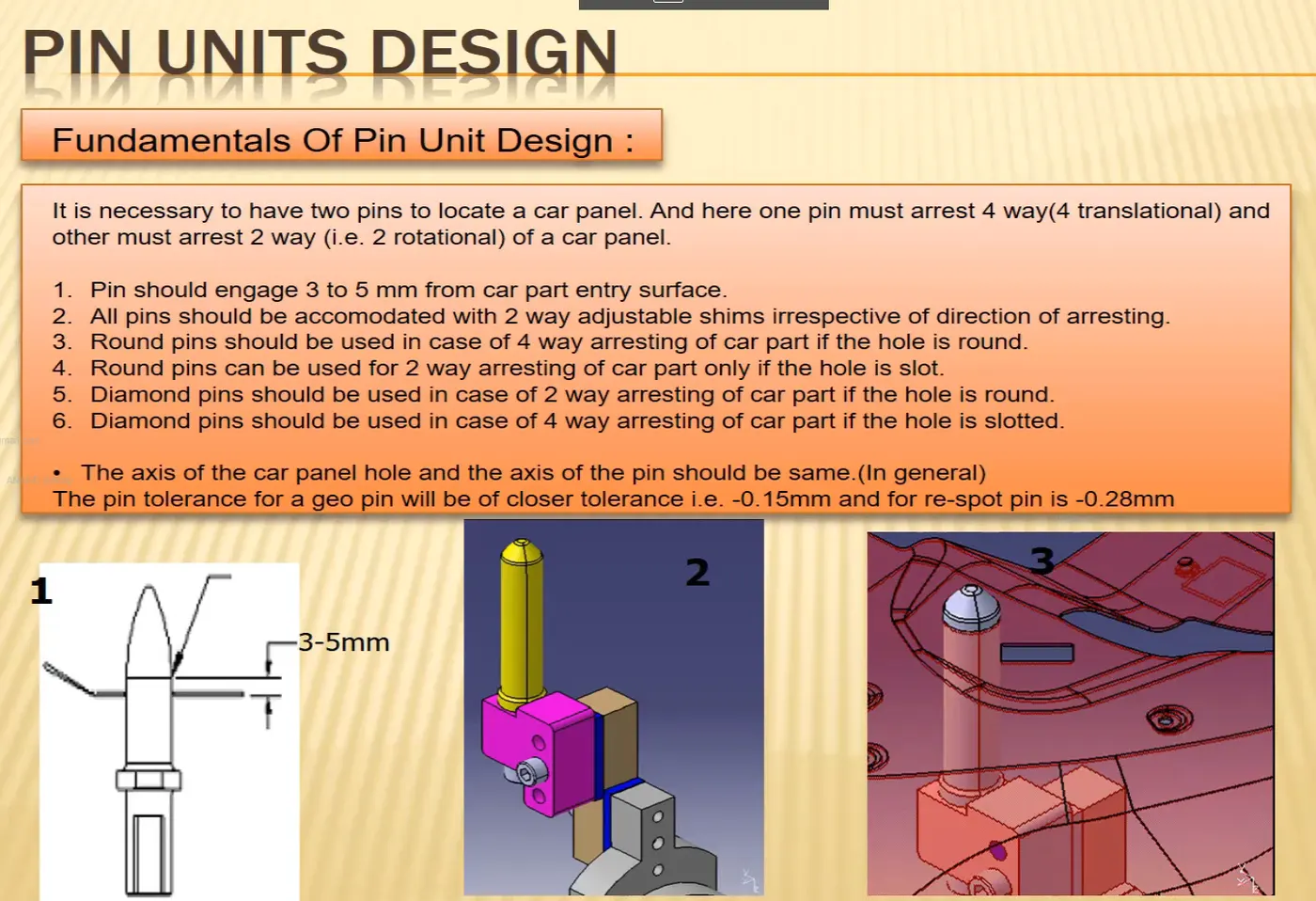

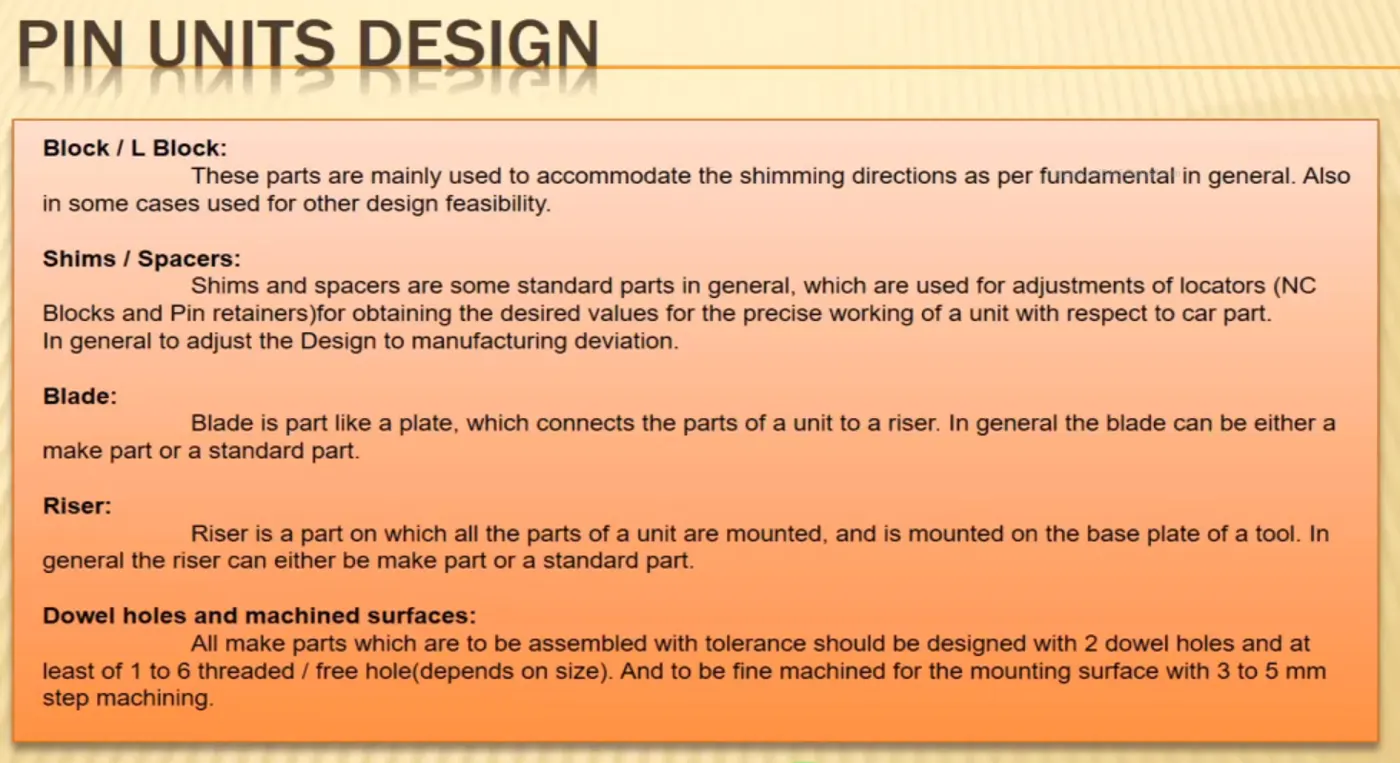

• FUNDAMENTALS OF PIN UNIT DESIGN:

REPORT

• All the parts except the boughout ones such as fixture base, cylinders are being designed according to industrial standards in CATIA V5.
• All the parts are properly constrained and aligned needfully.
• The product file is named as with refrence to the video as P001_Z01_ST010_00_00 and other products are alined acccording to the same procedure as followed.
• Single and double retractable cylinders are used and inserted in the hardware product file.
• Proper Tree structure is followed as with giving proper representations to it.
• Needed images and part files are attatched below for further reference.

• ***CAD Drawing of standard screws are not been available to me, so its not been attatched and all the sides and notations are aligned as good as possible.***

IMAGES

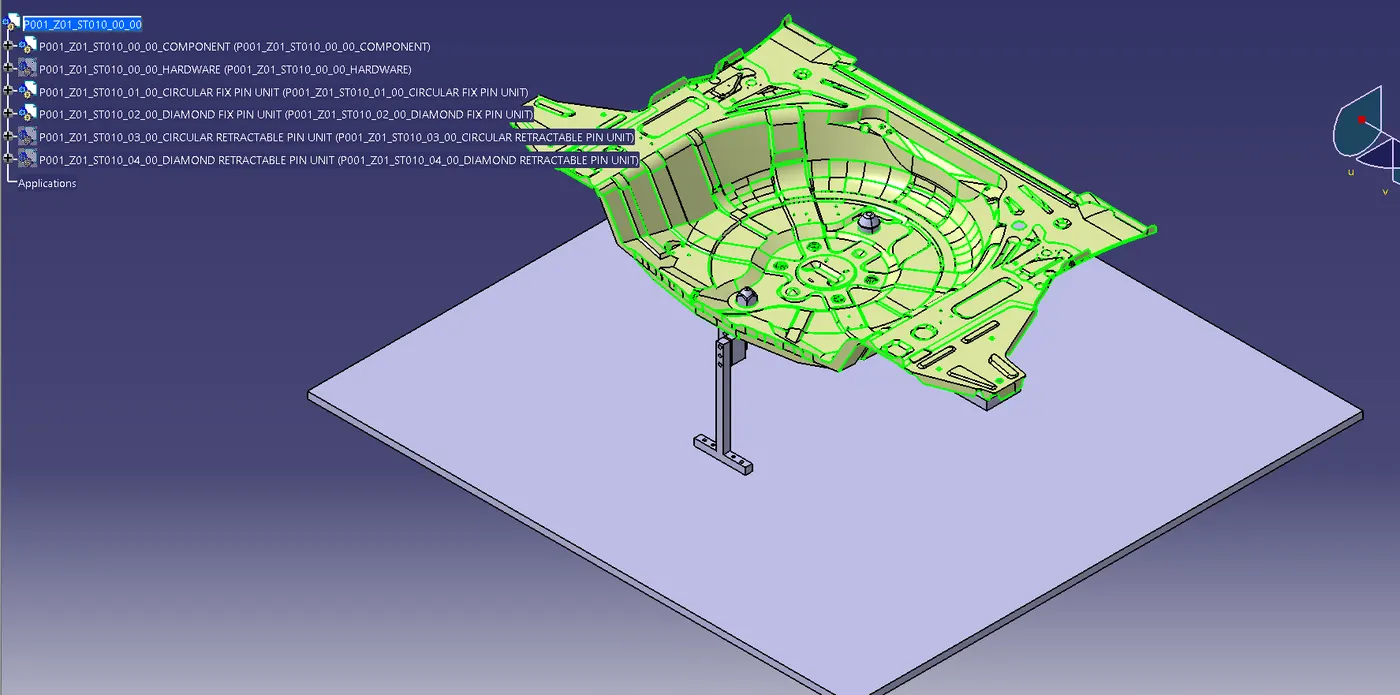

• Circular and Diamond Pin units in fixture base.

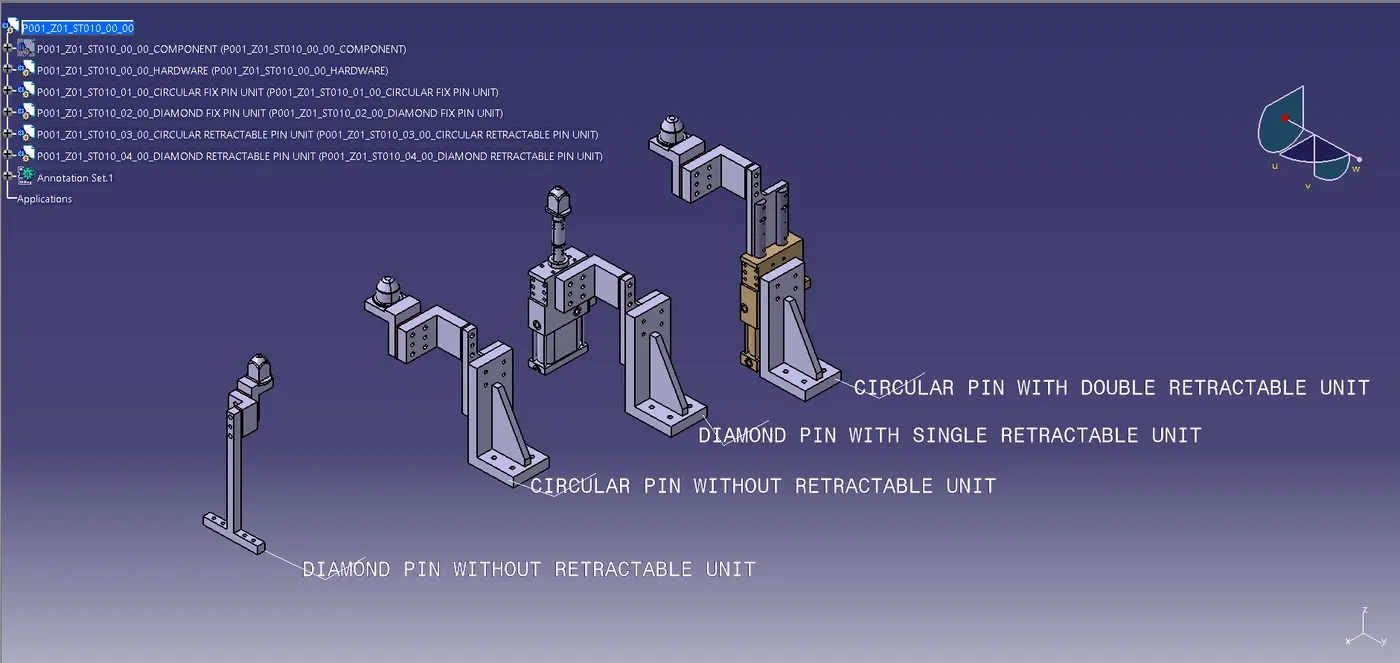

• Retractable and Non-Retractablae Pin Units

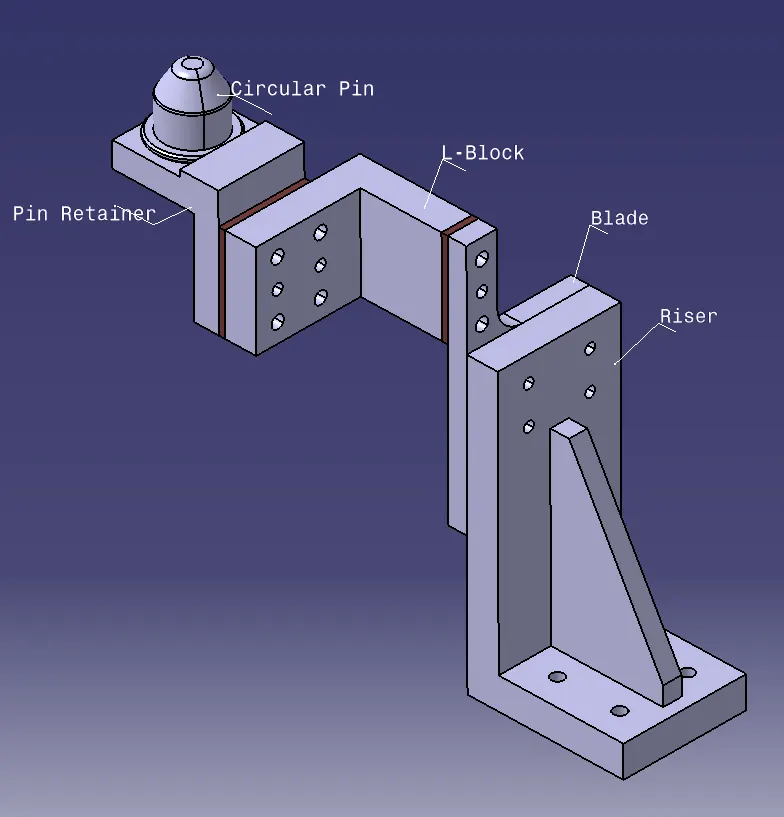

• Circular Pin without retractable unit

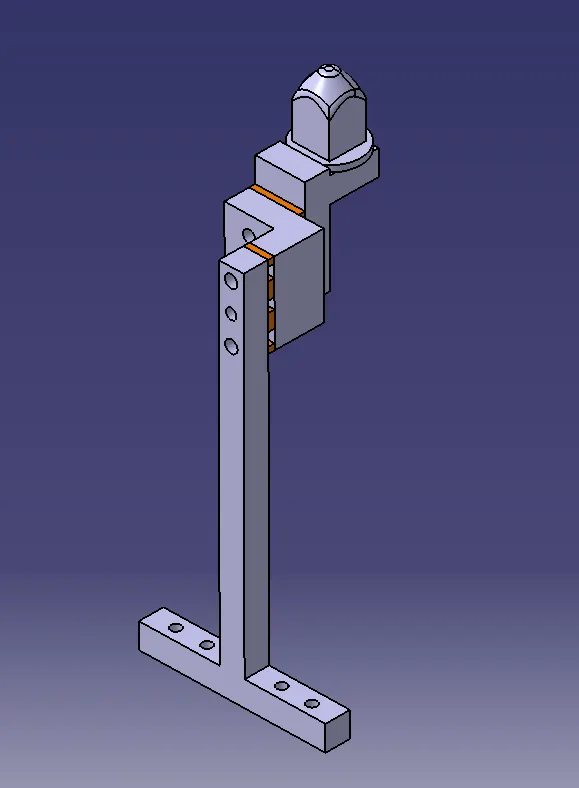

• Diamond Pin without retractable unit

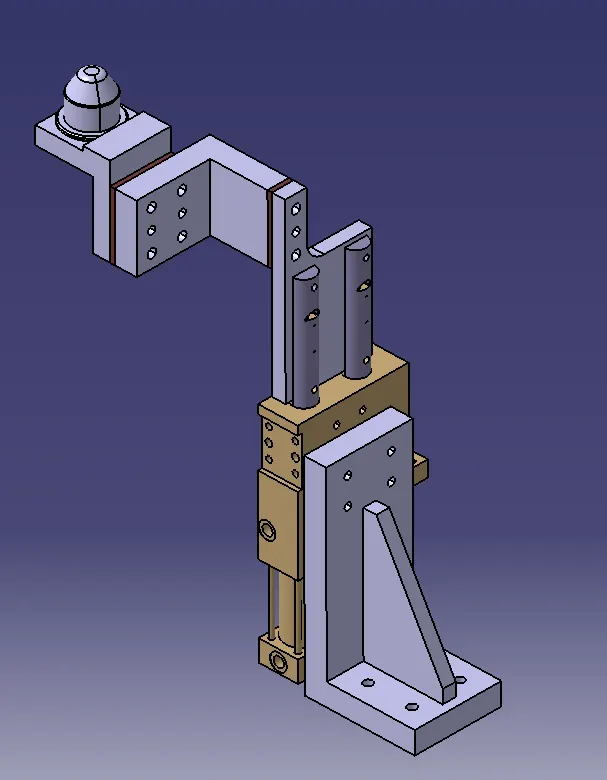

• Circular Pin with double retractable unit

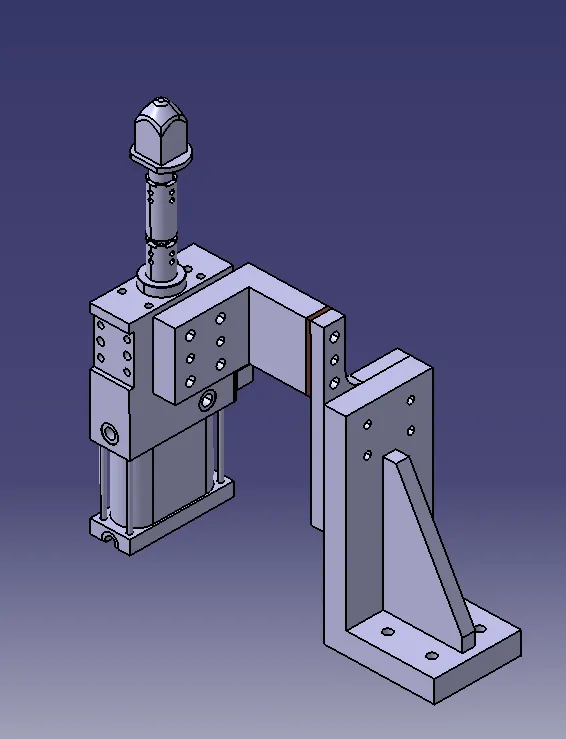

• Diamond Pin with single retractable unit
