Week 4 - Genetic Algorithm

Aim: To write MATLAB code to optimise the stalagmite function and find the global maxima of the function.

Theory

Optimization is a process of finding desirable solution of a given problem which leads to the best performance under the given constraints. For example, optimization can be done in case of aero plane for its designing to reduce the drag force and to maximize the lift force for all angles of flight. In short for a given input, how desirable output can be achieved by using optimization. For all possible input’s outputs are analyzed and optimum output is selected.

Genetic algorithm (GA) is search-based optimization technique based on the principles of Genetics and natural selection. It is used to find optimum solution of complicated problem, which otherwise take very long time to solve. Whatever solutions are available, they are combined or modified to get better and better solutions. It uses techniques such as selection, mutation, inheritance, and recombination to solve problem. In genetic algorithm group of individuals is created randomly from given population. In GA population represents all possible solutions that given problem can have.

Advantages of GA

• Faster and more efficient method compared to other methods available
• It gives all possible solutions or outputs for given inputs
• It can be used to find out solution of complicated problem which otherwise takes very long time to solve.
• Useful when possible no. of solutions is very large.

Basic steps in genetic algorithm

• Start with initial population
• Selection of parent candidate’s solutions for mating.
• Crossover and mutations are applied to generate new candidate solutions.
• Determination of fitness of new candidate solution.
• Replacement of existing solution candidates with better solutions got in previous step.
• Repetition of above process till optimum solution is got.

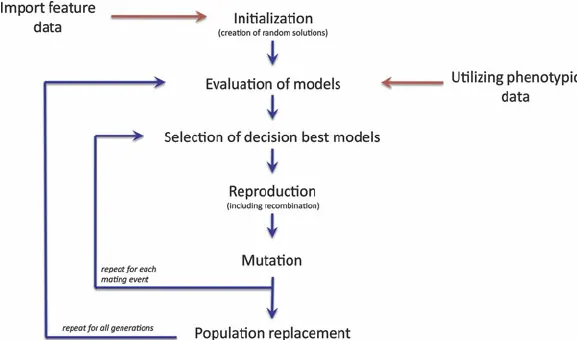

Figure: Steps involve in GA

Genetic algorithm syntax in MATLAB

ga(@stalagmite_fun,2)

Above is the syntax to determine minimum value of a function using MATLAB. Here ‘GA’ represents genetic algorithm, stalagmite_fun is the function name and 2 represents no. of varaibales.

In general it is of the form “x = ga(fun,nvars)”.

x = ga(fun,nvars,A, b,Aeq,beq,lb,ub)

above syntax defines or specifies upper and lower bounds of a variable x so that solution will be such that x lies between upper (ub) and lower bound (lb)

Code explanation:

1. Initially function ‘stalagmite_fun’ is created. Input to this function is array ‘x’ and ‘y’. Output of this function is stored in variable f.

   function f = stalagmite_fun(input)
   x = input(1);
   y = input(2);
   f1x = (sin(((5.1*pi).*x)+0.5)).^6;
   f1y = (sin(((5.1*pi).*y)+0.5)).^6;

   f2x = exp((((x-0.0667).^2).*(-4*log(2)))./0.64);
   f2y = exp((((y-0.0667).^2).*(-4*log(2)))./0.64);

   f = -f1x*f1y*f2x*f2y;

   end​

2. Input to arrays ‘x’ and ‘y’ are taken by using linspace command.

   clear all
   close all
   clc

   %Defining search space
   x = linspace(0, 0.6, 150);
   y = linspace(0, 0.6, 150);

3. Variable num_case is defined for no. of iterations.

   num_cases = 50;​

4. 2D array is created using arrays x and y by meshgrid command.

   % creating 2D mesh
   [xx, yy] = meshgrid(x,y);

5. Two for loops are used to calculate variables ‘input(1)’ and ‘input(2)’. Input(1) and input(2) variables are calculated from 2D array created earlier using ‘meshgrid’ command for corresponding values of counter variable I and j.

   for i=1:length(xx)
       for j= 1:length(yy)
           input(1)=xx(i,j);
           input(2)=yy(i,j);
           f(i,j)=stalagmite_fun(input);
       end
   end
   ​

6. For loop is run from i=1 to num_cases. In the loop function ‘stalagmite_fun’ is called. ‘fopt’ is array to store optimum value of function for all values of x and y. inputs is an array to store optimum value of function. xopt(i) and yopt(i)is array to store the values of x and y selected by GA. ‘’

   tic
   for i = 1:num_cases
       [inputs, fopt(i)] =  ga(@stalagmite_fun,2);
       xopt(i) = inputs(1);
       yopt(i) = inputs(2);
   end

   study1_time = toc​

7. Tic-Toc command is used to measure time required to run the for loop.
8. Maxima of function is found.

   fopt = -fopt
   f = -f​

9. Figure is created using ‘figure’ command. Subplot command is used to create 2 plots in same figure window. ‘surfc’ command is uded to plot surface plot of a stalagmite function stored in array ‘f’.’holdon’ command is used to retain both the plots. shading interp command is used to get smooth surface plot. By using plot command 3D surface plot is created. Title is given to the plot. Also axes are also labelled.

   study1_time = toc
   figure(1)
   subplot(2,1,1)
   hold on
   surfc(x,y,f)
   shading interp
   plot3(xopt, yopt, fopt, 'marker', 'o', 'markersize', 5, 'markerfacecolor', 'r')
   title('unbounded inputs')
   subplot(2,1,2)
   plot(fopt)
   xlabel('Iterations')
   ylabel('functions maxima')​

10. To study statistical behavior of genetic algorithm, upper and lower bounds are mentioned which was not there in previous study. For that for loop is defined from i=1:num_cases with I as a variable. In the loop function ‘stalagmite_fun’ is called. fopt’ is array to store optimum value of function for all values of x and y. inputs is an array to store optimum value of function. xopt(i) and yopt(i)is array to store the values of x and y selected by GA.

    for i = 1:num_cases
         [inputs, fopt(i)] =  ga(@stalagmite_fun,2,[],[],[],[],[0:0],[1:1]);
         xopt(i) = inputs(1);
         yopt(i) = inputs(2);
    end​

11. To study statistical behavior of genetic algorithm, upper and lower bounds are mentioned which was not there in previous study. For that for loop is defined from i=1:num_cases with I as a variable. In the loop function ‘stalagmite_fun’ is called. fopt’ is array to store optimum value of function for all values of x and y. inputs is an array to store optimum value of function. xopt(i) and yopt(i)is array to store the values of x and y selected by GA. Maxima of function is found. Tic-Toc command is used to measure time required to run the for loop.

    % study 2 - statistical behaviuor - with upper and lower bounds
    tic
    for i = 1:num_cases
         [inputs, fopt(i)] =  ga(@stalagmite_fun,2,[],[],[],[],[0:0],[1:1]);
         xopt(i) = inputs(1);
         yopt(i) = inputs(2);
    end

    fopt = -fopt
    f = -f​

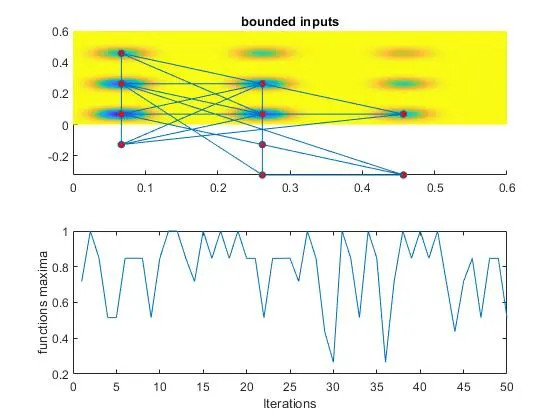

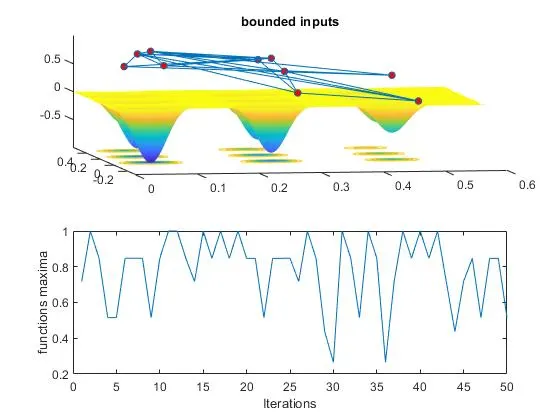

12. Procedure mentioned in point 9 is repeated.

    figure(2)
    subplot(2,1,1)
    hold on
    surfc(x,y,f)
    shading interp
    plot3(xopt, yopt, fopt, 'marker', 'o', 'markersize', 5, 'markerfacecolor', 'r')
    title('bounded inputs')
    subplot(2,1,2)
    plot(fopt)
    xlabel('Iterations')
    ylabel('functions maxima')
    ​

13. Statistical behavior is studied by specifying population size. ‘optimoptions’ function is used to return default options to ga solver. Population size is defined.

    %Stydy 3 increasing GA iteration
    options = optimoptions('ga');
    options = optimoptions (options, 'PopulationSize', 500);​

14. For loop is run from i=1 to num_cases. In the loop function ‘stalagmite_fun’ is called. fopt’ is array to store optimum value of function for all values of x and y. inputs is an array to store optimum value of function. xopt(i) and yopt(i)is array to store the values of x and y selected by GA. Tic-toc command is used to measure time required to run for loop. Maxima of function is found.

15. tic
    for i = 1:num_cases
        [inputs, fopt(i)] =  ga(@stalagmite_fun,2,[],[],[],[],[0:0],[1:1], [],[],options);
        xopt(i) = inputs(1);
        yopt(i) = inputs(2);
    end

    fopt = -fopt
    f = -f

    study3_time = toc​

16. Then procedure mentioned in point 9 is repeated.

Complete code

clear all
close all
clc

%Defining search space
x = linspace(0, 0.6, 150);
y = linspace(0, 0.6, 150);
num_cases = 50;

% creating 2D mesh
[xx, yy] = meshgrid(x,y);

for i=1:length(xx)
    for j= 1:length(yy)
        input(1)=xx(i,j);
        input(2)=yy(i,j);
        f(i,j)=stalagmite_fun(input);
    end
end


% study 1 - statistical behaviour of genetic algorithm
tic
for i = 1:num_cases
    [inputs, fopt(i)] =  ga(@stalagmite_fun,2);
    xopt(i) = inputs(1);
    yopt(i) = inputs(2);
end

fopt = -fopt
f = -f
study1_time = toc
figure(1)
subplot(2,1,1)
hold on
surfc(x,y,f)
shading interp
plot3(xopt, yopt, fopt, 'marker', 'o', 'markersize', 5, 'markerfacecolor', 'r')
title('unbounded inputs')
subplot(2,1,2)
plot(fopt)
xlabel('Iterations')
ylabel('functions maxima')


% study 2 - statistical behaviuor - with upper and lower bounds
tic
for i = 1:num_cases
     [inputs, fopt(i)] =  ga(@stalagmite_fun,2,[],[],[],[],[0:0],[1:1]);
     xopt(i) = inputs(1);
     yopt(i) = inputs(2);
end

fopt = -fopt
f = -f

figure(2)
subplot(2,1,1)
hold on
surfc(x,y,f)
shading interp
plot3(xopt, yopt, fopt, 'marker', 'o', 'markersize', 5, 'markerfacecolor', 'r')
title('bounded inputs')
subplot(2,1,2)
plot(fopt)
xlabel('Iterations')
ylabel('functions maxima')

%Stydy 3 increasing GA iteration
options = optimoptions('ga');
options = optimoptions (options, 'PopulationSize', 500);
tic
for i = 1:num_cases
    [inputs, fopt(i)] =  ga(@stalagmite_fun,2,[],[],[],[],[0:0],[1:1], [],[],options);
    xopt(i) = inputs(1);
    yopt(i) = inputs(2);
end

fopt = -fopt
f = -f

study3_time = toc
figure(3)
subplot(2,1,1)
hold on
surfc(x,y,f)
shading interp
plot3(xopt, yopt, fopt, 'marker', 'o', 'markersize', 5, 'markerfacecolor', 'r')
title('Bounded inputs with modified population size')
subplot(2,1,2)
plot(fopt)
xlabel('Iterations')
ylabel('functions maxima')

Results:

Discussion

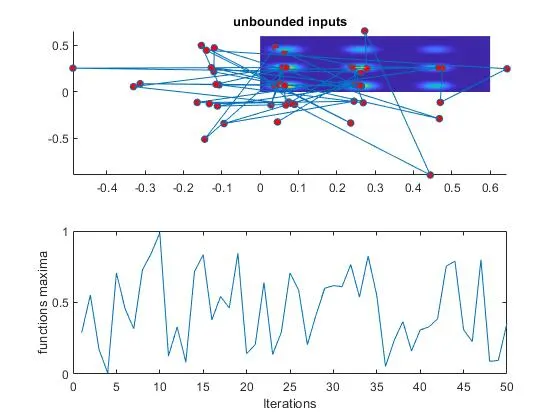

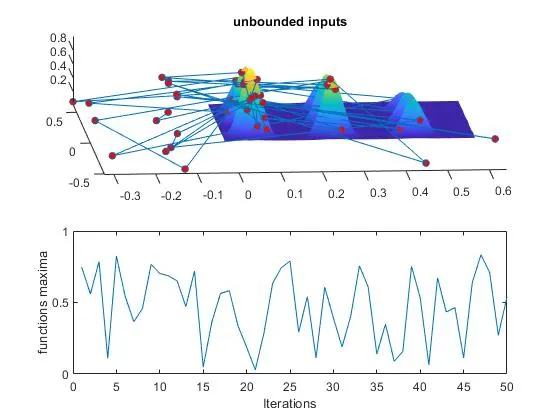

in case of unbounded inputs, the maximum values of function doesnt lies between 0 to 0.6 but is less than 0 and more than 0.6. in case of bounded inputs, the maximum values of function lies between 0 to 0.6. Also in case of bounded inputs the maximum function values is smooth and constant for atleat some iterations. With define population size, maximum function values are constant (1) except for few iterations.

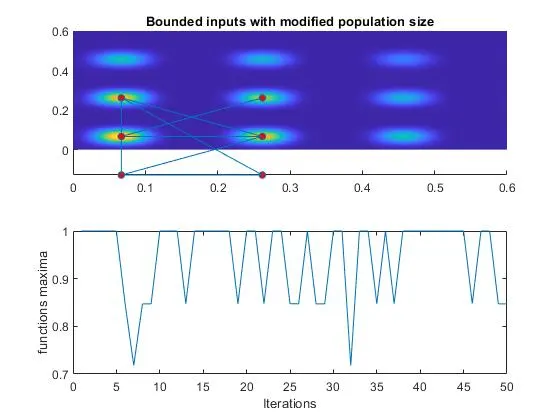

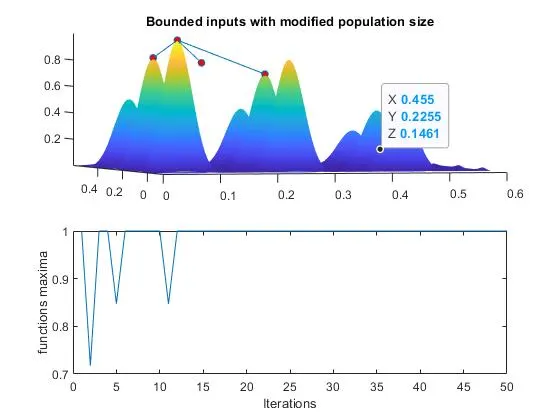

Results for 500 population size

Also as population size increses there is incresed tenedency of function maximum value becomes constant as shown in figure below.

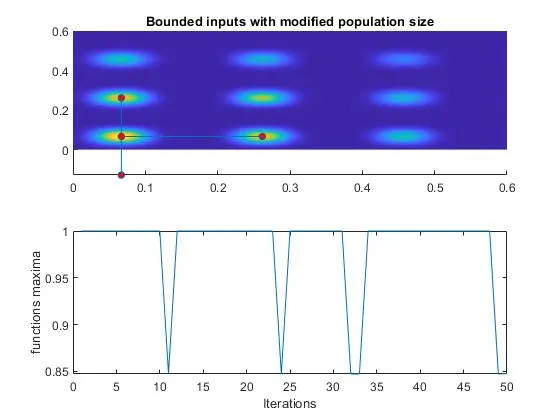

Results for 300 population size
