Week 3 - Solving second order ODEs

Aim: To solve 2^nd order governing ordinary differential equation of a motion of a simple pendulum using MATLAB.

Theory:

A pendulum is nothing, but mass or weight suspended at fixed point (pivot point) by using string of foxed length. If there is no action of external force on pendulum, it remains in equilibrium position. But when it is displaced from its equilibrium position with the application of force, it oscillates at its mean position due to gravity. The time taken to complete one oscillation from left swing to right swing or from right swing to left swing is called as period of pendulum. Period of pendulum is given by,

`T=2π √(L/g)`

Where L is length of the string of pendulum and g is acceleration due to gravity.

Simple pendulum is a type of pendulum in which a mass (bob) is attached at the end of massless string. String is fixed at pivot which is frictionless. Simple pendulum is shown in figure below.

Figure: Simple pendulum

Code explanation:

1. Input of different parameters (damping Coefficient, mass, Acceleration due to gravity and length of the string of pendulum) are taken.

clear all
close all
clc

% Input of variables
b=0.05;
g=9.81;
l=1;
m=1;

2. Initial conditions are defined. At time t=0, angular displacement = 0, angular velocity = 3 rad/sec.

   % Initial condition
   theta_0 = [0;3];​

3. Input for time span or period over which pendulum oscillates is taken.

   % Time points
   t_span = linspace(0,20,500);​

4. Separate program is written by using ‘function’ in MATLAB to calculate dθ`/dt, where `θ`is column vector given by `θ = [θ1; θ2 ].Here θ1 represents angular displacement and θ2 represents angular velocity. After doing so we have values of dθ1/dt` and dθ2/dt.

   function [dtheta_dt] = ode_func(t, theta,b,g,l,m)
   theta1 = theta(1)
   theta2 = theta(2)
   dtheta1_dt = theta2
   dtheta2_dt = -(b/m)*theta2 - (g/l)*sin(theta1)
   dtheta_dt = [dtheta1_dt; dtheta2_dt];
   end

5. Now to calculate θ1 and θ2 ‘ode 45’ command is used in MATLAB. By using ode45’ command, dθ1/dt` and dθ2/dt is solved to get angular displacement and angular velocity. Here 'results' is an array with 2 columns and rows equal to number of time values (here 500).

   % To solve ODE
   [t, results] = ode45(@(t, theta) ode_func(t, theta, b,g,l,m), t_span, theta_0);​

6. Pivot point of pendulum is defined (x0, y0) = (0, 0) and plotted on x-y axis

   % To defined pivot point of pendulum and plot it.
   x0=0;
   y0=0;
   plot (x0, y0,'marker', 'o')

7. To extract the first column of a result and assigned it to 'y'

   % To extract the first column of a result and assigned it to 'y'
   y =  results(:,1);​

8. To create images for each time value and stored it in array ‘M’.

• For loop is used from i=1: length(t_span) where t_span is no of times the angular displacement and angular velocity is to be calculated from time t = 0 to 20.
• In the program ‘y’ denotes the angular displacement. A new variable Y1 is created to access individual value at each time from array ‘y’.
• x and y coordinate of mass of a pendulum is calculated for each time as x1 and y1
• Line is created from (x0,y0) to (X1,y1) which represents string of a pendulum.
• Bob or mass of a pendulum is created by using ‘marker’ command with suitable size of marker and green color.
• Tittle is given to image with'title' command.
• 'hold off' command is used to erase image from privious time step.
• Images are captured for each time step and stored in array ‘M’.

  ct=1;
  for i=1:length(t_span)
      Y1=y(i)
      x1 = l*sin(Y1);
      y1 = -l*cos(Y1);
      plot([x0 x1],[y0 y1],'linewidth',3,'marker','o')
      hold on
      plot(x1, y1, 'marker','o', 'color','g','markersize',30, 'markerfacecolor', 'g')
      hold off
      title({'Simple harmonic motion'; 'of a pendulum'}, 'color','r')
      axis([-1 1 -2 0])
      pause(0.01)
      M(ct)= getframe(gcf)
      ct=ct+1;
  end​

  9. Anmation is created using 'movie(M)' command

  %  To create animation of S.H.M. of simple pendulum
  movie(M)
  videofile = VideoWriter('pendulum.avi', 'Uncompressed AVI');
  open(videofile)
  writeVideo(videofile,M)
  close(videofile)​

Complete code (without error)

clear all
close all
clc

% Input of variables
b=0.05;
g=9.81;
l=1;
m=1;

% Initial condition
theta_0 = [0;3];

% Time points
t_span = linspace(0,20,500);

% To solve ODE
[t, results] = ode45(@(t, theta) ode_func(t, theta, b,g,l,m), t_span, theta_0);

% To defined pivot point of pendulum and plot it.
x0=0;
y0=0;
plot (x0, y0,'marker', 'o')

% To extract the first column of a result and assigned it to 'y'
y =  results(:,1);

% To create images for each time value and stored it in array ‘M’.
ct=1;
for i=1:length(t_span)
    Y1=y(i)
    x1 = l*sin(Y1);
    y1 = -l*cos(Y1);
    plot([x0 x1],[y0 y1],'linewidth',3,'marker','o')
    hold on
    plot(x1, y1, 'marker','o', 'color','g','markersize',30, 'markerfacecolor', 'g')
    hold off
    title({'Simple harmonic motion'; 'of a pendulum'}, 'color','r')
    axis([-1 1 -2 0])
    pause(0.01)
    M(ct)= getframe(gcf)
    ct=ct+1;
end

%  To create animation of S.H.M. of simple pendulum
movie(M)
videofile = VideoWriter('pendulum.avi', 'Uncompressed AVI');
open(videofile)
writeVideo(videofile,M)
close(videofile)

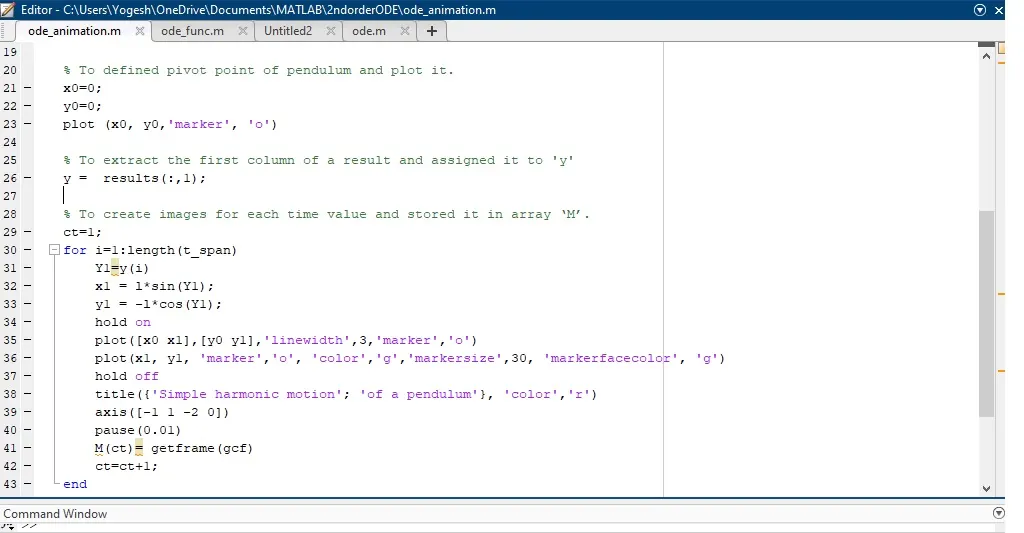

Errors face while coding

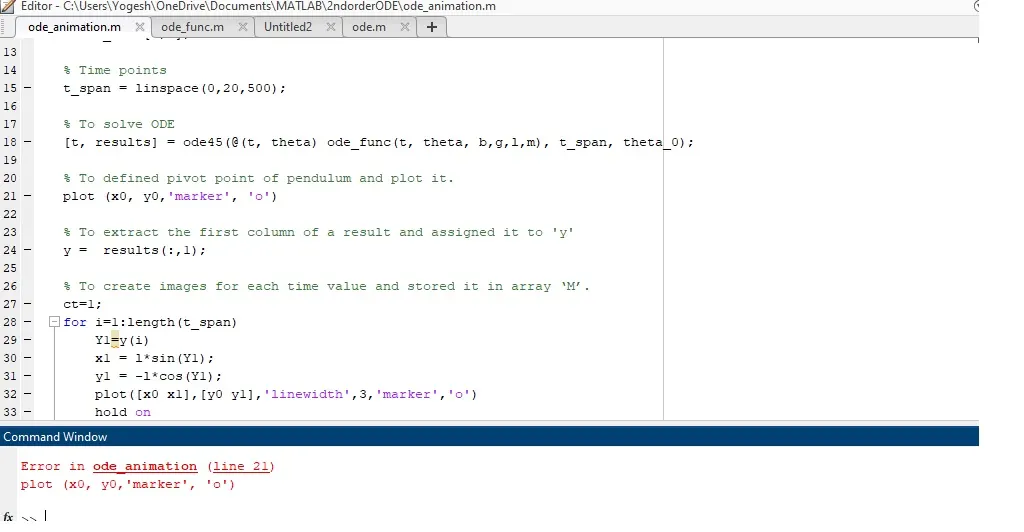

1. pivot point (x0,y0) is not defined

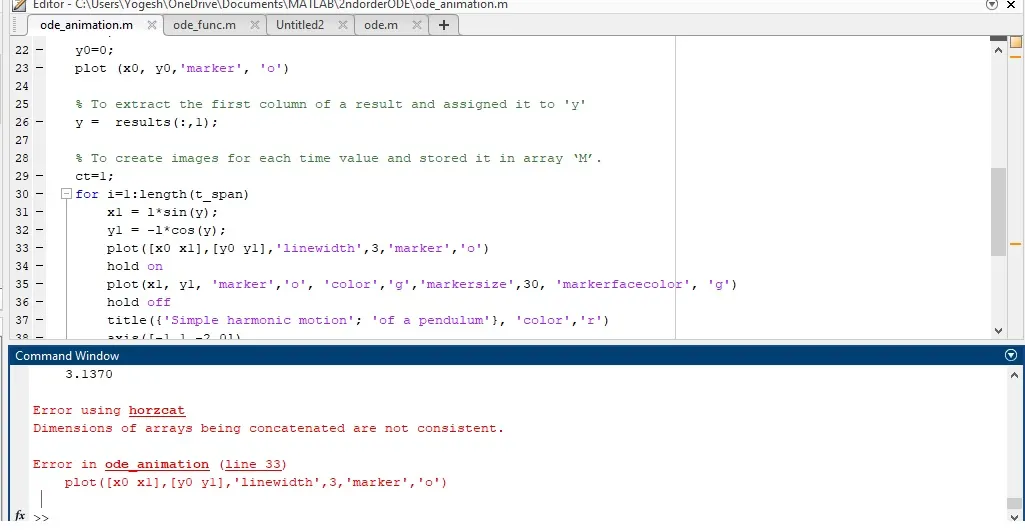

2. Varable 'Y1' is not defined to access indivisual values of y of each time step

3. Improper use of 'hold off' command to erase plot of privious time step

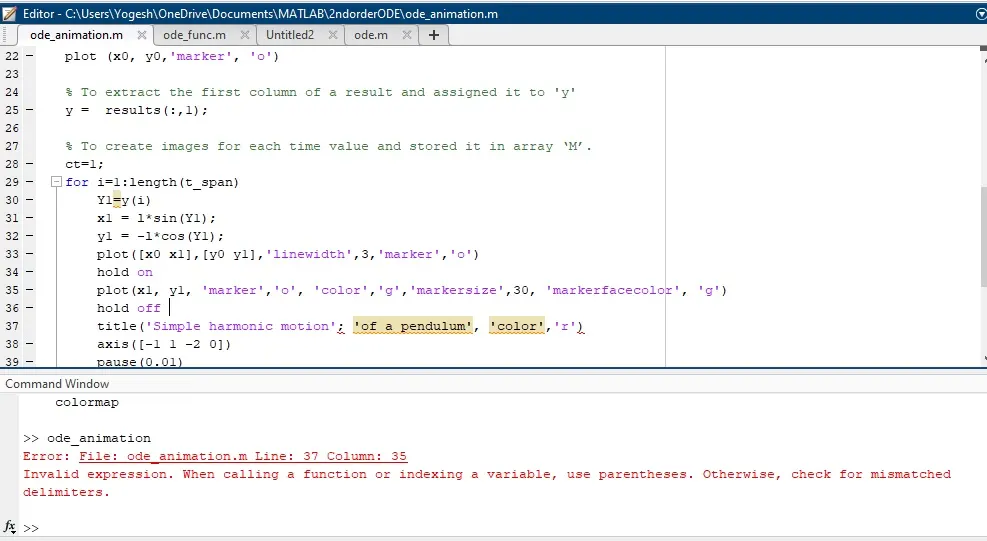

4. Missing of curly bracket in 'title' command
