CRASH BOX SIMULATION USING LS-DYNA
Aim: To perform a crash test of a crash box using Ls-Dyna.

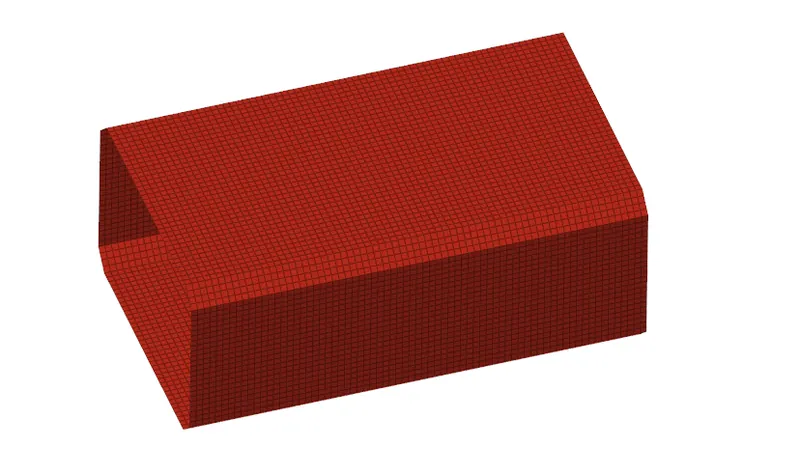

Given Model:
Procedure:
Creating material:

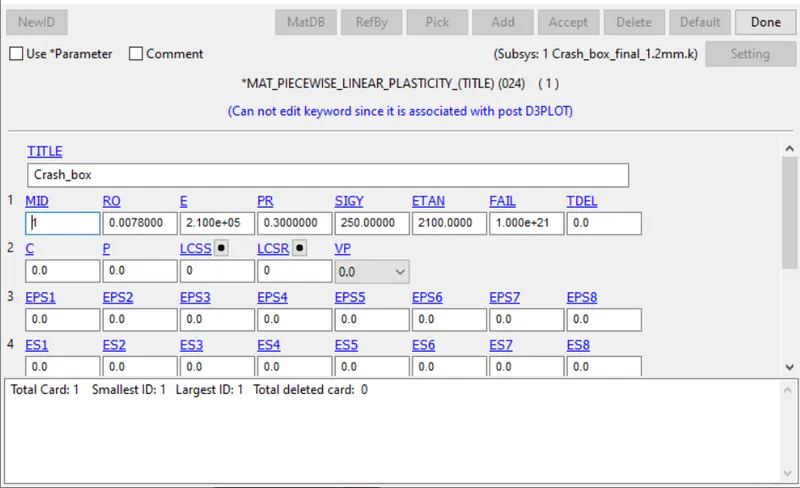

- To create a material card, open keyword manager >> material >> Mat 024. Enter the values as shown below and change the title to crash_box.
Creating sections:

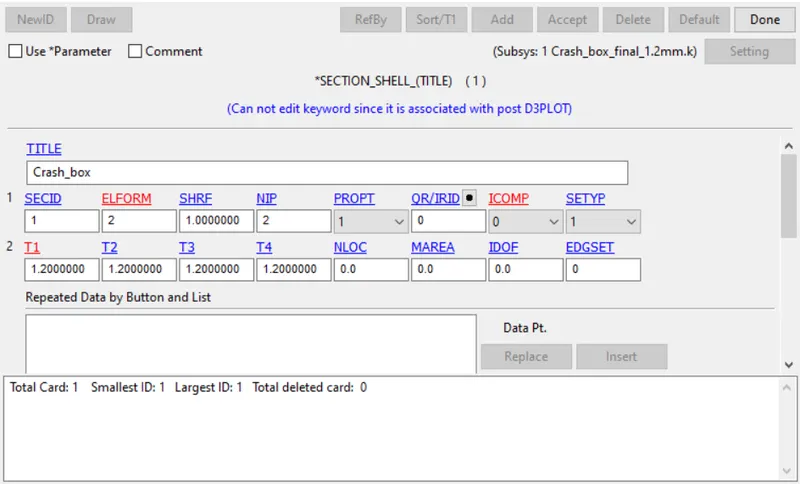

- Shell section card is created and assigned to the Crash box.
Defining part:

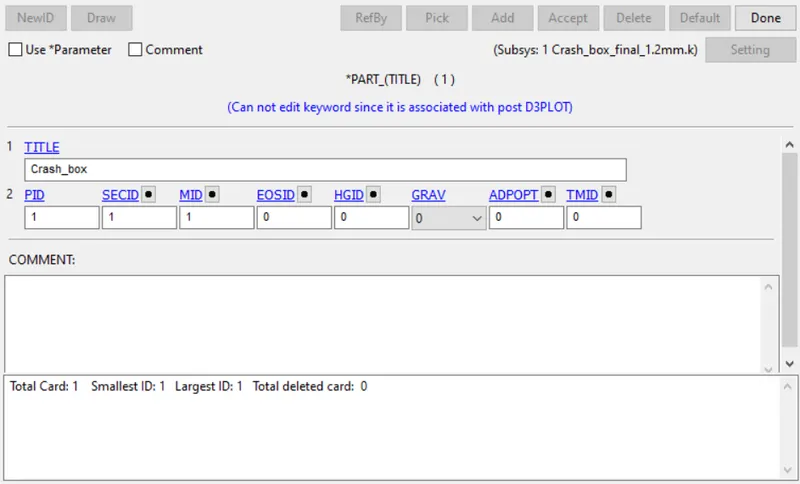

- Shell id and Material id are assigned by creating a part.
Creating a Rigidwall:

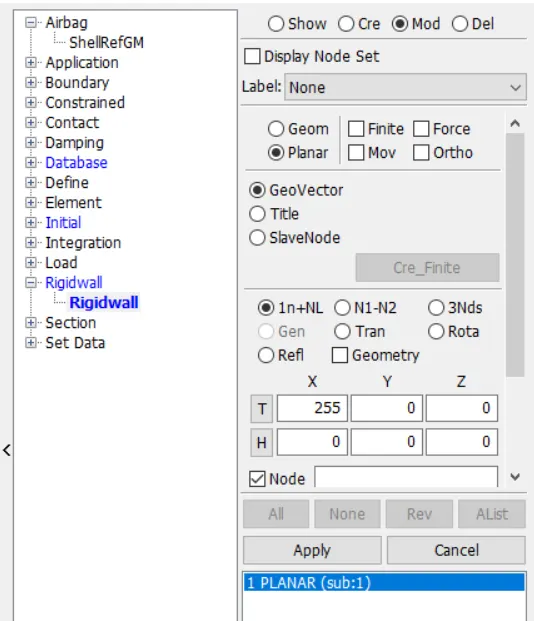

- To create a rigid wall, go to create entity >> assign the values shown below.
Defining a contact:

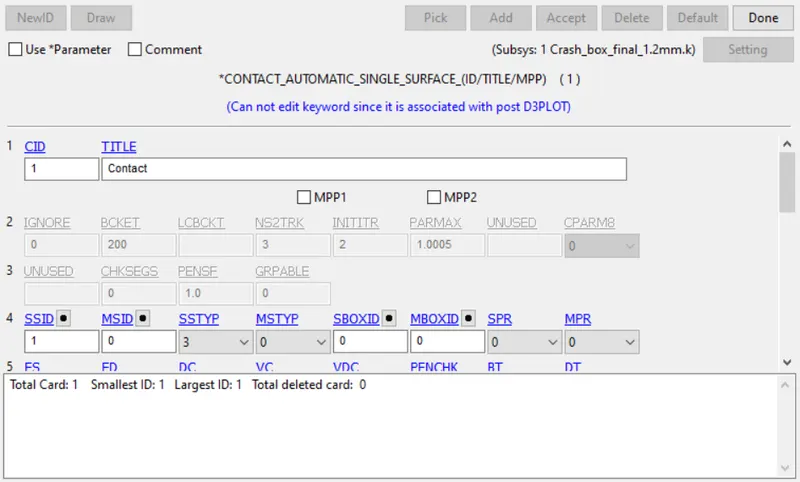

- A contact - Automatic single surface contact is defined between the crash box and rigid wall.
Defining velocity:

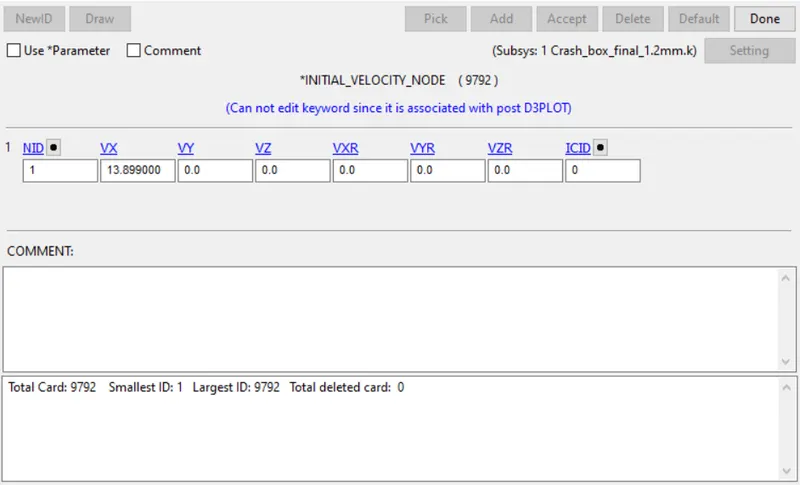

- Velocity of 13.9 mm/ms in x direction is assigned to the crash box.
Defining Runtime:

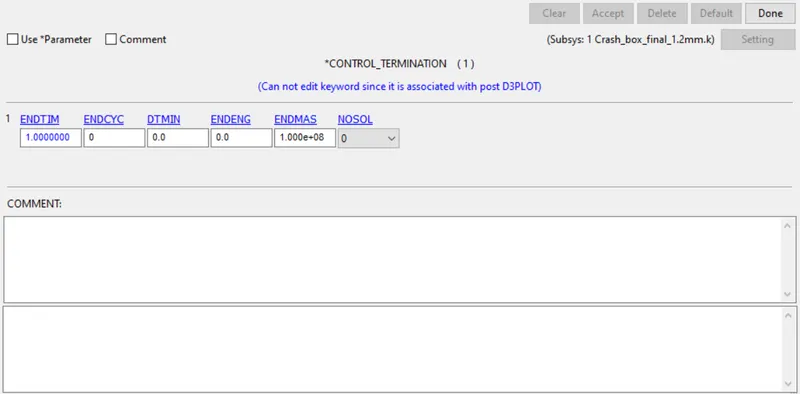

- Control termination card is created to define the end time of the simulation.
Output requests:

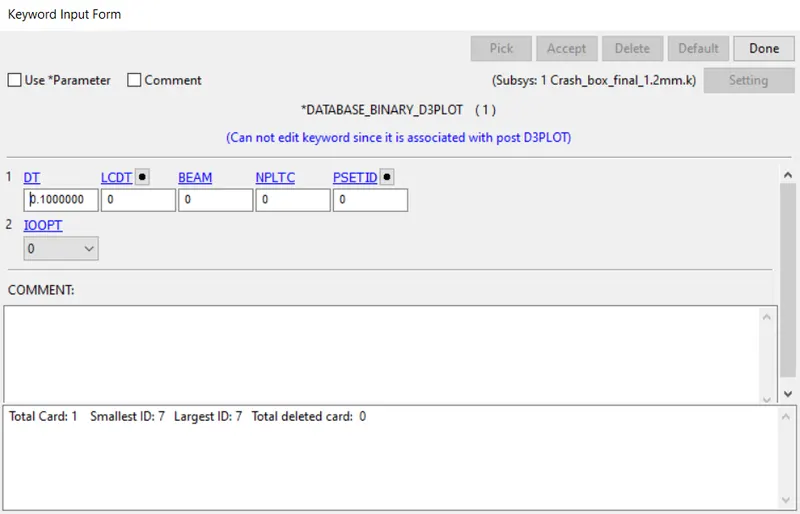

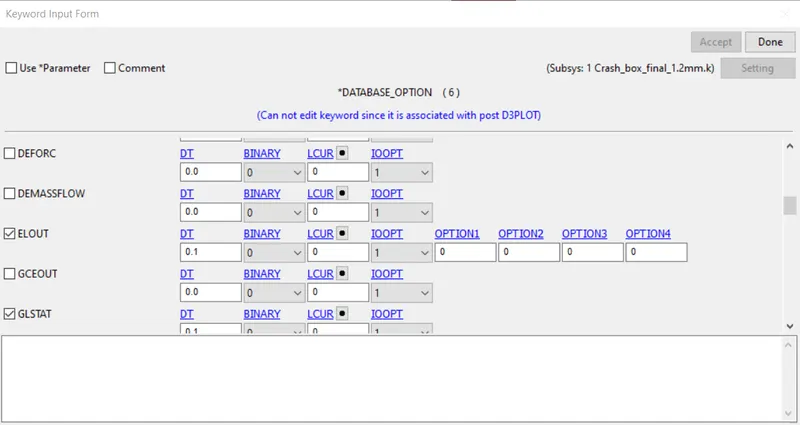

- To request output, Binary 3Dplot and ASCII card are created.
Results:
- To check the simulation results, open Ls- Prepost >> binary plot >> d3plot.
- To check the von mises stress, go to post >> fringe component >> select the respective component.

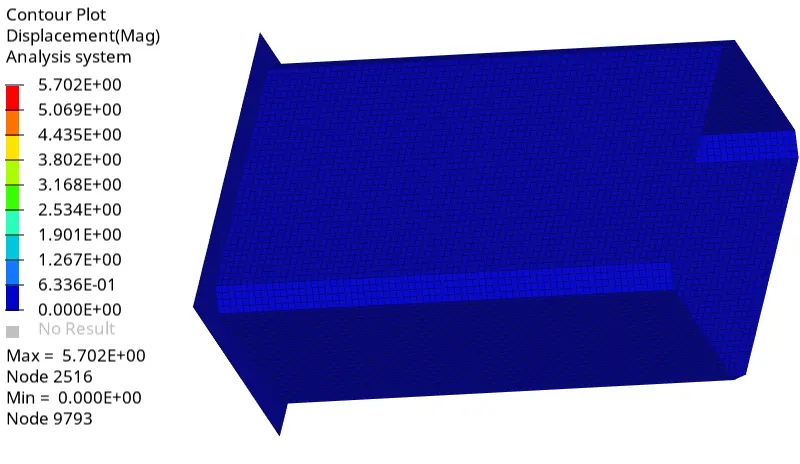

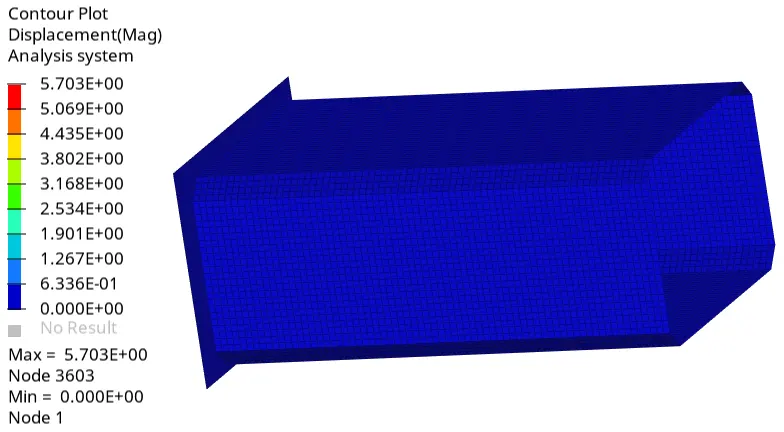

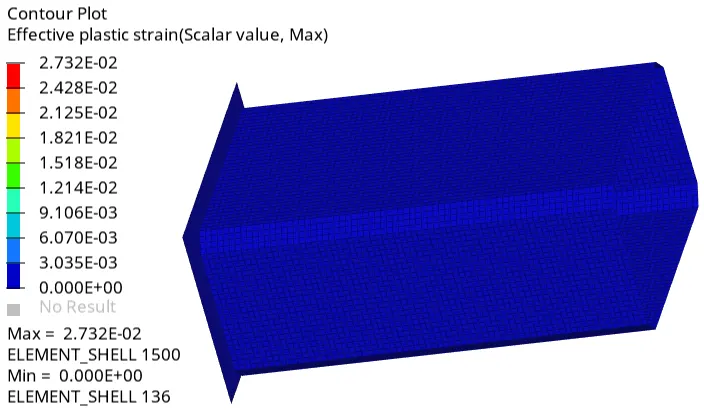

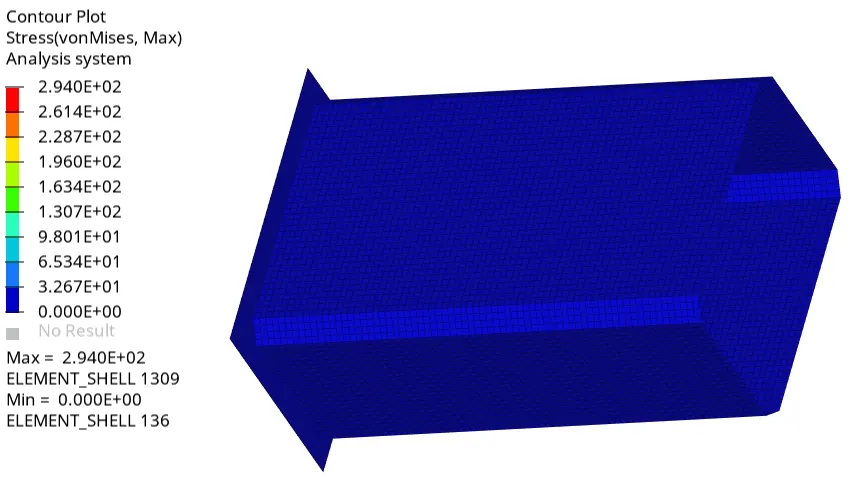

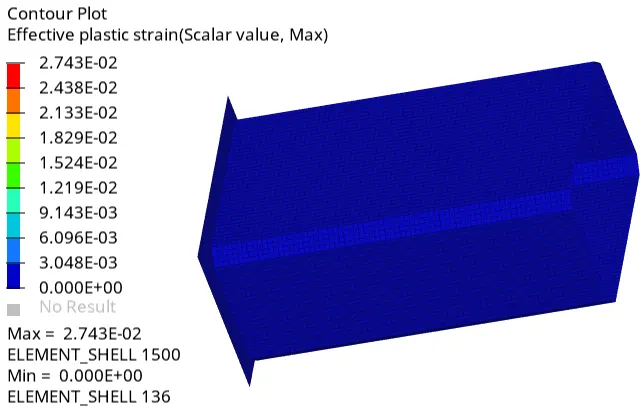

Stress, Displacement and Plastic strain contour plots diplayed below.
Crash box with thickness 1.2mm:
Crash box with thickness 1.5mm:

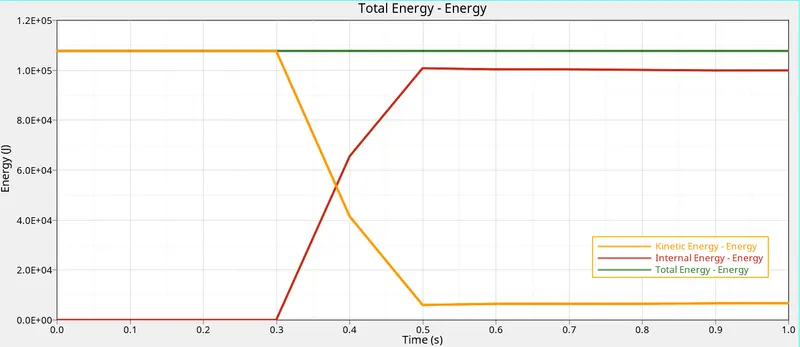

Energy vs Time graph:
Crash box with thickness 1.2mm:

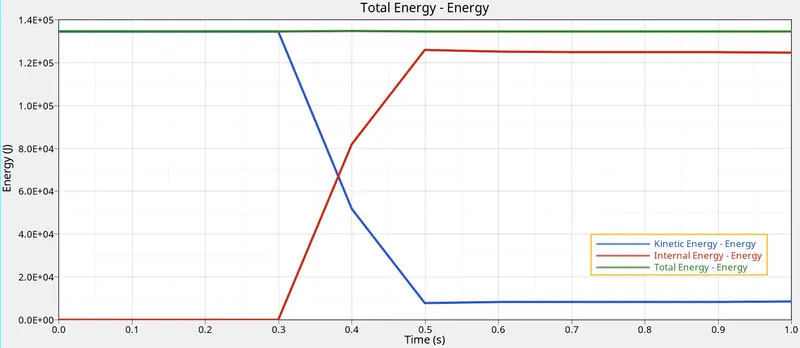

Crash box with thickness 1.5mm:

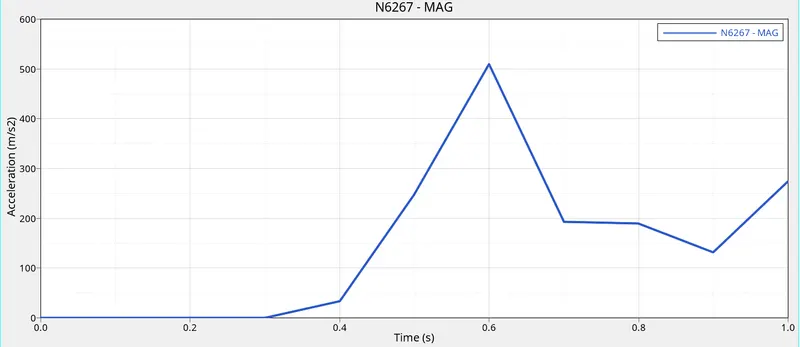

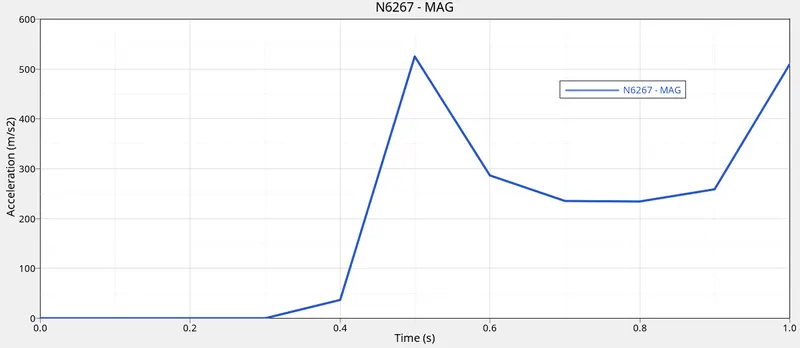

Acceleration vs Time Graph:
Crash box with thickness 1.2mm:
Crash box with thickness 1.5mm:
Conclusion:
Simulation is carried on crash box with thickness 1.2mm and 1.5mm and requested outputs are obtained.
