Week-4 Challenge WOT Condition Part-2
I am a Student of the online session EV batch 16.
1) What is the difference between mapped and dynamic model of engine, motor and generator? How can you change model type?

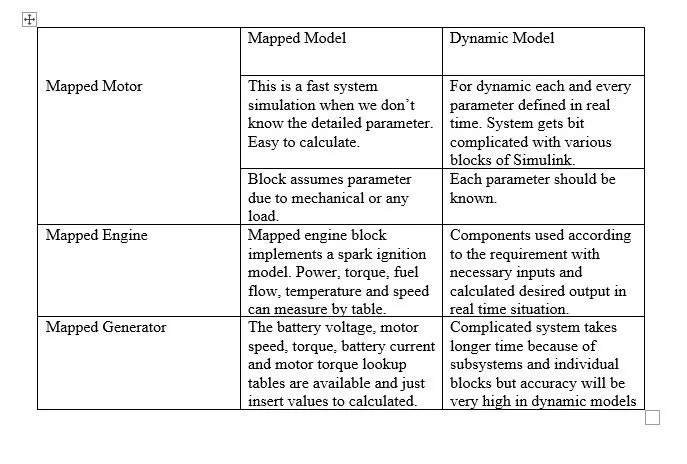

Difference is carried out by comparing all three given system.

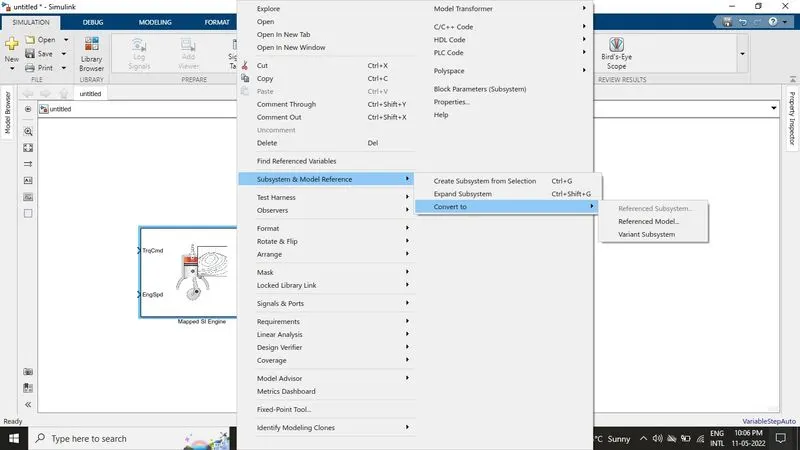

The steps to change model type.
Also, from model explorer, we can change the model type to choose mapped or dynamic.
2) How does the model calculate miles per gallon? Which factors are considered to model fuel flow?

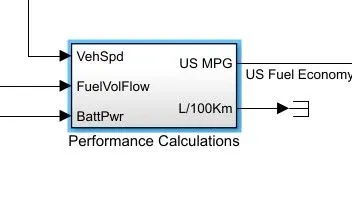

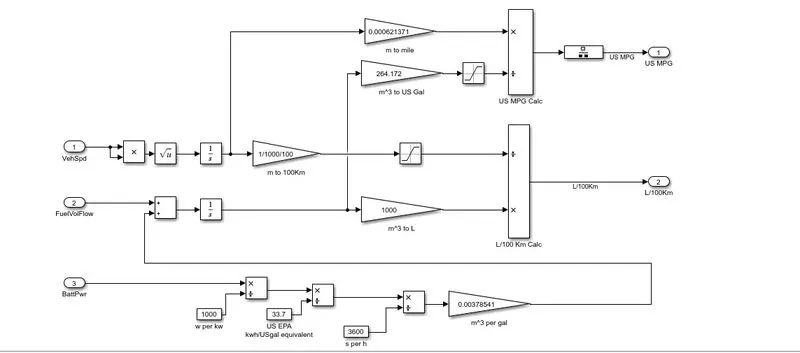

Ans) By opening the model of visualisation calculation provides the information to calculate miles per gallon.
According to the system, the vehicle speed is vital to calculating the fuel. vehicle distance converted m to km and multiplied with miles 0.000621371. The fuel flow is also converted to a litre and multiplied by US Standards which is a gallon. Hence, per miles gallon consumed by a vehicle is measured. also, per km or miles amount of distance vehicle travel is calculated. Two inputs miles and gallons multiply and divided respectively to see the final output.
Factors are considered to model fuel flow
Fuel consumption is related to the distance how far and how long-distance is covered. apart from that fuel flow is dependent on the behaviour of a person who drives. Air condition and ignition are parts to propel the vehicle. These parameters are important when it comes to fuel economy. Real performance defined after the consumption in various parts directly or indirectly.
