Week -2

Week -2

Task - 1

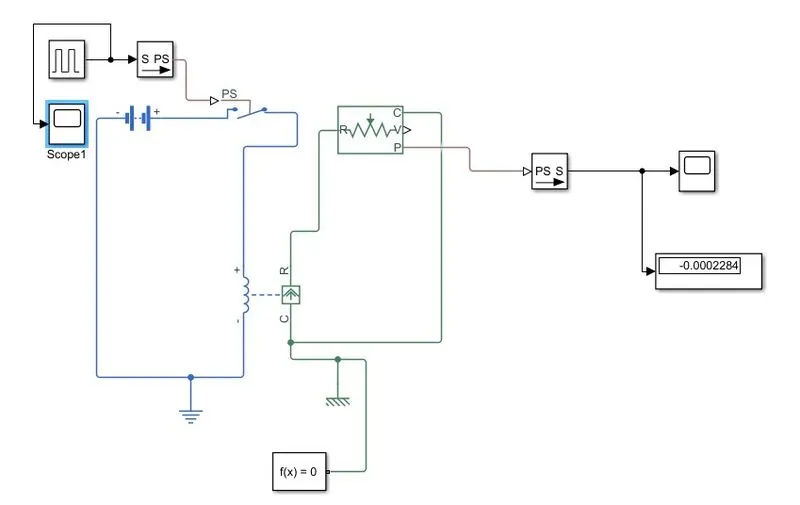

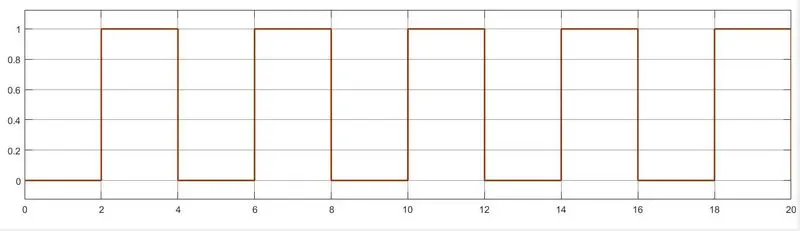

Aim:- Ring the doorbell for 2 secs.

Used Blocks:- Pulse generator, Battery, switch, solenoid, ideal translation motion sensor, Simulink PS- converter, PS- Simulink converter, scop, display, solver configuration, mechanical translational reference, electrical reference.

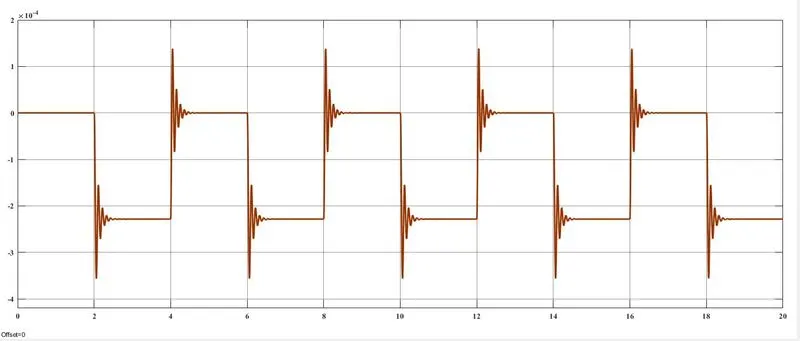

after releasing the plunger it will be in normal mode but there is damping in noise because of the acoustic noise of a bell. this noise holds a fraction of seconds only.

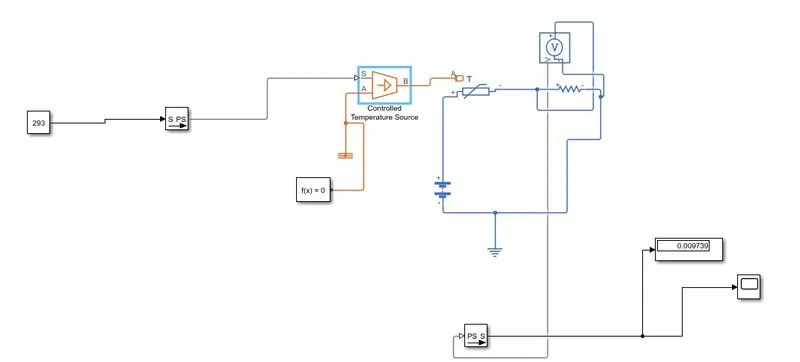

Task - 2
