Week 4 Challenge

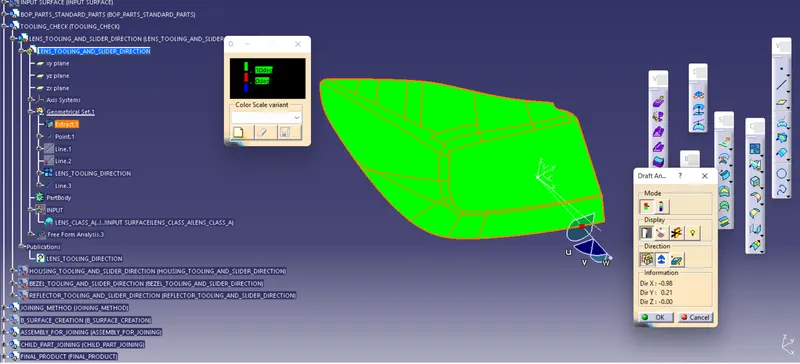

1. TOOLING DIRECTION:

The Tooling Direction is basically the direction that the mold pulls apart. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dyeline or the Tooling Direction.

2.

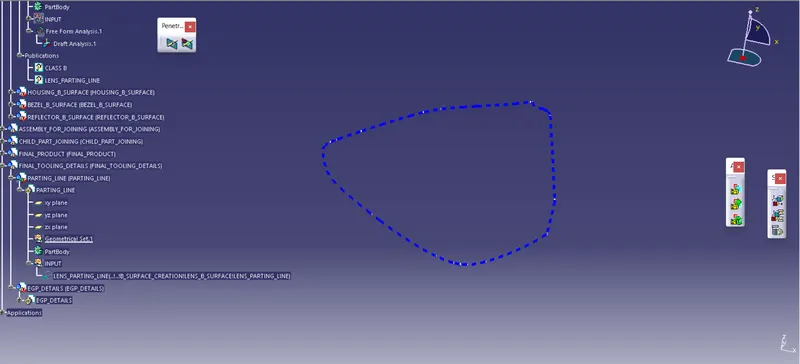

3. PARTING LINE:

Parting line is basically the matching line of Core and Cavity part of tooling.

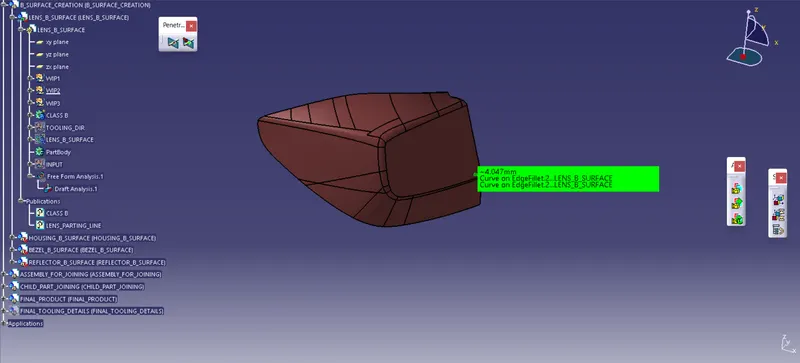

4. Class B surface with 4 mm thickness.

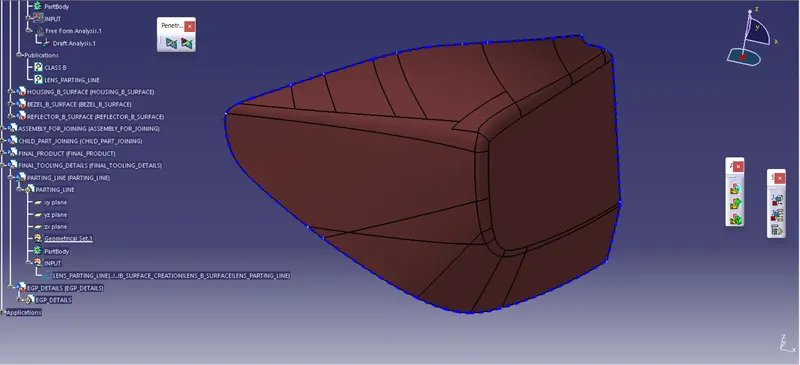

5. LENS PARTING LINE:

6. REPORT ATTACHED.
