Week 4 Challenge

1. Definitions of Tooling direction:

Tooling direction is the direction along which the part is removed out of the core and cavity.

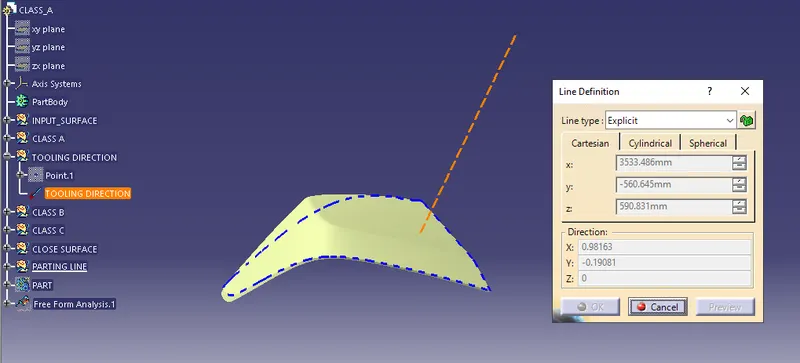

2. Creation of tooling direction for class A:

The point direction method was used for creating tooling direction

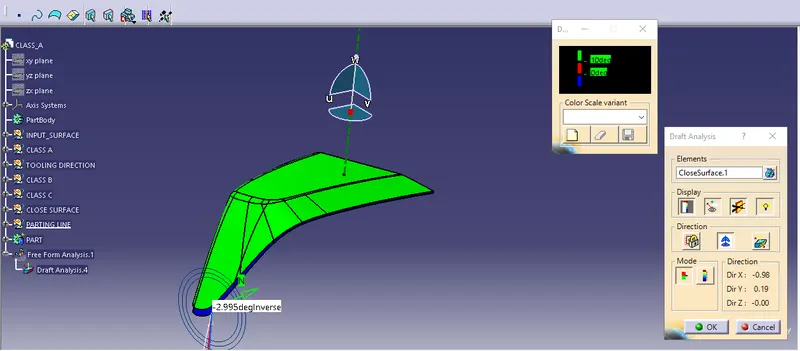

Draft analysis of CLASS A:

3. Definition of parting line:

It is a line along which core and cavity parts of the mould meet.

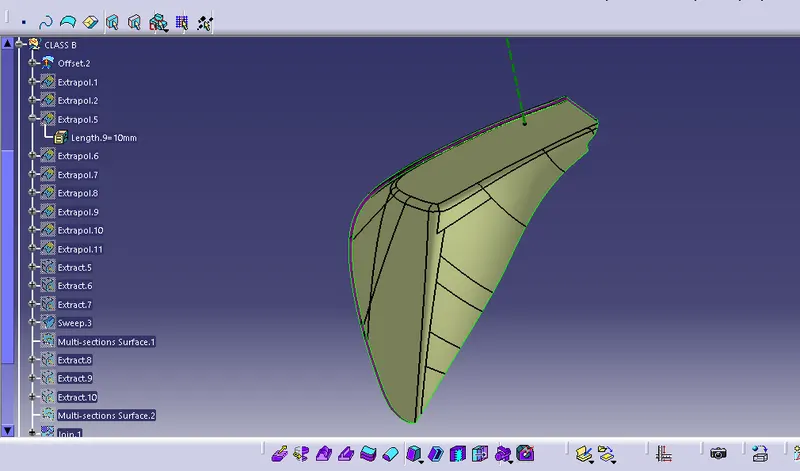

4. Creation of B surface:

It was initially created by offsetting CLASS A by 4 mm, later it was edited to meet the CLASS A surface.

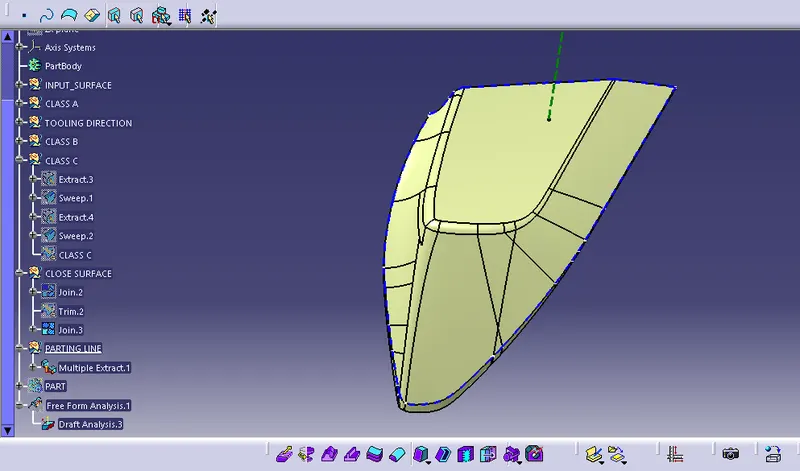

5. Creation of parting line:

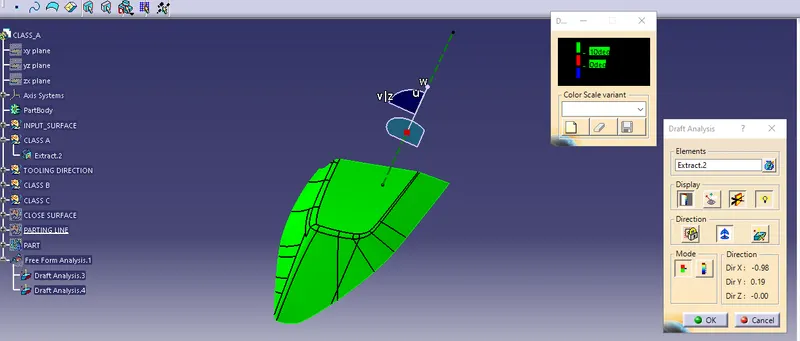

Draft analysis of the final part
