WASHING MACHINE STATEFLOW CHART

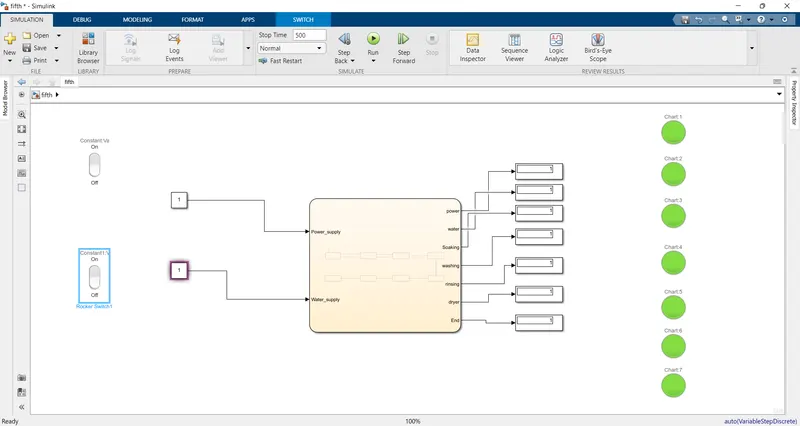

When current and water supply on all lamp shows green

In this model we use following block-

• Rocker switch- to off/on the power supply of current and water
• Constant- to put the value of power and water supply
• Display- to show the result of washing machine
• Lamp- to show the colour representation of washing machine working when current and water will supply through the circuit lamp goes green and when current and water supply stop lamp goes turn red.

Explanation-

When switch on then power and water supply will go in machine and soaking will start then put the detergent and cloth in washing machine after that cloth will soak the water mixed with detergent and after 200,sec washing will start and machine will start rotating clock wise and anticlock wise to remove the dirt of cloth after 100,sec the diry soapy water goes drained this process will go for 20,sec called rinsing after that water supply will off and machine start producing heat temperature through air to dry the cloth this process is called dryer after 50,sec machine will go off and cycle will end.

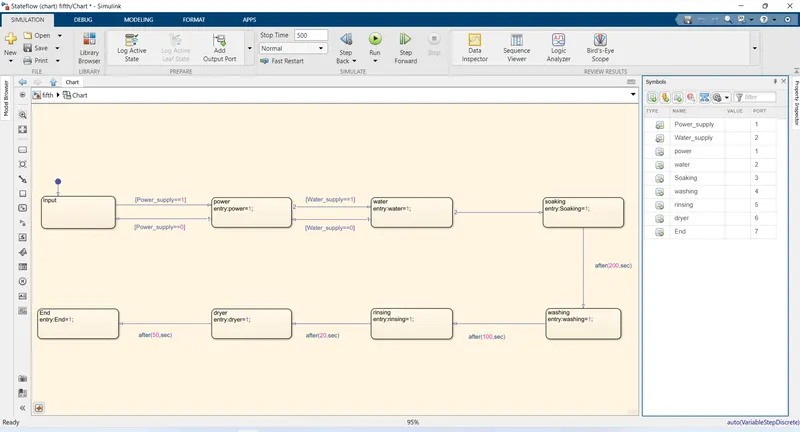

statefolw chart of washing machine-

when current supply goes off

Result-

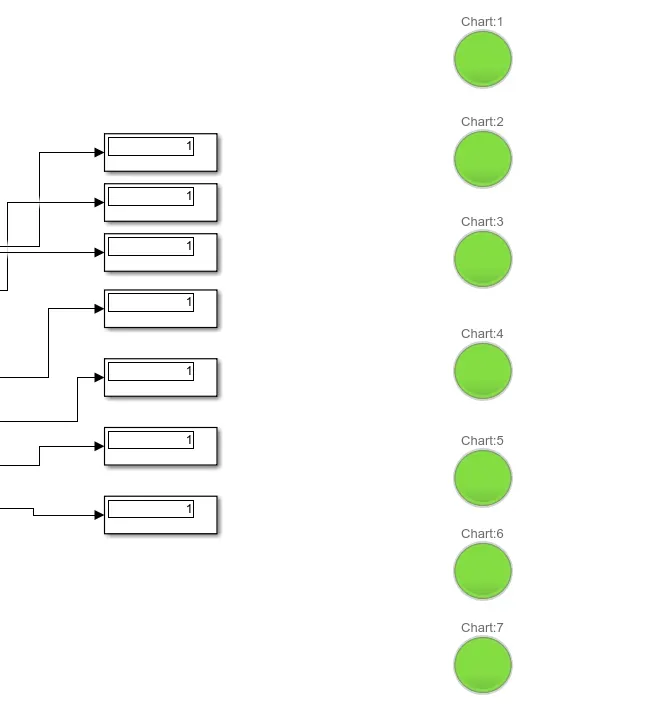

when power supply on

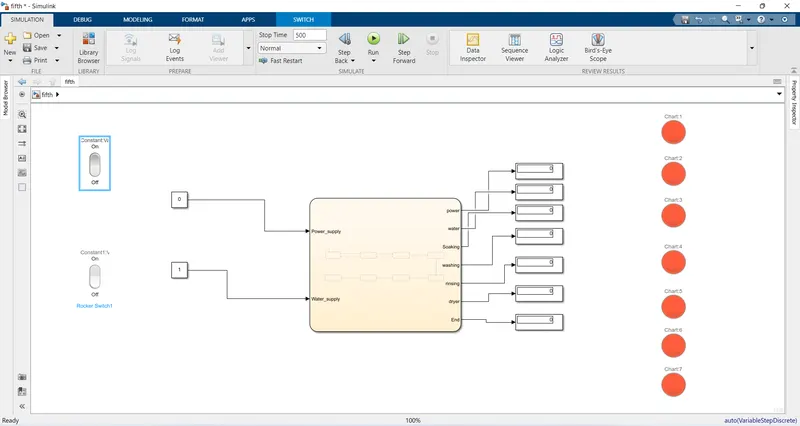

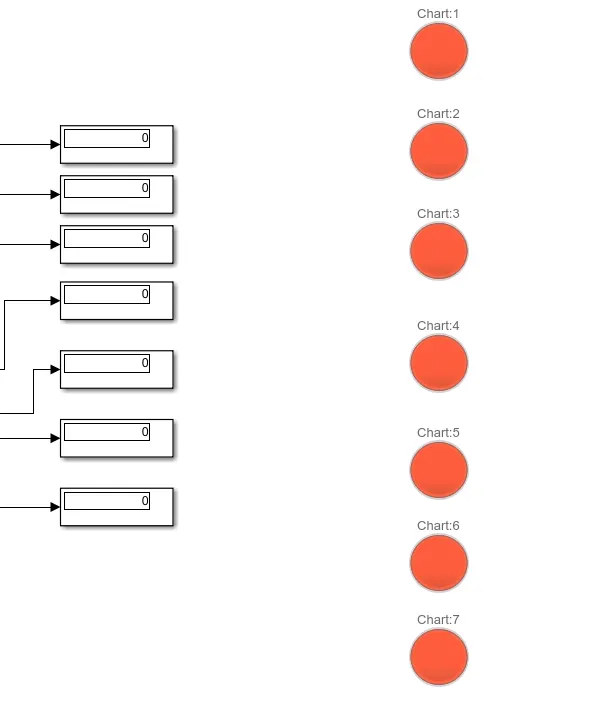

when power supply goes off

GEAR SHIFT

Speed Range(km) Gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

Above 61 5

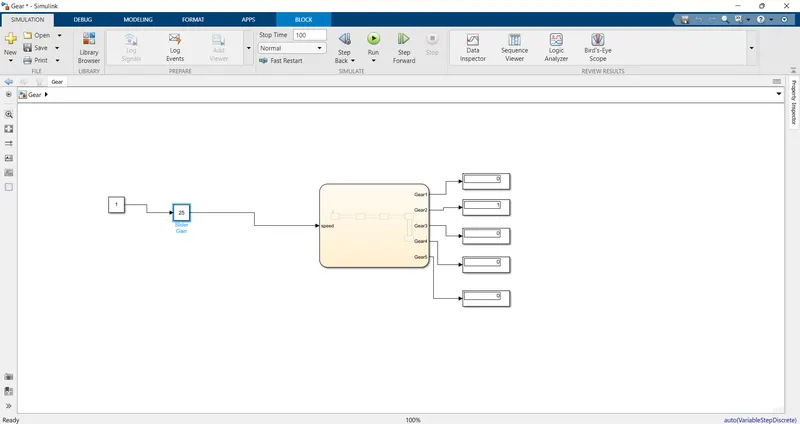

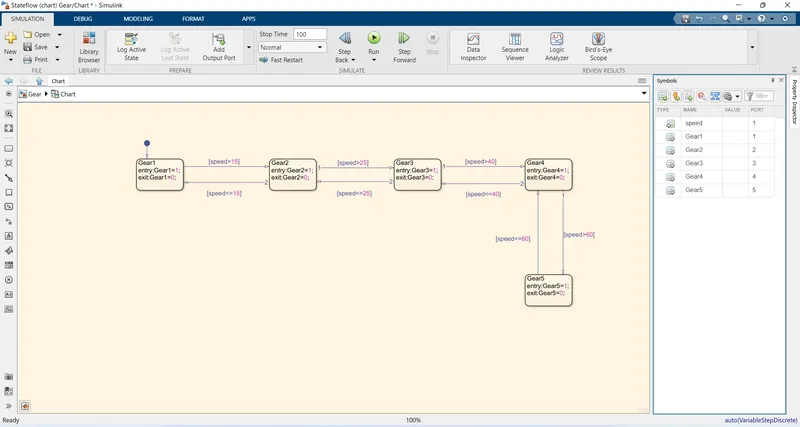

Gear shift flow chart

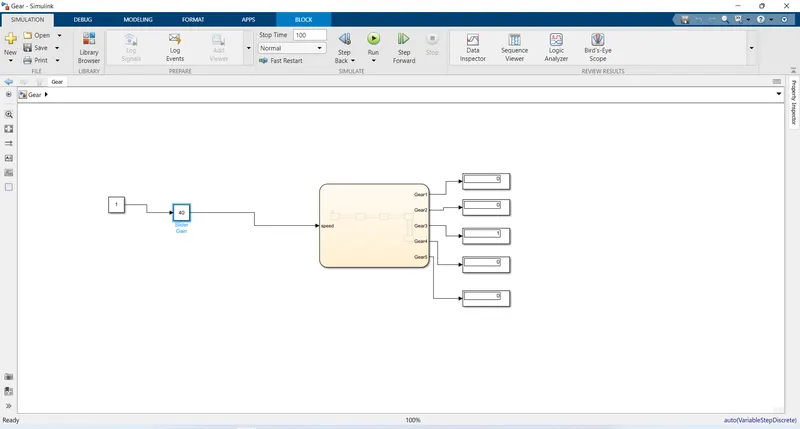

Result-

0 to 15

15 to 25

25 to 40

40 to 60

above 60
