Week - 4

Aim:-Implement control logic of a ''Washing machine" using as per given sequence

Objective:-

1.Understand and implement logic control of a state Machine using state flow

2.If the power supply available ,the system gets activated

3.If the water supply is not avilable , stop the process & indicate through lamp

4.Soaking time should be 200s followed by Washing time of 100s

5.Then rinsing happen for next 20s & dryer run for 50s

After all the process have completed turn on the finished LED**

Block used:-

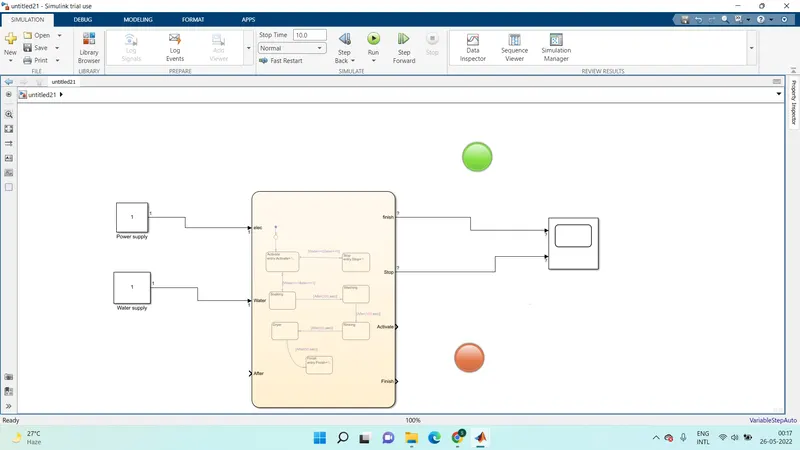

Constant :- To provide a constant signal to the simulink enviornment

Flowchart:- Implement logic control of the washing machine

Scope:- To view the changed of parameter w.r.t time

Lamp:-Glows according to the alloted signal
