1) OBJECTIVE:

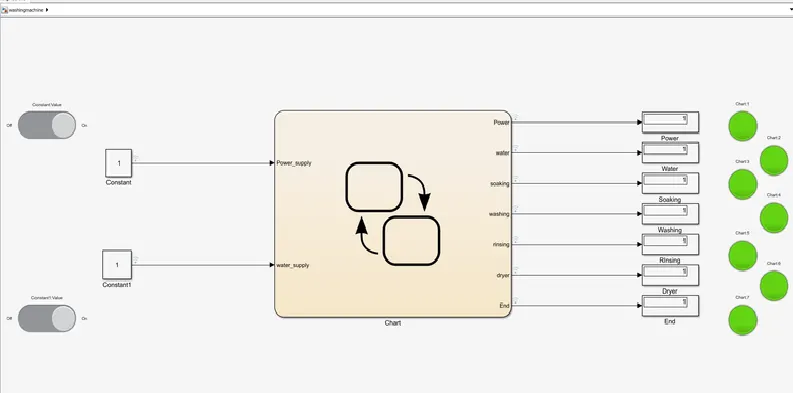

Implement control logic of a “washing machine” using Stateflow as per given sequence.

SOLUTION:

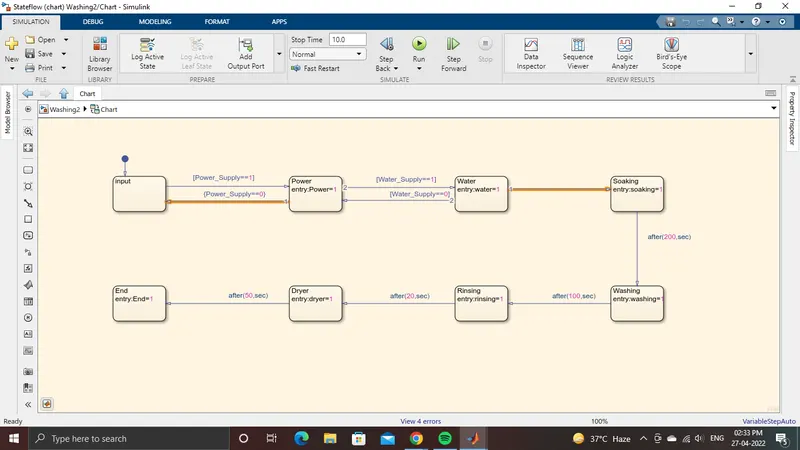

• If the power supply is available, the system gets activated
• If the Water supply is not available, stop the process & indicate through LED
• Soaking time should be 200s followed by Washing time of 100s.
• Then rinsing happens for next 20s & dryer runs for 50s

2)

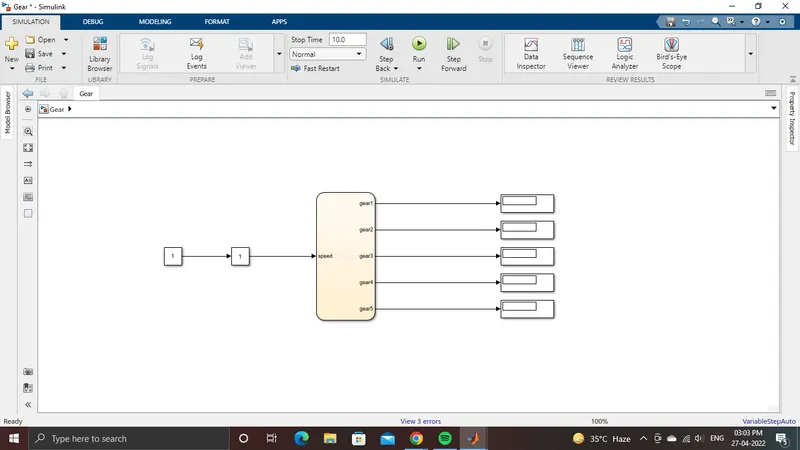

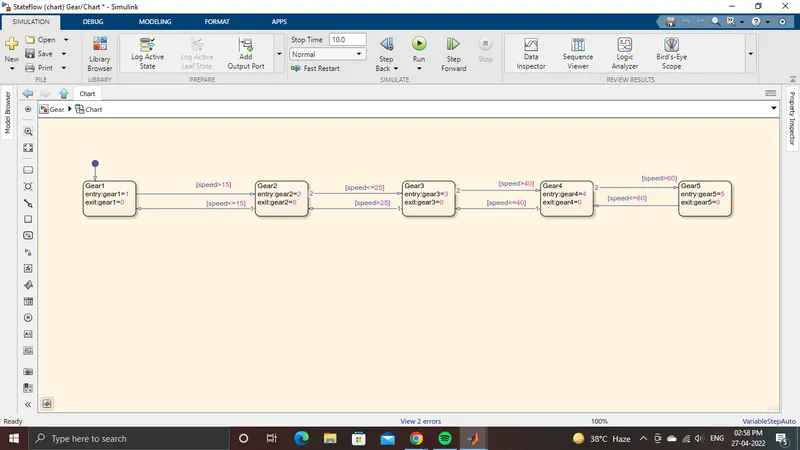

OBJECTIVE: Make a Simulink chart for the “Gear shift” logic as per conditions:

A simulink model is created and speed is controlled using slider gain
