Project 1 (Mini Project on Vehicle Direction Detection

AIM of the project is to build an autonomous driving and advanced driving assistance features.

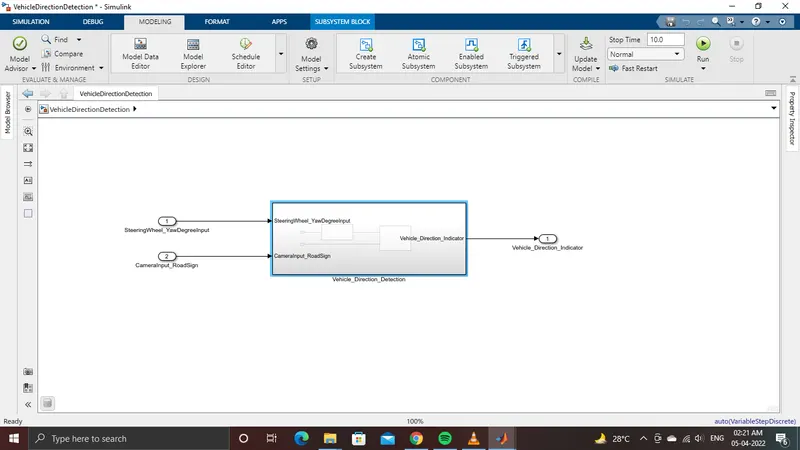

we make a model using a subsystem and name and value them according to the information provided to us.

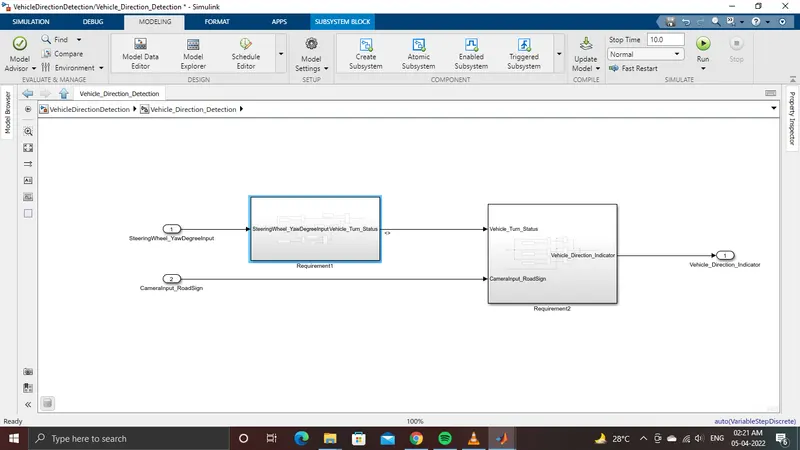

we create 2 subsystems using 2 requirements ,requirement 1 and 2.

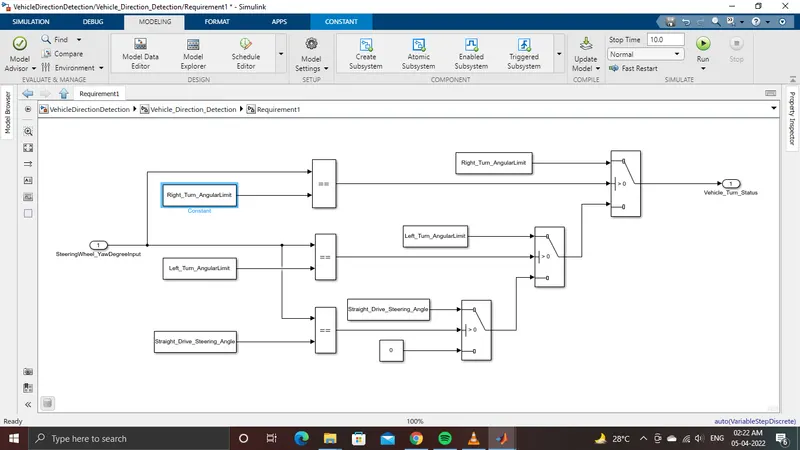

in requirement 1,if the camera captures the signal right left or straight then it turns to that direction only else it doesn't.

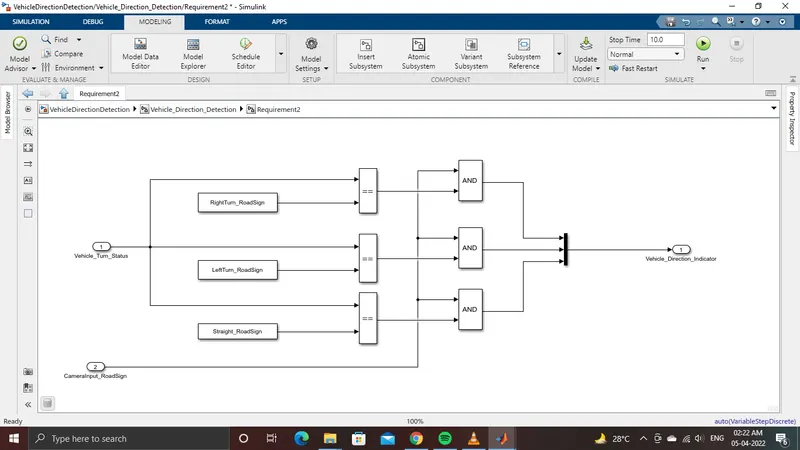

in requirement 2 , the camera captures the sign and turns to that direction.

we make an sldd file by going to model properties.

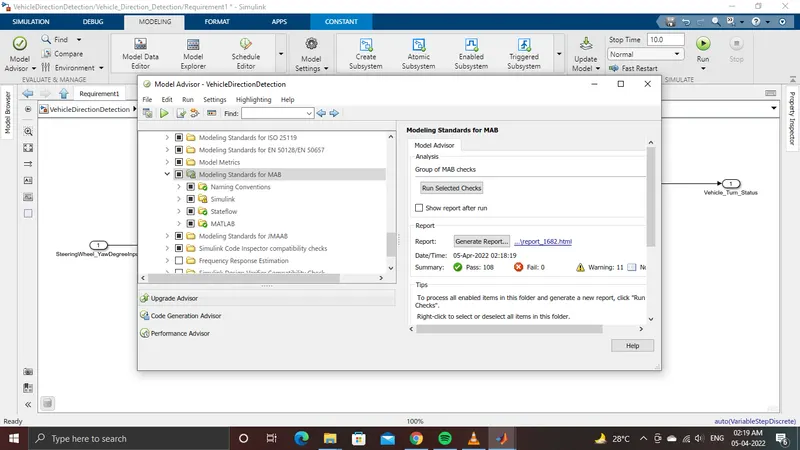

we go to model advisor and check whether our model follows MAAB guidelines.

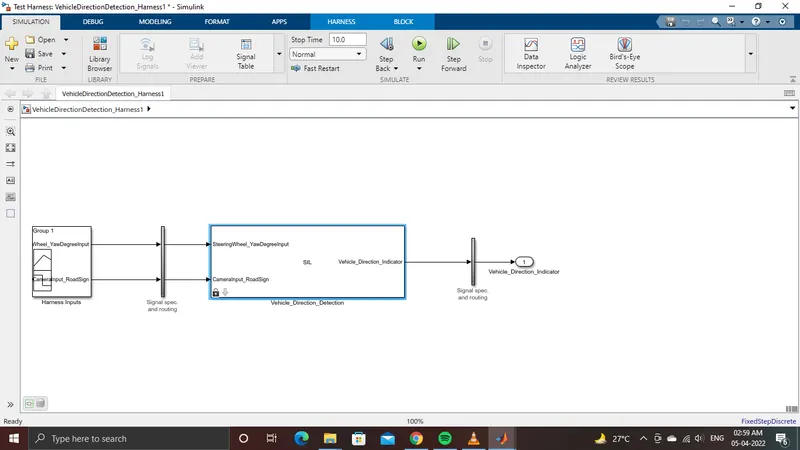

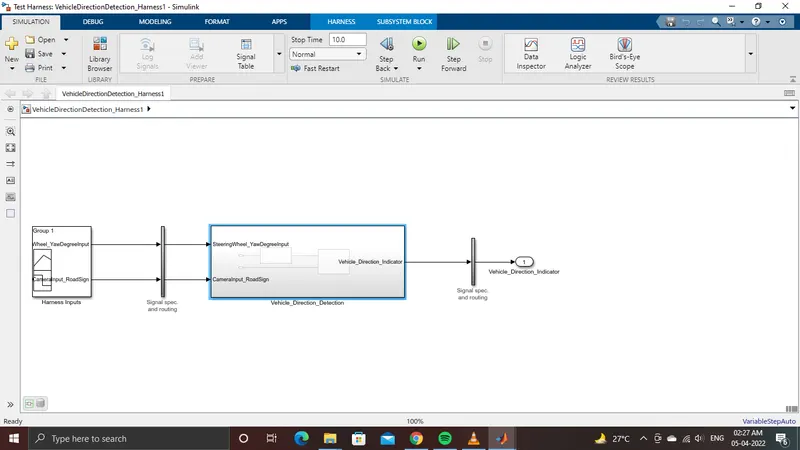

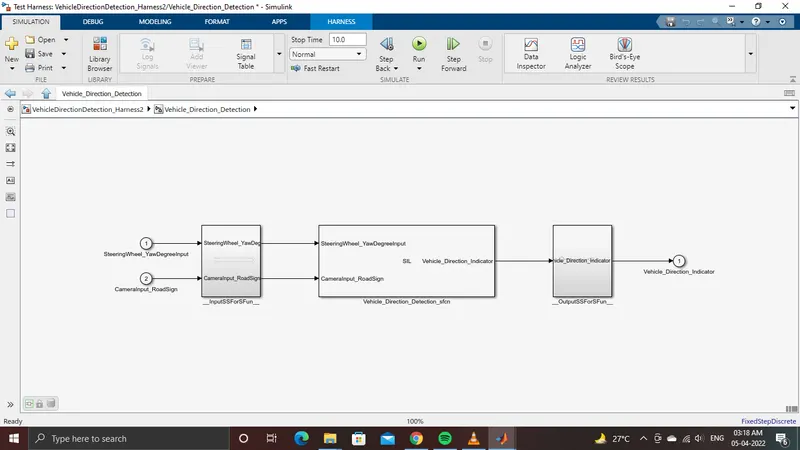

we make MIL and SIL template too by going to test harness and generate c/c++ code and generate s function
