Week - 4

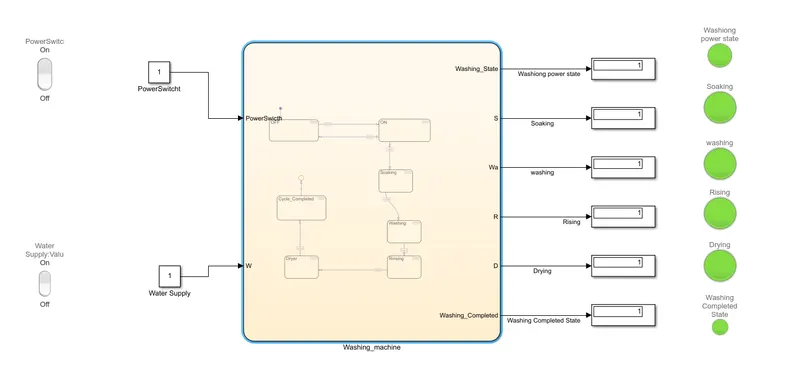

1.For creating the washing machine working the important thing are Chart ,Display ,Constant ,Lamp ,Rocker Switch

A Rocker switch from the dashboard library is used with a constant to supply the power and as water supply. A lamp is used to indicate the power status and water status. The status of running can be seen by the glowing lamp.

Then we need to create the chart for the processes that want to be done after staring the machine step by step. We created with two conditions for power supply

One is with power supply available and second with water supply available .if the power supply at entry is 1 and water supply is on ,then machine will get activated and start the next process

The following four operation states has working under a fixed time interval as mentioned in the chart

After all process has done washing machine completed LED will glow and shut the machine off

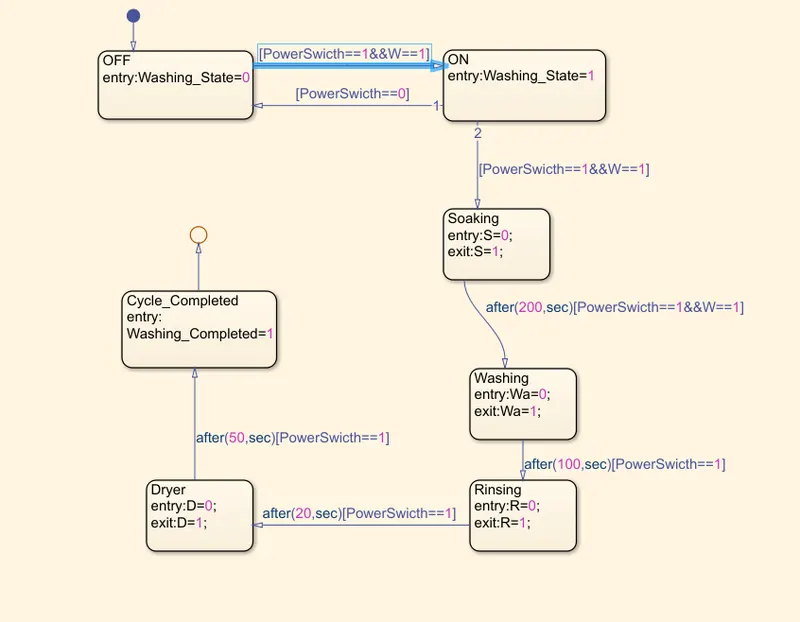

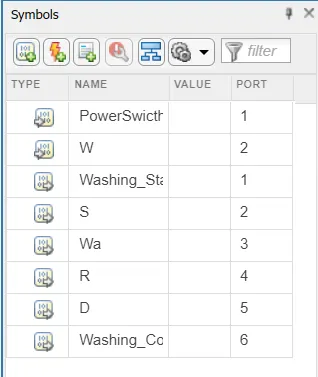

The parameters in chart are

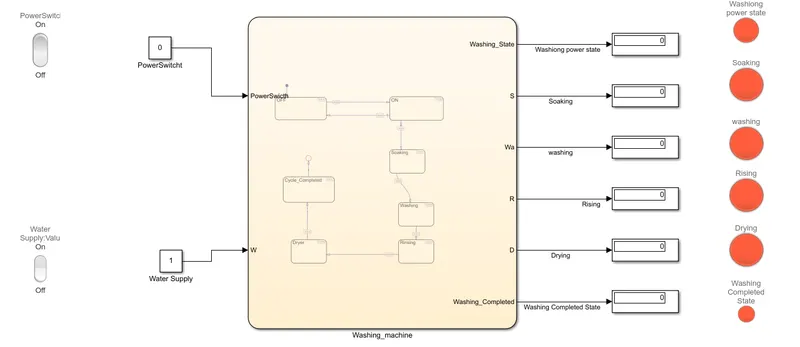

THE OUTPUT WILL BE WHEN THE SWITCH IS OFF/NOT WORKING CONDITION IS

the above case there is no power supply to machine

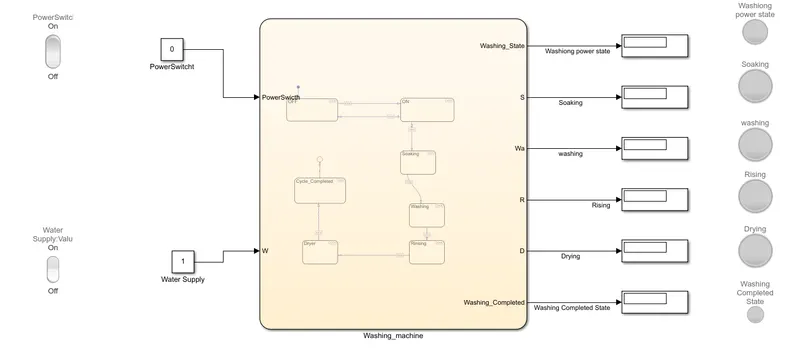

THE OUTPUT WHEN THE WASHING MACHINE IS WORKING

2.

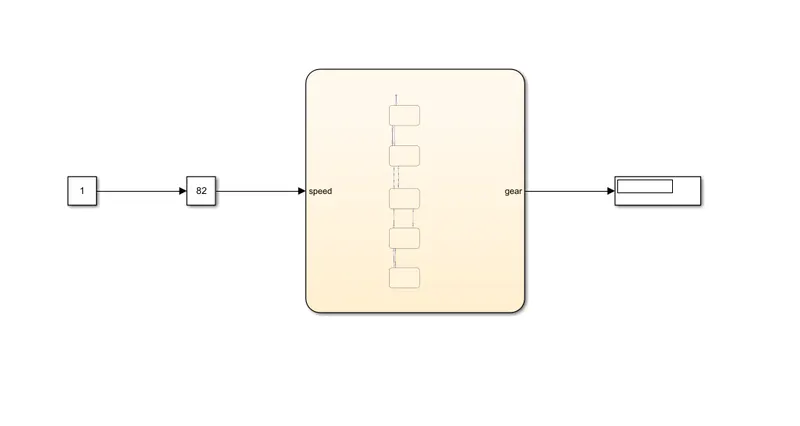

for creating the help of a slider gain to provide input to the chart ,we use values from 0 to 100 ,the slider help in changing the speed accordingly .The display will show the out put as that gear is it present

THE OUTPUT PLOT WILL BE AS BELOW AS BY CHANGING THE SLIDER VALUE

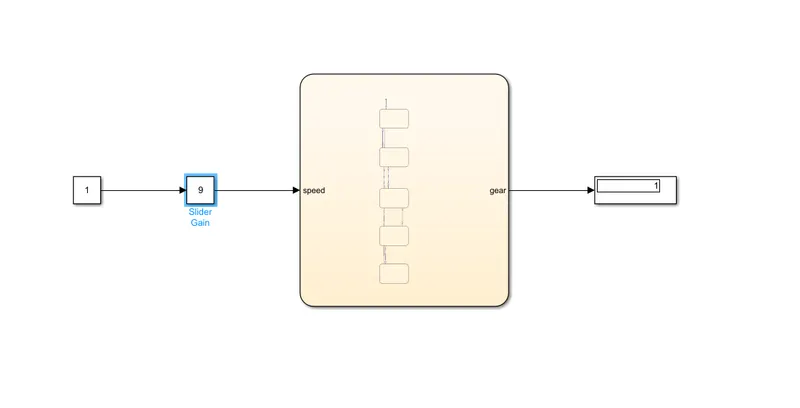

Speed range :0 to 15kmph.

Input speed :9kmph

its 1 GEAR

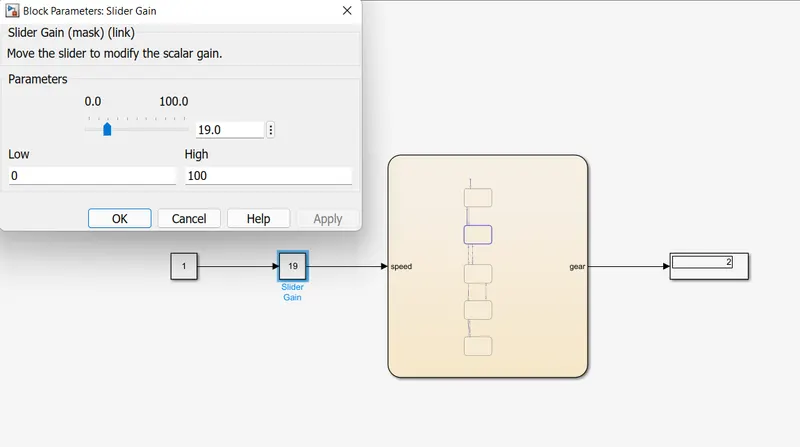

Speed range :16 to 25kmph

Input speed :19

And the gear is 2

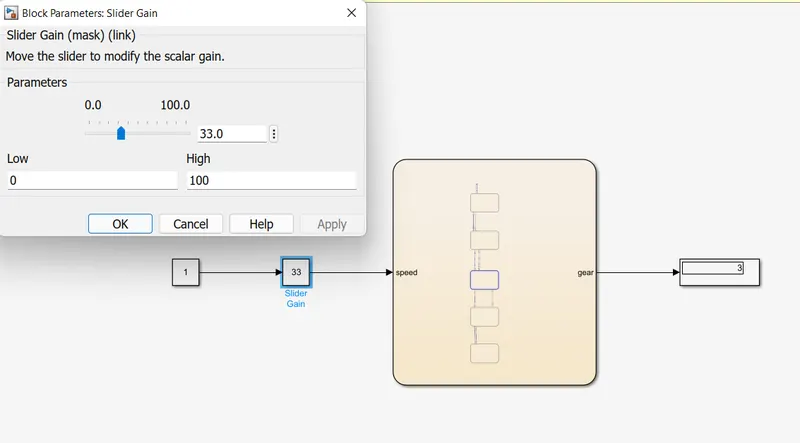

Speed range :26 to 40kmph

Input speed :33

And the gear is 3

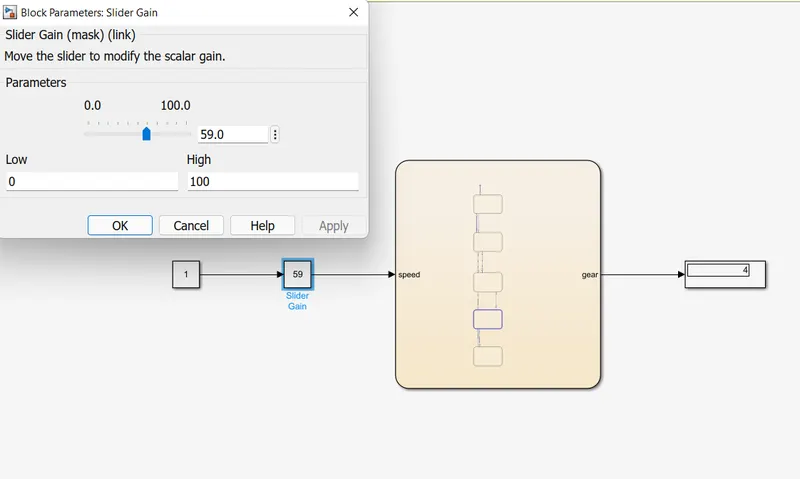

Speed range :41 to 60kmph

Input speed :59

And the gear is 4

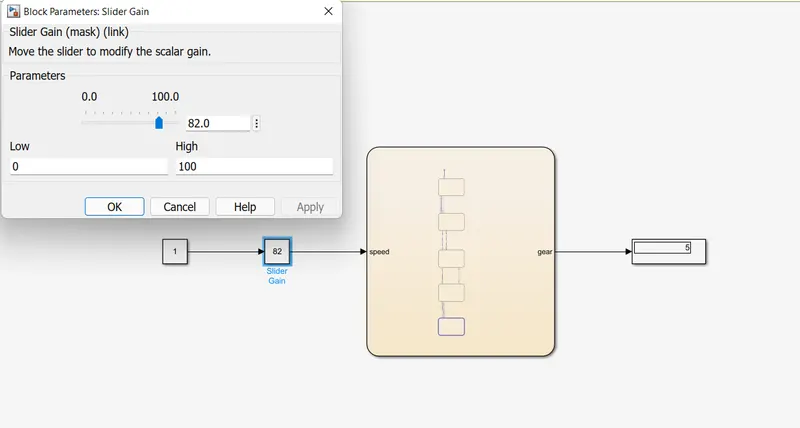

Speed range :Above 60kmph

Input speed :82

And the gear is 5
