Week - 4 - 2D meshing for Plastic components

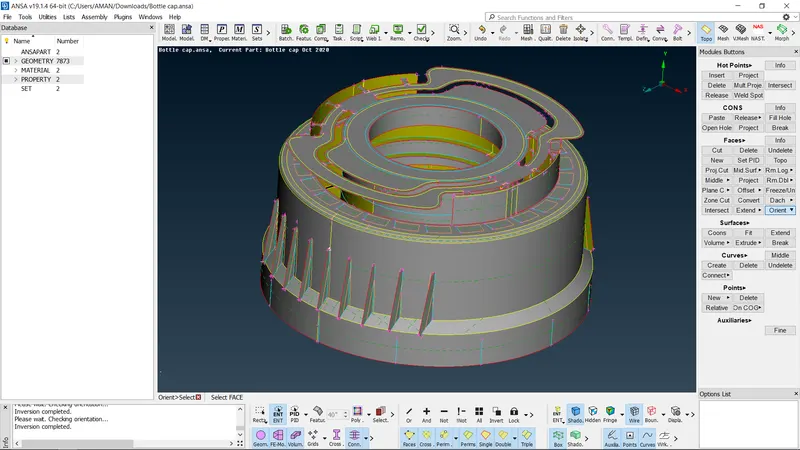

OBJECTIVE : To create a manual mid - surface for the 3D model and generate the mesh . PROCEDURE : SEGREGATING GEOMETRY :

• Initially , geometry split into multiple surfaces regarding their geometry
• Each surface locked with different views named with their thickness .
• Splinted surfaces then corrected for geometrical requirements .
• The surface which less than 0.5 are corrected or erased .

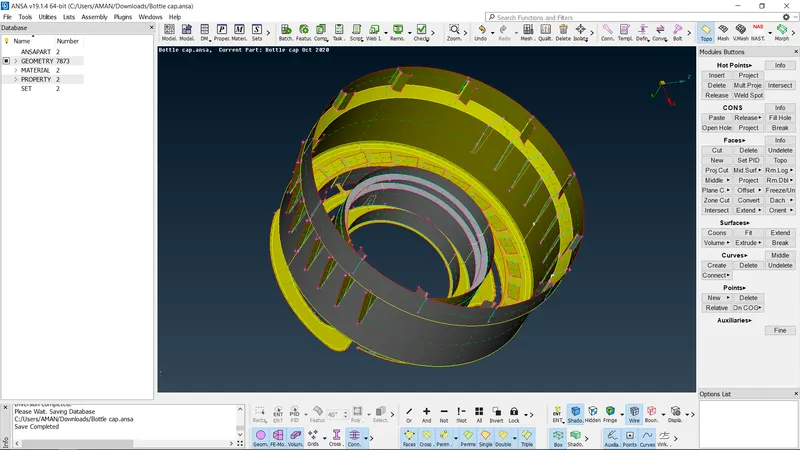

MANUAL MID - SURFACE

• For each surface , one layer of the surface has been offset to its middle value of thickness .
• This process continued to all the view sets . . After the creation of the mid - surface , each and every surface is connected with options like extend , interest .

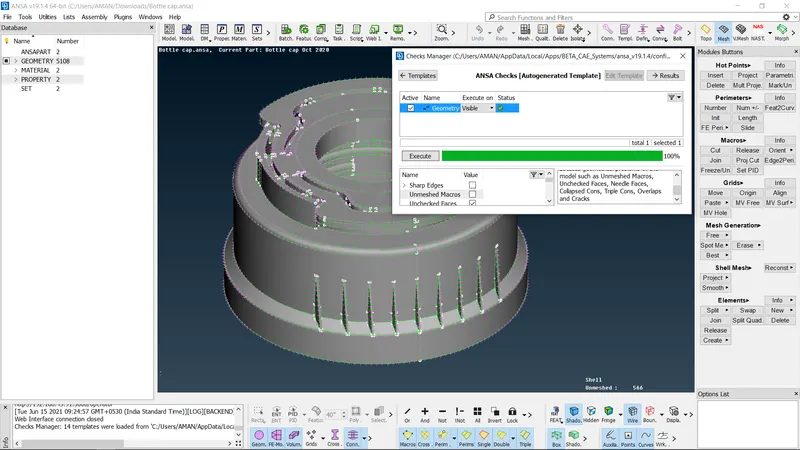

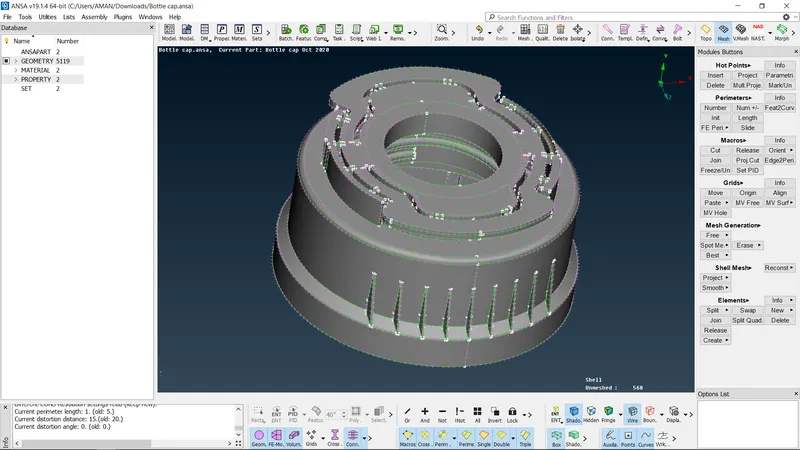

• The final check for geometry has done an entire mid - surface saved in one lock view for meshing

Fins :

• For fins , Curve - > middle option used to create a middle line on both ends ,
• Then new surface created using those lines .
• This surface coon projected in the main surface and created contact between the main surface and fins

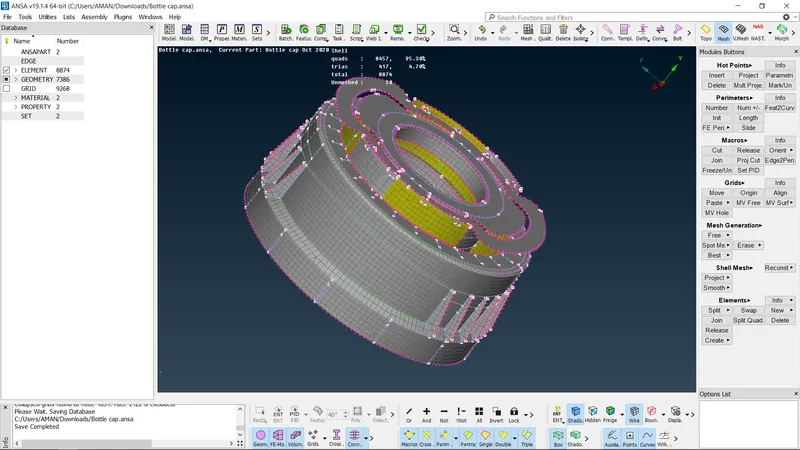

MESHING

• Surfaces meshed with a tool named

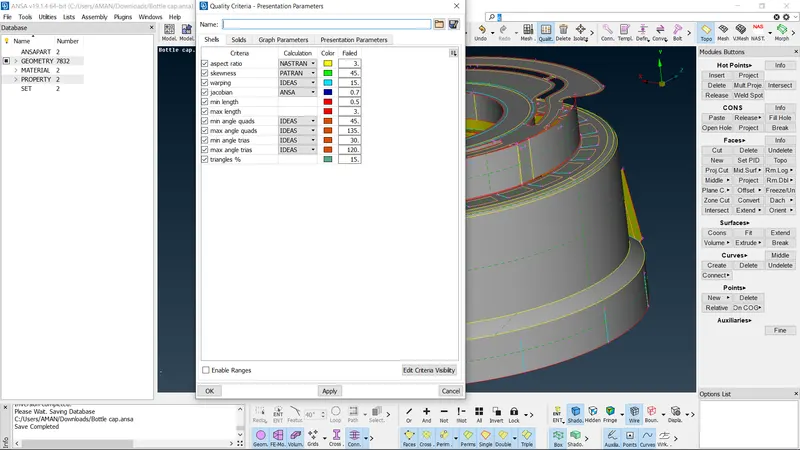

• Then meshes are checked for quality critena ,
• In case any mesh has not satisfied with the quality value , then that mesh re - meshed with option

After that mesh group are smooth by option known as

LEARNING OUTCOME :

1. The geometrical error fix using the TOPO module is learned
2. The manual middle surface extraction technique is learned ,
3. Use of the transform option for replicating similar features is learned .
4. Meshing techniques and quality correction techniques are learned .

CONCLUSION :

The middle surface is extracted for the given geometry and mesh is generated as per the quality criteria mentioned in the objective . Hence , all the objectives are satisfied
