1.AIM: To Implement control logic of a washing machine using State flow as per given sequence

If the power supply is available, the system gets activated

If the Water supply is not available, stop the process & indicate through LED

Soaking time should be 200s followed by washing time of 100s.

Then rinsing happens for next 20s & dryer runs for 50s

STATEFLOW: Stateflow is a control logic tool used to model reactive systems via state machines and flow charts within a Simulink model. State flow uses a variant of the finite-state machine.

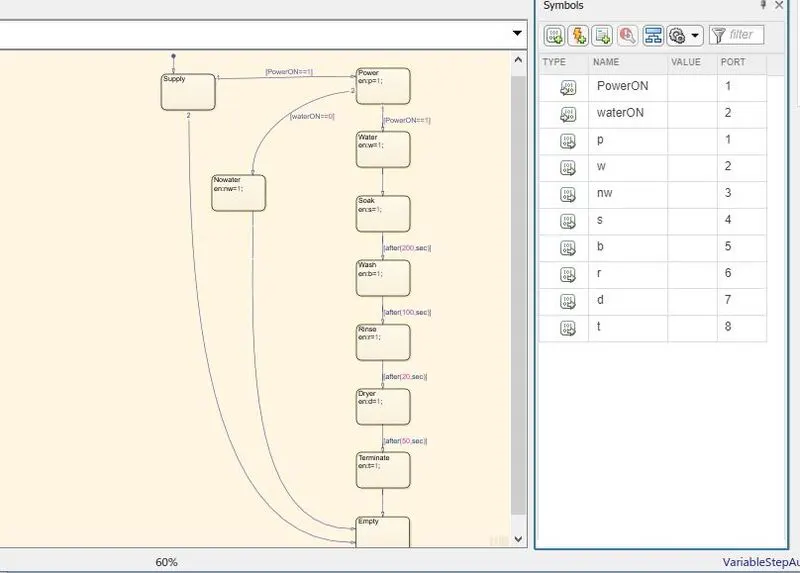

CHARTFLOW DIAGRAM:

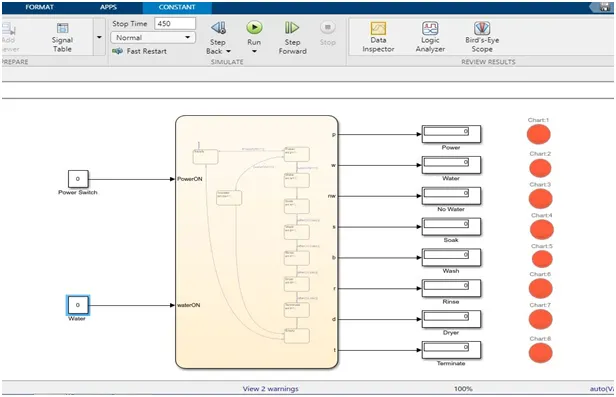

Case-1

If the Power supply = OFF(0) the Machine will not be activated.

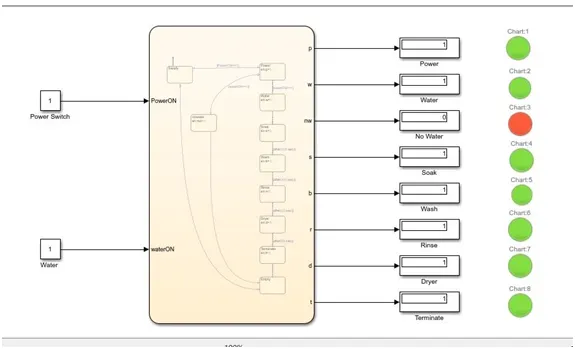

Case-2

If the Power supply =ON (1) & Water supply = ON (1) the Machine will start the process of washing the clothes except the no water lamp indicate RED signal.

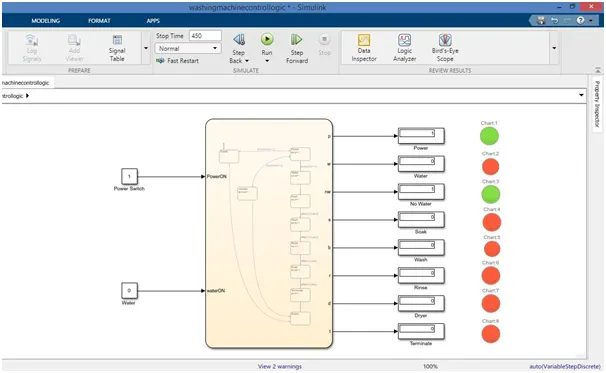

Case-3

If the Power supply =ON (1) & Water supply = ON (1) the Machine will stop the process.

CONCLUSION:

Thus the control logic of a washing machine using Stateflow was processed as per given sequence.

2. AIM: To Make a Simulink chart for the Gear shift logic of a Car

Given Speed Conditions

Speed Range (km/hr) Gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

Above 61 5

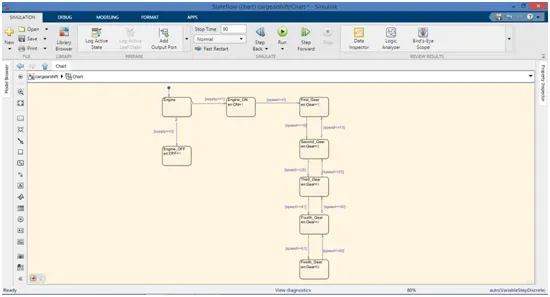

Control Logic:

PROCEDURE TO RUN THE CONTROL LOGIC

Step1: Creating a Chart Block in the Simulink and providing the given inputs conditions for the Gear shifting Control Logic.

Step2: After inputs conditions are given open Symbols Pane option & here I have assign Input as Supply & Speed and Output as Gear, Engine ON&OFF variables.

Step3: Connect the Key (If Key=1) to the Supply which implies Engine is in ON Position and If Key=0 which implies Engine is in OFF Position.

Step4: Lamp Indicator is connected the ENGINE ON/OFF outputs which implies when the Engine of a car is in ON position lamp shows Green Indication & When the Engine is in OFF position lamp shows Red indication.

Step5: Acceleration Block is connected to the accelerating value here we can check the speed of a car and according to the speed the Gear position will be display in the output.

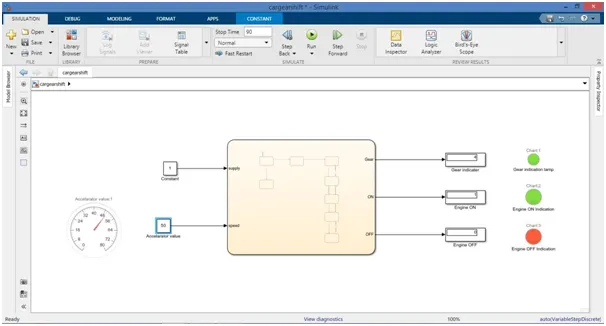

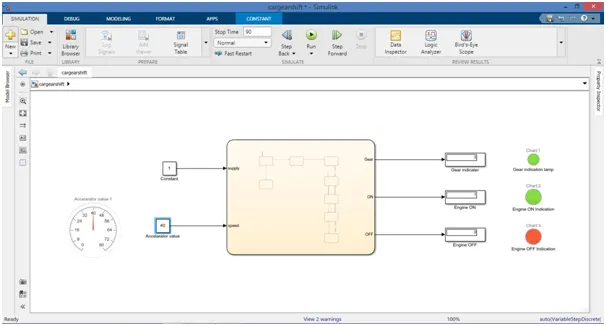

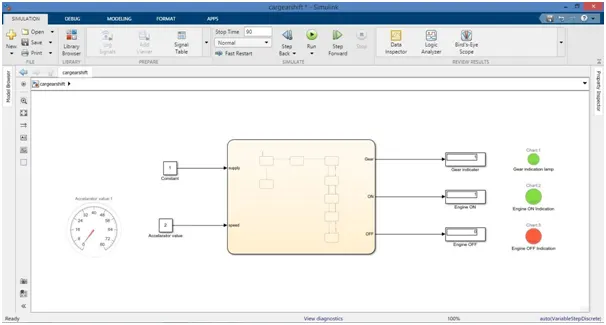

OUTPUT AS PER GIVEN CONDITIONS

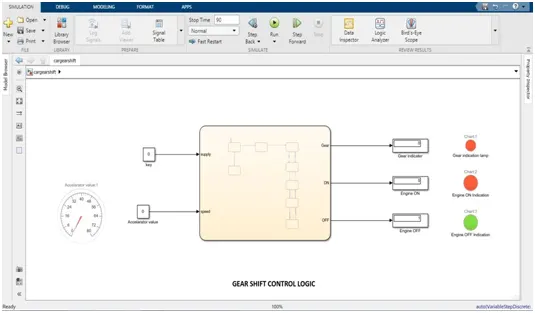

Car is in OFF Position
