Week 4.2: Project Transient simulation of flow over a throttle body
Week 4.2: Project Transient simulation of flow over a throttle body
Here the project is the same as that of the previous one other than a few changes. Here the changes are in the throttle body deflection.
Throttle profile info:
- From 0 to 2 ms the valve should rotate by 25 degrees.
- From 2 to 4ms it should stay at 25 degrees.
- After which by 8ms the valve should get back to its original position.
Answer,
As there is no change to the geometry and simulation setup, I will continue from the part where there is a difference.

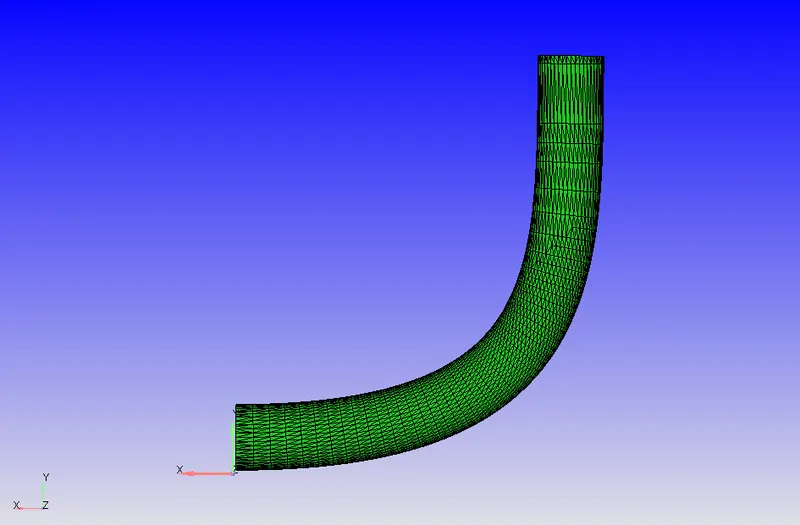

This the geometry which we are going to deal with.

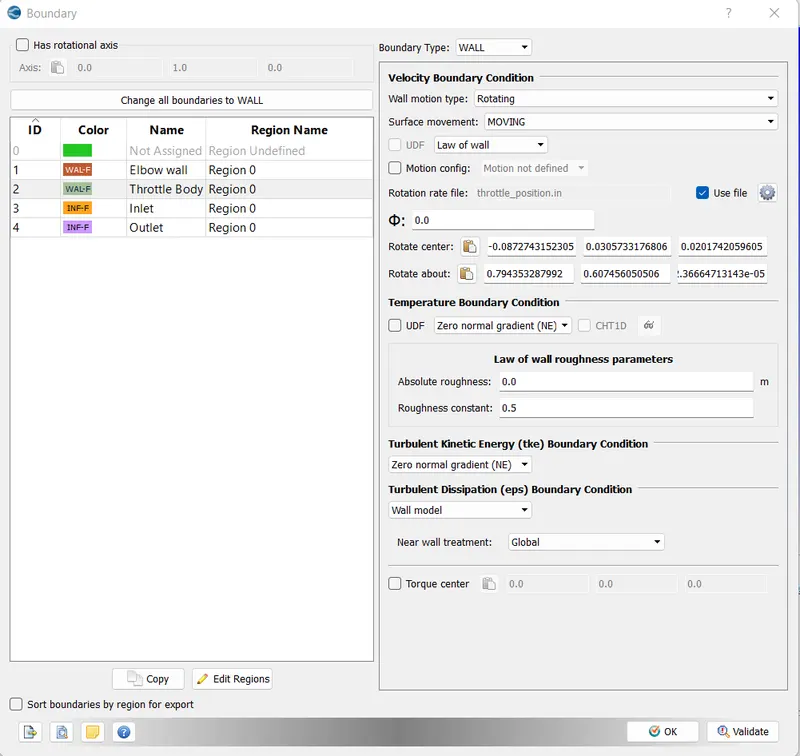

The Boundary condition of the Throttle body

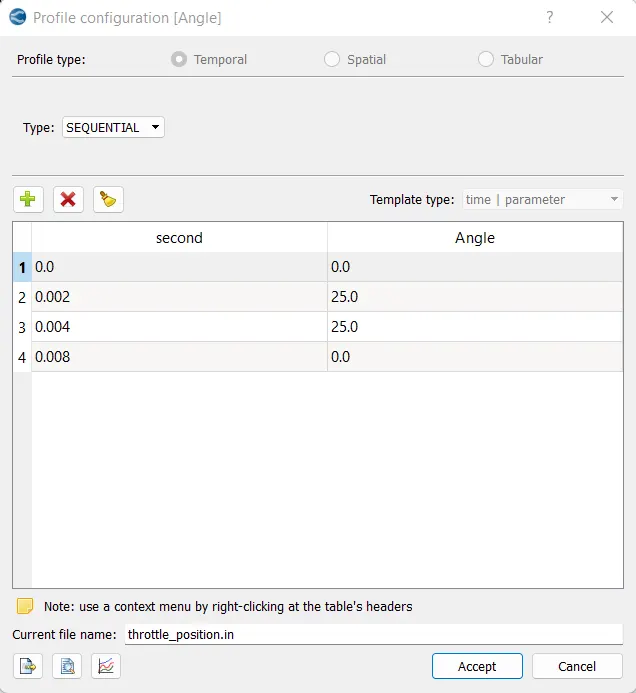

The deflection settings according to the questions.

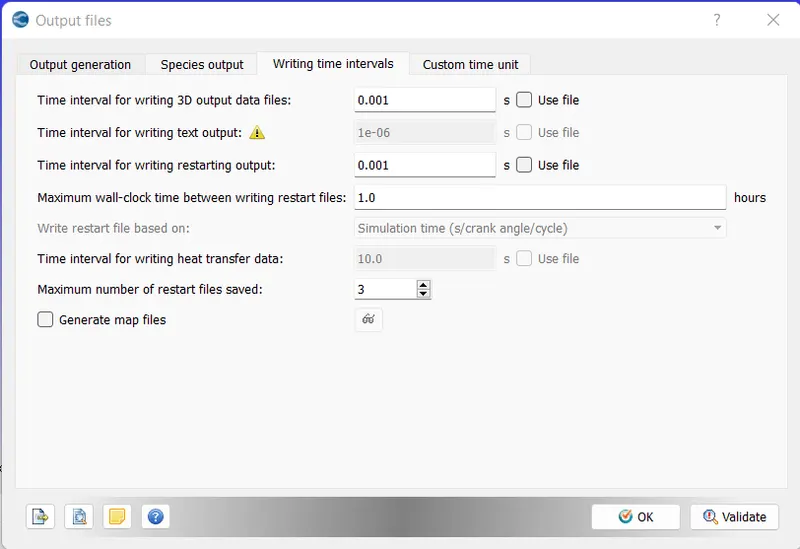

The Output Files

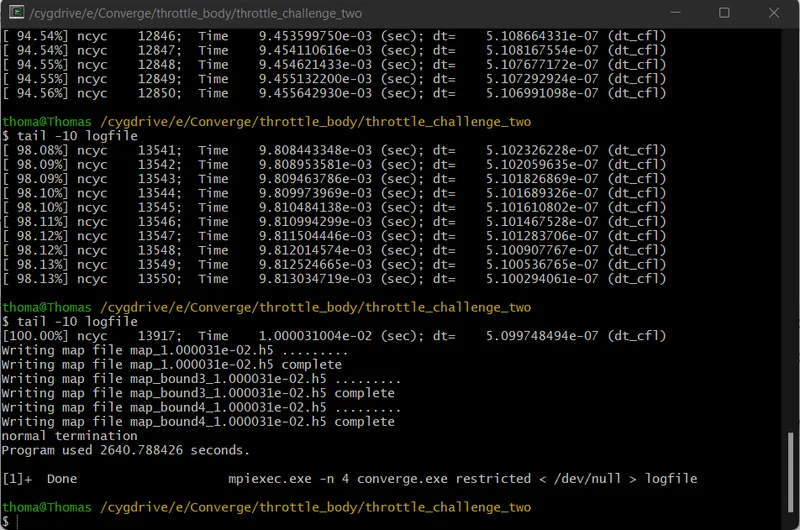

We then now start the simulation using the Cygwin.
After which the files are then converted to Paraview readable format using Converge.
PARAVIEW
Results

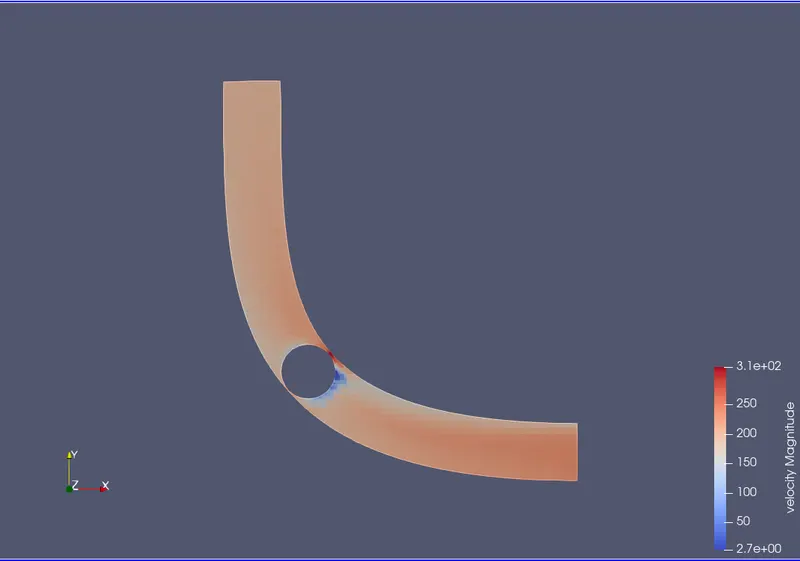

Velocity Contour when the throttle body is fully open

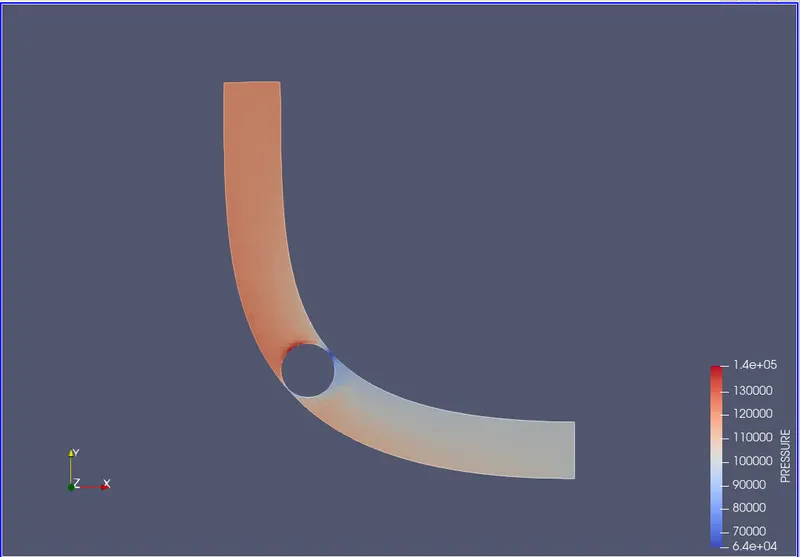

Pressure Contour when the throttle body is fully open

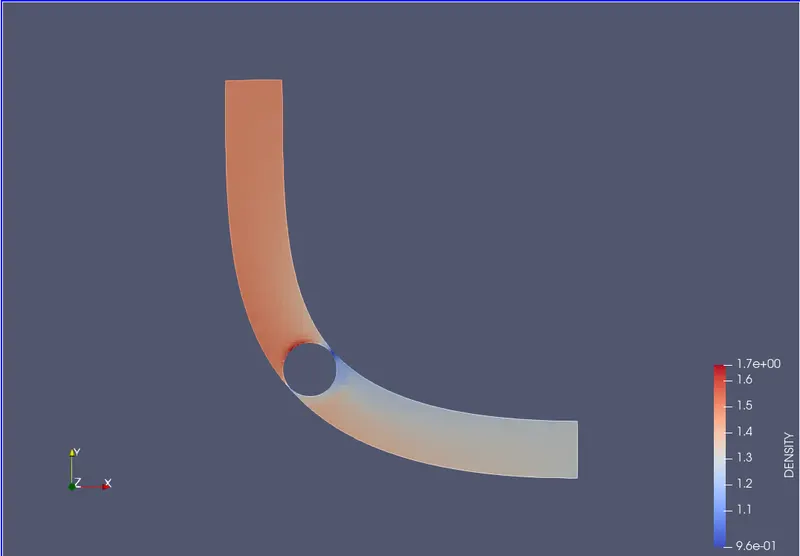

Density Contour when the throttle body is fully open
Line Plot

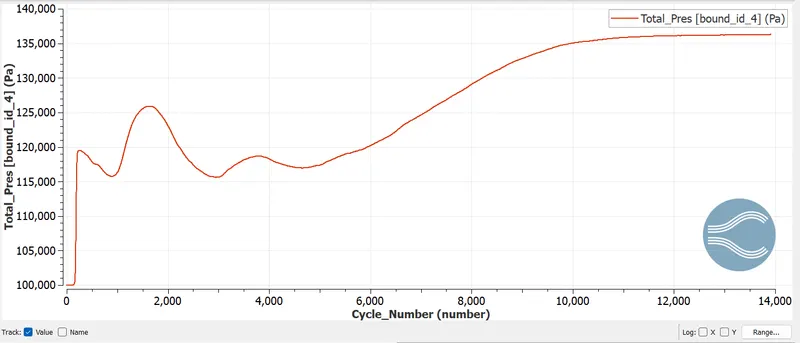

Total pressure at the outlet

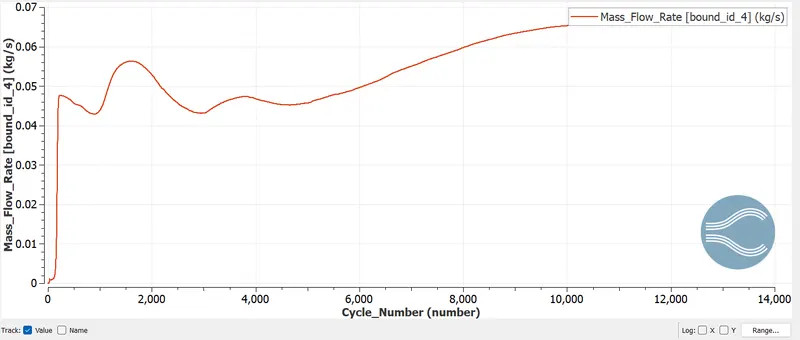

Mass Flow rate at the Outlet

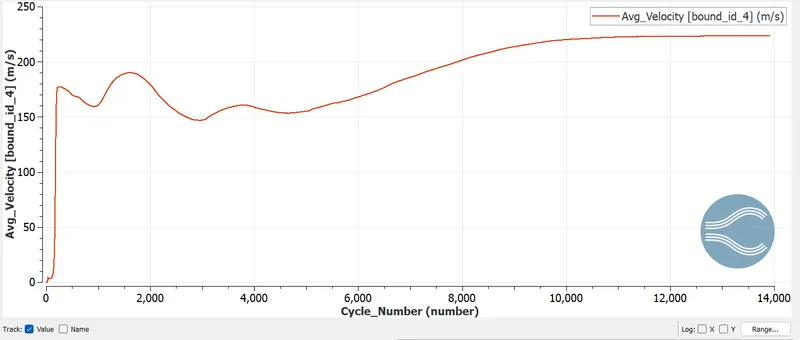

Velocity at the Outlet

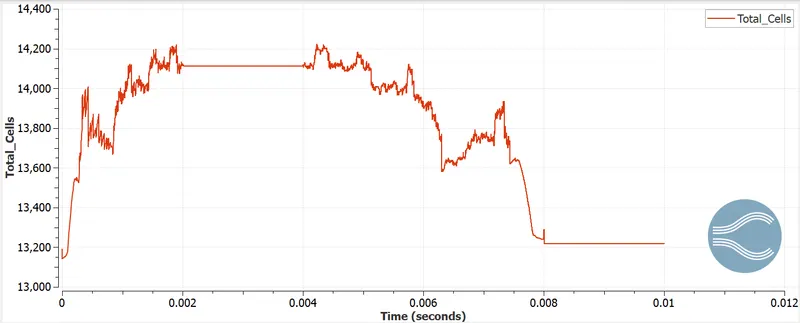

Total cells
Animations - Youtube Videos
Density
Pressure
Velocity
