Week 4.2: Project - Transient simulation of flow over a throttle body

Aim --> Transient simulation of flow over a throttle body with Converge CFD.

Objectives -->

• Post-process the results and show pressure and velocity contours.
• Show the mesh.
• Show the plots for pressure, velocity, mass flow rate and total cell count.
• Create animations for throttle movement.

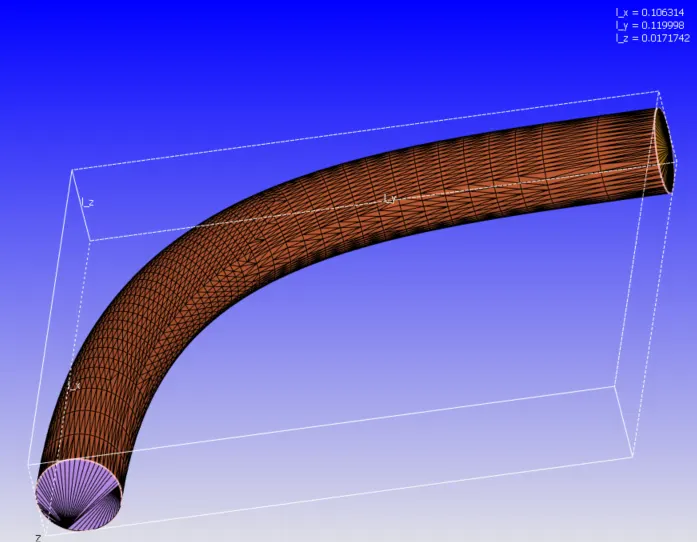

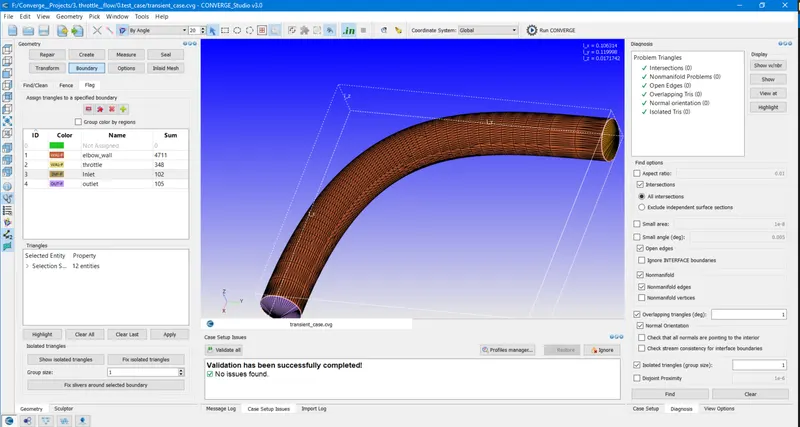

Geometry -->

Case Setup -->

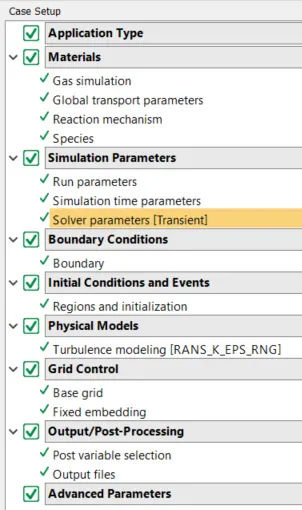

• Case setup tree -->
•
• Application type --> Time-based
• Material --> Air

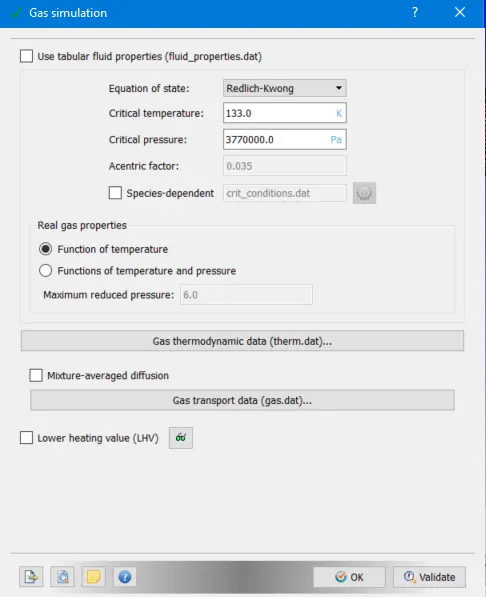

• Gas simulation parameters
•

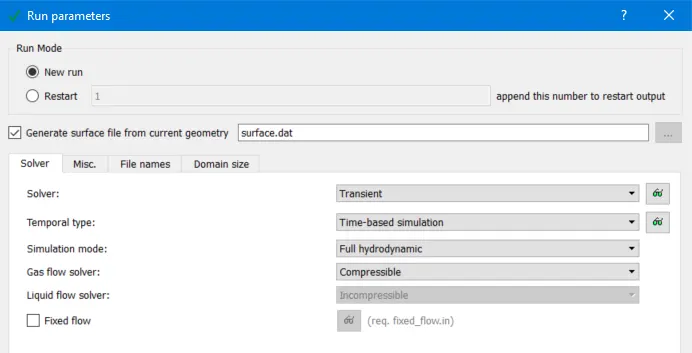

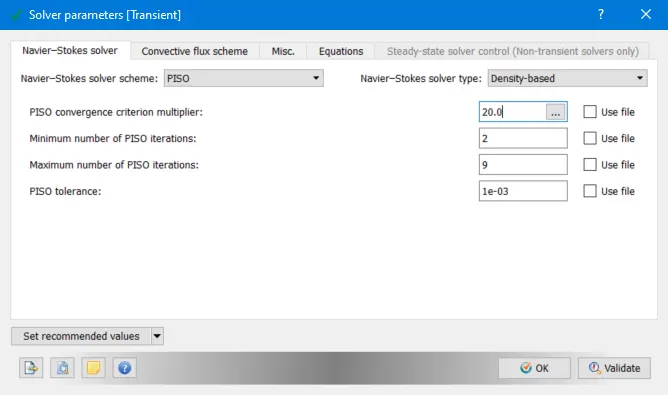

• Simulation Parameters (Run and solver parameters)
•

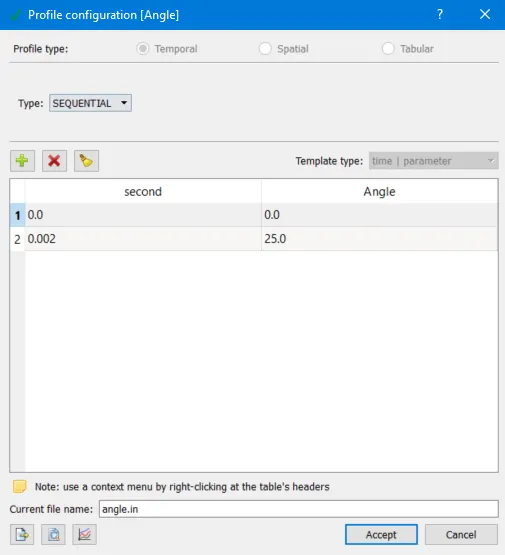

• angle.in file
•

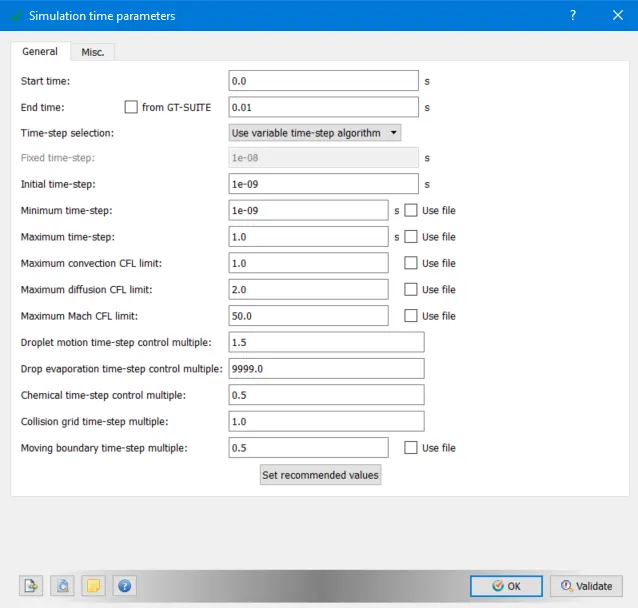

• Simulation time parameters (End time = 0.1 seconds)
•

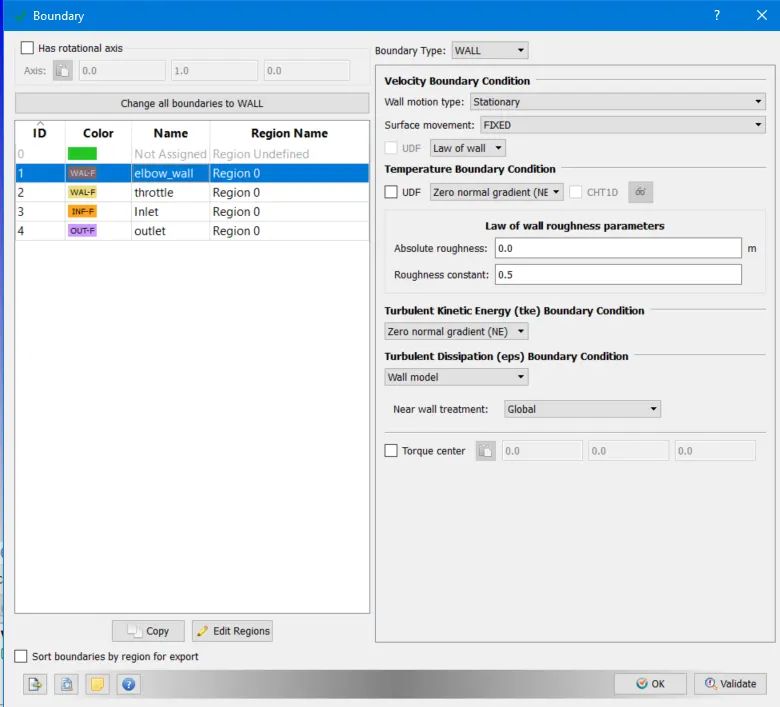

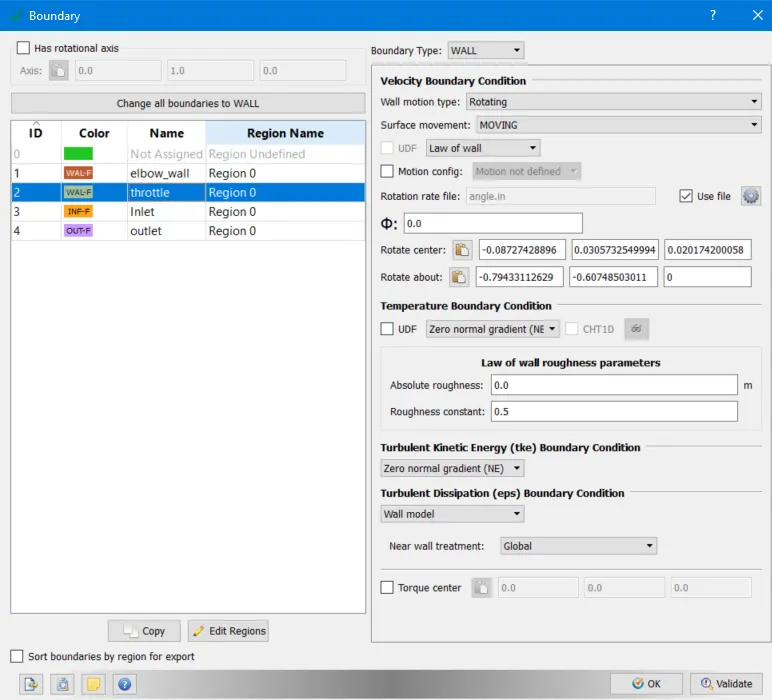

• Boundary (Pressure Inlet Outlet boundary condition)
•
•

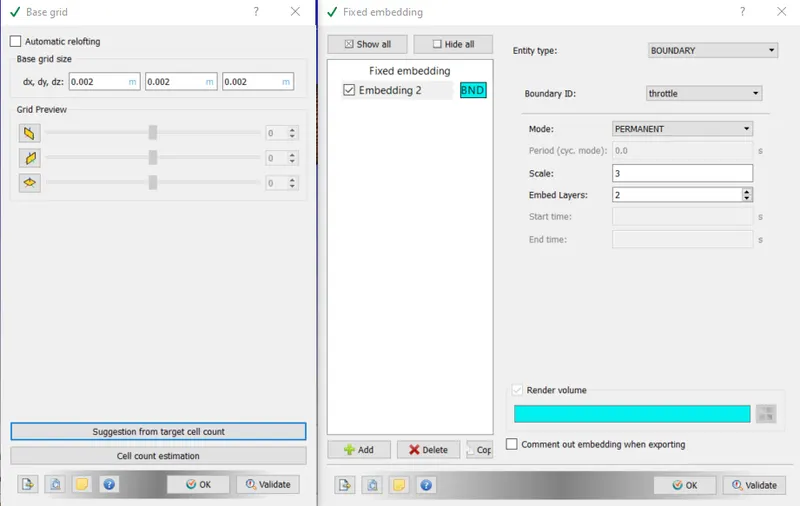

• Base mesh and fixed embedding
•

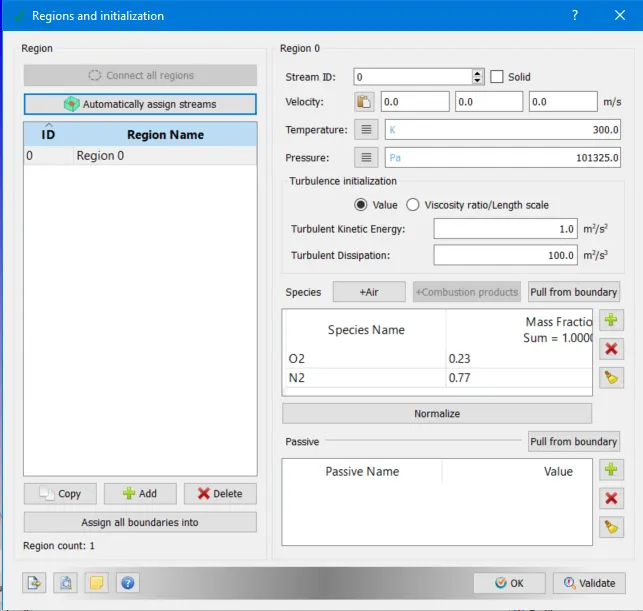

• Regions and Initialization
•

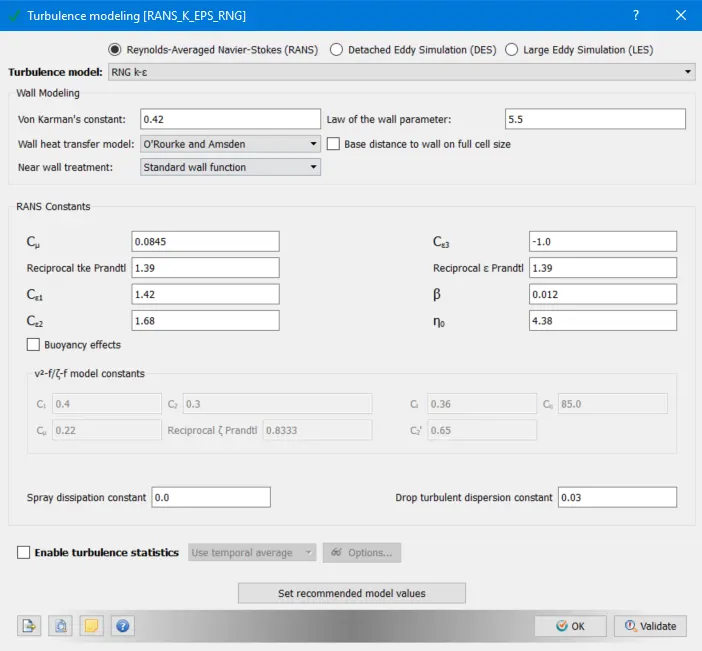

• Turbulence model --> RNG K-e model
•

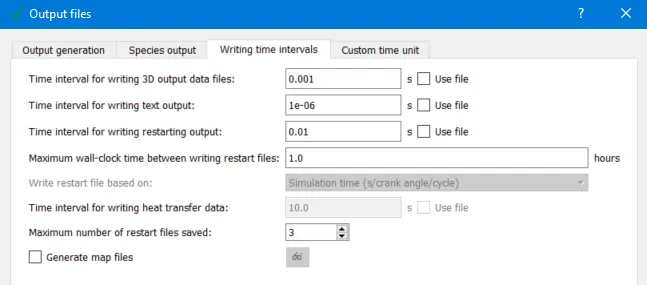

• Output files
•

Results

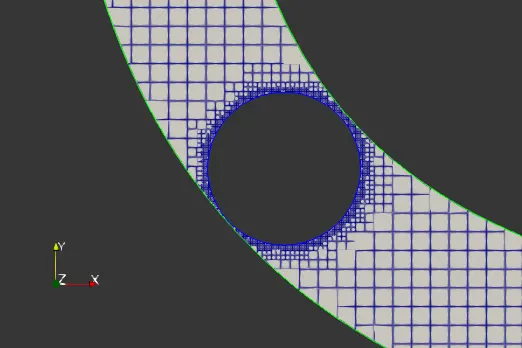

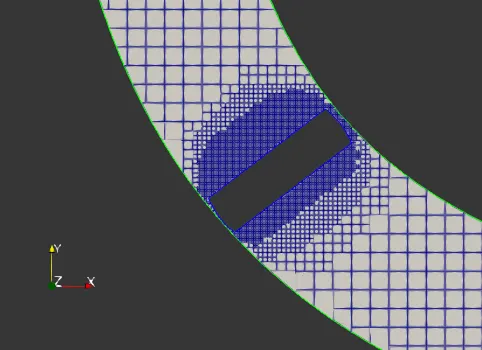

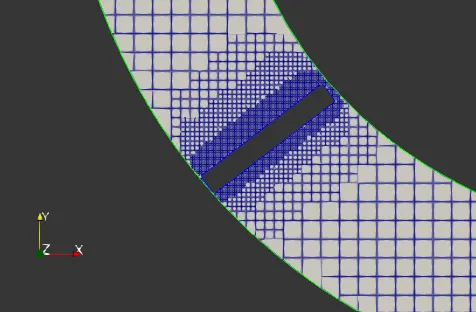

• Mesh

Mesh-Motion Animation (Throttle body rotation motion)

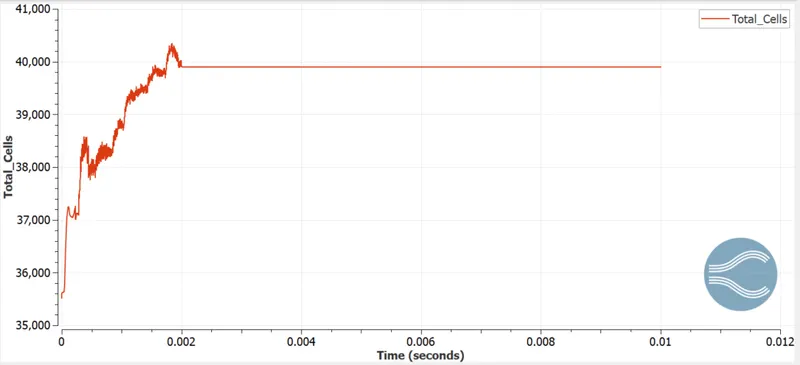

--> We can see that after 0.002 seconds Mesh(Total_cells) remains constant.

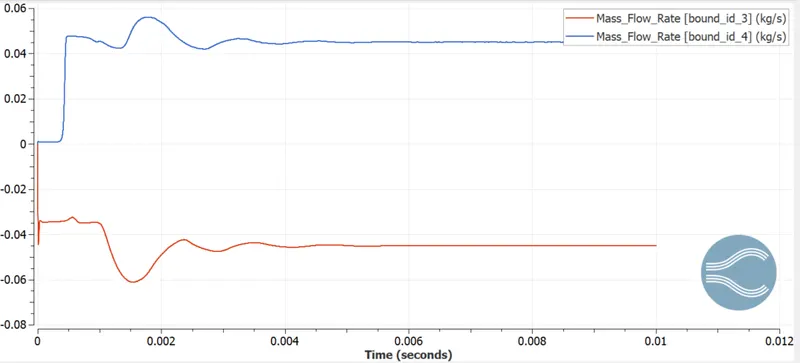

• Mass-flow rate plots at inlet and outlet

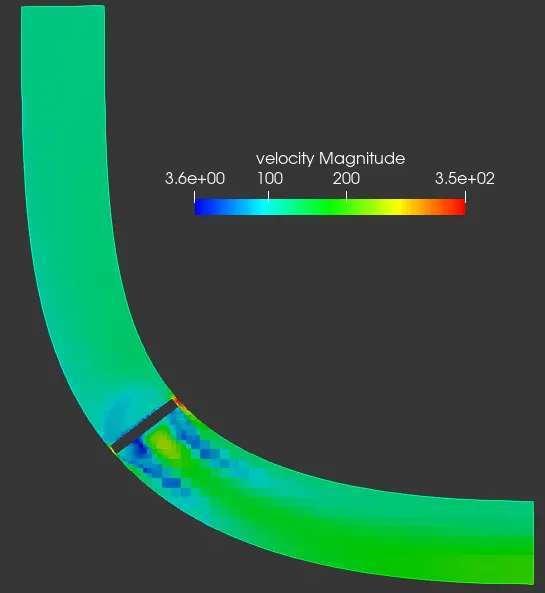

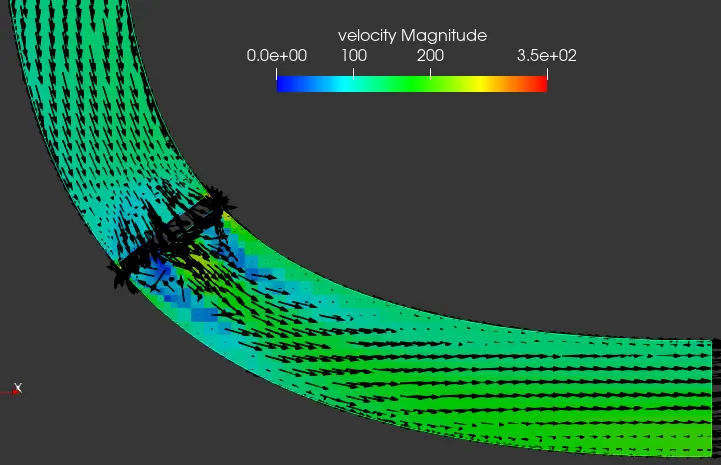

• Velocity plots/contours

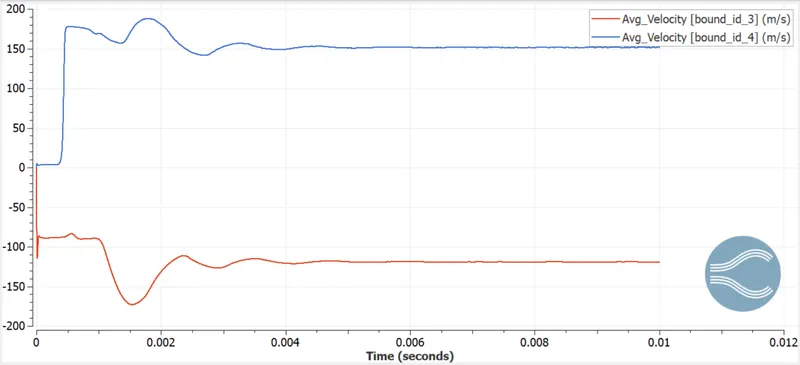

Velocity plots

Velocity Animation

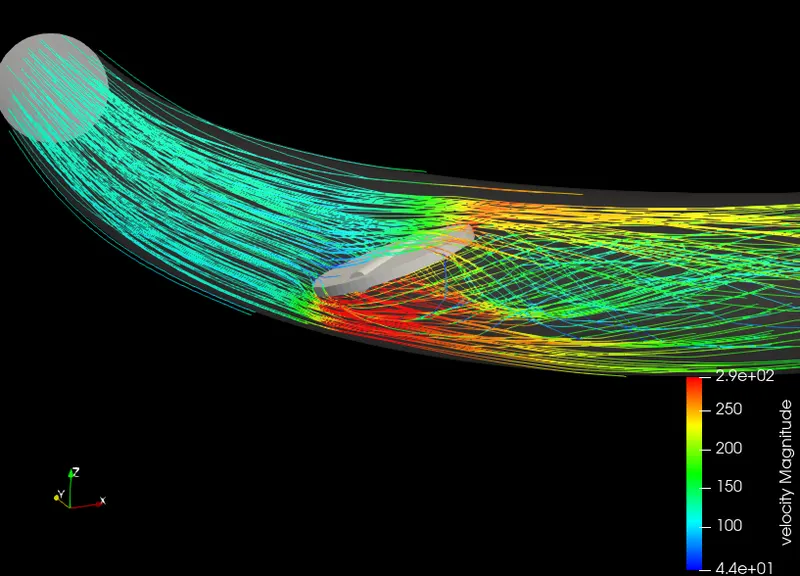

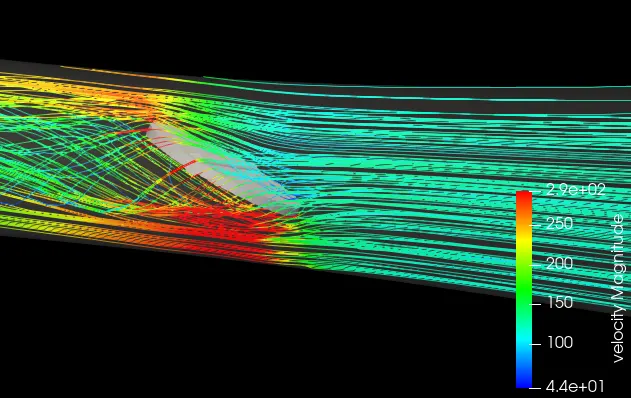

Velocity streamline

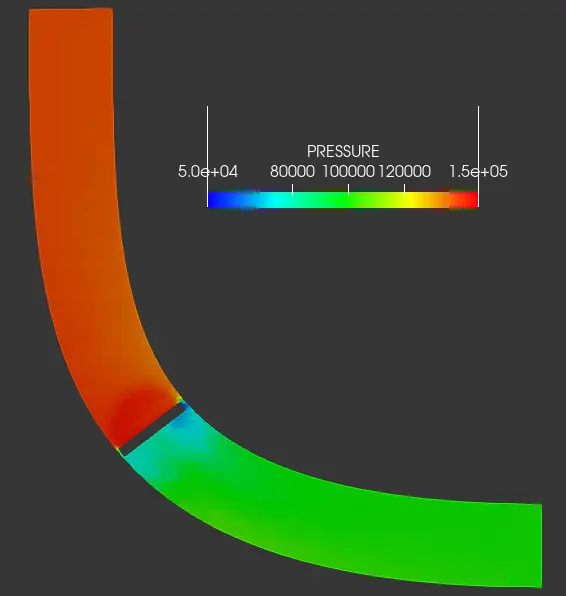

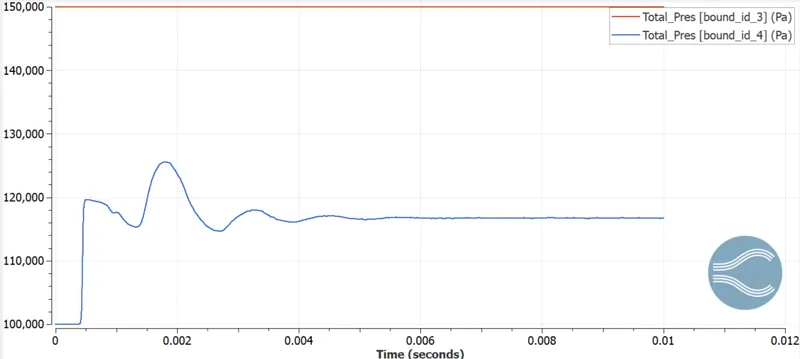

• Pressure plots/contours

Pressure Animation

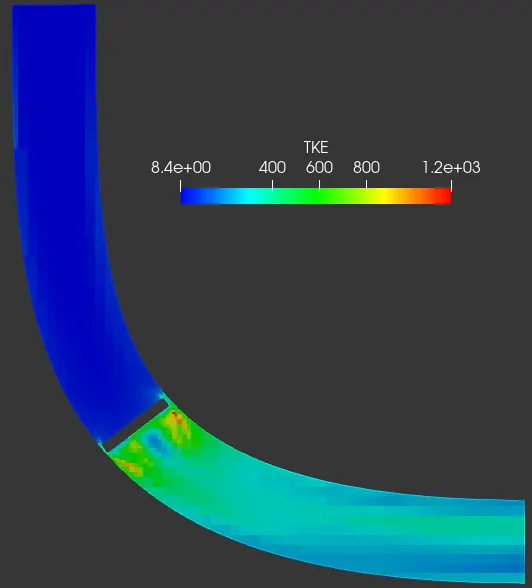

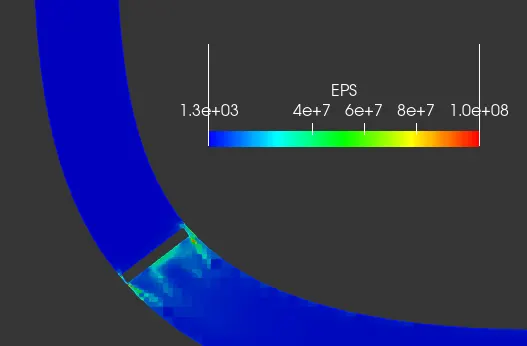

• Turbulent Kinetic Energy and Epsilon(dissipation rate)

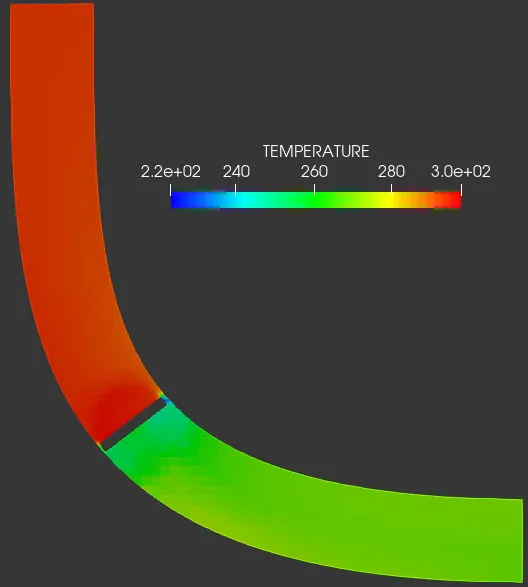

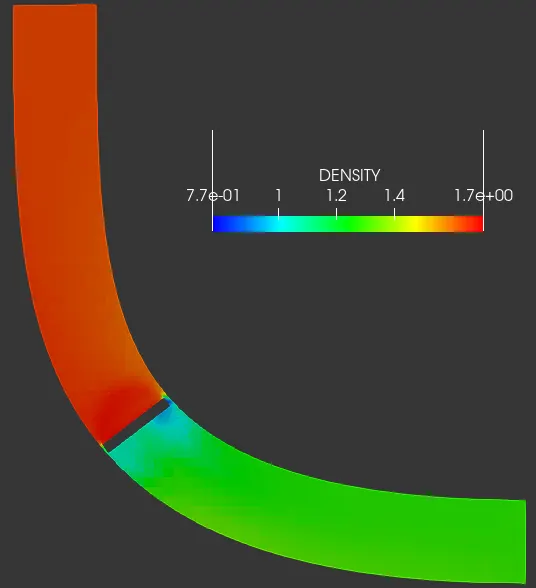

• Temperature and Density

Conclusion

• Transient simulation on throttle valve has been successfully run for 0.1 seconds.
• flow variables have converged in the plots.
• Flow separation, recirculation and wake region near throttle body is shown in the contour plots.
