Week 4.1: Project - Steady state simulation of flow over a throttle body

Week 4.1: Project - Steady-state simulation of flow over a throttle body

Answer

This geometry is a basic 3D representation of a simple throttle body used in vehicles, which is used to control the air flow towards engine.

We are going to do a basic simulation in converge.

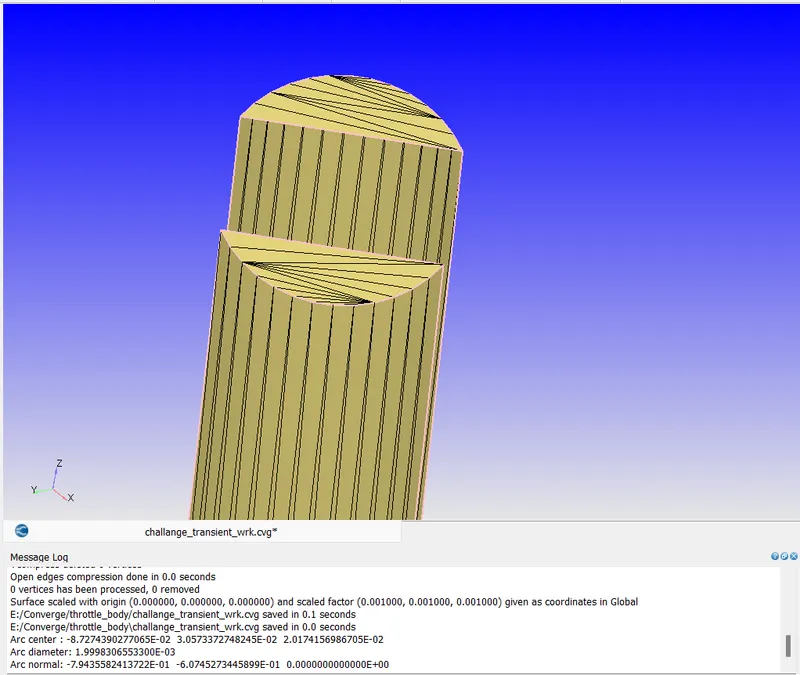

First, we are going to scale down the geometry to about 0.001 of its original size,

For this simulation, the thickness of the pipe is not considered, so we are going to delete the pipe thickness.

Thickness removed.

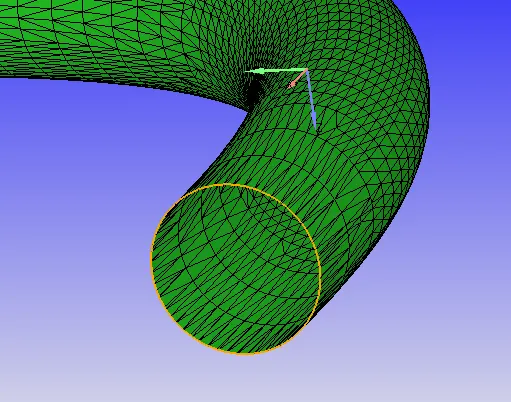

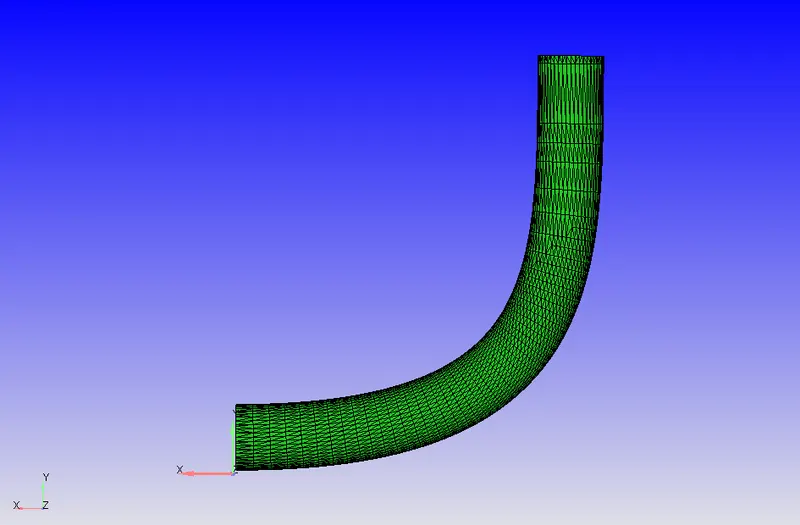

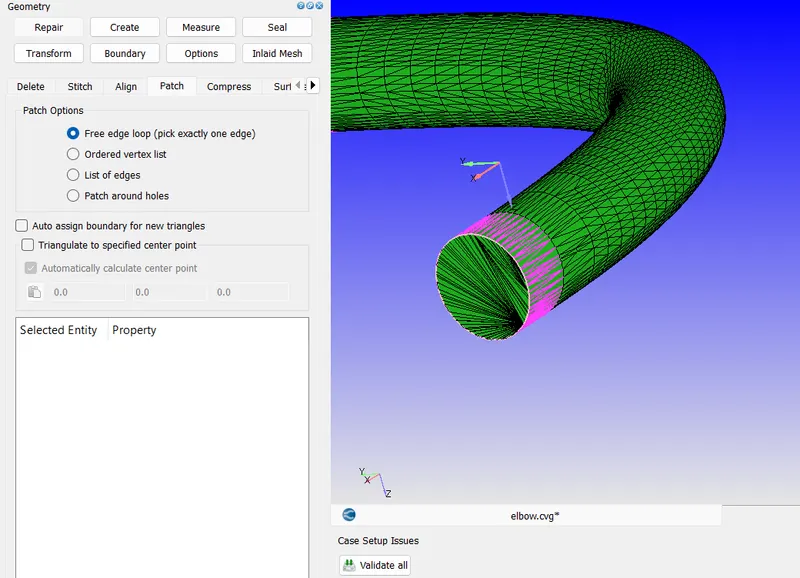

Now, we are going to close each end of the geometry.

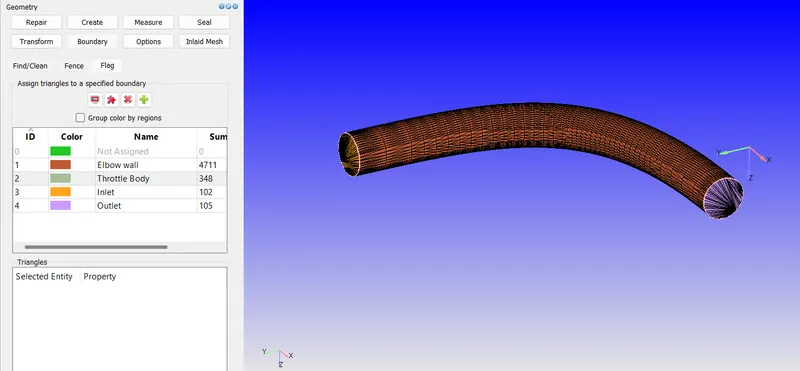

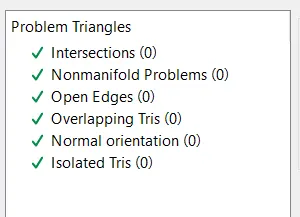

diagnosis check

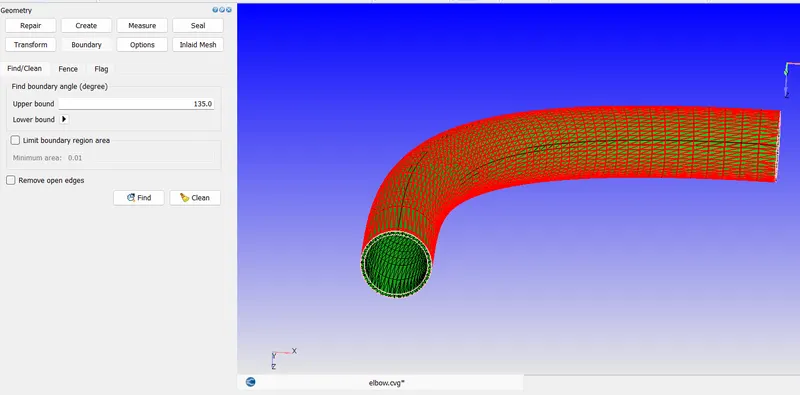

Boundary defining

Start setting up case tree

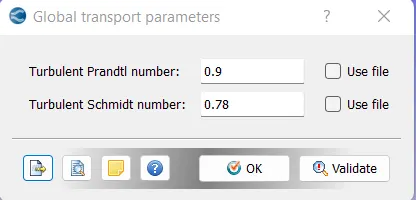

The global transport parameter is set to default

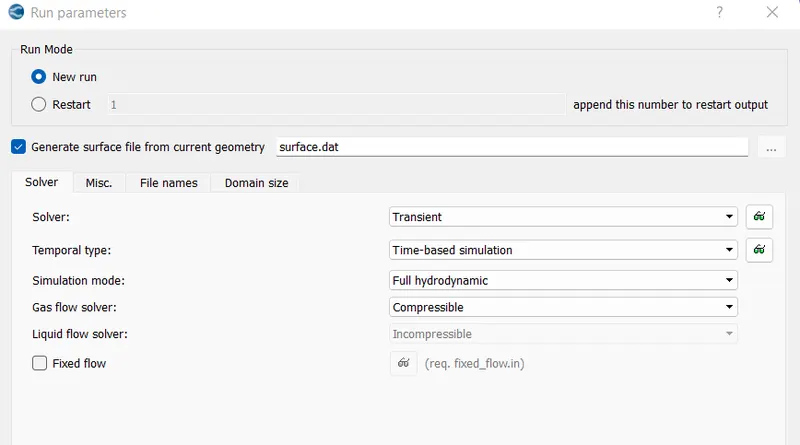

Solver is Transient type

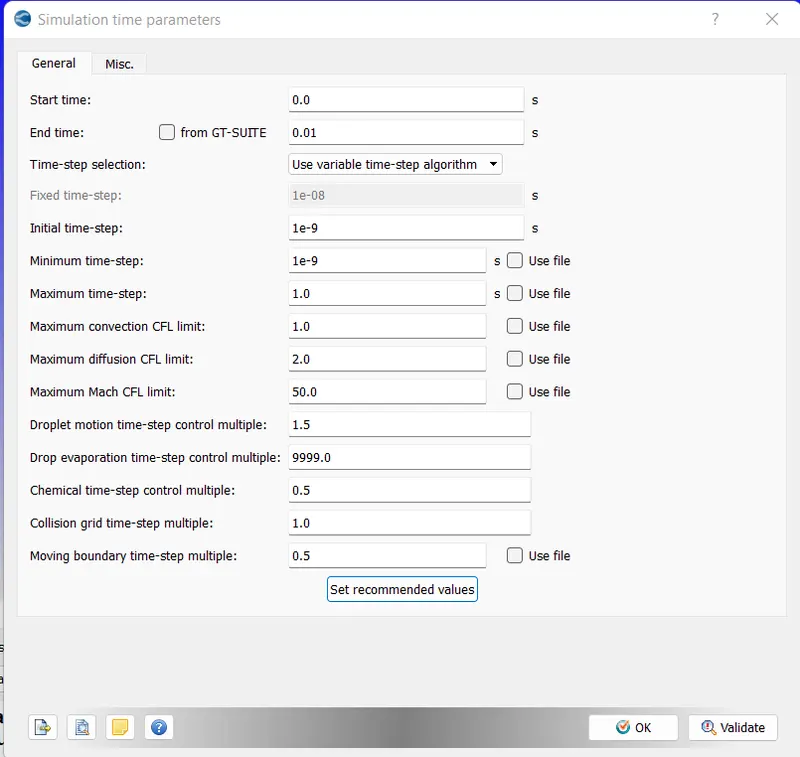

Simulation Time Parameter

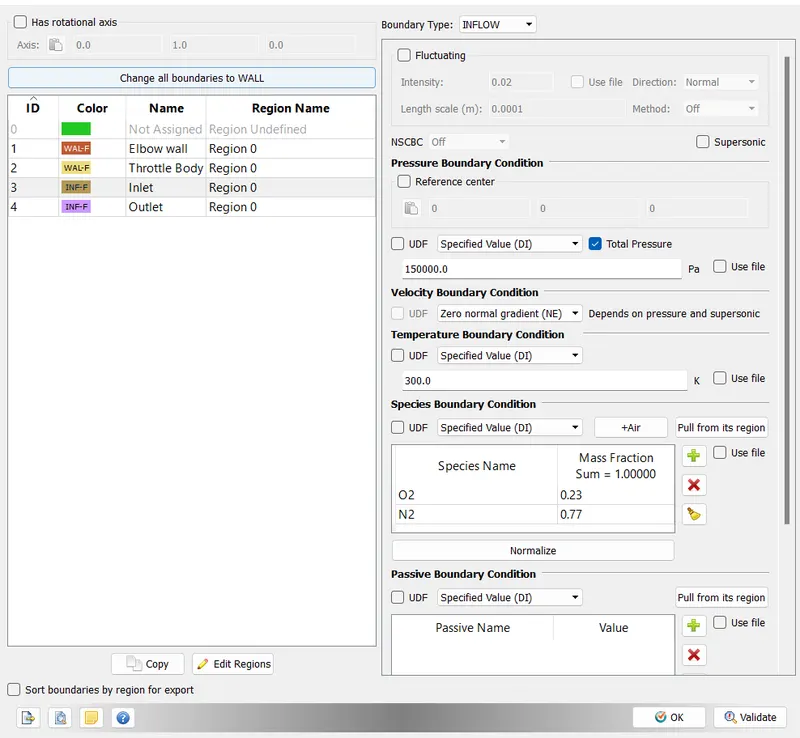

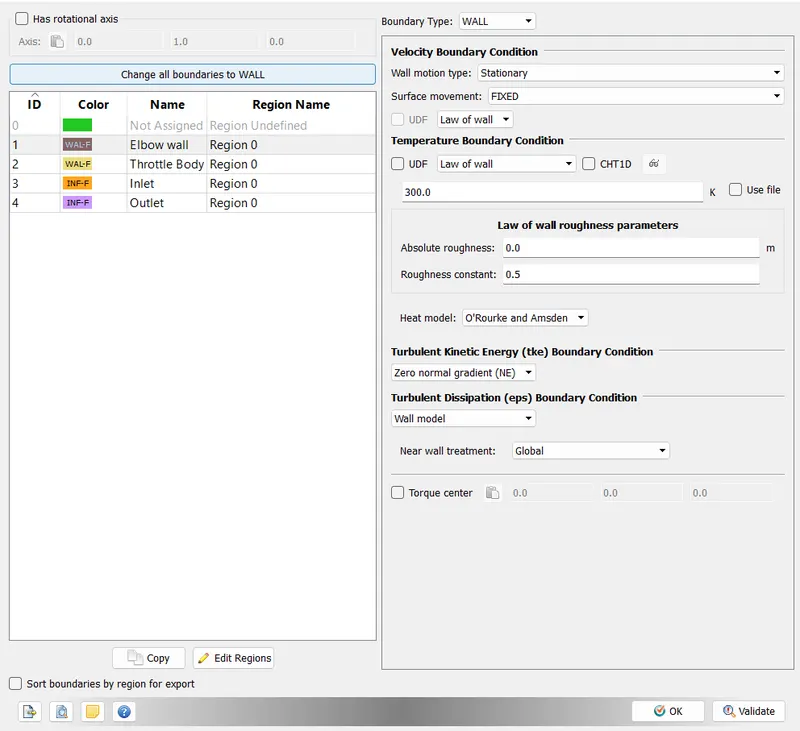

The Boundary Condition

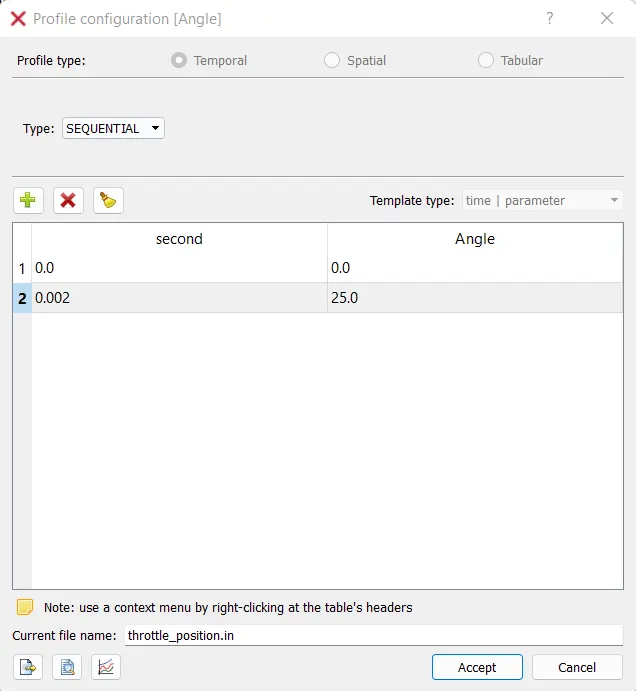

To find the COG of the throttle body

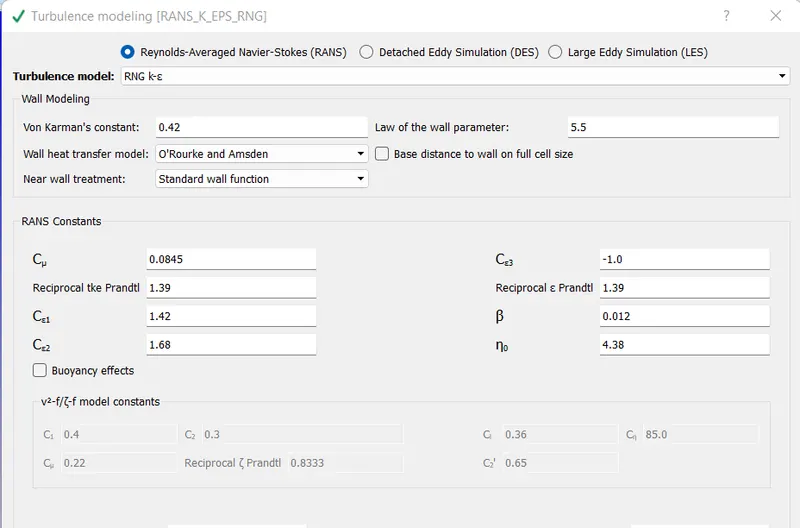

The Turbulemce model is set as default

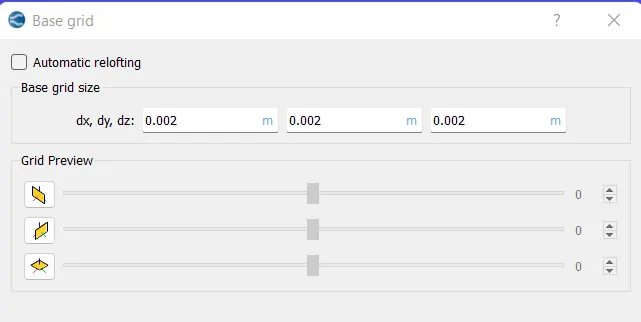

The mesh size

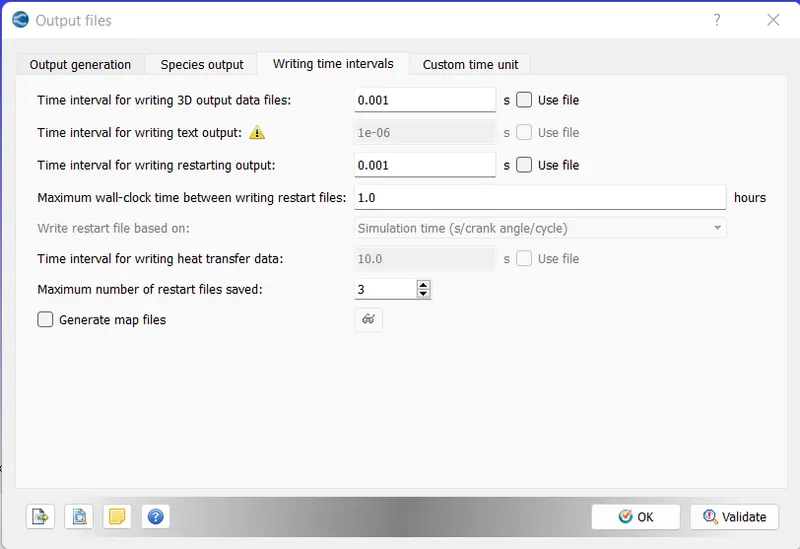

The Output Files

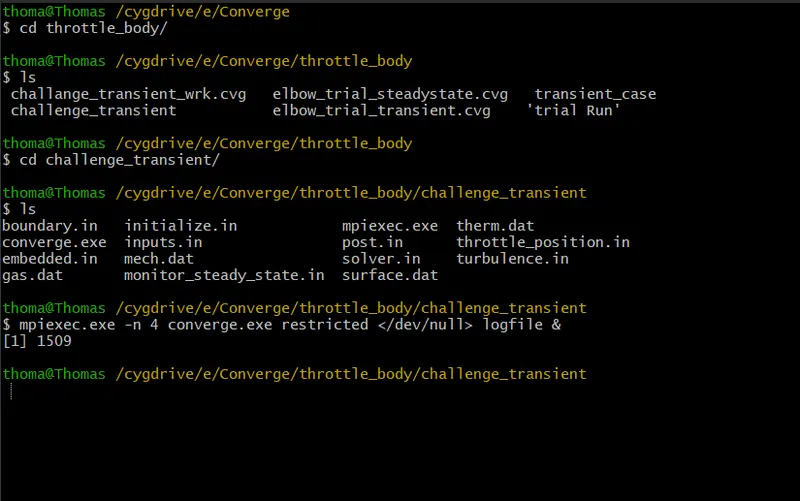

To run the simulation we run it in Cygwin

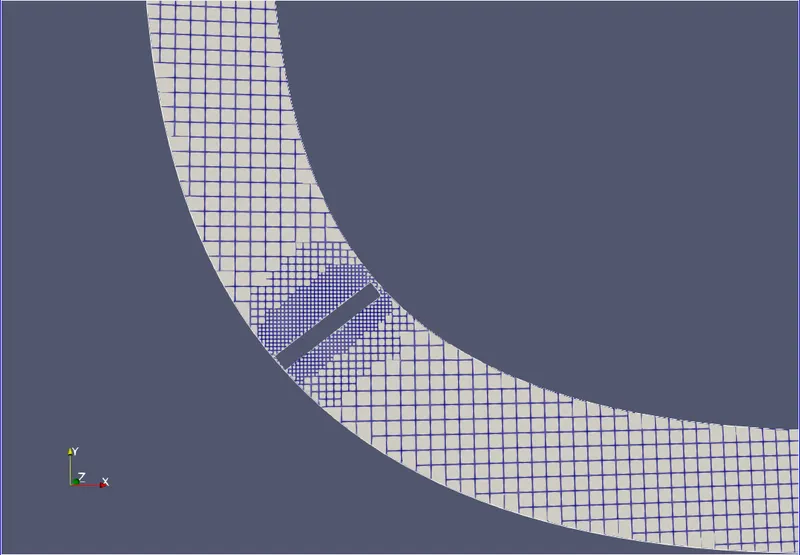

The mesh diagram of the geometry with the fixed embedding is clearly visible around the throttle body. Fixed Embedding is used to get a refined analysis results around the throttle body.

RESULT

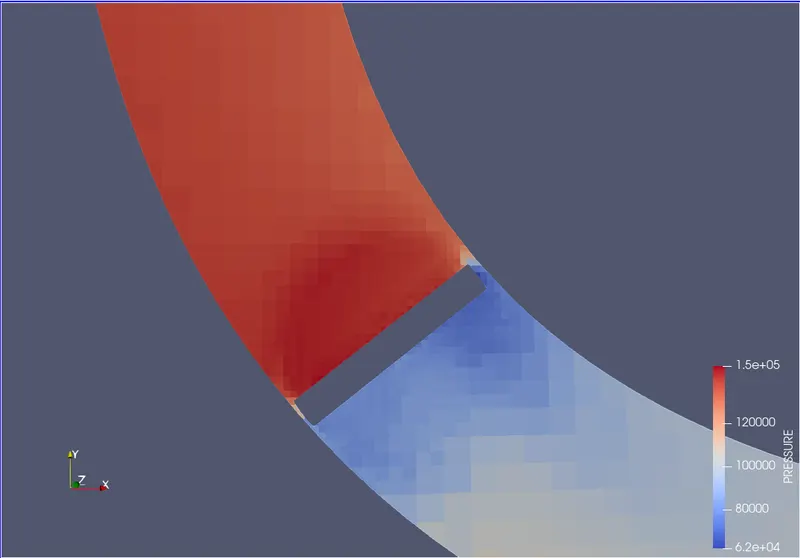

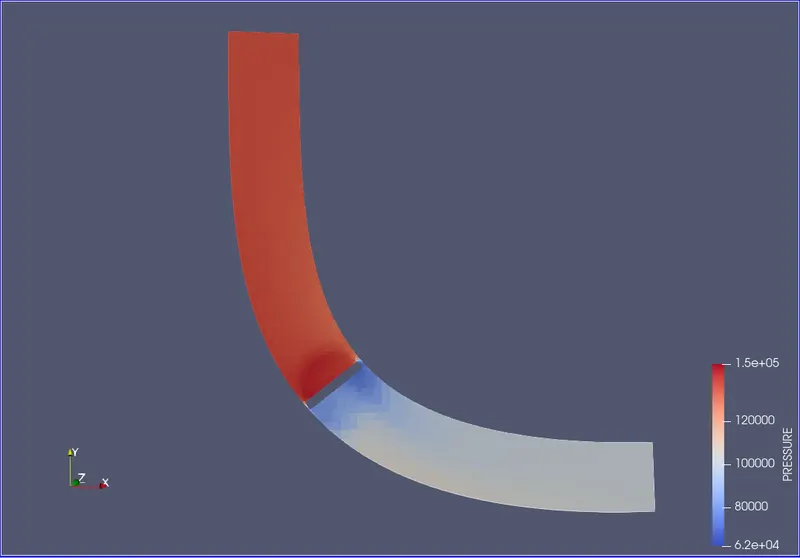

The Pressure Contour

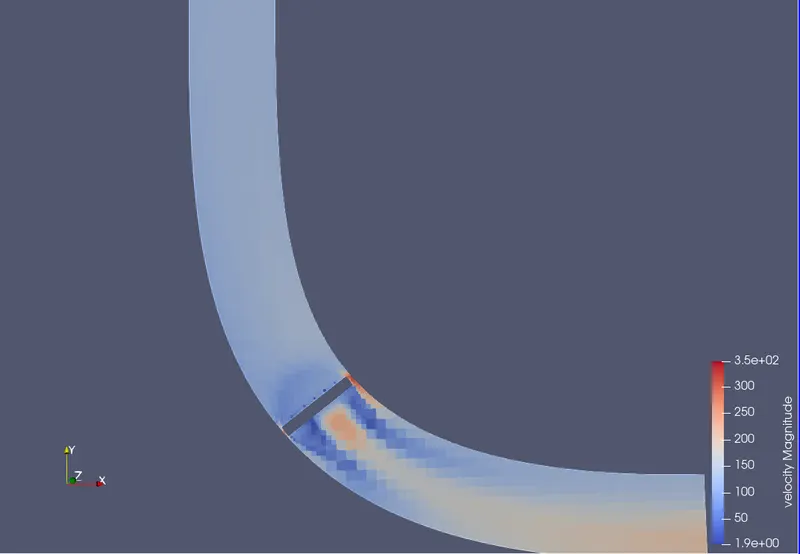

Velocity Contour

LINE PLOT

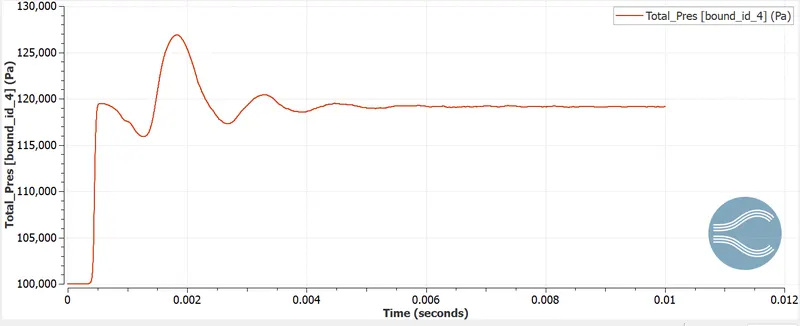

Total Pressure Line plot at the Outlet

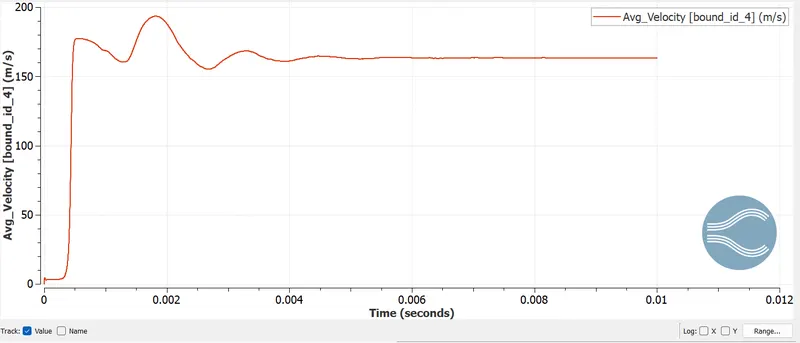

Average velocity at the outlet

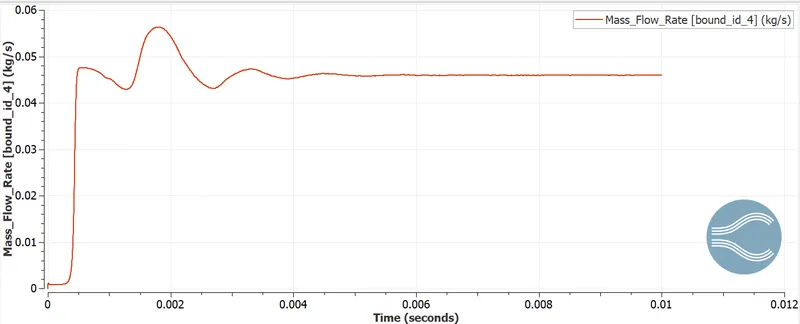

Mass Flow rate at Outlet

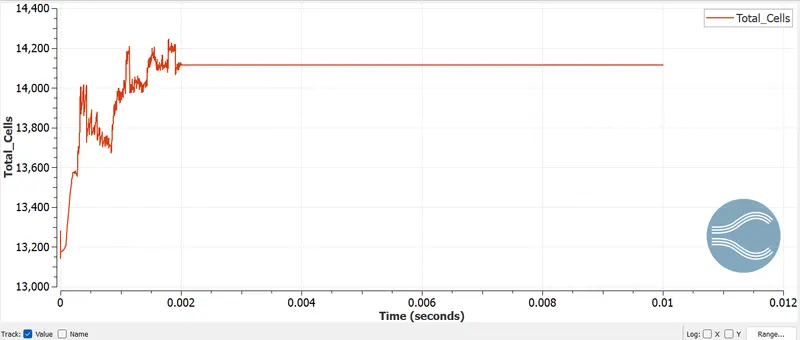

Total cell Plot
