Week 3 Verification of Weld Joints

Objective: To find out directional deformation, equivalent stain and equivalent stress on the welding joints with a certain load with different materials

Setting up the analysis: The geometry is imported and opened in ANSYS mechanical. Material is selected from Engineering data. In this case three materials are used for three cases. Aluminium, Stainless steel, Copper and Bronze.

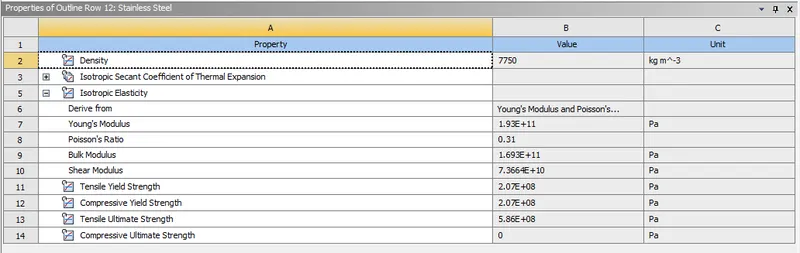

Stainless Steel

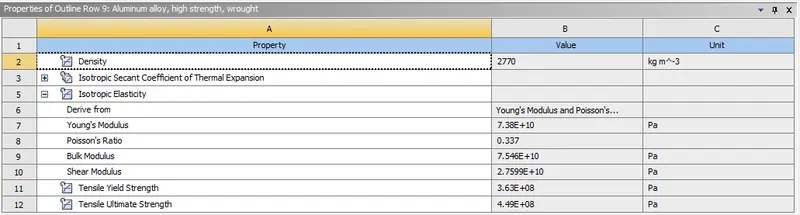

Aluminium

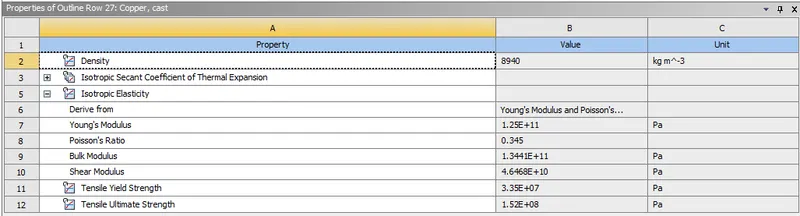

Copper

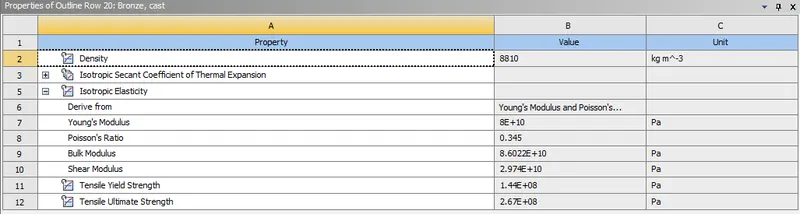

Bronze

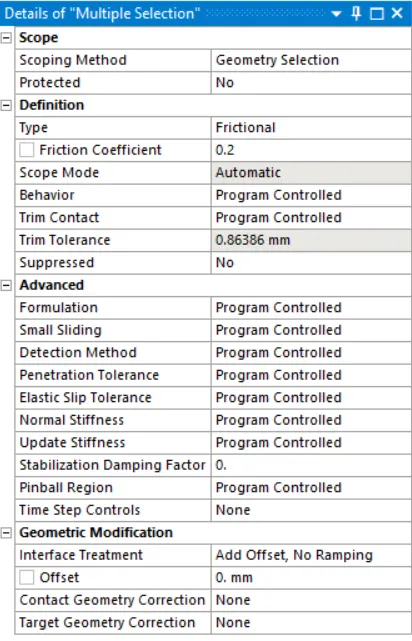

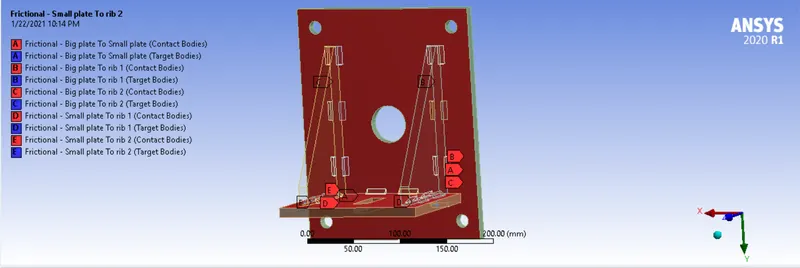

In the contacts, excpet for the welding contacts, other contacts among big plate, small plate and ribs are frictional contacts with coefficient of friction as 0.2

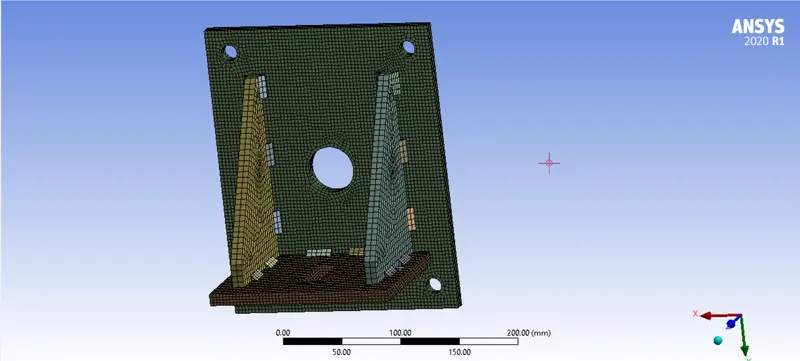

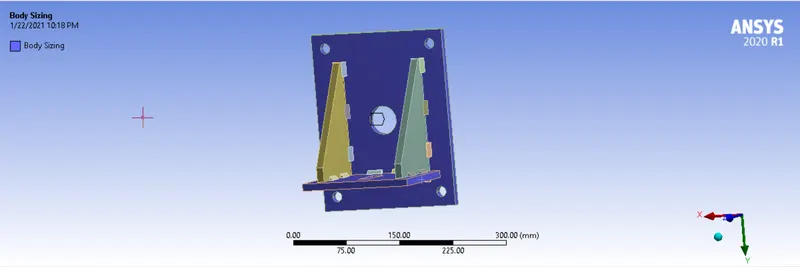

Meshing: The overall mesh size is 5mm and for two surfaces as shown below, the mesh size for that bodies is 3mm

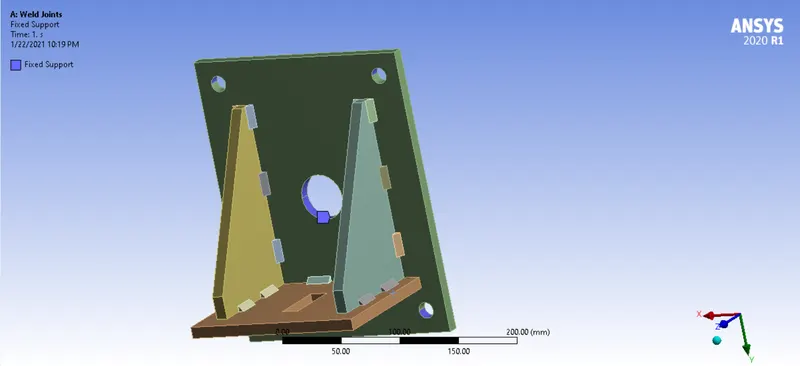

Boundary Conditions: Fixed supports are given as shown

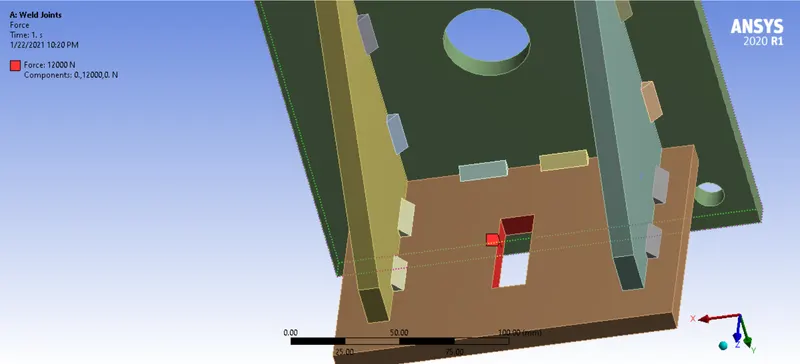

A force of 15000N is given in the negative Y direction

Case 1: Stainless steel

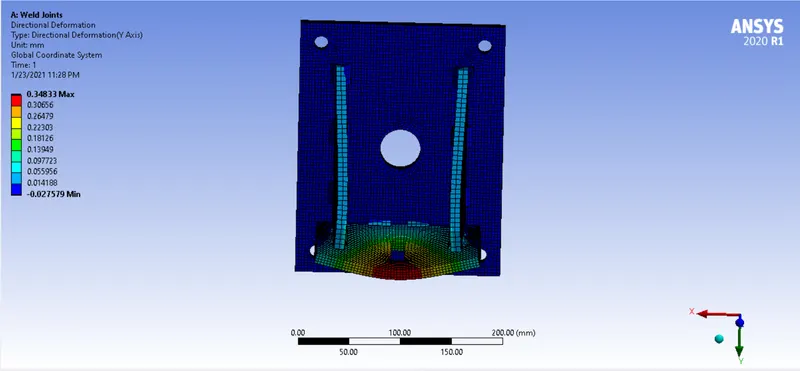

Directional deformation

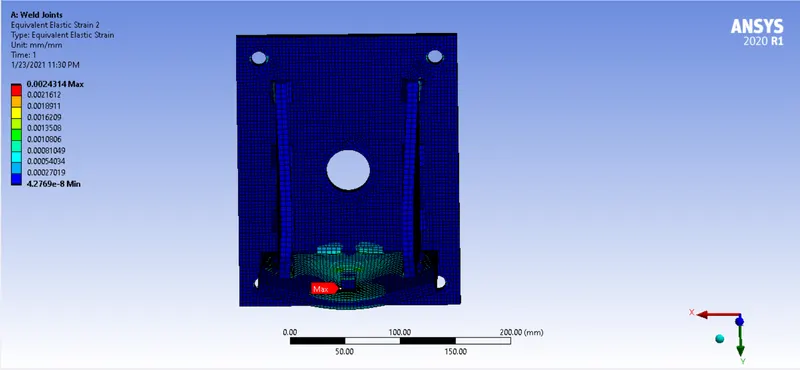

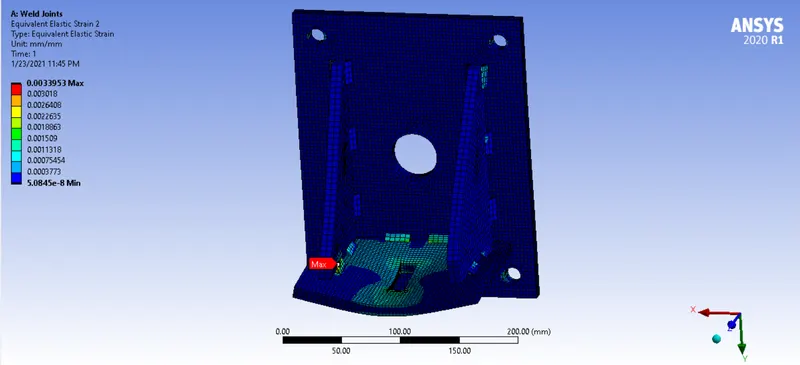

Equivalent strain

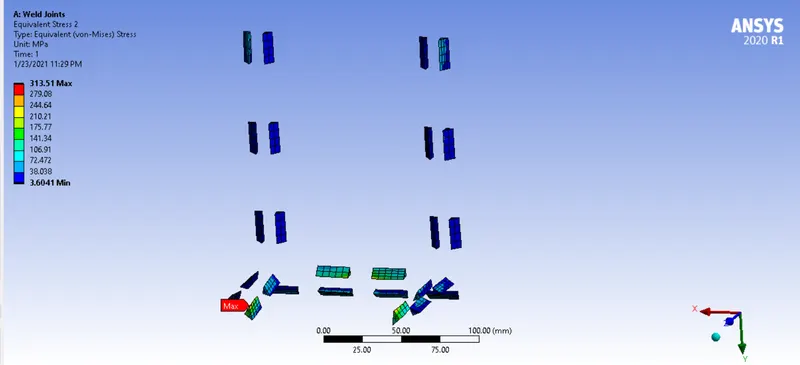

Equivalent stress

Aluminum (Plate material stainless steel)

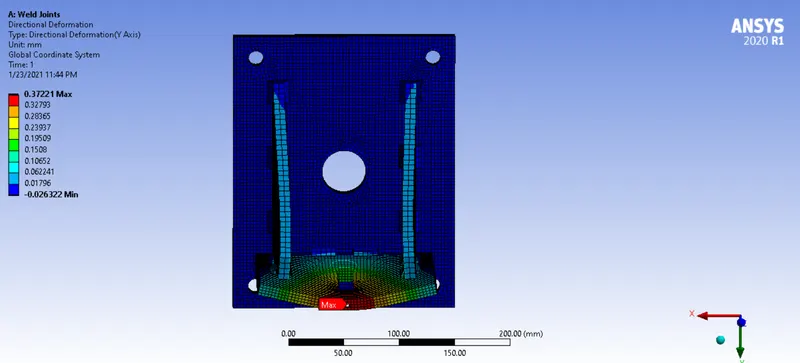

Deformation Y axis

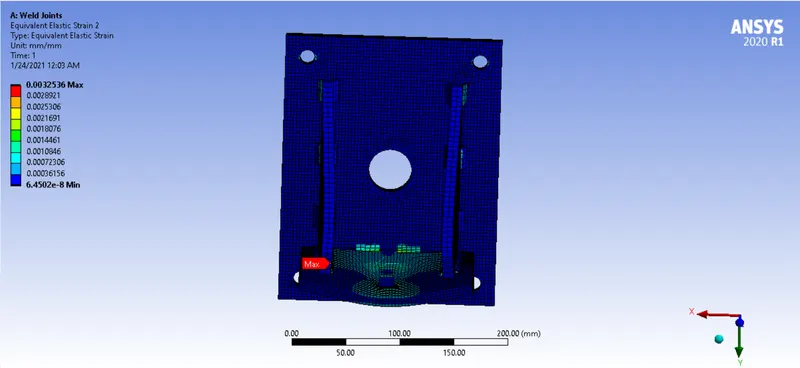

Equivalent strain

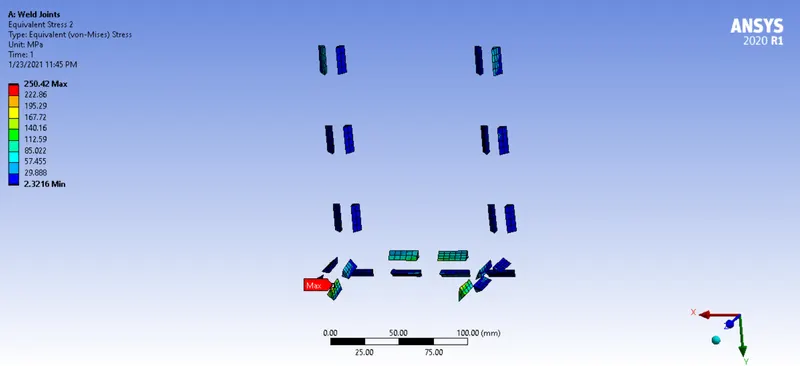

Equivalent stress

Bronze (weld material) Copper (Ribs)

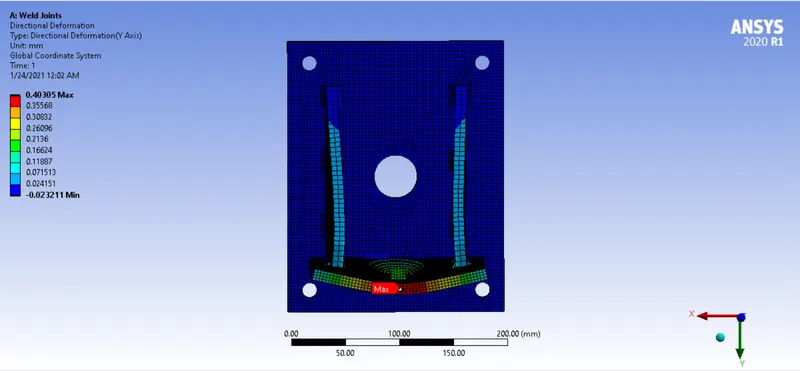

Deformation Y axis

Equivalent strain

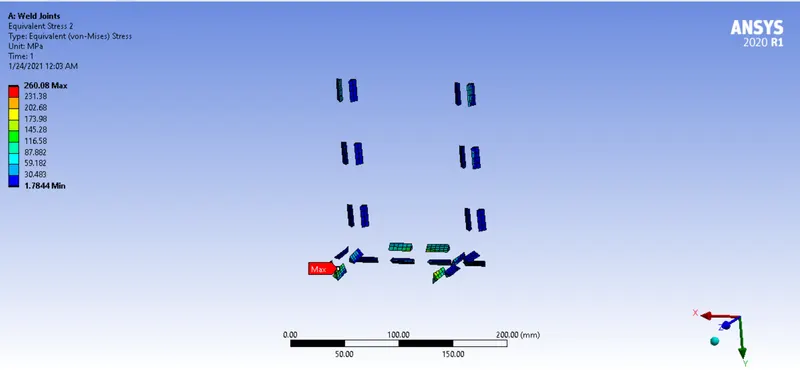

Equivlent stress

Results:

Material	Deformation (Y) mm	Equivalent stress (MPa)	Equivalent strain (mm/mm)
Stainless steel	0.34	313.5	0.002
Aluminium	0.37	250	0.003
Bronze(weldments)	0.40	260	0.0032

Conclusion: The following conclusion can be drawn that case 2 gives us the best reults compared to other cases. The weld joint that is under maximum stress is shown in the figures with 'max' probe.
