Week 3 Verification of Weld Joints

Aim :- Find out the Directional Deformation and equivalent strain experienced by the setup. Identify the weld joint that experiences the highest equivalent stress for 3 different materials i.e. SS, ALUMINIUM & BRONZE.

Case 1. Stainless Steel: In this case, the material of the plates must also be the same. Use Stainless steel for both weldments and plates.

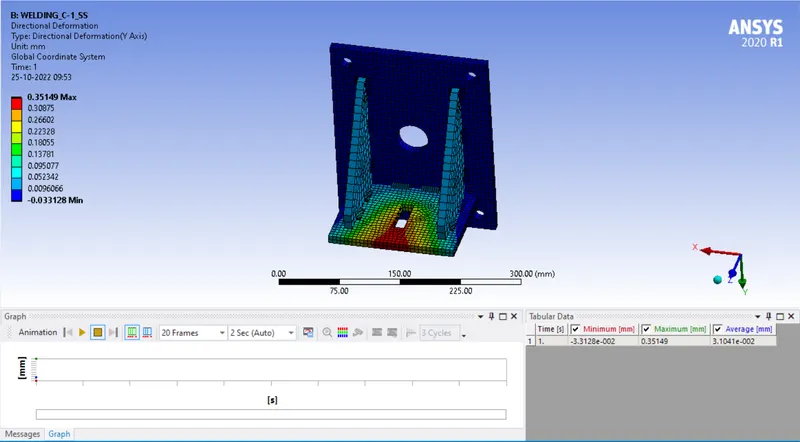

i) Directional Deformation along Y direction.

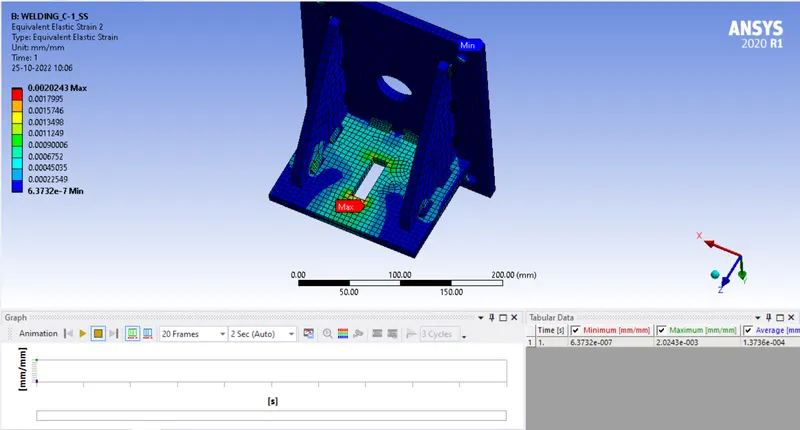

ii) Equivalent Strain

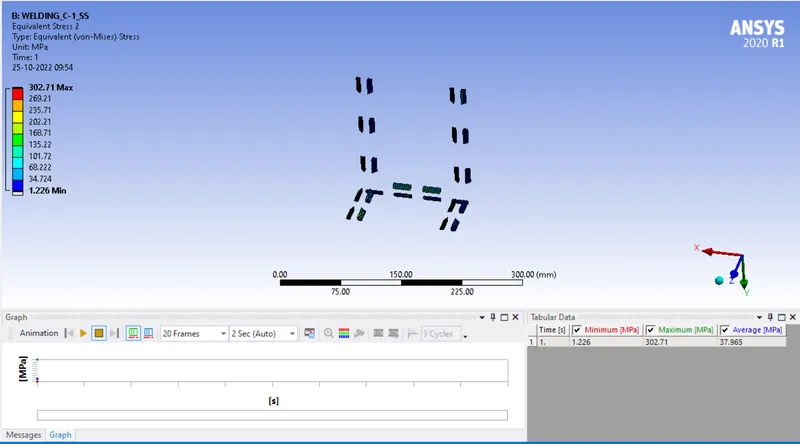

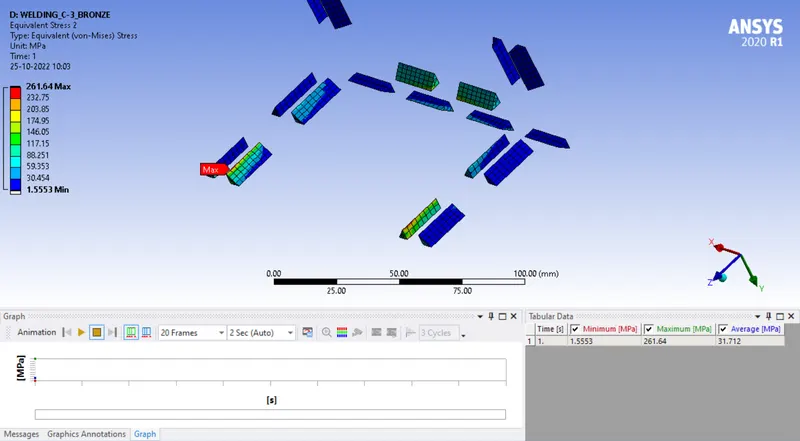

iii) Weld Joint experiences Max Stress

Case 2. Aluminium Alloy:The material to be chosen for this case is Aluminium alloy(high strength, wrought).

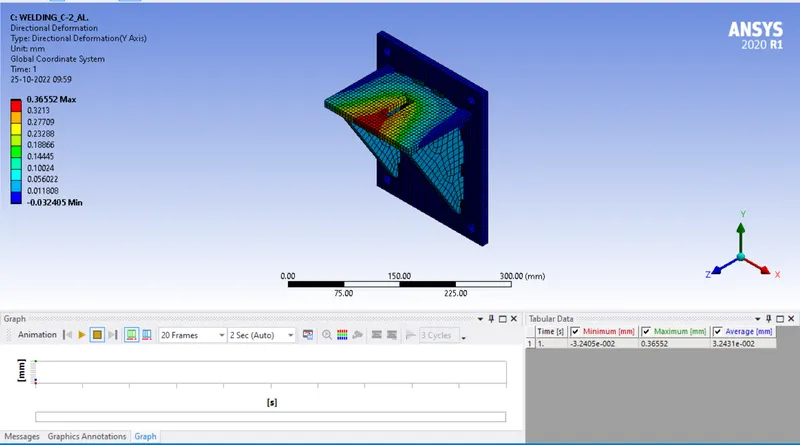

i) Directional Deformation along Y direction.

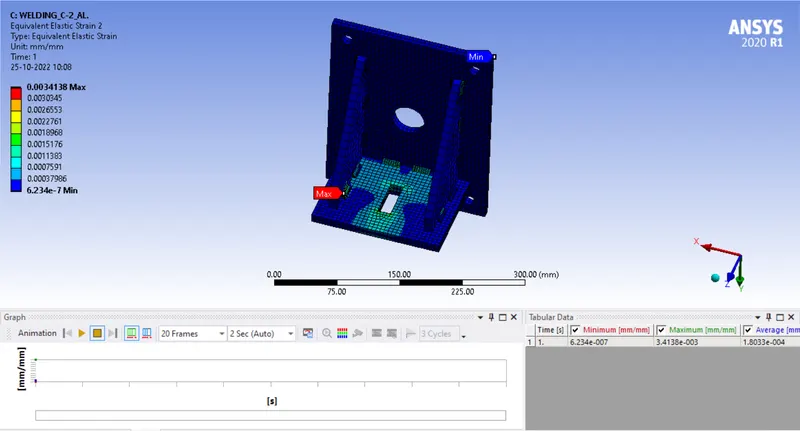

ii) Equivalent Strain

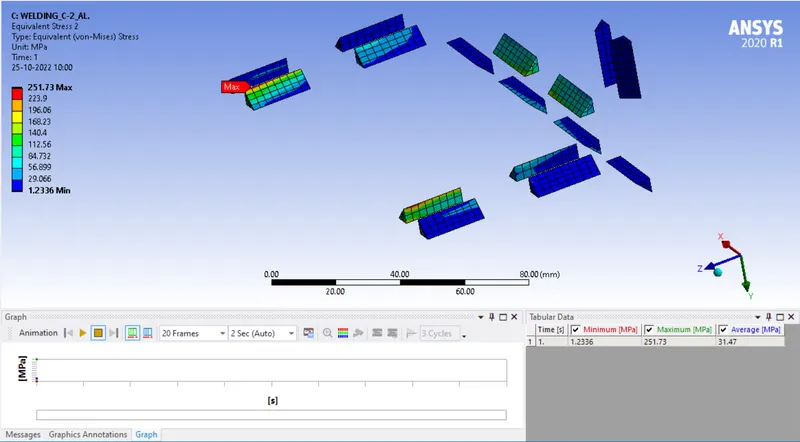

iii) Weld Joint experiences Max Stress

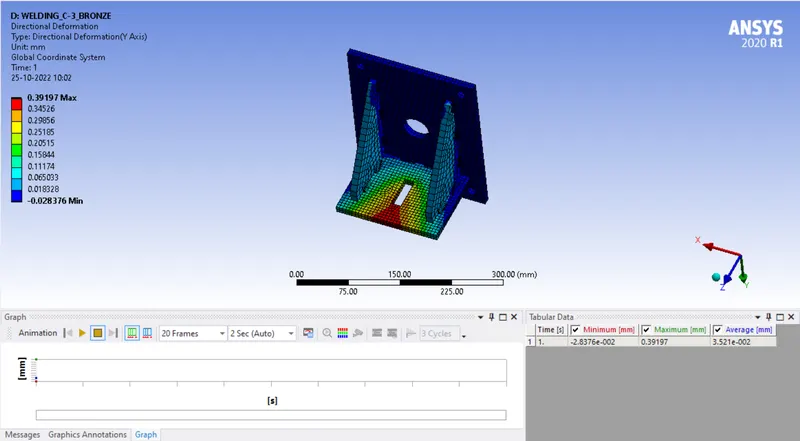

i) Directional Deformation along Y direction.

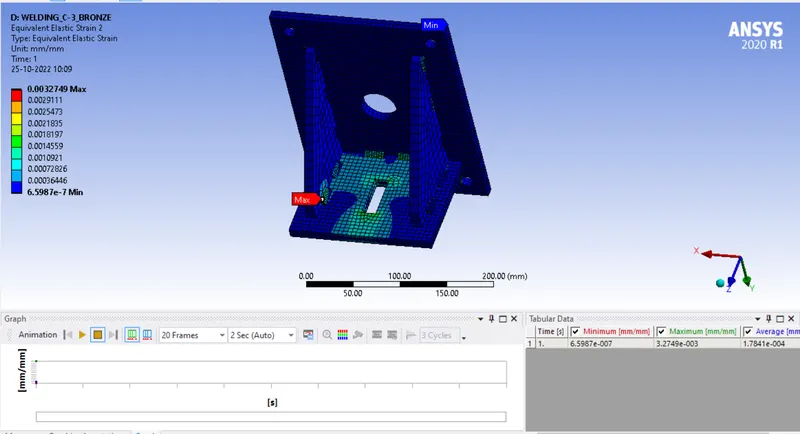

ii) Equivalent Strain

iii) Weld Joint experiences Max Stress

Conclution:

• It is clear from the above that maximum directional deformation and Strain in the system is shown in case 3 and minium in case 1.
• But on the other hand maximum Weld Stress is generated in Case 2, minimum in Case 3 and maximum in Case 1 because of material propoerties.
• Hence, one can conclude that weld joint of SS material provide heigher strength than aluminium and bronze.
