Week 1 Spur Gear Challenge
| Spure Gear Analysis of Different Materials | |||
| Sr. No. | CASE_1 ( MATERIAL: CAST IRON ) | CASE_2 ( MATERIAL: CAST STEEL ) | CASE_3 ( MATERIAL: CAST BRONZE ) |

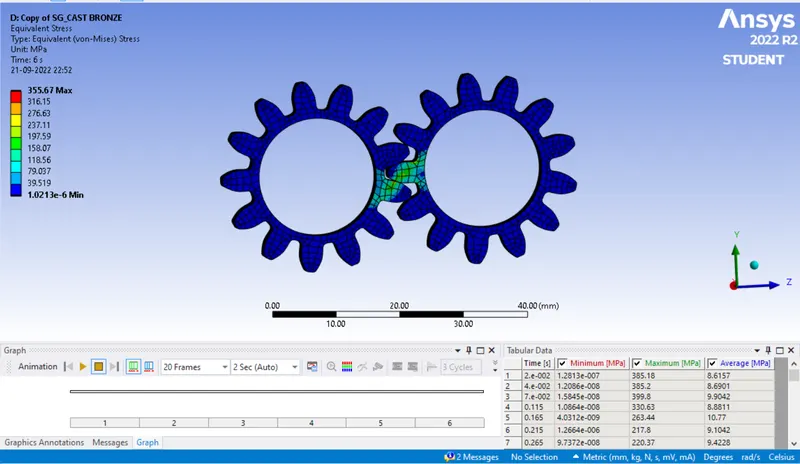

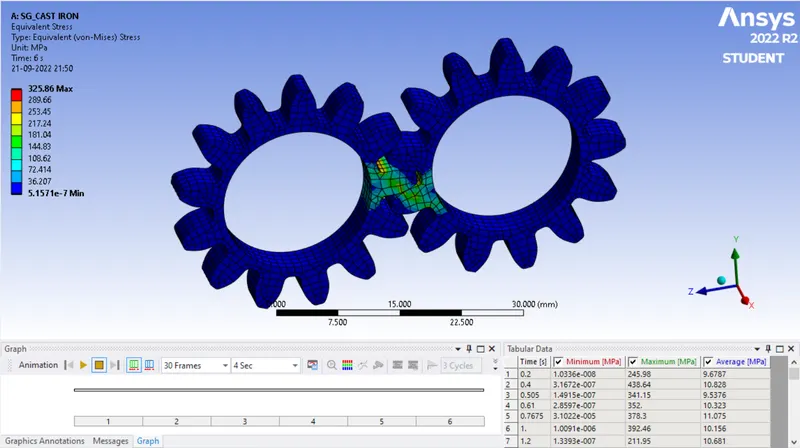

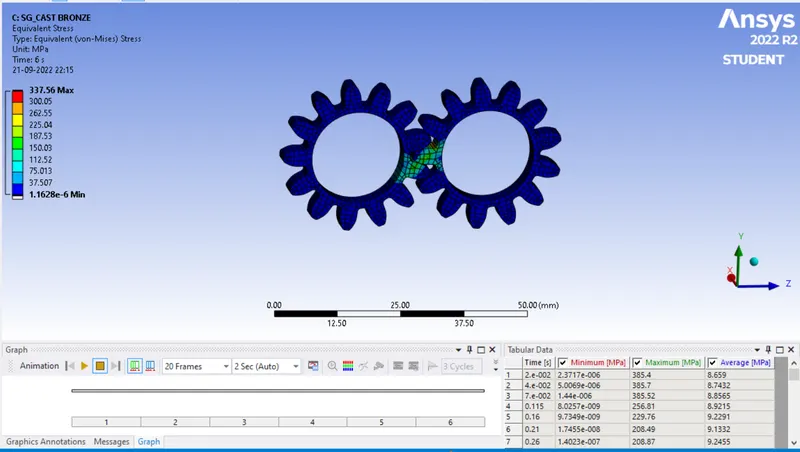

| 1 | Equivalent Stress Comparision | ||
| 325.86 Mpa | 355.67 Mpa | 337.56 Mpa | |
 |
 |
 |
|

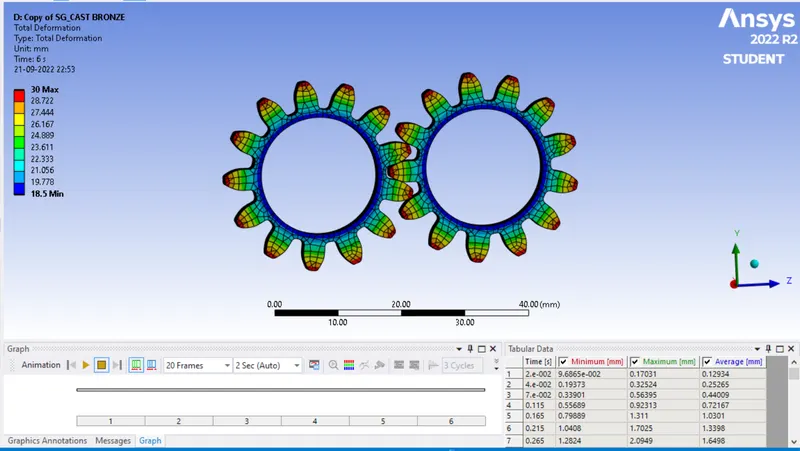

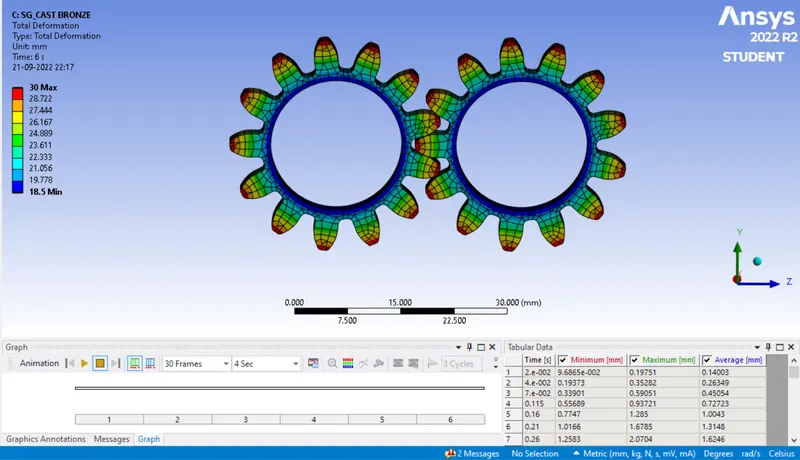

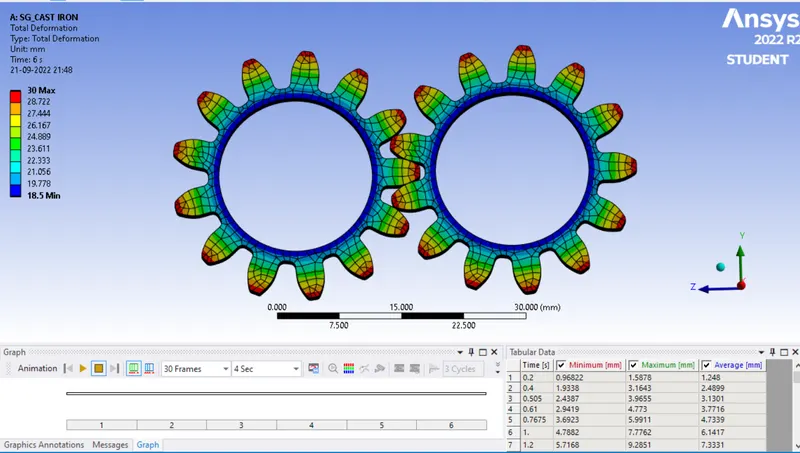

| 2 | Total deformation Comparision | ||
| 30 mm | 30 mm | 30 mm | |
 |
 |
 |
|
| 3 | Equivalent Strain Comparision | ||
| 1.60E-03 | 1.78E-03 | 4.30E-03 | |

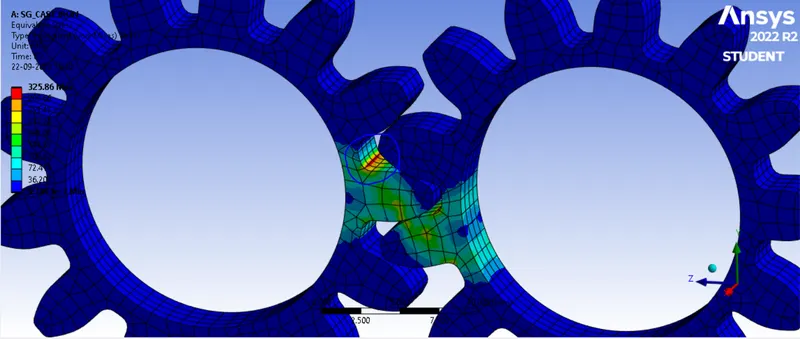

| 4 | Location for Possible Facture:- it is clear from the picture that the marked are will be the most prefferable location for the facture to begin with. | ||
 |
|||
- From the above analysis one can conclude that Cast Iron & Cast Bronze tensile stress is very less compaired to Cast steel.
- hence, from material selection point of view I would select Cast Steel.
- Also, the Tensile stress limit is very clost to actual results, i would also suggest to increase the thickness of the gears to provide more contact area to reduce the stress level further down.
