Week 4-1D Element Creation Challenge

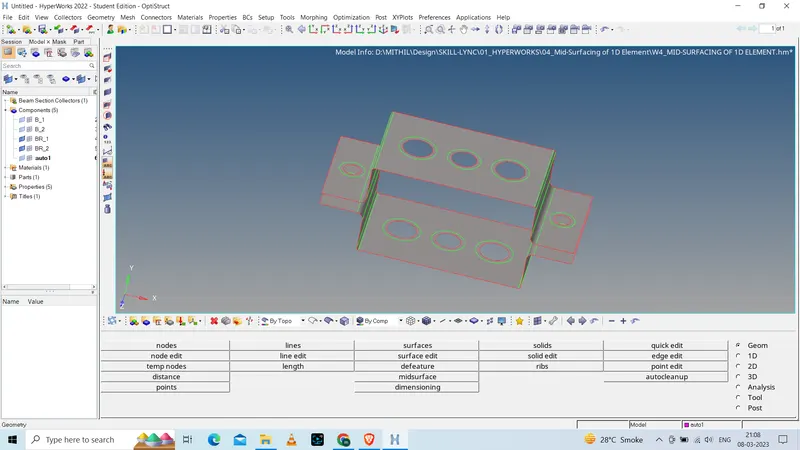

• As shown the given part is first converted into mid-surface as the thickness is less than 6mm, considering it as a sheet metal part.
• Washer Split command is done for better mesh generation at the holes.

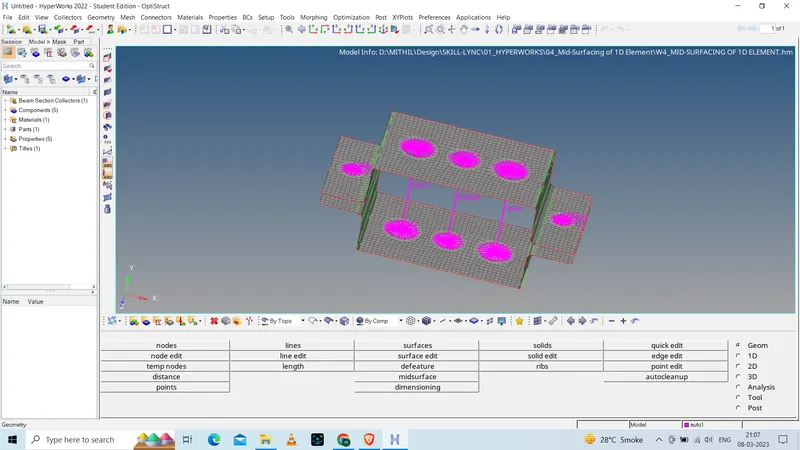

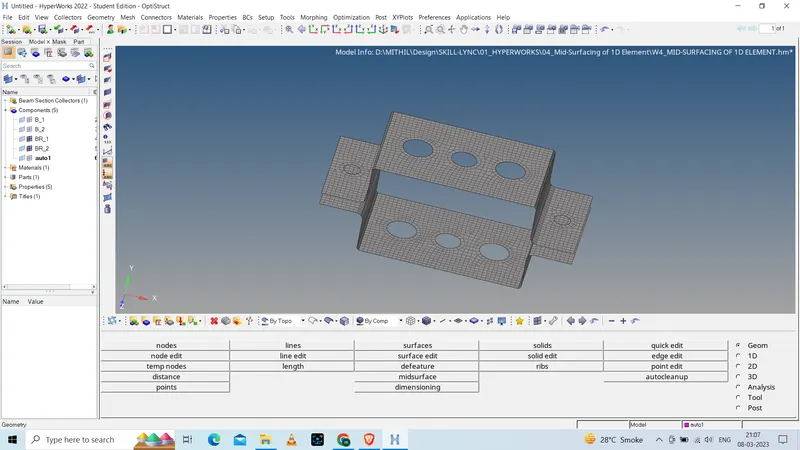

• Mesh of element size 5mm is done along with autocleanup for better mesh flow generation.

• As asked in question going from Left to Right verious links are generates which are as follows:

Spring link -> Mass element -> Rod Link -> Beam Link -> Bar Link -> Spring Link
