Week 3 Sheet metal Bending challenge

OBJECTIVE

Perform the sheet metal bending for different materials and settings

• Case 1 Alumimum Alloy 1199 .Copper Alloy and Magnesium Alloy .Find out the Equivalent stress , Equivalent elastic strain and Total deformation in Y direction and compare the results
• Case 2 With material as Aluminium Alloy change the friction coefficient to 0.19 and run the analysis as mentioned in case 1 .Compare the results with case 1
• Refine the mesh on the plate with Aluminum alloy as material run the analysis as in case1 and compare the results.

Prodecure

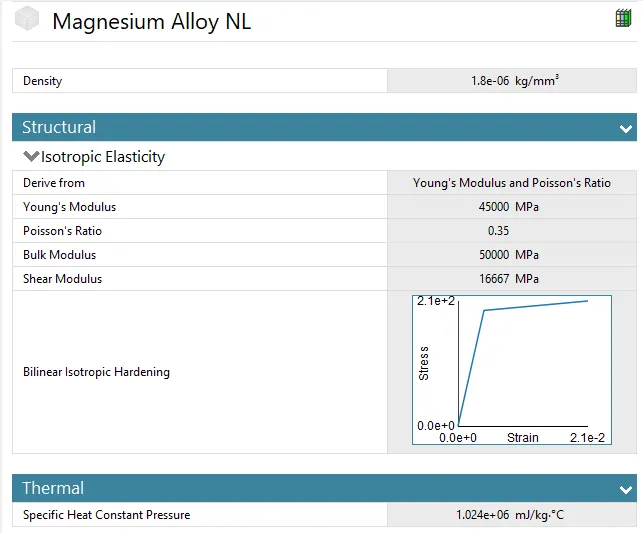

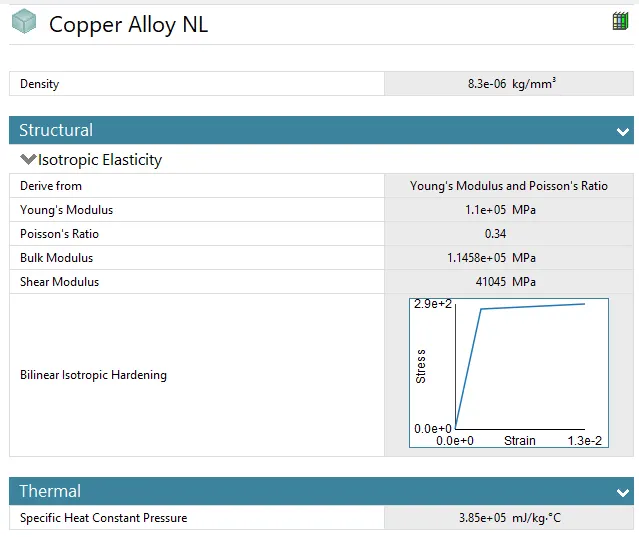

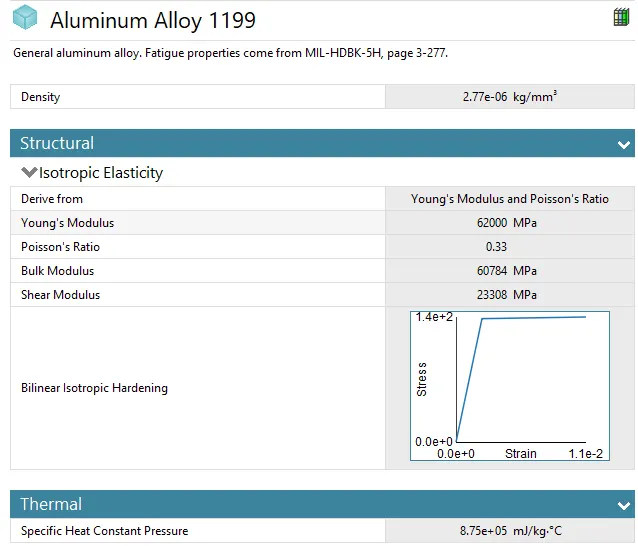

• Create Static structural analysis and in engineering data select the material Aluminium alloy 1199 , Copper Alloy and Magnesium alloy
• Aluminium Alloy 1199

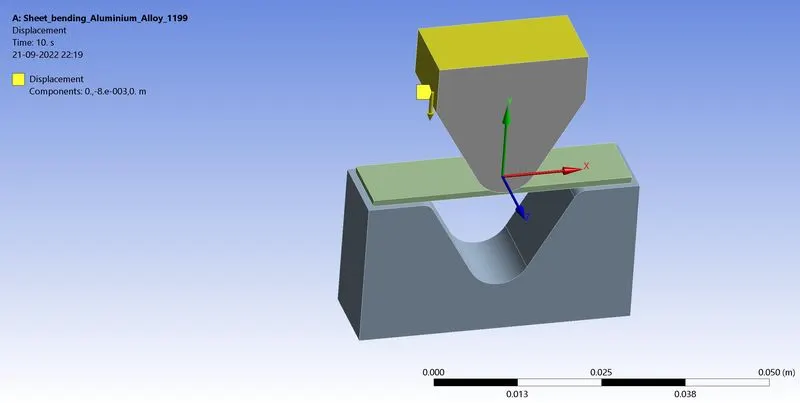

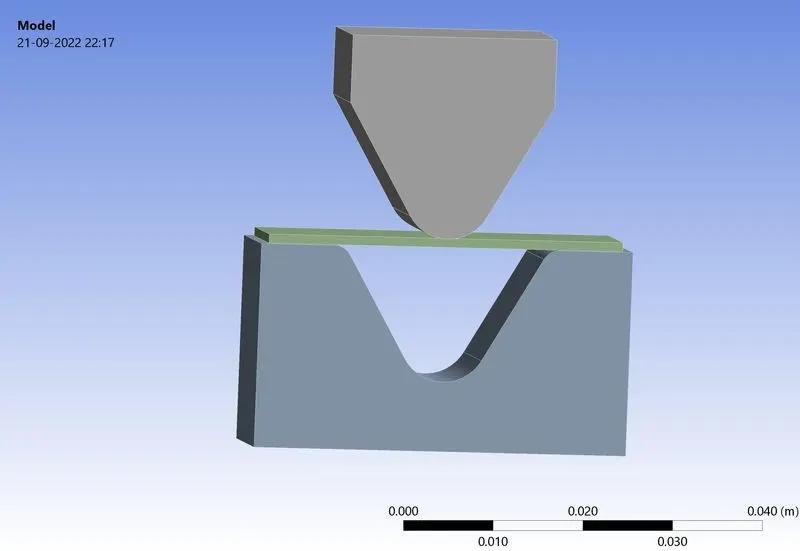

Import the geometry and check in Spaceclaim for any irregularties

Then open ansys mechanical and rename the geometry and assign the material according to the cases

Contacts Two contacts created

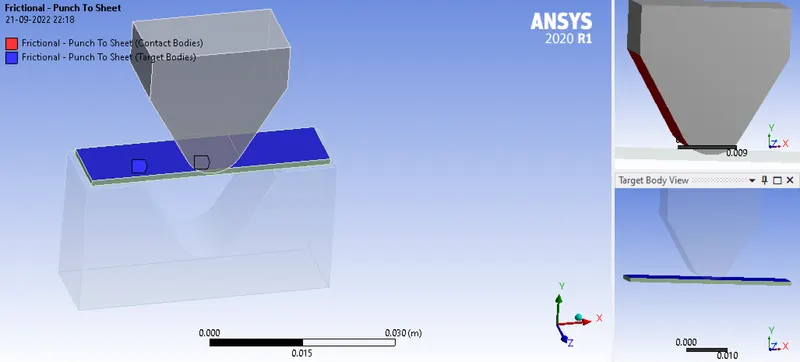

First contacts created between punch and sheet by selecting the faces. The contact type is frictional with friction coefficient of 0.1 .The behaviour is changed to auto Asymetric and the Formulation type used is Augumented lagrange .The interface treatment is set to add offset , Ramped effects

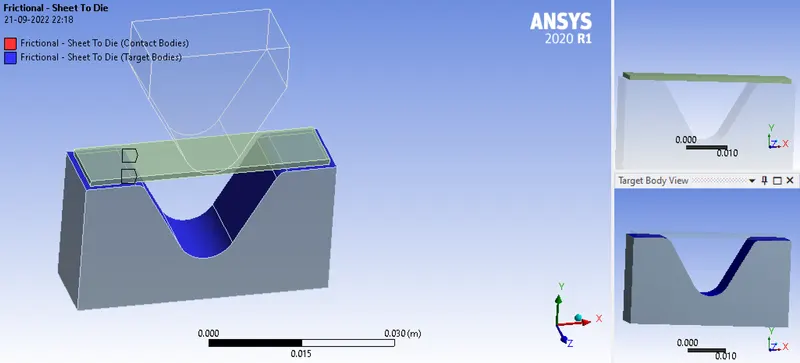

Second Contacts created between sheet and die by selecting the faces .The contact type is frictional with friction coefficent of 0.1 .The behaviour is changed to auto Asymmetric and the formulation type used in Augumented lagrange .The interface treatment is set to add offset Ramped effects

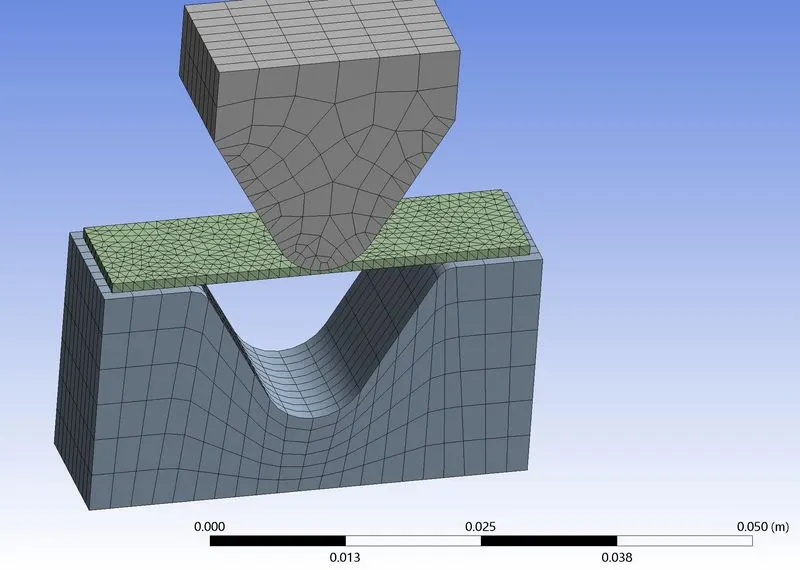

• Mesh Mesh the model with different mesh option using body size option punch and die is mesh in element size of 4mm . Similarly for sheet the body sizing option is used and mesh in element size of 1mm and patch conforming method is used for tetrahedrons meshing
• Using the face sizing option faces of punch and die meshed with 1mm of element size

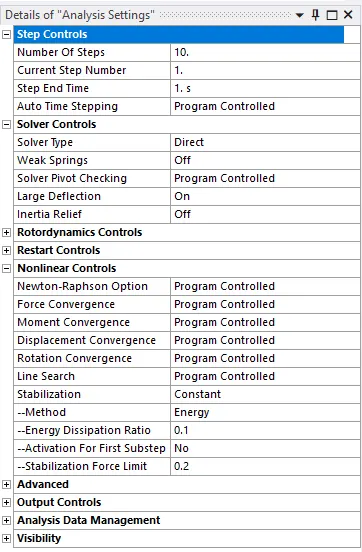

• Analysis Setting The simulation runs for 10steps .So the number of steps is set as 10 solver type set as direct large deflection is set to on and stabilzation set to constant method to energy and energy dissipation ratio to 0.1

• Joint Load Three Joints are set to the geometry

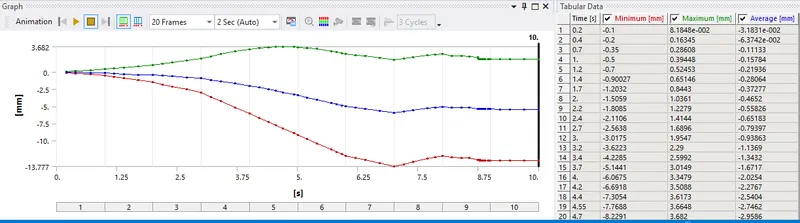

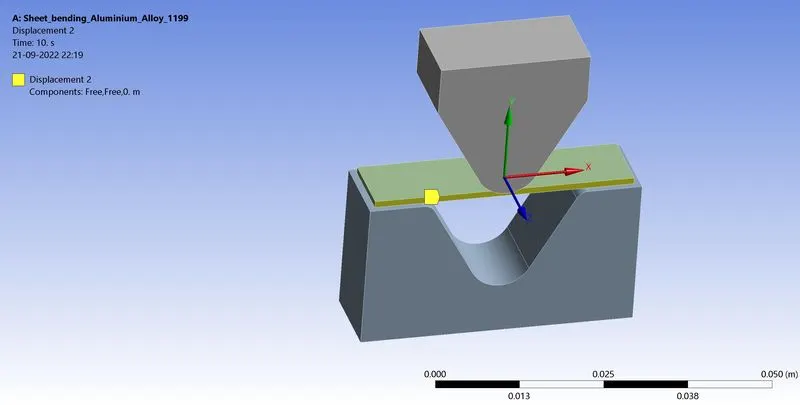

• Joint Displacement to punch as shown in the tabular data in negative Y direction

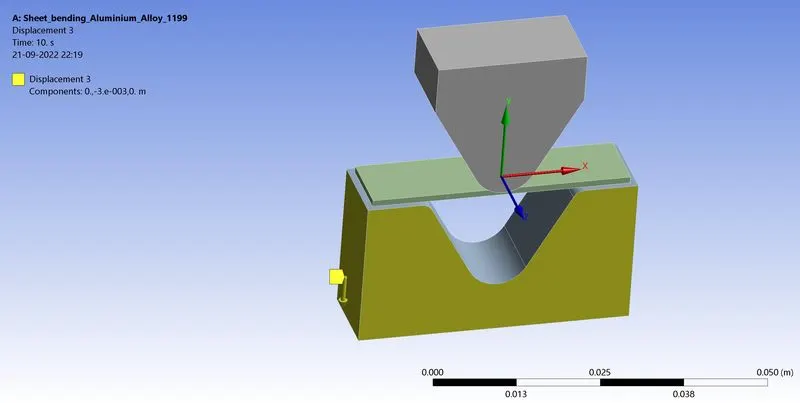

Joint Displacement to the die as shown in the tabular data in negative y direction

Result

Case 1 Aluminium alloy , copper alloy and Magnesium Alloy

Aluminium Alloy 1199

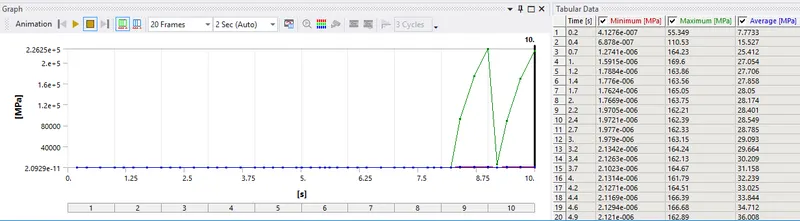

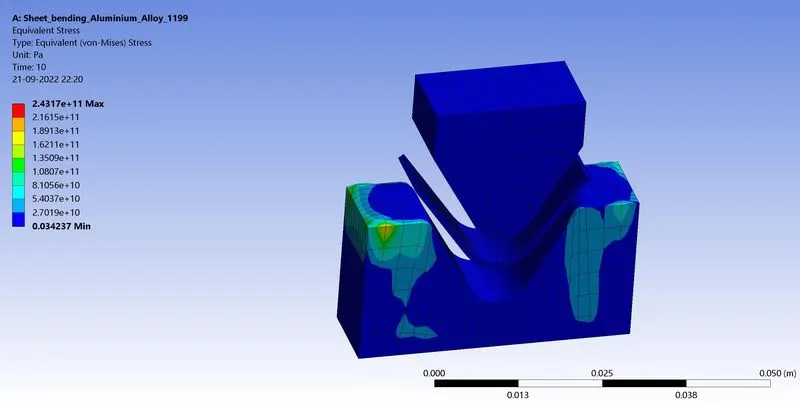

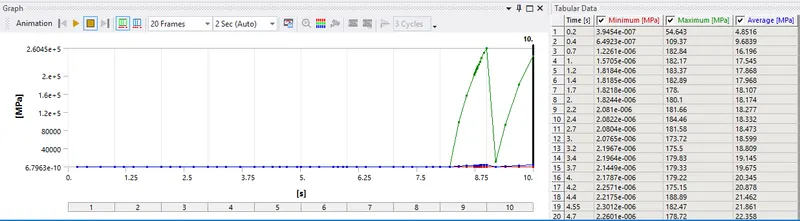

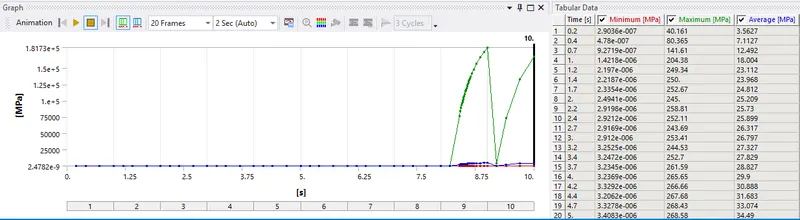

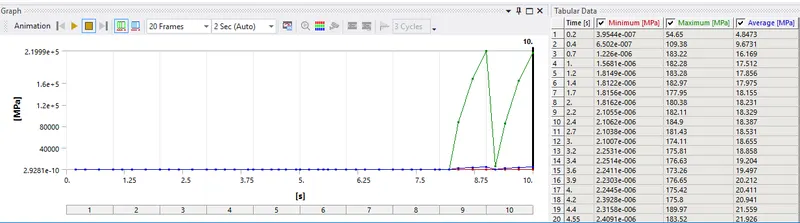

Equivalent Stress Max - 2.4317e5 Mpa

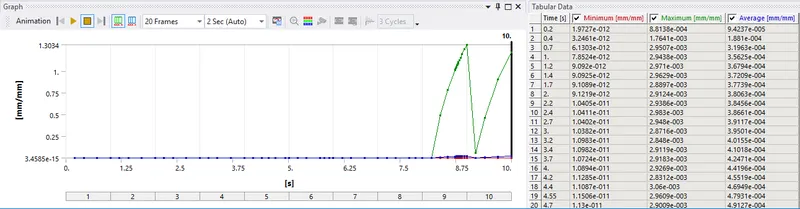

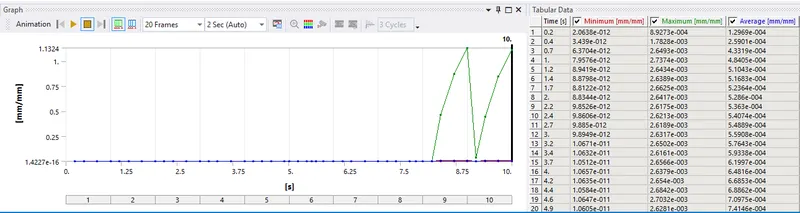

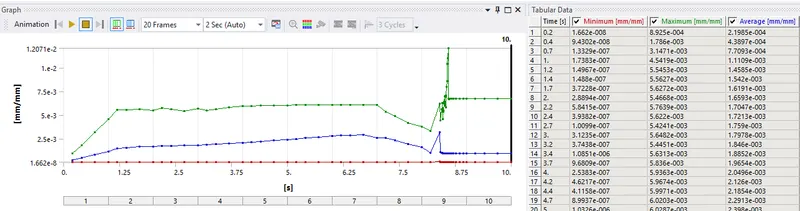

Equivalent Elastic Stain Max - 1.217mm/mm

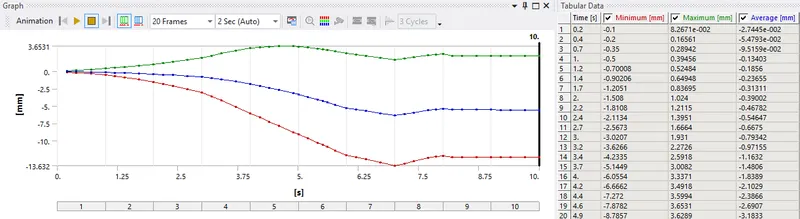

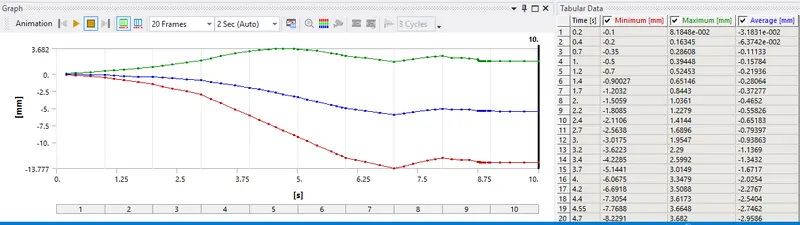

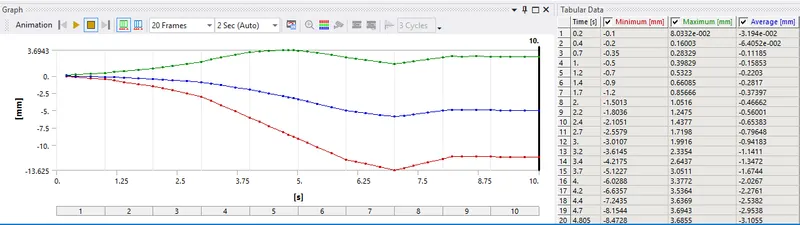

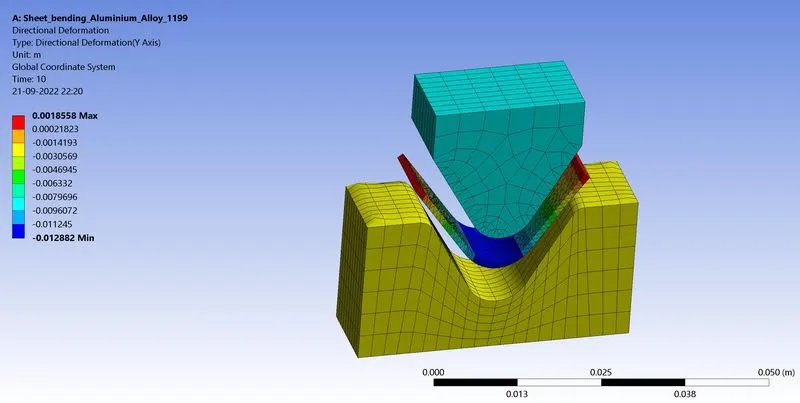

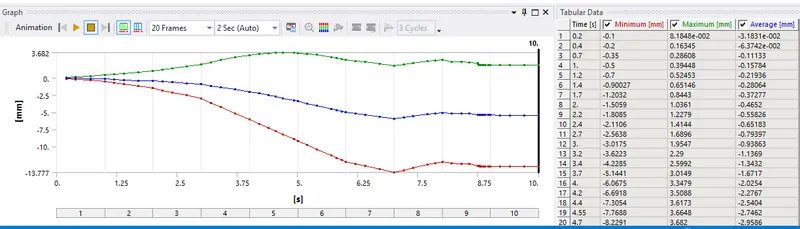

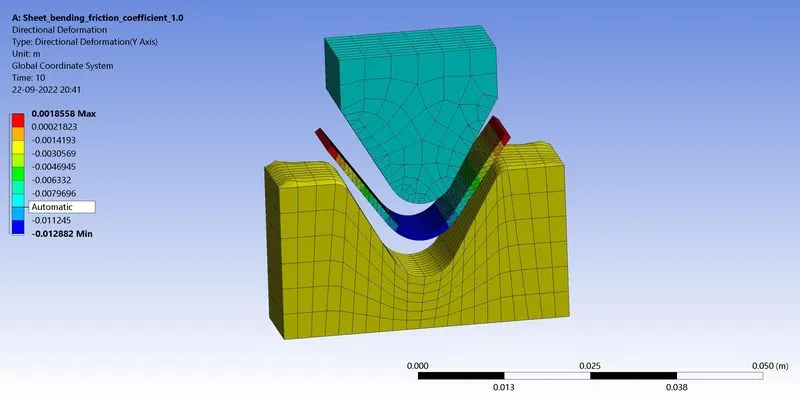

Total Deformation Max - 1.8558mm

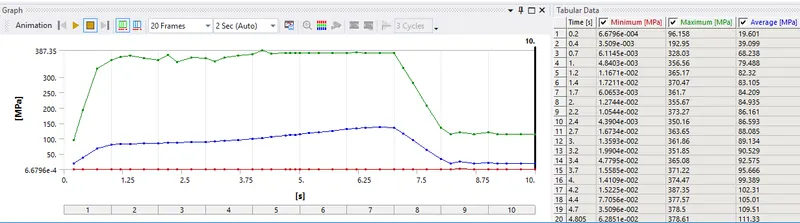

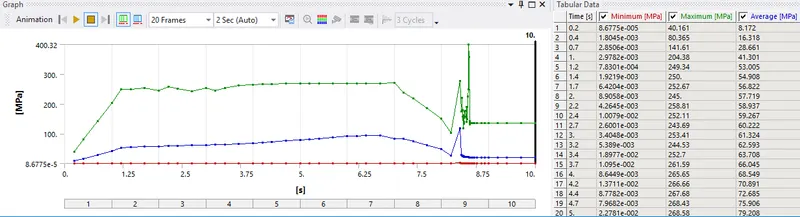

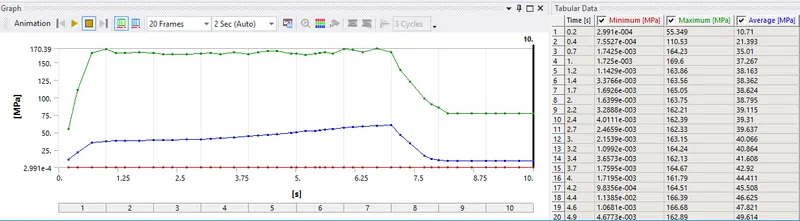

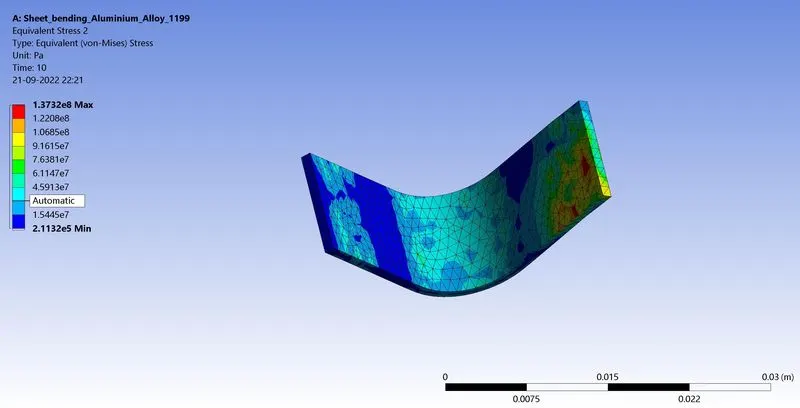

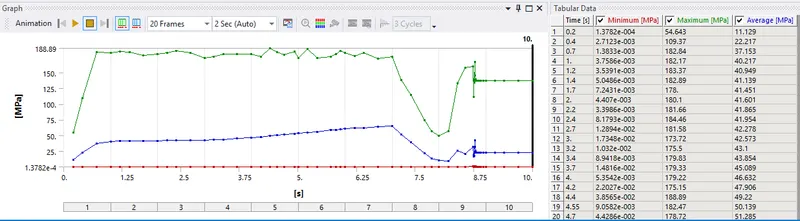

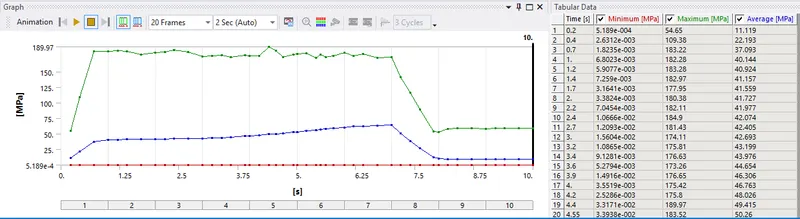

Equivalent Stress Max - 137.32 Mpa

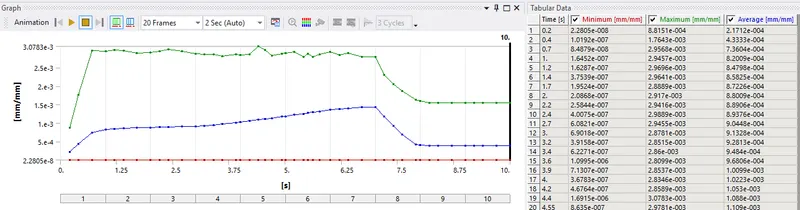

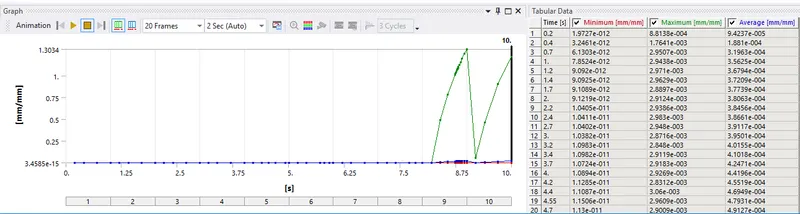

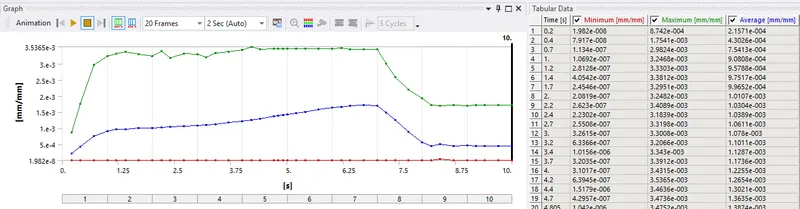

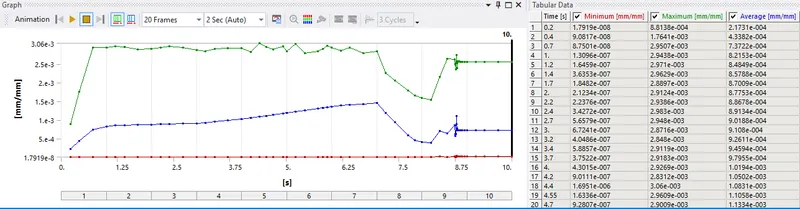

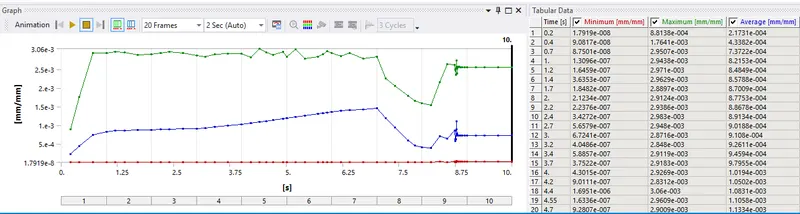

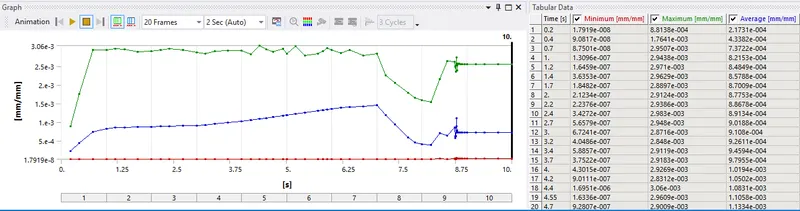

Equivalent Elastic Strain on sheet max - 0.0025659 mm/mm

Copper Alloy NL

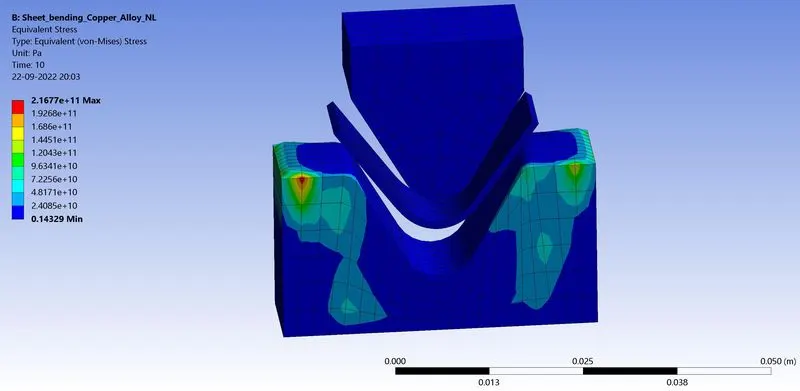

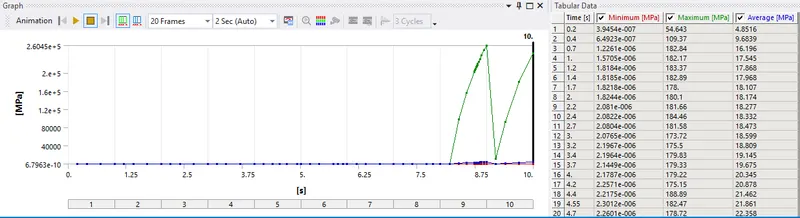

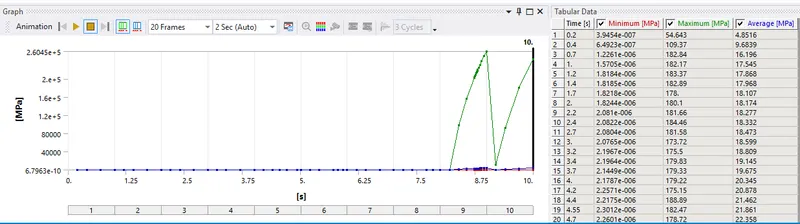

Equivalent Stress Max - 2.1677e5 Mpa

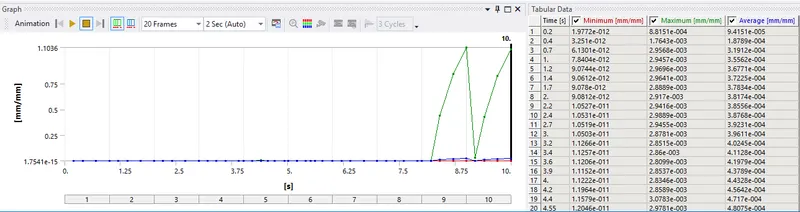

Equivalent Elastic Strain Max - 1.0848 mm/mm

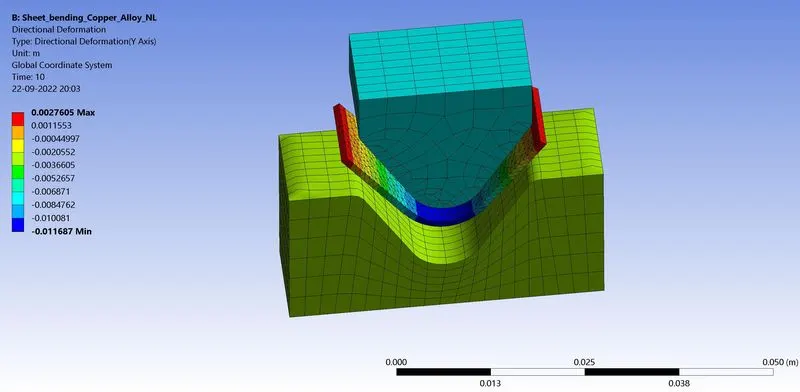

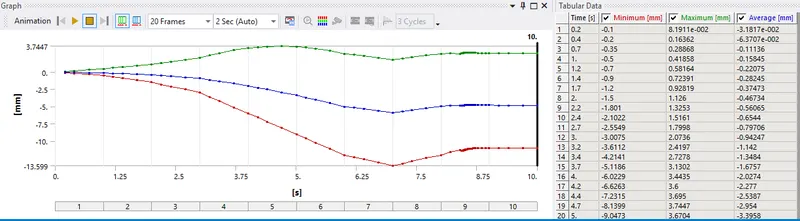

Total Deformation Max - 2.7605mm

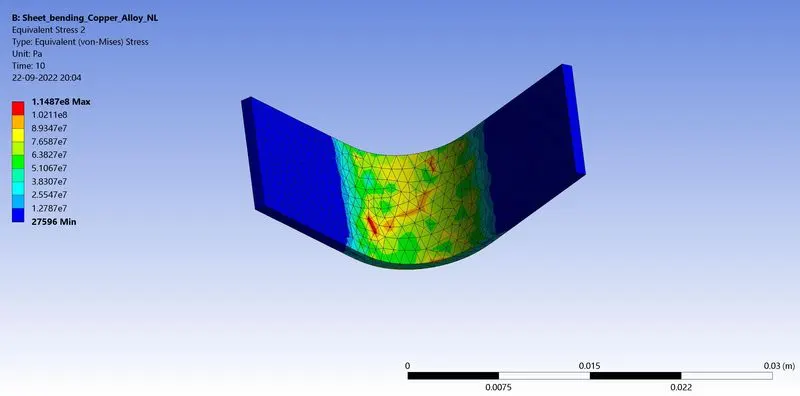

Equivalent Stress Max on Sheet Max - 114.87Mpa

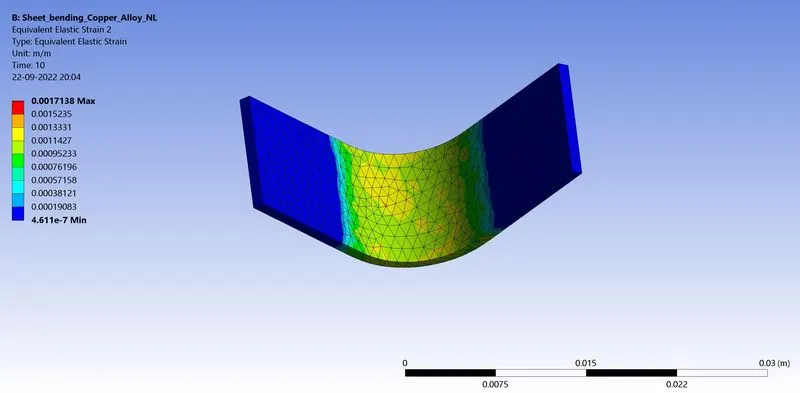

Equivalent Elastic Strain on Sheet Max - 0.0017138 mm/mm

Magnesium Alloy NL

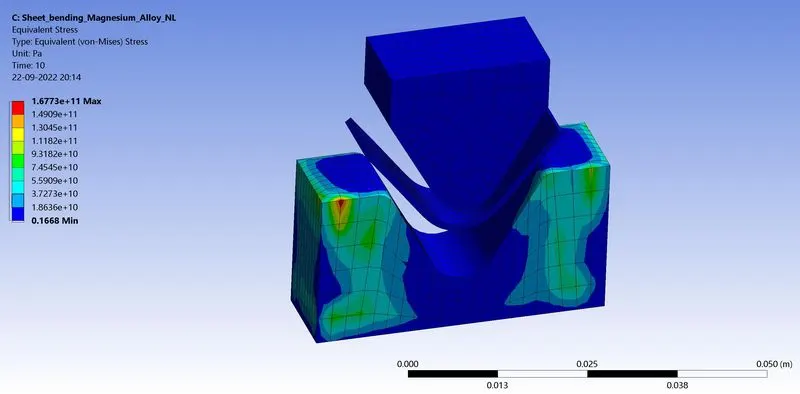

Equivalent Stress Max - 1.6773e5 Mpa

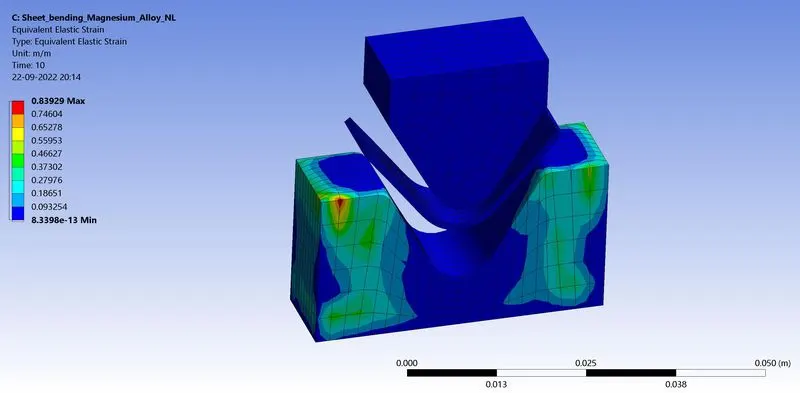

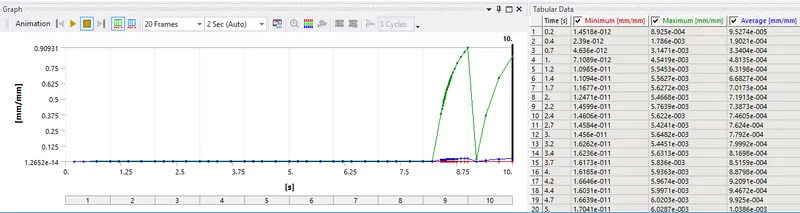

Equivalent Elastic Strain Max - 0.83929 mm/mm

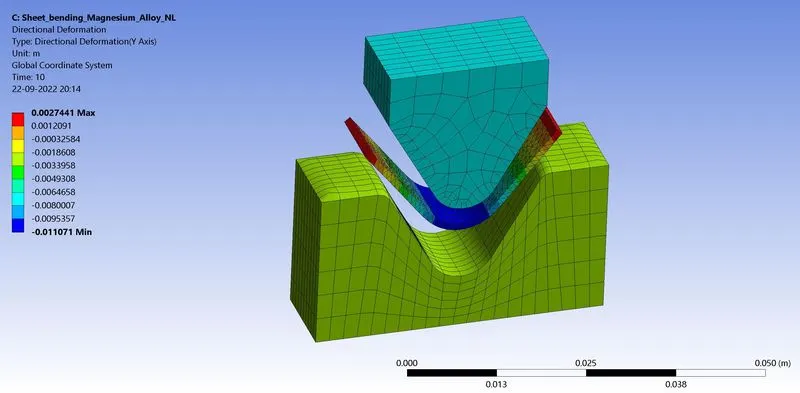

Total Deformation Max - 2.7441 mm

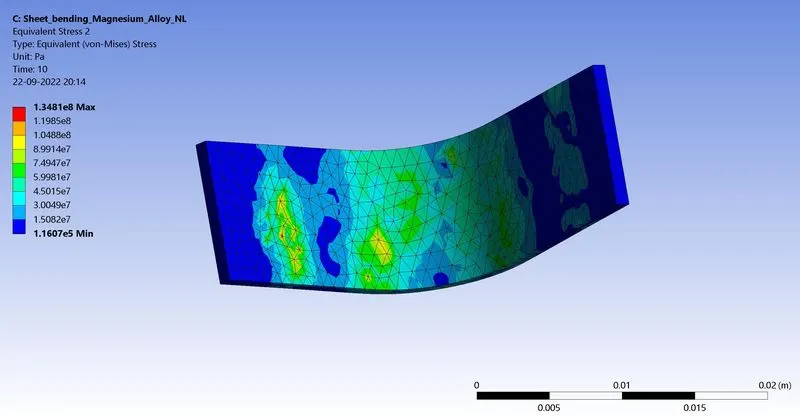

Equivalent Stress on Sheet Max - 134.81 Mpa

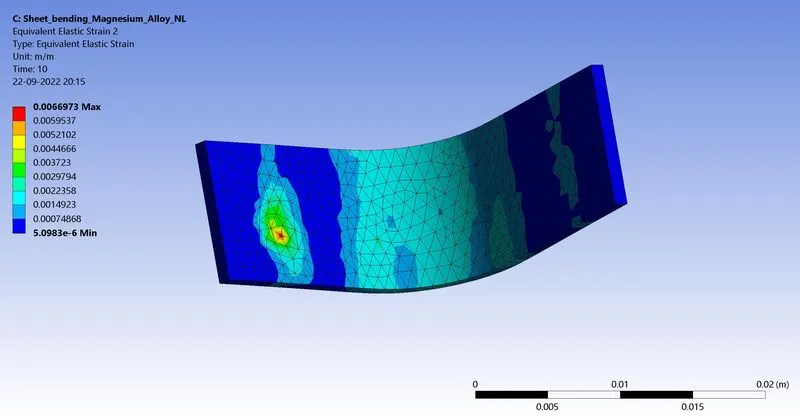

Equivalent Elastic Strain on Sheet Max - 0.0066973mm/mm

Conclusion

Case 2 With the material as Aluminium Alloy change the friction coefficient to 0.19

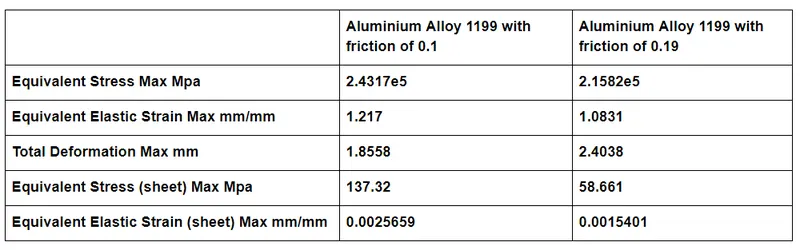

Aluminium Alloy 1199 with Friction of 0.1

Equivalent Stress Max - 2.4317e5 Mpa

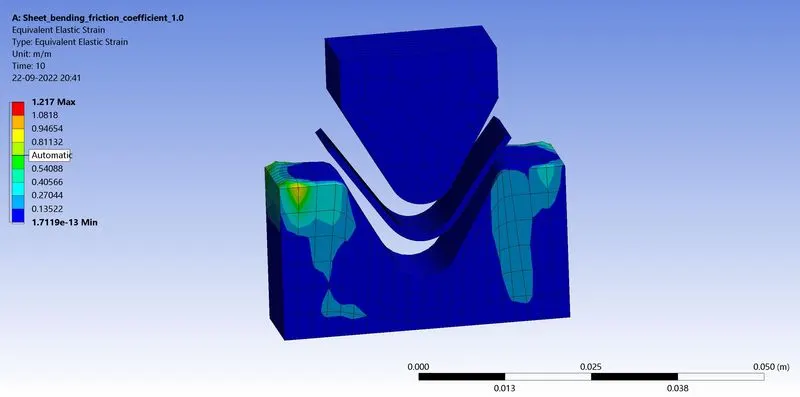

Equivalent Elastic Strain Max - 1.217mm/mm

Total Deformation Max - 1.8558mm

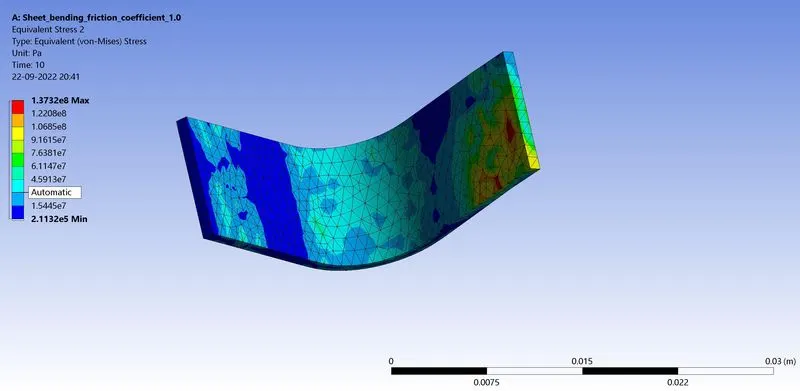

Equivalent Stress on Sheet Max - 137.32 Mpa

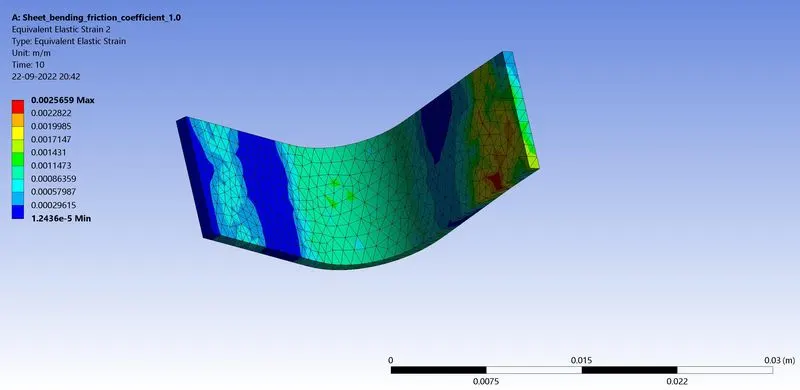

Equivalent Elastic Strain on Sheet Max - 0.0025659 mm/mm

Aluminium Alloy 1199 with Friction of 0.19

Equivalent Stress Max - 2.1582e5 Mpa

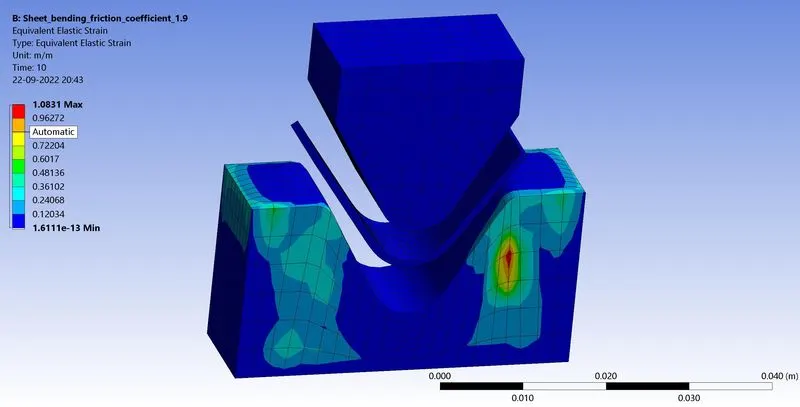

Equivalent Elastic Strain Max - 1.0831 mm/mm

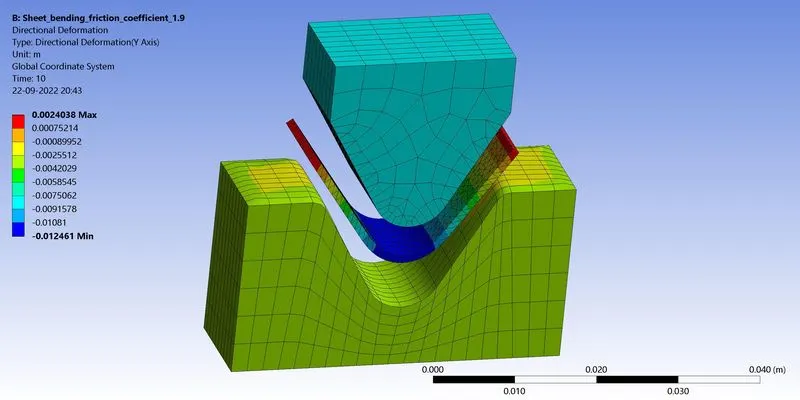

Total Deformation Max - 2.4038 mm

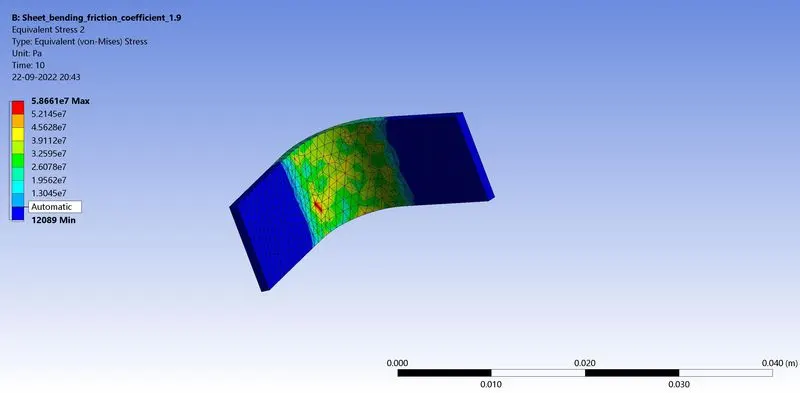

Equivalent Stress Max on Sheet Max - 58.661 Mpa

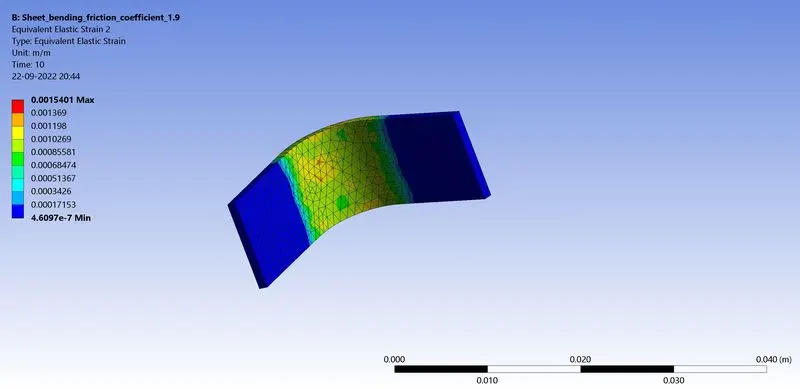

Equivalent Elastic Strain on Sheet Max - 0.0015401 mm/mm

Conclusion

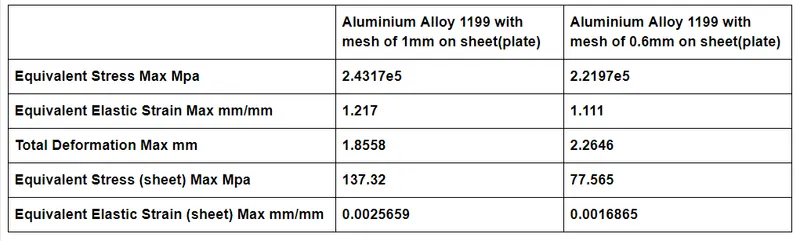

Case 3 Refine the mesh on the plate with Aluminium Alloy as material

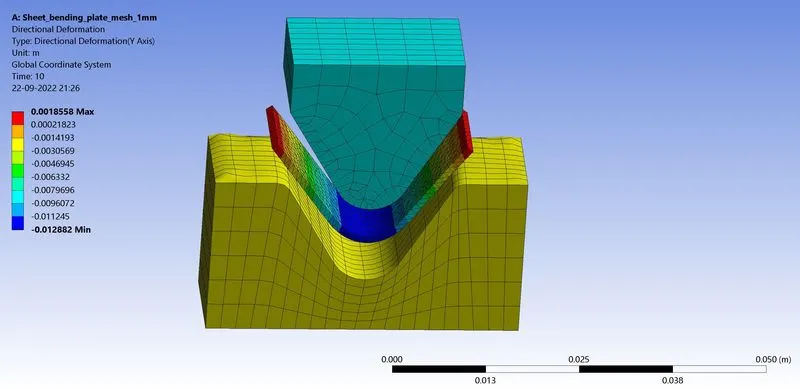

Aluminum Alloy 119 with mesh of 1mm on sheet plate

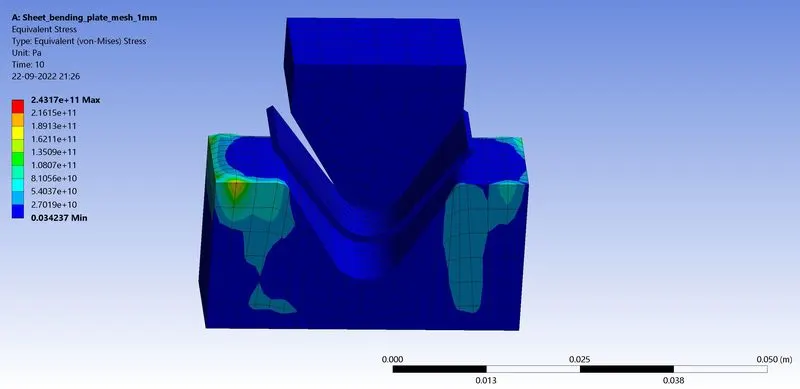

Equivalent Stress Max - 2.4317e5 MPa

Equivalent Elastic Strain Max - 1.217 mm/mm

Total Deformation Max - 1.8558 mm

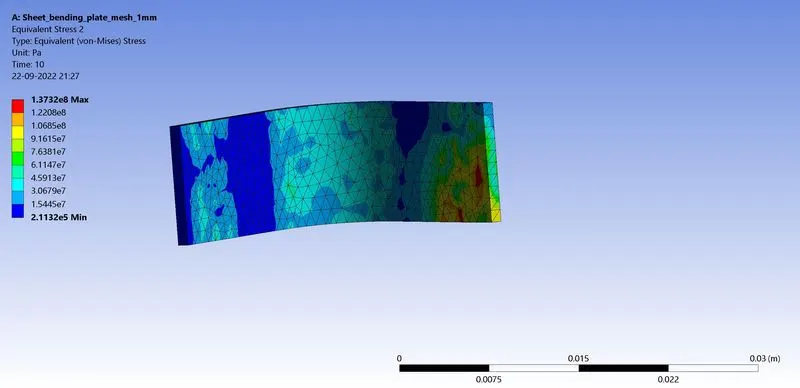

Equivalent Stress on Sheet Max - 137.32 Mpa

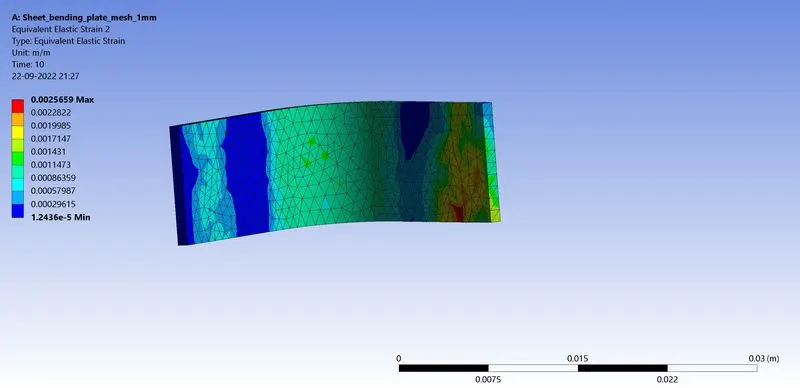

Equivalent Elastic Strain on Sheet Max - 0.0025659 mm/mm

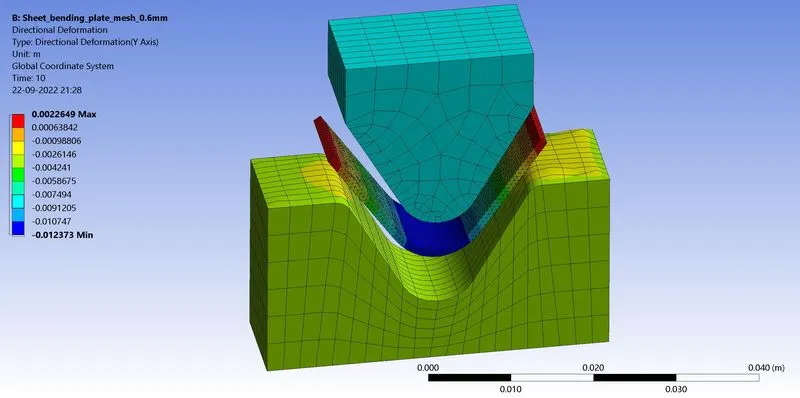

Aluminium Alloy 1199 with mesh of 0.6mm on sheet

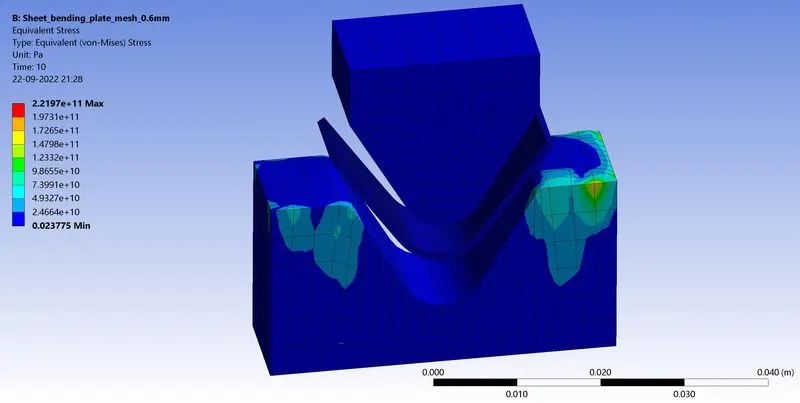

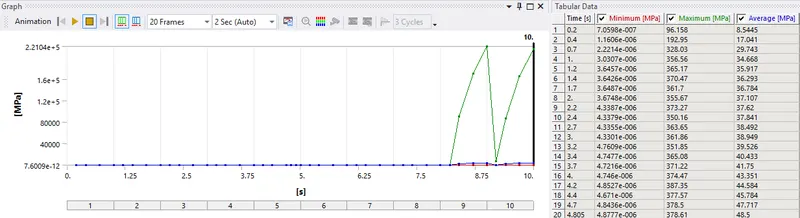

Equivalent Stress Max - 2.2197e5 Mpa

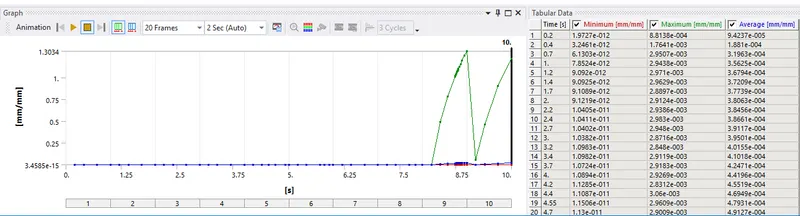

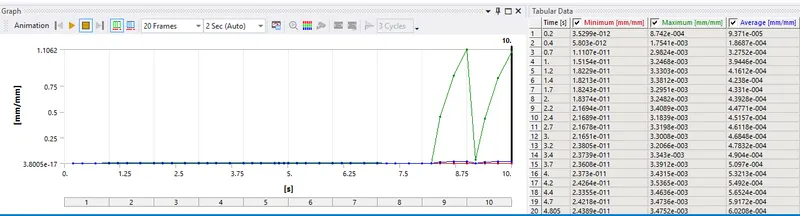

Equivalent Elastic Strain Max - 1.111mm/mm

Total Deformation Max - 2.2646mm

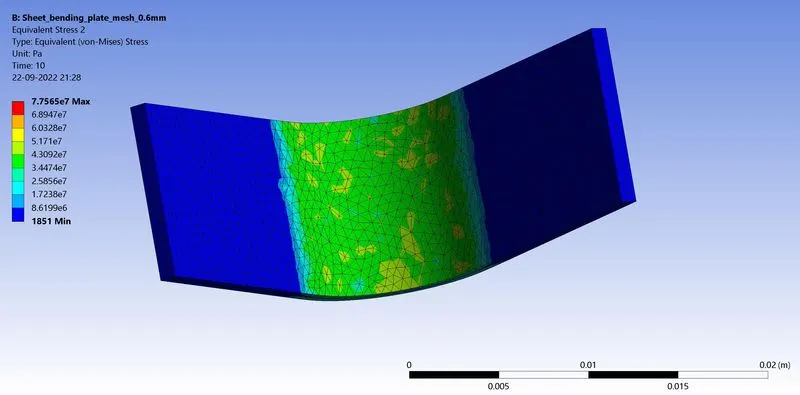

Equivalent Stress on Sheet Max - 77.565 Mpa

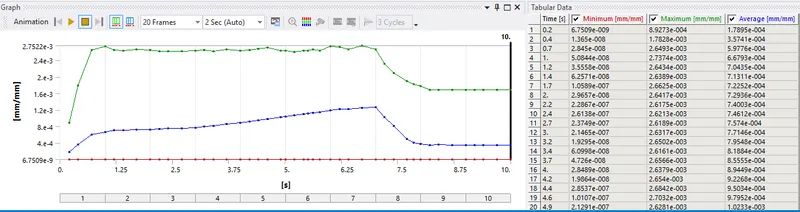

Equivalent Elastic Strain on Sheet Max - 0.0016865 mm/mm

Conclusion

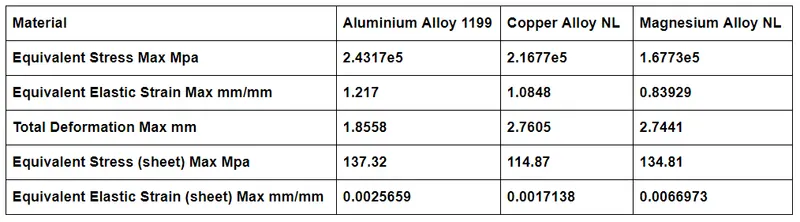

Case 1 For all the material Aluminum Alloy 1199 , Copper Alloy NL and Magnesium Alloy NL the equivalent stress .Equivalent elastic strain and total deformation in y direction results ontained

Case 2 Using Aluminium Alloy 1199 with friction of 0.19 developed stress and strain is low as compared to aluminium alloy 1199 with friction of 0.1

Case 3 Aluminium Alloy 1199 with mesh of 1mm on a sheet plate developed stress and strain is low as compared to aluminum alloy 1199 with mesh of 0.6mm on sheet
