Week 3 Sheet metal Bending challenge

Case 1:Aluminium Alloy 1199( mentioned in the course video),Copper Alloy NL and Magnesium Alloy NL. Find out the Equivalent stress, Equivalent elastic strain and Total Deformation in Y direction and compare the results for the three materials.

Case 2:With the material as Aluminium Alloy, change the friction coefficient to 0.19 and run the analysis as mentioned in Case 1. Compare the results with that in case 1.

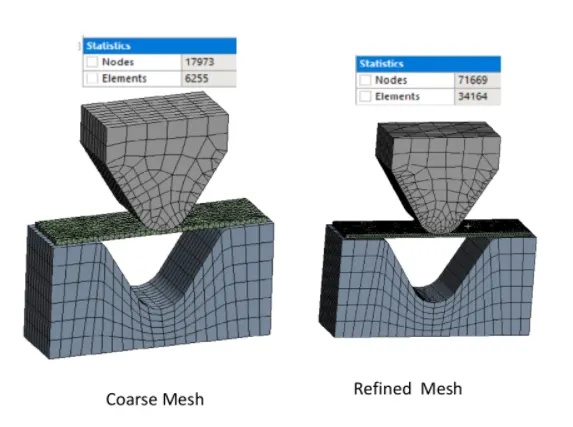

Case 3: Refine the mesh on the plate such that it doesn't cross the academic limit. With Aluminium alloy as material, run the analysis as in Case 1 and compare the results.

Submit the challenge as you would do in a proper project report with all relevant details such as settings,mesh size, images and tables included to provide your findings. Also, give an explanation as to which property/ properties of the materials affect the outcome

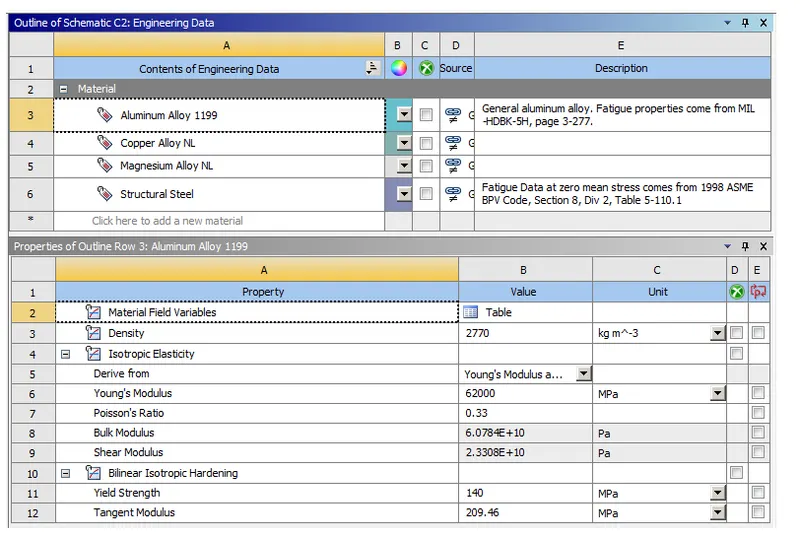

Material:

Mesh:

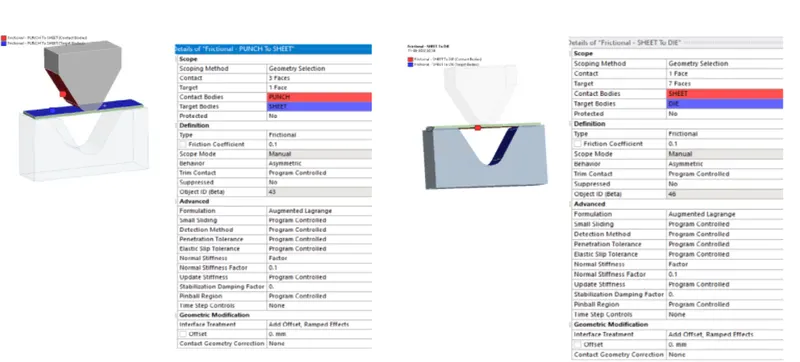

Contact:

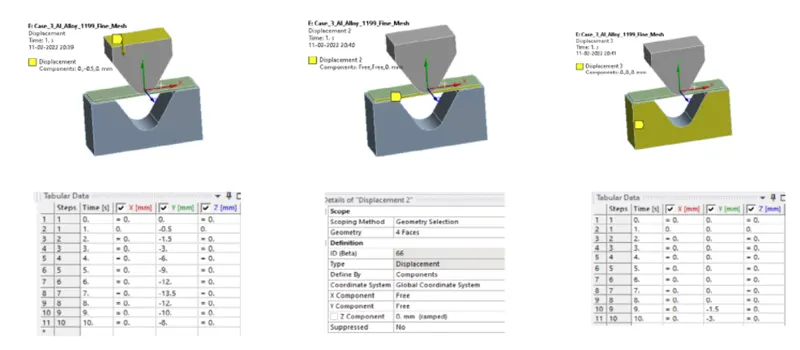

Boundary conditions:

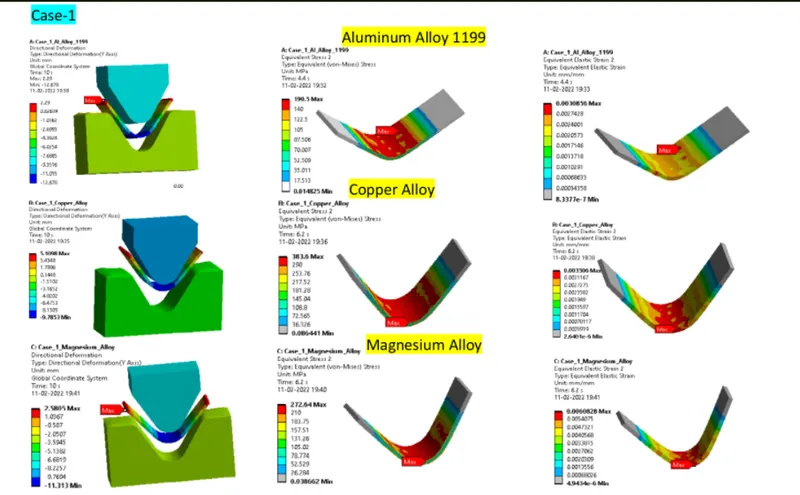

Case-1

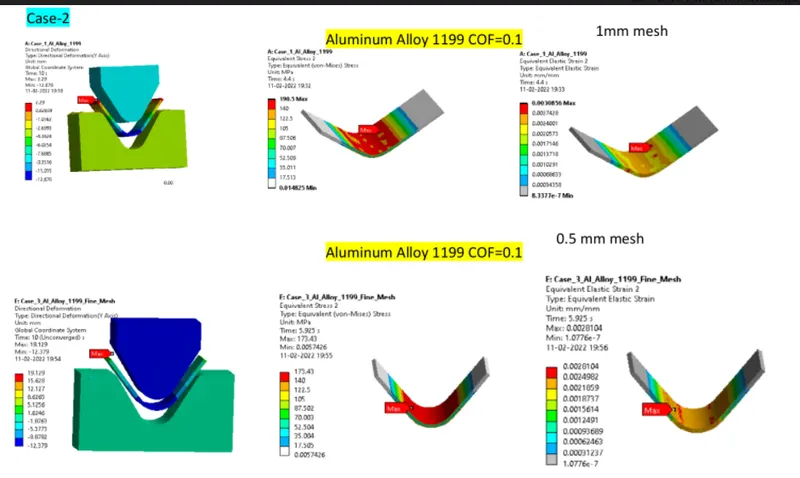

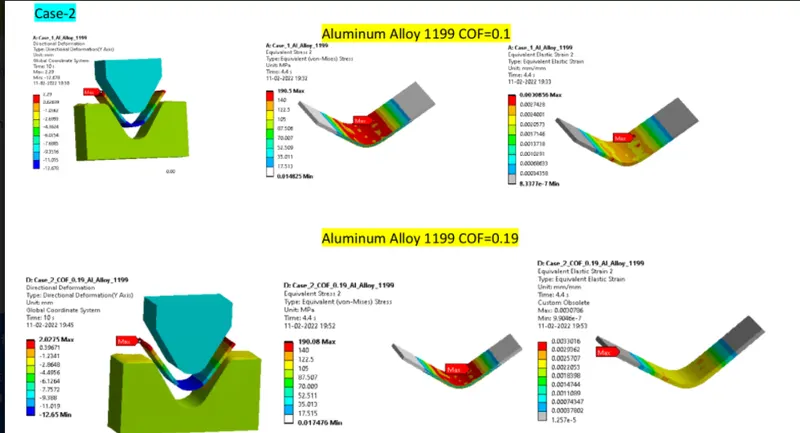

Case-2

Case-3
