Week 3-Meshing of Hood Challenge

Week 3-Meshing of Hood Challenge

Objective: Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:

Target Element Length = 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

(Note: Attach the hypermesh model files (.hm) with the challenge)

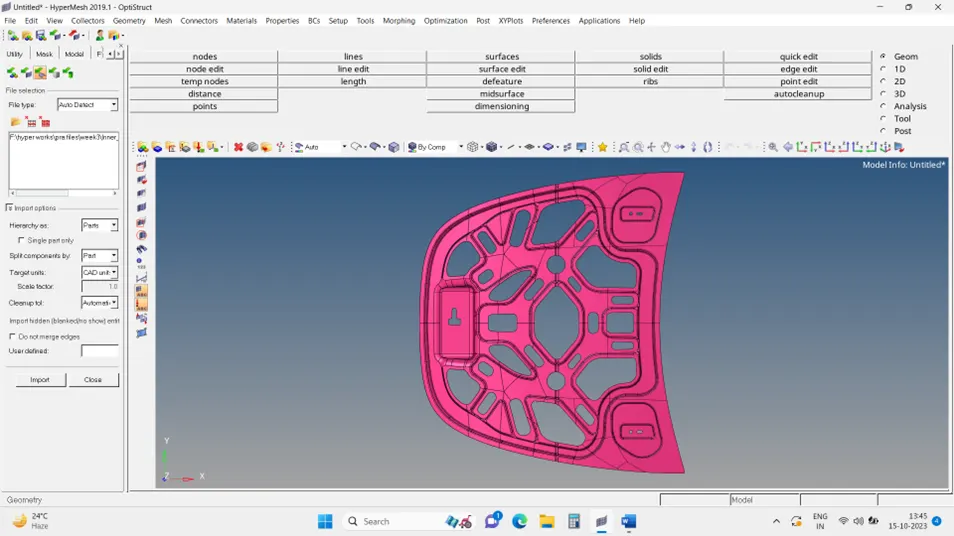

Cad model image:

Week 3-Meshing of Hood Challenge

Objective: Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:

Target Element Length = 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

(Note: Attach the hypermesh model files (.hm) with the challenge)

Cad model image:

Procedure with required images:

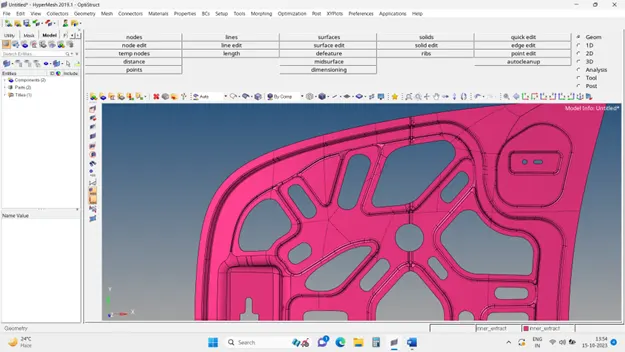

Step1: Auto clean up

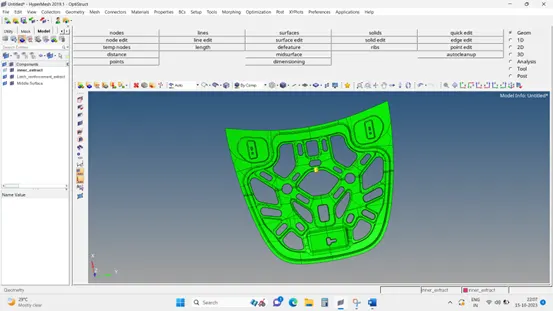

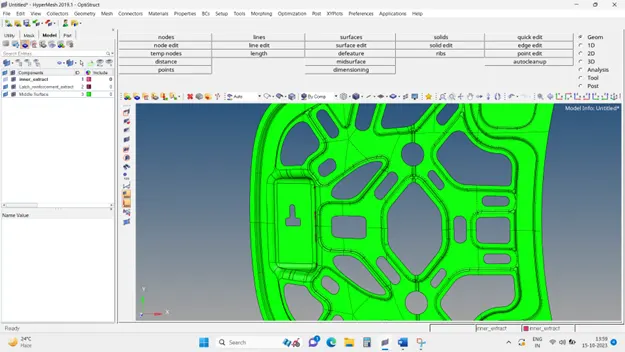

Step 2: extraction of mid surface

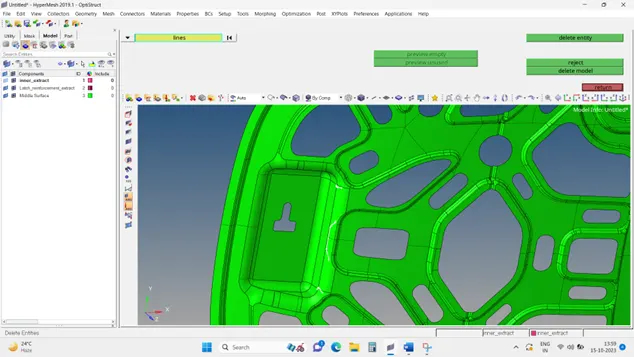

Step 3: remove unwanted lines and surface.

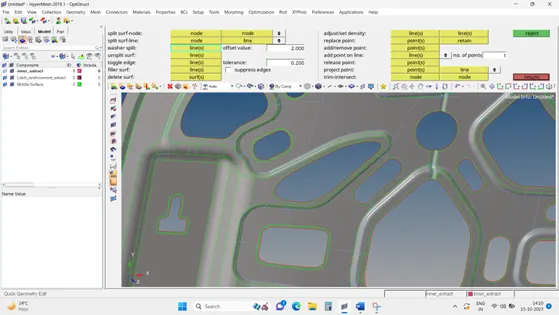

Step 4: Prepare the part for good meshing by creating a washer split and surface split and also used the toggle edit option to remove.

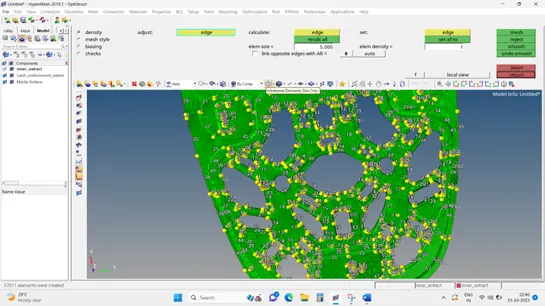

Step 5: Generate mesh with the given element size.

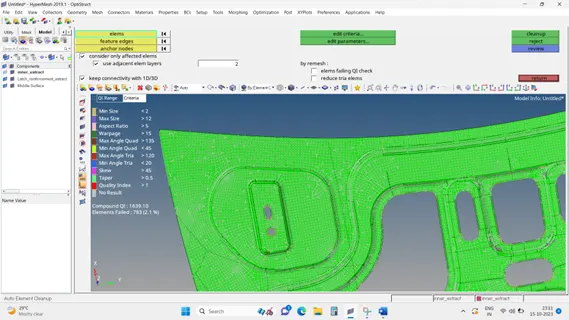

Step 6: Inserting quality criteria parameters

Step 7: Completed the quality criteria check

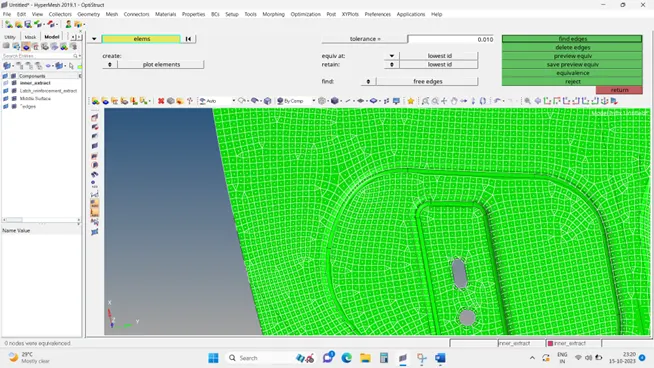

Step 8: final part checks like (faces check, edges checks, etc ..)

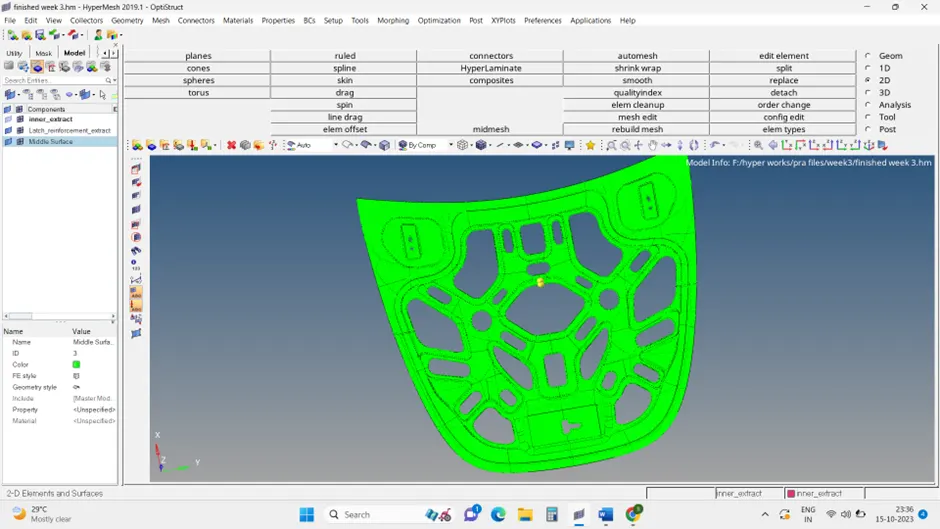

Results and final image
