Week 3 Challenge : CFD meshing on Turbocharger

AIM

For the given model, check for the geometrical errors to make appropriate volumes. Create and assign PIDs as shown in the video. Perform surface mesh with the given target lengths as per PIDs.

1. Blade stage-1 = 1 mm
2. Blade stage-2 = 1 mm
3. Impeller = 2 mm
4. Shaft rotor = 1 mm
5. Turbo casing = 5 mm
6. Compressor casing = 5 mm
7. Inlet casing cover = 5 mm

OBJECTIVE
Perform Volumetric mesh for the required volumes as shown in the videos.
Write a detailed report on your surface meshing & Volume meshing process.

SEQUENCE OF STEPS

STEP 1

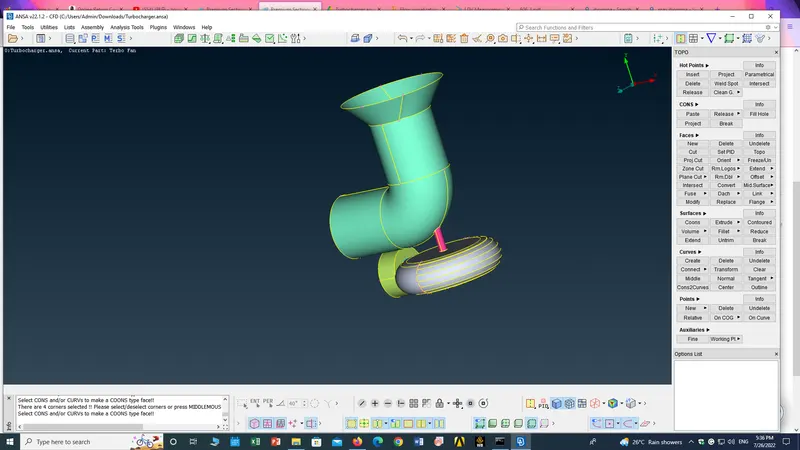

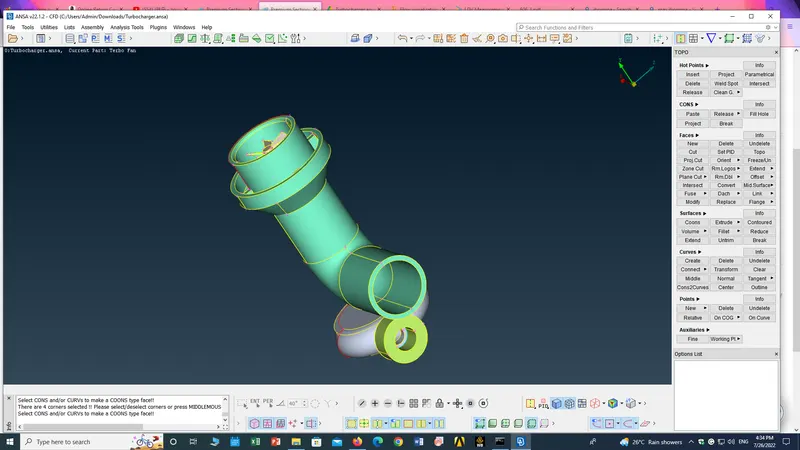

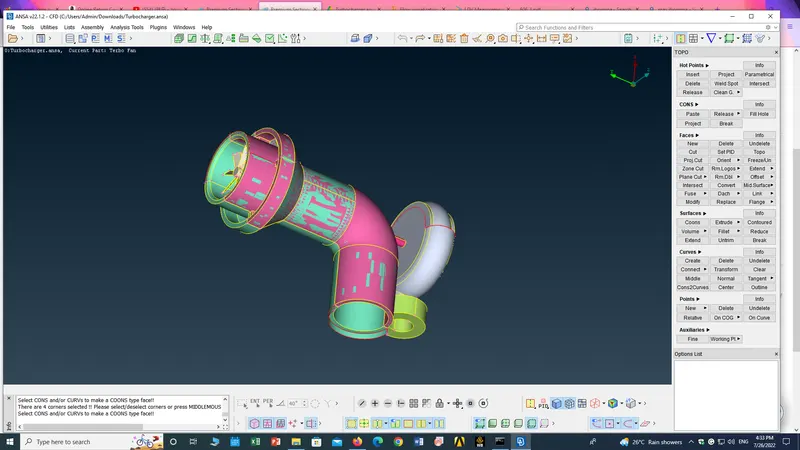

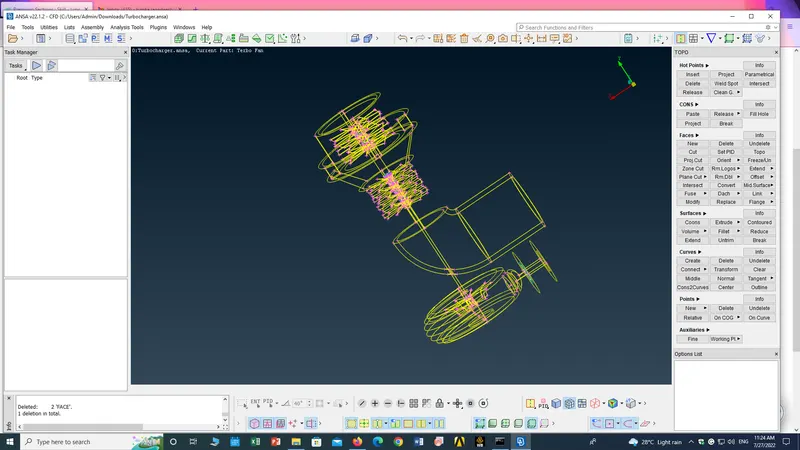

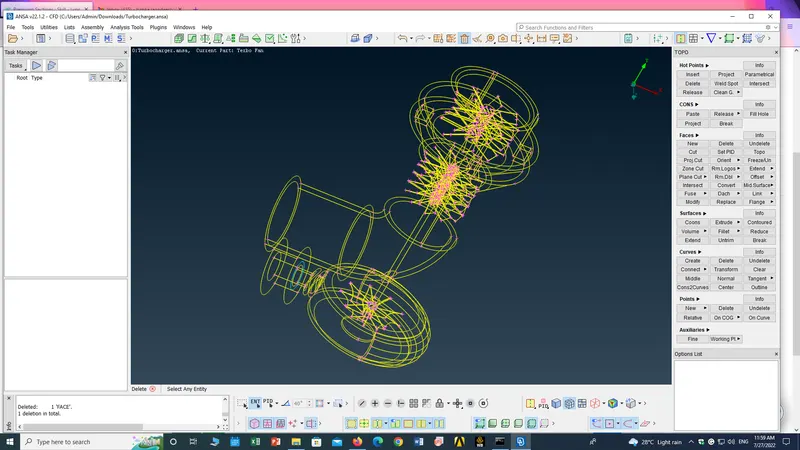

Load the geomery and check for correctipons

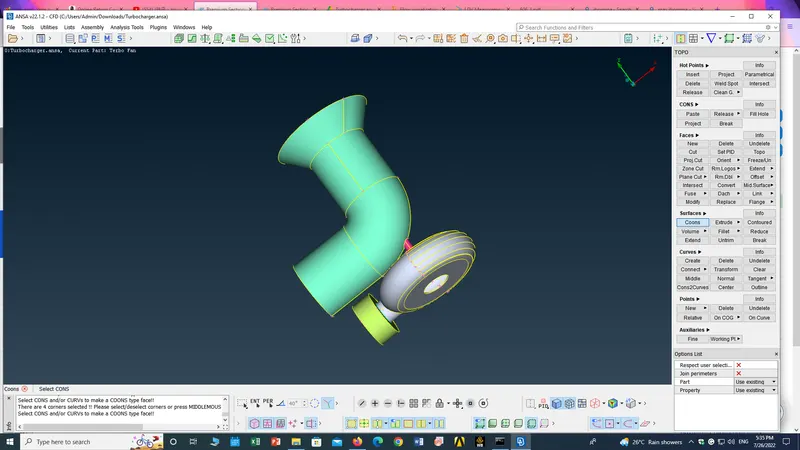

all the sinle coons are removed

all the triple coons are released

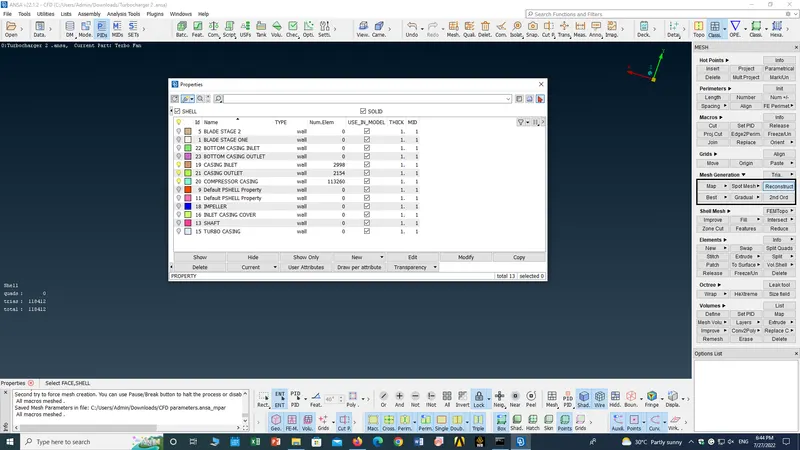

SETTING PIDS

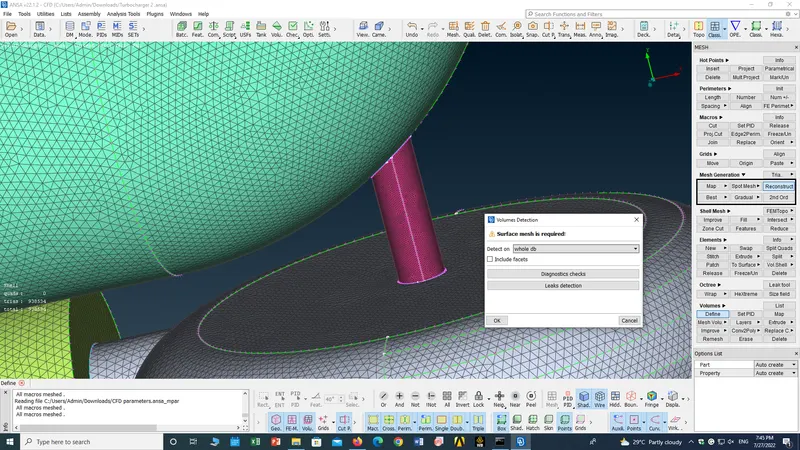

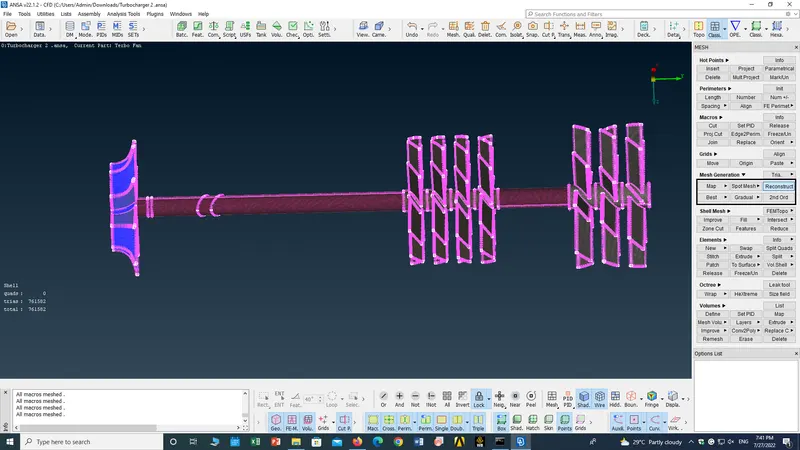

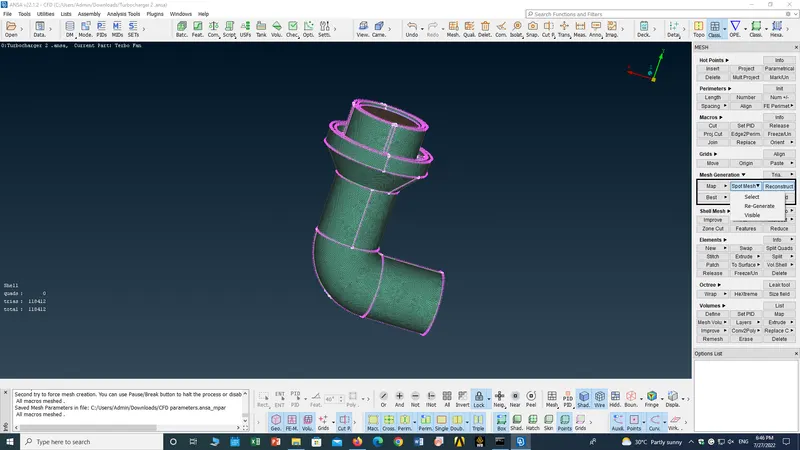

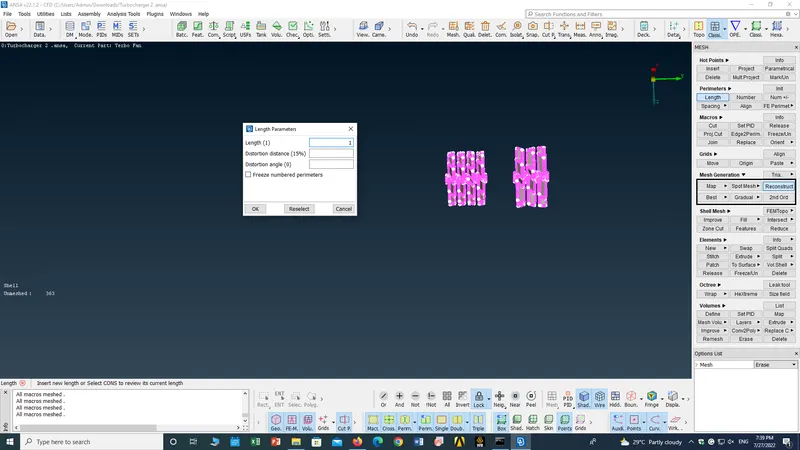

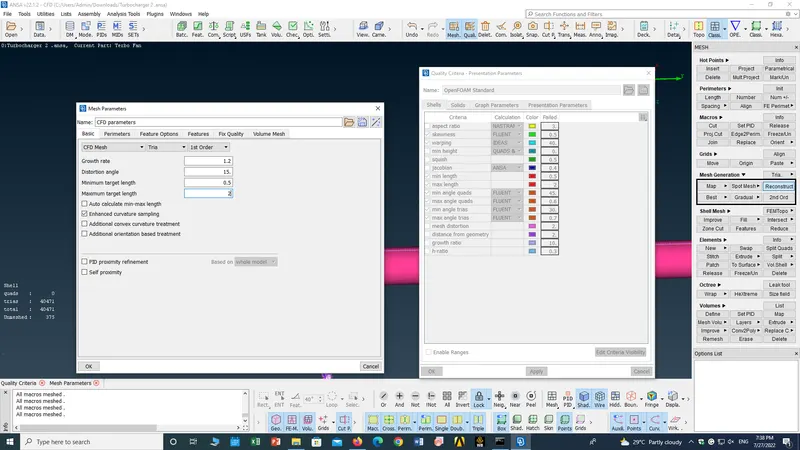

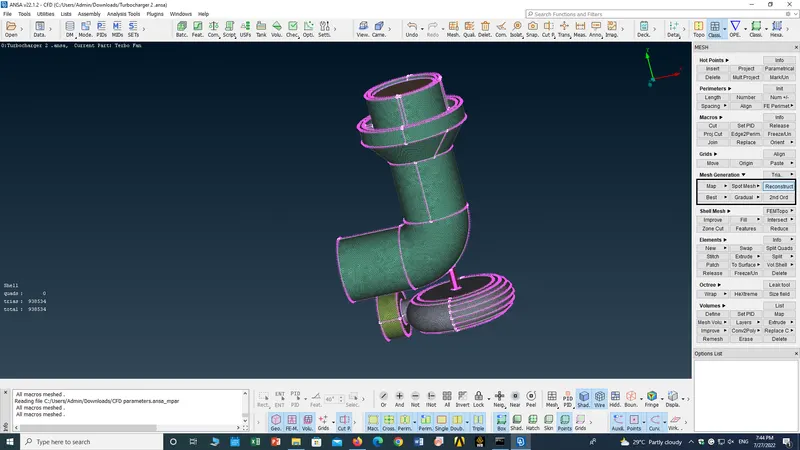

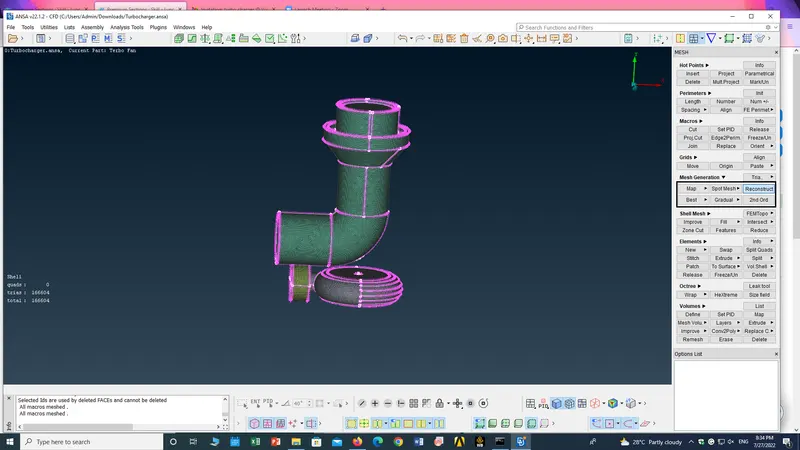

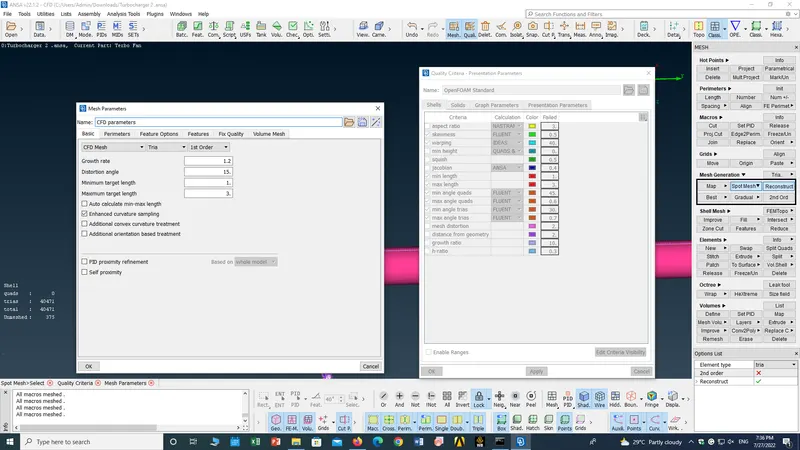

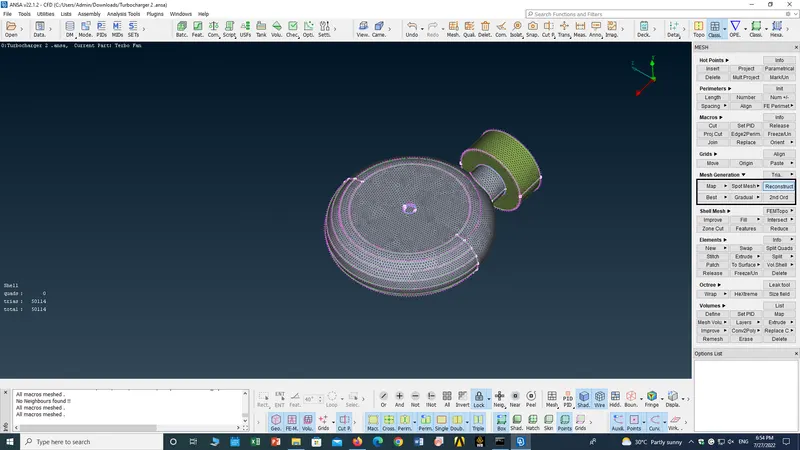

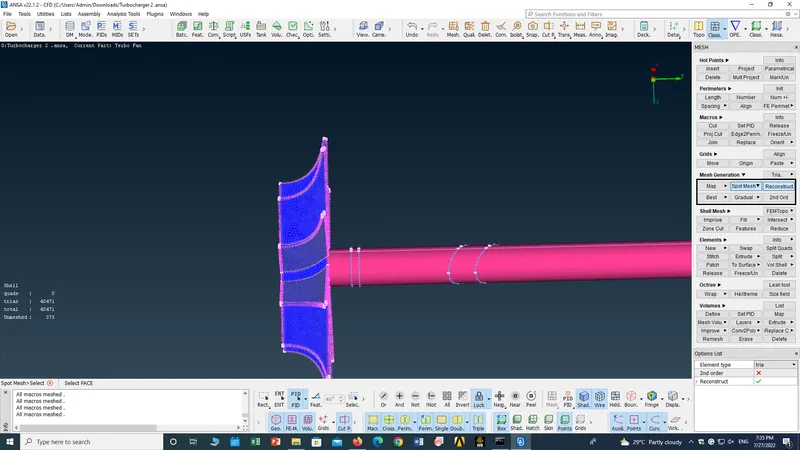

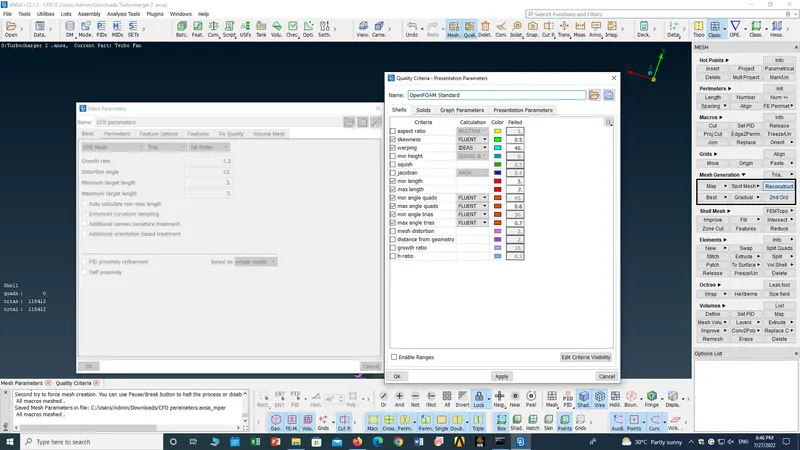

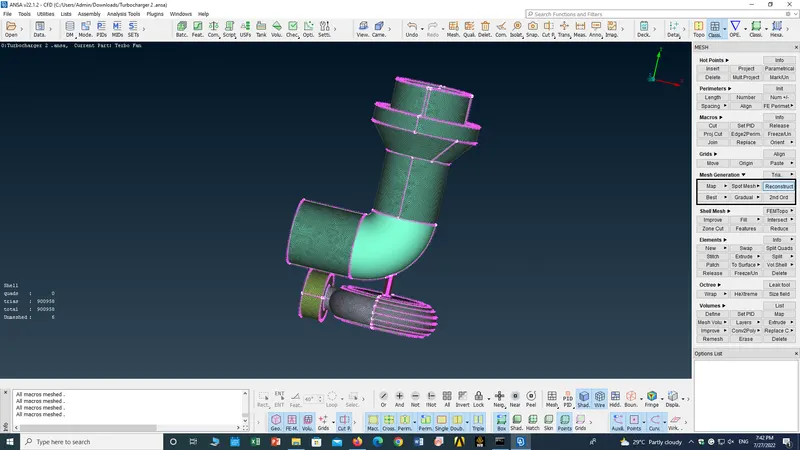

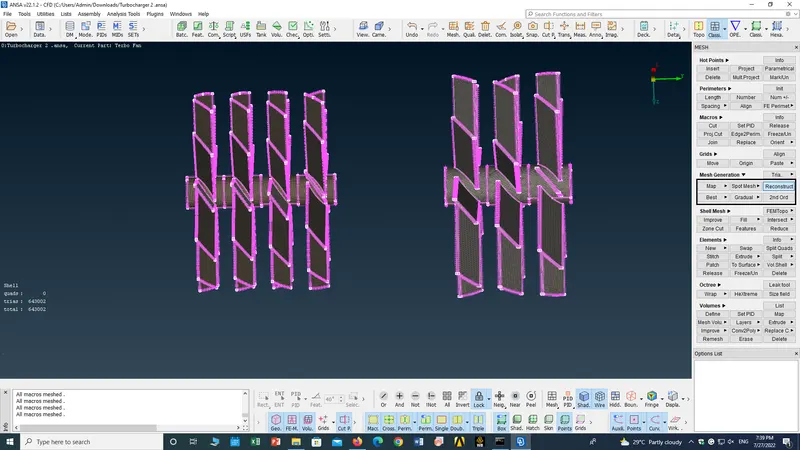

MESHING

gdrive file link

https://drive.google.com/file/d/1qBC5NFTGISp_DMhygDiDjbgICixmNLCK/view?usp=sharing

Results

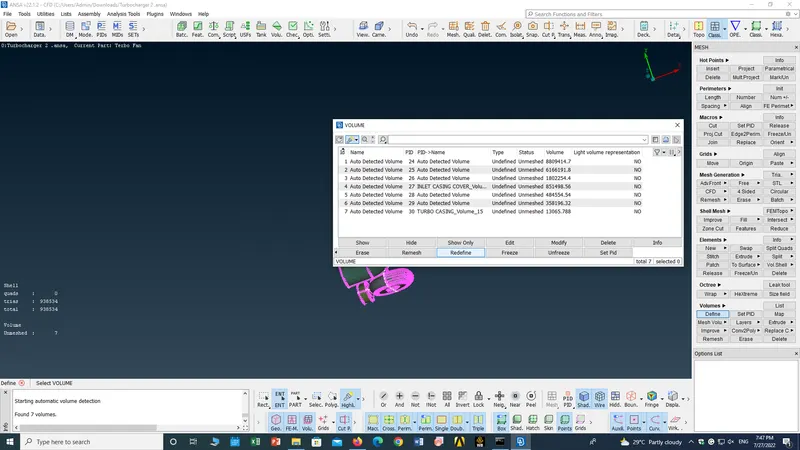

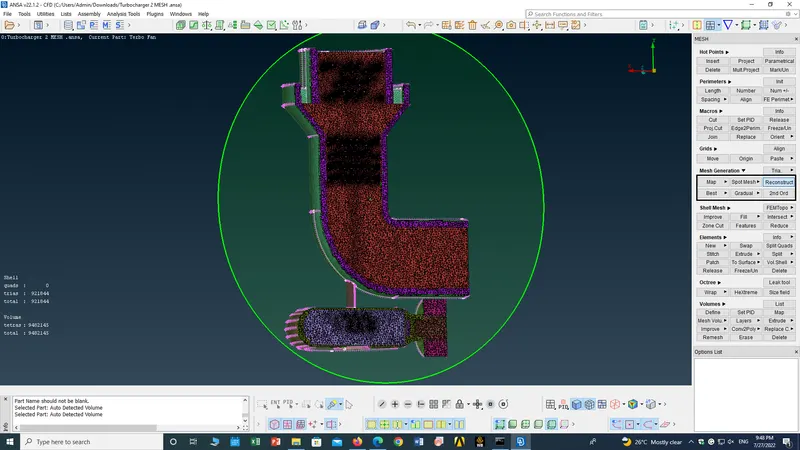

Pids are set and surface mesh is done as per the target length give and volumetric mesh also done
