Week 3 Challenge : CFD meshing on Turbocharger

Aim: Perform Volumetric mesh for the given model.

Procedure:

1. Open the model in ansa.

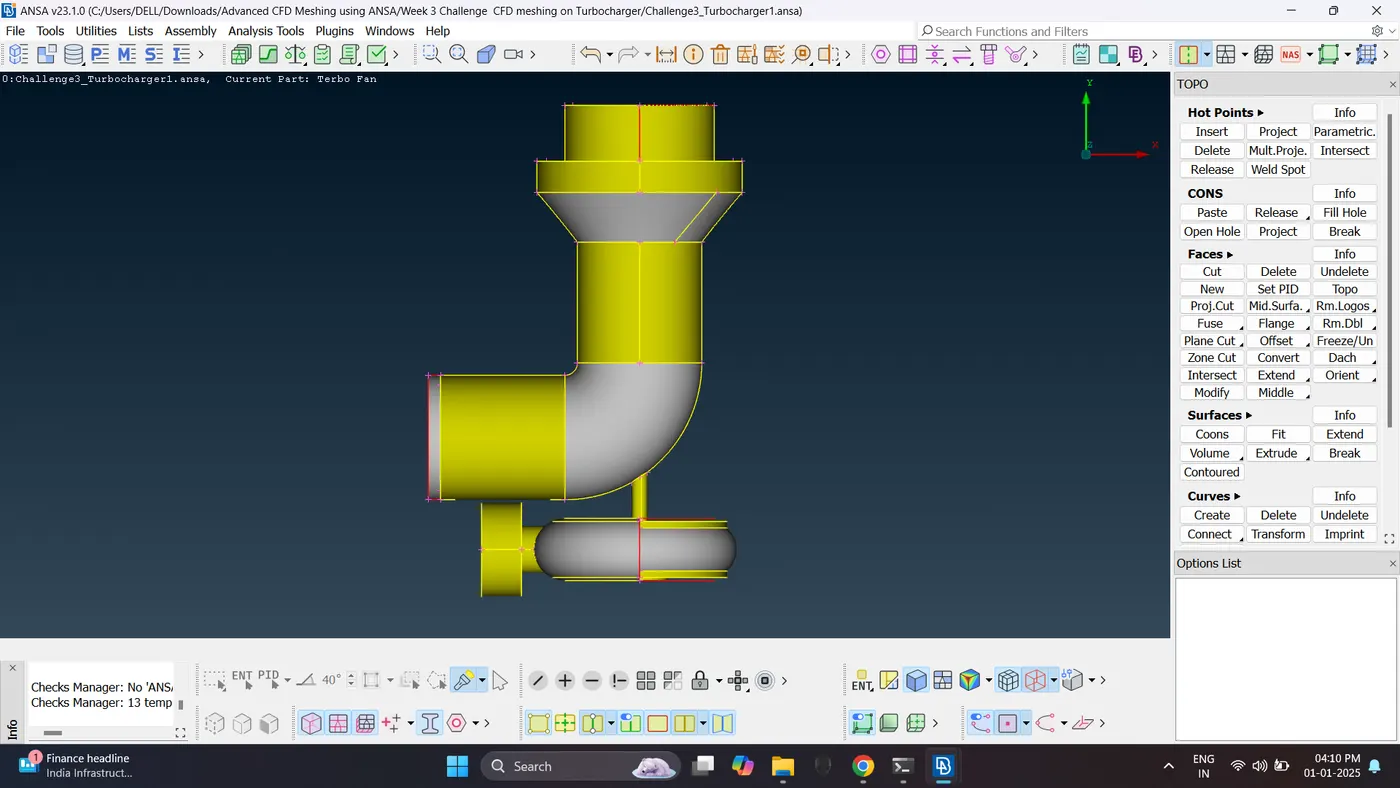

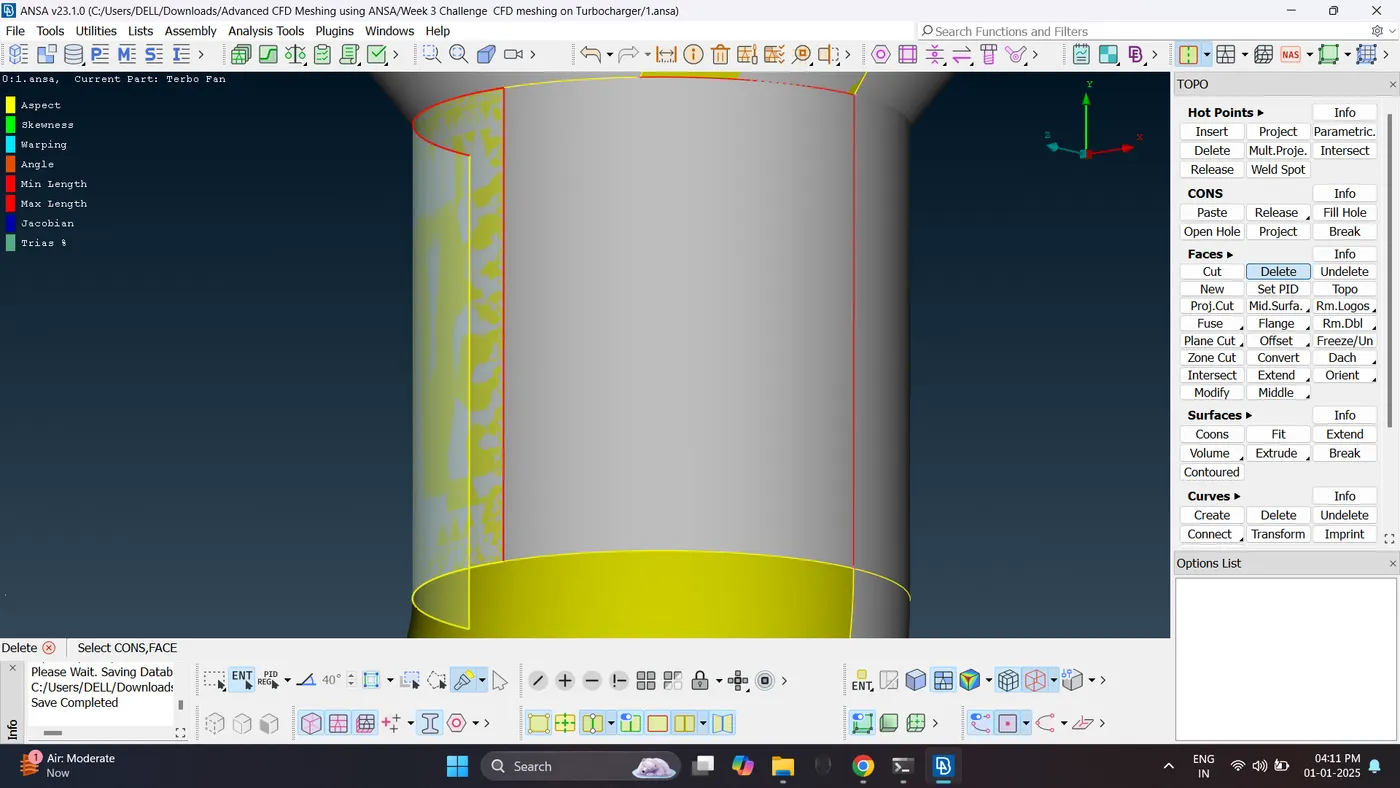

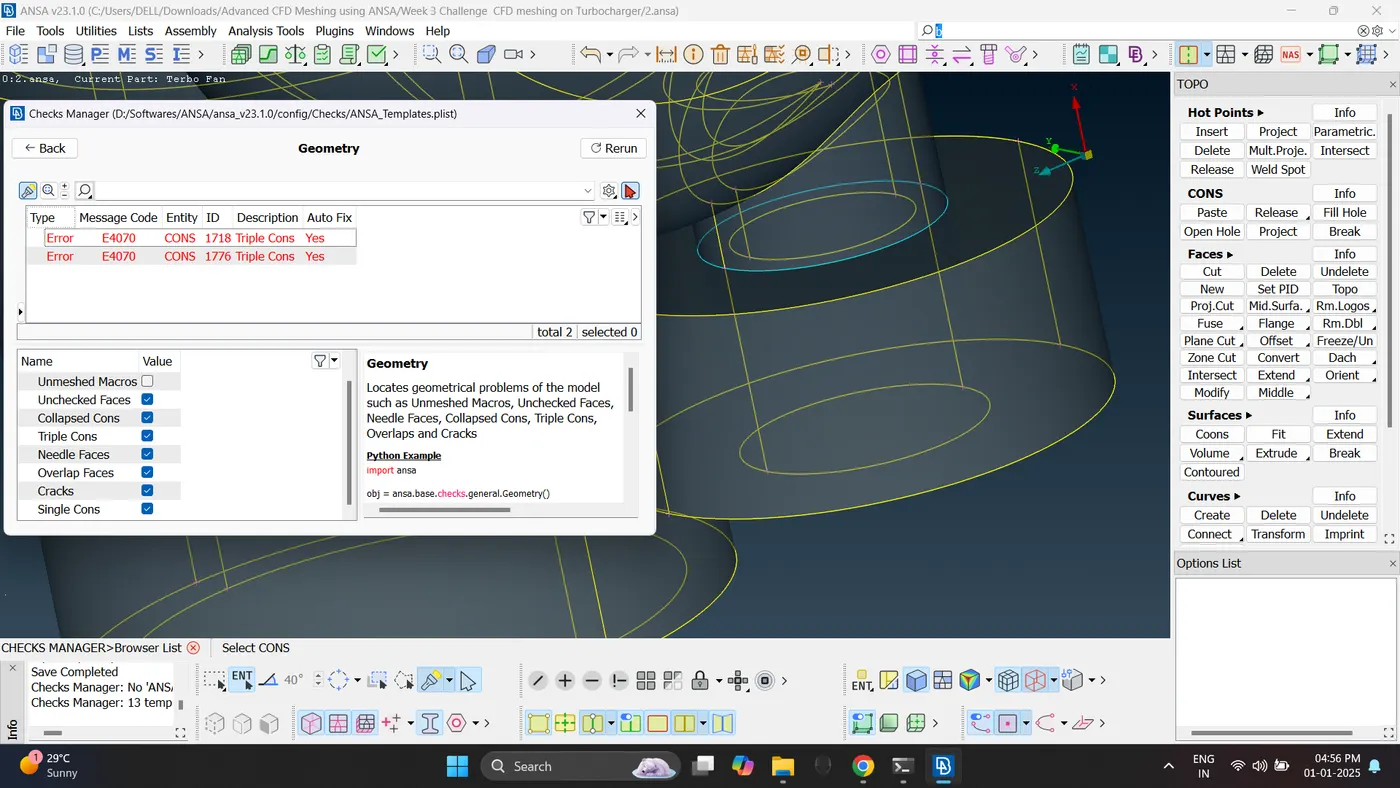

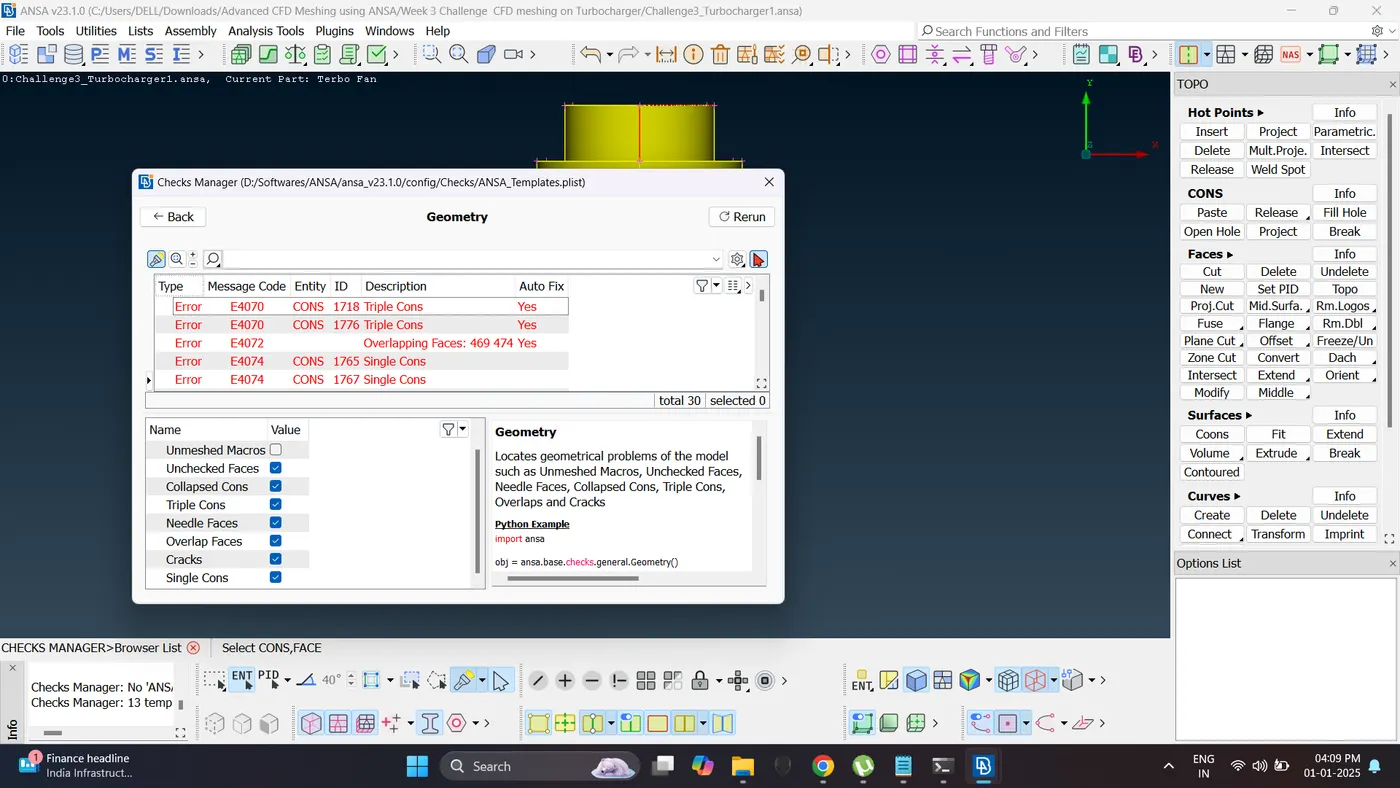

2. Check for geometry and do geometry cleanup.

remaining triple con is due to geometry so it can be ignored.

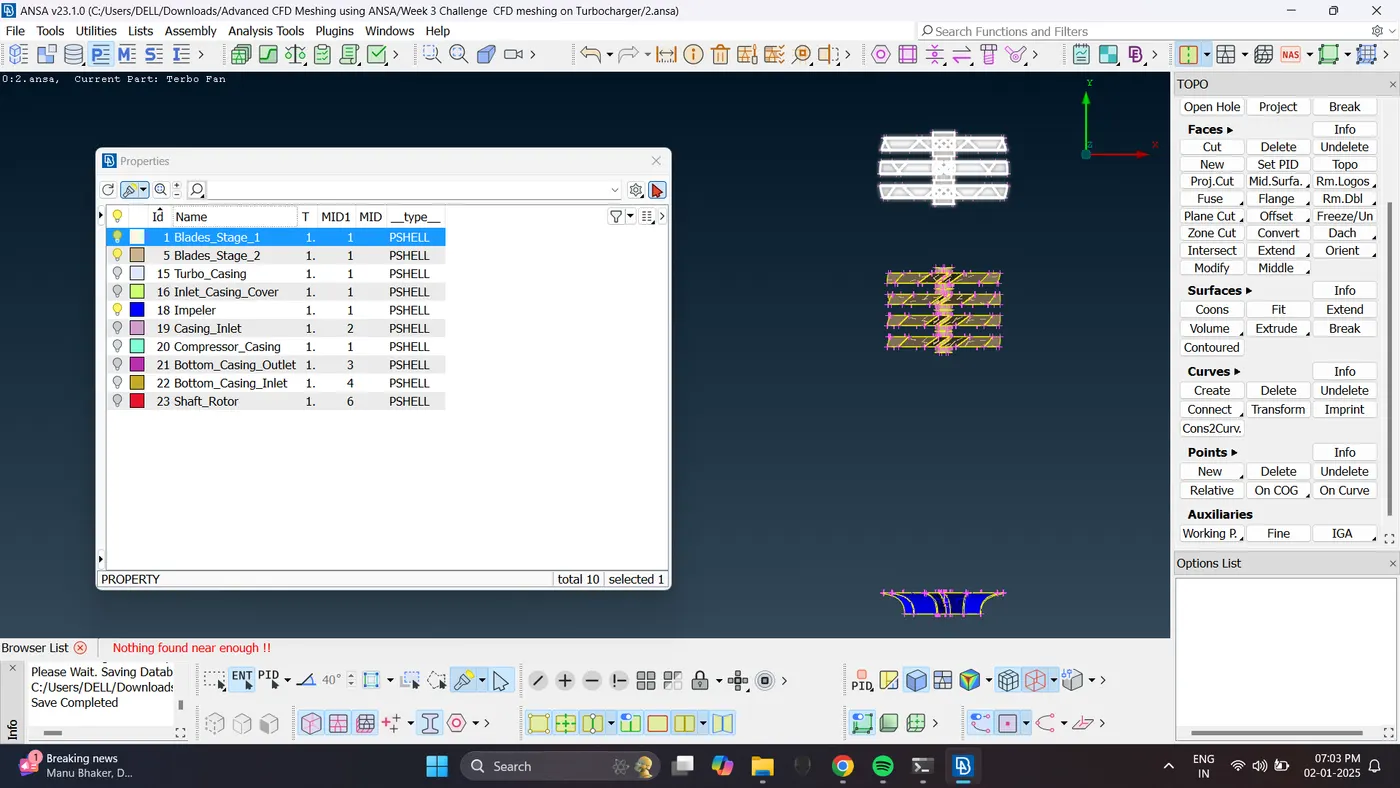

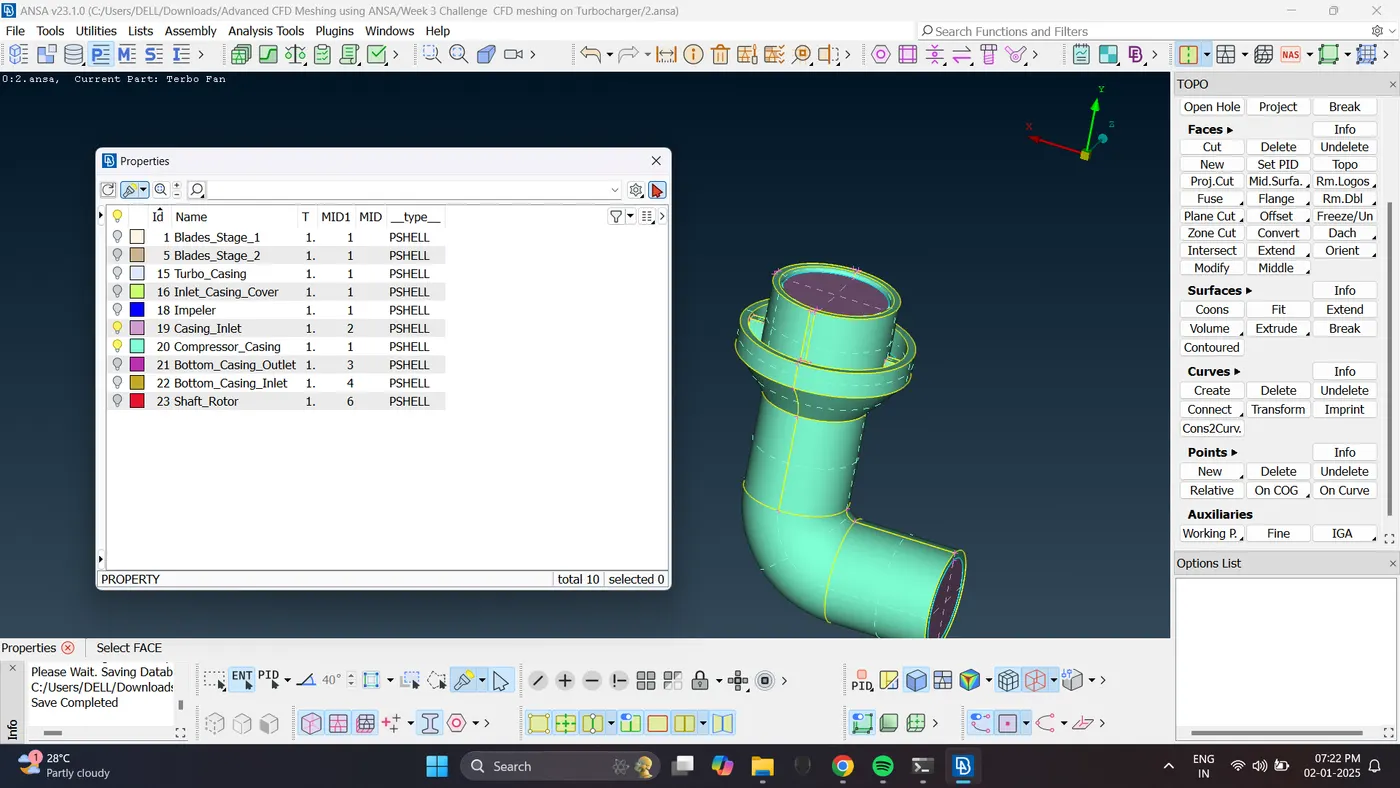

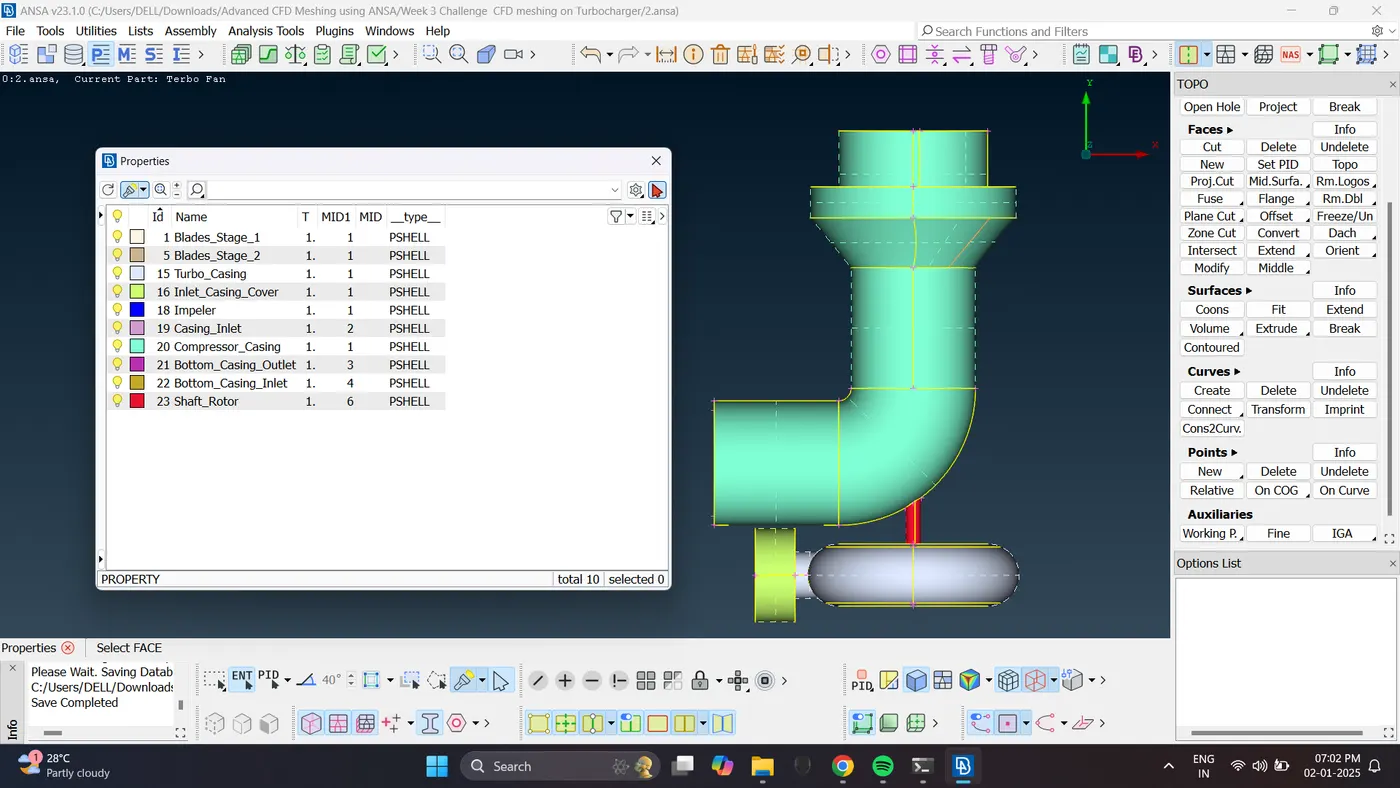

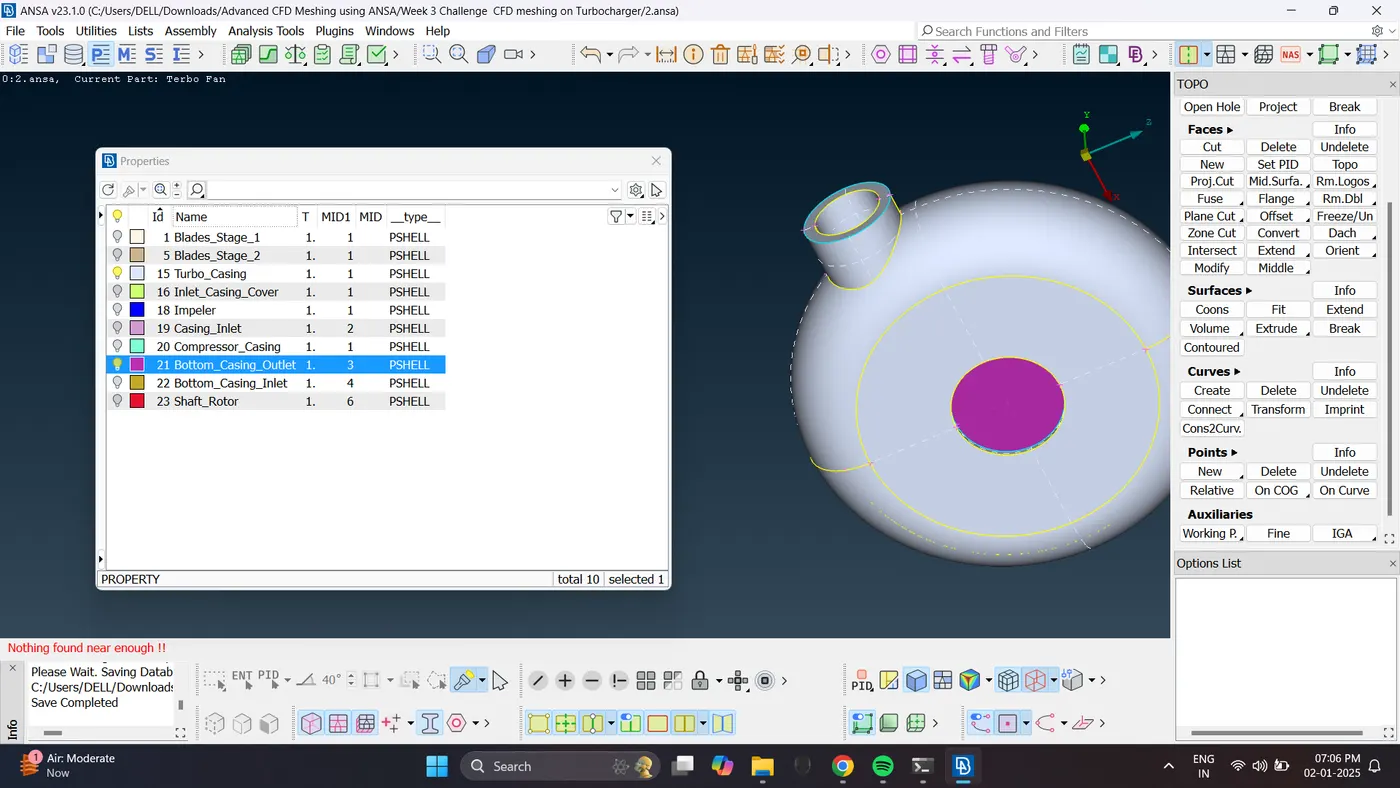

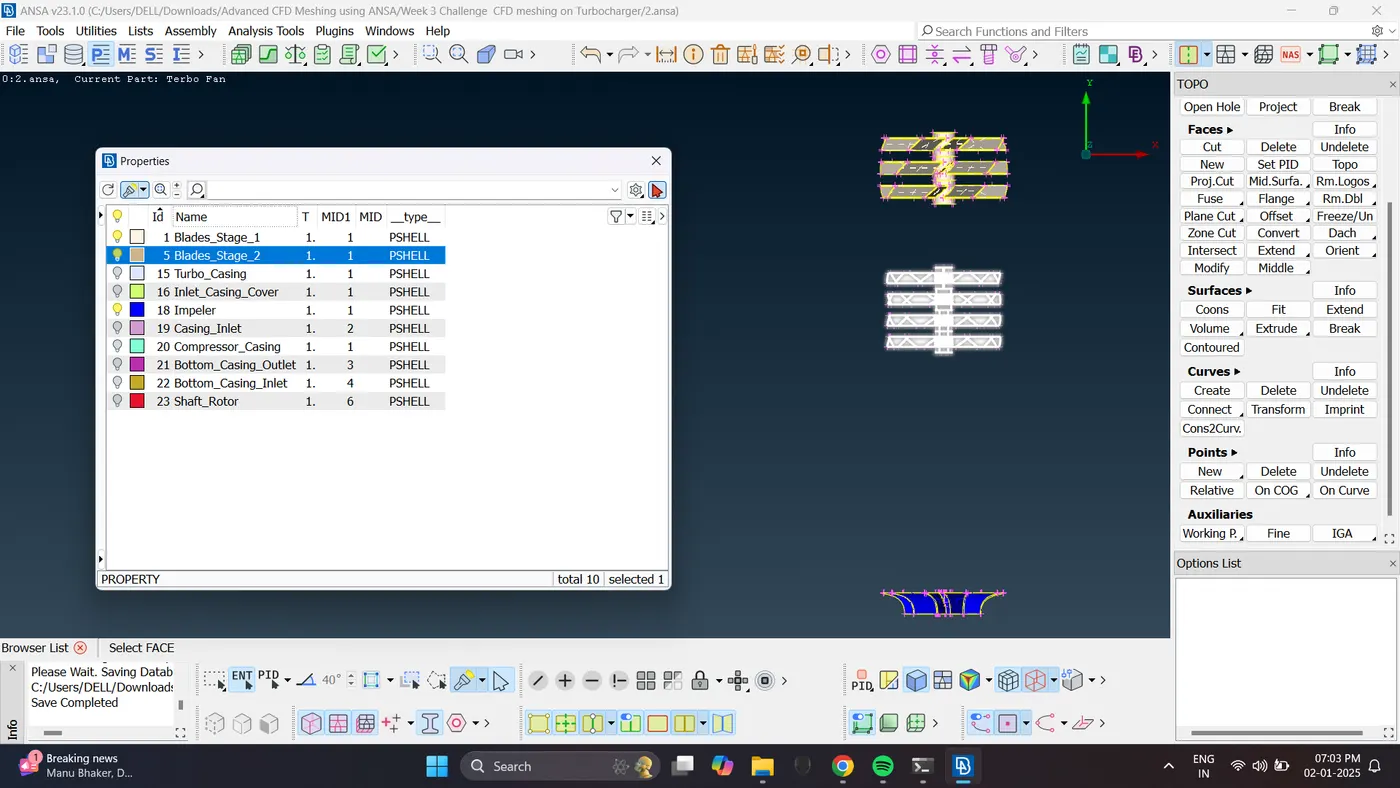

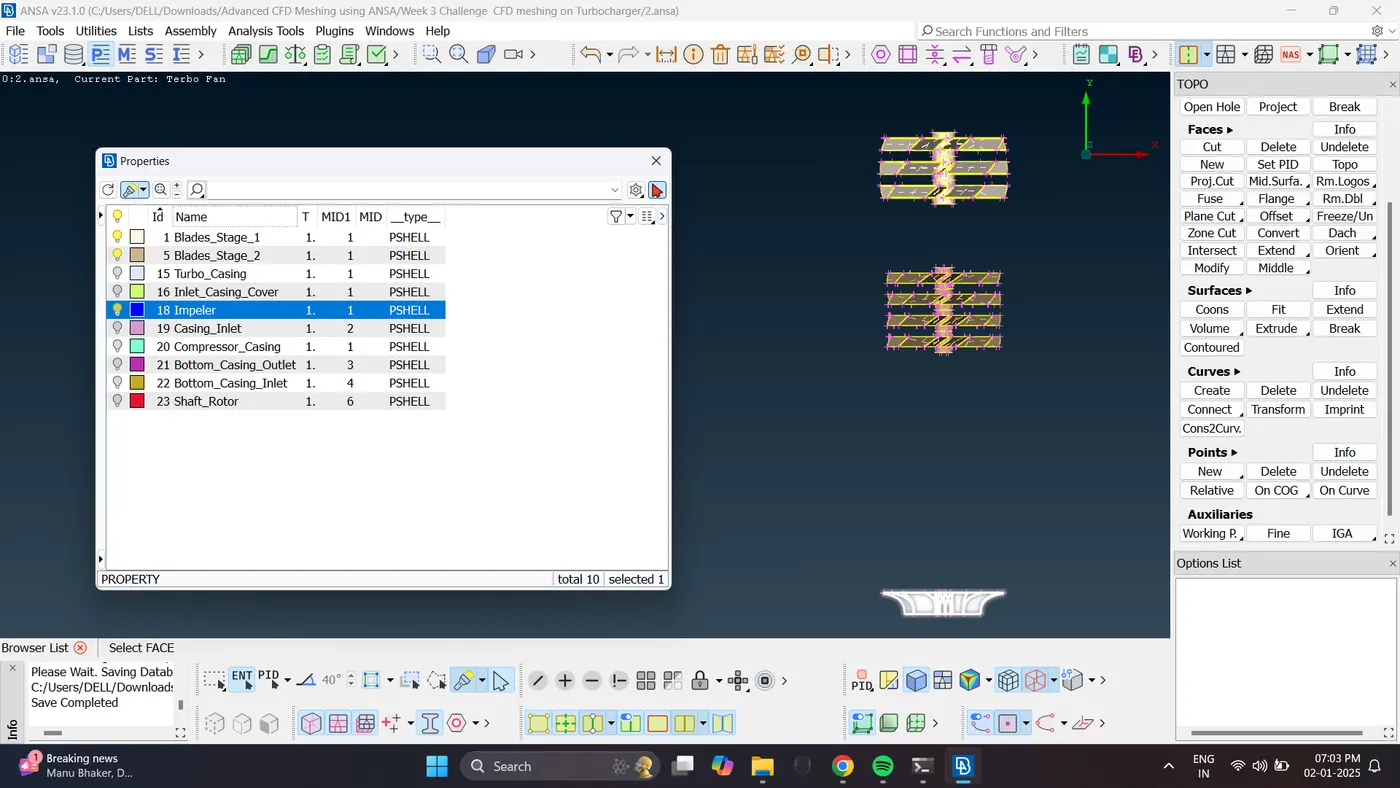

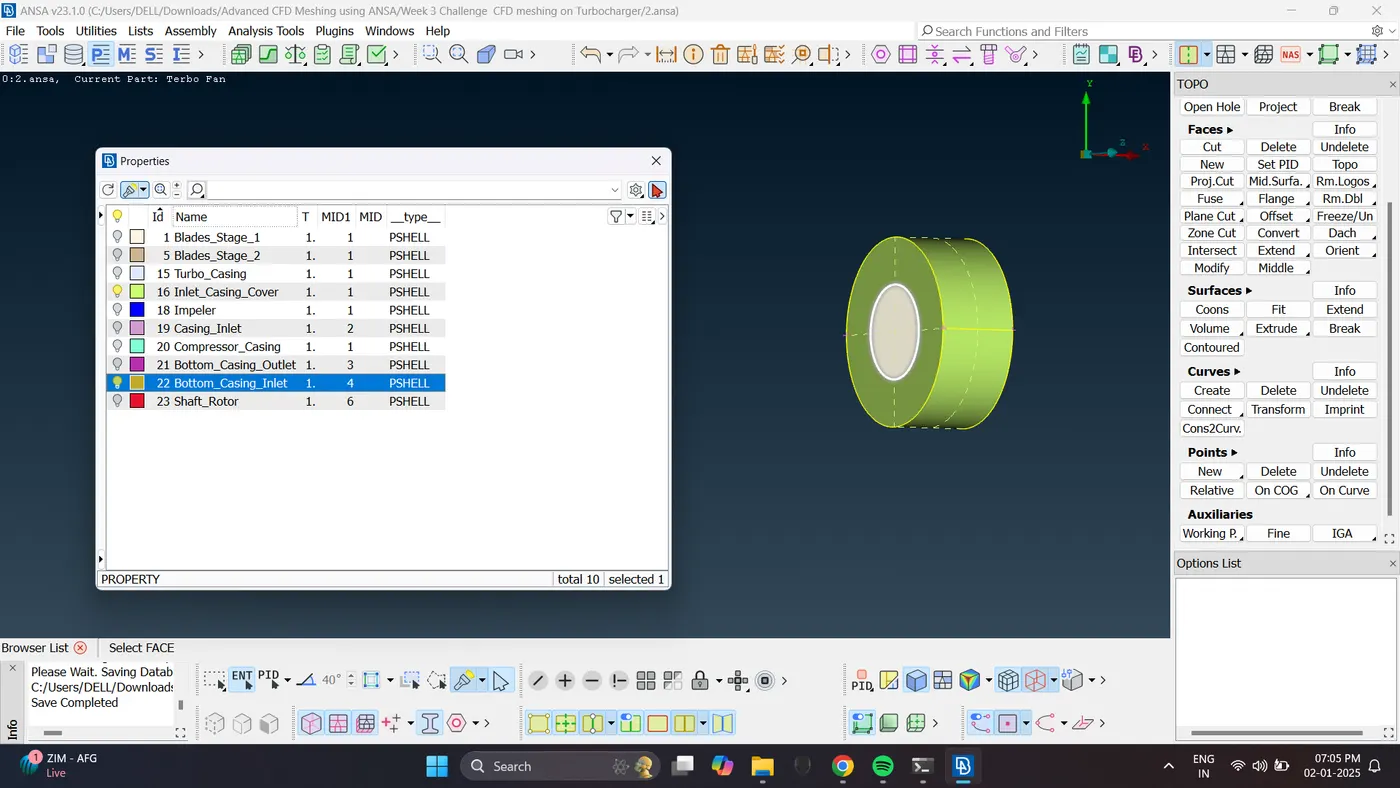

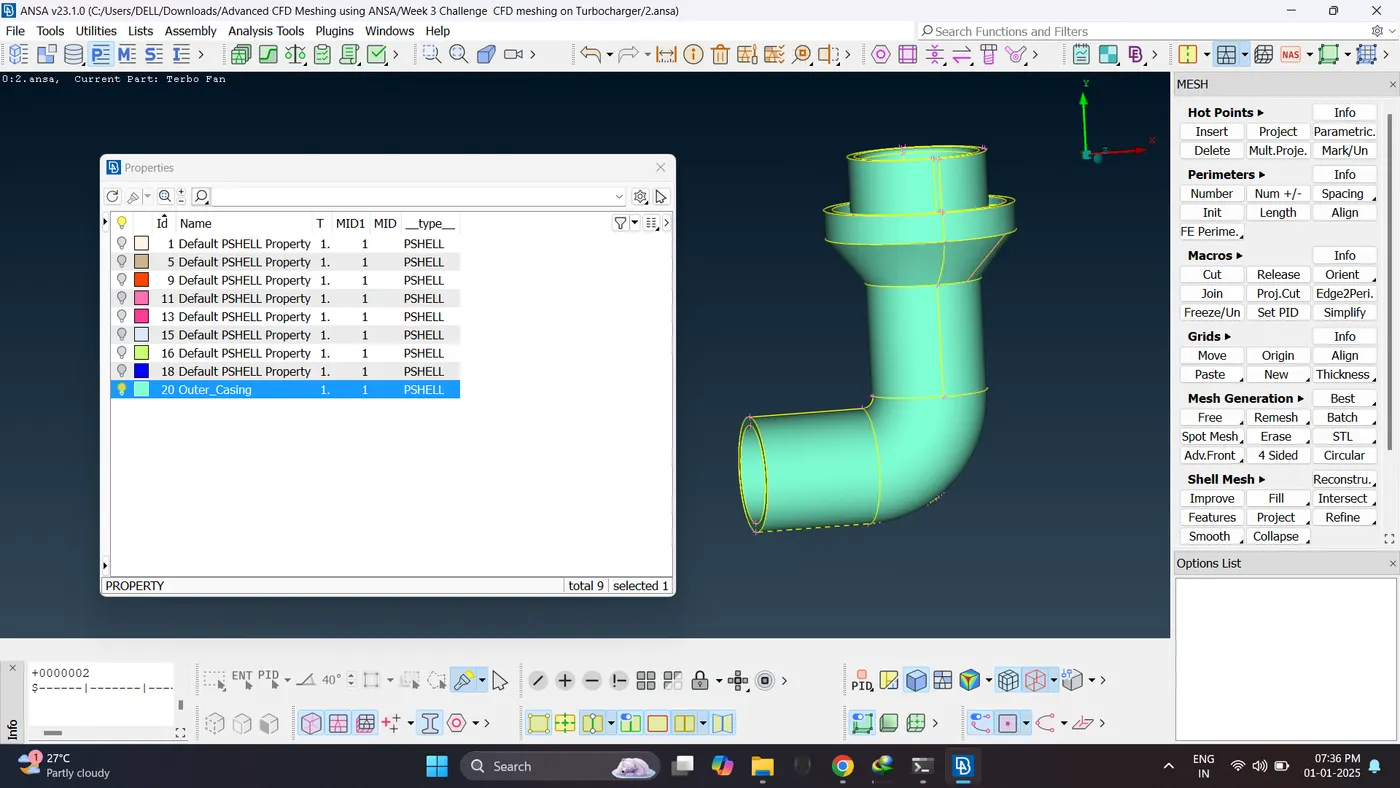

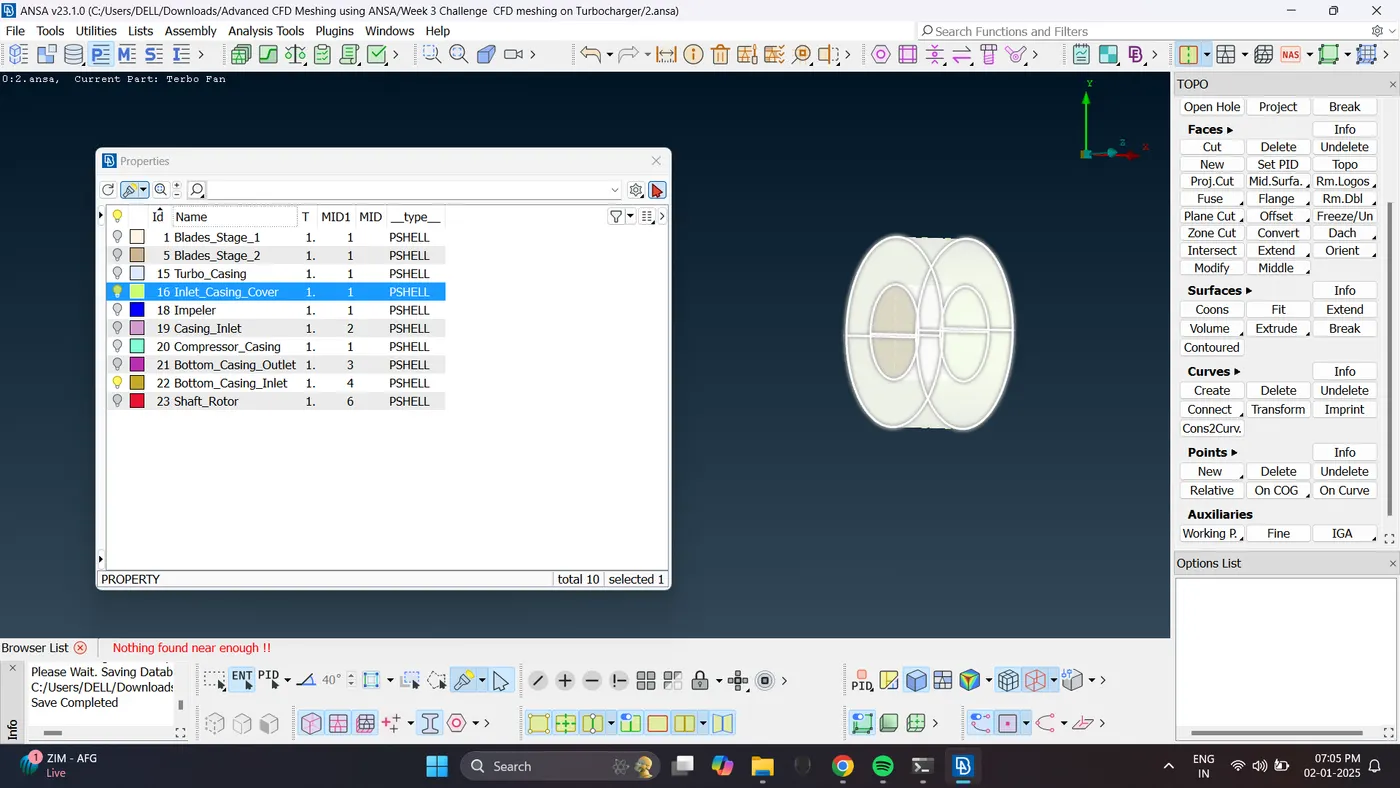

3. Check the property and rename it. If required move surfaces to the PID.

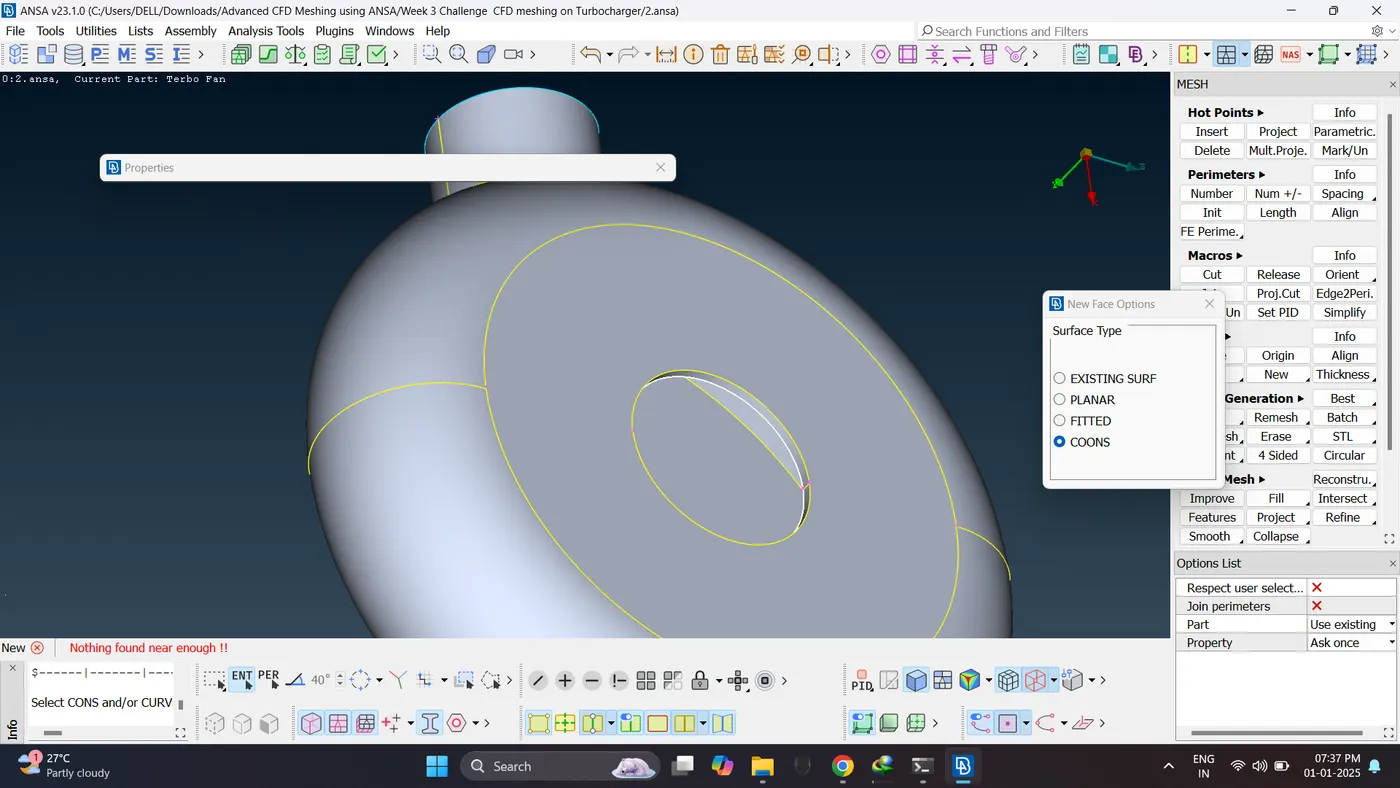

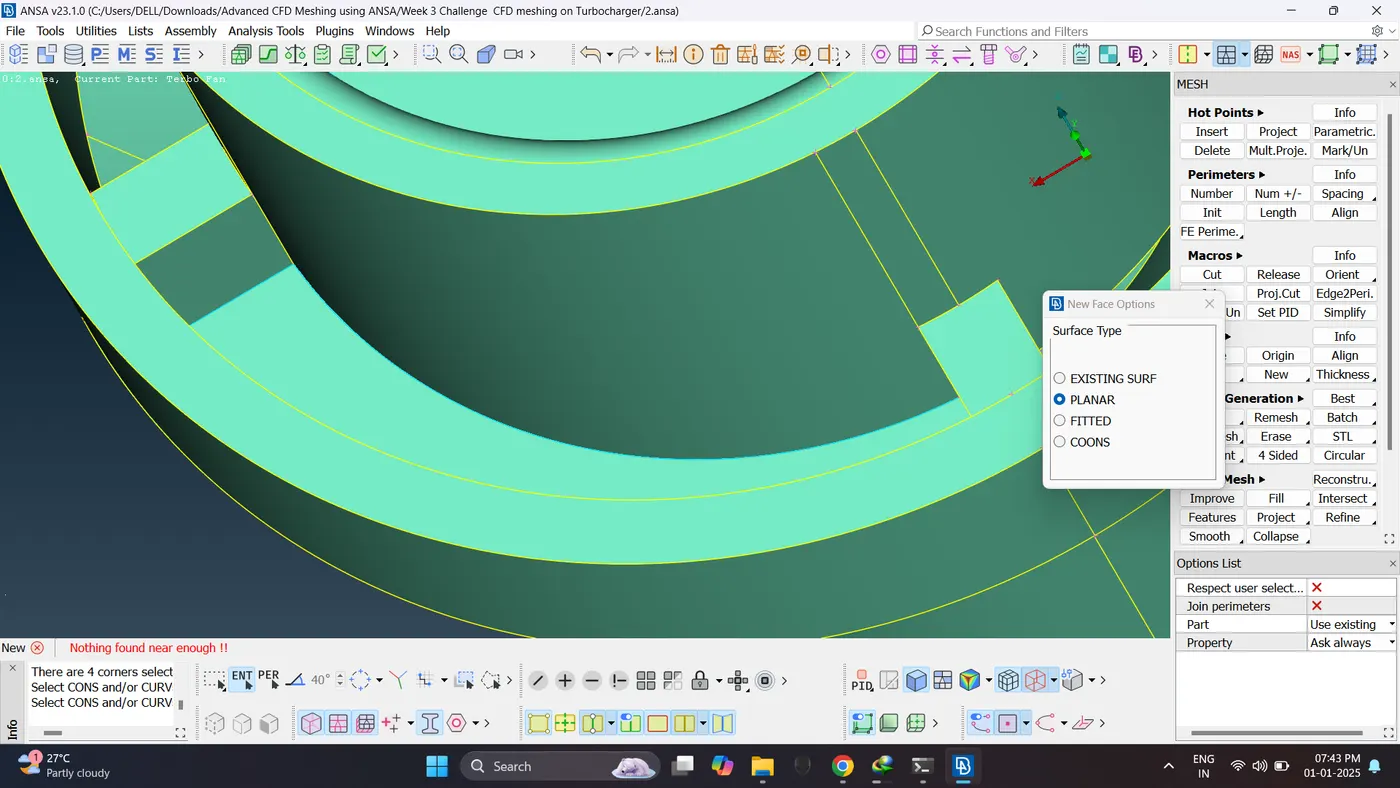

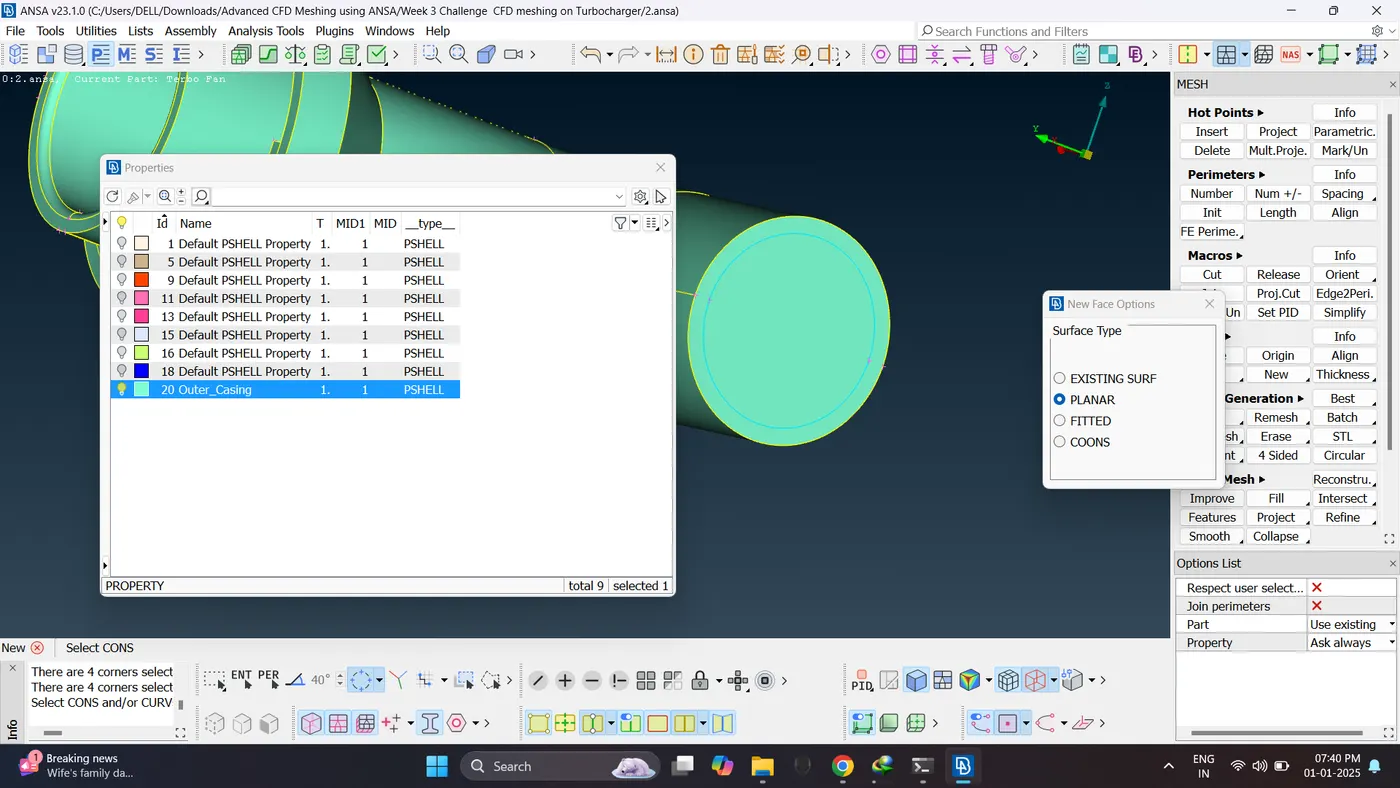

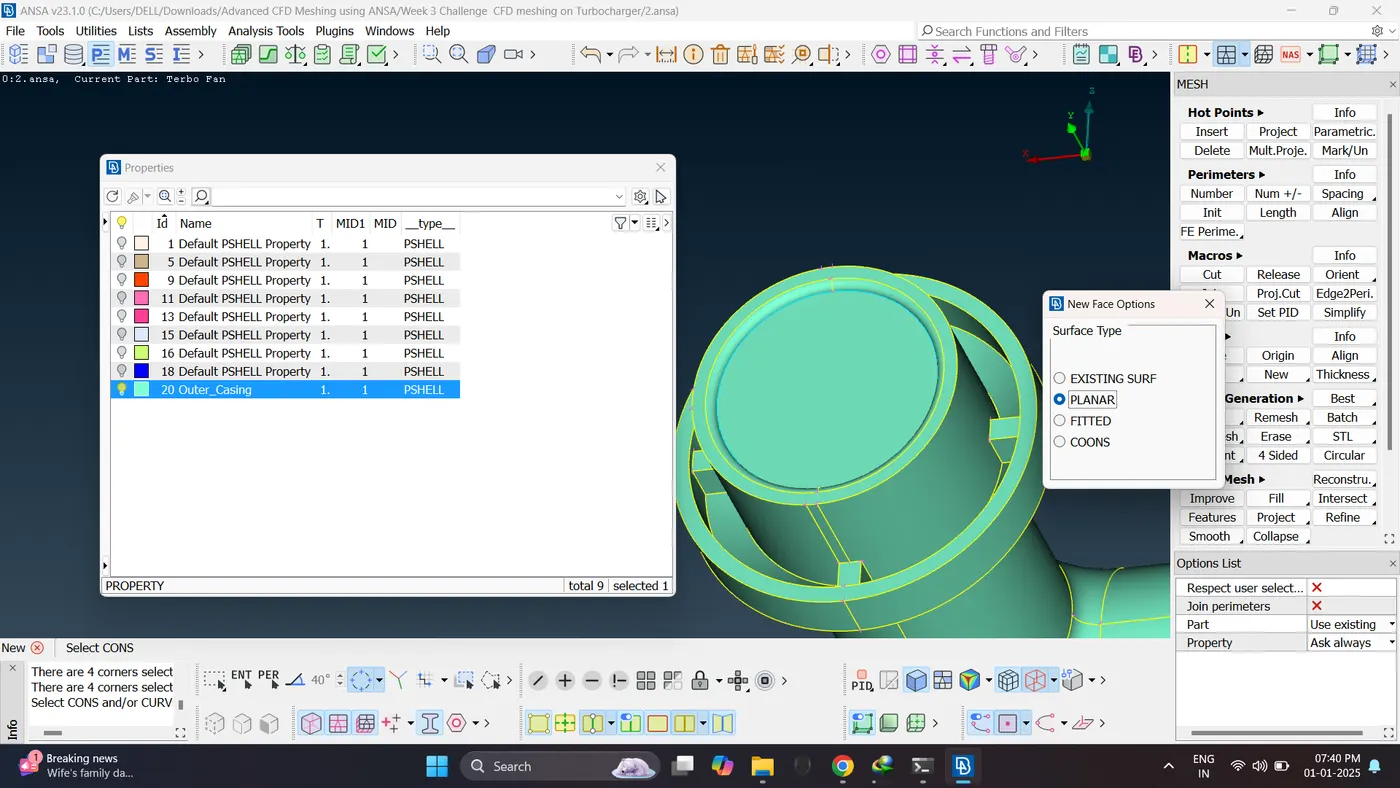

If the geometry is not closed completely close the geometry also.

4. Delete empty PID.

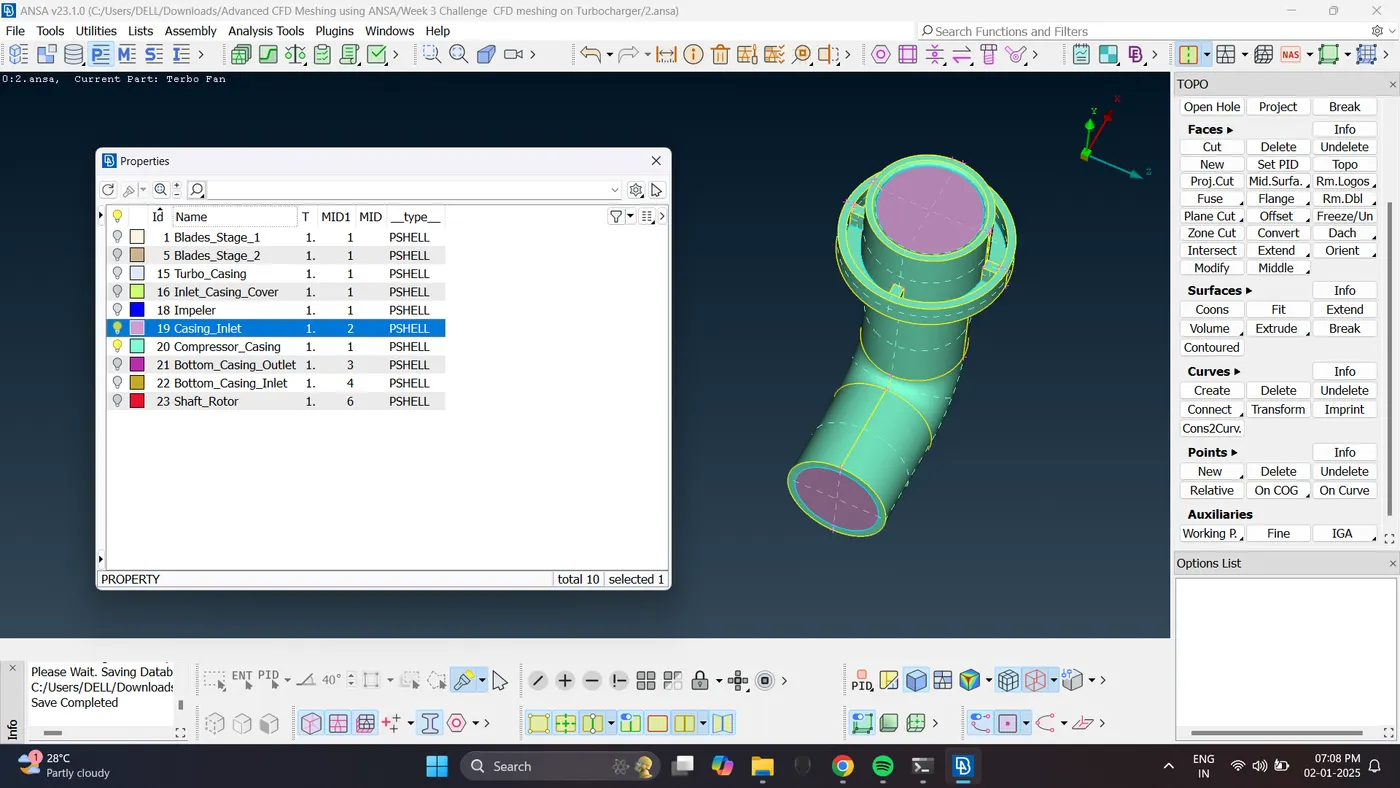

5. Isolate Compressor casing and casiing inlet.

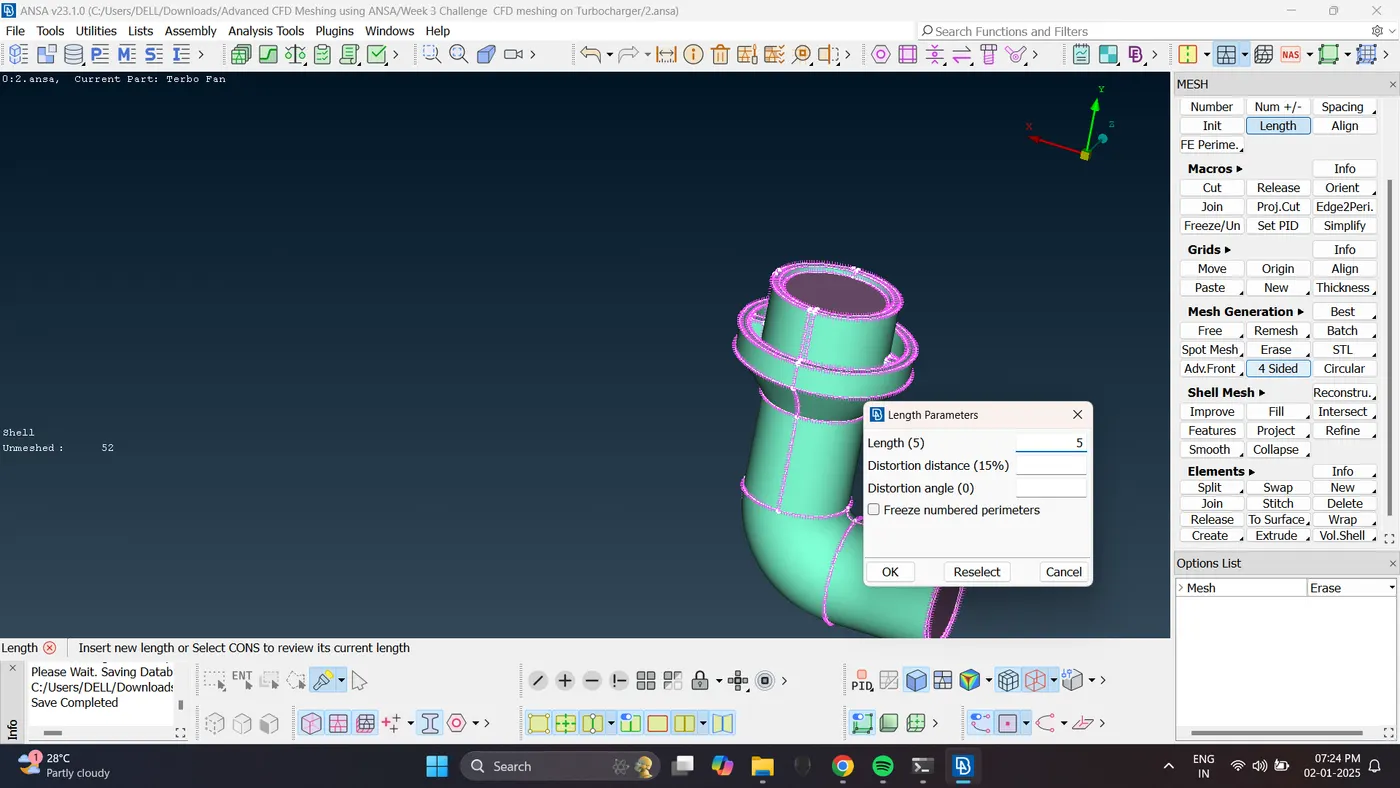

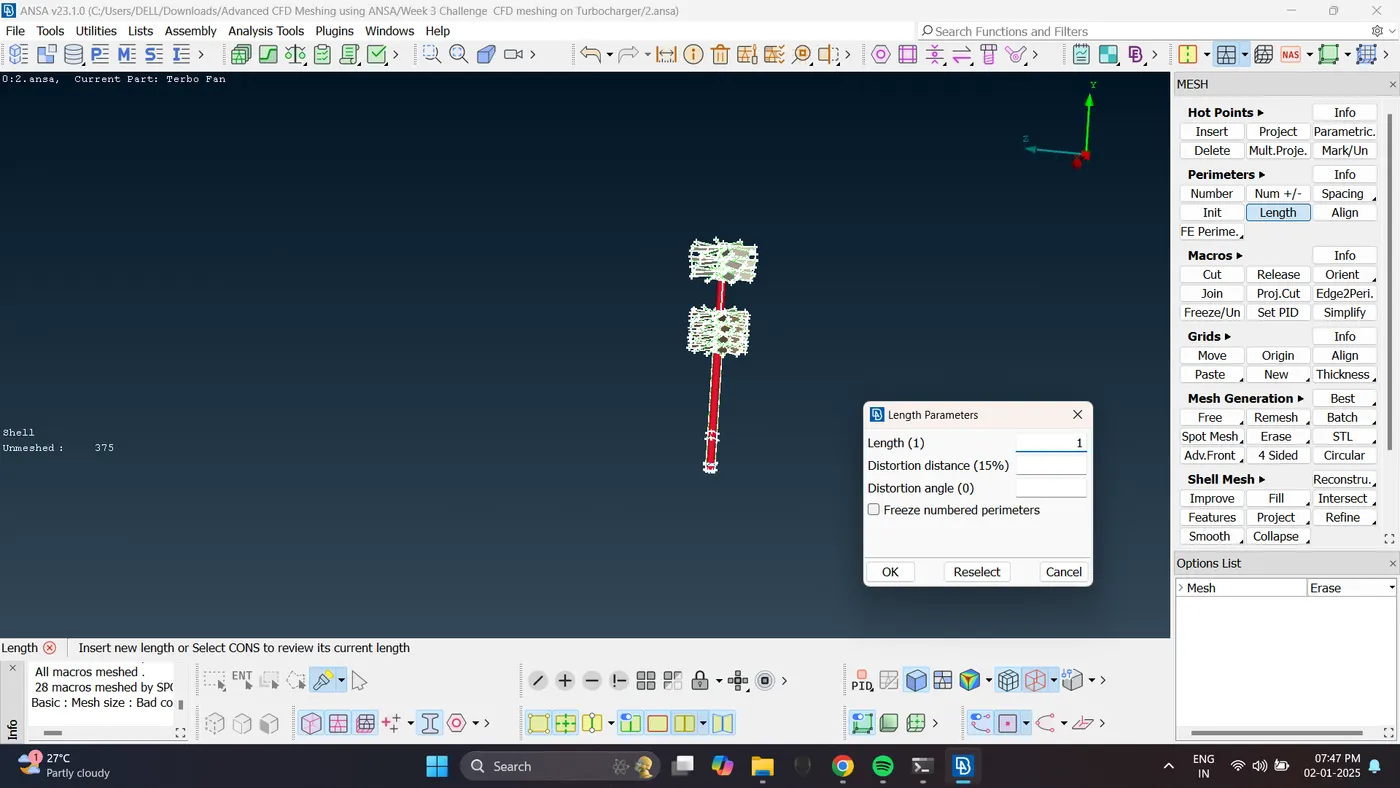

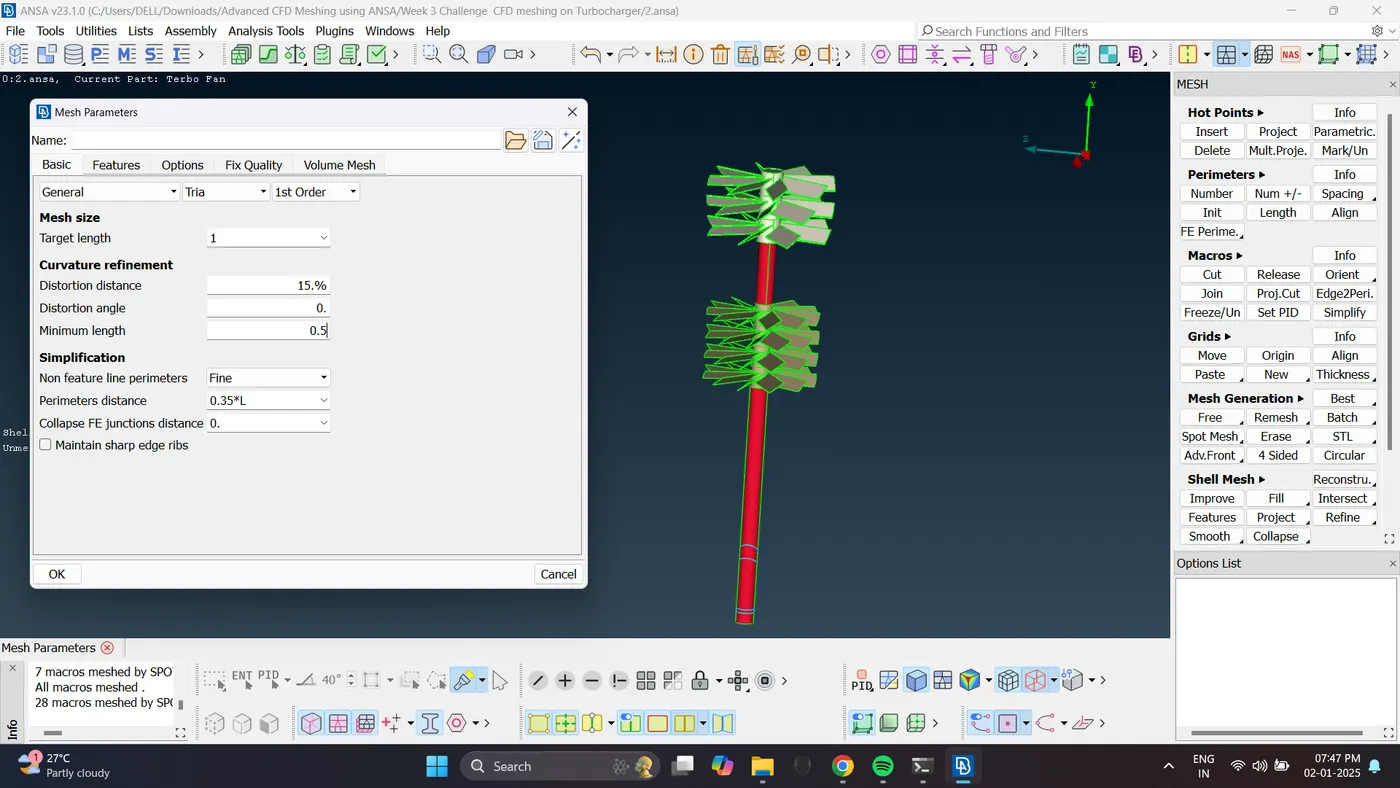

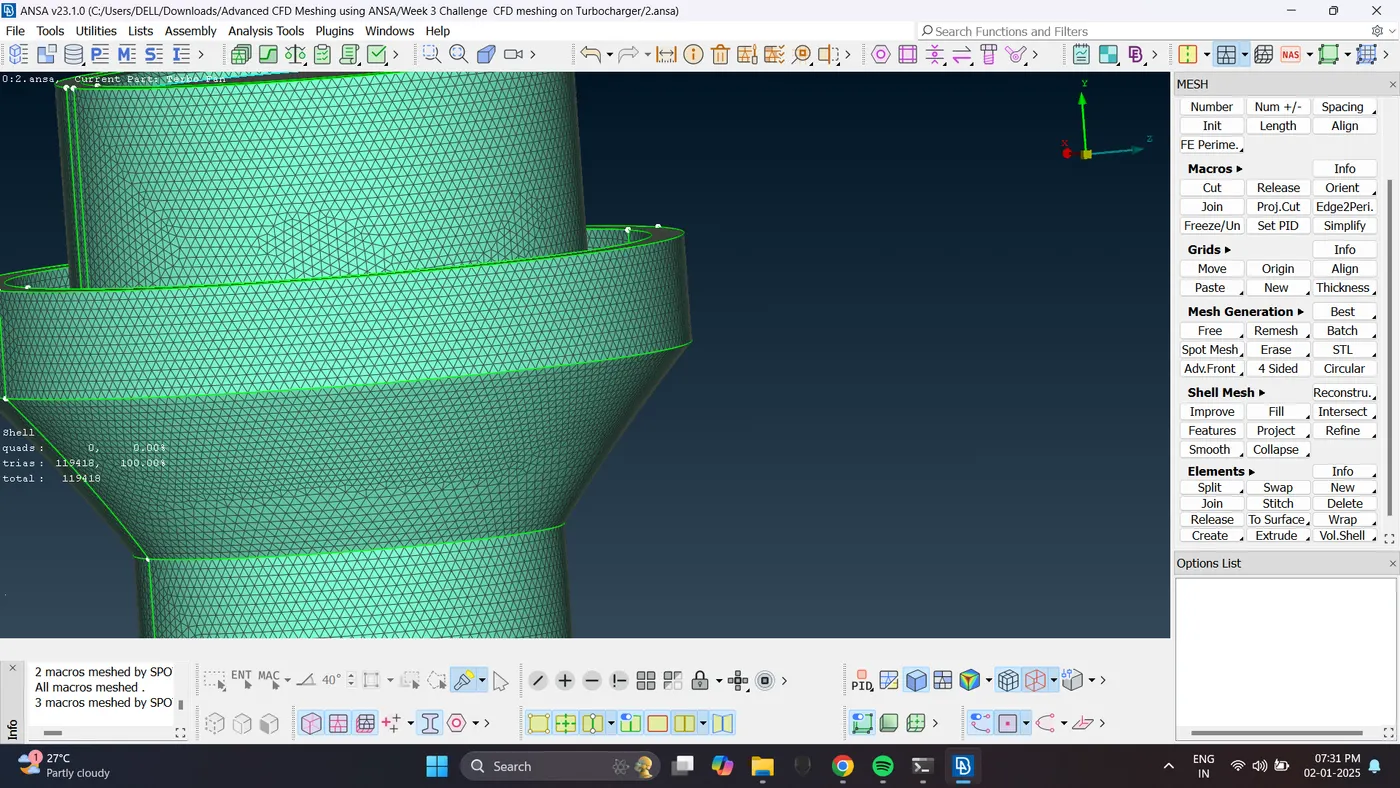

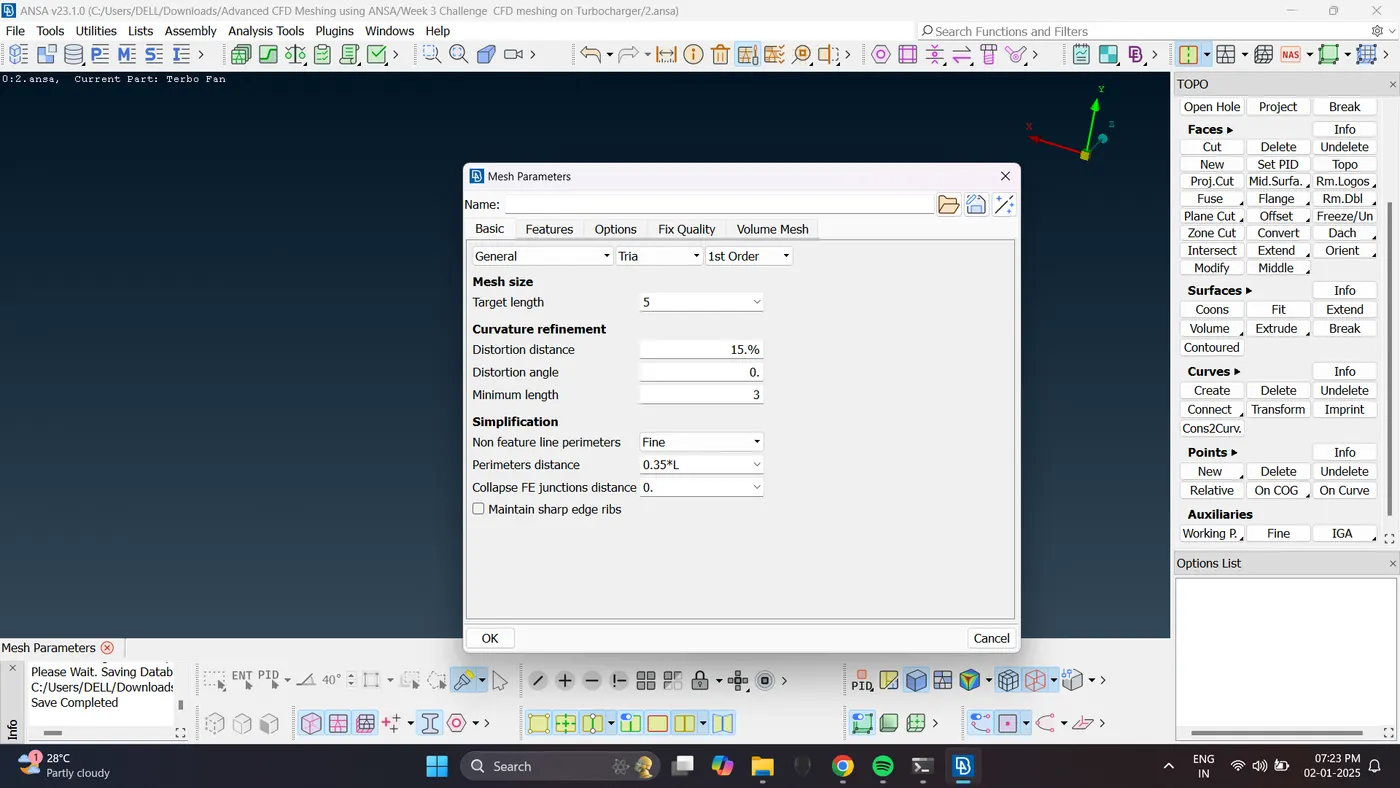

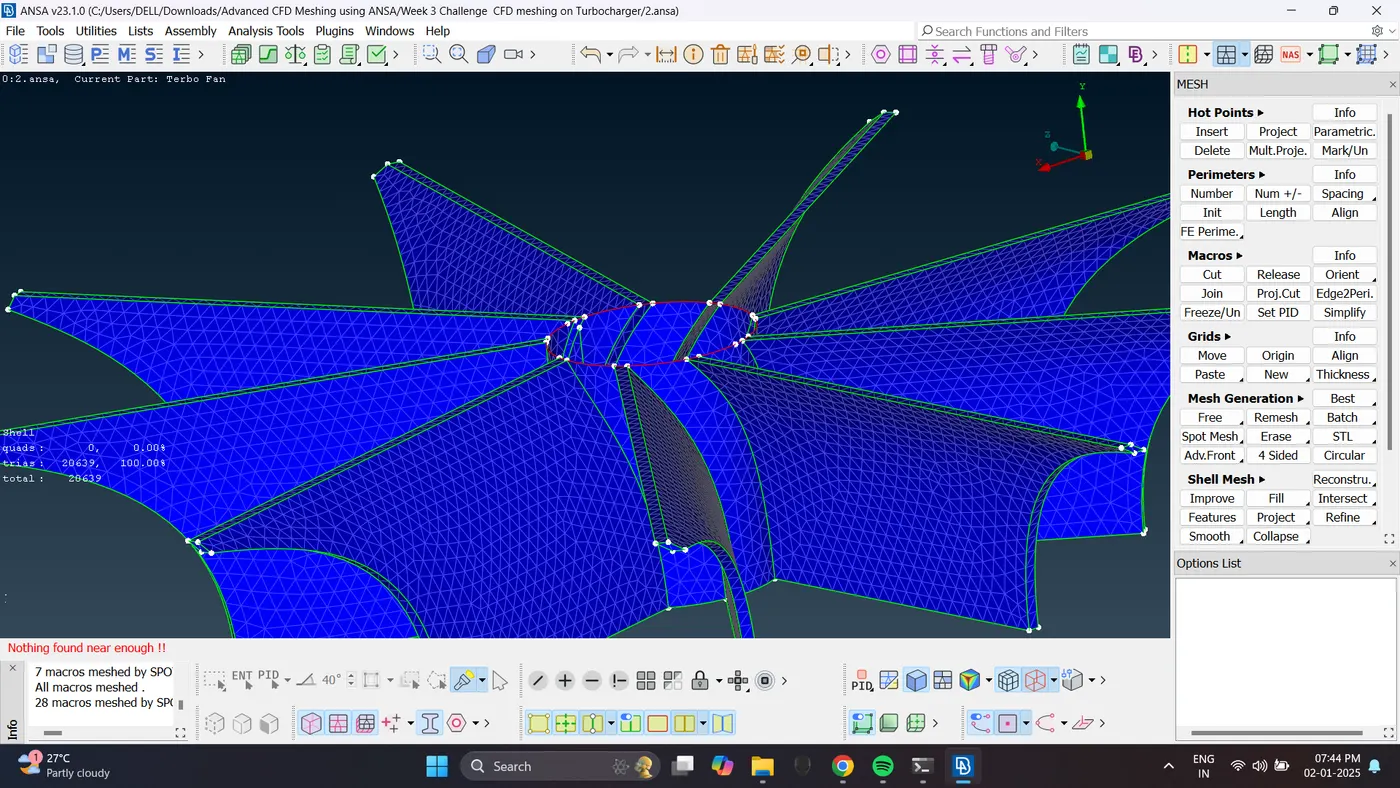

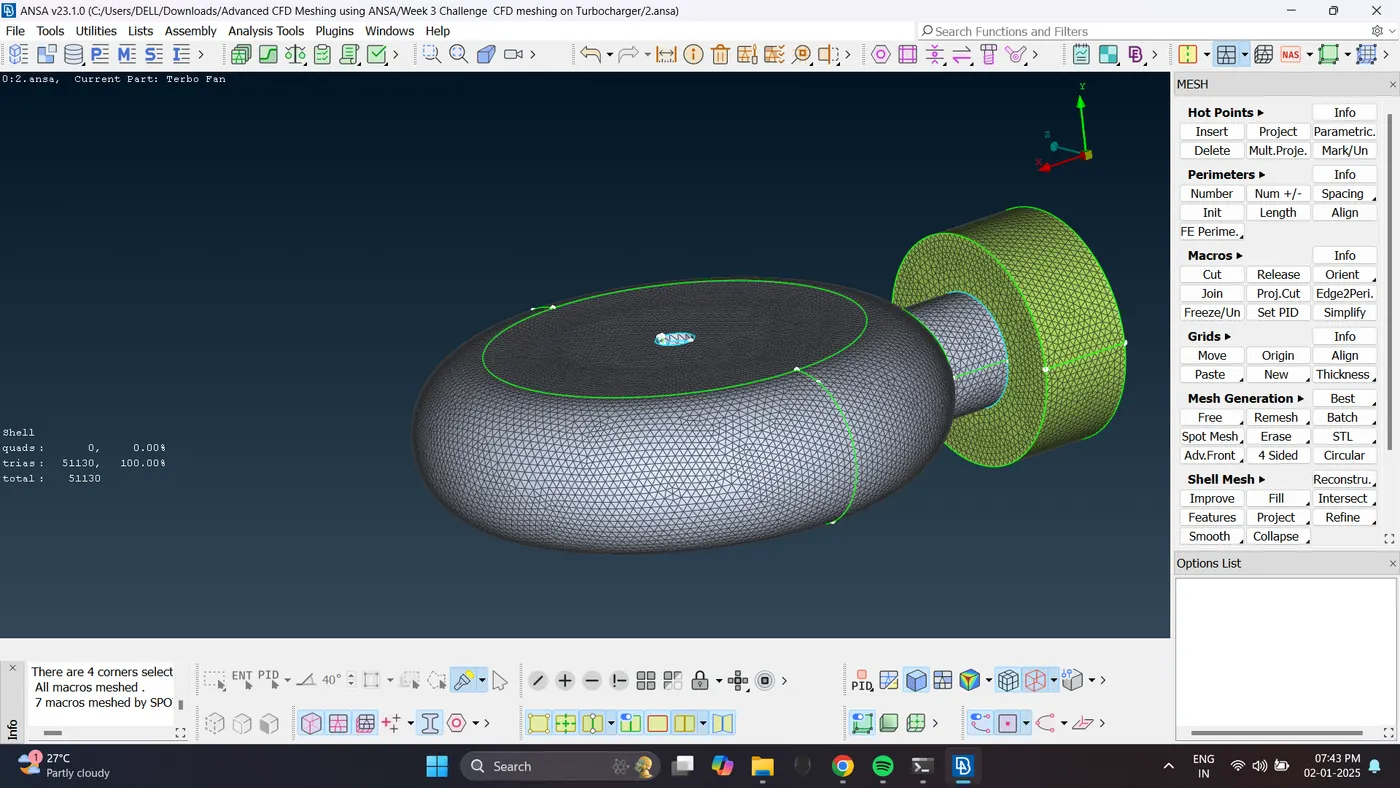

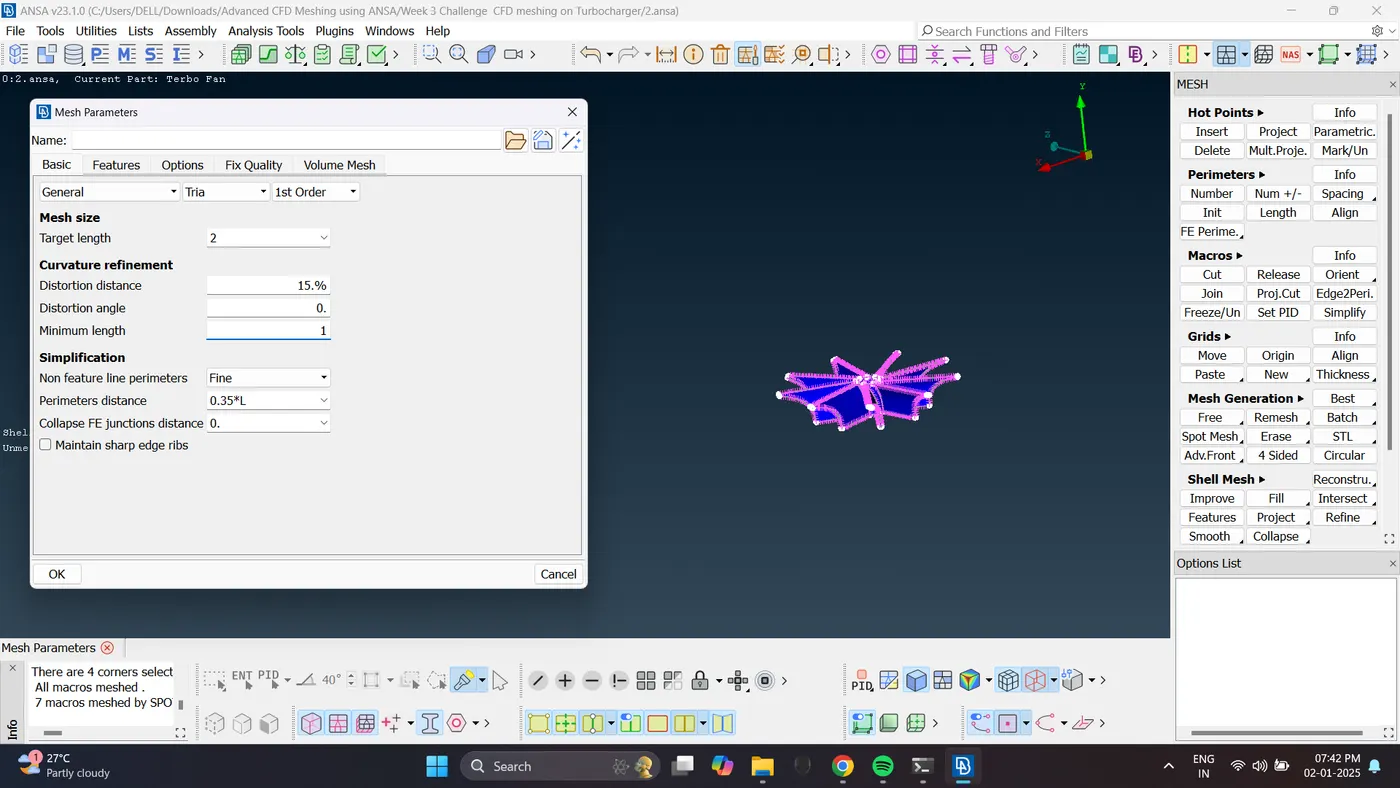

Mesh the model with 5 mm mesh size.

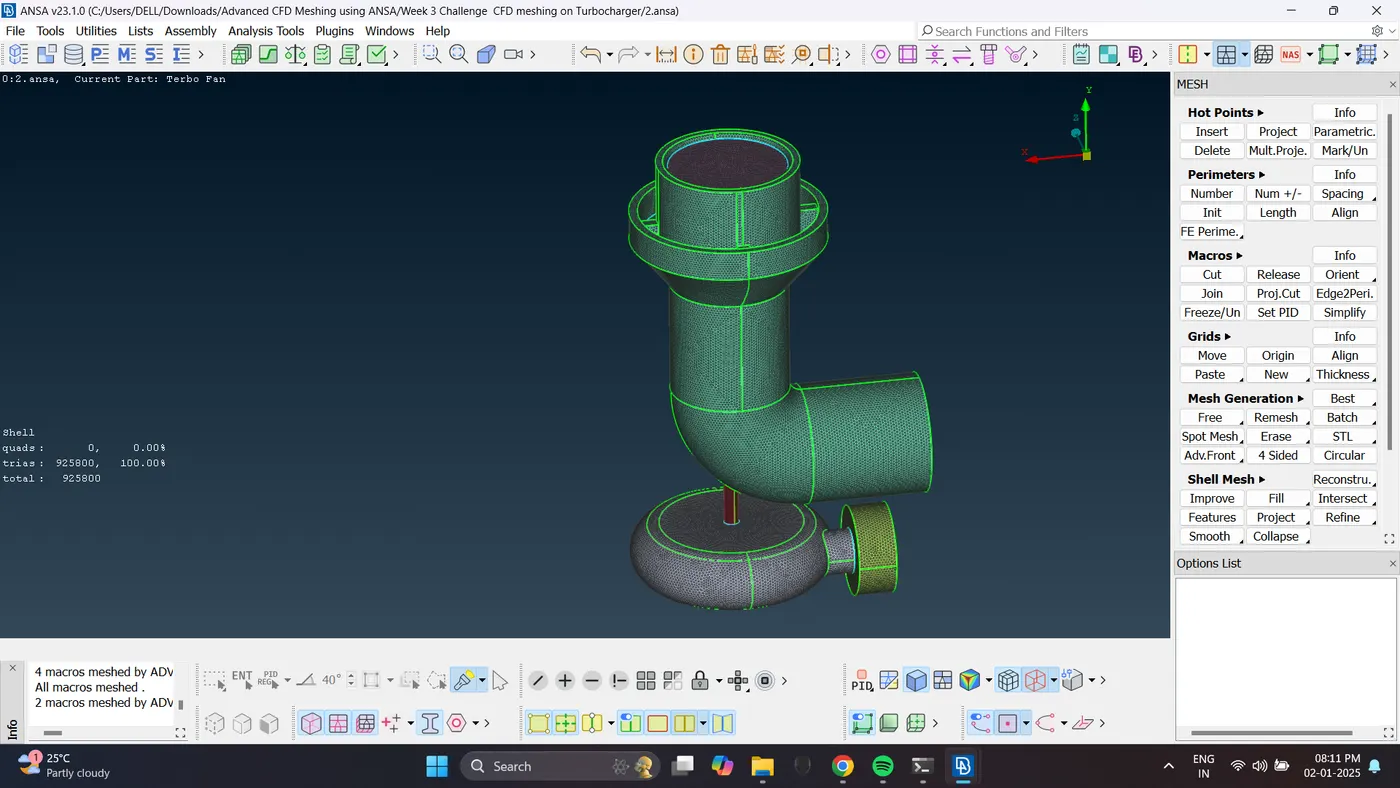

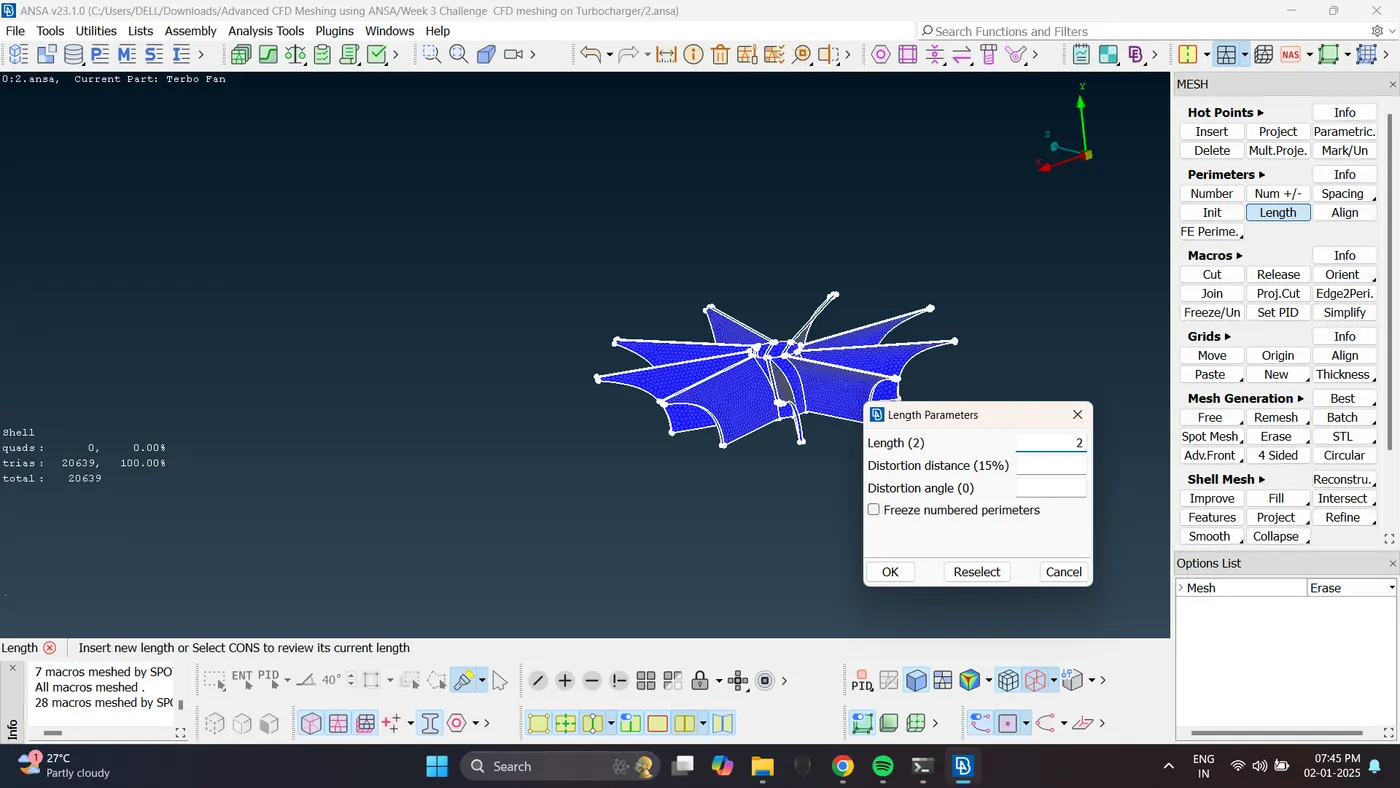

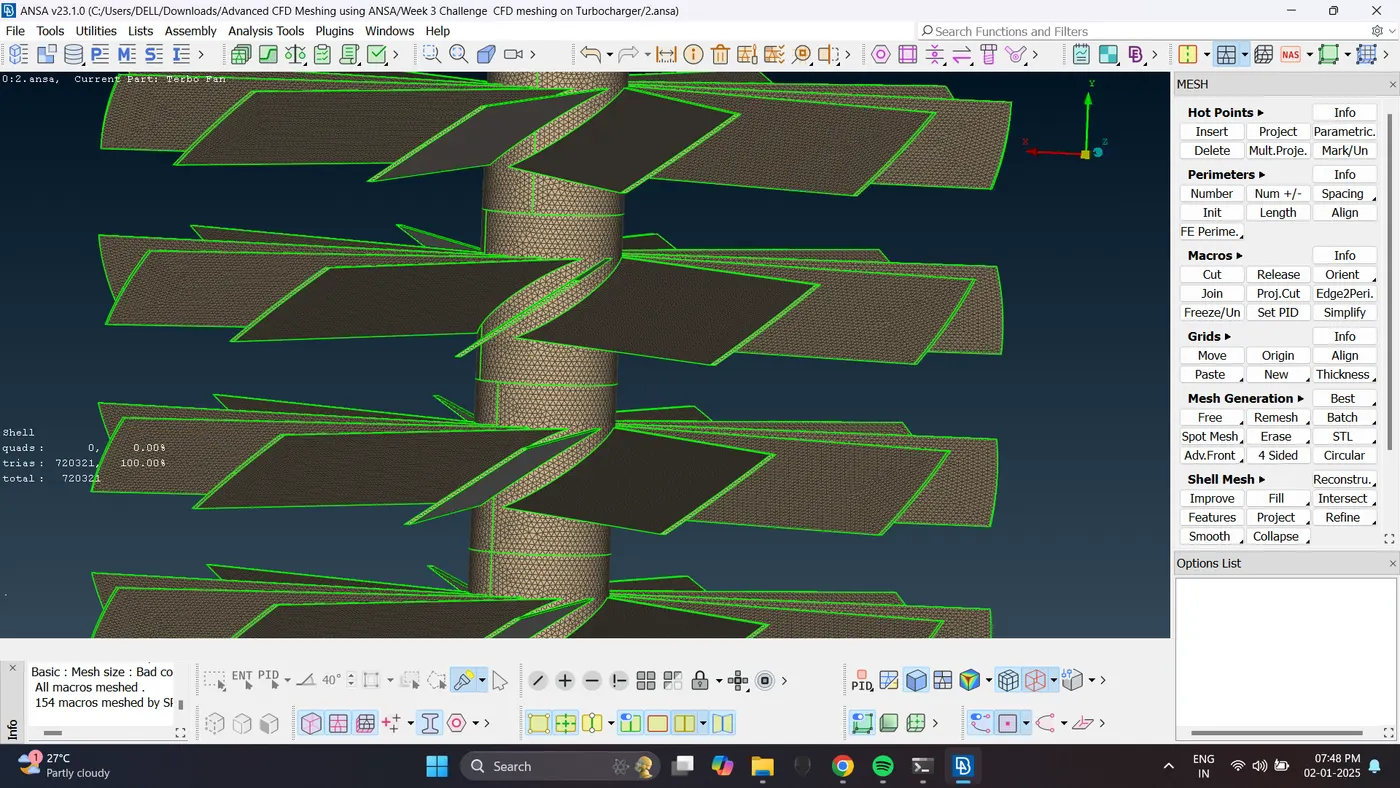

6. Similarly mesh the other components.

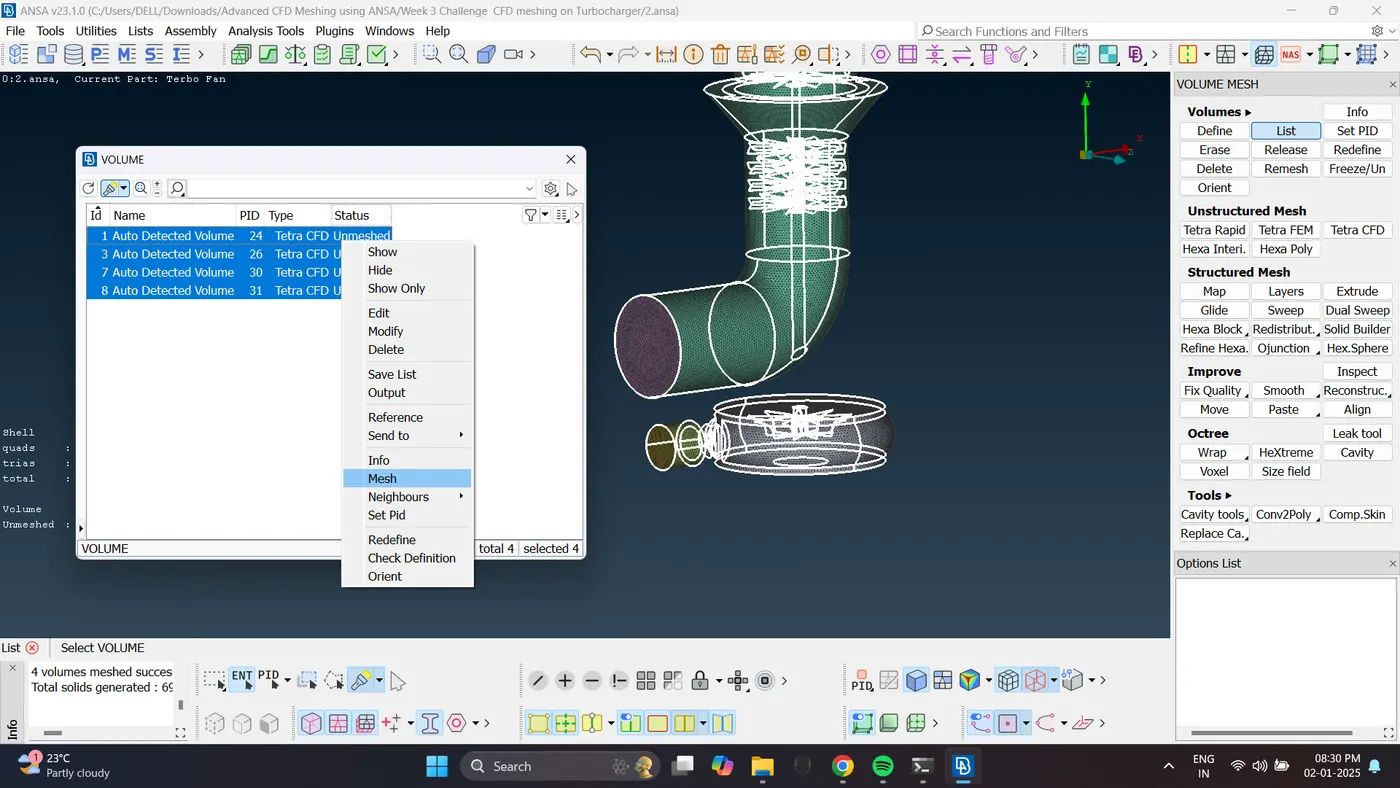

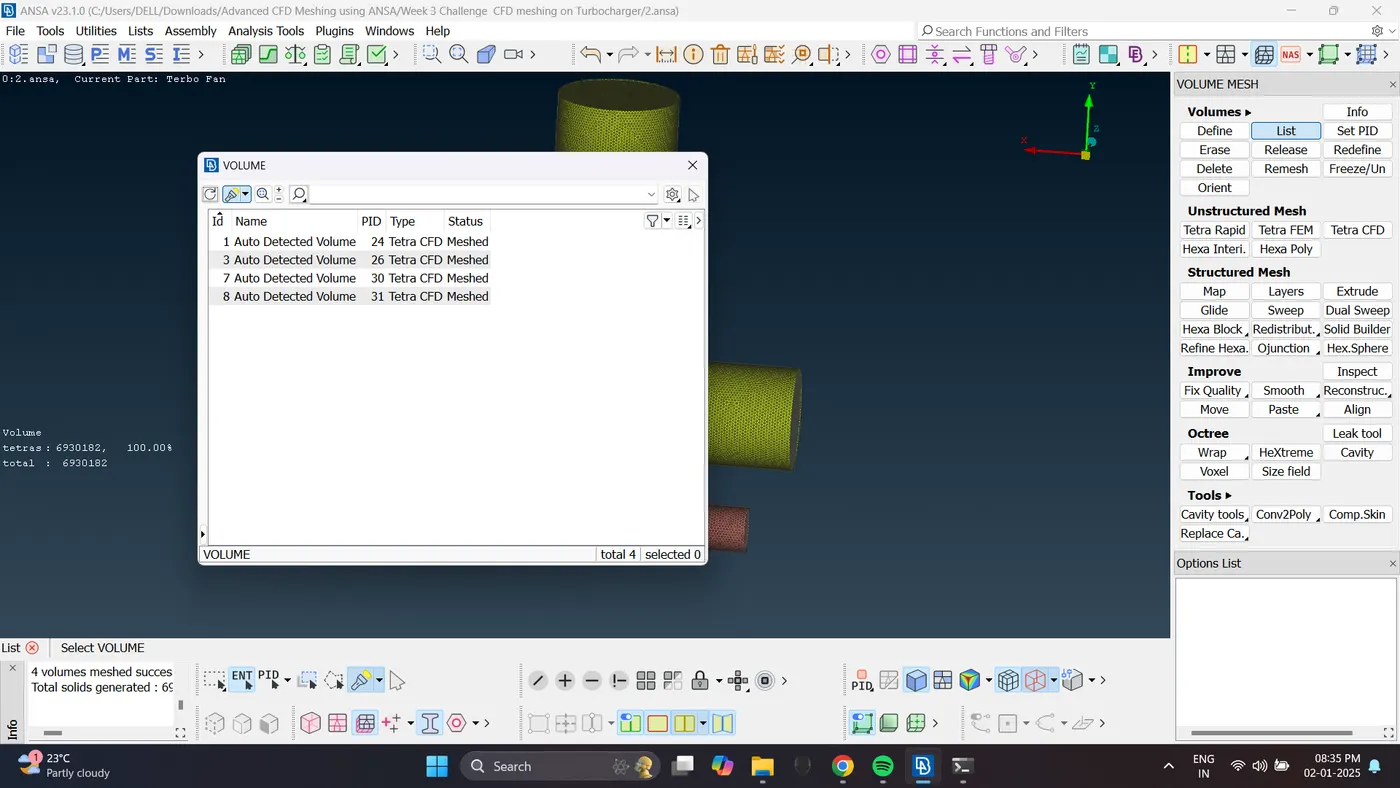

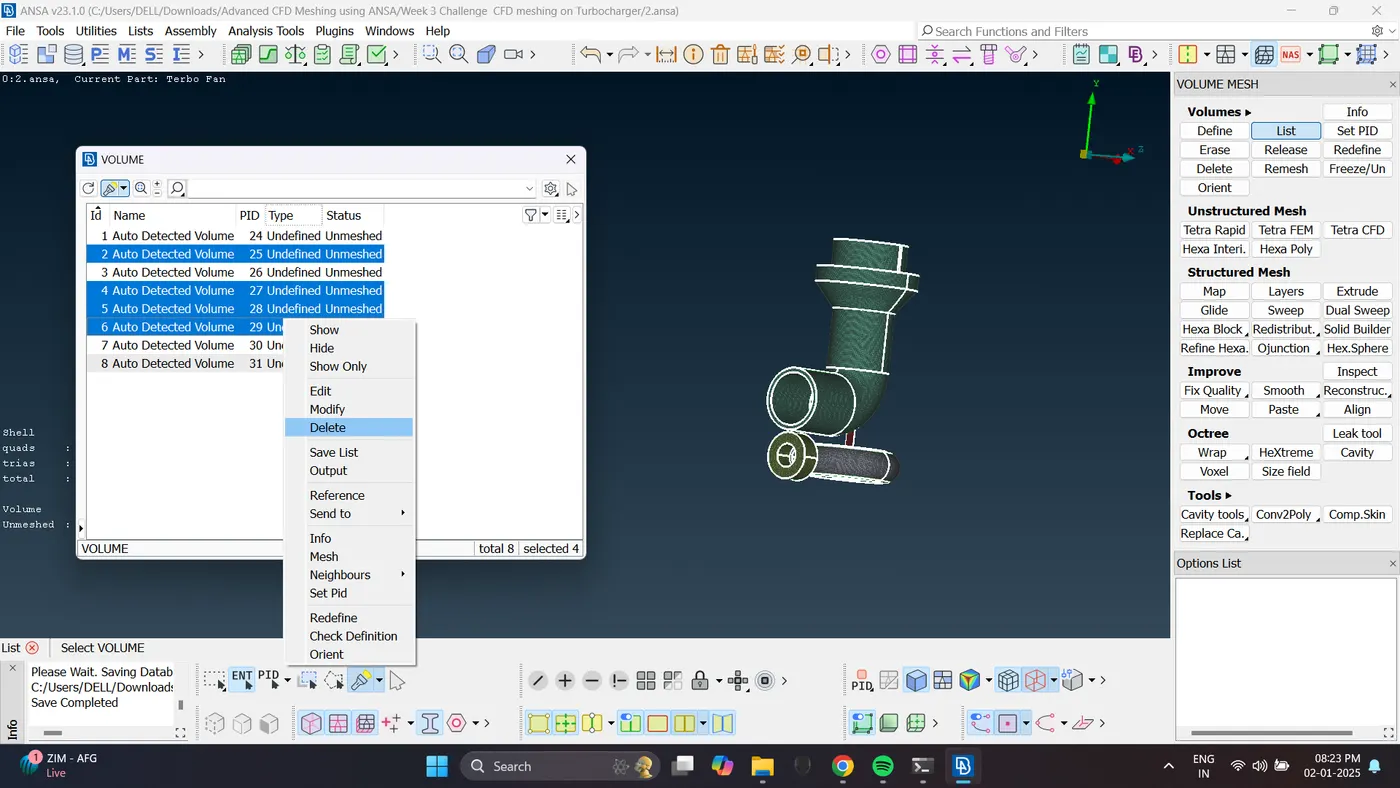

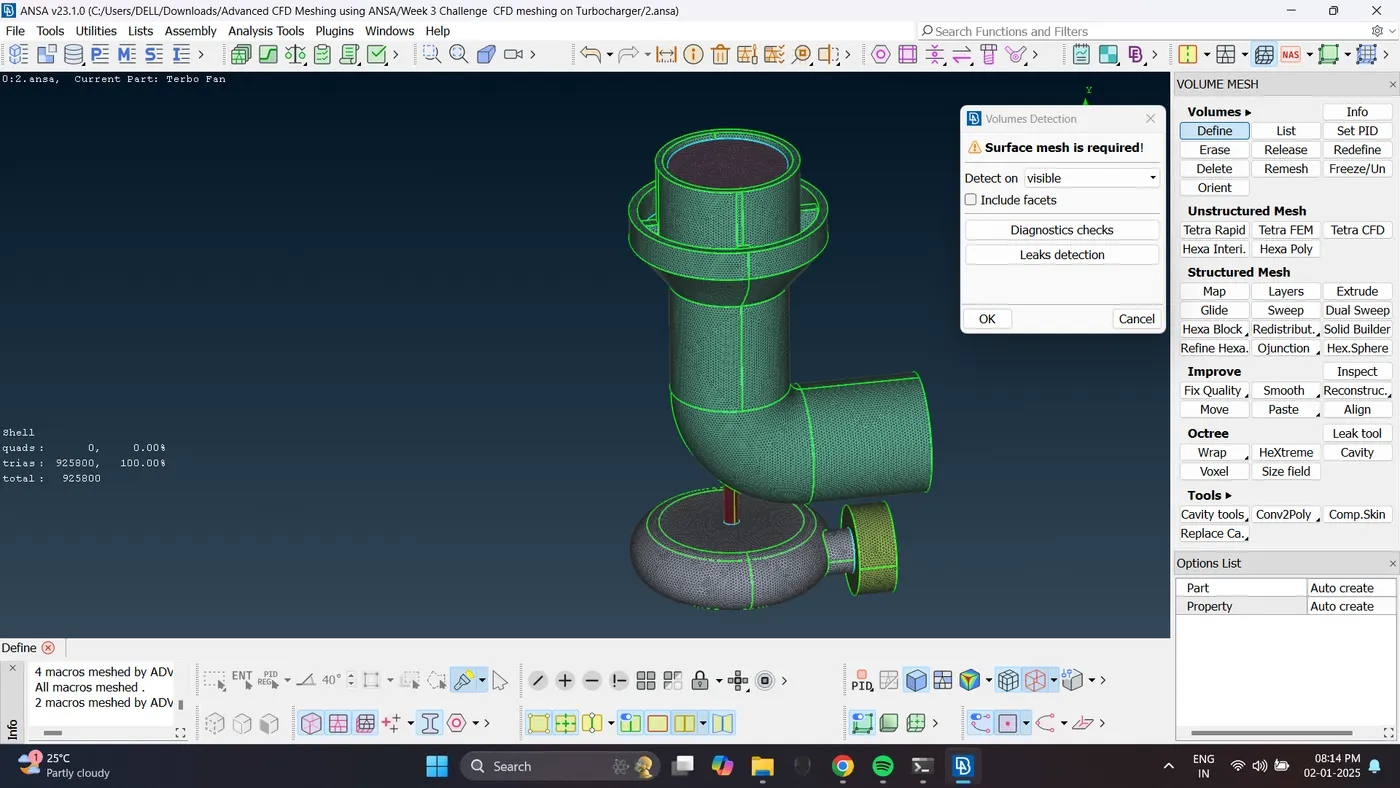

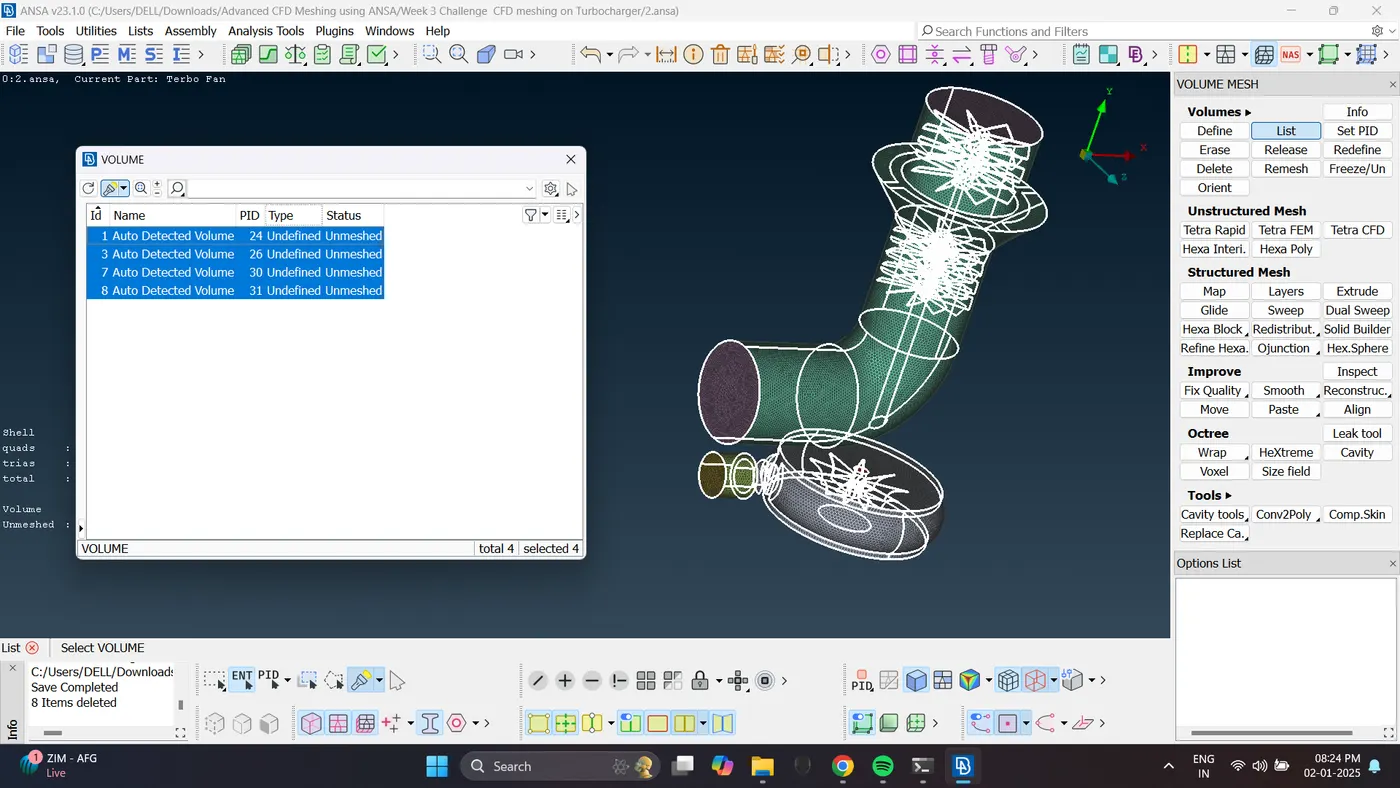

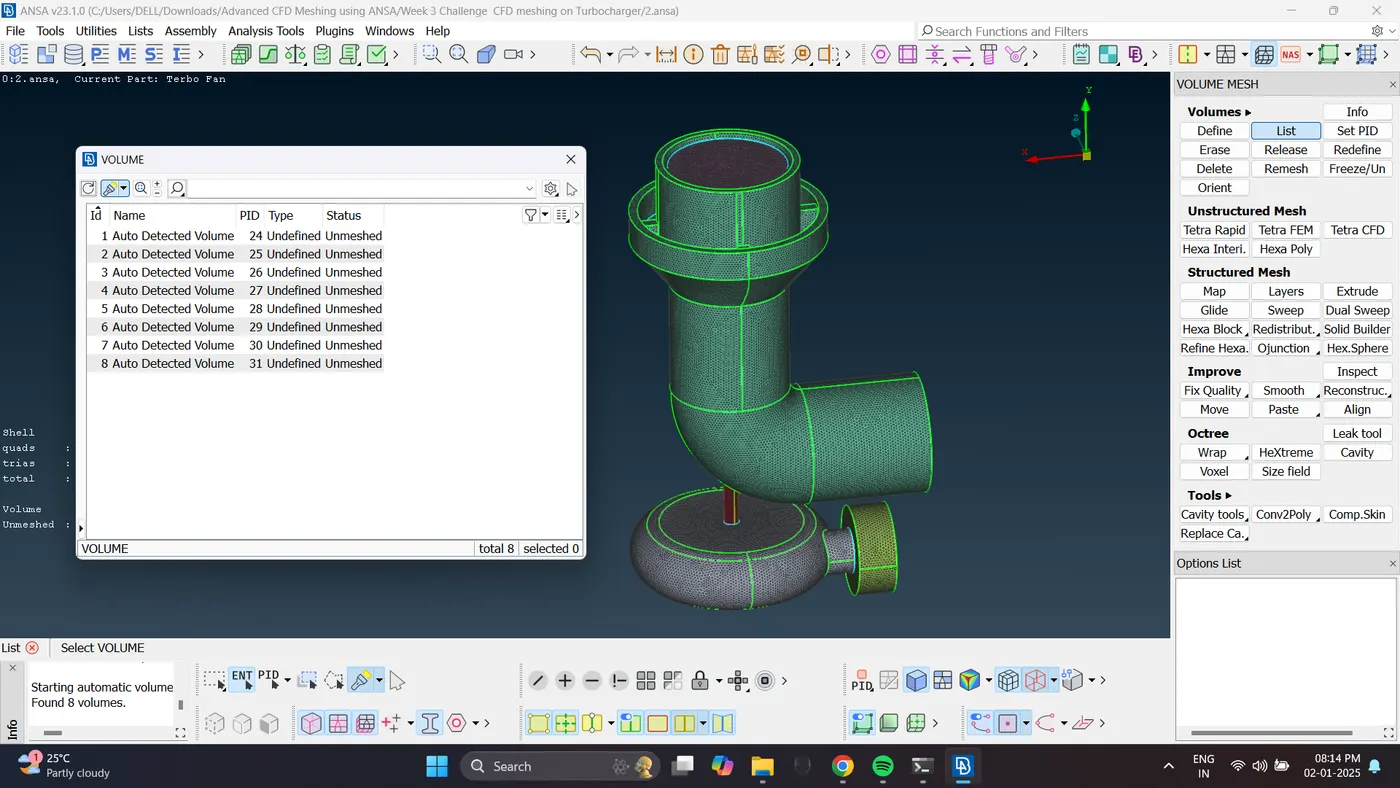

7. Define the volume for tetra meshing.

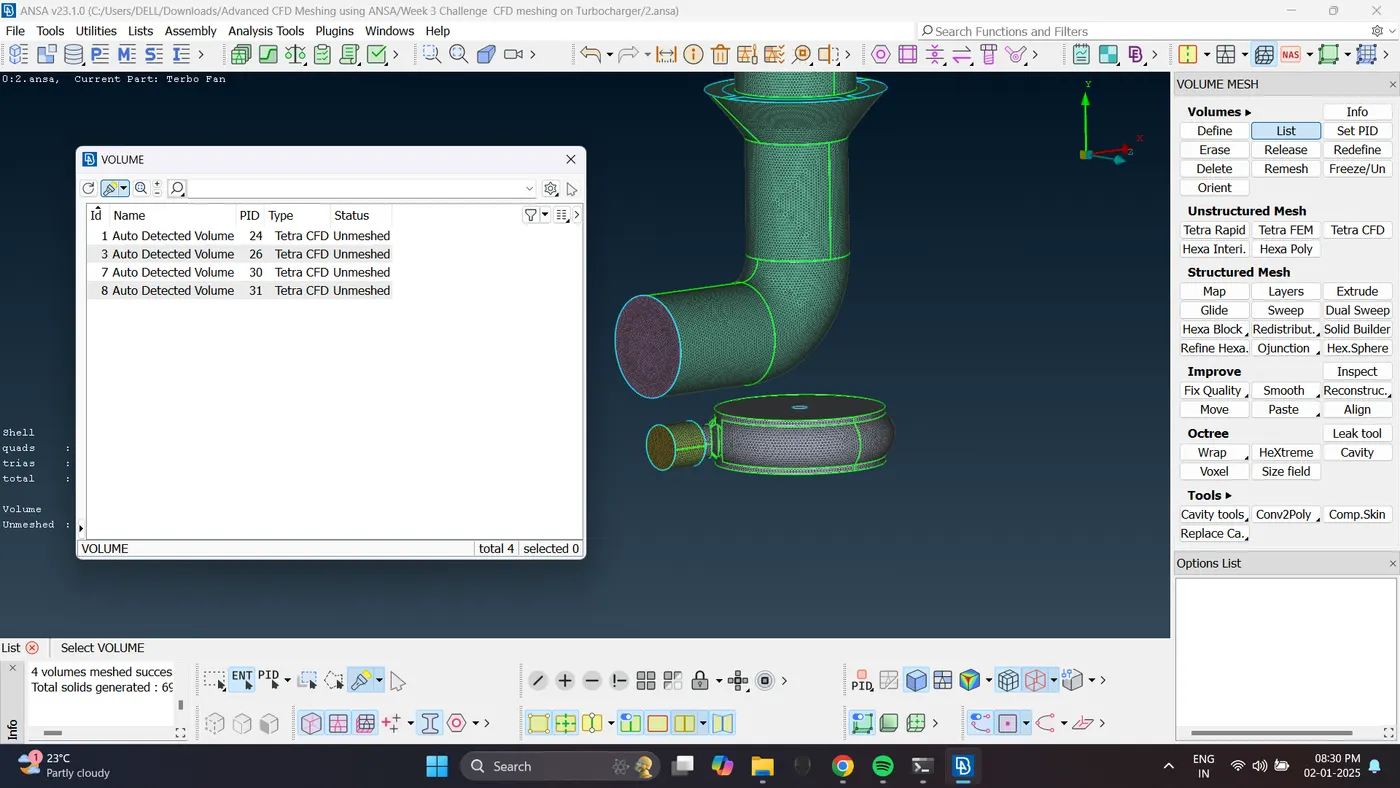

Keep th volume in which fluid will flow and delete the component thickness volume.

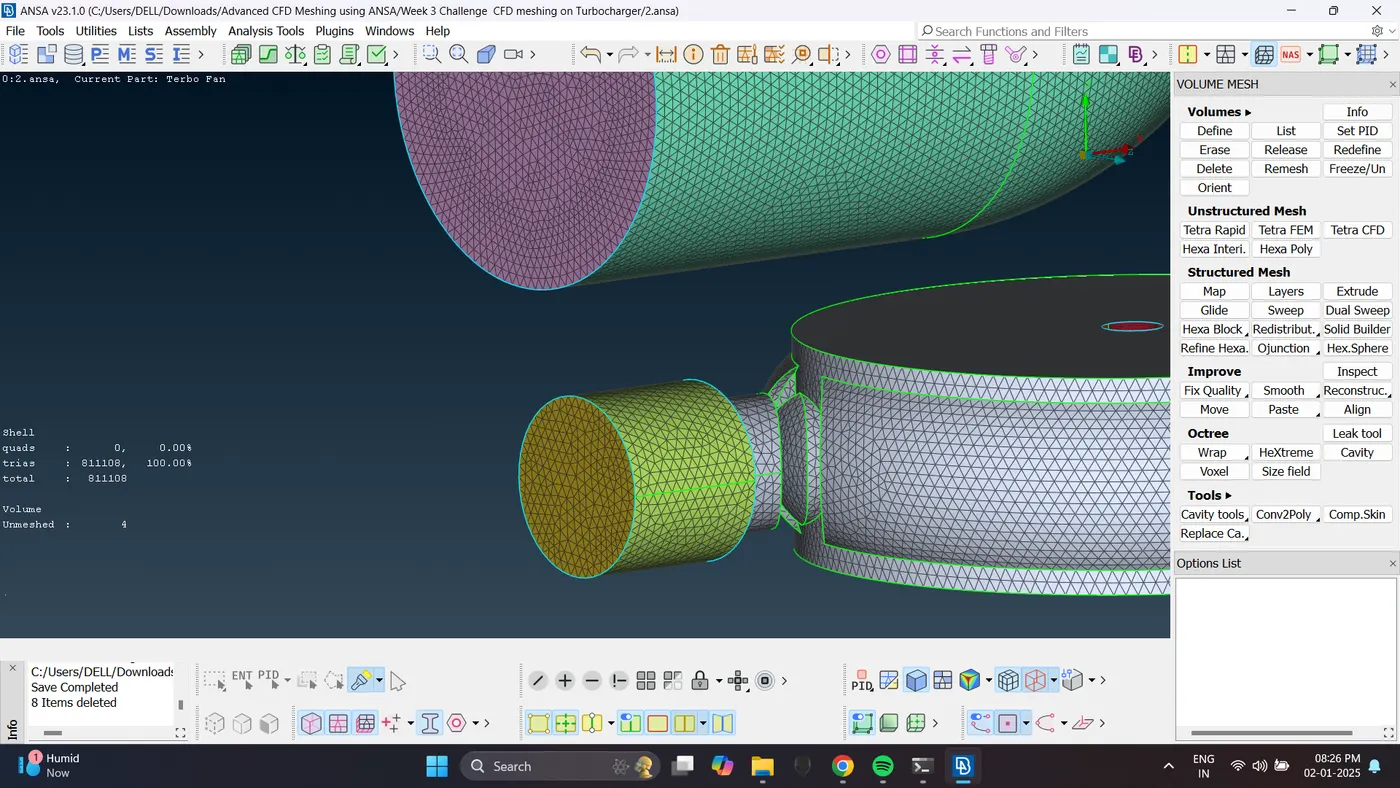

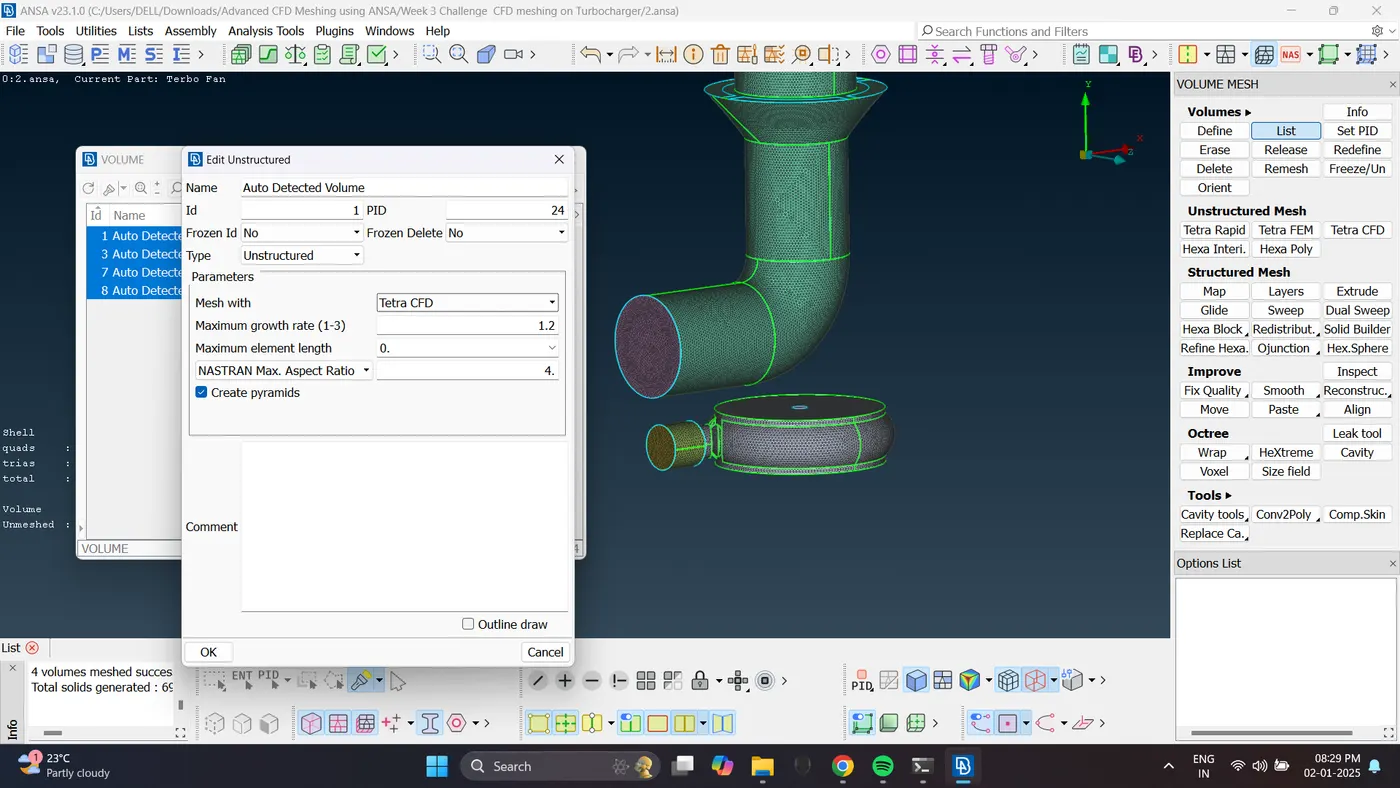

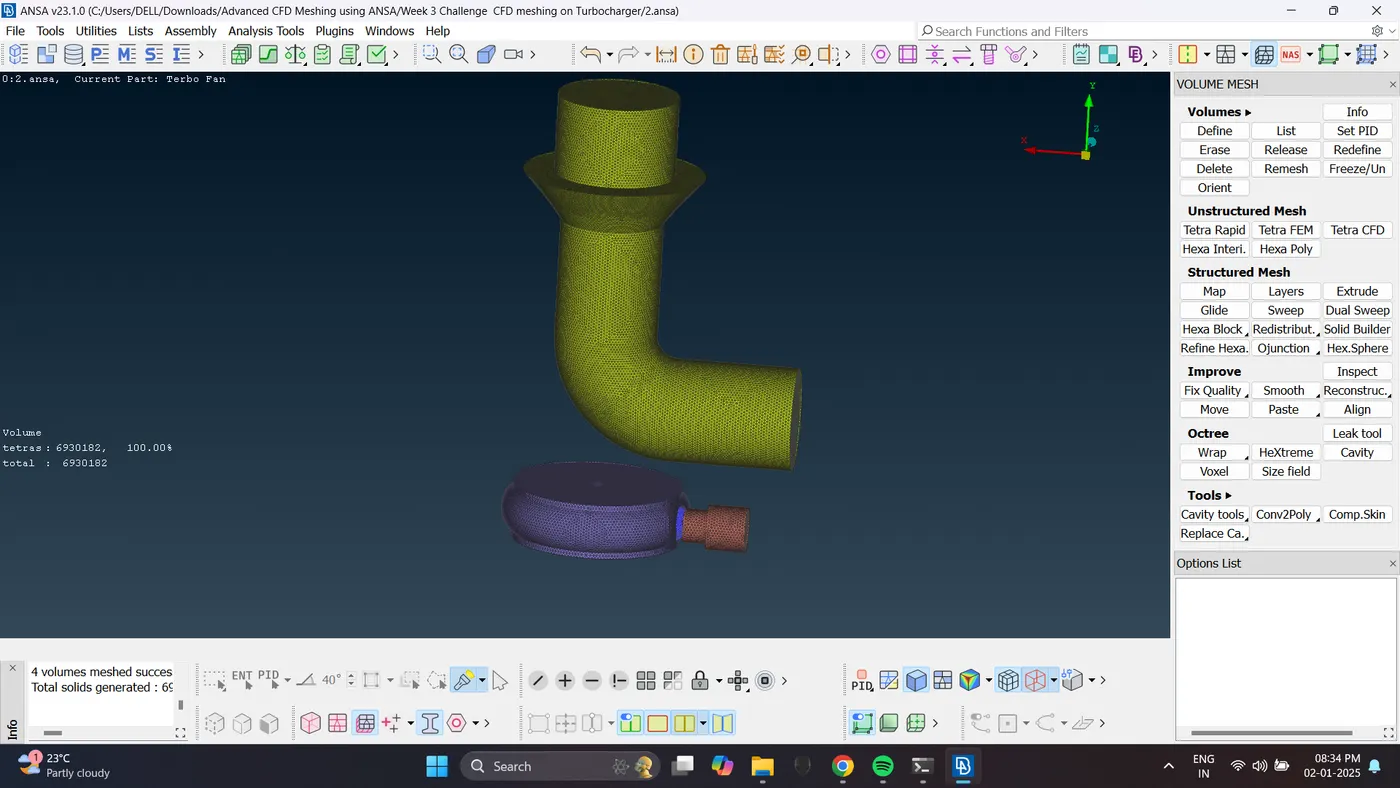

8. Mesh the model with Tetra CFD.

Conclusion:

CFD tetra meshing was done successfully to the given model as per given criteria parameters.
