Week 3 Challenge : CFD meshing on Turbocharger

CFD meshing on Turbocharger

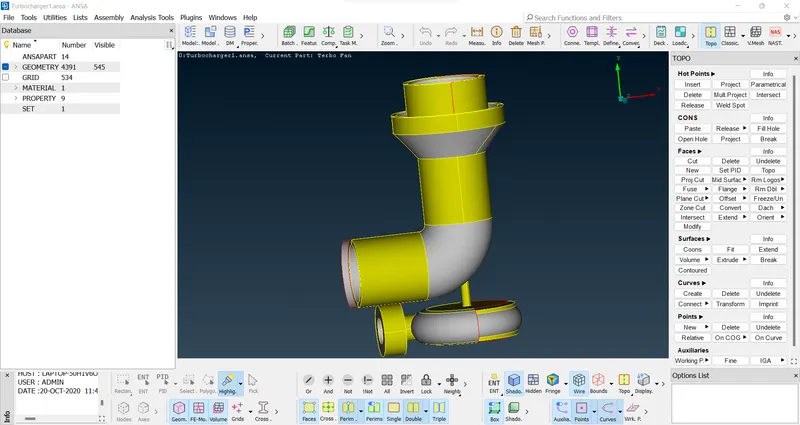

cleanup the geometry:

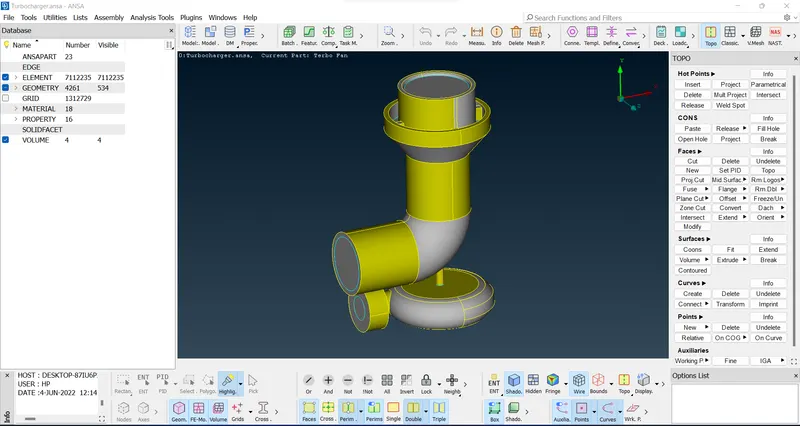

After geometry cleanup.

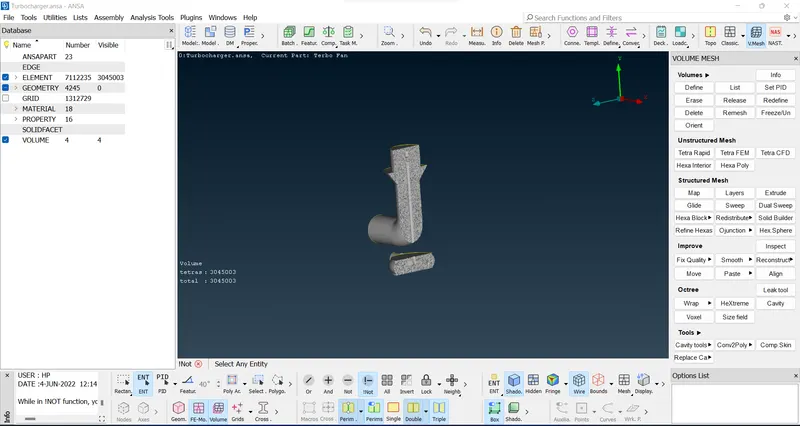

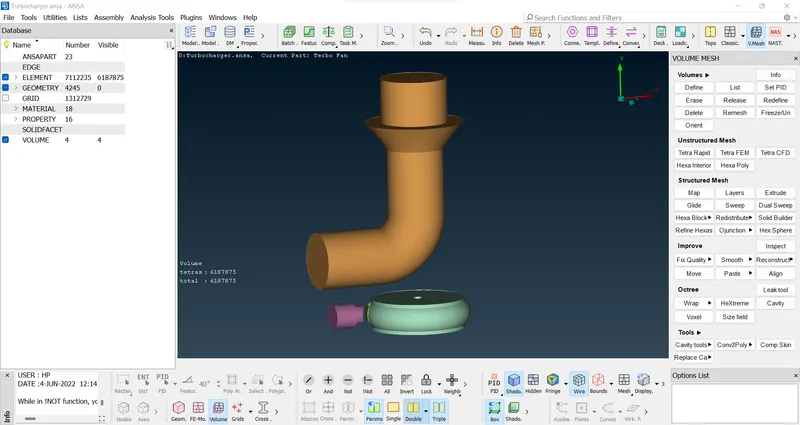

Meshing

• Blade stage-1 = 1 mm
• Blade stage-2 = 1 mm
• Impeller = 2 mm
• Shaft rotor = 1 mm
• Turbo casing = 5 mm
• Compressor casing = 5 mm
• Inlet casing cover = 5 mm
