Week-3 Challenge: ADVISOR Tool

1.For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations.

2. In the above case, try changing the battery capacity and repeat the simulation.

3. Perform gradeability test with PRIUS_Jpn_defaults_in file

Compare your results in table and conclude.

Aim

1.For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations.

2. In the above case, try changing the battery capacity and repeat the simulation.

3. Perform gradeability test with PRIUS_Jpn_defaults_in file

Compare your results in table and conclude.

1.Q

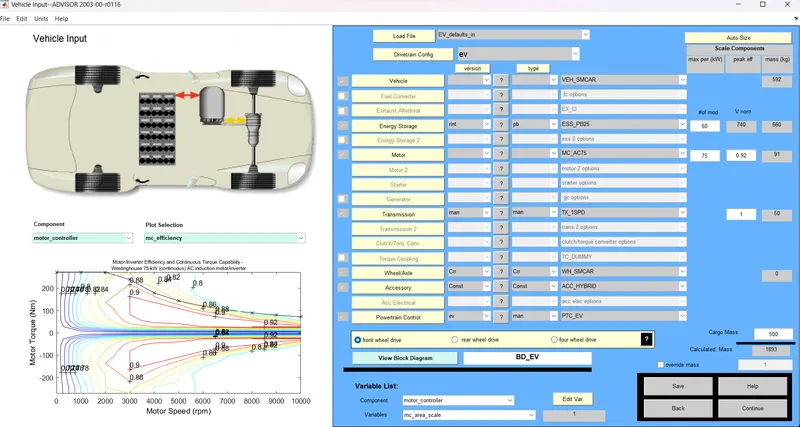

we increase cargo weight is 500 kg

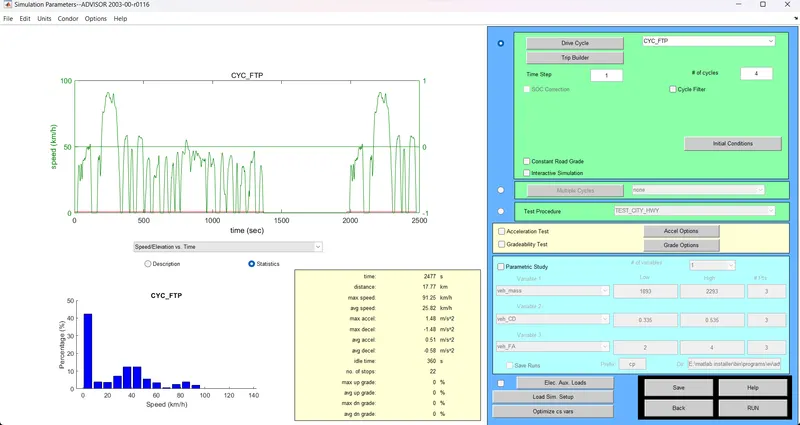

drive cycle is FPT _cycle is loaded and number of cycle is 4

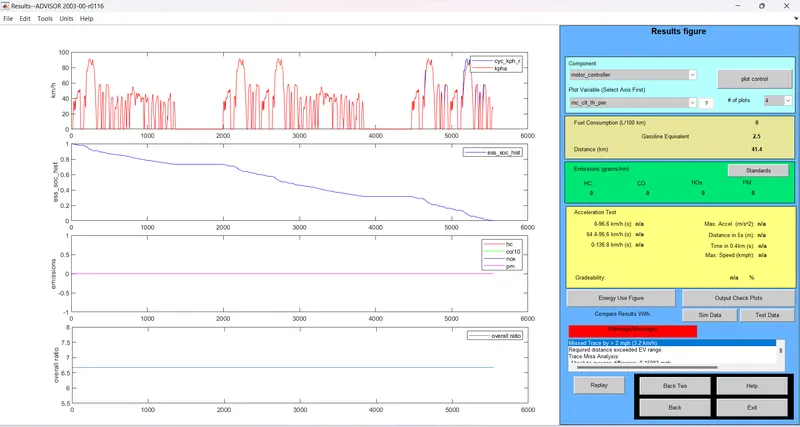

we observe thatvehicle dose not reach 45 km

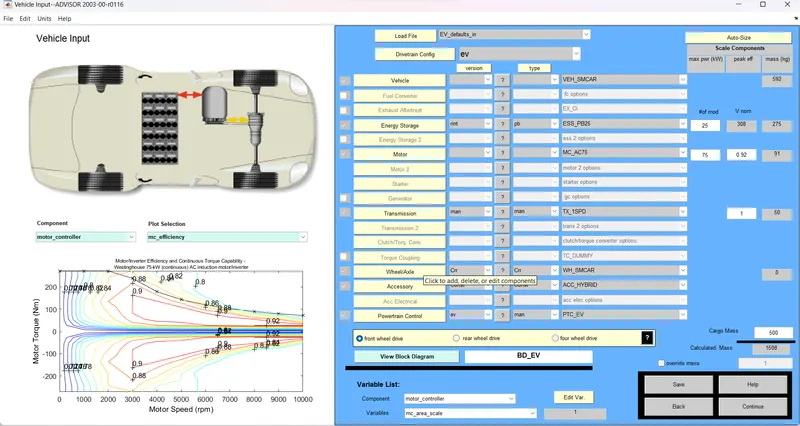

2.Q. by changing the battery capacity 25 kw to 60kw and cargo weight is 500kg

drive cycle is FPT_cycle and number of cycle is 4

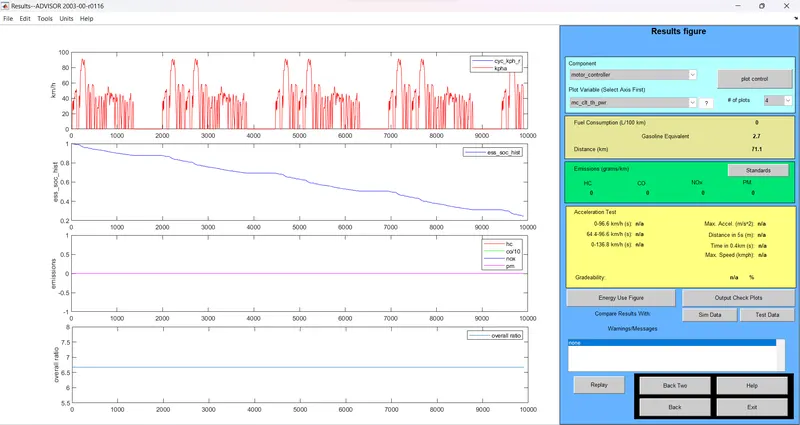

we can observe that 41.4 to 71.4 km hence that we observe the by increase the battery capacity we can upten distance

3.Q

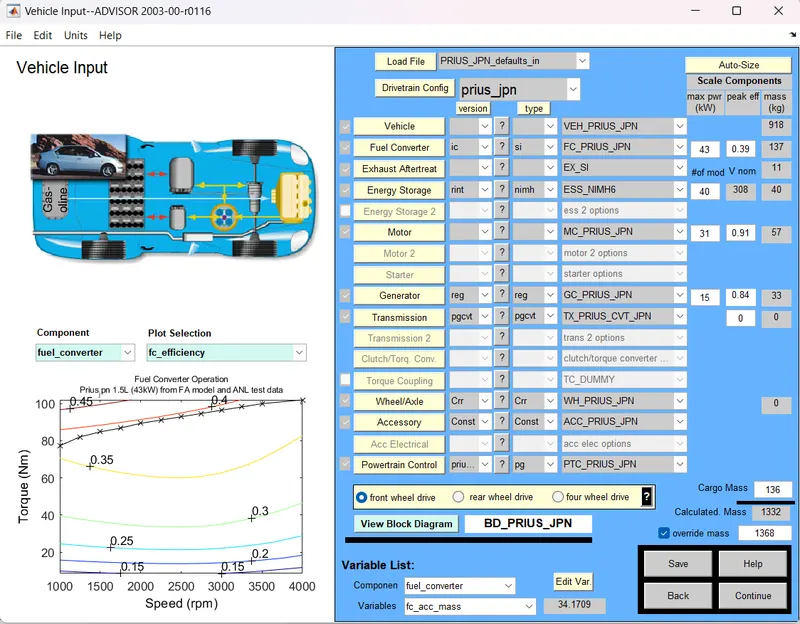

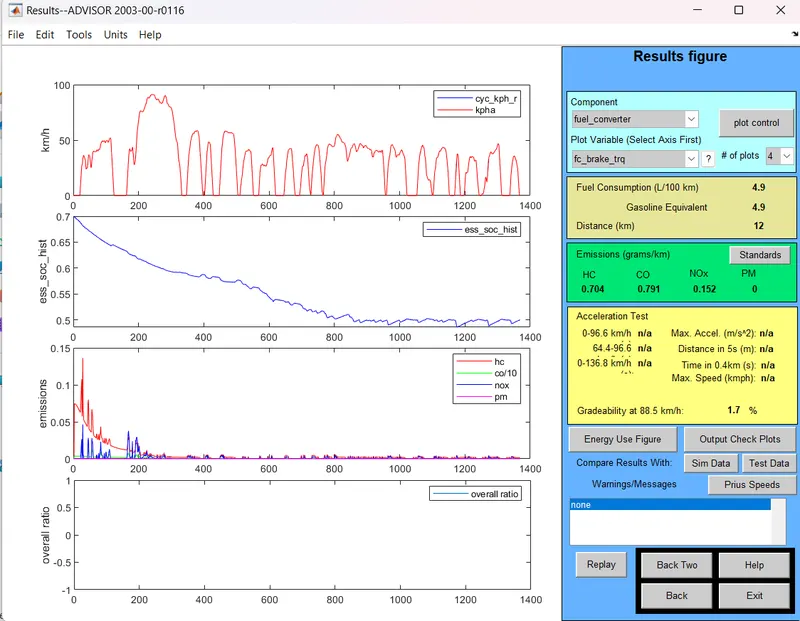

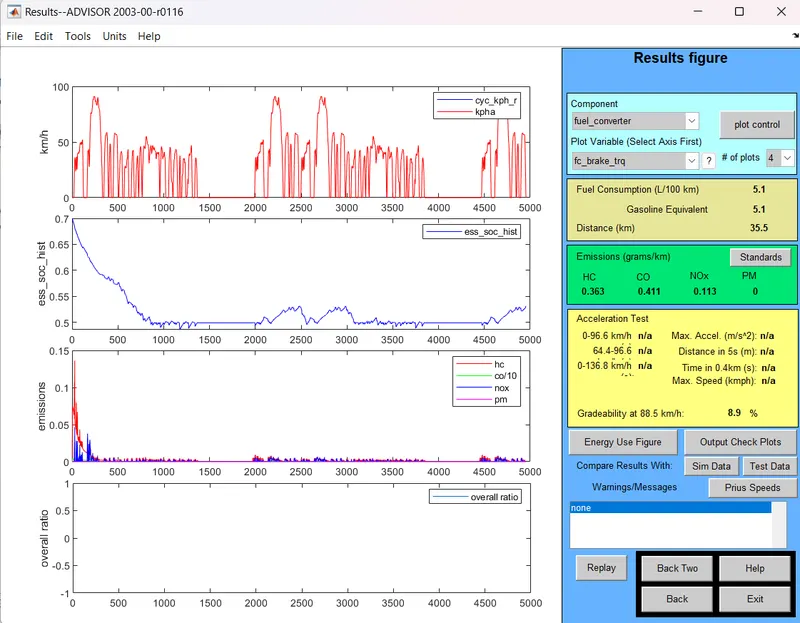

loaded prius_jpn_default and kept all other setting is default

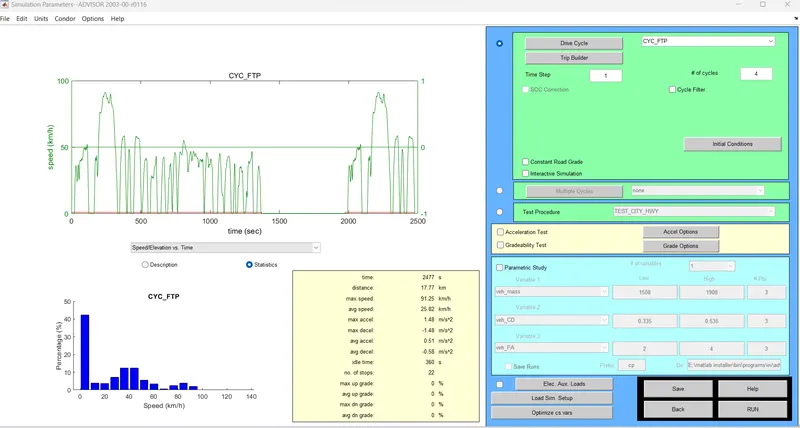

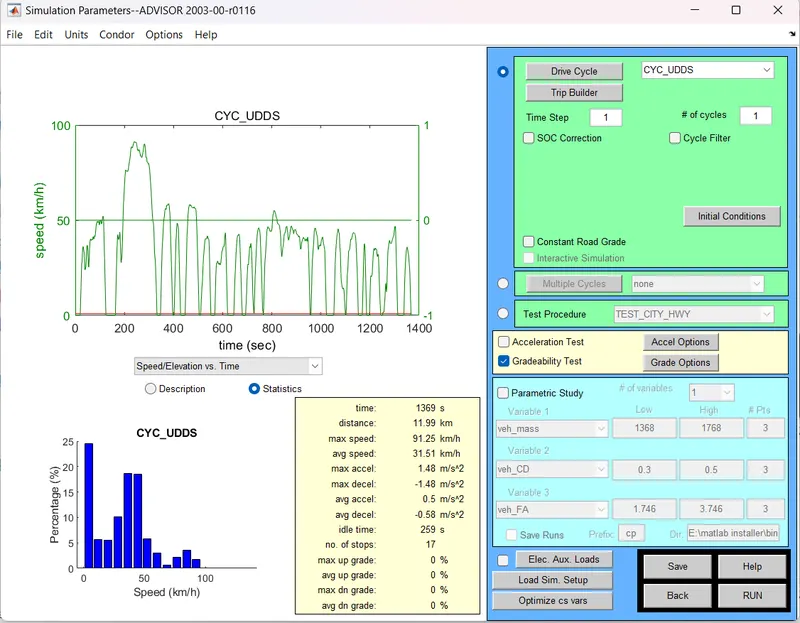

derive cycle is CYC_UDDS

by changing the number of cycle 1 to 4

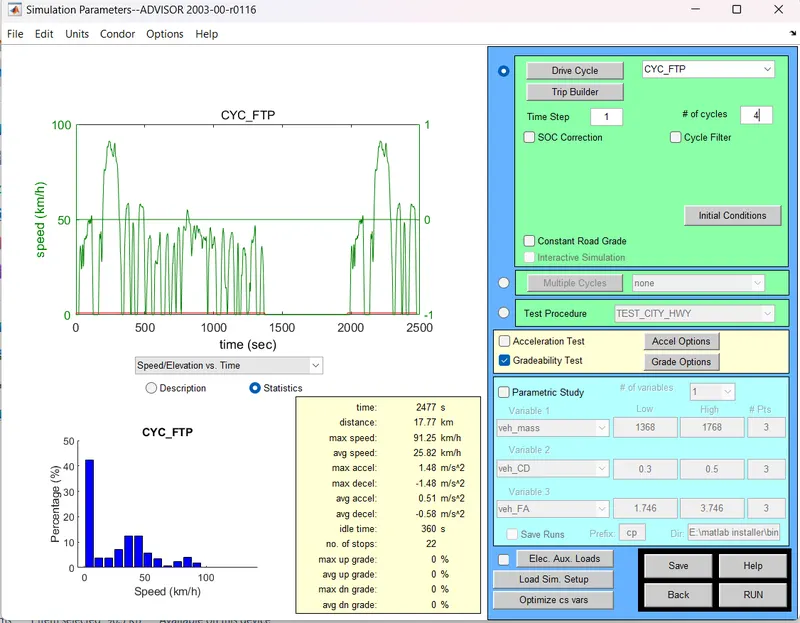

derive cycle is CYC_FPT and number of cycle 4
