Week-3 Challenge: ADVISOR Tool

For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations

AIM:Changing the cargo mass 500KG

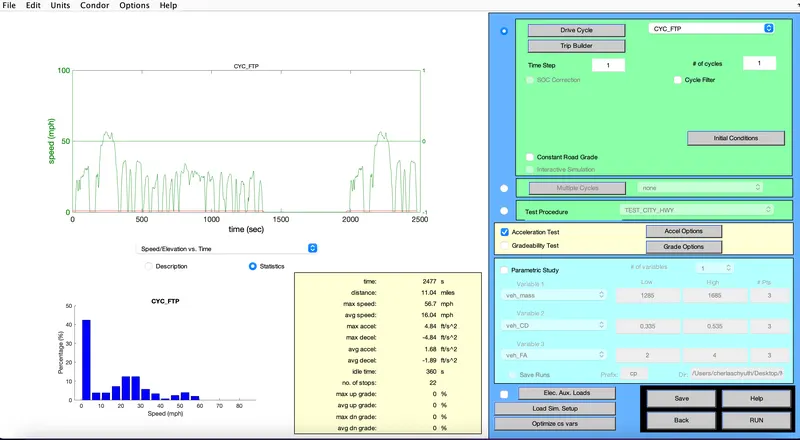

vehicle travel for 45 km with FTP drive cycle

This project holds the latest releases for canonical versions of the ADVISOR® Software and "Advanced Vehicle Simulator". ADVISOR is a MATLAB/Simulink based simulation program for rapid analysis of the performance and fuel economy of light and heavy-duty vehicles with conventional (gasoline/diesel), hybrid-electric, full-electric, and fuel cell powertrains. New features are developed under the title "Advanced Vehicle Simulator". Periodically, stable versions of Advanced Vehicle Simulator will be submitted for consideration as the next canonical version of the ADVISOR software.

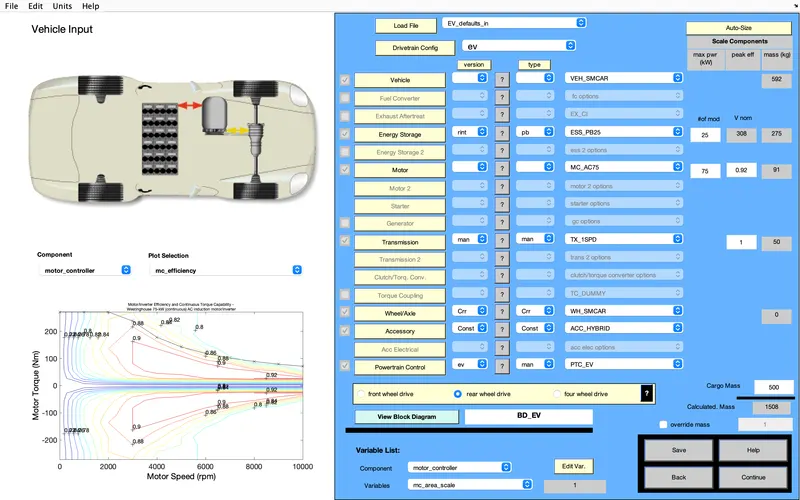

the cagro mass is modified to 500kg and model is presented

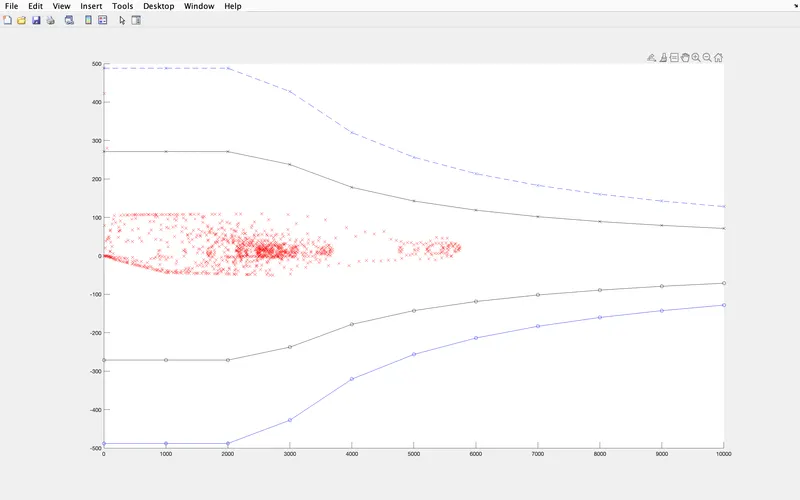

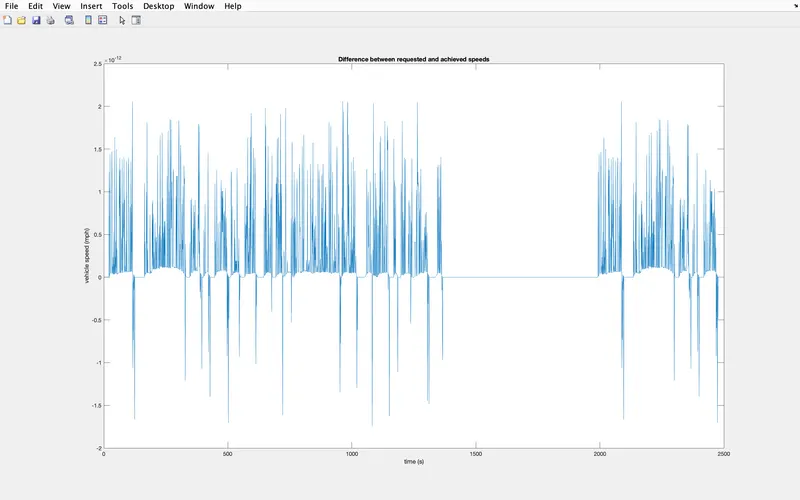

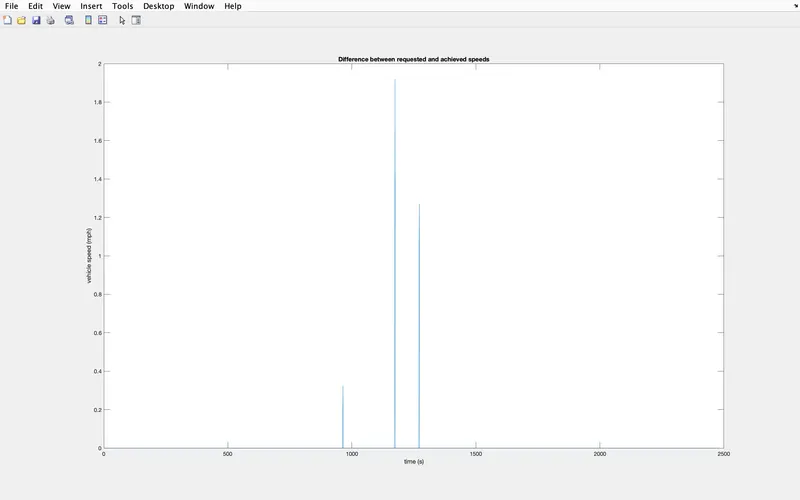

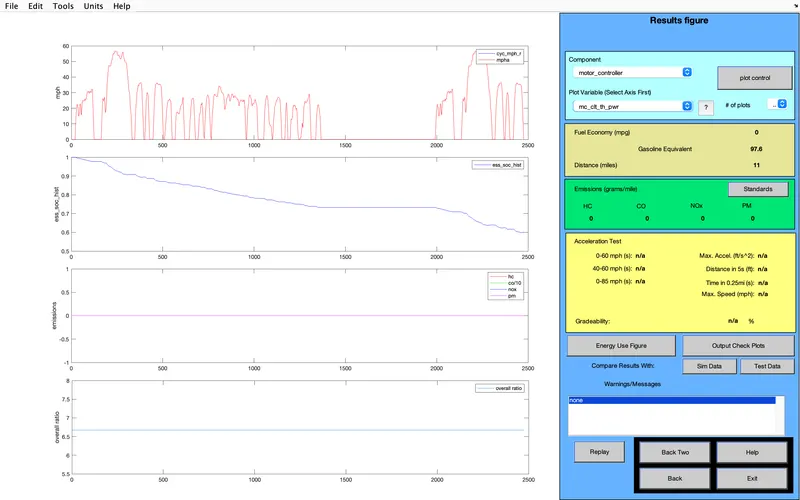

Ouput results

RESULT:Hence the for model the cargo mass has modified to 500kg For EV_defaults_in file,speed has rasied and vehicle travel for 45 km with FTP drive cycle

2)QUESTION: In the above case, try changing the battery capacity and repeat the simulation

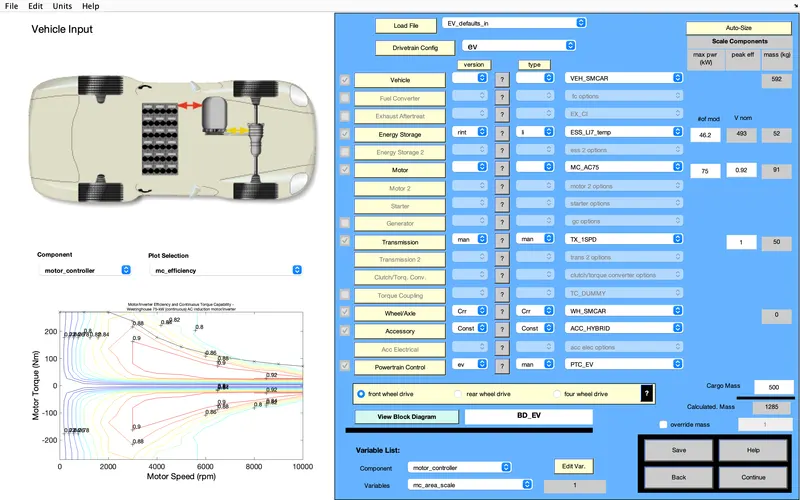

AIM: Changing the capacty of the battery and plot results

Lithium-ion batteries are currently used in most portable consumer electronics such as cell phones and laptops because of their high energy per unit mass relative to other electrical energy storage systems. They also have a high power-to-weight ratio, high energy efficiency, good high-challenge for thetemperature performance, and low self-discharge. Most components of lithium-ion batteries can be recycled, but the cost of material recovery

ndustry. The U.S. Department of Energy is also supporting the

3)Question: Perform gradeability test with PRIUS_Jpn_defaults_in file Compare your results in table and conclude.

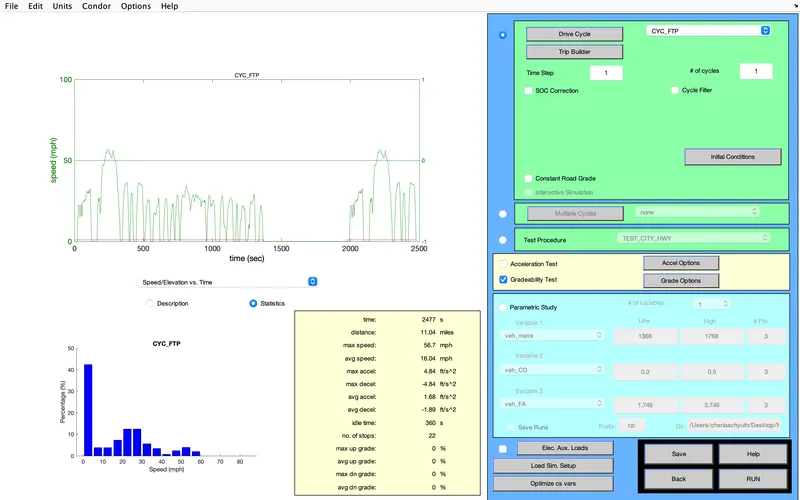

AIM:Perform gradeability test with PRIUS_Jpn_defaults_in file results in table and conclude

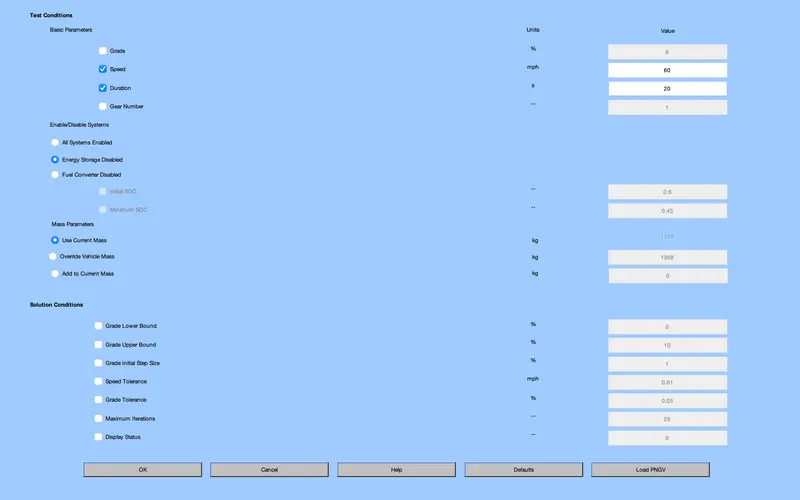

Changing in speed to 60 and duration to 20 and the resulted plots has been produced

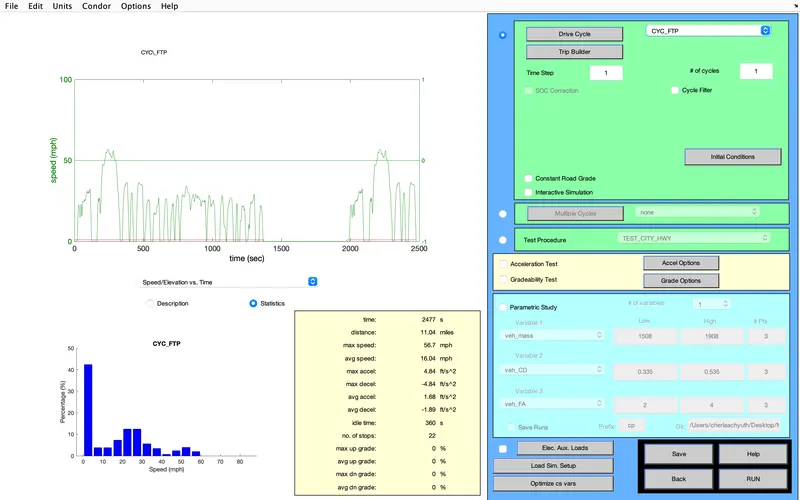

Output: The resulted ploted has been plotted for the disscussion

As the value is given down below mention for the results in table and conclude

DURATION (sec)	SPEED (mph)	60 SPEED (kmph)	GRADEABILITY (%)
20	60	96.6	10.6
20	70	112.7	8.3
20	80	128.7	6.2
20	90	144.8	4.4
20	100	160.9	2.6

RESULT:Hence from the plots and theortical calculations Hence the for model file,speed has rasied and vehicle travel with FTP drive cycle
