Week-3 Challenge: ADVISOR Tool

1. With default conditions , EV-default_in can able to run 17.77kmph with load of 500kg for one FTP drive cycle.

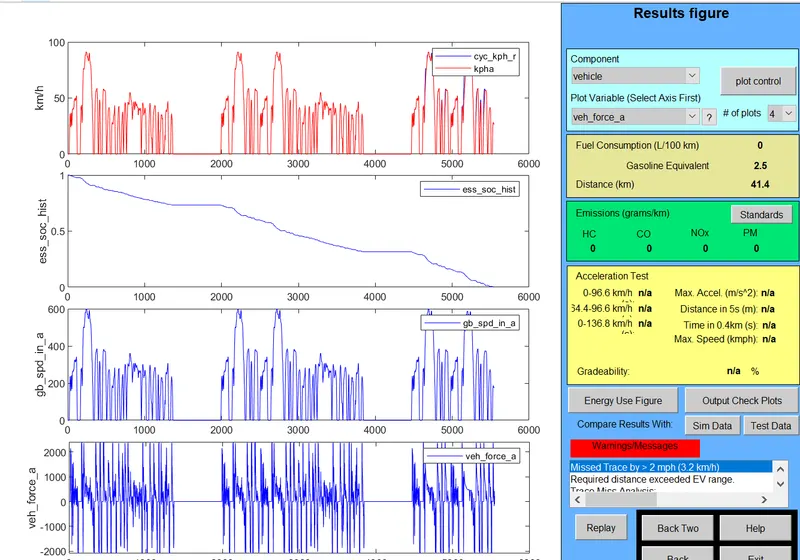

By keeping the drive cycle as 3, the state of charge of the battery is getting drained. so that the vehicle can able to cross the distance as 41km only.

Respective image:

2.

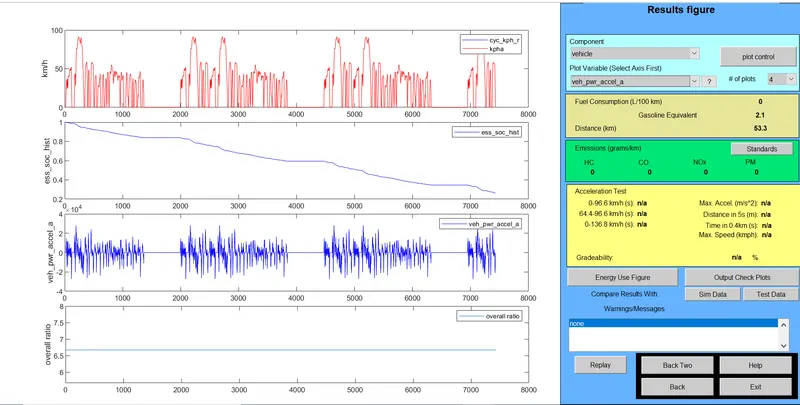

By selecting the battery as nimh with nominal voltage as 436,

the vehicle can able to reach 45kms with the FTP drive cycle for 3 cycles.

Respective image

3.

Assume,

Grade:10%

vehicle mass:1368

corresponding inclination angle:5.74

speed:55mph --> speed:88.5

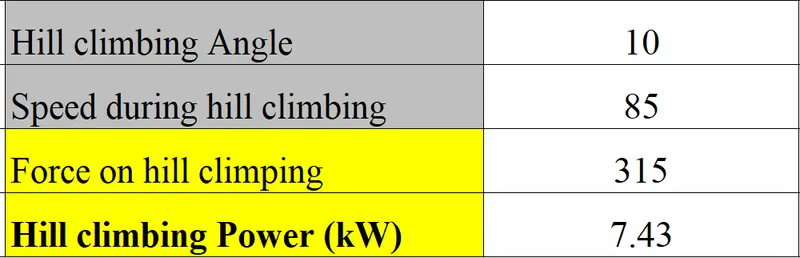

Excel calculator Data:
