Week-3 Challenge: ADVISOR Tool
Aim : To simulate different vehicle conditions and in the end a PRIUS using the ADVISOR tool.
Challenge 1
STEP 1

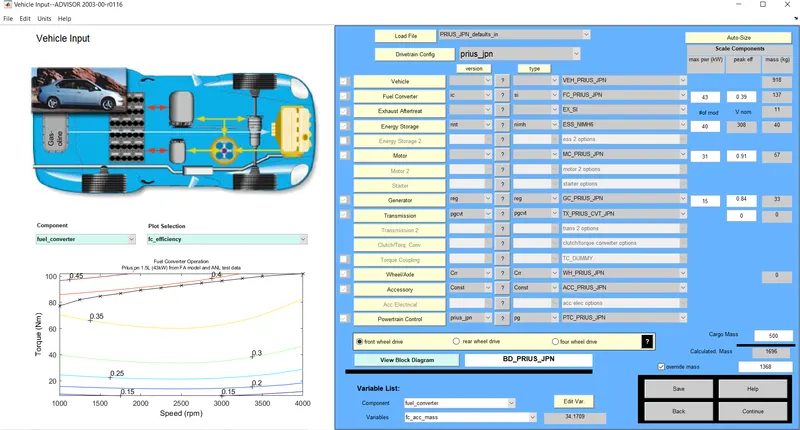

The Interface of the ADVISOR, already selected EV_defaults_in and have put the cargo mass as 500 kg
STEP 2

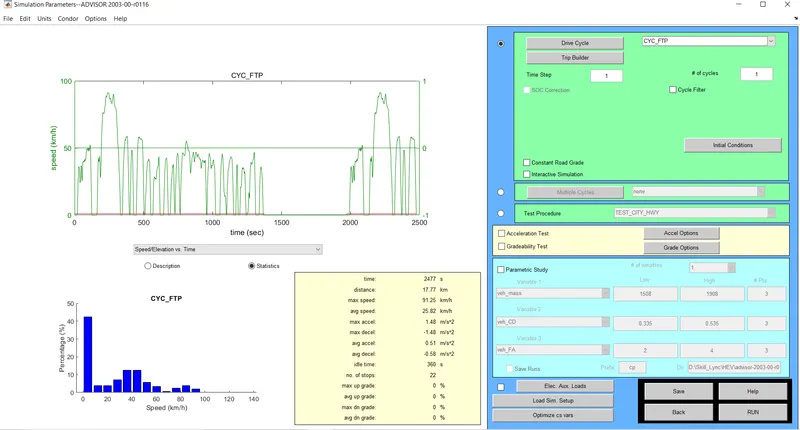

Selecting CYC_FTP in drive Cycles and putting No. of cycles as 1
STEP 3

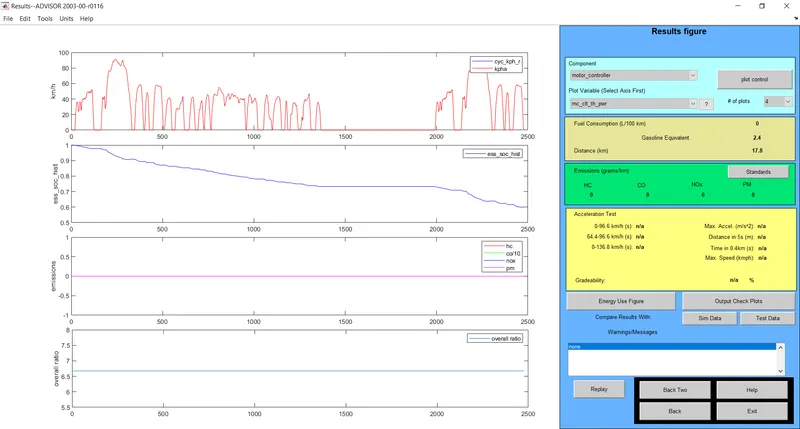

Press RUN to see the results
Gasoline Equivalent - 2.4
Distance (km) - 17.8
STEP 4
Increasing the No. of Cycles to 2
Gasoline Equivalent - 2.5
Distance (km) - 35.5
Battery About to Exhaust
STEP 5
Increasing the No. of Cycles to 3
Gasoline Equivalent - 2.5
Distance (km) - 41.4
Battery Exhausted, SOC 0
Conclusion - with the given conditions it cannot cover 45Km.
Challenge 2
Here we have to change the battery module (#of mod) alongwith the cycles to get the desired range of 45Km+
Assumed Conditions - 3 cycles each
#of mod - 26 till 45+ km is achieved
All the other parameters are kept constant
#of mod - 26, cycle - 3

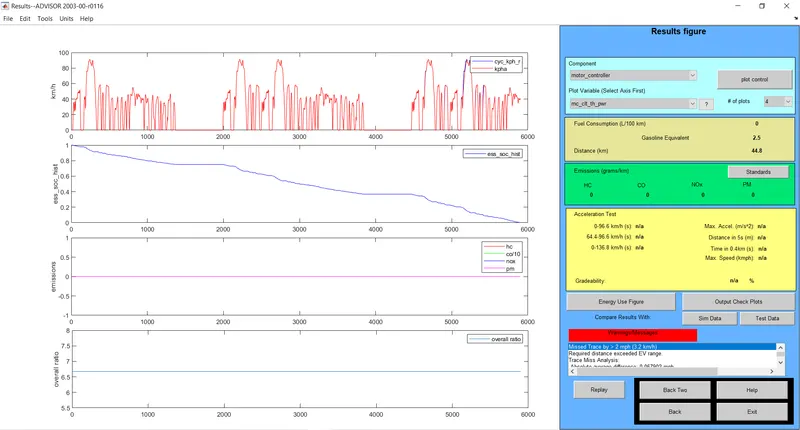

Max distance - 42.7 km
#of mod - 27, cycle - 3
Max distance - 44.8 km
#of mod - 28, cycle - 3
Max distance - 46.3 km
Challenge 3

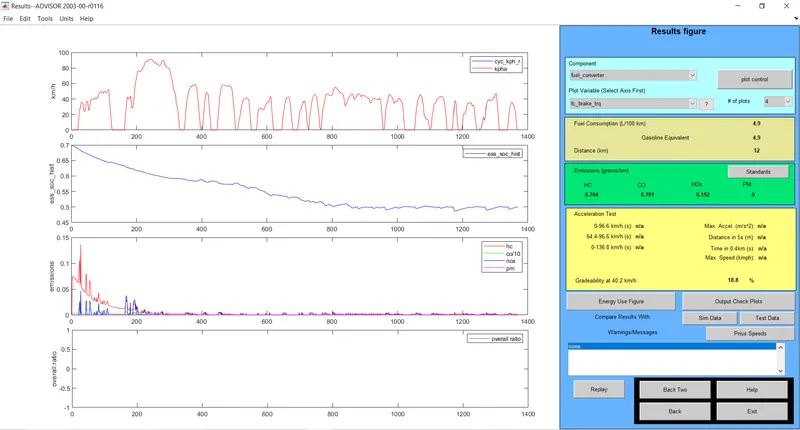

Perform gradeability test with PRIUS_Jpn_defaults_in file
Cargo Mass - 500 kg
GRADEABILITY TABLE
|
RUNS |
SPEED (MPH) |
SPEED (KMPH) |
DURATION (s) |
GRADEABILITY % |
|
1 |
10 |
16.1 |
10 |
30.3 |
|
2 |
20 |
32.2 |
10 |
19.8 |
|
3 |
25 |
40.2 |
15 |
18.8 |
|
4 |
30 |
48.3 |
15 |
16.9 |
|
5 |
35 |
56.3 |
20 |
16 |
|
6 |
40 |
64.4 |
20 |
14.6 |
|
7 |
45 |
72.4 |
25 |
13.9 |
Run 1
Run 2
Run 3
Run 4
Run 5
Run 6
Run 7
Conclusion - As the Speed and time increases gradeability of the vehicle decreases.
