Week-3 Challenge: ADVISOR Tool

Aim- To design a battery pack of 18Kwh using ,Cell: ANR26650M1-B   No of Cell manufacturing company are avalable in the market . While Manufacturing the cell ,the Manufacture privides the Data of the cell like how to use,it within the parameters given. So, Cell: ANR26650M1-B  also come with the data , and that sheet is…

Question 1    For the simulation of the model first down it from the mathworks site with the following link. https://in.mathworks.com/matlabcentral/fileexchange/72865-design-and-test-lithium-ion-battery-management-algorithms   After downloding file extract it some of your folder.   After Running the…

  Lithium ion battery there structure is same as other batteries present in the market,but now a days they are used in every Domain of application because of their high Performance and High productivity compare to other batteries. Like other batteries ,lithium ion batery uses cathode as postive and anode as negative electrodes,…

Question 1  list of Weight Of Different aircrat has been attach in tbe Exel file report (Project 1)   Question 2 Is there any difference between ground speed and air speed? Airspeed and ground speed are completely different when it comes to determining how fast an airplane flies.  Ground speed is that speed…

Design of Electric vehicle. To design a electric vehicle in matlab simulink Following blocks and prodecure need to be consider and folwlled.  Let us consider how the vehicle is.? A vehilcle Body - the whole body , tyres , and some drive train or gear Box. A DC motor to run the vehicle using battery as Power input.…

Question 3  contour plots of efficiency and Matlab code attach. % program to plot the countour effieciency for electric motors% x axis relates to motor speed % Y axis relates to Torque%define rangeX=linspace(1,1000);% rad/sec Y=linspace(1,250)% N.m%losses in the motors%copper losskc=0.2;%iron losseski=0.008;%windage…

Question 1  This the image of the Model  speed control of DC motor using BJT H-brige This is called H bridge beacause the the aggrangment of the devices around the DC motor is alfabet H. there 4 IGBT (Insulated gate biapolar transister) Q1,Q2,Q3,and Q4. and four diode D1,D2,D3 And D4. are used t control the speed…

Question 1  There are 4 types of power converters based on the input voltage and output voltage. AC to AC converter also called as cycloconverter or frequency converter. DC to DC converter , DC to DC voltage converter or DC to DC current converter. also called as DC choppers . DC to AC converter ,also called as inverter…

Question 1 Mapped Motor  in this system the inputs are given from motor speed, motor torque and battery voltage. and outputs results are battery current and motor torque,by looking up the model layout it the result are given through the help of lookup table. -drive electrinics through torque control mode -it is a…

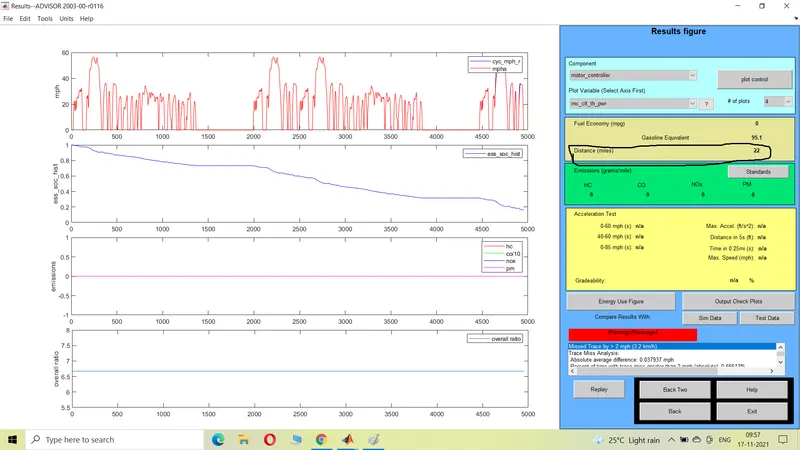

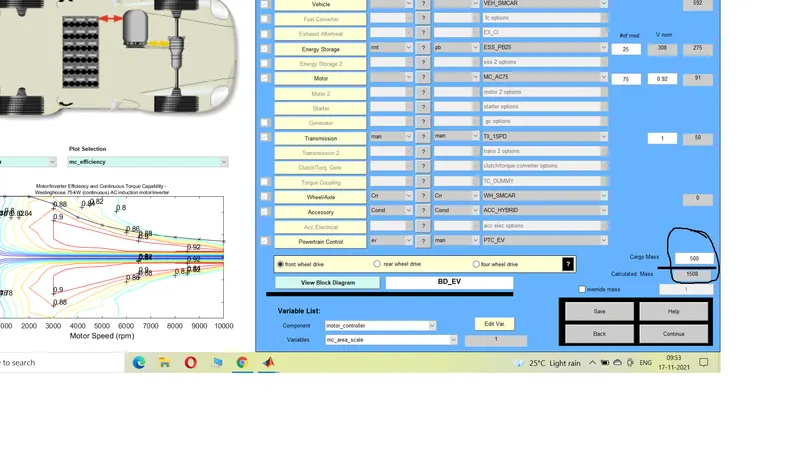

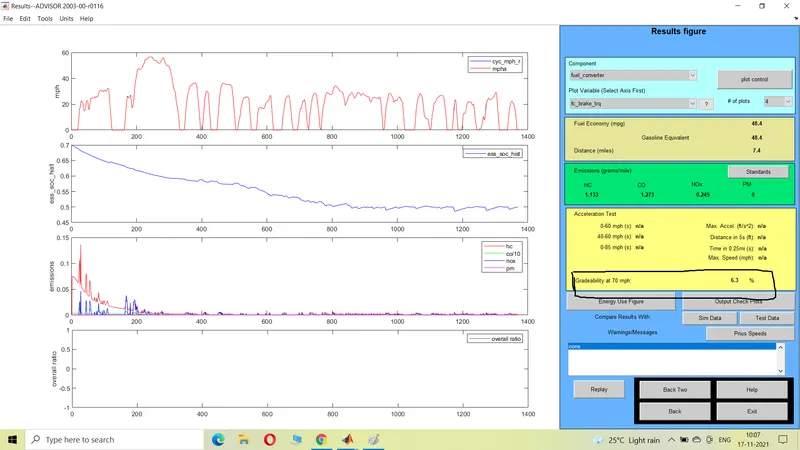

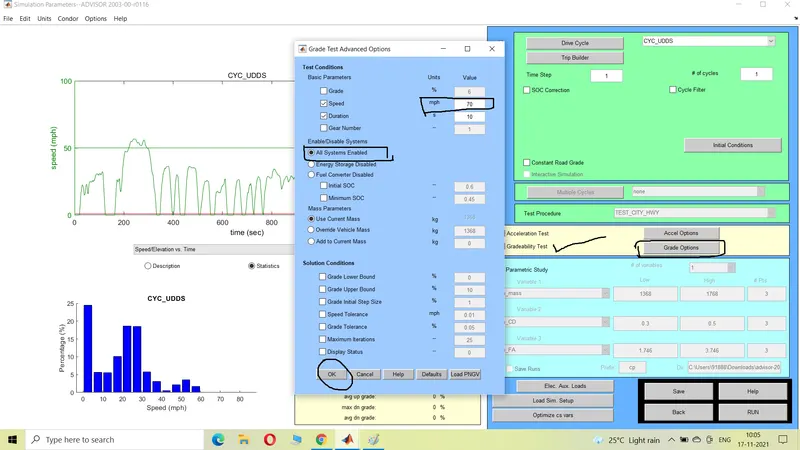

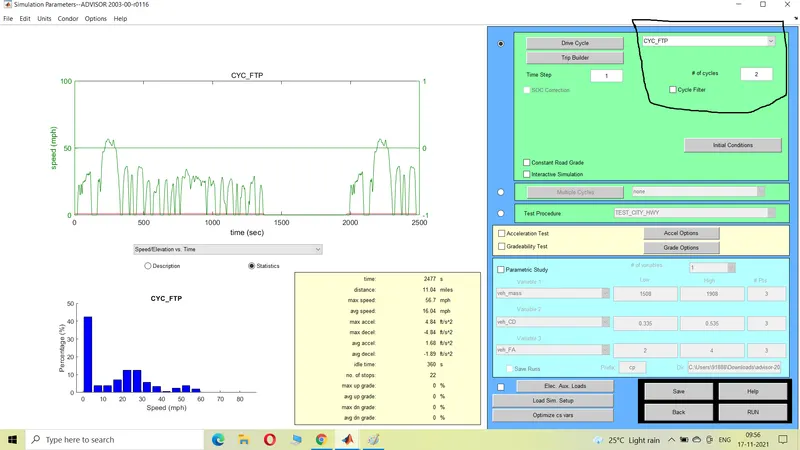

Question 1 and 2   when keeping the defauts condition of the EV ,and using the FTP cylcle (considering the bo of cycle 2) and the cargo mass of 500 kg the vehile runs for 22 miles ie: 35.48 km.. Question 3  From the following table we can observe that the gradeablity decrease with the increase in the speed …

AIM- To design a BAJA All Terrain Vechile (ATV) Model Using MAtlab and Simulink . Structure: Basic Requirements to design a vechile are,Engine ,Vechile Body,Sensors,Gearbox,Throttleinputs,Brakes, ETC. In this Design we used The CVT (contininous Variable Trasnmission) for the Generating the higher Gear Ratio and higher…

thermister block used  costant block,resistance thermistor,dc voltage suppy, thermal referance ,temperature control source ,electrical referance,solver, repating squance stair,swtich voltage sensor.

washing machine logic. ans- open simulink ,then double click on screen type chart .chart is the block in which we can draw or project our state flow logic . as we can see there number of state for the washing machine logic , power,water,soaking,washing ,ect etc. so here we need 8 state block for the logic need to be created…
