Week-3 Challenge: ADVISOR Tool

RR Chirag7 May 2021

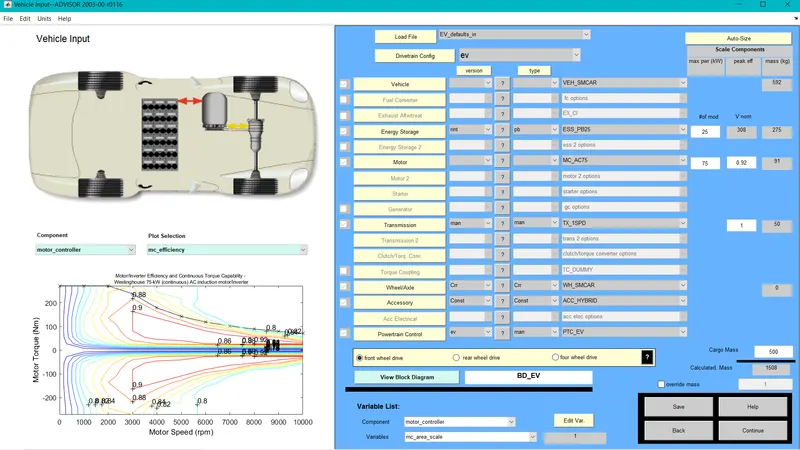

1. EV_ default_IN file is selected from load file option in the advisor tool window

in this window the cargo mass is changed to 500kg and we can see the total mass of vehicle changing after this keeping all the other value as default and clicking on continue

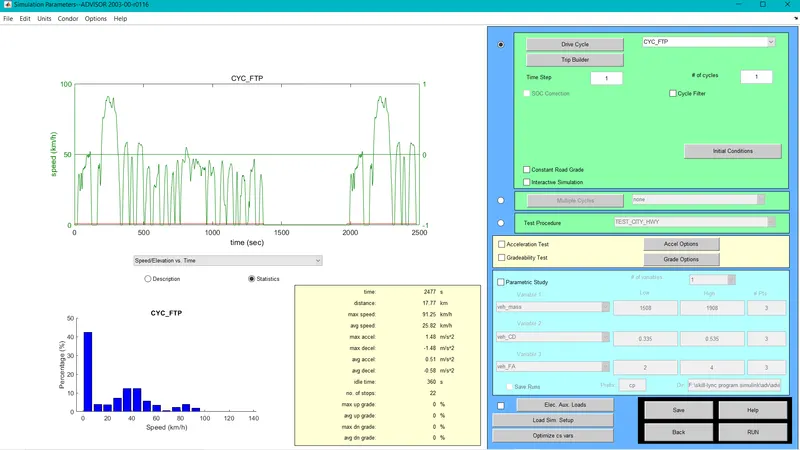

in the next window we can see the simulation parameter window now changing the drive cycle to FTP drive cycle and selecting number of drive cycle as 1 and running the simulation

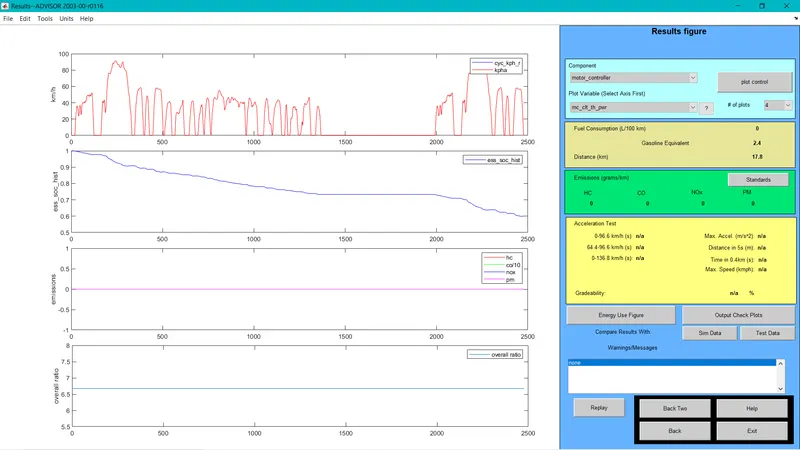

now we can see the vehicle has travelled for 17.8km consuming about 40% of soc

Again changing the number of drive cycle to 2

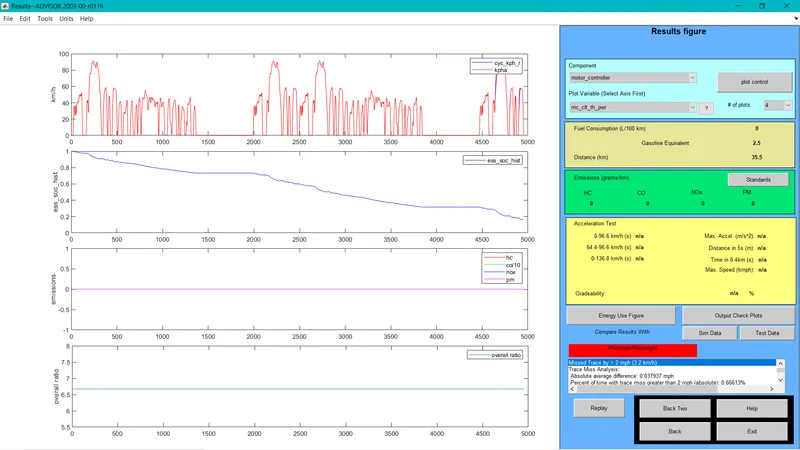

we can see the vehicle has travelled for about 35.5km consuming about 80% of SOC

again changing the drive cycle to 3

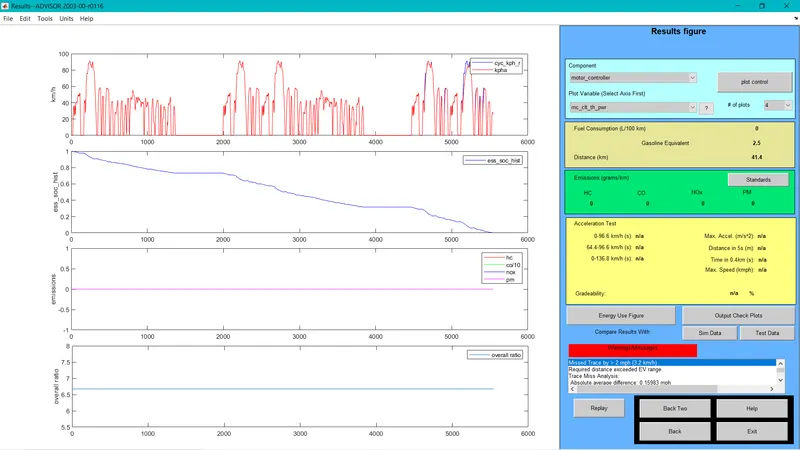

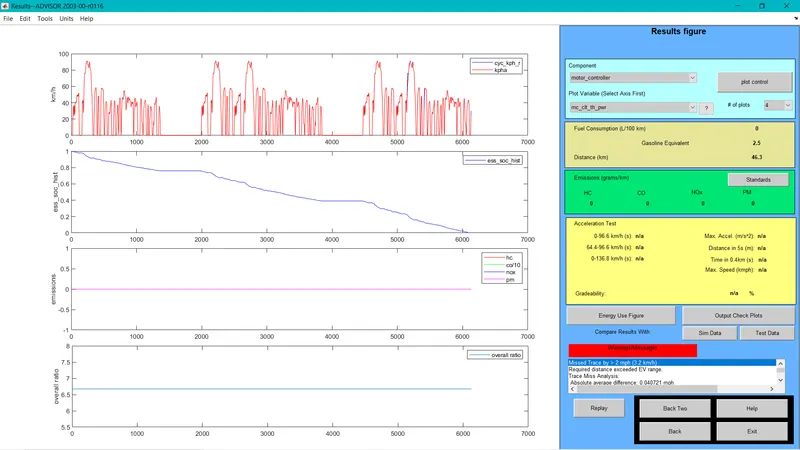

now the vehicle has travelled for 41.4km consuming 100% of SOC

From the above results the vehicle cannot travel for 45km due to inefficient SOC.

2. Considering the same above case we will only change the battery capacity earliear it was 25 module and 308 voltage battery with 275kg

now we will change to 26module and 3 drive cycles and repeate the simulation

we can observe from the above that vehicle has travelled for 42.7km under 26module 321voltage battery 286kg

Now again changing the battery capacity to 27module

we can see from the above that vehicle has travelled for 44.8km under the battery capacity 27module 333volt 297kg

now we will change the battery capacity to 28module

Now we can see the vehicle as travelled 46.3km under the battery capacity 28module 345volt 308kg

from the above we can conclude the for this vehicle to travel for 45km it requires the battery capacity of 28module 345volt battery.

3. Perform gradeability test with PRIUS_Jpn_defaults_in file

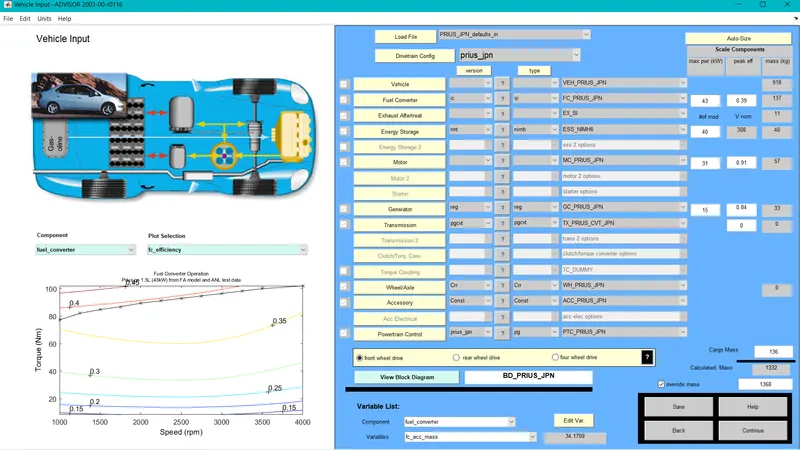

In the advisor tool window under the drop down in load file we select PRIUS_Jpn_default_in file

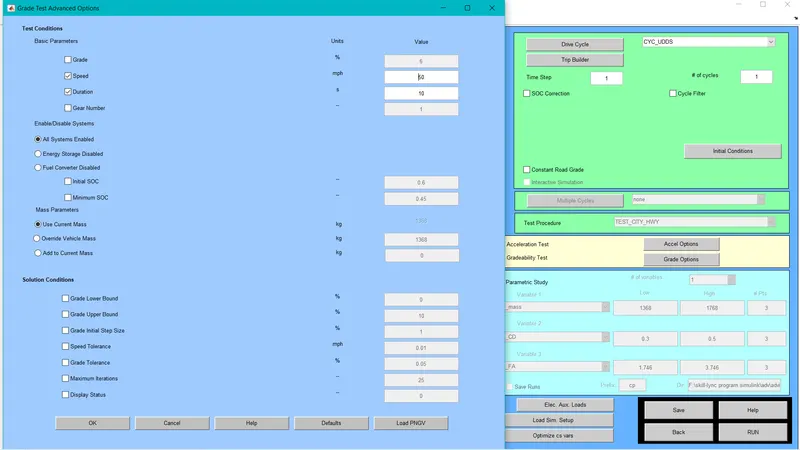

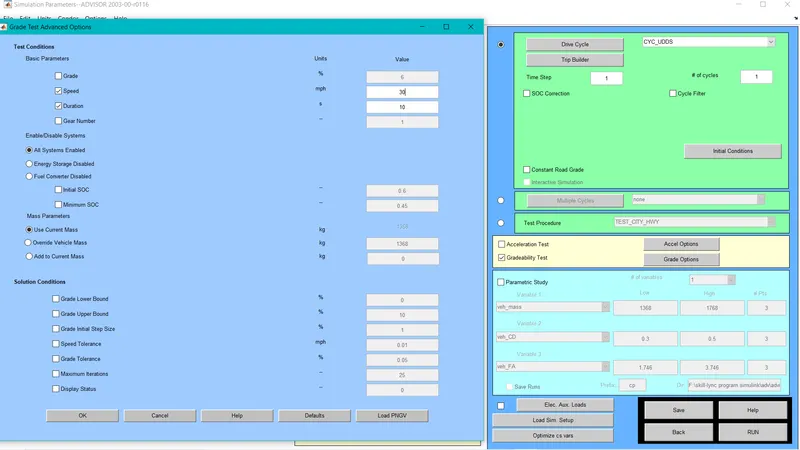

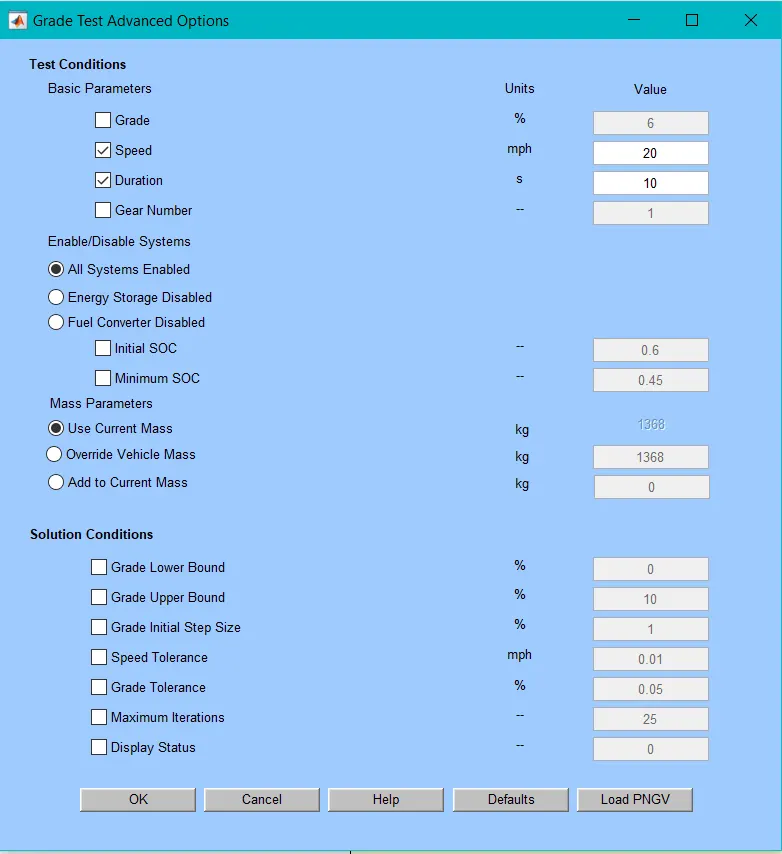

now we will select continue a simulation window appears and we check mark the greadabelity test and select gradeoptions to give the different speed value

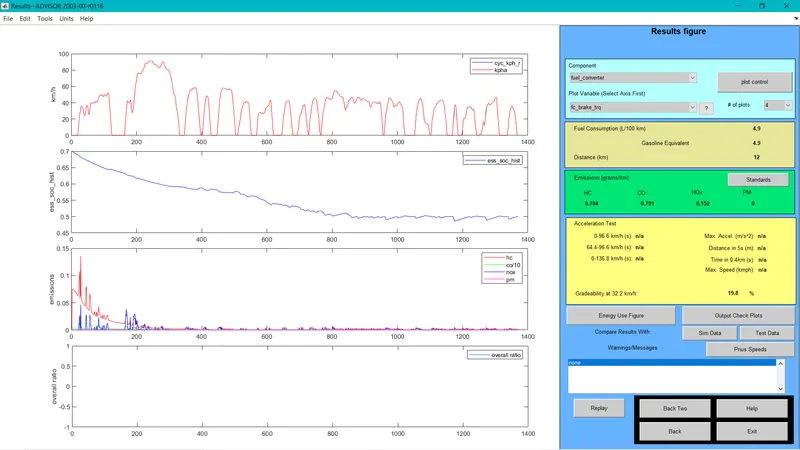

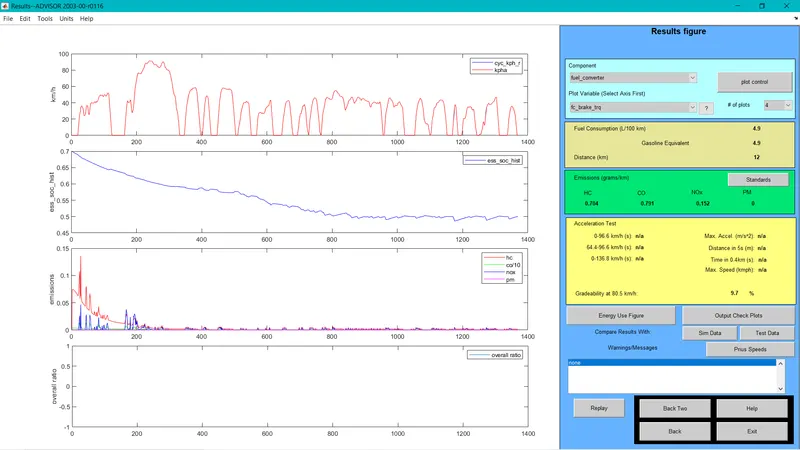

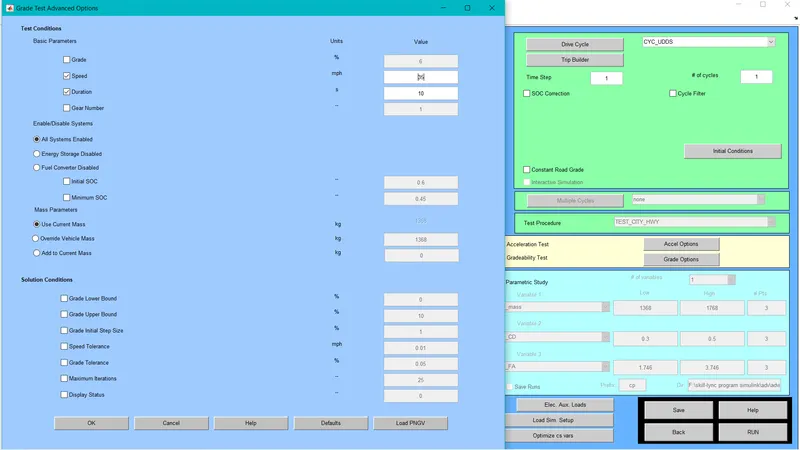

We give the speed as 20mph or 32.2kmph
