Week-3 Challenge: ADVISOR Tool

1)

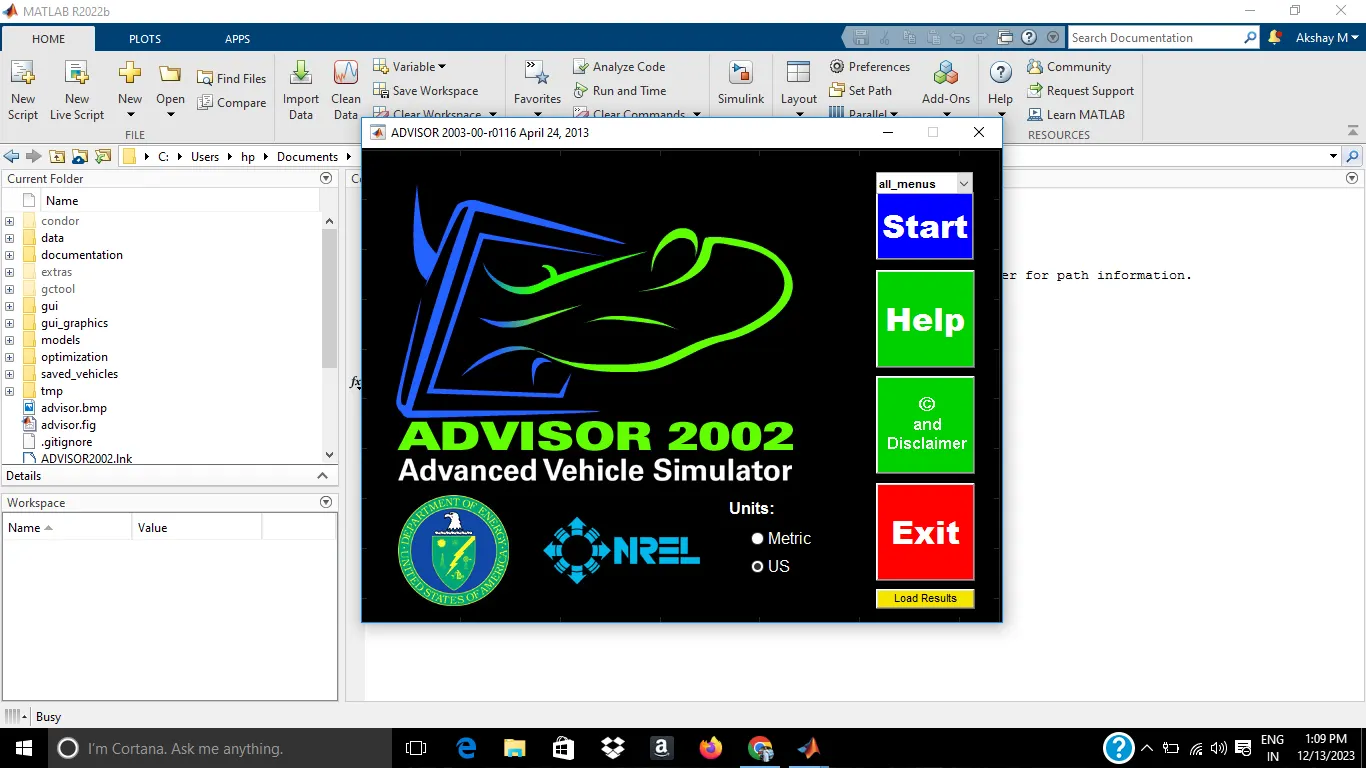

Open the advisor tool

Give Cargo mass to 500 kg

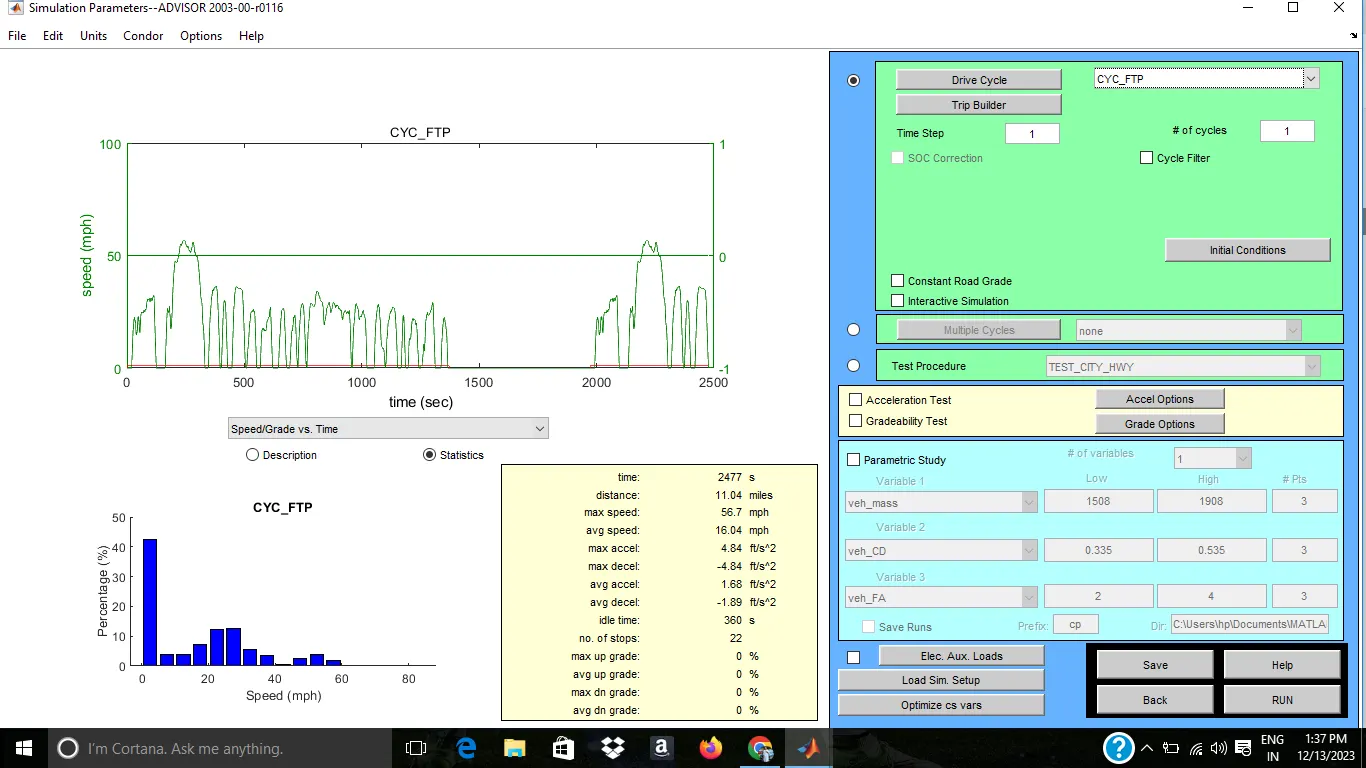

SELECT driving cycle as CYC_FTP

Give Run

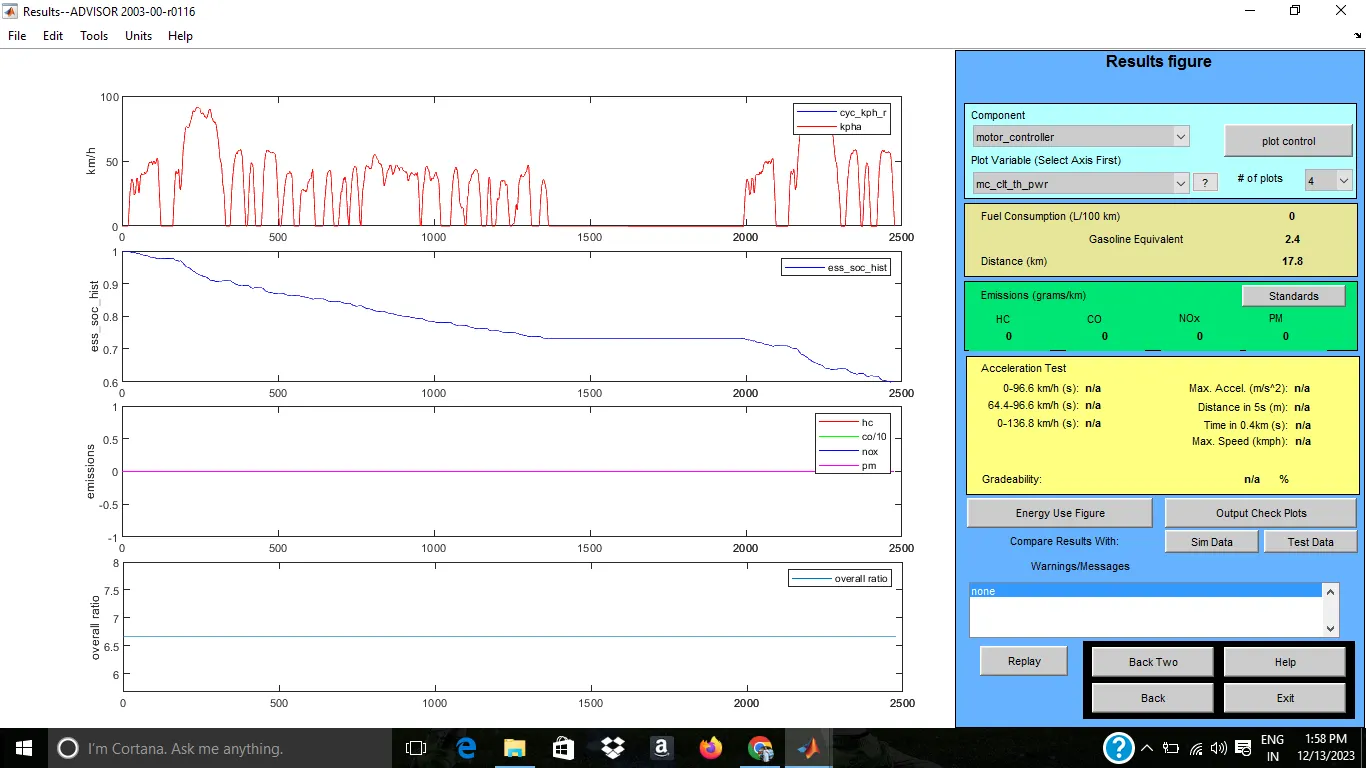

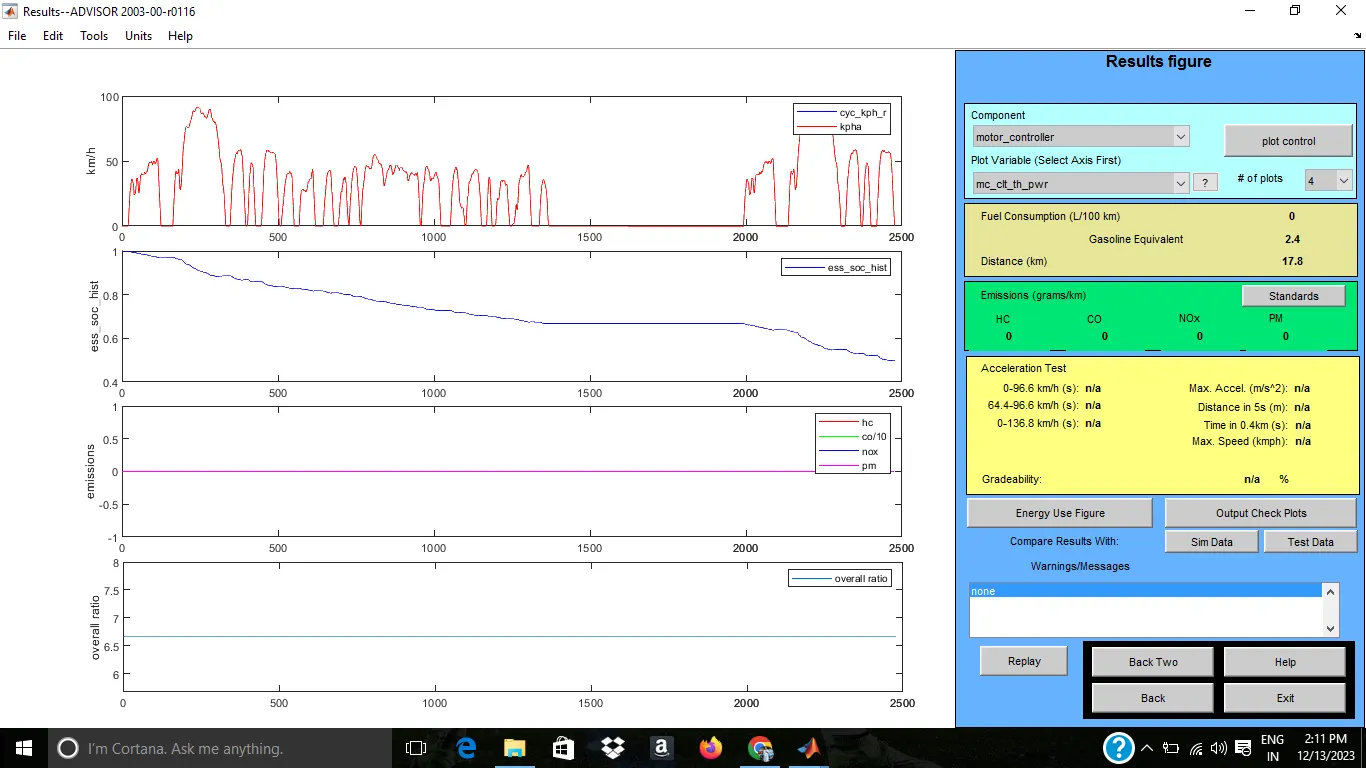

Distance is 17.5 for one driving cycle

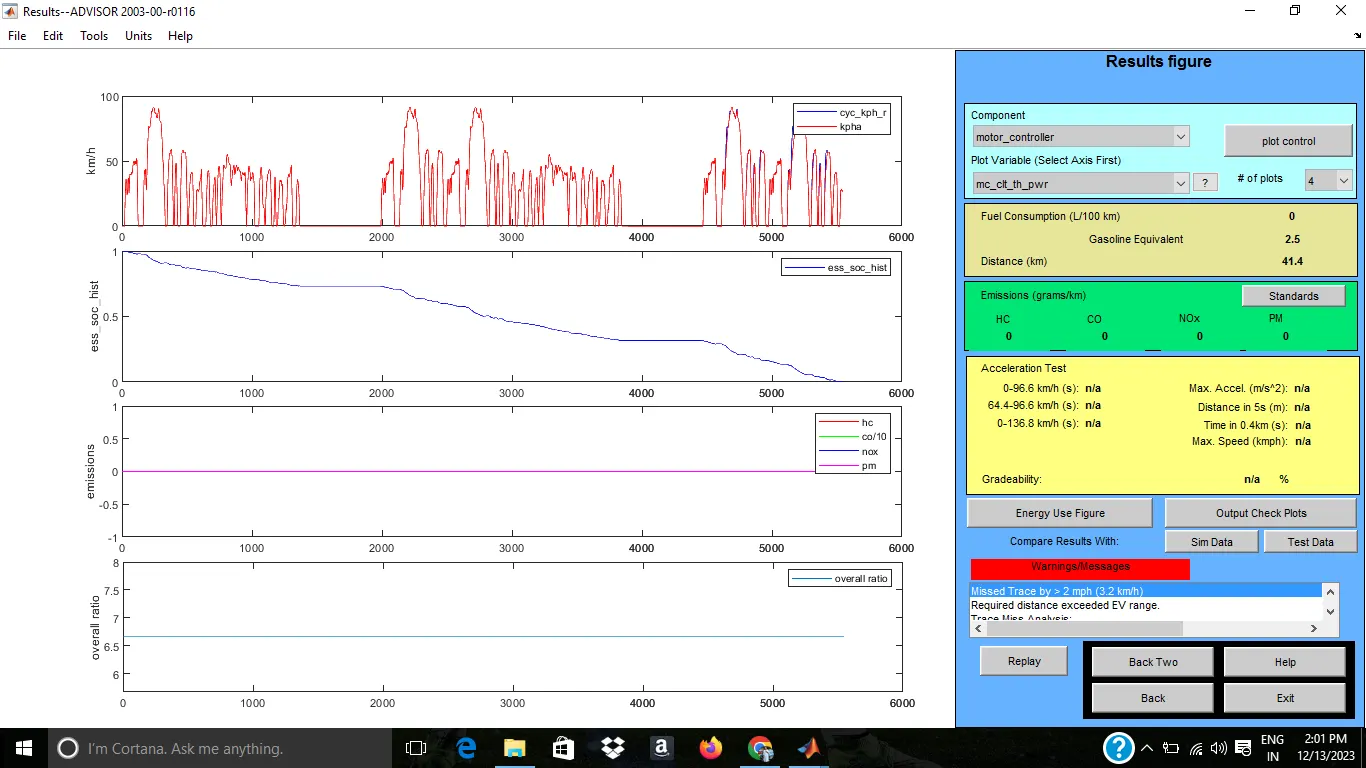

In each driving cycle distance increased to 41.4 Km. That is the maximum. Vehicle can't travel for 45 Km.

2)

As default the modules of battery is 25

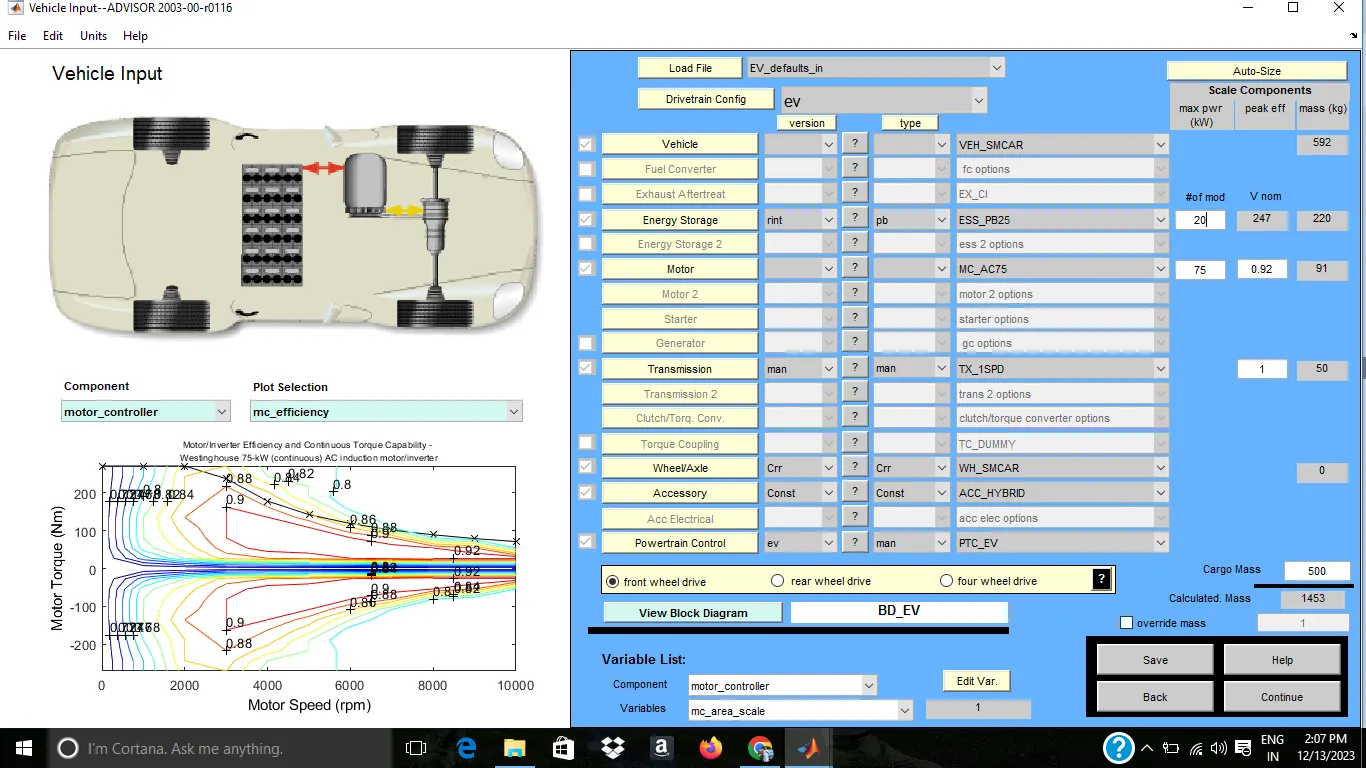

changed the modules to 20

For 500 kg run the simulation

We can see the for the same parameters in previous question , only we changed battery modules from 25 to 20.

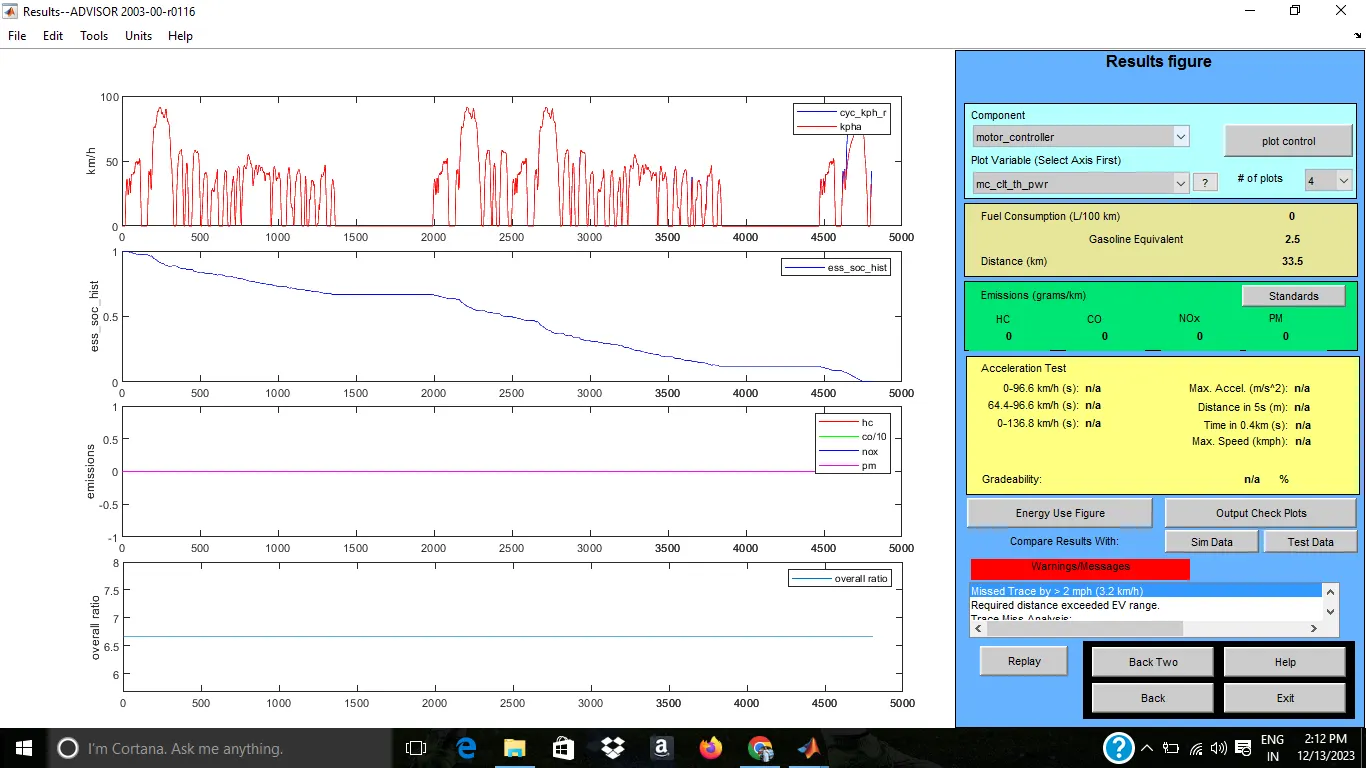

We can see a decrease in the km as 33.5 km.

3)

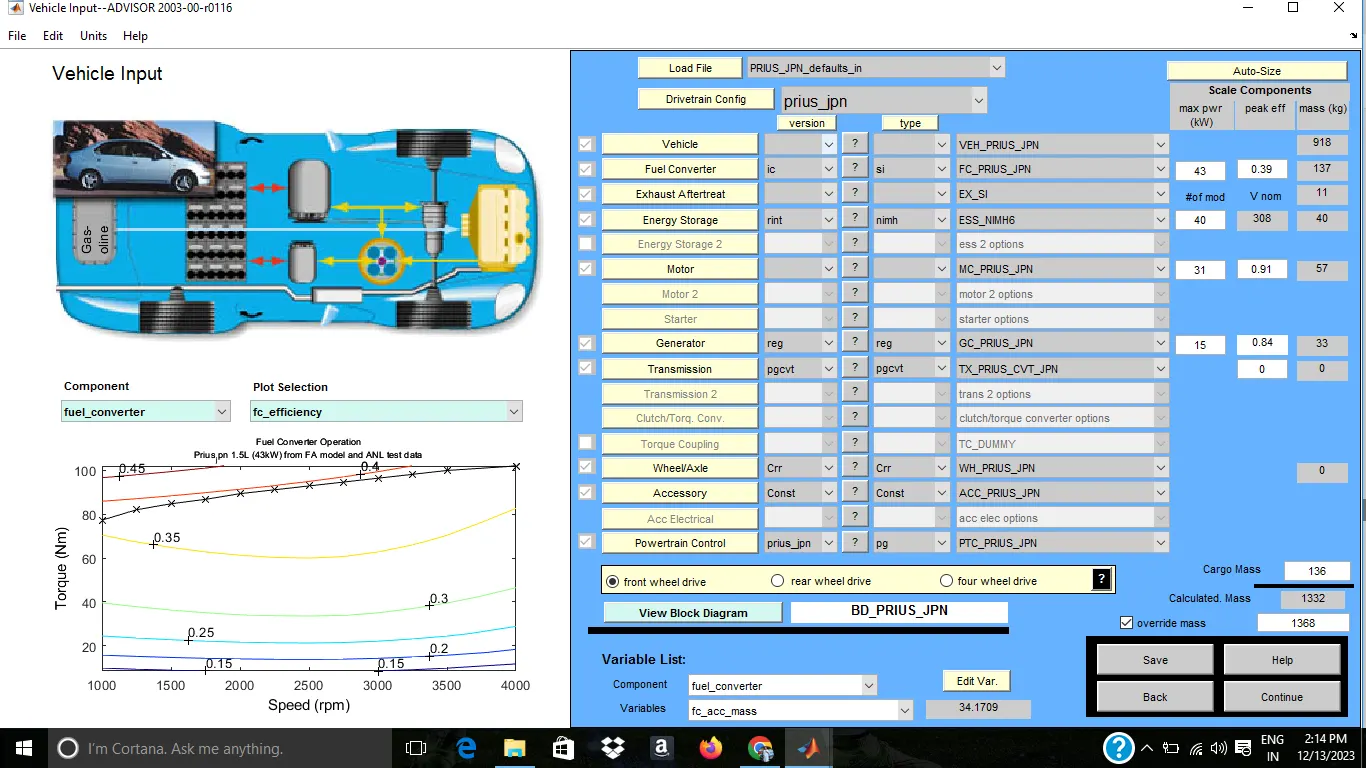

Select PRIUS JPN

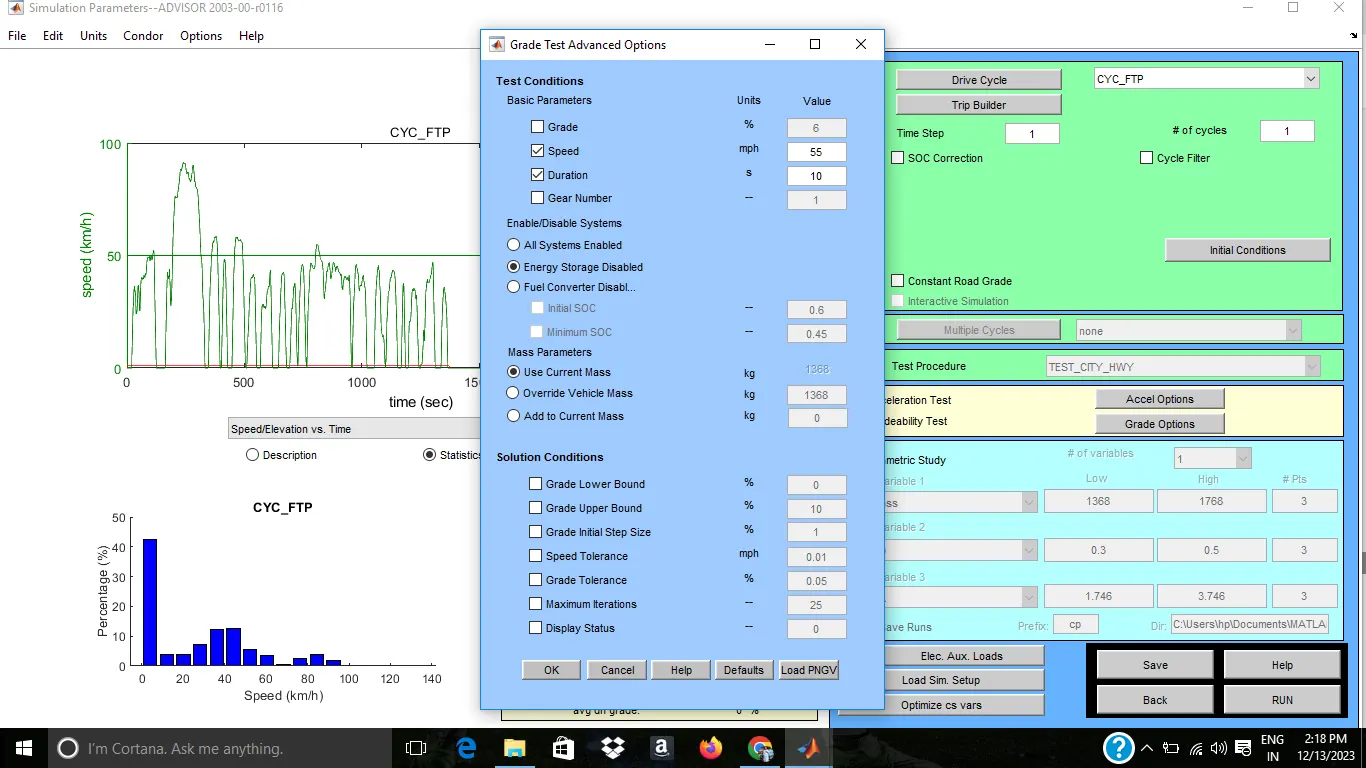

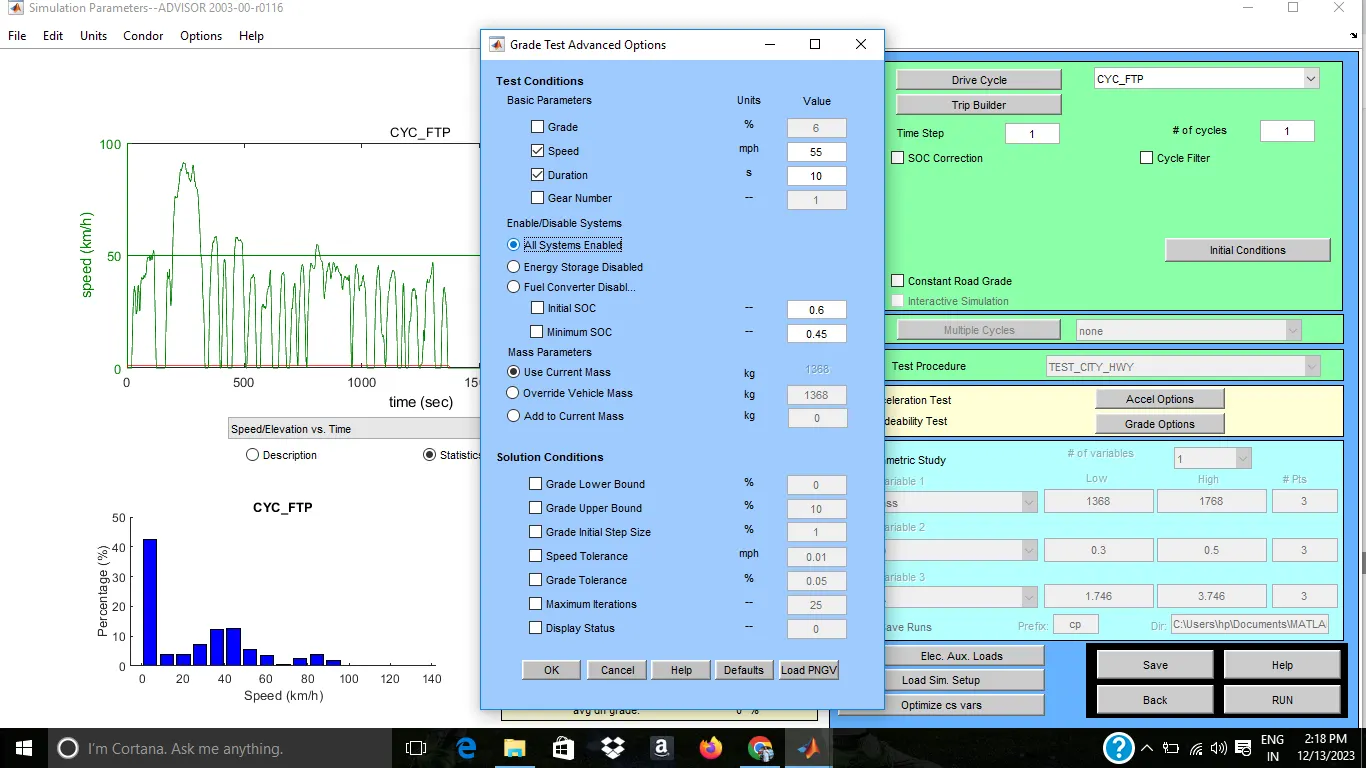

Select all system enabled in Gradebility menu

Select mph as 55 and RUN

1. Vary the speeed in gradebility menu and run

The speed vs Excel gradeability is

The excel file is attached
