Week 3 Challenge

1.

AIM: To determine effective length factor.

RESULT:

a. The K-value for all columns in the building is assumed to be 1.0.
b. Since the bottom ends of the ground floor columns are pinned, the effective length factor, K, for each column at this level in the moment frame is 2.4.
c. Since the bottom ends of the ground floor columns are fixed, the effective length factor, K, for each column at this level in the moment frame is 1.2.

2.

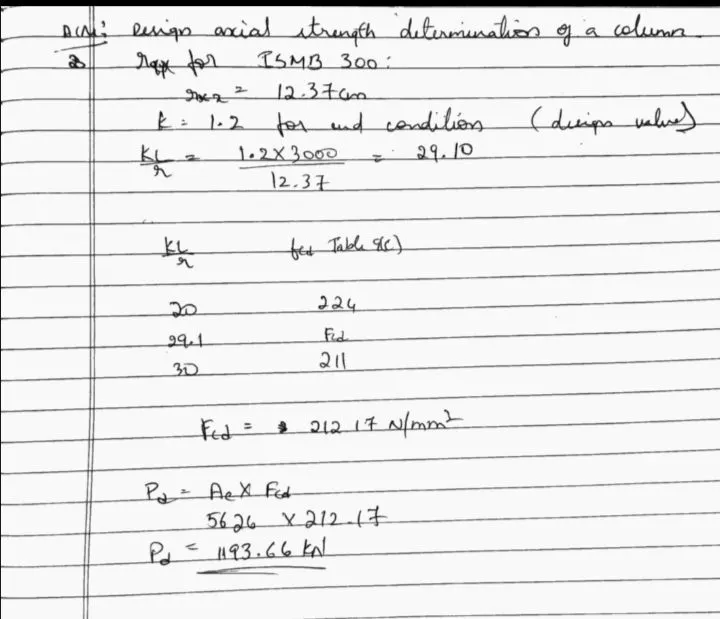

AIM: Design Axial strength determination of a column with its end conditions.

PROCEDURE:

RESULT: The design axial strength of the column has been calculated.

3.

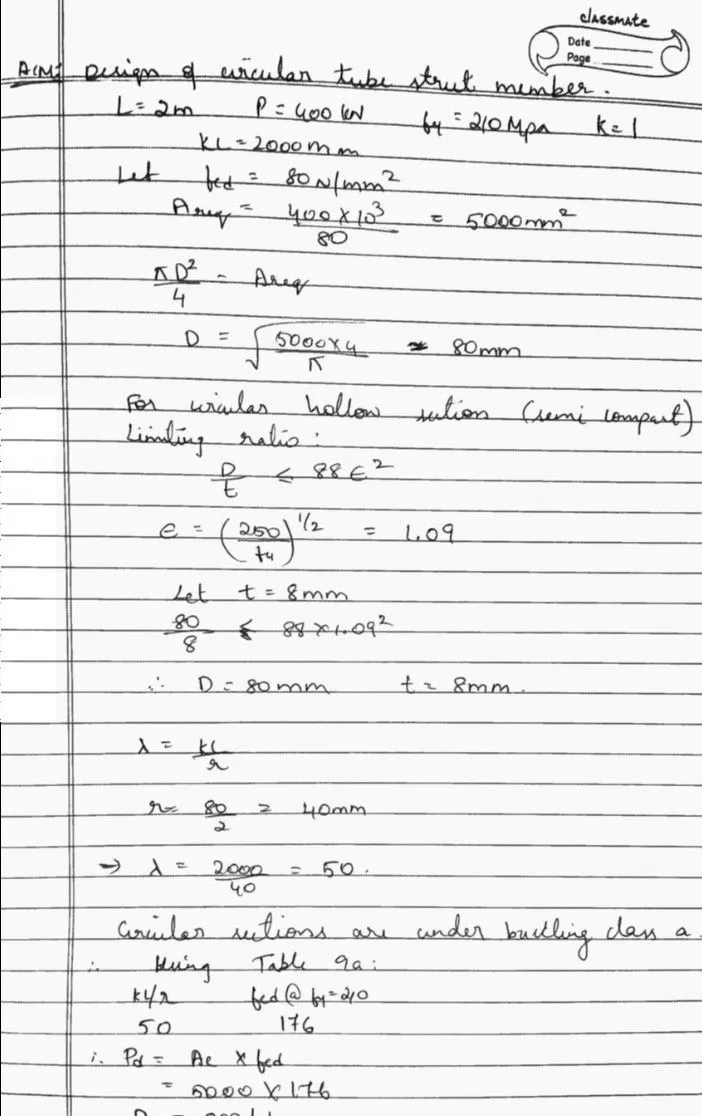

AIM: Design of circular tube strut member.

PROCEDURE:

RESULT: The circular tube strut member has been designed for given load.

4.

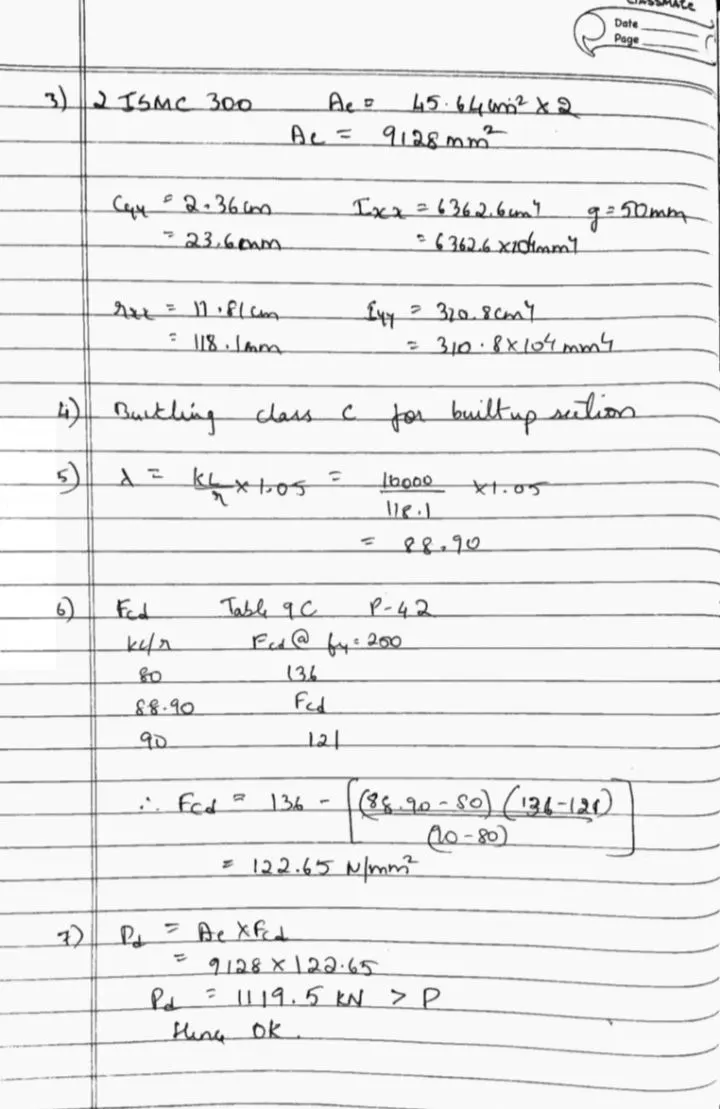

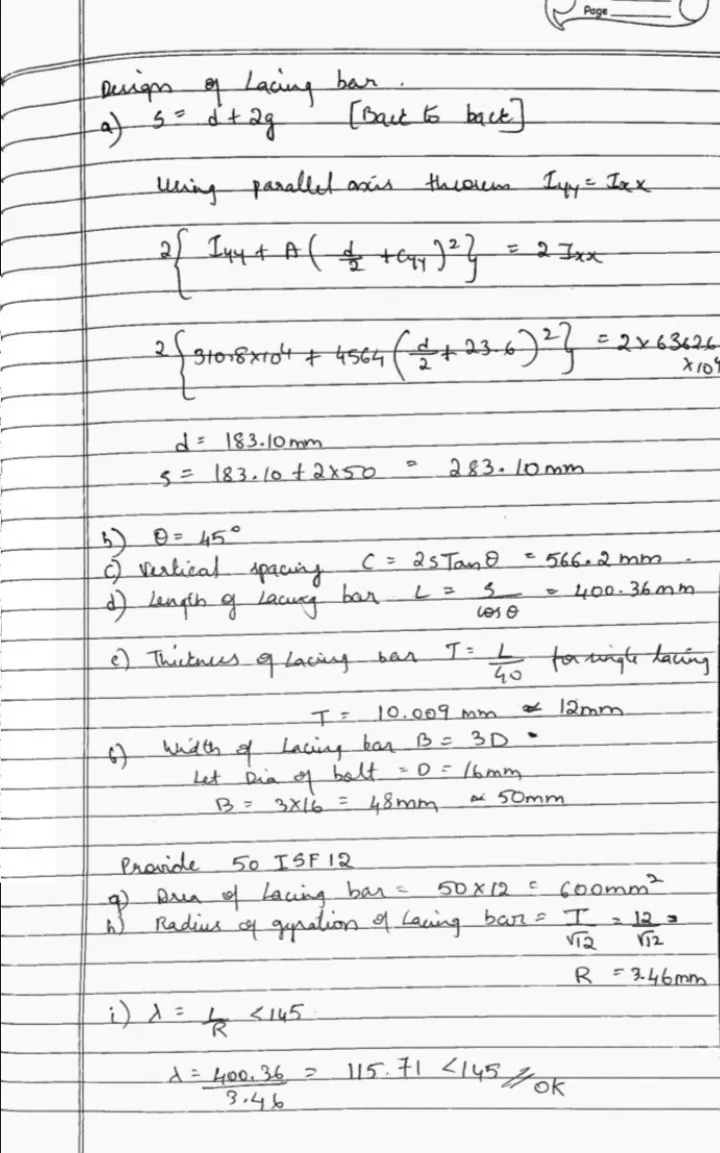

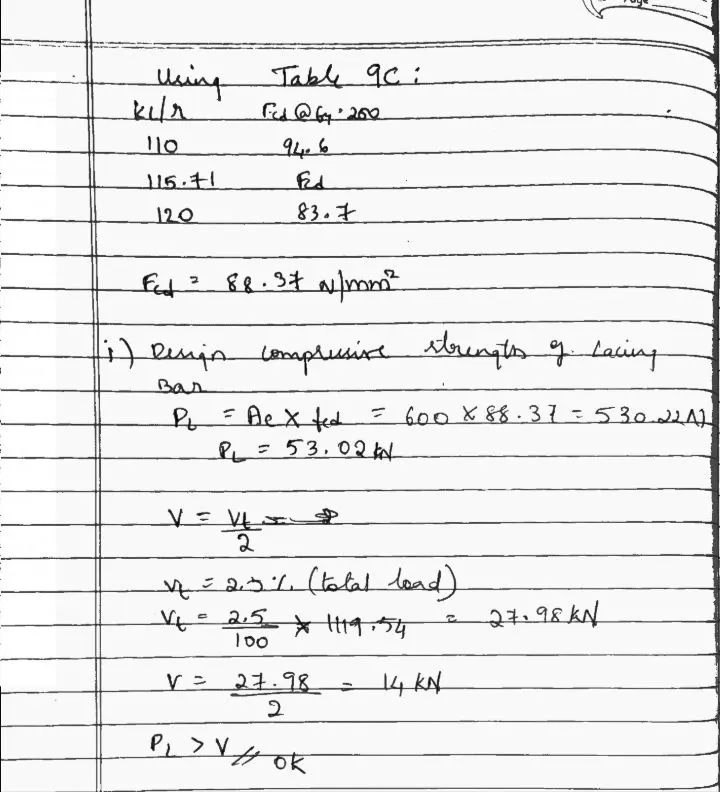

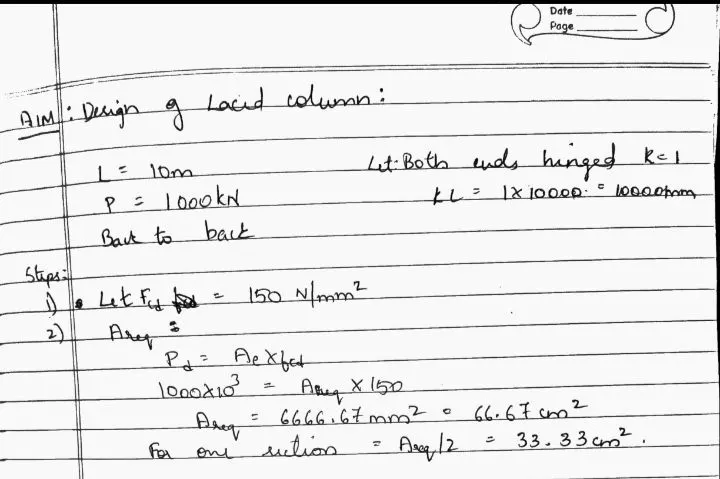

AIM: Design of Laced column.

PROCEDURE:

RESULT: The laced column has been designed as per IS standards.

5.

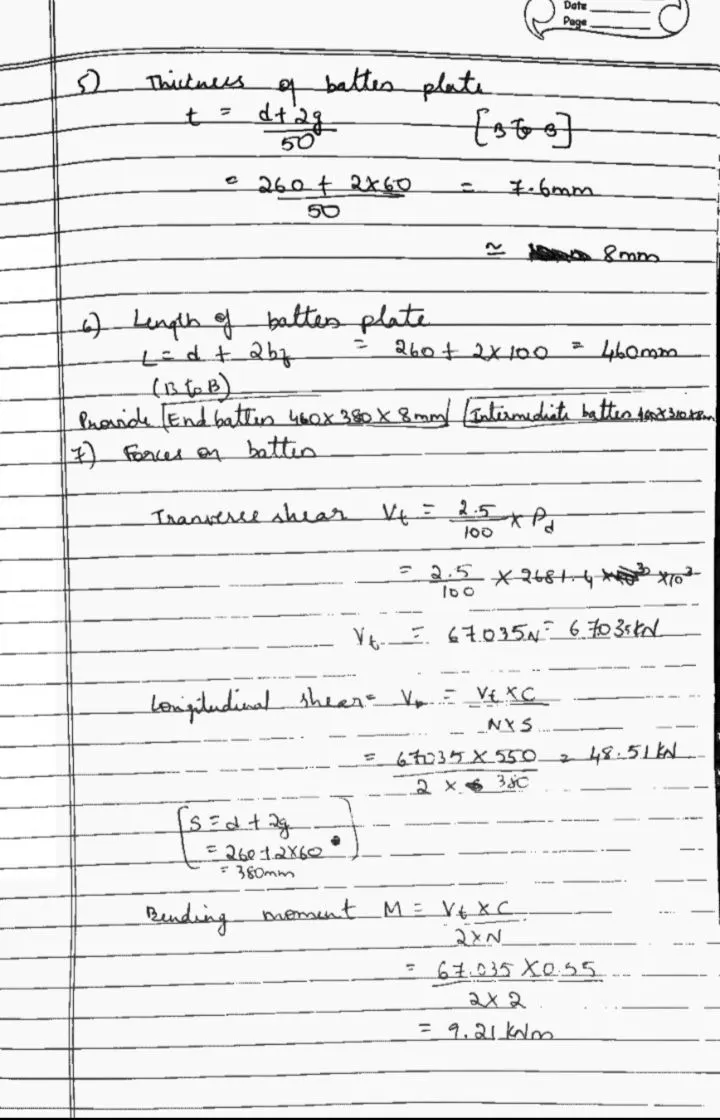

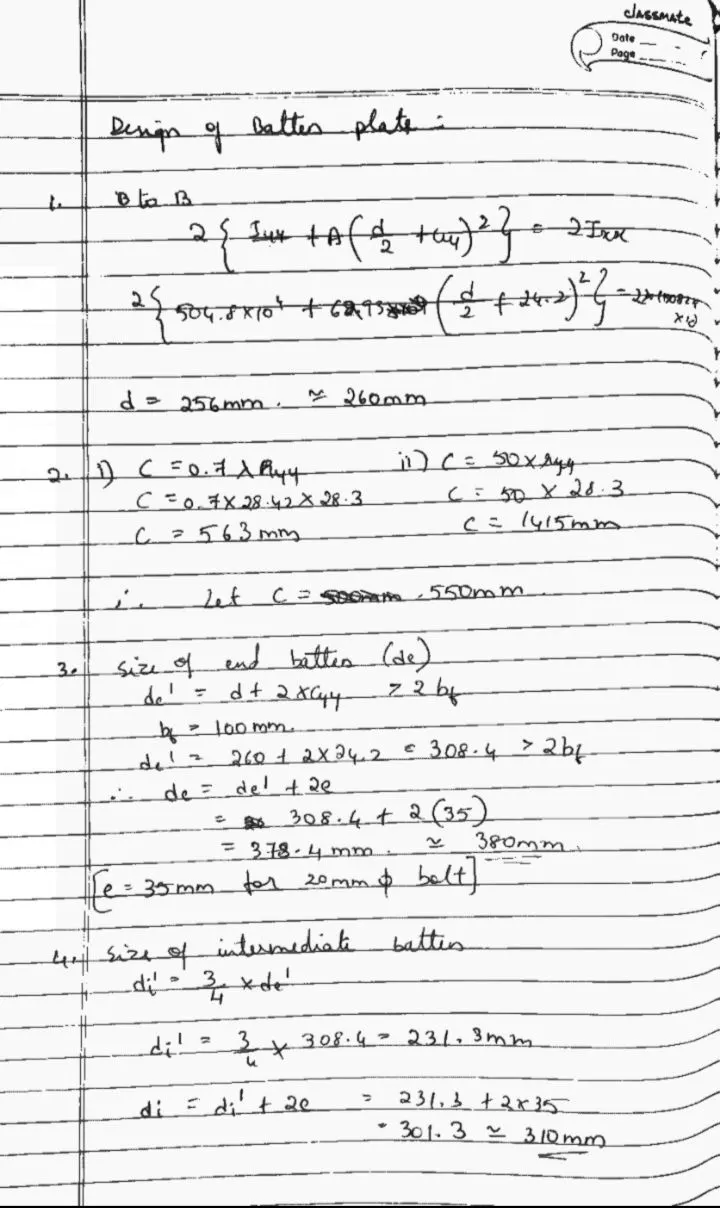

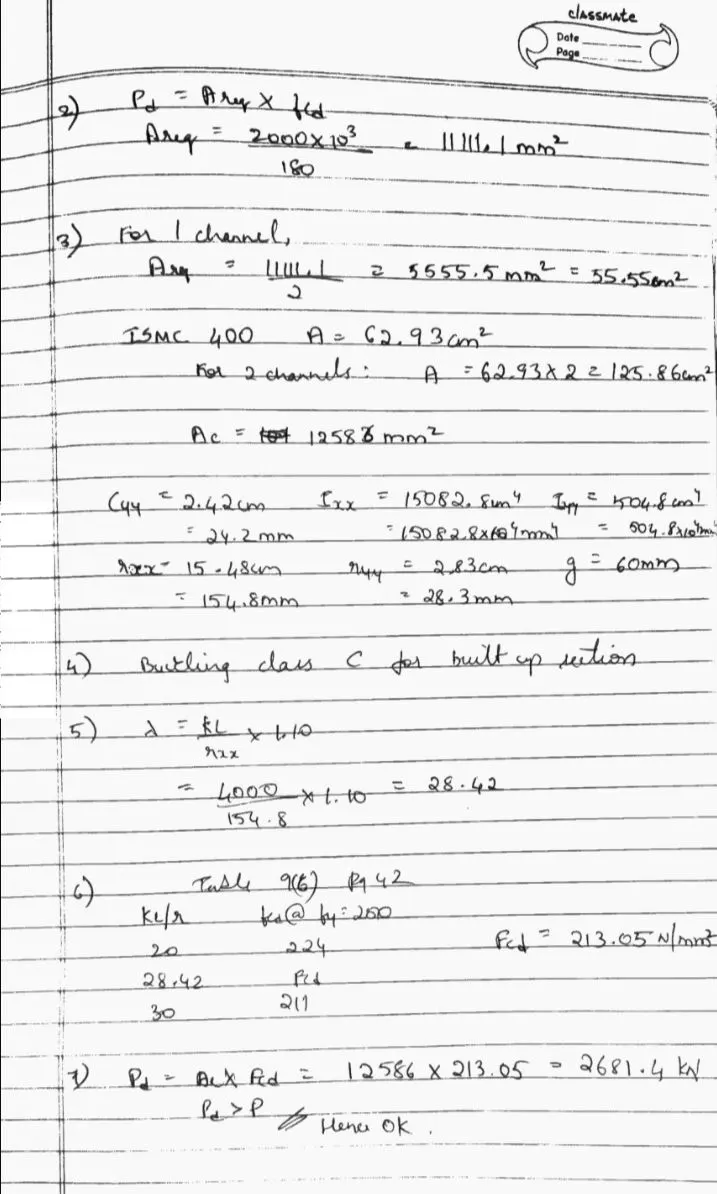

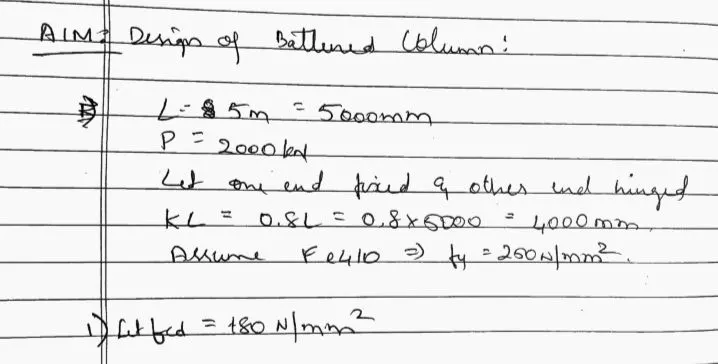

AIM: Design of Battened column.

PROCEDURE:

RESULT: The battened column has been designed as per IS standards.
