Week 3 Challenge

Analysis of Bridge Using IRS Railway Loads

Introduction:

1. In this challenge i have to analyse the I girder bridge by using IRS Railway Loads

2. I considered electric railway in this model with two way moving .

3. considerd steel section for girders and cross beams .

Procedure ;

Step 1: In this step i did reading of drawing , measurements and detailing

Step 2: Designed model in staad pro

step 3 : Process of making model in staad pro

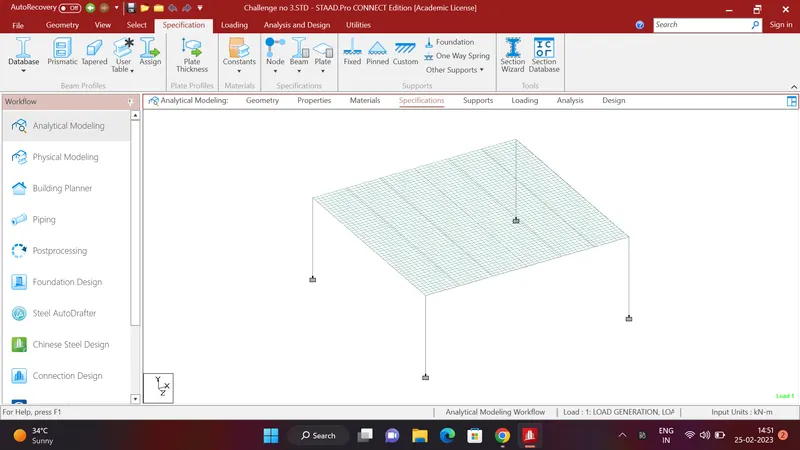

Step 4:Model

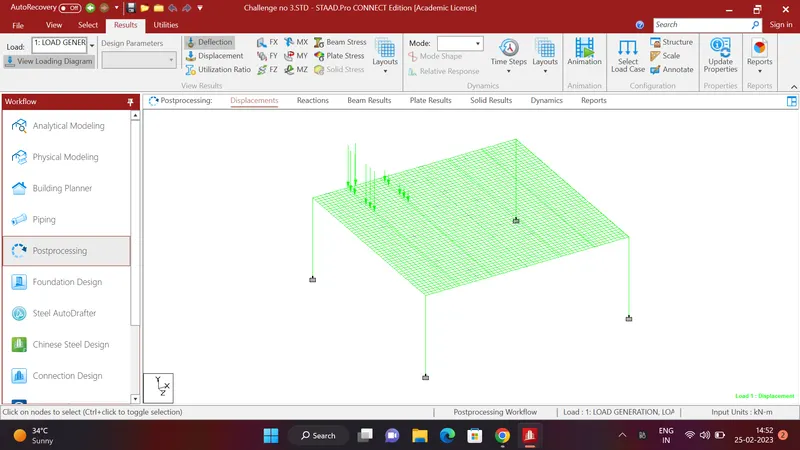

Step 5: analysis
