Week 1 Challenge

Aim : Dead Load Calculation & Analysis Using Staad Pro

Introduction :

1. In this problem we have to calculate dead load

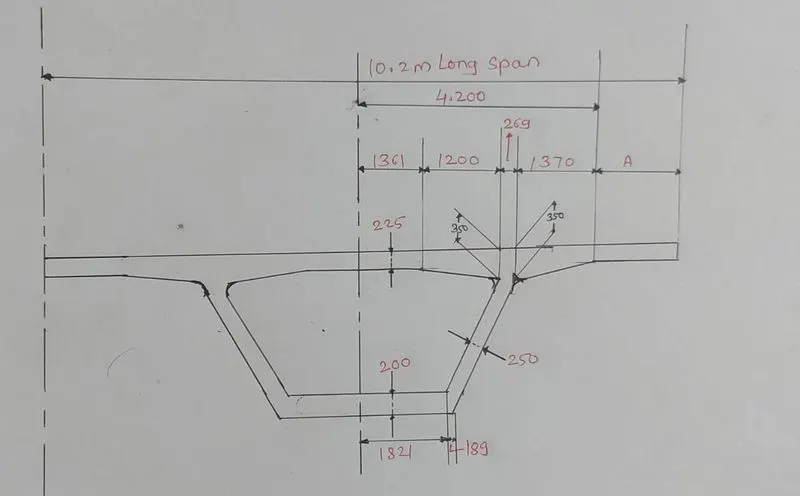

2. In Diagram the single cell box girder is given
3. area calculation & load calculation is the foundaton of this problem

Procedure :

Step no 1: Drawing Reading

In this step i read the drawing, deatails are given, measurements .

Step No 2: Divide drawing into two parts

In this step i did dividation of drawing into two parts and give it measurements

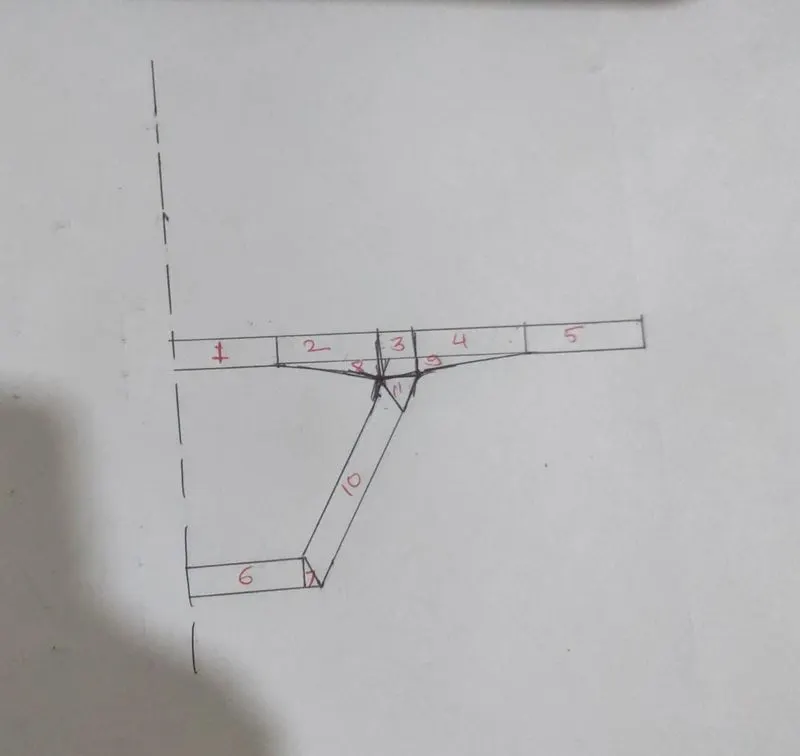

step No3: divide the drawing inti Rectangle and Triangle

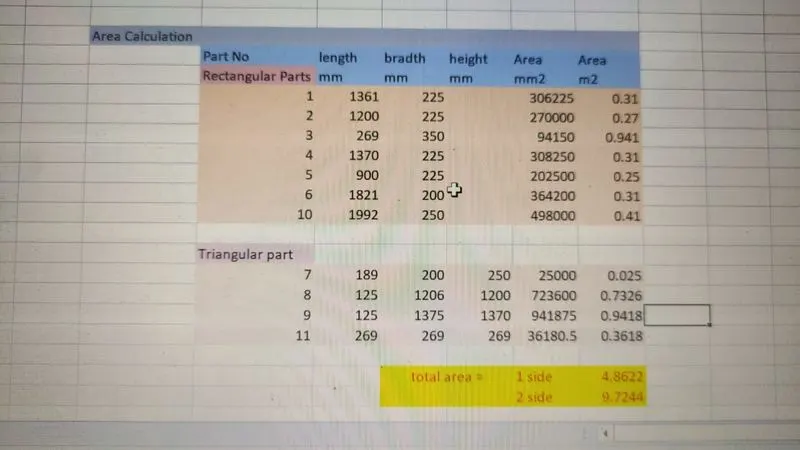

step No 4: Area Calculation

By using excel i put the length,breadth and height of divided parts and calculated the area of each

calculated area of one parts and both parts are as given below

Step No5: Calculation Of Dead Load

Dead load : Area X Unit Weight of concrete

9.7244 m2 X 25 kn/m3

243.11 Kn/m

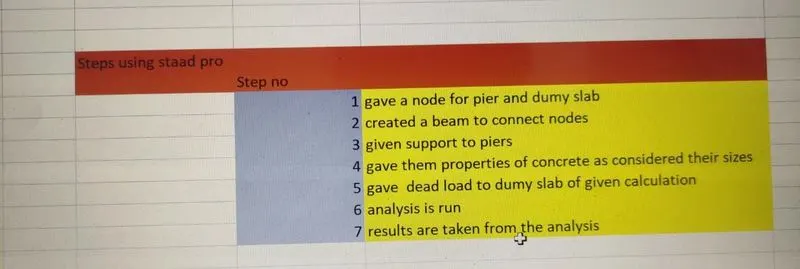

Step No 6 : Analysis Using Staad Pro

Results

max Shear Force :1458.66 KN

For dead Load of 243.11 Kn/m max shear force is 1458.66 KN

Max Bending Moment :2917.030 Kn/m

For the dead load of 243.11 Kn/m Max bending moment is 2917.030 Kn/m
