Week 2 Challenge

Analysis of Bridge by applying Live Load AS per IRC

Introduction :

1. In this challenge we have to analyse Bridge by using live loads as per IRC

2. In this Diagram Bridge having &m width of span 24 meter .

3. Understanding of applying live loads on bridge is main learning concept from this challenge

Procedure:

Step 1: In this step i did read the drawing , details and measurement are given.

Step 2: Making model on staad pro

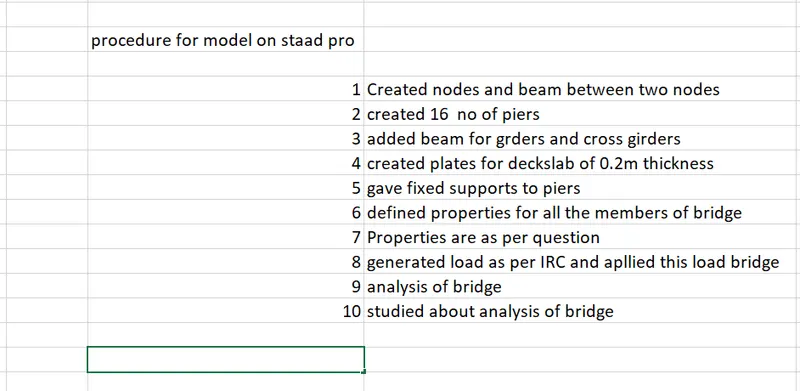

Step 3 : Process of Making Model on staad pro

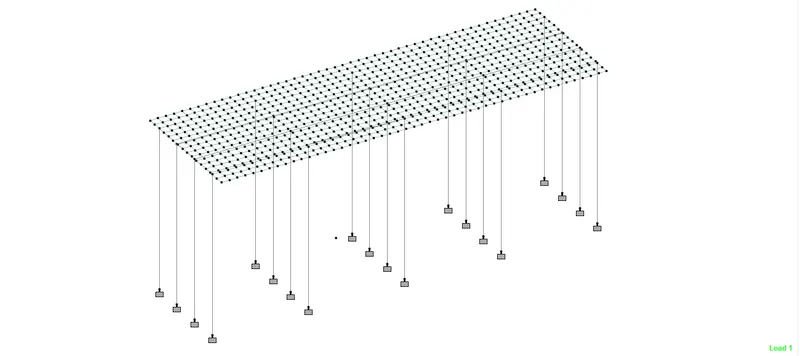

Step 4: Model of bridge as per question

Step No 5: Bending Moments is different in varios sections
