Week 3 Challenge

Aim of The Challenge : To Model & Analyse the Given RCC I Girder Section in the Staad Pro and Brielfy Identify The Bending Moments, Shear Forces and Displacement Directions of the Members.

Introduction : As we Know Staad Pro is Desinged and Maintained by Bentley Systems Software Company, Staad Pro is used for Structural Analysis and Design Purposes, As the Given Structure is a RCC I Girder Bridge Slab we have to analyse the structure for different IRS Railway Live Loads acting on it Such as : Metro Vehicle & Typical Electric Train Vehicle.

Procedure :

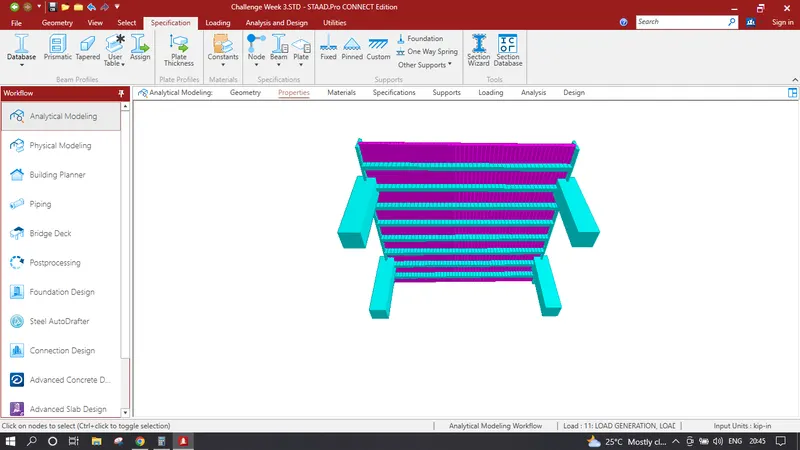

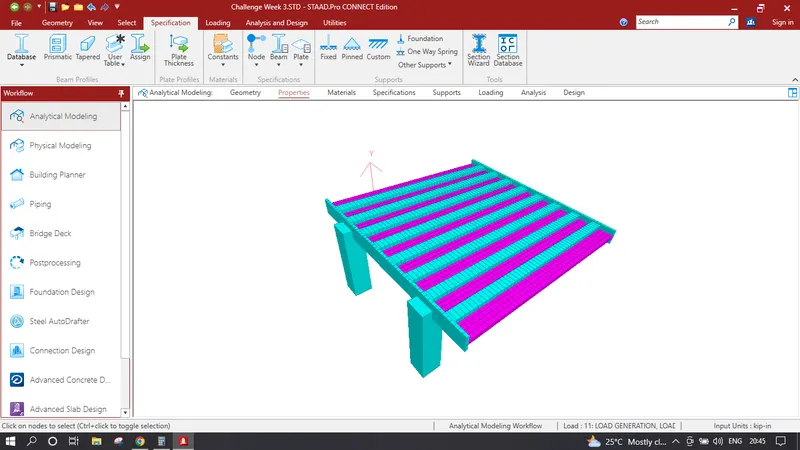

Modeling :

• 1. Open Staad Pro and Create a new Project and select English in Unit.
• 2. Input the origin node as 0,0,0 for Main Girders (Central Girders) add node as 1.5 & -1.5 in Z direction, this will create the two Central Girders.
• 3. Now we have to create 3 girders from left and 3 girders from right to complete the given 8 girders arrangement, select the left central girder and perform the translational repeat enter number of steps 3 and distance -3 in Z direction similarly repeat the process in right central girder by giving the no. of steps 3 and distance 3 in Z direction which creates all the 8 girders.
• 4. Select the Origin point and press CTRL C + CTRL V input -13 in Z Direction, Similarly Select the Origin point and press CTRL C + CTRL V input 13 in Z Direction connect all the nodes from extreme left to extreme right with beams.
• 5. Now to create Piers select the node which is 2nd Main Girder from the Left and press CTRL C + CTRL V input -10 in Y Direction, similarly select the 2nd main girder form right press CTRL C + CTRL V input -10 in Y Direction. which creates our piers. Select all the components (Beams) press CTRL C + CTRL V input 25 and tick on Link Steps in X Direction which completes our basic line model.

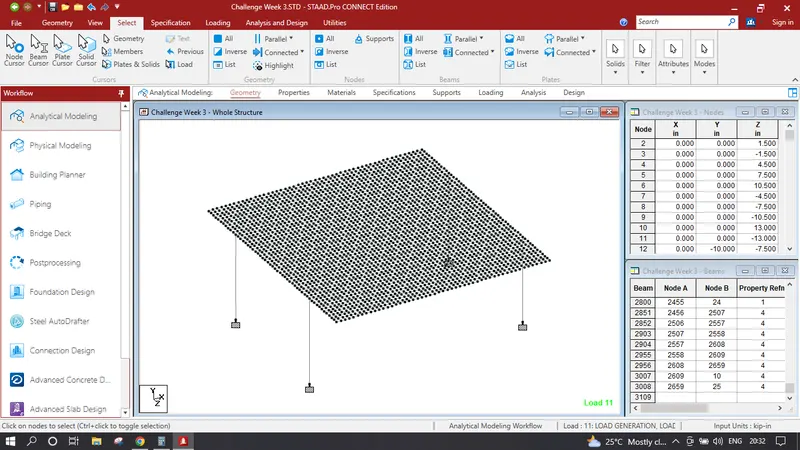

• 6. Now we have to create the deck slab mesh, Select the Origin point and press CTRL C + CTRL V input -13 in Z Direction, select the node and press CTRL C + CTRL V input 0.5 in X Direction, again select both the nodes press CTRL C + CTRL V input 0.5 in Z Direction, create the plate inside these 4 nodes and select this node perform Translational Repeat input number of steps 49 and distance 0.5 in X Direction, now select all the plates created and perfrom translational repeat in Z Direction input number of steps 51 and distance 0.5, this creates the mesh of Deck Slab. this completes the modeling and structure should look like this.
•

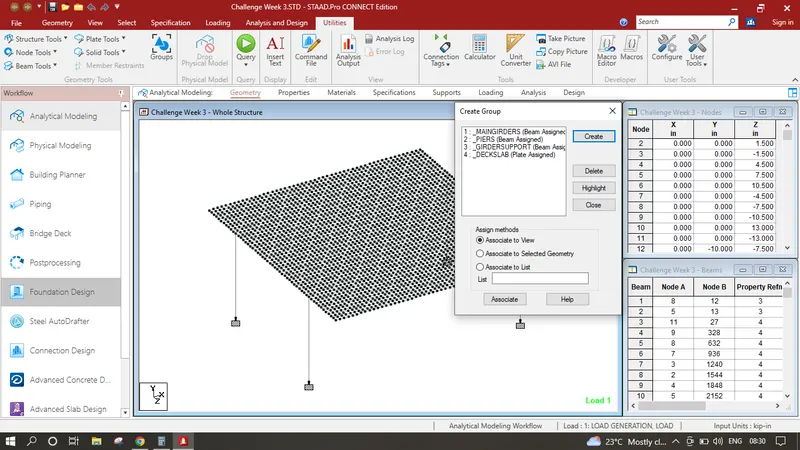

• 7. Now we have to assign all the components in Groups, Click on utility then groups click create name - MainGirders and in type select beams, Again Create GirdersSupport type - Beams, Again Create DeckSlab type - Plate, Again Create Piers type - Beams, Hence you have created 4 Groups now click on Select in upper tab and under beams category click on parallel and click on X which selects all the main girders Assign these beams to MainGirders group, Similarly click on paralel to z and it selects both the end girders assign it to GirdersSupport Group, Select all the piers and assign it Piers Group, Finally select the plate cursor and select all the deck slab plates and assign it to DeckSlab Group.
•

Assingning Specifications :

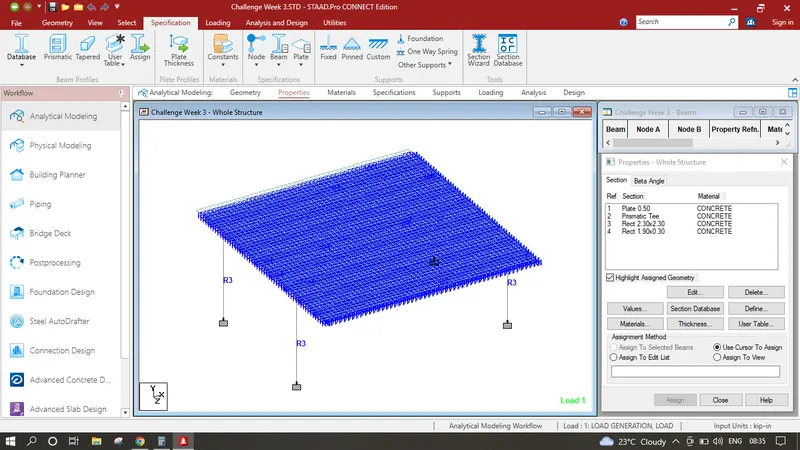

• 1. Click on Specification Tab click on Plate Thickness add 0.5 click ok, similarly click on define then Tee add YD-1.9, ZD-1.2, YB-1.4, ZB-0.5, again click on define select rectangle add YD - 1.9, ZD-0.3. again click on define select rectangle add YD - 2.3, ZD-2.3.
• 2. Select the plate specification , then go to groups click on DeckSlab assign it to selected plates, again select the Tee Specification and click on MainGirders in groups assign to selected Beams, Similarly select the rectangle specification select the GirdersSupport from Groups assign it to selected beams, Similarly select the rectangle specification select the Piers from Groups assign the property of rectangle having property YD - 2.3, ZD-2.3, As all the Specifications are assigned we have to add supports in Pier Bottom.
•
• 3. Select the Piers from Group and click on fixed under specification tab on the extreme bottom of the piers add Fixed end support. After assigning the mdoeling and Assigning specification has been done the model should look like the image attached below.
•
•

Adding Live Loads:

• 1. Click on Loadings click on definitions again click on vehicle definition press add

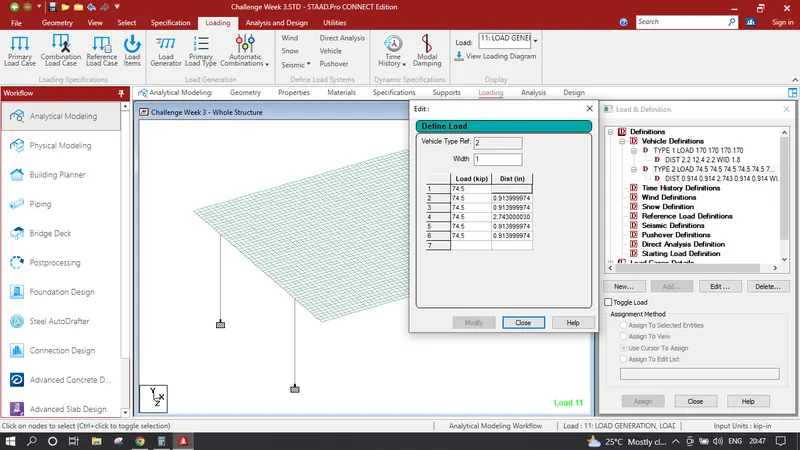

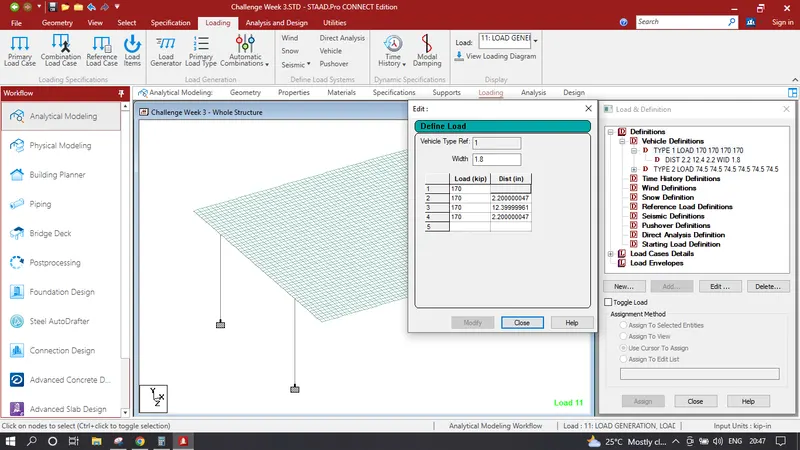

• For Metro Vehicle Follow this input attached below
•
• For Typical Electric Vehicle Follow this input attached below
•
• 2. After adding definitions click on Load cases details and click add, click on load generation on left and in no. of loads to be generated enter 50 press add.
• 3. Under load cases details there is the 1-50 generated load file we have to assign the starting point for this load generation. select the file again click on add under initial point of load enter x-0, y-0, z- -6.5 and x increment will be 1.
• 4. Repeat the 2 & 3 points again this load generate file should have initial points x-0, y-0, z- 6.5 and x increment will be 1.

Analysis & Results :

• 1. Click on analysis and design run analysis, again go to post processing

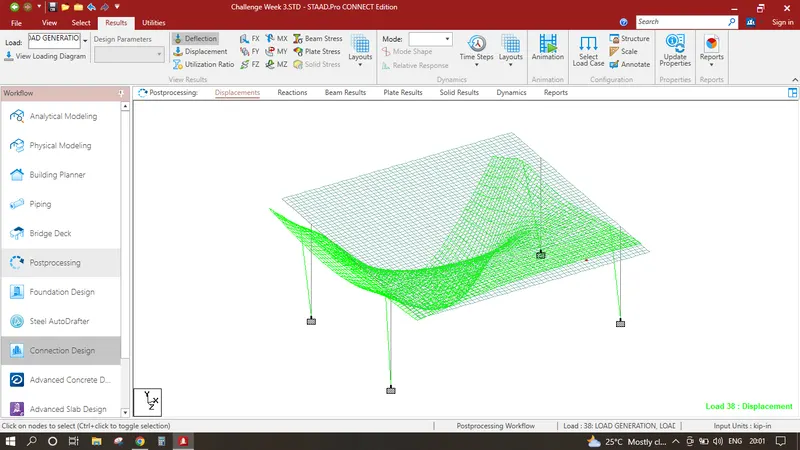

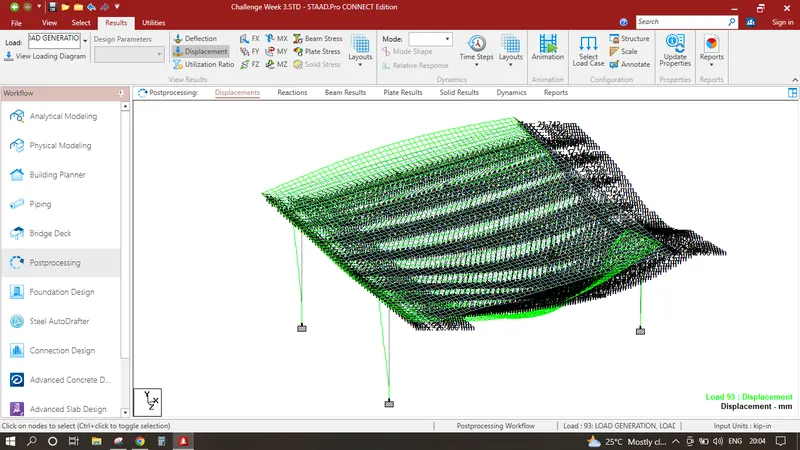

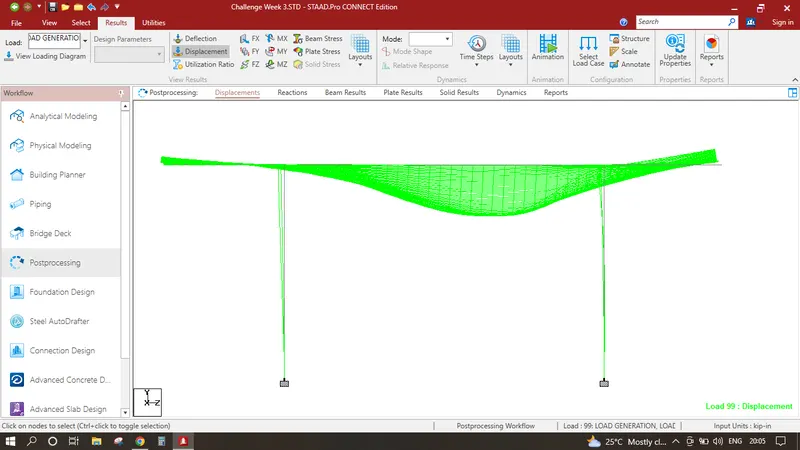

In Results Tab Displacement Pattern show in the image below

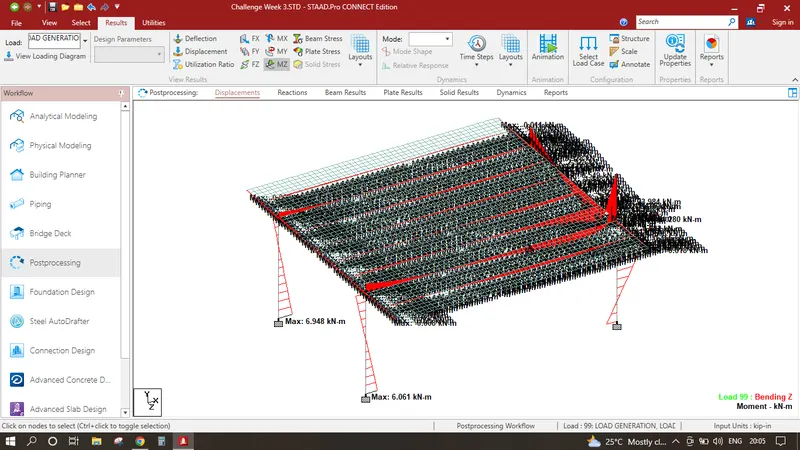

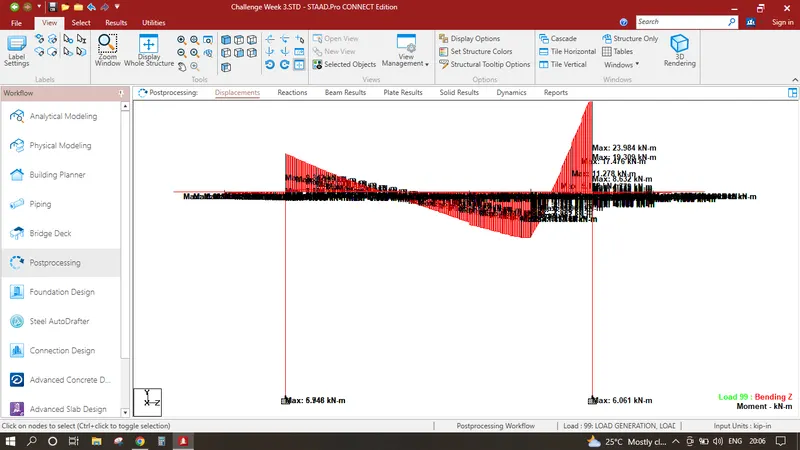

In Results Bending Moments shown in the image below

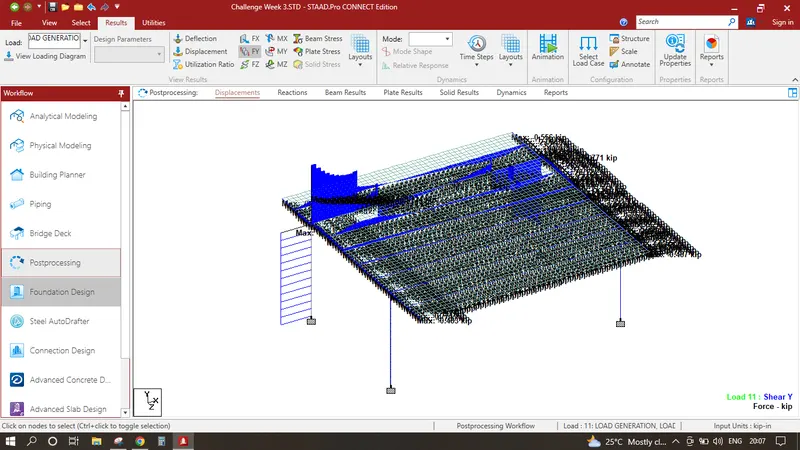

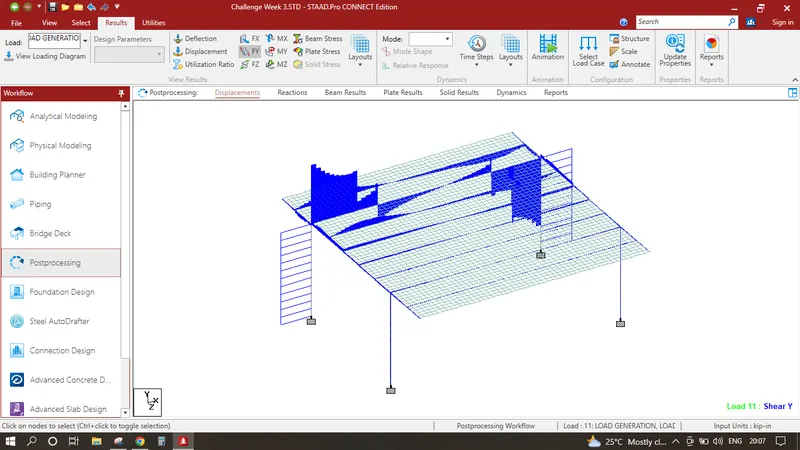

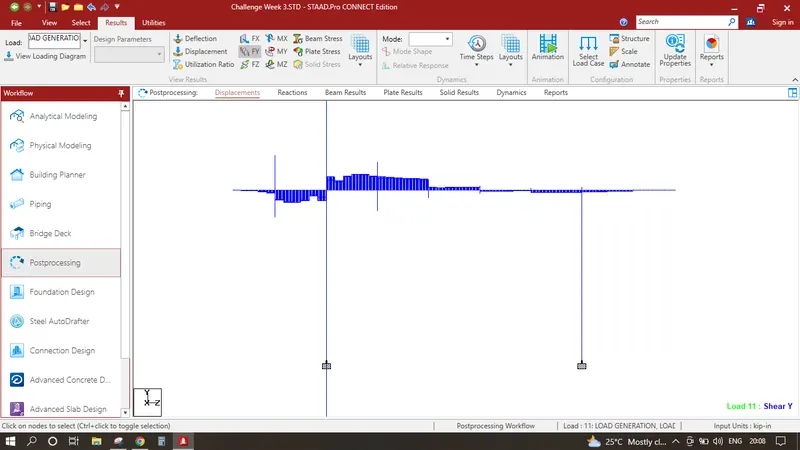

In Results Shear Forces shown in the image below

As we can see there are 100 generated loads and while hovering over dfferent loads the load position changes as well as Displacement, Bending Moments and Shear Forces values also differ. We use these Annotated Maximum Values for the Detailed Design of the Structure.

Below is the Staad Input as well as i am attaching the staad file

STAAD SPACE
START JOB INFORMATION
ENGINEER DATE 13-Oct-22
END JOB INFORMATION
INPUT WIDTH 79
UNIT INCHES KIP
JOINT COORDINATES
2 0 0 1.5; 3 0 0 -1.5; 4 0 0 4.5; 5 0 0 7.5; 6 0 0 10.5; 7 0 0 -4.5;
8 0 0 -7.5; 9 0 0 -10.5; 10 0 0 13; 11 0 0 -13; 12 0 -10 -7.5; 13 0 -10 7.5;
14 25 0 -7.5; 15 25 -10 -7.5; 16 25 0 7.5; 17 25 -10 7.5; 18 25 0 -13;
19 25 0 -10.5; 20 25 0 -4.5; 21 25 0 -1.5; 22 25 0 1.5; 23 25 0 4.5;
24 25 0 10.5; 25 25 0 13; 26 0.5 0 -13; 27 0 0 -12.5; 28 0.5 0 -12.5;
29 1 0 -13; 30 1 0 -12.5; 31 1.5 0 -13; 32 1.5 0 -12.5; 33 2 0 -13;
34 2 0 -12.5; 35 2.5 0 -13; 36 2.5 0 -12.5; 37 3 0 -13; 38 3 0 -12.5;
39 3.5 0 -13; 40 3.5 0 -12.5; 41 4 0 -13; 42 4 0 -12.5; 43 4.5 0 -13;
44 4.5 0 -12.5; 45 5 0 -13; 46 5 0 -12.5; 47 5.5 0 -13; 48 5.5 0 -12.5;
49 6 0 -13; 50 6 0 -12.5; 51 6.5 0 -13; 52 6.5 0 -12.5; 53 7 0 -13;
54 7 0 -12.5; 55 7.5 0 -13; 56 7.5 0 -12.5; 57 8 0 -13; 58 8 0 -12.5;
59 8.5 0 -13; 60 8.5 0 -12.5; 61 9 0 -13; 62 9 0 -12.5; 63 9.5 0 -13;
64 9.5 0 -12.5; 65 10 0 -13; 66 10 0 -12.5; 67 10.5 0 -13; 68 10.5 0 -12.5;
69 11 0 -13; 70 11 0 -12.5; 71 11.5 0 -13; 72 11.5 0 -12.5; 73 12 0 -13;
74 12 0 -12.5; 75 12.5 0 -13; 76 12.5 0 -12.5; 77 13 0 -13; 78 13 0 -12.5;
79 13.5 0 -13; 80 13.5 0 -12.5; 81 14 0 -13; 82 14 0 -12.5; 83 14.5 0 -13;
84 14.5 0 -12.5; 85 15 0 -13; 86 15 0 -12.5; 87 15.5 0 -13; 88 15.5 0 -12.5;
89 16 0 -13; 90 16 0 -12.5; 91 16.5 0 -13; 92 16.5 0 -12.5; 93 17 0 -13;
94 17 0 -12.5; 95 17.5 0 -13; 96 17.5 0 -12.5; 97 18 0 -13; 98 18 0 -12.5;
99 18.5 0 -13; 100 18.5 0 -12.5; 101 19 0 -13; 102 19 0 -12.5; 103 19.5 0 -13;
104 19.5 0 -12.5; 105 20 0 -13; 106 20 0 -12.5; 107 20.5 0 -13;
108 20.5 0 -12.5; 109 21 0 -13; 110 21 0 -12.5; 111 21.5 0 -13;
112 21.5 0 -12.5; 113 22 0 -13; 114 22 0 -12.5; 115 22.5 0 -13;
116 22.5 0 -12.5; 117 23 0 -13; 118 23 0 -12.5; 119 23.5 0 -13;
120 23.5 0 -12.5; 121 24 0 -13; 122 24 0 -12.5; 123 24.5 0 -13;
124 24.5 0 -12.5; 125 25 0 -12.5; 126 0 0 -12; 127 0.5 0 -12; 128 1 0 -12;
129 1.5 0 -12; 130 2 0 -12; 131 2.5 0 -12; 132 3 0 -12; 133 3.5 0 -12;
134 4 0 -12; 135 4.5 0 -12; 136 5 0 -12; 137 5.5 0 -12; 138 6 0 -12;
139 6.5 0 -12; 140 7 0 -12; 141 7.5 0 -12; 142 8 0 -12; 143 8.5 0 -12;
144 9 0 -12; 145 9.5 0 -12; 146 10 0 -12; 147 10.5 0 -12; 148 11 0 -12;
149 11.5 0 -12; 150 12 0 -12; 151 12.5 0 -12; 152 13 0 -12; 153 13.5 0 -12;
154 14 0 -12; 155 14.5 0 -12; 156 15 0 -12; 157 15.5 0 -12; 158 16 0 -12;
159 16.5 0 -12; 160 17 0 -12; 161 17.5 0 -12; 162 18 0 -12; 163 18.5 0 -12;
164 19 0 -12; 165 19.5 0 -12; 166 20 0 -12; 167 20.5 0 -12; 168 21 0 -12;
169 21.5 0 -12; 170 22 0 -12; 171 22.5 0 -12; 172 23 0 -12; 173 23.5 0 -12;
174 24 0 -12; 175 24.5 0 -12; 176 25 0 -12; 177 0 0 -11.5; 178 0.5 0 -11.5;
179 1 0 -11.5; 180 1.5 0 -11.5; 181 2 0 -11.5; 182 2.5 0 -11.5; 183 3 0 -11.5;
184 3.5 0 -11.5; 185 4 0 -11.5; 186 4.5 0 -11.5; 187 5 0 -11.5;
188 5.5 0 -11.5; 189 6 0 -11.5; 190 6.5 0 -11.5; 191 7 0 -11.5;
192 7.5 0 -11.5; 193 8 0 -11.5; 194 8.5 0 -11.5; 195 9 0 -11.5;
196 9.5 0 -11.5; 197 10 0 -11.5; 198 10.5 0 -11.5; 199 11 0 -11.5;
200 11.5 0 -11.5; 201 12 0 -11.5; 202 12.5 0 -11.5; 203 13 0 -11.5;
204 13.5 0 -11.5; 205 14 0 -11.5; 206 14.5 0 -11.5; 207 15 0 -11.5;
208 15.5 0 -11.5; 209 16 0 -11.5; 210 16.5 0 -11.5; 211 17 0 -11.5;
212 17.5 0 -11.5; 213 18 0 -11.5; 214 18.5 0 -11.5; 215 19 0 -11.5;
216 19.5 0 -11.5; 217 20 0 -11.5; 218 20.5 0 -11.5; 219 21 0 -11.5;
220 21.5 0 -11.5; 221 22 0 -11.5; 222 22.5 0 -11.5; 223 23 0 -11.5;
224 23.5 0 -11.5; 225 24 0 -11.5; 226 24.5 0 -11.5; 227 25 0 -11.5;
228 0 0 -11; 229 0.5 0 -11; 230 1 0 -11; 231 1.5 0 -11; 232 2 0 -11;
233 2.5 0 -11; 234 3 0 -11; 235 3.5 0 -11; 236 4 0 -11; 237 4.5 0 -11;
238 5 0 -11; 239 5.5 0 -11; 240 6 0 -11; 241 6.5 0 -11; 242 7 0 -11;
243 7.5 0 -11; 244 8 0 -11; 245 8.5 0 -11; 246 9 0 -11; 247 9.5 0 -11;
248 10 0 -11; 249 10.5 0 -11; 250 11 0 -11; 251 11.5 0 -11; 252 12 0 -11;
253 12.5 0 -11; 254 13 0 -11; 255 13.5 0 -11; 256 14 0 -11; 257 14.5 0 -11;
258 15 0 -11; 259 15.5 0 -11; 260 16 0 -11; 261 16.5 0 -11; 262 17 0 -11;
263 17.5 0 -11; 264 18 0 -11; 265 18.5 0 -11; 266 19 0 -11; 267 19.5 0 -11;
268 20 0 -11; 269 20.5 0 -11; 270 21 0 -11; 271 21.5 0 -11; 272 22 0 -11;
273 22.5 0 -11; 274 23 0 -11; 275 23.5 0 -11; 276 24 0 -11; 277 24.5 0 -11;
278 25 0 -11; 279 0.5 0 -10.5; 280 1 0 -10.5; 281 1.5 0 -10.5; 282 2 0 -10.5;
283 2.5 0 -10.5; 284 3 0 -10.5; 285 3.5 0 -10.5; 286 4 0 -10.5;
287 4.5 0 -10.5; 288 5 0 -10.5; 289 5.5 0 -10.5; 290 6 0 -10.5;
291 6.5 0 -10.5; 292 7 0 -10.5; 293 7.5 0 -10.5; 294 8 0 -10.5;
295 8.5 0 -10.5; 296 9 0 -10.5; 297 9.5 0 -10.5; 298 10 0 -10.5;
299 10.5 0 -10.5; 300 11 0 -10.5; 301 11.5 0 -10.5; 302 12 0 -10.5;
303 12.5 0 -10.5; 304 13 0 -10.5; 305 13.5 0 -10.5; 306 14 0 -10.5;
307 14.5 0 -10.5; 308 15 0 -10.5; 309 15.5 0 -10.5; 310 16 0 -10.5;
311 16.5 0 -10.5; 312 17 0 -10.5; 313 17.5 0 -10.5; 314 18 0 -10.5;
315 18.5 0 -10.5; 316 19 0 -10.5; 317 19.5 0 -10.5; 318 20 0 -10.5;
319 20.5 0 -10.5; 320 21 0 -10.5; 321 21.5 0 -10.5; 322 22 0 -10.5;
323 22.5 0 -10.5; 324 23 0 -10.5; 325 23.5 0 -10.5; 326 24 0 -10.5;
327 24.5 0 -10.5; 328 0 0 -10; 329 0.5 0 -10; 330 1 0 -10; 331 1.5 0 -10;
332 2 0 -10; 333 2.5 0 -10; 334 3 0 -10; 335 3.5 0 -10; 336 4 0 -10;
337 4.5 0 -10; 338 5 0 -10; 339 5.5 0 -10; 340 6 0 -10; 341 6.5 0 -10;
342 7 0 -10; 343 7.5 0 -10; 344 8 0 -10; 345 8.5 0 -10; 346 9 0 -10;
347 9.5 0 -10; 348 10 0 -10; 349 10.5 0 -10; 350 11 0 -10; 351 11.5 0 -10;
352 12 0 -10; 353 12.5 0 -10; 354 13 0 -10; 355 13.5 0 -10; 356 14 0 -10;
357 14.5 0 -10; 358 15 0 -10; 359 15.5 0 -10; 360 16 0 -10; 361 16.5 0 -10;
362 17 0 -10; 363 17.5 0 -10; 364 18 0 -10; 365 18.5 0 -10; 366 19 0 -10;
367 19.5 0 -10; 368 20 0 -10; 369 20.5 0 -10; 370 21 0 -10; 371 21.5 0 -10;
372 22 0 -10; 373 22.5 0 -10; 374 23 0 -10; 375 23.5 0 -10; 376 24 0 -10;
377 24.5 0 -10; 378 25 0 -10; 379 0 0 -9.5; 380 0.5 0 -9.5; 381 1 0 -9.5;
382 1.5 0 -9.5; 383 2 0 -9.5; 384 2.5 0 -9.5; 385 3 0 -9.5; 386 3.5 0 -9.5;
387 4 0 -9.5; 388 4.5 0 -9.5; 389 5 0 -9.5; 390 5.5 0 -9.5; 391 6 0 -9.5;
392 6.5 0 -9.5; 393 7 0 -9.5; 394 7.5 0 -9.5; 395 8 0 -9.5; 396 8.5 0 -9.5;
397 9 0 -9.5; 398 9.5 0 -9.5; 399 10 0 -9.5; 400 10.5 0 -9.5; 401 11 0 -9.5;
402 11.5 0 -9.5; 403 12 0 -9.5; 404 12.5 0 -9.5; 405 13 0 -9.5;
406 13.5 0 -9.5; 407 14 0 -9.5; 408 14.5 0 -9.5; 409 15 0 -9.5;
410 15.5 0 -9.5; 411 16 0 -9.5; 412 16.5 0 -9.5; 413 17 0 -9.5;
414 17.5 0 -9.5; 415 18 0 -9.5; 416 18.5 0 -9.5; 417 19 0 -9.5;
418 19.5 0 -9.5; 419 20 0 -9.5; 420 20.5 0 -9.5; 421 21 0 -9.5;
422 21.5 0 -9.5; 423 22 0 -9.5; 424 22.5 0 -9.5; 425 23 0 -9.5;
426 23.5 0 -9.5; 427 24 0 -9.5; 428 24.5 0 -9.5; 429 25 0 -9.5; 430 0 0 -9;
431 0.5 0 -9; 432 1 0 -9; 433 1.5 0 -9; 434 2 0 -9; 435 2.5 0 -9; 436 3 0 -9;
437 3.5 0 -9; 438 4 0 -9; 439 4.5 0 -9; 440 5 0 -9; 441 5.5 0 -9; 442 6 0 -9;
443 6.5 0 -9; 444 7 0 -9; 445 7.5 0 -9; 446 8 0 -9; 447 8.5 0 -9; 448 9 0 -9;
449 9.5 0 -9; 450 10 0 -9; 451 10.5 0 -9; 452 11 0 -9; 453 11.5 0 -9;
454 12 0 -9; 455 12.5 0 -9; 456 13 0 -9; 457 13.5 0 -9; 458 14 0 -9;
459 14.5 0 -9; 460 15 0 -9; 461 15.5 0 -9; 462 16 0 -9; 463 16.5 0 -9;
464 17 0 -9; 465 17.5 0 -9; 466 18 0 -9; 467 18.5 0 -9; 468 19 0 -9;
469 19.5 0 -9; 470 20 0 -9; 471 20.5 0 -9; 472 21 0 -9; 473 21.5 0 -9;
474 22 0 -9; 475 22.5 0 -9; 476 23 0 -9; 477 23.5 0 -9; 478 24 0 -9;
479 24.5 0 -9; 480 25 0 -9; 481 0 0 -8.5; 482 0.5 0 -8.5; 483 1 0 -8.5;
484 1.5 0 -8.5; 485 2 0 -8.5; 486 2.5 0 -8.5; 487 3 0 -8.5; 488 3.5 0 -8.5;
489 4 0 -8.5; 490 4.5 0 -8.5; 491 5 0 -8.5; 492 5.5 0 -8.5; 493 6 0 -8.5;
494 6.5 0 -8.5; 495 7 0 -8.5; 496 7.5 0 -8.5; 497 8 0 -8.5; 498 8.5 0 -8.5;
499 9 0 -8.5; 500 9.5 0 -8.5; 501 10 0 -8.5; 502 10.5 0 -8.5; 503 11 0 -8.5;
504 11.5 0 -8.5; 505 12 0 -8.5; 506 12.5 0 -8.5; 507 13 0 -8.5;
508 13.5 0 -8.5; 509 14 0 -8.5; 510 14.5 0 -8.5; 511 15 0 -8.5;
512 15.5 0 -8.5; 513 16 0 -8.5; 514 16.5 0 -8.5; 515 17 0 -8.5;
516 17.5 0 -8.5; 517 18 0 -8.5; 518 18.5 0 -8.5; 519 19 0 -8.5;
520 19.5 0 -8.5; 521 20 0 -8.5; 522 20.5 0 -8.5; 523 21 0 -8.5;
524 21.5 0 -8.5; 525 22 0 -8.5; 526 22.5 0 -8.5; 527 23 0 -8.5;
528 23.5 0 -8.5; 529 24 0 -8.5; 530 24.5 0 -8.5; 531 25 0 -8.5; 532 0 0 -8;
533 0.5 0 -8; 534 1 0 -8; 535 1.5 0 -8; 536 2 0 -8; 537 2.5 0 -8; 538 3 0 -8;
539 3.5 0 -8; 540 4 0 -8; 541 4.5 0 -8; 542 5 0 -8; 543 5.5 0 -8; 544 6 0 -8;
545 6.5 0 -8; 546 7 0 -8; 547 7.5 0 -8; 548 8 0 -8; 549 8.5 0 -8; 550 9 0 -8;
551 9.5 0 -8; 552 10 0 -8; 553 10.5 0 -8; 554 11 0 -8; 555 11.5 0 -8;
556 12 0 -8; 557 12.5 0 -8; 558 13 0 -8; 559 13.5 0 -8; 560 14 0 -8;
561 14.5 0 -8; 562 15 0 -8; 563 15.5 0 -8; 564 16 0 -8; 565 16.5 0 -8;
566 17 0 -8; 567 17.5 0 -8; 568 18 0 -8; 569 18.5 0 -8; 570 19 0 -8;
571 19.5 0 -8; 572 20 0 -8; 573 20.5 0 -8; 574 21 0 -8; 575 21.5 0 -8;
576 22 0 -8; 577 22.5 0 -8; 578 23 0 -8; 579 23.5 0 -8; 580 24 0 -8;
581 24.5 0 -8; 582 25 0 -8; 583 0.5 0 -7.5; 584 1 0 -7.5; 585 1.5 0 -7.5;
586 2 0 -7.5; 587 2.5 0 -7.5; 588 3 0 -7.5; 589 3.5 0 -7.5; 590 4 0 -7.5;
591 4.5 0 -7.5; 592 5 0 -7.5; 593 5.5 0 -7.5; 594 6 0 -7.5; 595 6.5 0 -7.5;
596 7 0 -7.5; 597 7.5 0 -7.5; 598 8 0 -7.5; 599 8.5 0 -7.5; 600 9 0 -7.5;
601 9.5 0 -7.5; 602 10 0 -7.5; 603 10.5 0 -7.5; 604 11 0 -7.5; 605 11.5 0 -7.5;
606 12 0 -7.5; 607 12.5 0 -7.5; 608 13 0 -7.5; 609 13.5 0 -7.5; 610 14 0 -7.5;
611 14.5 0 -7.5; 612 15 0 -7.5; 613 15.5 0 -7.5; 614 16 0 -7.5;
615 16.5 0 -7.5; 616 17 0 -7.5; 617 17.5 0 -7.5; 618 18 0 -7.5;
619 18.5 0 -7.5; 620 19 0 -7.5; 621 19.5 0 -7.5; 622 20 0 -7.5;
623 20.5 0 -7.5; 624 21 0 -7.5; 625 21.5 0 -7.5; 626 22 0 -7.5;
627 22.5 0 -7.5; 628 23 0 -7.5; 629 23.5 0 -7.5; 630 24 0 -7.5;
631 24.5 0 -7.5; 632 0 0 -7; 633 0.5 0 -7; 634 1 0 -7; 635 1.5 0 -7;
636 2 0 -7; 637 2.5 0 -7; 638 3 0 -7; 639 3.5 0 -7; 640 4 0 -7; 641 4.5 0 -7;
642 5 0 -7; 643 5.5 0 -7; 644 6 0 -7; 645 6.5 0 -7; 646 7 0 -7; 647 7.5 0 -7;
648 8 0 -7; 649 8.5 0 -7; 650 9 0 -7; 651 9.5 0 -7; 652 10 0 -7; 653 10.5 0 -7;
654 11 0 -7; 655 11.5 0 -7; 656 12 0 -7; 657 12.5 0 -7; 658 13 0 -7;
659 13.5 0 -7; 660 14 0 -7; 661 14.5 0 -7; 662 15 0 -7; 663 15.5 0 -7;
664 16 0 -7; 665 16.5 0 -7; 666 17 0 -7; 667 17.5 0 -7; 668 18 0 -7;
669 18.5 0 -7; 670 19 0 -7; 671 19.5 0 -7; 672 20 0 -7; 673 20.5 0 -7;
674 21 0 -7; 675 21.5 0 -7; 676 22 0 -7; 677 22.5 0 -7; 678 23 0 -7;
679 23.5 0 -7; 680 24 0 -7; 681 24.5 0 -7; 682 25 0 -7; 683 0 0 -6.5;
684 0.5 0 -6.5; 685 1 0 -6.5; 686 1.5 0 -6.5; 687 2 0 -6.5; 688 2.5 0 -6.5;
689 3 0 -6.5; 690 3.5 0 -6.5; 691 4 0 -6.5; 692 4.5 0 -6.5; 693 5 0 -6.5;
694 5.5 0 -6.5; 695 6 0 -6.5; 696 6.5 0 -6.5; 697 7 0 -6.5; 698 7.5 0 -6.5;
699 8 0 -6.5; 700 8.5 0 -6.5; 701 9 0 -6.5; 702 9.5 0 -6.5; 703 10 0 -6.5;
704 10.5 0 -6.5; 705 11 0 -6.5; 706 11.5 0 -6.5; 707 12 0 -6.5;
708 12.5 0 -6.5; 709 13 0 -6.5; 710 13.5 0 -6.5; 711 14 0 -6.5;
712 14.5 0 -6.5; 713 15 0 -6.5; 714 15.5 0 -6.5; 715 16 0 -6.5;
716 16.5 0 -6.5; 717 17 0 -6.5; 718 17.5 0 -6.5; 719 18 0 -6.5;
720 18.5 0 -6.5; 721 19 0 -6.5; 722 19.5 0 -6.5; 723 20 0 -6.5;
724 20.5 0 -6.5; 725 21 0 -6.5; 726 21.5 0 -6.5; 727 22 0 -6.5;
728 22.5 0 -6.5; 729 23 0 -6.5; 730 23.5 0 -6.5; 731 24 0 -6.5;
732 24.5 0 -6.5; 733 25 0 -6.5; 734 0 0 -6; 735 0.5 0 -6; 736 1 0 -6;
737 1.5 0 -6; 738 2 0 -6; 739 2.5 0 -6; 740 3 0 -6; 741 3.5 0 -6; 742 4 0 -6;
743 4.5 0 -6; 744 5 0 -6; 745 5.5 0 -6; 746 6 0 -6; 747 6.5 0 -6; 748 7 0 -6;
749 7.5 0 -6; 750 8 0 -6; 751 8.5 0 -6; 752 9 0 -6; 753 9.5 0 -6; 754 10 0 -6;
755 10.5 0 -6; 756 11 0 -6; 757 11.5 0 -6; 758 12 0 -6; 759 12.5 0 -6;
760 13 0 -6; 761 13.5 0 -6; 762 14 0 -6; 763 14.5 0 -6; 764 15 0 -6;
765 15.5 0 -6; 766 16 0 -6; 767 16.5 0 -6; 768 17 0 -6; 769 17.5 0 -6;
770 18 0 -6; 771 18.5 0 -6; 772 19 0 -6; 773 19.5 0 -6; 774 20 0 -6;
775 20.5 0 -6; 776 21 0 -6; 777 21.5 0 -6; 778 22 0 -6; 779 22.5 0 -6;
780 23 0 -6; 781 23.5 0 -6; 782 24 0 -6; 783 24.5 0 -6; 784 25 0 -6;
785 0 0 -5.5; 786 0.5 0 -5.5; 787 1 0 -5.5; 788 1.5 0 -5.5; 789 2 0 -5.5;
790 2.5 0 -5.5; 791 3 0 -5.5; 792 3.5 0 -5.5; 793 4 0 -5.5; 794 4.5 0 -5.5;
795 5 0 -5.5; 796 5.5 0 -5.5; 797 6 0 -5.5; 798 6.5 0 -5.5; 799 7 0 -5.5;
800 7.5 0 -5.5; 801 8 0 -5.5; 802 8.5 0 -5.5; 803 9 0 -5.5; 804 9.5 0 -5.5;
805 10 0 -5.5; 806 10.5 0 -5.5; 807 11 0 -5.5; 808 11.5 0 -5.5; 809 12 0 -5.5;
810 12.5 0 -5.5; 811 13 0 -5.5; 812 13.5 0 -5.5; 813 14 0 -5.5;
814 14.5 0 -5.5; 815 15 0 -5.5; 816 15.5 0 -5.5; 817 16 0 -5.5;
818 16.5 0 -5.5; 819 17 0 -5.5; 820 17.5 0 -5.5; 821 18 0 -5.5;
822 18.5 0 -5.5; 823 19 0 -5.5; 824 19.5 0 -5.5; 825 20 0 -5.5;
826 20.5 0 -5.5; 827 21 0 -5.5; 828 21.5 0 -5.5; 829 22 0 -5.5;
830 22.5 0 -5.5; 831 23 0 -5.5; 832 23.5 0 -5.5; 833 24 0 -5.5;
834 24.5 0 -5.5; 835 25 0 -5.5; 836 0 0 -5; 837 0.5 0 -5; 838 1 0 -5;
839 1.5 0 -5; 840 2 0 -5; 841 2.5 0 -5; 842 3 0 -5; 843 3.5 0 -5; 844 4 0 -5;
845 4.5 0 -5; 846 5 0 -5; 847 5.5 0 -5; 848 6 0 -5; 849 6.5 0 -5; 850 7 0 -5;
851 7.5 0 -5; 852 8 0 -5; 853 8.5 0 -5; 854 9 0 -5; 855 9.5 0 -5; 856 10 0 -5;
857 10.5 0 -5; 858 11 0 -5; 859 11.5 0 -5; 860 12 0 -5; 861 12.5 0 -5;
862 13 0 -5; 863 13.5 0 -5; 864 14 0 -5; 865 14.5 0 -5; 866 15 0 -5;
867 15.5 0 -5; 868 16 0 -5; 869 16.5 0 -5; 870 17 0 -5; 871 17.5 0 -5;
872 18 0 -5; 873 18.5 0 -5; 874 19 0 -5; 875 19.5 0 -5; 876 20 0 -5;
877 20.5 0 -5; 878 21 0 -5; 879 21.5 0 -5; 880 22 0 -5; 881 22.5 0 -5;
882 23 0 -5; 883 23.5 0 -5; 884 24 0 -5; 885 24.5 0 -5; 886 25 0 -5;
887 0.5 0 -4.5; 888 1 0 -4.5; 889 1.5 0 -4.5; 890 2 0 -4.5; 891 2.5 0 -4.5;
892 3 0 -4.5; 893 3.5 0 -4.5; 894 4 0 -4.5; 895 4.5 0 -4.5; 896 5 0 -4.5;
897 5.5 0 -4.5; 898 6 0 -4.5; 899 6.5 0 -4.5; 900 7 0 -4.5; 901 7.5 0 -4.5;
902 8 0 -4.5; 903 8.5 0 -4.5; 904 9 0 -4.5; 905 9.5 0 -4.5; 906 10 0 -4.5;
907 10.5 0 -4.5; 908 11 0 -4.5; 909 11.5 0 -4.5; 910 12 0 -4.5;
911 12.5 0 -4.5; 912 13 0 -4.5; 913 13.5 0 -4.5; 914 14 0 -4.5;
915 14.5 0 -4.5; 916 15 0 -4.5; 917 15.5 0 -4.5; 918 16 0 -4.5;
919 16.5 0 -4.5; 920 17 0 -4.5; 921 17.5 0 -4.5; 922 18 0 -4.5;
923 18.5 0 -4.5; 924 19 0 -4.5; 925 19.5 0 -4.5; 926 20 0 -4.5;
927 20.5 0 -4.5; 928 21 0 -4.5; 929 21.5 0 -4.5; 930 22 0 -4.5;
931 22.5 0 -4.5; 932 23 0 -4.5; 933 23.5 0 -4.5; 934 24 0 -4.5;
935 24.5 0 -4.5; 936 0 0 -4; 937 0.5 0 -4; 938 1 0 -4; 939 1.5 0 -4;
940 2 0 -4; 941 2.5 0 -4; 942 3 0 -4; 943 3.5 0 -4; 944 4 0 -4; 945 4.5 0 -4;
946 5 0 -4; 947 5.5 0 -4; 948 6 0 -4; 949 6.5 0 -4; 950 7 0 -4; 951 7.5 0 -4;
952 8 0 -4; 953 8.5 0 -4; 954 9 0 -4; 955 9.5 0 -4; 956 10 0 -4; 957 10.5 0 -4;
958 11 0 -4; 959 11.5 0 -4; 960 12 0 -4; 961 12.5 0 -4; 962 13 0 -4;
963 13.5 0 -4; 964 14 0 -4; 965 14.5 0 -4; 966 15 0 -4; 967 15.5 0 -4;
968 16 0 -4; 969 16.5 0 -4; 970 17 0 -4; 971 17.5 0 -4; 972 18 0 -4;
973 18.5 0 -4; 974 19 0 -4; 975 19.5 0 -4; 976 20 0 -4; 977 20.5 0 -4;
978 21 0 -4; 979 21.5 0 -4; 980 22 0 -4; 981 22.5 0 -4; 982 23 0 -4;
983 23.5 0 -4; 984 24 0 -4; 985 24.5 0 -4; 986 25 0 -4; 987 0 0 -3.5;
988 0.5 0 -3.5; 989 1 0 -3.5; 990 1.5 0 -3.5; 991 2 0 -3.5; 992 2.5 0 -3.5;
993 3 0 -3.5; 994 3.5 0 -3.5; 995 4 0 -3.5; 996 4.5 0 -3.5; 997 5 0 -3.5;
998 5.5 0 -3.5; 999 6 0 -3.5; 1000 6.5 0 -3.5; 1001 7 0 -3.5; 1002 7.5 0 -3.5;
1003 8 0 -3.5; 1004 8.5 0 -3.5; 1005 9 0 -3.5; 1006 9.5 0 -3.5; 1007 10 0 -3.5;
1008 10.5 0 -3.5; 1009 11 0 -3.5; 1010 11.5 0 -3.5; 1011 12 0 -3.5;
1012 12.5 0 -3.5; 1013 13 0 -3.5; 1014 13.5 0 -3.5; 1015 14 0 -3.5;
1016 14.5 0 -3.5; 1017 15 0 -3.5; 1018 15.5 0 -3.5; 1019 16 0 -3.5;
1020 16.5 0 -3.5; 1021 17 0 -3.5; 1022 17.5 0 -3.5; 1023 18 0 -3.5;
1024 18.5 0 -3.5; 1025 19 0 -3.5; 1026 19.5 0 -3.5; 1027 20 0 -3.5;
1028 20.5 0 -3.5; 1029 21 0 -3.5; 1030 21.5 0 -3.5; 1031 22 0 -3.5;
1032 22.5 0 -3.5; 1033 23 0 -3.5; 1034 23.5 0 -3.5; 1035 24 0 -3.5;
1036 24.5 0 -3.5; 1037 25 0 -3.5; 1038 0 0 -3; 1039 0.5 0 -3; 1040 1 0 -3;
1041 1.5 0 -3; 1042 2 0 -3; 1043 2.5 0 -3; 1044 3 0 -3; 1045 3.5 0 -3;
1046 4 0 -3; 1047 4.5 0 -3; 1048 5 0 -3; 1049 5.5 0 -3; 1050 6 0 -3;
1051 6.5 0 -3; 1052 7 0 -3; 1053 7.5 0 -3; 1054 8 0 -3; 1055 8.5 0 -3;
1056 9 0 -3; 1057 9.5 0 -3; 1058 10 0 -3; 1059 10.5 0 -3; 1060 11 0 -3;
1061 11.5 0 -3; 1062 12 0 -3; 1063 12.5 0 -3; 1064 13 0 -3; 1065 13.5 0 -3;
1066 14 0 -3; 1067 14.5 0 -3; 1068 15 0 -3; 1069 15.5 0 -3; 1070 16 0 -3;
1071 16.5 0 -3; 1072 17 0 -3; 1073 17.5 0 -3; 1074 18 0 -3; 1075 18.5 0 -3;
1076 19 0 -3; 1077 19.5 0 -3; 1078 20 0 -3; 1079 20.5 0 -3; 1080 21 0 -3;
1081 21.5 0 -3; 1082 22 0 -3; 1083 22.5 0 -3; 1084 23 0 -3; 1085 23.5 0 -3;
1086 24 0 -3; 1087 24.5 0 -3; 1088 25 0 -3; 1089 0 0 -2.5; 1090 0.5 0 -2.5;
1091 1 0 -2.5; 1092 1.5 0 -2.5; 1093 2 0 -2.5; 1094 2.5 0 -2.5; 1095 3 0 -2.5;
1096 3.5 0 -2.5; 1097 4 0 -2.5; 1098 4.5 0 -2.5; 1099 5 0 -2.5;
1100 5.5 0 -2.5; 1101 6 0 -2.5; 1102 6.5 0 -2.5; 1103 7 0 -2.5;
1104 7.5 0 -2.5; 1105 8 0 -2.5; 1106 8.5 0 -2.5; 1107 9 0 -2.5;
1108 9.5 0 -2.5; 1109 10 0 -2.5; 1110 10.5 0 -2.5; 1111 11 0 -2.5;
1112 11.5 0 -2.5; 1113 12 0 -2.5; 1114 12.5 0 -2.5; 1115 13 0 -2.5;
1116 13.5 0 -2.5; 1117 14 0 -2.5; 1118 14.5 0 -2.5; 1119 15 0 -2.5;
1120 15.5 0 -2.5; 1121 16 0 -2.5; 1122 16.5 0 -2.5; 1123 17 0 -2.5;
1124 17.5 0 -2.5; 1125 18 0 -2.5; 1126 18.5 0 -2.5; 1127 19 0 -2.5;
1128 19.5 0 -2.5; 1129 20 0 -2.5; 1130 20.5 0 -2.5; 1131 21 0 -2.5;
1132 21.5 0 -2.5; 1133 22 0 -2.5; 1134 22.5 0 -2.5; 1135 23 0 -2.5;
1136 23.5 0 -2.5; 1137 24 0 -2.5; 1138 24.5 0 -2.5; 1139 25 0 -2.5;
1140 0 0 -2; 1141 0.5 0 -2; 1142 1 0 -2; 1143 1.5 0 -2; 1144 2 0 -2;
1145 2.5 0 -2; 1146 3 0 -2; 1147 3.5 0 -2; 1148 4 0 -2; 1149 4.5 0 -2;
1150 5 0 -2; 1151 5.5 0 -2; 1152 6 0 -2; 1153 6.5 0 -2; 1154 7 0 -2;
1155 7.5 0 -2; 1156 8 0 -2; 1157 8.5 0 -2; 1158 9 0 -2; 1159 9.5 0 -2;
1160 10 0 -2; 1161 10.5 0 -2; 1162 11 0 -2; 1163 11.5 0 -2; 1164 12 0 -2;
1165 12.5 0 -2; 1166 13 0 -2; 1167 13.5 0 -2; 1168 14 0 -2; 1169 14.5 0 -2;
1170 15 0 -2; 1171 15.5 0 -2; 1172 16 0 -2; 1173 16.5 0 -2; 1174 17 0 -2;
1175 17.5 0 -2; 1176 18 0 -2; 1177 18.5 0 -2; 1178 19 0 -2; 1179 19.5 0 -2;
1180 20 0 -2; 1181 20.5 0 -2; 1182 21 0 -2; 1183 21.5 0 -2; 1184 22 0 -2;
1185 22.5 0 -2; 1186 23 0 -2; 1187 23.5 0 -2; 1188 24 0 -2; 1189 24.5 0 -2;
1190 25 0 -2; 1191 0.5 0 -1.5; 1192 1 0 -1.5; 1193 1.5 0 -1.5; 1194 2 0 -1.5;
1195 2.5 0 -1.5; 1196 3 0 -1.5; 1197 3.5 0 -1.5; 1198 4 0 -1.5;
1199 4.5 0 -1.5; 1200 5 0 -1.5; 1201 5.5 0 -1.5; 1202 6 0 -1.5;
1203 6.5 0 -1.5; 1204 7 0 -1.5; 1205 7.5 0 -1.5; 1206 8 0 -1.5;
1207 8.5 0 -1.5; 1208 9 0 -1.5; 1209 9.5 0 -1.5; 1210 10 0 -1.5;
1211 10.5 0 -1.5; 1212 11 0 -1.5; 1213 11.5 0 -1.5; 1214 12 0 -1.5;
1215 12.5 0 -1.5; 1216 13 0 -1.5; 1217 13.5 0 -1.5; 1218 14 0 -1.5;
1219 14.5 0 -1.5; 1220 15 0 -1.5; 1221 15.5 0 -1.5; 1222 16 0 -1.5;
1223 16.5 0 -1.5; 1224 17 0 -1.5; 1225 17.5 0 -1.5; 1226 18 0 -1.5;
1227 18.5 0 -1.5; 1228 19 0 -1.5; 1229 19.5 0 -1.5; 1230 20 0 -1.5;
1231 20.5 0 -1.5; 1232 21 0 -1.5; 1233 21.5 0 -1.5; 1234 22 0 -1.5;
1235 22.5 0 -1.5; 1236 23 0 -1.5; 1237 23.5 0 -1.5; 1238 24 0 -1.5;
1239 24.5 0 -1.5; 1240 0 0 -1; 1241 0.5 0 -1; 1242 1 0 -1; 1243 1.5 0 -1;
1244 2 0 -1; 1245 2.5 0 -1; 1246 3 0 -1; 1247 3.5 0 -1; 1248 4 0 -1;
1249 4.5 0 -1; 1250 5 0 -1; 1251 5.5 0 -1; 1252 6 0 -1; 1253 6.5 0 -1;
1254 7 0 -1; 1255 7.5 0 -1; 1256 8 0 -1; 1257 8.5 0 -1; 1258 9 0 -1;
1259 9.5 0 -1; 1260 10 0 -1; 1261 10.5 0 -1; 1262 11 0 -1; 1263 11.5 0 -1;
1264 12 0 -1; 1265 12.5 0 -1; 1266 13 0 -1; 1267 13.5 0 -1; 1268 14 0 -1;
1269 14.5 0 -1; 1270 15 0 -1; 1271 15.5 0 -1; 1272 16 0 -1; 1273 16.5 0 -1;
1274 17 0 -1; 1275 17.5 0 -1; 1276 18 0 -1; 1277 18.5 0 -1; 1278 19 0 -1;
1279 19.5 0 -1; 1280 20 0 -1; 1281 20.5 0 -1; 1282 21 0 -1; 1283 21.5 0 -1;
1284 22 0 -1; 1285 22.5 0 -1; 1286 23 0 -1; 1287 23.5 0 -1; 1288 24 0 -1;
1289 24.5 0 -1; 1290 25 0 -1; 1291 0 0 -0.5; 1292 0.5 0 -0.5; 1293 1 0 -0.5;
1294 1.5 0 -0.5; 1295 2 0 -0.5; 1296 2.5 0 -0.5; 1297 3 0 -0.5;
1298 3.5 0 -0.5; 1299 4 0 -0.5; 1300 4.5 0 -0.5; 1301 5 0 -0.5;
1302 5.5 0 -0.5; 1303 6 0 -0.5; 1304 6.5 0 -0.5; 1305 7 0 -0.5;
1306 7.5 0 -0.5; 1307 8 0 -0.5; 1308 8.5 0 -0.5; 1309 9 0 -0.5;
1310 9.5 0 -0.5; 1311 10 0 -0.5; 1312 10.5 0 -0.5; 1313 11 0 -0.5;
1314 11.5 0 -0.5; 1315 12 0 -0.5; 1316 12.5 0 -0.5; 1317 13 0 -0.5;
1318 13.5 0 -0.5; 1319 14 0 -0.5; 1320 14.5 0 -0.5; 1321 15 0 -0.5;
1322 15.5 0 -0.5; 1323 16 0 -0.5; 1324 16.5 0 -0.5; 1325 17 0 -0.5;
1326 17.5 0 -0.5; 1327 18 0 -0.5; 1328 18.5 0 -0.5; 1329 19 0 -0.5;
1330 19.5 0 -0.5; 1331 20 0 -0.5; 1332 20.5 0 -0.5; 1333 21 0 -0.5;
1334 21.5 0 -0.5; 1335 22 0 -0.5; 1336 22.5 0 -0.5; 1337 23 0 -0.5;
1338 23.5 0 -0.5; 1339 24 0 -0.5; 1340 24.5 0 -0.5; 1341 25 0 -0.5; 1342 0 0 0;
1343 0.5 0 0; 1344 1 0 0; 1345 1.5 0 0; 1346 2 0 0; 1347 2.5 0 0; 1348 3 0 0;
1349 3.5 0 0; 1350 4 0 0; 1351 4.5 0 0; 1352 5 0 0; 1353 5.5 0 0; 1354 6 0 0;
1355 6.5 0 0; 1356 7 0 0; 1357 7.5 0 0; 1358 8 0 0; 1359 8.5 0 0; 1360 9 0 0;
1361 9.5 0 0; 1362 10 0 0; 1363 10.5 0 0; 1364 11 0 0; 1365 11.5 0 0;
1366 12 0 0; 1367 12.5 0 0; 1368 13 0 0; 1369 13.5 0 0; 1370 14 0 0;
1371 14.5 0 0; 1372 15 0 0; 1373 15.5 0 0; 1374 16 0 0; 1375 16.5 0 0;
1376 17 0 0; 1377 17.5 0 0; 1378 18 0 0; 1379 18.5 0 0; 1380 19 0 0;
1381 19.5 0 0; 1382 20 0 0; 1383 20.5 0 0; 1384 21 0 0; 1385 21.5 0 0;
1386 22 0 0; 1387 22.5 0 0; 1388 23 0 0; 1389 23.5 0 0; 1390 24 0 0;
1391 24.5 0 0; 1392 25 0 0; 1393 0 0 0.5; 1394 0.5 0 0.5; 1395 1 0 0.5;
1396 1.5 0 0.5; 1397 2 0 0.5; 1398 2.5 0 0.5; 1399 3 0 0.5; 1400 3.5 0 0.5;
1401 4 0 0.5; 1402 4.5 0 0.5; 1403 5 0 0.5; 1404 5.5 0 0.5; 1405 6 0 0.5;
1406 6.5 0 0.5; 1407 7 0 0.5; 1408 7.5 0 0.5; 1409 8 0 0.5; 1410 8.5 0 0.5;
1411 9 0 0.5; 1412 9.5 0 0.5; 1413 10 0 0.5; 1414 10.5 0 0.5; 1415 11 0 0.5;
1416 11.5 0 0.5; 1417 12 0 0.5; 1418 12.5 0 0.5; 1419 13 0 0.5;
1420 13.5 0 0.5; 1421 14 0 0.5; 1422 14.5 0 0.5; 1423 15 0 0.5;
1424 15.5 0 0.5; 1425 16 0 0.5; 1426 16.5 0 0.5; 1427 17 0 0.5;
1428 17.5 0 0.5; 1429 18 0 0.5; 1430 18.5 0 0.5; 1431 19 0 0.5;
1432 19.5 0 0.5; 1433 20 0 0.5; 1434 20.5 0 0.5; 1435 21 0 0.5;
1436 21.5 0 0.5; 1437 22 0 0.5; 1438 22.5 0 0.5; 1439 23 0 0.5;
1440 23.5 0 0.5; 1441 24 0 0.5; 1442 24.5 0 0.5; 1443 25 0 0.5; 1444 0 0 1;
1445 0.5 0 1; 1446 1 0 1; 1447 1.5 0 1; 1448 2 0 1; 1449 2.5 0 1; 1450 3 0 1;
1451 3.5 0 1; 1452 4 0 1; 1453 4.5 0 1; 1454 5 0 1; 1455 5.5 0 1; 1456 6 0 1;
1457 6.5 0 1; 1458 7 0 1; 1459 7.5 0 1; 1460 8 0 1; 1461 8.5 0 1; 1462 9 0 1;
1463 9.5 0 1; 1464 10 0 1; 1465 10.5 0 1; 1466 11 0 1; 1467 11.5 0 1;
1468 12 0 1; 1469 12.5 0 1; 1470 13 0 1; 1471 13.5 0 1; 1472 14 0 1;
1473 14.5 0 1; 1474 15 0 1; 1475 15.5 0 1; 1476 16 0 1; 1477 16.5 0 1;
1478 17 0 1; 1479 17.5 0 1; 1480 18 0 1; 1481 18.5 0 1; 1482 19 0 1;
1483 19.5 0 1; 1484 20 0 1; 1485 20.5 0 1; 1486 21 0 1; 1487 21.5 0 1;
1488 22 0 1; 1489 22.5 0 1; 1490 23 0 1; 1491 23.5 0 1; 1492 24 0 1;
1493 24.5 0 1; 1494 25 0 1; 1495 0.5 0 1.5; 1496 1 0 1.5; 1497 1.5 0 1.5;
1498 2 0 1.5; 1499 2.5 0 1.5; 1500 3 0 1.5; 1501 3.5 0 1.5; 1502 4 0 1.5;
1503 4.5 0 1.5; 1504 5 0 1.5; 1505 5.5 0 1.5; 1506 6 0 1.5; 1507 6.5 0 1.5;
1508 7 0 1.5; 1509 7.5 0 1.5; 1510 8 0 1.5; 1511 8.5 0 1.5; 1512 9 0 1.5;
1513 9.5 0 1.5; 1514 10 0 1.5; 1515 10.5 0 1.5; 1516 11 0 1.5; 1517 11.5 0 1.5;
1518 12 0 1.5; 1519 12.5 0 1.5; 1520 13 0 1.5; 1521 13.5 0 1.5; 1522 14 0 1.5;
1523 14.5 0 1.5; 1524 15 0 1.5; 1525 15.5 0 1.5; 1526 16 0 1.5;
1527 16.5 0 1.5; 1528 17 0 1.5; 1529 17.5 0 1.5; 1530 18 0 1.5;
1531 18.5 0 1.5; 1532 19 0 1.5; 1533 19.5 0 1.5; 1534 20 0 1.5;
1535 20.5 0 1.5; 1536 21 0 1.5; 1537 21.5 0 1.5; 1538 22 0 1.5;
1539 22.5 0 1.5; 1540 23 0 1.5; 1541 23.5 0 1.5; 1542 24 0 1.5;
1543 24.5 0 1.5; 1544 0 0 2; 1545 0.5 0 2; 1546 1 0 2; 1547 1.5 0 2;
1548 2 0 2; 1549 2.5 0 2; 1550 3 0 2; 1551 3.5 0 2; 1552 4 0 2; 1553 4.5 0 2;
1554 5 0 2; 1555 5.5 0 2; 1556 6 0 2; 1557 6.5 0 2; 1558 7 0 2; 1559 7.5 0 2;
1560 8 0 2; 1561 8.5 0 2; 1562 9 0 2; 1563 9.5 0 2; 1564 10 0 2; 1565 10.5 0 2;
1566 11 0 2; 1567 11.5 0 2; 1568 12 0 2; 1569 12.5 0 2; 1570 13 0 2;
1571 13.5 0 2; 1572 14 0 2; 1573 14.5 0 2; 1574 15 0 2; 1575 15.5 0 2;
1576 16 0 2; 1577 16.5 0 2; 1578 17 0 2; 1579 17.5 0 2; 1580 18 0 2;
1581 18.5 0 2; 1582 19 0 2; 1583 19.5 0 2; 1584 20 0 2; 1585 20.5 0 2;
1586 21 0 2; 1587 21.5 0 2; 1588 22 0 2; 1589 22.5 0 2; 1590 23 0 2;
1591 23.5 0 2; 1592 24 0 2; 1593 24.5 0 2; 1594 25 0 2; 1595 0 0 2.5;
1596 0.5 0 2.5; 1597 1 0 2.5; 1598 1.5 0 2.5; 1599 2 0 2.5; 1600 2.5 0 2.5;
1601 3 0 2.5; 1602 3.5 0 2.5; 1603 4 0 2.5; 1604 4.5 0 2.5; 1605 5 0 2.5;
1606 5.5 0 2.5; 1607 6 0 2.5; 1608 6.5 0 2.5; 1609 7 0 2.5; 1610 7.5 0 2.5;
1611 8 0 2.5; 1612 8.5 0 2.5; 1613 9 0 2.5; 1614 9.5 0 2.5; 1615 10 0 2.5;
1616 10.5 0 2.5; 1617 11 0 2.5; 1618 11.5 0 2.5; 1619 12 0 2.5;
1620 12.5 0 2.5; 1621 13 0 2.5; 1622 13.5 0 2.5; 1623 14 0 2.5;
1624 14.5 0 2.5; 1625 15 0 2.5; 1626 15.5 0 2.5; 1627 16 0 2.5;
1628 16.5 0 2.5; 1629 17 0 2.5; 1630 17.5 0 2.5; 1631 18 0 2.5;
1632 18.5 0 2.5; 1633 19 0 2.5; 1634 19.5 0 2.5; 1635 20 0 2.5;
1636 20.5 0 2.5; 1637 21 0 2.5; 1638 21.5 0 2.5; 1639 22 0 2.5;
1640 22.5 0 2.5; 1641 23 0 2.5; 1642 23.5 0 2.5; 1643 24 0 2.5;
1644 24.5 0 2.5; 1645 25 0 2.5; 1646 0 0 3; 1647 0.5 0 3; 1648 1 0 3;
1649 1.5 0 3; 1650 2 0 3; 1651 2.5 0 3; 1652 3 0 3; 1653 3.5 0 3; 1654 4 0 3;
1655 4.5 0 3; 1656 5 0 3; 1657 5.5 0 3; 1658 6 0 3; 1659 6.5 0 3; 1660 7 0 3;
1661 7.5 0 3; 1662 8 0 3; 1663 8.5 0 3; 1664 9 0 3; 1665 9.5 0 3; 1666 10 0 3;
1667 10.5 0 3; 1668 11 0 3; 1669 11.5 0 3; 1670 12 0 3; 1671 12.5 0 3;
1672 13 0 3; 1673 13.5 0 3; 1674 14 0 3; 1675 14.5 0 3; 1676 15 0 3;
1677 15.5 0 3; 1678 16 0 3; 1679 16.5 0 3; 1680 17 0 3; 1681 17.5 0 3;
1682 18 0 3; 1683 18.5 0 3; 1684 19 0 3; 1685 19.5 0 3; 1686 20 0 3;
1687 20.5 0 3; 1688 21 0 3; 1689 21.5 0 3; 1690 22 0 3; 1691 22.5 0 3;
1692 23 0 3; 1693 23.5 0 3; 1694 24 0 3; 1695 24.5 0 3; 1696 25 0 3;
1697 0 0 3.5; 1698 0.5 0 3.5; 1699 1 0 3.5; 1700 1.5 0 3.5; 1701 2 0 3.5;
1702 2.5 0 3.5; 1703 3 0 3.5; 1704 3.5 0 3.5; 1705 4 0 3.5; 1706 4.5 0 3.5;
1707 5 0 3.5; 1708 5.5 0 3.5; 1709 6 0 3.5; 1710 6.5 0 3.5; 1711 7 0 3.5;
1712 7.5 0 3.5; 1713 8 0 3.5; 1714 8.5 0 3.5; 1715 9 0 3.5; 1716 9.5 0 3.5;
1717 10 0 3.5; 1718 10.5 0 3.5; 1719 11 0 3.5; 1720 11.5 0 3.5; 1721 12 0 3.5;
1722 12.5 0 3.5; 1723 13 0 3.5; 1724 13.5 0 3.5; 1725 14 0 3.5;
1726 14.5 0 3.5; 1727 15 0 3.5; 1728 15.5 0 3.5; 1729 16 0 3.5;
1730 16.5 0 3.5; 1731 17 0 3.5; 1732 17.5 0 3.5; 1733 18 0 3.5;
1734 18.5 0 3.5; 1735 19 0 3.5; 1736 19.5 0 3.5; 1737 20 0 3.5;
1738 20.5 0 3.5; 1739 21 0 3.5; 1740 21.5 0 3.5; 1741 22 0 3.5;
1742 22.5 0 3.5; 1743 23 0 3.5; 1744 23.5 0 3.5; 1745 24 0 3.5;
1746 24.5 0 3.5; 1747 25 0 3.5; 1748 0 0 4; 1749 0.5 0 4; 1750 1 0 4;
1751 1.5 0 4; 1752 2 0 4; 1753 2.5 0 4; 1754 3 0 4; 1755 3.5 0 4; 1756 4 0 4;
1757 4.5 0 4; 1758 5 0 4; 1759 5.5 0 4; 1760 6 0 4; 1761 6.5 0 4; 1762 7 0 4;
1763 7.5 0 4; 1764 8 0 4; 1765 8.5 0 4; 1766 9 0 4; 1767 9.5 0 4; 1768 10 0 4;
1769 10.5 0 4; 1770 11 0 4; 1771 11.5 0 4; 1772 12 0 4; 1773 12.5 0 4;
1774 13 0 4; 1775 13.5 0 4; 1776 14 0 4; 1777 14.5 0 4; 1778 15 0 4;
1779 15.5 0 4; 1780 16 0 4; 1781 16.5 0 4; 1782 17 0 4; 1783 17.5 0 4;
1784 18 0 4; 1785 18.5 0 4; 1786 19 0 4; 1787 19.5 0 4; 1788 20 0 4;
1789 20.5 0 4; 1790 21 0 4; 1791 21.5 0 4; 1792 22 0 4; 1793 22.5 0 4;
1794 23 0 4; 1795 23.5 0 4; 1796 24 0 4; 1797 24.5 0 4; 1798 25 0 4;
1799 0.5 0 4.5; 1800 1 0 4.5; 1801 1.5 0 4.5; 1802 2 0 4.5; 1803 2.5 0 4.5;
1804 3 0 4.5; 1805 3.5 0 4.5; 1806 4 0 4.5; 1807 4.5 0 4.5; 1808 5 0 4.5;
1809 5.5 0 4.5; 1810 6 0 4.5; 1811 6.5 0 4.5; 1812 7 0 4.5; 1813 7.5 0 4.5;
1814 8 0 4.5; 1815 8.5 0 4.5; 1816 9 0 4.5; 1817 9.5 0 4.5; 1818 10 0 4.5;
1819 10.5 0 4.5; 1820 11 0 4.5; 1821 11.5 0 4.5; 1822 12 0 4.5;
1823 12.5 0 4.5; 1824 13 0 4.5; 1825 13.5 0 4.5; 1826 14 0 4.5;
1827 14.5 0 4.5; 1828 15 0 4.5; 1829 15.5 0 4.5; 1830 16 0 4.5;
1831 16.5 0 4.5; 1832 17 0 4.5; 1833 17.5 0 4.5; 1834 18 0 4.5;
1835 18.5 0 4.5; 1836 19 0 4.5; 1837 19.5 0 4.5; 1838 20 0 4.5;
1839 20.5 0 4.5; 1840 21 0 4.5; 1841 21.5 0 4.5; 1842 22 0 4.5;
1843 22.5 0 4.5; 1844 23 0 4.5; 1845 23.5 0 4.5; 1846 24 0 4.5;
1847 24.5 0 4.5; 1848 0 0 5; 1849 0.5 0 5; 1850 1 0 5; 1851 1.5 0 5;
1852 2 0 5; 1853 2.5 0 5; 1854 3 0 5; 1855 3.5 0 5; 1856 4 0 5; 1857 4.5 0 5;
1858 5 0 5; 1859 5.5 0 5; 1860 6 0 5; 1861 6.5 0 5; 1862 7 0 5; 1863 7.5 0 5;
1864 8 0 5; 1865 8.5 0 5; 1866 9 0 5; 1867 9.5 0 5; 1868 10 0 5; 1869 10.5 0 5;
1870 11 0 5; 1871 11.5 0 5; 1872 12 0 5; 1873 12.5 0 5; 1874 13 0 5;
1875 13.5 0 5; 1876 14 0 5; 1877 14.5 0 5; 1878 15 0 5; 1879 15.5 0 5;
1880 16 0 5; 1881 16.5 0 5; 1882 17 0 5; 1883 17.5 0 5; 1884 18 0 5;
1885 18.5 0 5; 1886 19 0 5; 1887 19.5 0 5; 1888 20 0 5; 1889 20.5 0 5;
1890 21 0 5; 1891 21.5 0 5; 1892 22 0 5; 1893 22.5 0 5; 1894 23 0 5;
1895 23.5 0 5; 1896 24 0 5; 1897 24.5 0 5; 1898 25 0 5; 1899 0 0 5.5;
1900 0.5 0 5.5; 1901 1 0 5.5; 1902 1.5 0 5.5; 1903 2 0 5.5; 1904 2.5 0 5.5;
1905 3 0 5.5; 1906 3.5 0 5.5; 1907 4 0 5.5; 1908 4.5 0 5.5; 1909 5 0 5.5;
1910 5.5 0 5.5; 1911 6 0 5.5; 1912 6.5 0 5.5; 1913 7 0 5.5; 1914 7.5 0 5.5;
1915 8 0 5.5; 1916 8.5 0 5.5; 1917 9 0 5.5; 1918 9.5 0 5.5; 1919 10 0 5.5;
1920 10.5 0 5.5; 1921 11 0 5.5; 1922 11.5 0 5.5; 1923 12 0 5.5;
1924 12.5 0 5.5; 1925 13 0 5.5; 1926 13.5 0 5.5; 1927 14 0 5.5;
1928 14.5 0 5.5; 1929 15 0 5.5; 1930 15.5 0 5.5; 1931 16 0 5.5;
1932 16.5 0 5.5; 1933 17 0 5.5; 1934 17.5 0 5.5; 1935 18 0 5.5;
1936 18.5 0 5.5; 1937 19 0 5.5; 1938 19.5 0 5.5; 1939 20 0 5.5;
1940 20.5 0 5.5; 1941 21 0 5.5; 1942 21.5 0 5.5; 1943 22 0 5.5;
1944 22.5 0 5.5; 1945 23 0 5.5; 1946 23.5 0 5.5; 1947 24 0 5.5;
1948 24.5 0 5.5; 1949 25 0 5.5; 1950 0 0 6; 1951 0.5 0 6; 1952 1 0 6;
1953 1.5 0 6; 1954 2 0 6; 1955 2.5 0 6; 1956 3 0 6; 1957 3.5 0 6; 1958 4 0 6;
1959 4.5 0 6; 1960 5 0 6; 1961 5.5 0 6; 1962 6 0 6; 1963 6.5 0 6; 1964 7 0 6;
1965 7.5 0 6; 1966 8 0 6; 1967 8.5 0 6; 1968 9 0 6; 1969 9.5 0 6; 1970 10 0 6;
1971 10.5 0 6; 1972 11 0 6; 1973 11.5 0 6; 1974 12 0 6; 1975 12.5 0 6;
1976 13 0 6; 1977 13.5 0 6; 1978 14 0 6; 1979 14.5 0 6; 1980 15 0 6;
1981 15.5 0 6; 1982 16 0 6; 1983 16.5 0 6; 1984 17 0 6; 1985 17.5 0 6;
1986 18 0 6; 1987 18.5 0 6; 1988 19 0 6; 1989 19.5 0 6; 1990 20 0 6;
1991 20.5 0 6; 1992 21 0 6; 1993 21.5 0 6; 1994 22 0 6; 1995 22.5 0 6;
1996 23 0 6; 1997 23.5 0 6; 1998 24 0 6; 1999 24.5 0 6; 2000 25 0 6;
2001 0 0 6.5; 2002 0.5 0 6.5; 2003 1 0 6.5; 2004 1.5 0 6.5; 2005 2 0 6.5;
2006 2.5 0 6.5; 2007 3 0 6.5; 2008 3.5 0 6.5; 2009 4 0 6.5; 2010 4.5 0 6.5;
2011 5 0 6.5; 2012 5.5 0 6.5; 2013 6 0 6.5; 2014 6.5 0 6.5; 2015 7 0 6.5;
2016 7.5 0 6.5; 2017 8 0 6.5; 2018 8.5 0 6.5; 2019 9 0 6.5; 2020 9.5 0 6.5;
2021 10 0 6.5; 2022 10.5 0 6.5; 2023 11 0 6.5; 2024 11.5 0 6.5; 2025 12 0 6.5;
2026 12.5 0 6.5; 2027 13 0 6.5; 2028 13.5 0 6.5; 2029 14 0 6.5;
2030 14.5 0 6.5; 2031 15 0 6.5; 2032 15.5 0 6.5; 2033 16 0 6.5;
2034 16.5 0 6.5; 2035 17 0 6.5; 2036 17.5 0 6.5; 2037 18 0 6.5;
2038 18.5 0 6.5; 2039 19 0 6.5; 2040 19.5 0 6.5; 2041 20 0 6.5;
2042 20.5 0 6.5; 2043 21 0 6.5; 2044 21.5 0 6.5; 2045 22 0 6.5;
2046 22.5 0 6.5; 2047 23 0 6.5; 2048 23.5 0 6.5; 2049 24 0 6.5;
2050 24.5 0 6.5; 2051 25 0 6.5; 2052 0 0 7; 2053 0.5 0 7; 2054 1 0 7;
2055 1.5 0 7; 2056 2 0 7; 2057 2.5 0 7; 2058 3 0 7; 2059 3.5 0 7; 2060 4 0 7;
2061 4.5 0 7; 2062 5 0 7; 2063 5.5 0 7; 2064 6 0 7; 2065 6.5 0 7; 2066 7 0 7;
2067 7.5 0 7; 2068 8 0 7; 2069 8.5 0 7; 2070 9 0 7; 2071 9.5 0 7; 2072 10 0 7;
2073 10.5 0 7; 2074 11 0 7; 2075 11.5 0 7; 2076 12 0 7; 2077 12.5 0 7;
2078 13 0 7; 2079 13.5 0 7; 2080 14 0 7; 2081 14.5 0 7; 2082 15 0 7;
2083 15.5 0 7; 2084 16 0 7; 2085 16.5 0 7; 2086 17 0 7; 2087 17.5 0 7;
2088 18 0 7; 2089 18.5 0 7; 2090 19 0 7; 2091 19.5 0 7; 2092 20 0 7;
2093 20.5 0 7; 2094 21 0 7; 2095 21.5 0 7; 2096 22 0 7; 2097 22.5 0 7;
2098 23 0 7; 2099 23.5 0 7; 2100 24 0 7; 2101 24.5 0 7; 2102 25 0 7;
2103 0.5 0 7.5; 2104 1 0 7.5; 2105 1.5 0 7.5; 2106 2 0 7.5; 2107 2.5 0 7.5;
2108 3 0 7.5; 2109 3.5 0 7.5; 2110 4 0 7.5; 2111 4.5 0 7.5; 2112 5 0 7.5;
2113 5.5 0 7.5; 2114 6 0 7.5; 2115 6.5 0 7.5; 2116 7 0 7.5; 2117 7.5 0 7.5;
2118 8 0 7.5; 2119 8.5 0 7.5; 2120 9 0 7.5; 2121 9.5 0 7.5; 2122 10 0 7.5;
2123 10.5 0 7.5; 2124 11 0 7.5; 2125 11.5 0 7.5; 2126 12 0 7.5;
2127 12.5 0 7.5; 2128 13 0 7.5; 2129 13.5 0 7.5; 2130 14 0 7.5;
2131 14.5 0 7.5; 2132 15 0 7.5; 2133 15.5 0 7.5; 2134 16 0 7.5;
2135 16.5 0 7.5; 2136 17 0 7.5; 2137 17.5 0 7.5; 2138 18 0 7.5;
2139 18.5 0 7.5; 2140 19 0 7.5; 2141 19.5 0 7.5; 2142 20 0 7.5;
2143 20.5 0 7.5; 2144 21 0 7.5; 2145 21.5 0 7.5; 2146 22 0 7.5;
2147 22.5 0 7.5; 2148 23 0 7.5; 2149 23.5 0 7.5; 2150 24 0 7.5;
2151 24.5 0 7.5; 2152 0 0 8; 2153 0.5 0 8; 2154 1 0 8; 2155 1.5 0 8;
2156 2 0 8; 2157 2.5 0 8; 2158 3 0 8; 2159 3.5 0 8; 2160 4 0 8; 2161 4.5 0 8;
2162 5 0 8; 2163 5.5 0 8; 2164 6 0 8; 2165 6.5 0 8; 2166 7 0 8; 2167 7.5 0 8;
2168 8 0 8; 2169 8.5 0 8; 2170 9 0 8; 2171 9.5 0 8; 2172 10 0 8; 2173 10.5 0 8;
2174 11 0 8; 2175 11.5 0 8; 2176 12 0 8; 2177 12.5 0 8; 2178 13 0 8;
2179 13.5 0 8; 2180 14 0 8; 2181 14.5 0 8; 2182 15 0 8; 2183 15.5 0 8;
2184 16 0 8; 2185 16.5 0 8; 2186 17 0 8; 2187 17.5 0 8; 2188 18 0 8;
2189 18.5 0 8; 2190 19 0 8; 2191 19.5 0 8; 2192 20 0 8; 2193 20.5 0 8;
2194 21 0 8; 2195 21.5 0 8; 2196 22 0 8; 2197 22.5 0 8; 2198 23 0 8;
2199 23.5 0 8; 2200 24 0 8; 2201 24.5 0 8; 2202 25 0 8; 2203 0 0 8.5;
2204 0.5 0 8.5; 2205 1 0 8.5; 2206 1.5 0 8.5; 2207 2 0 8.5; 2208 2.5 0 8.5;
2209 3 0 8.5; 2210 3.5 0 8.5; 2211 4 0 8.5; 2212 4.5 0 8.5; 2213 5 0 8.5;
2214 5.5 0 8.5; 2215 6 0 8.5; 2216 6.5 0 8.5; 2217 7 0 8.5; 2218 7.5 0 8.5;
2219 8 0 8.5; 2220 8.5 0 8.5; 2221 9 0 8.5; 2222 9.5 0 8.5; 2223 10 0 8.5;
2224 10.5 0 8.5; 2225 11 0 8.5; 2226 11.5 0 8.5; 2227 12 0 8.5;
2228 12.5 0 8.5; 2229 13 0 8.5; 2230 13.5 0 8.5; 2231 14 0 8.5;
2232 14.5 0 8.5; 2233 15 0 8.5; 2234 15.5 0 8.5; 2235 16 0 8.5;
2236 16.5 0 8.5; 2237 17 0 8.5; 2238 17.5 0 8.5; 2239 18 0 8.5;
2240 18.5 0 8.5; 2241 19 0 8.5; 2242 19.5 0 8.5; 2243 20 0 8.5;
2244 20.5 0 8.5; 2245 21 0 8.5; 2246 21.5 0 8.5; 2247 22 0 8.5;
2248 22.5 0 8.5; 2249 23 0 8.5; 2250 23.5 0 8.5; 2251 24 0 8.5;
2252 24.5 0 8.5; 2253 25 0 8.5; 2254 0 0 9; 2255 0.5 0 9; 2256 1 0 9;
2257 1.5 0 9; 2258 2 0 9; 2259 2.5 0 9; 2260 3 0 9; 2261 3.5 0 9; 2262 4 0 9;
2263 4.5 0 9; 2264 5 0 9; 2265 5.5 0 9; 2266 6 0 9; 2267 6.5 0 9; 2268 7 0 9;
2269 7.5 0 9; 2270 8 0 9; 2271 8.5 0 9; 2272 9 0 9; 2273 9.5 0 9; 2274 10 0 9;
2275 10.5 0 9; 2276 11 0 9; 2277 11.5 0 9; 2278 12 0 9; 2279 12.5 0 9;
2280 13 0 9; 2281 13.5 0 9; 2282 14 0 9; 2283 14.5 0 9; 2284 15 0 9;
2285 15.5 0 9; 2286 16 0 9; 2287 16.5 0 9; 2288 17 0 9; 2289 17.5 0 9;
2290 18 0 9; 2291 18.5 0 9; 2292 19 0 9; 2293 19.5 0 9; 2294 20 0 9;
2295 20.5 0 9; 2296 21 0 9; 2297 21.5 0 9; 2298 22 0 9; 2299 22.5 0 9;
2300 23 0 9; 2301 23.5 0 9; 2302 24 0 9; 2303 24.5 0 9; 2304 25 0 9;
2305 0 0 9.5; 2306 0.5 0 9.5; 2307 1 0 9.5; 2308 1.5 0 9.5; 2309 2 0 9.5;
2310 2.5 0 9.5; 2311 3 0 9.5; 2312 3.5 0 9.5; 2313 4 0 9.5; 2314 4.5 0 9.5;
2315 5 0 9.5; 2316 5.5 0 9.5; 2317 6 0 9.5; 2318 6.5 0 9.5; 2319 7 0 9.5;
2320 7.5 0 9.5; 2321 8 0 9.5; 2322 8.5 0 9.5; 2323 9 0 9.5; 2324 9.5 0 9.5;
2325 10 0 9.5; 2326 10.5 0 9.5; 2327 11 0 9.5; 2328 11.5 0 9.5; 2329 12 0 9.5;
2330 12.5 0 9.5; 2331 13 0 9.5; 2332 13.5 0 9.5; 2333 14 0 9.5;
2334 14.5 0 9.5; 2335 15 0 9.5; 2336 15.5 0 9.5; 2337 16 0 9.5;
2338 16.5 0 9.5; 2339 17 0 9.5; 2340 17.5 0 9.5; 2341 18 0 9.5;
2342 18.5 0 9.5; 2343 19 0 9.5; 2344 19.5 0 9.5; 2345 20 0 9.5;
2346 20.5 0 9.5; 2347 21 0 9.5; 2348 21.5 0 9.5; 2349 22 0 9.5;
2350 22.5 0 9.5; 2351 23 0 9.5; 2352 23.5 0 9.5; 2353 24 0 9.5;
2354 24.5 0 9.5; 2355 25 0 9.5; 2356 0 0 10; 2357 0.5 0 10; 2358 1 0 10;
2359 1.5 0 10; 2360 2 0 10; 2361 2.5 0 10; 2362 3 0 10; 2363 3.5 0 10;
2364 4 0 10; 2365 4.5 0 10; 2366 5 0 10; 2367 5.5 0 10; 2368 6 0 10;
2369 6.5 0 10; 2370 7 0 10; 2371 7.5 0 10; 2372 8 0 10; 2373 8.5 0 10;
2374 9 0 10; 2375 9.5 0 10; 2376 10 0 10; 2377 10.5 0 10; 2378 11 0 10;
2379 11.5 0 10; 2380 12 0 10; 2381 12.5 0 10; 2382 13 0 10; 2383 13.5 0 10;
2384 14 0 10; 2385 14.5 0 10; 2386 15 0 10; 2387 15.5 0 10; 2388 16 0 10;
2389 16.5 0 10; 2390 17 0 10; 2391 17.5 0 10; 2392 18 0 10; 2393 18.5 0 10;
2394 19 0 10; 2395 19.5 0 10; 2396 20 0 10; 2397 20.5 0 10; 2398 21 0 10;
2399 21.5 0 10; 2400 22 0 10; 2401 22.5 0 10; 2402 23 0 10; 2403 23.5 0 10;
2404 24 0 10; 2405 24.5 0 10; 2406 25 0 10; 2407 0.5 0 10.5; 2408 1 0 10.5;
2409 1.5 0 10.5; 2410 2 0 10.5; 2411 2.5 0 10.5; 2412 3 0 10.5;
2413 3.5 0 10.5; 2414 4 0 10.5; 2415 4.5 0 10.5; 2416 5 0 10.5;
2417 5.5 0 10.5; 2418 6 0 10.5; 2419 6.5 0 10.5; 2420 7 0 10.5;
2421 7.5 0 10.5; 2422 8 0 10.5; 2423 8.5 0 10.5; 2424 9 0 10.5;
2425 9.5 0 10.5; 2426 10 0 10.5; 2427 10.5 0 10.5; 2428 11 0 10.5;
2429 11.5 0 10.5; 2430 12 0 10.5; 2431 12.5 0 10.5; 2432 13 0 10.5;
2433 13.5 0 10.5; 2434 14 0 10.5; 2435 14.5 0 10.5; 2436 15 0 10.5;
2437 15.5 0 10.5; 2438 16 0 10.5; 2439 16.5 0 10.5; 2440 17 0 10.5;
2441 17.5 0 10.5; 2442 18 0 10.5; 2443 18.5 0 10.5; 2444 19 0 10.5;
2445 19.5 0 10.5; 2446 20 0 10.5; 2447 20.5 0 10.5; 2448 21 0 10.5;
2449 21.5 0 10.5; 2450 22 0 10.5; 2451 22.5 0 10.5; 2452 23 0 10.5;
2453 23.5 0 10.5; 2454 24 0 10.5; 2455 24.5 0 10.5; 2456 0 0 11; 2457 0.5 0 11;
2458 1 0 11; 2459 1.5 0 11; 2460 2 0 11; 2461 2.5 0 11; 2462 3 0 11;
2463 3.5 0 11; 2464 4 0 11; 2465 4.5 0 11; 2466 5 0 11; 2467 5.5 0 11;
2468 6 0 11; 2469 6.5 0 11; 2470 7 0 11; 2471 7.5 0 11; 2472 8 0 11;
2473 8.5 0 11; 2474 9 0 11; 2475 9.5 0 11; 2476 10 0 11; 2477 10.5 0 11;
2478 11 0 11; 2479 11.5 0 11; 2480 12 0 11; 2481 12.5 0 11; 2482 13 0 11;
2483 13.5 0 11; 2484 14 0 11; 2485 14.5 0 11; 2486 15 0 11; 2487 15.5 0 11;
2488 16 0 11; 2489 16.5 0 11; 2490 17 0 11; 2491 17.5 0 11; 2492 18 0 11;
2493 18.5 0 11; 2494 19 0 11; 2495 19.5 0 11; 2496 20 0 11; 2497 20.5 0 11;
2498 21 0 11; 2499 21.5 0 11; 2500 22 0 11; 2501 22.5 0 11; 2502 23 0 11;
2503 23.5 0 11; 2504 24 0 11; 2505 24.5 0 11; 2506 25 0 11; 2507 0 0 11.5;
2508 0.5 0 11.5; 2509 1 0 11.5; 2510 1.5 0 11.5; 2511 2 0 11.5;
2512 2.5 0 11.5; 2513 3 0 11.5; 2514 3.5 0 11.5; 2515 4 0 11.5;
2516 4.5 0 11.5; 2517 5 0 11.5; 2518 5.5 0 11.5; 2519 6 0 11.5;
2520 6.5 0 11.5; 2521 7 0 11.5; 2522 7.5 0 11.5; 2523 8 0 11.5;
2524 8.5 0 11.5; 2525 9 0 11.5; 2526 9.5 0 11.5; 2527 10 0 11.5;
2528 10.5 0 11.5; 2529 11 0 11.5; 2530 11.5 0 11.5; 2531 12 0 11.5;
2532 12.5 0 11.5; 2533 13 0 11.5; 2534 13.5 0 11.5; 2535 14 0 11.5;
2536 14.5 0 11.5; 2537 15 0 11.5; 2538 15.5 0 11.5; 2539 16 0 11.5;
2540 16.5 0 11.5; 2541 17 0 11.5; 2542 17.5 0 11.5; 2543 18 0 11.5;
2544 18.5 0 11.5; 2545 19 0 11.5; 2546 19.5 0 11.5; 2547 20 0 11.5;
2548 20.5 0 11.5; 2549 21 0 11.5; 2550 21.5 0 11.5; 2551 22 0 11.5;
2552 22.5 0 11.5; 2553 23 0 11.5; 2554 23.5 0 11.5; 2555 24 0 11.5;
2556 24.5 0 11.5; 2557 25 0 11.5; 2558 0 0 12; 2559 0.5 0 12; 2560 1 0 12;
2561 1.5 0 12; 2562 2 0 12; 2563 2.5 0 12; 2564 3 0 12; 2565 3.5 0 12;
2566 4 0 12; 2567 4.5 0 12; 2568 5 0 12; 2569 5.5 0 12; 2570 6 0 12;
2571 6.5 0 12; 2572 7 0 12; 2573 7.5 0 12; 2574 8 0 12; 2575 8.5 0 12;
2576 9 0 12; 2577 9.5 0 12; 2578 10 0 12; 2579 10.5 0 12; 2580 11 0 12;
2581 11.5 0 12; 2582 12 0 12; 2583 12.5 0 12; 2584 13 0 12; 2585 13.5 0 12;
2586 14 0 12; 2587 14.5 0 12; 2588 15 0 12; 2589 15.5 0 12; 2590 16 0 12;
2591 16.5 0 12; 2592 17 0 12; 2593 17.5 0 12; 2594 18 0 12; 2595 18.5 0 12;
2596 19 0 12; 2597 19.5 0 12; 2598 20 0 12; 2599 20.5 0 12; 2600 21 0 12;
2601 21.5 0 12; 2602 22 0 12; 2603 22.5 0 12; 2604 23 0 12; 2605 23.5 0 12;
2606 24 0 12; 2607 24.5 0 12; 2608 25 0 12; 2609 0 0 12.5; 2610 0.5 0 12.5;
2611 1 0 12.5; 2612 1.5 0 12.5; 2613 2 0 12.5; 2614 2.5 0 12.5; 2615 3 0 12.5;
2616 3.5 0 12.5; 2617 4 0 12.5; 2618 4.5 0 12.5; 2619 5 0 12.5;
2620 5.5 0 12.5; 2621 6 0 12.5; 2622 6.5 0 12.5; 2623 7 0 12.5;
2624 7.5 0 12.5; 2625 8 0 12.5; 2626 8.5 0 12.5; 2627 9 0 12.5;
2628 9.5 0 12.5; 2629 10 0 12.5; 2630 10.5 0 12.5; 2631 11 0 12.5;
2632 11.5 0 12.5; 2633 12 0 12.5; 2634 12.5 0 12.5; 2635 13 0 12.5;
2636 13.5 0 12.5; 2637 14 0 12.5; 2638 14.5 0 12.5; 2639 15 0 12.5;
2640 15.5 0 12.5; 2641 16 0 12.5; 2642 16.5 0 12.5; 2643 17 0 12.5;
2644 17.5 0 12.5; 2645 18 0 12.5; 2646 18.5 0 12.5; 2647 19 0 12.5;
2648 19.5 0 12.5; 2649 20 0 12.5; 2650 20.5 0 12.5; 2651 21 0 12.5;
2652 21.5 0 12.5; 2653 22 0 12.5; 2654 22.5 0 12.5; 2655 23 0 12.5;
2656 23.5 0 12.5; 2657 24 0 12.5; 2658 24.5 0 12.5; 2659 25 0 12.5;
2660 0.5 0 13; 2661 1 0 13; 2662 1.5 0 13; 2663 2 0 13; 2664 2.5 0 13;
2665 3 0 13; 2666 3.5 0 13; 2667 4 0 13; 2668 4.5 0 13; 2669 5 0 13;
2670 5.5 0 13; 2671 6 0 13; 2672 6.5 0 13; 2673 7 0 13; 2674 7.5 0 13;
2675 8 0 13; 2676 8.5 0 13; 2677 9 0 13; 2678 9.5 0 13; 2679 10 0 13;
2680 10.5 0 13; 2681 11 0 13; 2682 11.5 0 13; 2683 12 0 13; 2684 12.5 0 13;
2685 13 0 13; 2686 13.5 0 13; 2687 14 0 13; 2688 14.5 0 13; 2689 15 0 13;
2690 15.5 0 13; 2691 16 0 13; 2692 16.5 0 13; 2693 17 0 13; 2694 17.5 0 13;
2695 18 0 13; 2696 18.5 0 13; 2697 19 0 13; 2698 19.5 0 13; 2699 20 0 13;
2700 20.5 0 13; 2701 21 0 13; 2702 21.5 0 13; 2703 22 0 13; 2704 22.5 0 13;
2705 23 0 13; 2706 23.5 0 13; 2707 24 0 13; 2708 24.5 0 13;
MEMBER INCIDENCES
1 8 12; 2 5 13; 3 11 27; 4 9 328; 5 8 632; 6 7 936; 7 3 1240; 8 2 1544;
9 4 1848; 10 5 2152; 11 6 2456; 12 14 15; 13 16 17; 14 18 125; 15 19 378;
16 14 682; 17 20 986; 18 21 1290; 19 22 1594; 20 23 1898; 21 16 2202;
22 24 2506; 23 9 279; 24 8 583; 25 7 887; 26 3 1191; 27 2 1495; 28 4 1799;
29 5 2103; 30 6 2407; 31 27 126; 81 125 176; 83 126 177; 84 176 227;
135 177 228; 136 227 278; 187 228 9; 188 278 19; 239 279 280; 240 280 281;
241 281 282; 242 282 283; 243 283 284; 244 284 285; 245 285 286; 246 286 287;
247 287 288; 248 288 289; 249 289 290; 250 290 291; 251 291 292; 252 292 293;
253 293 294; 254 294 295; 255 295 296; 256 296 297; 257 297 298; 258 298 299;
259 299 300; 260 300 301; 261 301 302; 262 302 303; 263 303 304; 264 304 305;
265 305 306; 266 306 307; 267 307 308; 268 308 309; 269 309 310; 270 310 311;
271 311 312; 272 312 313; 273 313 314; 274 314 315; 275 315 316; 276 316 317;
277 317 318; 278 318 319; 279 319 320; 280 320 321; 281 321 322; 282 322 323;
283 323 324; 284 324 325; 285 325 326; 286 326 327; 287 327 19; 338 328 379;
339 378 429; 390 379 430; 391 429 480; 442 430 481; 443 480 531; 494 481 532;
495 531 582; 546 532 8; 547 582 14; 598 583 584; 599 584 585; 600 585 586;
601 586 587; 602 587 588; 603 588 589; 604 589 590; 605 590 591; 606 591 592;
607 592 593; 608 593 594; 609 594 595; 610 595 596; 611 596 597; 612 597 598;
613 598 599; 614 599 600; 615 600 601; 616 601 602; 617 602 603; 618 603 604;
619 604 605; 620 605 606; 621 606 607; 622 607 608; 623 608 609; 624 609 610;
625 610 611; 626 611 612; 627 612 613; 628 613 614; 629 614 615; 630 615 616;
631 616 617; 632 617 618; 633 618 619; 634 619 620; 635 620 621; 636 621 622;
637 622 623; 638 623 624; 639 624 625; 640 625 626; 641 626 627; 642 627 628;
643 628 629; 644 629 630; 645 630 631; 646 631 14; 697 632 683; 698 682 733;
749 683 734; 750 733 784; 801 734 785; 802 784 835; 853 785 836; 854 835 886;
905 836 7; 906 886 20; 957 887 888; 958 888 889; 959 889 890; 960 890 891;
961 891 892; 962 892 893; 963 893 894; 964 894 895; 965 895 896; 966 896 897;
967 897 898; 968 898 899; 969 899 900; 970 900 901; 971 901 902; 972 902 903;
973 903 904; 974 904 905; 975 905 906; 976 906 907; 977 907 908; 978 908 909;
979 909 910; 980 910 911; 981 911 912; 982 912 913; 983 913 914; 984 914 915;
985 915 916; 986 916 917; 987 917 918; 988 918 919; 989 919 920; 990 920 921;
991 921 922; 992 922 923; 993 923 924; 994 924 925; 995 925 926; 996 926 927;
997 927 928; 998 928 929; 999 929 930; 1000 930 931; 1001 931 932;
1002 932 933; 1003 933 934; 1004 934 935; 1005 935 20; 1056 936 987;
1057 986 1037; 1108 987 1038; 1109 1037 1088; 1160 1038 1089; 1161 1088 1139;
1212 1089 1140; 1213 1139 1190; 1264 1140 3; 1265 1190 21; 1316 1191 1192;
1317 1192 1193; 1318 1193 1194; 1319 1194 1195; 1320 1195 1196; 1321 1196 1197;
1322 1197 1198; 1323 1198 1199; 1324 1199 1200; 1325 1200 1201; 1326 1201 1202;
1327 1202 1203; 1328 1203 1204; 1329 1204 1205; 1330 1205 1206; 1331 1206 1207;
1332 1207 1208; 1333 1208 1209; 1334 1209 1210; 1335 1210 1211; 1336 1211 1212;
1337 1212 1213; 1338 1213 1214; 1339 1214 1215; 1340 1215 1216; 1341 1216 1217;
1342 1217 1218; 1343 1218 1219; 1344 1219 1220; 1345 1220 1221; 1346 1221 1222;
1347 1222 1223; 1348 1223 1224; 1349 1224 1225; 1350 1225 1226; 1351 1226 1227;
1352 1227 1228; 1353 1228 1229; 1354 1229 1230; 1355 1230 1231; 1356 1231 1232;
1357 1232 1233; 1358 1233 1234; 1359 1234 1235; 1360 1235 1236; 1361 1236 1237;
1362 1237 1238; 1363 1238 1239; 1364 1239 21; 1415 1240 1291; 1416 1290 1341;
1467 1291 1342; 1468 1341 1392; 1519 1342 1393; 1520 1392 1443; 1571 1393 1444;
1572 1443 1494; 1623 1444 2; 1624 1494 22; 1675 1495 1496; 1676 1496 1497;
1677 1497 1498; 1678 1498 1499; 1679 1499 1500; 1680 1500 1501; 1681 1501 1502;
1682 1502 1503; 1683 1503 1504; 1684 1504 1505; 1685 1505 1506; 1686 1506 1507;
1687 1507 1508; 1688 1508 1509; 1689 1509 1510; 1690 1510 1511; 1691 1511 1512;
1692 1512 1513; 1693 1513 1514; 1694 1514 1515; 1695 1515 1516; 1696 1516 1517;
1697 1517 1518; 1698 1518 1519; 1699 1519 1520; 1700 1520 1521; 1701 1521 1522;
1702 1522 1523; 1703 1523 1524; 1704 1524 1525; 1705 1525 1526; 1706 1526 1527;
1707 1527 1528; 1708 1528 1529; 1709 1529 1530; 1710 1530 1531; 1711 1531 1532;
1712 1532 1533; 1713 1533 1534; 1714 1534 1535; 1715 1535 1536; 1716 1536 1537;
1717 1537 1538; 1718 1538 1539; 1719 1539 1540; 1720 1540 1541; 1721 1541 1542;
1722 1542 1543; 1723 1543 22; 1774 1544 1595; 1775 1594 1645; 1826 1595 1646;
1827 1645 1696; 1878 1646 1697; 1879 1696 1747; 1930 1697 1748; 1931 1747 1798;
1982 1748 4; 1983 1798 23; 2034 1799 1800; 2035 1800 1801; 2036 1801 1802;
2037 1802 1803; 2038 1803 1804; 2039 1804 1805; 2040 1805 1806; 2041 1806 1807;
2042 1807 1808; 2043 1808 1809; 2044 1809 1810; 2045 1810 1811; 2046 1811 1812;
2047 1812 1813; 2048 1813 1814; 2049 1814 1815; 2050 1815 1816; 2051 1816 1817;
2052 1817 1818; 2053 1818 1819; 2054 1819 1820; 2055 1820 1821; 2056 1821 1822;
2057 1822 1823; 2058 1823 1824; 2059 1824 1825; 2060 1825 1826; 2061 1826 1827;
2062 1827 1828; 2063 1828 1829; 2064 1829 1830; 2065 1830 1831; 2066 1831 1832;
2067 1832 1833; 2068 1833 1834; 2069 1834 1835; 2070 1835 1836; 2071 1836 1837;
2072 1837 1838; 2073 1838 1839; 2074 1839 1840; 2075 1840 1841; 2076 1841 1842;
2077 1842 1843; 2078 1843 1844; 2079 1844 1845; 2080 1845 1846; 2081 1846 1847;
2082 1847 23; 2133 1848 1899; 2134 1898 1949; 2185 1899 1950; 2186 1949 2000;
2237 1950 2001; 2238 2000 2051; 2289 2001 2052; 2290 2051 2102; 2341 2052 5;
2342 2102 16; 2393 2103 2104; 2394 2104 2105; 2395 2105 2106; 2396 2106 2107;
2397 2107 2108; 2398 2108 2109; 2399 2109 2110; 2400 2110 2111; 2401 2111 2112;
2402 2112 2113; 2403 2113 2114; 2404 2114 2115; 2405 2115 2116; 2406 2116 2117;
2407 2117 2118; 2408 2118 2119; 2409 2119 2120; 2410 2120 2121; 2411 2121 2122;
2412 2122 2123; 2413 2123 2124; 2414 2124 2125; 2415 2125 2126; 2416 2126 2127;
2417 2127 2128; 2418 2128 2129; 2419 2129 2130; 2420 2130 2131; 2421 2131 2132;
2422 2132 2133; 2423 2133 2134; 2424 2134 2135; 2425 2135 2136; 2426 2136 2137;
2427 2137 2138; 2428 2138 2139; 2429 2139 2140; 2430 2140 2141; 2431 2141 2142;
2432 2142 2143; 2433 2143 2144; 2434 2144 2145; 2435 2145 2146; 2436 2146 2147;
2437 2147 2148; 2438 2148 2149; 2439 2149 2150; 2440 2150 2151; 2441 2151 16;
2492 2152 2203; 2493 2202 2253; 2544 2203 2254; 2545 2253 2304; 2596 2254 2305;
2597 2304 2355; 2648 2305 2356; 2649 2355 2406; 2700 2356 6; 2701 2406 24;
2752 2407 2408; 2753 2408 2409; 2754 2409 2410; 2755 2410 2411; 2756 2411 2412;
2757 2412 2413; 2758 2413 2414; 2759 2414 2415; 2760 2415 2416; 2761 2416 2417;
2762 2417 2418; 2763 2418 2419; 2764 2419 2420; 2765 2420 2421; 2766 2421 2422;
2767 2422 2423; 2768 2423 2424; 2769 2424 2425; 2770 2425 2426; 2771 2426 2427;
2772 2427 2428; 2773 2428 2429; 2774 2429 2430; 2775 2430 2431; 2776 2431 2432;
2777 2432 2433; 2778 2433 2434; 2779 2434 2435; 2780 2435 2436; 2781 2436 2437;
2782 2437 2438; 2783 2438 2439; 2784 2439 2440; 2785 2440 2441; 2786 2441 2442;
2787 2442 2443; 2788 2443 2444; 2789 2444 2445; 2790 2445 2446; 2791 2446 2447;
2792 2447 2448; 2793 2448 2449; 2794 2449 2450; 2795 2450 2451; 2796 2451 2452;
2797 2452 2453; 2798 2453 2454; 2799 2454 2455; 2800 2455 24; 2851 2456 2507;
2852 2506 2557; 2903 2507 2558; 2904 2557 2608; 2955 2558 2609; 2956 2608 2659;
3007 2609 10; 3008 2659 25;
ELEMENT INCIDENCES SHELL
32 11 26 28 27; 33 26 29 30 28; 34 29 31 32 30; 35 31 33 34 32; 36 33 35 36 34;
37 35 37 38 36; 38 37 39 40 38; 39 39 41 42 40; 40 41 43 44 42; 41 43 45 46 44;
42 45 47 48 46; 43 47 49 50 48; 44 49 51 52 50; 45 51 53 54 52; 46 53 55 56 54;
47 55 57 58 56; 48 57 59 60 58; 49 59 61 62 60; 50 61 63 64 62; 51 63 65 66 64;
52 65 67 68 66; 53 67 69 70 68; 54 69 71 72 70; 55 71 73 74 72; 56 73 75 76 74;
57 75 77 78 76; 58 77 79 80 78; 59 79 81 82 80; 60 81 83 84 82; 61 83 85 86 84;
62 85 87 88 86; 63 87 89 90 88; 64 89 91 92 90; 65 91 93 94 92; 66 93 95 96 94;
67 95 97 98 96; 68 97 99 100 98; 69 99 101 102 100; 70 101 103 104 102;
71 103 105 106 104; 72 105 107 108 106; 73 107 109 110 108; 74 109 111 112 110;
75 111 113 114 112; 76 113 115 116 114; 77 115 117 118 116; 78 117 119 120 118;
79 119 121 122 120; 80 121 123 124 122; 82 123 18 125 124; 85 27 28 127 126;
86 28 30 128 127; 87 30 32 129 128; 88 32 34 130 129; 89 34 36 131 130;
90 36 38 132 131; 91 38 40 133 132; 92 40 42 134 133; 93 42 44 135 134;
94 44 46 136 135; 95 46 48 137 136; 96 48 50 138 137; 97 50 52 139 138;
98 52 54 140 139; 99 54 56 141 140; 100 56 58 142 141; 101 58 60 143 142;
102 60 62 144 143; 103 62 64 145 144; 104 64 66 146 145; 105 66 68 147 146;
106 68 70 148 147; 107 70 72 149 148; 108 72 74 150 149; 109 74 76 151 150;
110 76 78 152 151; 111 78 80 153 152; 112 80 82 154 153; 113 82 84 155 154;
114 84 86 156 155; 115 86 88 157 156; 116 88 90 158 157; 117 90 92 159 158;
118 92 94 160 159; 119 94 96 161 160; 120 96 98 162 161; 121 98 100 163 162;
122 100 102 164 163; 123 102 104 165 164; 124 104 106 166 165;
125 106 108 167 166; 126 108 110 168 167; 127 110 112 169 168;
128 112 114 170 169; 129 114 116 171 170; 130 116 118 172 171;
131 118 120 173 172; 132 120 122 174 173; 133 122 124 175 174;
134 124 125 176 175; 137 126 127 178 177; 138 127 128 179 178;
139 128 129 180 179; 140 129 130 181 180; 141 130 131 182 181;
142 131 132 183 182; 143 132 133 184 183; 144 133 134 185 184;
145 134 135 186 185; 146 135 136 187 186; 147 136 137 188 187;
148 137 138 189 188; 149 138 139 190 189; 150 139 140 191 190;
151 140 141 192 191; 152 141 142 193 192; 153 142 143 194 193;
154 143 144 195 194; 155 144 145 196 195; 156 145 146 197 196;
157 146 147 198 197; 158 147 148 199 198; 159 148 149 200 199;
160 149 150 201 200; 161 150 151 202 201; 162 151 152 203 202;
163 152 153 204 203; 164 153 154 205 204; 165 154 155 206 205;
166 155 156 207 206; 167 156 157 208 207; 168 157 158 209 208;
169 158 159 210 209; 170 159 160 211 210; 171 160 161 212 211;
172 161 162 213 212; 173 162 163 214 213; 174 163 164 215 214;
175 164 165 216 215; 176 165 166 217 216; 177 166 167 218 217;
178 167 168 219 218; 179 168 169 220 219; 180 169 170 221 220;
181 170 171 222 221; 182 171 172 223 222; 183 172 173 224 223;
184 173 174 225 224; 185 174 175 226 225; 186 175 176 227 226;
189 177 178 229 228; 190 178 179 230 229; 191 179 180 231 230;
192 180 181 232 231; 193 181 182 233 232; 194 182 183 234 233;
195 183 184 235 234; 196 184 185 236 235; 197 185 186 237 236;
198 186 187 238 237; 199 187 188 239 238; 200 188 189 240 239;
201 189 190 241 240; 202 190 191 242 241; 203 191 192 243 242;
204 192 193 244 243; 205 193 194 245 244; 206 194 195 246 245;
207 195 196 247 246; 208 196 197 248 247; 209 197 198 249 248;
210 198 199 250 249; 211 199 200 251 250; 212 200 201 252 251;
213 201 202 253 252; 214 202 203 254 253; 215 203 204 255 254;
216 204 205 256 255; 217 205 206 257 256; 218 206 207 258 257;
219 207 208 259 258; 220 208 209 260 259; 221 209 210 261 260;
222 210 211 262 261; 223 211 212 263 262; 224 212 213 264 263;
225 213 214 265 264; 226 214 215 266 265; 227 215 216 267 266;
228 216 217 268 267; 229 217 218 269 268; 230 218 219 270 269;
231 219 220 271 270; 232 220 221 272 271; 233 221 222 273 272;
234 222 223 274 273; 235 223 224 275 274; 236 224 225 276 275;
237 225 226 277 276; 238 226 227 278 277; 288 228 229 279 9;
289 229 230 280 279; 290 230 231 281 280; 291 231 232 282 281;
292 232 233 283 282; 293 233 234 284 283; 294 234 235 285 284;
295 235 236 286 285; 296 236 237 287 286; 297 237 238 288 287;
298 238 239 289 288; 299 239 240 290 289; 300 240 241 291 290;
301 241 242 292 291; 302 242 243 293 292; 303 243 244 294 293;
304 244 245 295 294; 305 245 246 296 295; 306 246 247 297 296;
307 247 248 298 297; 308 248 249 299 298; 309 249 250 300 299;
310 250 251 301 300; 311 251 252 302 301; 312 252 253 303 302;
313 253 254 304 303; 314 254 255 305 304; 315 255 256 306 305;
316 256 257 307 306; 317 257 258 308 307; 318 258 259 309 308;
319 259 260 310 309; 320 260 261 311 310; 321 261 262 312 311;
322 262 263 313 312; 323 263 264 314 313; 324 264 265 315 314;
325 265 266 316 315; 326 266 267 317 316; 327 267 268 318 317;
328 268 269 319 318; 329 269 270 320 319; 330 270 271 321 320;
331 271 272 322 321; 332 272 273 323 322; 333 273 274 324 323;
334 274 275 325 324; 335 275 276 326 325; 336 276 277 327 326;
337 277 278 19 327; 340 9 279 329 328; 341 279 280 330 329;
342 280 281 331 330; 343 281 282 332 331; 344 282 283 333 332;
345 283 284 334 333; 346 284 285 335 334; 347 285 286 336 335;
348 286 287 337 336; 349 287 288 338 337; 350 288 289 339 338;
351 289 290 340 339; 352 290 291 341 340; 353 291 292 342 341;
354 292 293 343 342; 355 293 294 344 343; 356 294 295 345 344;
357 295 296 346 345; 358 296 297 347 346; 359 297 298 348 347;
360 298 299 349 348; 361 299 300 350 349; 362 300 301 351 350;
363 301 302 352 351; 364 302 303 353 352; 365 303 304 354 353;
366 304 305 355 354; 367 305 306 356 355; 368 306 307 357 356;
369 307 308 358 357; 370 308 309 359 358; 371 309 310 360 359;
372 310 311 361 360; 373 311 312 362 361; 374 312 313 363 362;
375 313 314 364 363; 376 314 315 365 364; 377 315 316 366 365;
378 316 317 367 366; 379 317 318 368 367; 380 318 319 369 368;
381 319 320 370 369; 382 320 321 371 370; 383 321 322 372 371;
384 322 323 373 372; 385 323 324 374 373; 386 324 325 375 374;
387 325 326 376 375; 388 326 327 377 376; 389 327 19 378 377;
392 328 329 380 379; 393 329 330 381 380; 394 330 331 382 381;
395 331 332 383 382; 396 332 333 384 383; 397 333 334 385 384;
398 334 335 386 385; 399 335 336 387 386; 400 336 337 388 387;
401 337 338 389 388; 402 338 339 390 389; 403 339 340 391 390;
404 340 341 392 391; 405 341 342 393 392; 406 342 343 394 393;
407 343 344 395 394; 408 344 345 396 395; 409 345 346 397 396;
410 346 347 398 397; 411 347 348 399 398; 412 348 349 400 399;
413 349 350 401 400; 414 350 351 402 401; 415 351 352 403 402;
416 352 353 404 403; 417 353 354 405 404; 418 354 355 406 405;
419 355 356 407 406; 420 356 357 408 407; 421 357 358 409 408;
422 358 359 410 409; 423 359 360 411 410; 424 360 361 412 411;
425 361 362 413 412; 426 362 363 414 413; 427 363 364 415 414;
428 364 365 416 415; 429 365 366 417 416; 430 366 367 418 417;
431 367 368 419 418; 432 368 369 420 419; 433 369 370 421 420;
434 370 371 422 421; 435 371 372 423 422; 436 372 373 424 423;
437 373 374 425 424; 438 374 375 426 425; 439 375 376 427 426;
440 376 377 428 427; 441 377 378 429 428; 444 379 380 431 430;
445 380 381 432 431; 446 381 382 433 432; 447 382 383 434 433;
448 383 384 435 434; 449 384 385 436 435; 450 385 386 437 436;
451 386 387 438 437; 452 387 388 439 438; 453 388 389 440 439;
454 389 390 441 440; 455 390 391 442 441; 456 391 392 443 442;
457 392 393 444 443; 458 393 394 445 444; 459 394 395 446 445;
460 395 396 447 446; 461 396 397 448 447; 462 397 398 449 448;
463 398 399 450 449; 464 399 400 451 450; 465 400 401 452 451;
466 401 402 453 452; 467 402 403 454 453; 468 403 404 455 454;
469 404 405 456 455; 470 405 406 457 456; 471 406 407 458 457;
472 407 408 459 458; 473 408 409 460 459; 474 409 410 461 460;
475 410 411 462 461; 476 411 412 463 462; 477 412 413 464 463;
478 413 414 465 464; 479 414 415 466 465; 480 415 416 467 466;
481 416 417 468 467; 482 417 418 469 468; 483 418 419 470 469;
484 419 420 471 470; 485 420 421 472 471; 486 421 422 473 472;
487 422 423 474 473; 488 423 424 475 474; 489 424 425 476 475;
490 425 426 477 476; 491 426 427 478 477; 492 427 428 479 478;
493 428 429 480 479; 496 430 431 482 481; 497 431 432 483 482;
498 432 433 484 483; 499 433 434 485 484; 500 434 435 486 485;
501 435 436 487 486; 502 436 437 488 487; 503 437 438 489 488;
504 438 439 490 489; 505 439 440 491 490; 506 440 441 492 491;
507 441 442 493 492; 508 442 443 494 493; 509 443 444 495 494;
510 444 445 496 495; 511 445 446 497 496; 512 446 447 498 497;
513 447 448 499 498; 514 448 449 500 499; 515 449 450 501 500;
516 450 451 502 501; 517 451 452 503 502; 518 452 453 504 503;
519 453 454 505 504; 520 454 455 506 505; 521 455 456 507 506;
522 456 457 508 507; 523 457 458 509 508; 524 458 459 510 509;
525 459 460 511 510; 526 460 461 512 511; 527 461 462 513 512;
528 462 463 514 513; 529 463 464 515 514; 530 464 465 516 515;
531 465 466 517 516; 532 466 467 518 517; 533 467 468 519 518;
534 468 469 520 519; 535 469 470 521 520; 536 470 471 522 521;
537 471 472 523 522; 538 472 473 524 523; 539 473 474 525 524;
540 474 475 526 525; 541 475 476 527 526; 542 476 477 528 527;
543 477 478 529 528; 544 478 479 530 529; 545 479 480 531 530;
548 481 482 533 532; 549 482 483 534 533; 550 483 484 535 534;
551 484 485 536 535; 552 485 486 537 536; 553 486 487 538 537;
554 487 488 539 538; 555 488 489 540 539; 556 489 490 541 540;
557 490 491 542 541; 558 491 492 543 542; 559 492 493 544 543;
560 493 494 545 544; 561 494 495 546 545; 562 495 496 547 546;
563 496 497 548 547; 564 497 498 549 548; 565 498 499 550 549;
566 499 500 551 550; 567 500 501 552 551; 568 501 502 553 552;
569 502 503 554 553; 570 503 504 555 554; 571 504 505 556 555;
572 505 506 557 556; 573 506 507 558 557; 574 507 508 559 558;
575 508 509 560 559; 576 509 510 561 560; 577 510 511 562 561;
578 511 512 563 562; 579 512 513 564 563; 580 513 514 565 564;
581 514 515 566 565; 582 515 516 567 566; 583 516 517 568 567;
584 517 518 569 568; 585 518 519 570 569; 586 519 520 571 570;
587 520 521 572 571; 588 521 522 573 572; 589 522 523 574 573;
590 523 524 575 574; 591 524 525 576 575; 592 525 526 577 576;
593 526 527 578 577; 594 527 528 579 578; 595 528 529 580 579;
596 529 530 581 580; 597 530 531 582 581; 647 532 533 583 8;
648 533 534 584 583; 649 534 535 585 584; 650 535 536 586 585;
651 536 537 587 586; 652 537 538 588 587; 653 538 539 589 588;
654 539 540 590 589; 655 540 541 591 590; 656 541 542 592 591;
657 542 543 593 592; 658 543 544 594 593; 659 544 545 595 594;
660 545 546 596 595; 661 546 547 597 596; 662 547 548 598 597;
663 548 549 599 598; 664 549 550 600 599; 665 550 551 601 600;
666 551 552 602 601; 667 552 553 603 602; 668 553 554 604 603;
669 554 555 605 604; 670 555 556 606 605; 671 556 557 607 606;
672 557 558 608 607; 673 558 559 609 608; 674 559 560 610 609;
675 560 561 611 610; 676 561 562 612 611; 677 562 563 613 612;
678 563 564 614 613; 679 564 565 615 614; 680 565 566 616 615;
681 566 567 617 616; 682 567 568 618 617; 683 568 569 619 618;
684 569 570 620 619; 685 570 571 621 620; 686 571 572 622 621;
687 572 573 623 622; 688 573 574 624 623; 689 574 575 625 624;
690 575 576 626 625; 691 576 577 627 626; 692 577 578 628 627;
693 578 579 629 628; 694 579 580 630 629; 695 580 581 631 630;
696 581 582 14 631; 699 8 583 633 632; 700 583 584 634 633;
701 584 585 635 634; 702 585 586 636 635; 703 586 587 637 636;
704 587 588 638 637; 705 588 589 639 638; 706 589 590 640 639;
707 590 591 641 640; 708 591 592 642 641; 709 592 593 643 642;
710 593 594 644 643; 711 594 595 645 644; 712 595 596 646 645;
713 596 597 647 646; 714 597 598 648 647; 715 598 599 649 648;
716 599 600 650 649; 717 600 601 651 650; 718 601 602 652 651;
719 602 603 653 652; 720 603 604 654 653; 721 604 605 655 654;
722 605 606 656 655; 723 606 607 657 656; 724 607 608 658 657;
725 608 609 659 658; 726 609 610 660 659; 727 610 611 661 660;
728 611 612 662 661; 729 612 613 663 662; 730 613 614 664 663;
731 614 615 665 664; 732 615 616 666 665; 733 616 617 667 666;
734 617 618 668 667; 735 618 619 669 668; 736 619 620 670 669;
737 620 621 671 670; 738 621 622 672 671; 739 622 623 673 672;
740 623 624 674 673; 741 624 625 675 674; 742 625 626 676 675;
743 626 627 677 676; 744 627 628 678 677; 745 628 629 679 678;
746 629 630 680 679; 747 630 631 681 680; 748 631 14 682 681;
751 632 633 684 683; 752 633 634 685 684; 753 634 635 686 685;
754 635 636 687 686; 755 636 637 688 687; 756 637 638 689 688;
757 638 639 690 689; 758 639 640 691 690; 759 640 641 692 691;
760 641 642 693 692; 761 642 643 694 693; 762 643 644 695 694;
763 644 645 696 695; 764 645 646 697 696; 765 646 647 698 697;
766 647 648 699 698; 767 648 649 700 699; 768 649 650 701 700;
769 650 651 702 701; 770 651 652 703 702; 771 652 653 704 703;
772 653 654 705 704; 773 654 655 706 705; 774 655 656 707 706;
775 656 657 708 707; 776 657 658 709 708; 777 658 659 710 709;
778 659 660 711 710; 779 660 661 712 711; 780 661 662 713 712;
781 662 663 714 713; 782 663 664 715 714; 783 664 665 716 715;
784 665 666 717 716; 785 666 667 718 717; 786 667 668 719 718;
787 668 669 720 719; 788 669 670 721 720; 789 670 671 722 721;
790 671 672 723 722; 791 672 673 724 723; 792 673 674 725 724;
793 674 675 726 725; 794 675 676 727 726; 795 676 677 728 727;
796 677 678 729 728; 797 678 679 730 729; 798 679 680 731 730;
799 680 681 732 731; 800 681 682 733 732; 803 683 684 735 734;
804 684 685 736 735; 805 685 686 737 736; 806 686 687 738 737;
807 687 688 739 738; 808 688 689 740 739; 809 689 690 741 740;
810 690 691 742 741; 811 691 692 743 742; 812 692 693 744 743;
813 693 694 745 744; 814 694 695 746 745; 815 695 696 747 746;
816 696 697 748 747; 817 697 698 749 748; 818 698 699 750 749;
819 699 700 751 750; 820 700 701 752 751; 821 701 702 753 752;
822 702 703 754 753; 823 703 704 755 754; 824 704 705 756 755;
825 705 706 757 756; 826 706 707 758 757; 827 707 708 759 758;
828 708 709 760 759; 829 709 710 761 760; 830 710 711 762 761;
831 711 712 763 762; 832 712 713 764 763; 833 713 714 765 764;
834 714 715 766 765; 835 715 716 767 766; 836 716 717 768 767;
837 717 718 769 768; 838 718 719 770 769; 839 719 720 771 770;
840 720 721 772 771; 841 721 722 773 772; 842 722 723 774 773;
843 723 724 775 774; 844 724 725 776 775; 845 725 726 777 776;
846 726 727 778 777; 847 727 728 779 778; 848 728 729 780 779;
849 729 730 781 780; 850 730 731 782 781; 851 731 732 783 782;
852 732 733 784 783; 855 734 735 786 785; 856 735 736 787 786;
857 736 737 788 787; 858 737 738 789 788; 859 738 739 790 789;
860 739 740 791 790; 861 740 741 792 791; 862 741 742 793 792;
863 742 743 794 793; 864 743 744 795 794; 865 744 745 796 795;
866 745 746 797 796; 867 746 747 798 797; 868 747 748 799 798;
869 748 749 800 799; 870 749 750 801 800; 871 750 751 802 801;
872 751 752 803 802; 873 752 753 804 803; 874 753 754 805 804;
875 754 755 806 805; 876 755 756 807 806; 877 756 757 808 807;
878 757 758 809 808; 879 758 759 810 809; 880 759 760 811 810;
881 760 761 812 811; 882 761 762 813 812; 883 762 763 814 813;
884 763 764 815 814; 885 764 765 816 815; 886 765 766 817 816;
887 766 767 818 817; 888 767 768 819 818; 889 768 769 820 819;
890 769 770 821 820; 891 770 771 822 821; 892 771 772 823 822;
893 772 773 824 823; 894 773 774 825 824; 895 774 775 826 825;
896 775 776 827 826; 897 776 777 828 827; 898 777 778 829 828;
899 778 779 830 829; 900 779 780 831 830; 901 780 781 832 831;
902 781 782 833 832; 903 782 783 834 833; 904 783 784 835 834;
907 785 786 837 836; 908 786 787 838 837; 909 787 788 839 838;
910 788 789 840 839; 911 789 790 841 840; 912 790 791 842 841;
913 791 792 843 842; 914 792 793 844 843; 915 793 794 845 844;
916 794 795 846 845; 917 795 796 847 846; 918 796 797 848 847;
919 797 798 849 848; 920 798 799 850 849; 921 799 800 851 850;
922 800 801 852 851; 923 801 802 853 852; 924 802 803 854 853;
925 803 804 855 854; 926 804 805 856 855; 927 805 806 857 856;
928 806 807 858 857; 929 807 808 859 858; 930 808 809 860 859;
931 809 810 861 860; 932 810 811 862 861; 933 811 812 863 862;
934 812 813 864 863; 935 813 814 865 864; 936 814 815 866 865;
937 815 816 867 866; 938 816 817 868 867; 939 817 818 869 868;
940 818 819 870 869; 941 819 820 871 870; 942 820 821 872 871;
943 821 822 873 872; 944 822 823 874 873; 945 823 824 875 874;
946 824 825 876 875; 947 825 826 877 876; 948 826 827 878 877;
949 827 828 879 878; 950 828 829 880 879; 951 829 830 881 880;
952 830 831 882 881; 953 831 832 883 882; 954 832 833 884 883;
955 833 834 885 884; 956 834 835 886 885; 1006 836 837 887 7;
1007 837 838 888 887; 1008 838 839 889 888; 1009 839 840 890 889;
1010 840 841 891 890; 1011 841 842 892 891; 1012 842 843 893 892;
1013 843 844 894 893; 1014 844 845 895 894; 1015 845 846 896 895;
1016 846 847 897 896; 1017 847 848 898 897; 1018 848 849 899 898;
1019 849 850 900 899; 1020 850 851 901 900; 1021 851 852 902 901;
1022 852 853 903 902; 1023 853 854 904 903; 1024 854 855 905 904;
1025 855 856 906 905; 1026 856 857 907 906; 1027 857 858 908 907;
1028 858 859 909 908; 1029 859 860 910 909; 1030 860 861 911 910;
1031 861 862 912 911; 1032 862 863 913 912; 1033 863 864 914 913;
1034 864 865 915 914; 1035 865 866 916 915; 1036 866 867 917 916;
1037 867 868 918 917; 1038 868 869 919 918; 1039 869 870 920 919;
1040 870 871 921 920; 1041 871 872 922 921; 1042 872 873 923 922;
1043 873 874 924 923; 1044 874 875 925 924; 1045 875 876 926 925;
1046 876 877 927 926; 1047 877 878 928 927; 1048 878 879 929 928;
1049 879 880 930 929; 1050 880 881 931 930; 1051 881 882 932 931;
1052 882 883 933 932; 1053 883 884 934 933; 1054 884 885 935 934;
1055 885 886 20 935; 1058 7 887 937 936; 1059 887 888 938 937;
1060 888 889 939 938; 1061 889 890 940 939; 1062 890 891 941 940;
1063 891 892 942 941; 1064 892 893 943 942; 1065 893 894 944 943;
1066 894 895 945 944; 1067 895 896 946 945; 1068 896 897 947 946;
1069 897 898 948 947; 1070 898 899 949 948; 1071 899 900 950 949;
1072 900 901 951 950; 1073 901 902 952 951; 1074 902 903 953 952;
1075 903 904 954 953; 1076 904 905 955 954; 1077 905 906 956 955;
1078 906 907 957 956; 1079 907 908 958 957; 1080 908 909 959 958;
1081 909 910 960 959; 1082 910 911 961 960; 1083 911 912 962 961;
1084 912 913 963 962; 1085 913 914 964 963; 1086 914 915 965 964;
1087 915 916 966 965; 1088 916 917 967 966; 1089 917 918 968 967;
1090 918 919 969 968; 1091 919 920 970 969; 1092 920 921 971 970;
1093 921 922 972 971; 1094 922 923 973 972; 1095 923 924 974 973;
1096 924 925 975 974; 1097 925 926 976 975; 1098 926 927 977 976;
1099 927 928 978 977; 1100 928 929 979 978; 1101 929 930 980 979;
1102 930 931 981 980; 1103 931 932 982 981; 1104 932 933 983 982;
1105 933 934 984 983; 1106 934 935 985 984; 1107 935 20 986 985;
1110 936 937 988 987; 1111 937 938 989 988; 1112 938 939 990 989;
1113 939 940 991 990; 1114 940 941 992 991; 1115 941 942 993 992;
1116 942 943 994 993; 1117 943 944 995 994; 1118 944 945 996 995;
1119 945 946 997 996; 1120 946 947 998 997; 1121 947 948 999 998;
1122 948 949 1000 999; 1123 949 950 1001 1000; 1124 950 951 1002 1001;
1125 951 952 1003 1002; 1126 952 953 1004 1003; 1127 953 954 1005 1004;
1128 954 955 1006 1005; 1129 955 956 1007 1006; 1130 956 957 1008 1007;
1131 957 958 1009 1008; 1132 958 959 1010 1009; 1133 959 960 1011 1010;
1134 960 961 1012 1011; 1135 961 962 1013 1012; 1136 962 963 1014 1013;
1137 963 964 1015 1014; 1138 964 965 1016 1015; 1139 965 966 1017 1016;
1140 966 967 1018 1017; 1141 967 968 1019 1018; 1142 968 969 1020 1019;
1143 969 970 1021 1020; 1144 970 971 1022 1021; 1145 971 972 1023 1022;
1146 972 973 1024 1023; 1147 973 974 1025 1024; 1148 974 975 1026 1025;
1149 975 976 1027 1026; 1150 976 977 1028 1027; 1151 977 978 1029 1028;
1152 978 979 1030 1029; 1153 979 980 1031 1030; 1154 980 981 1032 1031;
1155 981 982 1033 1032; 1156 982 983 1034 1033; 1157 983 984 1035 1034;
1158 984 985 1036 1035; 1159 985 986 1037 1036; 1162 987 988 1039 1038;
1163 988 989 1040 1039; 1164 989 990 1041 1040; 1165 990 991 1042 1041;
1166 991 992 1043 1042; 1167 992 993 1044 1043; 1168 993 994 1045 1044;
1169 994 995 1046 1045; 1170 995 996 1047 1046; 1171 996 997 1048 1047;
1172 997 998 1049 1048; 1173 998 999 1050 1049; 1174 999 1000 1051 1050;
1175 1000 1001 1052 1051; 1176 1001 1002 1053 1052; 1177 1002 1003 1054 1053;
1178 1003 1004 1055 1054; 1179 1004 1005 1056 1055; 1180 1005 1006 1057 1056;
1181 1006 1007 1058 1057; 1182 1007 1008 1059 1058; 1183 1008 1009 1060 1059;
1184 1009 1010 1061 1060; 1185 1010 1011 1062 1061; 1186 1011 1012 1063 1062;
1187 1012 1013 1064 1063; 1188 1013 1014 1065 1064; 1189 1014 1015 1066 1065;
1190 1015 1016 1067 1066; 1191 1016 1017 1068 1067; 1192 1017 1018 1069 1068;
1193 1018 1019 1070 1069; 1194 1019 1020 1071 1070; 1195 1020 1021 1072 1071;
1196 1021 1022 1073 1072; 1197 1022 1023 1074 1073; 1198 1023 1024 1075 1074;
1199 1024 1025 1076 1075; 1200 1025 1026 1077 1076; 1201 1026 1027 1078 1077;
1202 1027 1028 1079 1078; 1203 1028 1029 1080 1079; 1204 1029 1030 1081 1080;
1205 1030 1031 1082 1081; 1206 1031 1032 1083 1082; 1207 1032 1033 1084 1083;
1208 1033 1034 1085 1084; 1209 1034 1035 1086 1085; 1210 1035 1036 1087 1086;
1211 1036 1037 1088 1087; 1214 1038 1039 1090 1089; 1215 1039 1040 1091 1090;
1216 1040 1041 1092 1091; 1217 1041 1042 1093 1092; 1218 1042 1043 1094 1093;
1219 1043 1044 1095 1094; 1220 1044 1045 1096 1095; 1221 1045 1046 1097 1096;
1222 1046 1047 1098 1097; 1223 1047 1048 1099 1098; 1224 1048 1049 1100 1099;
1225 1049 1050 1101 1100; 1226 1050 1051 1102 1101; 1227 1051 1052 1103 1102;
1228 1052 1053 1104 1103; 1229 1053 1054 1105 1104; 1230 1054 1055 1106 1105;
1231 1055 1056 1107 1106; 1232 1056 1057 1108 1107; 1233 1057 1058 1109 1108;
1234 1058 1059 1110 1109; 1235 1059 1060 1111 1110; 1236 1060 1061 1112 1111;
1237 1061 1062 1113 1112; 1238 1062 1063 1114 1113; 1239 1063 1064 1115 1114;
1240 1064 1065 1116 1115; 1241 1065 1066 1117 1116; 1242 1066 1067 1118 1117;
1243 1067 1068 1119 1118; 1244 1068 1069 1120 1119; 1245 1069 1070 1121 1120;
1246 1070 1071 1122 1121; 1247 1071 1072 1123 1122; 1248 1072 1073 1124 1123;
1249 1073 1074 1125 1124; 1250 1074 1075 1126 1125; 1251 1075 1076 1127 1126;
1252 1076 1077 1128 1127; 1253 1077 1078 1129 1128; 1254 1078 1079 1130 1129;
1255 1079 1080 1131 1130; 1256 1080 1081 1132 1131; 1257 1081 1082 1133 1132;
1258 1082 1083 1134 1133; 1259 1083 1084 1135 1134; 1260 1084 1085 1136 1135;
1261 1085 1086 1137 1136; 1262 1086 1087 1138 1137; 1263 1087 1088 1139 1138;
1266 1089 1090 1141 1140; 1267 1090 1091 1142 1141; 1268 1091 1092 1143 1142;
1269 1092 1093 1144 1143; 1270 1093 1094 1145 1144; 1271 1094 1095 1146 1145;
1272 1095 1096 1147 1146; 1273 1096 1097 1148 1147; 1274 1097 1098 1149 1148;
1275 1098 1099 1150 1149; 1276 1099 1100 1151 1150; 1277 1100 1101 1152 1151;
1278 1101 1102 1153 1152; 1279 1102 1103 1154 1153; 1280 1103 1104 1155 1154;
1281 1104 1105 1156 1155; 1282 1105 1106 1157 1156; 1283 1106 1107 1158 1157;
1284 1107 1108 1159 1158; 1285 1108 1109 1160 1159; 1286 1109 1110 1161 1160;
1287 1110 1111 1162 1161; 1288 1111 1112 1163 1162; 1289 1112 1113 1164 1163;
1290 1113 1114 1165 1164; 1291 1114 1115 1166 1165; 1292 1115 1116 1167 1166;
1293 1116 1117 1168 1167; 1294 1117 1118 1169 1168; 1295 1118 1119 1170 1169;
1296 1119 1120 1171 1170; 1297 1120 1121 1172 1171; 1298 1121 1122 1173 1172;
1299 1122 1123 1174 1173; 1300 1123 1124 1175 1174; 1301 1124 1125 1176 1175;
1302 1125 1126 1177 1176; 1303 1126 1127 1178 1177; 1304 1127 1128 1179 1178;
1305 1128 1129 1180 1179; 1306 1129 1130 1181 1180; 1307 1130 1131 1182 1181;
1308 1131 1132 1183 1182; 1309 1132 1133 1184 1183; 1310 1133 1134 1185 1184;
1311 1134 1135 1186 1185; 1312 1135 1136 1187 1186; 1313 1136 1137 1188 1187;
1314 1137 1138 1189 1188; 1315 1138 1139 1190 1189; 1365 1140 1141 1191 3;
1366 1141 1142 1192 1191; 1367 1142 1143 1193 1192; 1368 1143 1144 1194 1193;
1369 1144 1145 1195 1194; 1370 1145 1146 1196 1195; 1371 1146 1147 1197 1196;
1372 1147 1148 1198 1197; 1373 1148 1149 1199 1198; 1374 1149 1150 1200 1199;
1375 1150 1151 1201 1200; 1376 1151 1152 1202 1201; 1377 1152 1153 1203 1202;
1378 1153 1154 1204 1203; 1379 1154 1155 1205 1204; 1380 1155 1156 1206 1205;
1381 1156 1157 1207 1206; 1382 1157 1158 1208 1207; 1383 1158 1159 1209 1208;
1384 1159 1160 1210 1209; 1385 1160 1161 1211 1210; 1386 1161 1162 1212 1211;
1387 1162 1163 1213 1212; 1388 1163 1164 1214 1213; 1389 1164 1165 1215 1214;
1390 1165 1166 1216 1215; 1391 1166 1167 1217 1216; 1392 1167 1168 1218 1217;
1393 1168 1169 1219 1218; 1394 1169 1170 1220 1219; 1395 1170 1171 1221 1220;
1396 1171 1172 1222 1221; 1397 1172 1173 1223 1222; 1398 1173 1174 1224 1223;
1399 1174 1175 1225 1224; 1400 1175 1176 1226 1225; 1401 1176 1177 1227 1226;
1402 1177 1178 1228 1227; 1403 1178 1179 1229 1228; 1404 1179 1180 1230 1229;
1405 1180 1181 1231 1230; 1406 1181 1182 1232 1231; 1407 1182 1183 1233 1232;
1408 1183 1184 1234 1233; 1409 1184 1185 1235 1234; 1410 1185 1186 1236 1235;
1411 1186 1187 1237 1236; 1412 1187 1188 1238 1237; 1413 1188 1189 1239 1238;
1414 1189 1190 21 1239; 1417 3 1191 1241 1240; 1418 1191 1192 1242 1241;
1419 1192 1193 1243 1242; 1420 1193 1194 1244 1243; 1421 1194 1195 1245 1244;
1422 1195 1196 1246 1245; 1423 1196 1197 1247 1246; 1424 1197 1198 1248 1247;
1425 1198 1199 1249 1248; 1426 1199 1200 1250 1249; 1427 1200 1201 1251 1250;
1428 1201 1202 1252 1251; 1429 1202 1203 1253 1252; 1430 1203 1204 1254 1253;
1431 1204 1205 1255 1254; 1432 1205 1206 1256 1255; 1433 1206 1207 1257 1256;
1434 1207 1208 1258 1257; 1435 1208 1209 1259 1258; 1436 1209 1210 1260 1259;
1437 1210 1211 1261 1260; 1438 1211 1212 1262 1261; 1439 1212 1213 1263 1262;
1440 1213 1214 1264 1263; 1441 1214 1215 1265 1264; 1442 1215 1216 1266 1265;
1443 1216 1217 1267 1266; 1444 1217 1218 1268 1267; 1445 1218 1219 1269 1268;
1446 1219 1220 1270 1269; 1447 1220 1221 1271 1270; 1448 1221 1222 1272 1271;
1449 1222 1223 1273 1272; 1450 1223 1224 1274 1273; 1451 1224 1225 1275 1274;
1452 1225 1226 1276 1275; 1453 1226 1227 1277 1276; 1454 1227 1228 1278 1277;
1455 1228 1229 1279 1278; 1456 1229 1230 1280 1279; 1457 1230 1231 1281 1280;
1458 1231 1232 1282 1281; 1459 1232 1233 1283 1282; 1460 1233 1234 1284 1283;
1461 1234 1235 1285 1284; 1462 1235 1236 1286 1285; 1463 1236 1237 1287 1286;
1464 1237 1238 1288 1287; 1465 1238 1239 1289 1288; 1466 1239 21 1290 1289;
1469 1240 1241 1292 1291; 1470 1241 1242 1293 1292; 1471 1242 1243 1294 1293;
1472 1243 1244 1295 1294; 1473 1244 1245 1296 1295; 1474 1245 1246 1297 1296;
1475 1246 1247 1298 1297; 1476 1247 1248 1299 1298; 1477 1248 1249 1300 1299;
1478 1249 1250 1301 1300; 1479 1250 1251 1302 1301; 1480 1251 1252 1303 1302;
1481 1252 1253 1304 1303; 1482 1253 1254 1305 1304; 1483 1254 1255 1306 1305;
1484 1255 1256 1307 1306; 1485 1256 1257 1308 1307; 1486 1257 1258 1309 1308;
1487 1258 1259 1310 1309; 1488 1259 1260 1311 1310; 1489 1260 1261 1312 1311;
1490 1261 1262 1313 1312; 1491 1262 1263 1314 1313; 1492 1263 1264 1315 1314;
1493 1264 1265 1316 1315; 1494 1265 1266 1317 1316; 1495 1266 1267 1318 1317;
1496 1267 1268 1319 1318; 1497 1268 1269 1320 1319; 1498 1269 1270 1321 1320;
1499 1270 1271 1322 1321; 1500 1271 1272 1323 1322; 1501 1272 1273 1324 1323;
1502 1273 1274 1325 1324; 1503 1274 1275 1326 1325; 1504 1275 1276 1327 1326;
1505 1276 1277 1328 1327; 1506 1277 1278 1329 1328; 1507 1278 1279 1330 1329;
1508 1279 1280 1331 1330; 1509 1280 1281 1332 1331; 1510 1281 1282 1333 1332;
1511 1282 1283 1334 1333; 1512 1283 1284 1335 1334; 1513 1284 1285 1336 1335;
1514 1285 1286 1337 1336; 1515 1286 1287 1338 1337; 1516 1287 1288 1339 1338;
1517 1288 1289 1340 1339; 1518 1289 1290 1341 1340; 1521 1291 1292 1343 1342;
1522 1292 1293 1344 1343; 1523 1293 1294 1345 1344; 1524 1294 1295 1346 1345;
1525 1295 1296 1347 1346; 1526 1296 1297 1348 1347; 1527 1297 1298 1349 1348;
1528 1298 1299 1350 1349; 1529 1299 1300 1351 1350; 1530 1300 1301 1352 1351;
1531 1301 1302 1353 1352; 1532 1302 1303 1354 1353; 1533 1303 1304 1355 1354;
1534 1304 1305 1356 1355; 1535 1305 1306 1357 1356; 1536 1306 1307 1358 1357;
1537 1307 1308 1359 1358; 1538 1308 1309 1360 1359; 1539 1309 1310 1361 1360;
1540 1310 1311 1362 1361; 1541 1311 1312 1363 1362; 1542 1312 1313 1364 1363;
1543 1313 1314 1365 1364; 1544 1314 1315 1366 1365; 1545 1315 1316 1367 1366;
1546 1316 1317 1368 1367; 1547 1317 1318 1369 1368; 1548 1318 1319 1370 1369;
1549 1319 1320 1371 1370; 1550 1320 1321 1372 1371; 1551 1321 1322 1373 1372;
1552 1322 1323 1374 1373; 1553 1323 1324 1375 1374; 1554 1324 1325 1376 1375;
1555 1325 1326 1377 1376; 1556 1326 1327 1378 1377; 1557 1327 1328 1379 1378;
1558 1328 1329 1380 1379; 1559 1329 1330 1381 1380; 1560 1330 1331 1382 1381;
1561 1331 1332 1383 1382; 1562 1332 1333 1384 1383; 1563 1333 1334 1385 1384;
1564 1334 1335 1386 1385; 1565 1335 1336 1387 1386; 1566 1336 1337 1388 1387;
1567 1337 1338 1389 1388; 1568 1338 1339 1390 1389; 1569 1339 1340 1391 1390;
1570 1340 1341 1392 1391; 1573 1342 1343 1394 1393; 1574 1343 1344 1395 1394;
1575 1344 1345 1396 1395; 1576 1345 1346 1397 1396; 1577 1346 1347 1398 1397;
1578 1347 1348 1399 1398; 1579 1348 1349 1400 1399; 1580 1349 1350 1401 1400;
1581 1350 1351 1402 1401; 1582 1351 1352 1403 1402; 1583 1352 1353 1404 1403;
1584 1353 1354 1405 1404; 1585 1354 1355 1406 1405; 1586 1355 1356 1407 1406;
1587 1356 1357 1408 1407; 1588 1357 1358 1409 1408; 1589 1358 1359 1410 1409;
1590 1359 1360 1411 1410; 1591 1360 1361 1412 1411; 1592 1361 1362 1413 1412;
1593 1362 1363 1414 1413; 1594 1363 1364 1415 1414; 1595 1364 1365 1416 1415;
1596 1365 1366 1417 1416; 1597 1366 1367 1418 1417; 1598 1367 1368 1419 1418;
1599 1368 1369 1420 1419; 1600 1369 1370 1421 1420; 1601 1370 1371 1422 1421;
1602 1371 1372 1423 1422; 1603 1372 1373 1424 1423; 1604 1373 1374 1425 1424;
1605 1374 1375 1426 1425; 1606 1375 1376 1427 1426; 1607 1376 1377 1428 1427;
1608 1377 1378 1429 1428; 1609 1378 1379 1430 1429; 1610 1379 1380 1431 1430;
1611 1380 1381 1432 1431; 1612 1381 1382 1433 1432; 1613 1382 1383 1434 1433;
1614 1383 1384 1435 1434; 1615 1384 1385 1436 1435; 1616 1385 1386 1437 1436;
1617 1386 1387 1438 1437; 1618 1387 1388 1439 1438; 1619 1388 1389 1440 1439;
1620 1389 1390 1441 1440; 1621 1390 1391 1442 1441; 1622 1391 1392 1443 1442;
1625 1393 1394 1445 1444; 1626 1394 1395 1446 1445; 1627 1395 1396 1447 1446;
1628 1396 1397 1448 1447; 1629 1397 1398 1449 1448; 1630 1398 1399 1450 1449;
1631 1399 1400 1451 1450; 1632 1400 1401 1452 1451; 1633 1401 1402 1453 1452;
1634 1402 1403 1454 1453; 1635 1403 1404 1455 1454; 1636 1404 1405 1456 1455;
1637 1405 1406 1457 1456; 1638 1406 1407 1458 1457; 1639 1407 1408 1459 1458;
1640 1408 1409 1460 1459; 1641 1409 1410 1461 1460; 1642 1410 1411 1462 1461;
1643 1411 1412 1463 1462; 1644 1412 1413 1464 1463; 1645 1413 1414 1465 1464;
1646 1414 1415 1466 1465; 1647 1415 1416 1467 1466; 1648 1416 1417 1468 1467;
1649 1417 1418 1469 1468; 1650 1418 1419 1470 1469; 1651 1419 1420 1471 1470;
1652 1420 1421 1472 1471; 1653 1421 1422 1473 1472; 1654 1422 1423 1474 1473;
1655 1423 1424 1475 1474; 1656 1424 1425 1476 1475; 1657 1425 1426 1477 1476;
1658 1426 1427 1478 1477; 1659 1427 1428 1479 1478; 1660 1428 1429 1480 1479;
1661 1429 1430 1481 1480; 1662 1430 1431 1482 1481; 1663 1431 1432 1483 1482;
1664 1432 1433 1484 1483; 1665 1433 1434 1485 1484; 1666 1434 1435 1486 1485;
1667 1435 1436 1487 1486; 1668 1436 1437 1488 1487; 1669 1437 1438 1489 1488;
1670 1438 1439 1490 1489; 1671 1439 1440 1491 1490; 1672 1440 1441 1492 1491;
1673 1441 1442 1493 1492; 1674 1442 1443 1494 1493; 1724 1444 1445 1495 2;
1725 1445 1446 1496 1495; 1726 1446 1447 1497 1496; 1727 1447 1448 1498 1497;
1728 1448 1449 1499 1498; 1729 1449 1450 1500 1499; 1730 1450 1451 1501 1500;
1731 1451 1452 1502 1501; 1732 1452 1453 1503 1502; 1733 1453 1454 1504 1503;
1734 1454 1455 1505 1504; 1735 1455 1456 1506 1505; 1736 1456 1457 1507 1506;
1737 1457 1458 1508 1507; 1738 1458 1459 1509 1508; 1739 1459 1460 1510 1509;
1740 1460 1461 1511 1510; 1741 1461 1462 1512 1511; 1742 1462 1463 1513 1512;
1743 1463 1464 1514 1513; 1744 1464 1465 1515 1514; 1745 1465 1466 1516 1515;
1746 1466 1467 1517 1516; 1747 1467 1468 1518 1517; 1748 1468 1469 1519 1518;
1749 1469 1470 1520 1519; 1750 1470 1471 1521 1520; 1751 1471 1472 1522 1521;
1752 1472 1473 1523 1522; 1753 1473 1474 1524 1523; 1754 1474 1475 1525 1524;
1755 1475 1476 1526 1525; 1756 1476 1477 1527 1526; 1757 1477 1478 1528 1527;
1758 1478 1479 1529 1528; 1759 1479 1480 1530 1529; 1760 1480 1481 1531 1530;
1761 1481 1482 1532 1531; 1762 1482 1483 1533 1532; 1763 1483 1484 1534 1533;
1764 1484 1485 1535 1534; 1765 1485 1486 1536 1535; 1766 1486 1487 1537 1536;
1767 1487 1488 1538 1537; 1768 1488 1489 1539 1538; 1769 1489 1490 1540 1539;
1770 1490 1491 1541 1540; 1771 1491 1492 1542 1541; 1772 1492 1493 1543 1542;
1773 1493 1494 22 1543; 1776 2 1495 1545 1544; 1777 1495 1496 1546 1545;
1778 1496 1497 1547 1546; 1779 1497 1498 1548 1547; 1780 1498 1499 1549 1548;
1781 1499 1500 1550 1549; 1782 1500 1501 1551 1550; 1783 1501 1502 1552 1551;
1784 1502 1503 1553 1552; 1785 1503 1504 1554 1553; 1786 1504 1505 1555 1554;
1787 1505 1506 1556 1555; 1788 1506 1507 1557 1556; 1789 1507 1508 1558 1557;
1790 1508 1509 1559 1558; 1791 1509 1510 1560 1559; 1792 1510 1511 1561 1560;
1793 1511 1512 1562 1561; 1794 1512 1513 1563 1562; 1795 1513 1514 1564 1563;
1796 1514 1515 1565 1564; 1797 1515 1516 1566 1565; 1798 1516 1517 1567 1566;
1799 1517 1518 1568 1567; 1800 1518 1519 1569 1568; 1801 1519 1520 1570 1569;
1802 1520 1521 1571 1570; 1803 1521 1522 1572 1571; 1804 1522 1523 1573 1572;
1805 1523 1524 1574 1573; 1806 1524 1525 1575 1574; 1807 1525 1526 1576 1575;
1808 1526 1527 1577 1576; 1809 1527 1528 1578 1577; 1810 1528 1529 1579 1578;
1811 1529 1530 1580 1579; 1812 1530 1531 1581 1580; 1813 1531 1532 1582 1581;
1814 1532 1533 1583 1582; 1815 1533 1534 1584 1583; 1816 1534 1535 1585 1584;
1817 1535 1536 1586 1585; 1818 1536 1537 1587 1586; 1819 1537 1538 1588 1587;
1820 1538 1539 1589 1588; 1821 1539 1540 1590 1589; 1822 1540 1541 1591 1590;
1823 1541 1542 1592 1591; 1824 1542 1543 1593 1592; 1825 1543 22 1594 1593;
1828 1544 1545 1596 1595; 1829 1545 1546 1597 1596; 1830 1546 1547 1598 1597;
1831 1547 1548 1599 1598; 1832 1548 1549 1600 1599; 1833 1549 1550 1601 1600;
1834 1550 1551 1602 1601; 1835 1551 1552 1603 1602; 1836 1552 1553 1604 1603;
1837 1553 1554 1605 1604; 1838 1554 1555 1606 1605; 1839 1555 1556 1607 1606;
1840 1556 1557 1608 1607; 1841 1557 1558 1609 1608; 1842 1558 1559 1610 1609;
1843 1559 1560 1611 1610; 1844 1560 1561 1612 1611; 1845 1561 1562 1613 1612;
1846 1562 1563 1614 1613; 1847 1563 1564 1615 1614; 1848 1564 1565 1616 1615;
1849 1565 1566 1617 1616; 1850 1566 1567 1618 1617; 1851 1567 1568 1619 1618;
1852 1568 1569 1620 1619; 1853 1569 1570 1621 1620; 1854 1570 1571 1622 1621;
1855 1571 1572 1623 1622; 1856 1572 1573 1624 1623; 1857 1573 1574 1625 1624;
1858 1574 1575 1626 1625; 1859 1575 1576 1627 1626; 1860 1576 1577 1628 1627;
1861 1577 1578 1629 1628; 1862 1578 1579 1630 1629; 1863 1579 1580 1631 1630;
1864 1580 1581 1632 1631; 1865 1581 1582 1633 1632; 1866 1582 1583 1634 1633;
1867 1583 1584 1635 1634; 1868 1584 1585 1636 1635; 1869 1585 1586 1637 1636;
1870 1586 1587 1638 1637; 1871 1587 1588 1639 1638; 1872 1588 1589 1640 1639;
1873 1589 1590 1641 1640; 1874 1590 1591 1642 1641; 1875 1591 1592 1643 1642;
1876 1592 1593 1644 1643; 1877 1593 1594 1645 1644; 1880 1595 1596 1647 1646;
1881 1596 1597 1648 1647; 1882 1597 1598 1649 1648; 1883 1598 1599 1650 1649;
1884 1599 1600 1651 1650; 1885 1600 1601 1652 1651; 1886 1601 1602 1653 1652;
1887 1602 1603 1654 1653; 1888 1603 1604 1655 1654; 1889 1604 1605 1656 1655;
1890 1605 1606 1657 1656; 1891 1606 1607 1658 1657; 1892 1607 1608 1659 1658;
1893 1608 1609 1660 1659; 1894 1609 1610 1661 1660; 1895 1610 1611 1662 1661;
1896 1611 1612 1663 1662; 1897 1612 1613 1664 1663; 1898 1613 1614 1665 1664;
1899 1614 1615 1666 1665; 1900 1615 1616 1667 1666; 1901 1616 1617 1668 1667;
1902 1617 1618 1669 1668; 1903 1618 1619 1670 1669; 1904 1619 1620 1671 1670;
1905 1620 1621 1672 1671; 1906 1621 1622 1673 1672; 1907 1622 1623 1674 1673;
1908 1623 1624 1675 1674; 1909 1624 1625 1676 1675; 1910 1625 1626 1677 1676;
1911 1626 1627 1678 1677; 1912 1627 1628 1679 1678; 1913 1628 1629 1680 1679;
1914 1629 1630 1681 1680; 1915 1630 1631 1682 1681; 1916 1631 1632 1683 1682;
1917 1632 1633 1684 1683; 1918 1633 1634 1685 1684; 1919 1634 1635 1686 1685;
1920 1635 1636 1687 1686; 1921 1636 1637 1688 1687; 1922 1637 1638 1689 1688;
1923 1638 1639 1690 1689; 1924 1639 1640 1691 1690; 1925 1640 1641 1692 1691;
1926 1641 1642 1693 1692; 1927 1642 1643 1694 1693; 1928 1643 1644 1695 1694;
1929 1644 1645 1696 1695; 1932 1646 1647 1698 1697; 1933 1647 1648 1699 1698;
1934 1648 1649 1700 1699; 1935 1649 1650 1701 1700; 1936 1650 1651 1702 1701;
1937 1651 1652 1703 1702; 1938 1652 1653 1704 1703; 1939 1653 1654 1705 1704;
1940 1654 1655 1706 1705; 1941 1655 1656 1707 1706; 1942 1656 1657 1708 1707;
1943 1657 1658 1709 1708; 1944 1658 1659 1710 1709; 1945 1659 1660 1711 1710;
1946 1660 1661 1712 1711; 1947 1661 1662 1713 1712; 1948 1662 1663 1714 1713;
1949 1663 1664 1715 1714; 1950 1664 1665 1716 1715; 1951 1665 1666 1717 1716;
1952 1666 1667 1718 1717; 1953 1667 1668 1719 1718; 1954 1668 1669 1720 1719;
1955 1669 1670 1721 1720; 1956 1670 1671 1722 1721; 1957 1671 1672 1723 1722;
1958 1672 1673 1724 1723; 1959 1673 1674 1725 1724; 1960 1674 1675 1726 1725;
1961 1675 1676 1727 1726; 1962 1676 1677 1728 1727; 1963 1677 1678 1729 1728;
1964 1678 1679 1730 1729; 1965 1679 1680 1731 1730; 1966 1680 1681 1732 1731;
1967 1681 1682 1733 1732; 1968 1682 1683 1734 1733; 1969 1683 1684 1735 1734;
1970 1684 1685 1736 1735; 1971 1685 1686 1737 1736; 1972 1686 1687 1738 1737;
1973 1687 1688 1739 1738; 1974 1688 1689 1740 1739; 1975 1689 1690 1741 1740;
1976 1690 1691 1742 1741; 1977 1691 1692 1743 1742; 1978 1692 1693 1744 1743;
1979 1693 1694 1745 1744; 1980 1694 1695 1746 1745; 1981 1695 1696 1747 1746;
1984 1697 1698 1749 1748; 1985 1698 1699 1750 1749; 1986 1699 1700 1751 1750;
1987 1700 1701 1752 1751; 1988 1701 1702 1753 1752; 1989 1702 1703 1754 1753;
1990 1703 1704 1755 1754; 1991 1704 1705 1756 1755; 1992 1705 1706 1757 1756;
1993 1706 1707 1758 1757; 1994 1707 1708 1759 1758; 1995 1708 1709 1760 1759;
1996 1709 1710 1761 1760; 1997 1710 1711 1762 1761; 1998 1711 1712 1763 1762;
1999 1712 1713 1764 1763; 2000 1713 1714 1765 1764; 2001 1714 1715 1766 1765;
2002 1715 1716 1767 1766; 2003 1716 1717 1768 1767; 2004 1717 1718 1769 1768;
2005 1718 1719 1770 1769; 2006 1719 1720 1771 1770; 2007 1720 1721 1772 1771;
2008 1721 1722 1773 1772; 2009 1722 1723 1774 1773; 2010 1723 1724 1775 1774;
2011 1724 1725 1776 1775; 2012 1725 1726 1777 1776; 2013 1726 1727 1778 1777;
2014 1727 1728 1779 1778; 2015 1728 1729 1780 1779; 2016 1729 1730 1781 1780;
2017 1730 1731 1782 1781; 2018 1731 1732 1783 1782; 2019 1732 1733 1784 1783;
2020 1733 1734 1785 1784; 2021 1734 1735 1786 1785; 2022 1735 1736 1787 1786;
2023 1736 1737 1788 1787; 2024 1737 1738 1789 1788; 2025 1738 1739 1790 1789;
2026 1739 1740 1791 1790; 2027 1740 1741 1792 1791; 2028 1741 1742 1793 1792;
2029 1742 1743 1794 1793; 2030 1743 1744 1795 1794; 2031 1744 1745 1796 1795;
2032 1745 1746 1797 1796; 2033 1746 1747 1798 1797; 2083 1748 1749 1799 4;
2084 1749 1750 1800 1799; 2085 1750 1751 1801 1800; 2086 1751 1752 1802 1801;
2087 1752 1753 1803 1802; 2088 1753 1754 1804 1803; 2089 1754 1755 1805 1804;
2090 1755 1756 1806 1805; 2091 1756 1757 1807 1806; 2092 1757 1758 1808 1807;
2093 1758 1759 1809 1808; 2094 1759 1760 1810 1809; 2095 1760 1761 1811 1810;
2096 1761 1762 1812 1811; 2097 1762 1763 1813 1812; 2098 1763 1764 1814 1813;
2099 1764 1765 1815 1814; 2100 1765 1766 1816 1815; 2101 1766 1767 1817 1816;
2102 1767 1768 1818 1817; 2103 1768 1769 1819 1818; 2104 1769 1770 1820 1819;
2105 1770 1771 1821 1820; 2106 1771 1772 1822 1821; 2107 1772 1773 1823 1822;
2108 1773 1774 1824 1823; 2109 1774 1775 1825 1824; 2110 1775 1776 1826 1825;
2111 1776 1777 1827 1826; 2112 1777 1778 1828 1827; 2113 1778 1779 1829 1828;
2114 1779 1780 1830 1829; 2115 1780 1781 1831 1830; 2116 1781 1782 1832 1831;
2117 1782 1783 1833 1832; 2118 1783 1784 1834 1833; 2119 1784 1785 1835 1834;
2120 1785 1786 1836 1835; 2121 1786 1787 1837 1836; 2122 1787 1788 1838 1837;
2123 1788 1789 1839 1838; 2124 1789 1790 1840 1839; 2125 1790 1791 1841 1840;
2126 1791 1792 1842 1841; 2127 1792 1793 1843 1842; 2128 1793 1794 1844 1843;
2129 1794 1795 1845 1844; 2130 1795 1796 1846 1845; 2131 1796 1797 1847 1846;
2132 1797 1798 23 1847; 2135 4 1799 1849 1848; 2136 1799 1800 1850 1849;
2137 1800 1801 1851 1850; 2138 1801 1802 1852 1851; 2139 1802 1803 1853 1852;
2140 1803 1804 1854 1853; 2141 1804 1805 1855 1854; 2142 1805 1806 1856 1855;
2143 1806 1807 1857 1856; 2144 1807 1808 1858 1857; 2145 1808 1809 1859 1858;
2146 1809 1810 1860 1859; 2147 1810 1811 1861 1860; 2148 1811 1812 1862 1861;
2149 1812 1813 1863 1862; 2150 1813 1814 1864 1863; 2151 1814 1815 1865 1864;
2152 1815 1816 1866 1865; 2153 1816 1817 1867 1866; 2154 1817 1818 1868 1867;
2155 1818 1819 1869 1868; 2156 1819 1820 1870 1869; 2157 1820 1821 1871 1870;
2158 1821 1822 1872 1871; 2159 1822 1823 1873 1872; 2160 1823 1824 1874 1873;
2161 1824 1825 1875 1874; 2162 1825 1826 1876 1875; 2163 1826 1827 1877 1876;
2164 1827 1828 1878 1877; 2165 1828 1829 1879 1878; 2166 1829 1830 1880 1879;
2167 1830 1831 1881 1880; 2168 1831 1832 1882 1881; 2169 1832 1833 1883 1882;
2170 1833 1834 1884 1883; 2171 1834 1835 1885 1884; 2172 1835 1836 1886 1885;
2173 1836 1837 1887 1886; 2174 1837 1838 1888 1887; 2175 1838 1839 1889 1888;
2176 1839 1840 1890 1889; 2177 1840 1841 1891 1890; 2178 1841 1842 1892 1891;
2179 1842 1843 1893 1892; 2180 1843 1844 1894 1893; 2181 1844 1845 1895 1894;
2182 1845 1846 1896 1895; 2183 1846 1847 1897 1896; 2184 1847 23 1898 1897;
2187 1848 1849 1900 1899; 2188 1849 1850 1901 1900; 2189 1850 1851 1902 1901;
2190 1851 1852 1903 1902; 2191 1852 1853 1904 1903; 2192 1853 1854 1905 1904;
2193 1854 1855 1906 1905; 2194 1855 1856 1907 1906; 2195 1856 1857 1908 1907;
2196 1857 1858 1909 1908; 2197 1858 1859 1910 1909; 2198 1859 1860 1911 1910;
2199 1860 1861 1912 1911; 2200 1861 1862 1913 1912; 2201 1862 1863 1914 1913;
2202 1863 1864 1915 1914; 2203 1864 1865 1916 1915; 2204 1865 1866 1917 1916;
2205 1866 1867 1918 1917; 2206 1867 1868 1919 1918; 2207 1868 1869 1920 1919;
2208 1869 1870 1921 1920; 2209 1870 1871 1922 1921; 2210 1871 1872 1923 1922;
2211 1872 1873 1924 1923; 2212 1873 1874 1925 1924; 2213 1874 1875 1926 1925;
2214 1875 1876 1927 1926; 2215 1876 1877 1928 1927; 2216 1877 1878 1929 1928;
2217 1878 1879 1930 1929; 2218 1879 1880 1931 1930; 2219 1880 1881 1932 1931;
2220 1881 1882 1933 1932; 2221 1882 1883 1934 1933; 2222 1883 1884 1935 1934;
2223 1884 1885 1936 1935; 2224 1885 1886 1937 1936; 2225 1886 1887 1938 1937;
2226 1887 1888 1939 1938; 2227 1888 1889 1940 1939; 2228 1889 1890 1941 1940;
2229 1890 1891 1942 1941; 2230 1891 1892 1943 1942; 2231 1892 1893 1944 1943;
2232 1893 1894 1945 1944; 2233 1894 1895 1946 1945; 2234 1895 1896 1947 1946;
2235 1896 1897 1948 1947; 2236 1897 1898 1949 1948; 2239 1899 1900 1951 1950;
2240 1900 1901 1952 1951; 2241 1901 1902 1953 1952; 2242 1902 1903 1954 1953;
2243 1903 1904 1955 1954; 2244 1904 1905 1956 1955; 2245 1905 1906 1957 1956;
2246 1906 1907 1958 1957; 2247 1907 1908 1959 1958; 2248 1908 1909 1960 1959;
2249 1909 1910 1961 1960; 2250 1910 1911 1962 1961; 2251 1911 1912 1963 1962;
2252 1912 1913 1964 1963; 2253 1913 1914 1965 1964; 2254 1914 1915 1966 1965;
2255 1915 1916 1967 1966; 2256 1916 1917 1968 1967; 2257 1917 1918 1969 1968;
2258 1918 1919 1970 1969; 2259 1919 1920 1971 1970; 2260 1920 1921 1972 1971;
2261 1921 1922 1973 1972; 2262 1922 1923 1974 1973; 2263 1923 1924 1975 1974;
2264 1924 1925 1976 1975; 2265 1925 1926 1977 1976; 2266 1926 1927 1978 1977;
2267 1927 1928 1979 1978; 2268 1928 1929 1980 1979; 2269 1929 1930 1981 1980;
2270 1930 1931 1982 1981; 2271 1931 1932 1983 1982; 2272 1932 1933 1984 1983;
2273 1933 1934 1985 1984; 2274 1934 1935 1986 1985; 2275 1935 1936 1987 1986;
2276 1936 1937 1988 1987; 2277 1937 1938 1989 1988; 2278 1938 1939 1990 1989;
2279 1939 1940 1991 1990; 2280 1940 1941 1992 1991; 2281 1941 1942 1993 1992;
2282 1942 1943 1994 1993; 2283 1943 1944 1995 1994; 2284 1944 1945 1996 1995;
2285 1945 1946 1997 1996; 2286 1946 1947 1998 1997; 2287 1947 1948 1999 1998;
2288 1948 1949 2000 1999; 2291 1950 1951 2002 2001; 2292 1951 1952 2003 2002;
2293 1952 1953 2004 2003; 2294 1953 1954 2005 2004; 2295 1954 1955 2006 2005;
2296 1955 1956 2007 2006; 2297 1956 1957 2008 2007; 2298 1957 1958 2009 2008;
2299 1958 1959 2010 2009; 2300 1959 1960 2011 2010; 2301 1960 1961 2012 2011;
2302 1961 1962 2013 2012; 2303 1962 1963 2014 2013; 2304 1963 1964 2015 2014;
2305 1964 1965 2016 2015; 2306 1965 1966 2017 2016; 2307 1966 1967 2018 2017;
2308 1967 1968 2019 2018; 2309 1968 1969 2020 2019; 2310 1969 1970 2021 2020;
2311 1970 1971 2022 2021; 2312 1971 1972 2023 2022; 2313 1972 1973 2024 2023;
2314 1973 1974 2025 2024; 2315 1974 1975 2026 2025; 2316 1975 1976 2027 2026;
2317 1976 1977 2028 2027; 2318 1977 1978 2029 2028; 2319 1978 1979 2030 2029;
2320 1979 1980 2031 2030; 2321 1980 1981 2032 2031; 2322 1981 1982 2033 2032;
2323 1982 1983 2034 2033; 2324 1983 1984 2035 2034; 2325 1984 1985 2036 2035;
2326 1985 1986 2037 2036; 2327 1986 1987 2038 2037; 2328 1987 1988 2039 2038;
2329 1988 1989 2040 2039; 2330 1989 1990 2041 2040; 2331 1990 1991 2042 2041;
2332 1991 1992 2043 2042; 2333 1992 1993 2044 2043; 2334 1993 1994 2045 2044;
2335 1994 1995 2046 2045; 2336 1995 1996 2047 2046; 2337 1996 1997 2048 2047;
2338 1997 1998 2049 2048; 2339 1998 1999 2050 2049; 2340 1999 2000 2051 2050;
2343 2001 2002 2053 2052; 2344 2002 2003 2054 2053; 2345 2003 2004 2055 2054;
2346 2004 2005 2056 2055; 2347 2005 2006 2057 2056; 2348 2006 2007 2058 2057;
2349 2007 2008 2059 2058; 2350 2008 2009 2060 2059; 2351 2009 2010 2061 2060;
2352 2010 2011 2062 2061; 2353 2011 2012 2063 2062; 2354 2012 2013 2064 2063;
2355 2013 2014 2065 2064; 2356 2014 2015 2066 2065; 2357 2015 2016 2067 2066;
2358 2016 2017 2068 2067; 2359 2017 2018 2069 2068; 2360 2018 2019 2070 2069;
2361 2019 2020 2071 2070; 2362 2020 2021 2072 2071; 2363 2021 2022 2073 2072;
2364 2022 2023 2074 2073; 2365 2023 2024 2075 2074; 2366 2024 2025 2076 2075;
2367 2025 2026 2077 2076; 2368 2026 2027 2078 2077; 2369 2027 2028 2079 2078;
2370 2028 2029 2080 2079; 2371 2029 2030 2081 2080; 2372 2030 2031 2082 2081;
2373 2031 2032 2083 2082; 2374 2032 2033 2084 2083; 2375 2033 2034 2085 2084;
2376 2034 2035 2086 2085; 2377 2035 2036 2087 2086; 2378 2036 2037 2088 2087;
2379 2037 2038 2089 2088; 2380 2038 2039 2090 2089; 2381 2039 2040 2091 2090;
2382 2040 2041 2092 2091; 2383 2041 2042 2093 2092; 2384 2042 2043 2094 2093;
2385 2043 2044 2095 2094; 2386 2044 2045 2096 2095; 2387 2045 2046 2097 2096;
2388 2046 2047 2098 2097; 2389 2047 2048 2099 2098; 2390 2048 2049 2100 2099;
2391 2049 2050 2101 2100; 2392 2050 2051 2102 2101; 2442 2052 2053 2103 5;
2443 2053 2054 2104 2103; 2444 2054 2055 2105 2104; 2445 2055 2056 2106 2105;
2446 2056 2057 2107 2106; 2447 2057 2058 2108 2107; 2448 2058 2059 2109 2108;
2449 2059 2060 2110 2109; 2450 2060 2061 2111 2110; 2451 2061 2062 2112 2111;
2452 2062 2063 2113 2112; 2453 2063 2064 2114 2113; 2454 2064 2065 2115 2114;
2455 2065 2066 2116 2115; 2456 2066 2067 2117 2116; 2457 2067 2068 2118 2117;
2458 2068 2069 2119 2118; 2459 2069 2070 2120 2119; 2460 2070 2071 2121 2120;
2461 2071 2072 2122 2121; 2462 2072 2073 2123 2122; 2463 2073 2074 2124 2123;
2464 2074 2075 2125 2124; 2465 2075 2076 2126 2125; 2466 2076 2077 2127 2126;
2467 2077 2078 2128 2127; 2468 2078 2079 2129 2128; 2469 2079 2080 2130 2129;
2470 2080 2081 2131 2130; 2471 2081 2082 2132 2131; 2472 2082 2083 2133 2132;
2473 2083 2084 2134 2133; 2474 2084 2085 2135 2134; 2475 2085 2086 2136 2135;
2476 2086 2087 2137 2136; 2477 2087 2088 2138 2137; 2478 2088 2089 2139 2138;
2479 2089 2090 2140 2139; 2480 2090 2091 2141 2140; 2481 2091 2092 2142 2141;
2482 2092 2093 2143 2142; 2483 2093 2094 2144 2143; 2484 2094 2095 2145 2144;
2485 2095 2096 2146 2145; 2486 2096 2097 2147 2146; 2487 2097 2098 2148 2147;
2488 2098 2099 2149 2148; 2489 2099 2100 2150 2149; 2490 2100 2101 2151 2150;
2491 2101 2102 16 2151; 2494 5 2103 2153 2152; 2495 2103 2104 2154 2153;
2496 2104 2105 2155 2154; 2497 2105 2106 2156 2155; 2498 2106 2107 2157 2156;
2499 2107 2108 2158 2157; 2500 2108 2109 2159 2158; 2501 2109 2110 2160 2159;
2502 2110 2111 2161 2160; 2503 2111 2112 2162 2161; 2504 2112 2113 2163 2162;
2505 2113 2114 2164 2163; 2506 2114 2115 2165 2164; 2507 2115 2116 2166 2165;
2508 2116 2117 2167 2166; 2509 2117 2118 2168 2167; 2510 2118 2119 2169 2168;
2511 2119 2120 2170 2169; 2512 2120 2121 2171 2170; 2513 2121 2122 2172 2171;
2514 2122 2123 2173 2172; 2515 2123 2124 2174 2173; 2516 2124 2125 2175 2174;
2517 2125 2126 2176 2175; 2518 2126 2127 2177 2176; 2519 2127 2128 2178 2177;
2520 2128 2129 2179 2178; 2521 2129 2130 2180 2179; 2522 2130 2131 2181 2180;
2523 2131 2132 2182 2181; 2524 2132 2133 2183 2182; 2525 2133 2134 2184 2183;
2526 2134 2135 2185 2184; 2527 2135 2136 2186 2185; 2528 2136 2137 2187 2186;
2529 2137 2138 2188 2187; 2530 2138 2139 2189 2188; 2531 2139 2140 2190 2189;
2532 2140 2141 2191 2190; 2533 2141 2142 2192 2191; 2534 2142 2143 2193 2192;
2535 2143 2144 2194 2193; 2536 2144 2145 2195 2194; 2537 2145 2146 2196 2195;
2538 2146 2147 2197 2196; 2539 2147 2148 2198 2197; 2540 2148 2149 2199 2198;
2541 2149 2150 2200 2199; 2542 2150 2151 2201 2200; 2543 2151 16 2202 2201;
2546 2152 2153 2204 2203; 2547 2153 2154 2205 2204; 2548 2154 2155 2206 2205;
2549 2155 2156 2207 2206; 2550 2156 2157 2208 2207; 2551 2157 2158 2209 2208;
2552 2158 2159 2210 2209; 2553 2159 2160 2211 2210; 2554 2160 2161 2212 2211;
2555 2161 2162 2213 2212; 2556 2162 2163 2214 2213; 2557 2163 2164 2215 2214;
2558 2164 2165 2216 2215; 2559 2165 2166 2217 2216; 2560 2166 2167 2218 2217;
2561 2167 2168 2219 2218; 2562 2168 2169 2220 2219; 2563 2169 2170 2221 2220;
2564 2170 2171 2222 2221; 2565 2171 2172 2223 2222; 2566 2172 2173 2224 2223;
2567 2173 2174 2225 2224; 2568 2174 2175 2226 2225; 2569 2175 2176 2227 2226;
2570 2176 2177 2228 2227; 2571 2177 2178 2229 2228; 2572 2178 2179 2230 2229;
2573 2179 2180 2231 2230; 2574 2180 2181 2232 2231; 2575 2181 2182 2233 2232;
2576 2182 2183 2234 2233; 2577 2183 2184 2235 2234; 2578 2184 2185 2236 2235;
2579 2185 2186 2237 2236; 2580 2186 2187 2238 2237; 2581 2187 2188 2239 2238;
2582 2188 2189 2240 2239; 2583 2189 2190 2241 2240; 2584 2190 2191 2242 2241;
2585 2191 2192 2243 2242; 2586 2192 2193 2244 2243; 2587 2193 2194 2245 2244;
2588 2194 2195 2246 2245; 2589 2195 2196 2247 2246; 2590 2196 2197 2248 2247;
2591 2197 2198 2249 2248; 2592 2198 2199 2250 2249; 2593 2199 2200 2251 2250;
2594 2200 2201 2252 2251; 2595 2201 2202 2253 2252; 2598 2203 2204 2255 2254;
2599 2204 2205 2256 2255; 2600 2205 2206 2257 2256; 2601 2206 2207 2258 2257;
2602 2207 2208 2259 2258; 2603 2208 2209 2260 2259; 2604 2209 2210 2261 2260;
2605 2210 2211 2262 2261; 2606 2211 2212 2263 2262; 2607 2212 2213 2264 2263;
2608 2213 2214 2265 2264; 2609 2214 2215 2266 2265; 2610 2215 2216 2267 2266;
2611 2216 2217 2268 2267; 2612 2217 2218 2269 2268; 2613 2218 2219 2270 2269;
2614 2219 2220 2271 2270; 2615 2220 2221 2272 2271; 2616 2221 2222 2273 2272;
2617 2222 2223 2274 2273; 2618 2223 2224 2275 2274; 2619 2224 2225 2276 2275;
2620 2225 2226 2277 2276; 2621 2226 2227 2278 2277; 2622 2227 2228 2279 2278;
2623 2228 2229 2280 2279; 2624 2229 2230 2281 2280; 2625 2230 2231 2282 2281;
2626 2231 2232 2283 2282; 2627 2232 2233 2284 2283; 2628 2233 2234 2285 2284;
2629 2234 2235 2286 2285; 2630 2235 2236 2287 2286; 2631 2236 2237 2288 2287;
2632 2237 2238 2289 2288; 2633 2238 2239 2290 2289; 2634 2239 2240 2291 2290;
2635 2240 2241 2292 2291; 2636 2241 2242 2293 2292; 2637 2242 2243 2294 2293;
2638 2243 2244 2295 2294; 2639 2244 2245 2296 2295; 2640 2245 2246 2297 2296;
2641 2246 2247 2298 2297; 2642 2247 2248 2299 2298; 2643 2248 2249 2300 2299;
2644 2249 2250 2301 2300; 2645 2250 2251 2302 2301; 2646 2251 2252 2303 2302;
2647 2252 2253 2304 2303; 2650 2254 2255 2306 2305; 2651 2255 2256 2307 2306;
2652 2256 2257 2308 2307; 2653 2257 2258 2309 2308; 2654 2258 2259 2310 2309;
2655 2259 2260 2311 2310; 2656 2260 2261 2312 2311; 2657 2261 2262 2313 2312;
2658 2262 2263 2314 2313; 2659 2263 2264 2315 2314; 2660 2264 2265 2316 2315;
2661 2265 2266 2317 2316; 2662 2266 2267 2318 2317; 2663 2267 2268 2319 2318;
2664 2268 2269 2320 2319; 2665 2269 2270 2321 2320; 2666 2270 2271 2322 2321;
2667 2271 2272 2323 2322; 2668 2272 2273 2324 2323; 2669 2273 2274 2325 2324;
2670 2274 2275 2326 2325; 2671 2275 2276 2327 2326; 2672 2276 2277 2328 2327;
2673 2277 2278 2329 2328; 2674 2278 2279 2330 2329; 2675 2279 2280 2331 2330;
2676 2280 2281 2332 2331; 2677 2281 2282 2333 2332; 2678 2282 2283 2334 2333;
2679 2283 2284 2335 2334; 2680 2284 2285 2336 2335; 2681 2285 2286 2337 2336;
2682 2286 2287 2338 2337; 2683 2287 2288 2339 2338; 2684 2288 2289 2340 2339;
2685 2289 2290 2341 2340; 2686 2290 2291 2342 2341; 2687 2291 2292 2343 2342;
2688 2292 2293 2344 2343; 2689 2293 2294 2345 2344; 2690 2294 2295 2346 2345;
2691 2295 2296 2347 2346; 2692 2296 2297 2348 2347; 2693 2297 2298 2349 2348;
2694 2298 2299 2350 2349; 2695 2299 2300 2351 2350; 2696 2300 2301 2352 2351;
2697 2301 2302 2353 2352; 2698 2302 2303 2354 2353; 2699 2303 2304 2355 2354;
2702 2305 2306 2357 2356; 2703 2306 2307 2358 2357; 2704 2307 2308 2359 2358;
2705 2308 2309 2360 2359; 2706 2309 2310 2361 2360; 2707 2310 2311 2362 2361;
2708 2311 2312 2363 2362; 2709 2312 2313 2364 2363; 2710 2313 2314 2365 2364;
2711 2314 2315 2366 2365; 2712 2315 2316 2367 2366; 2713 2316 2317 2368 2367;
2714 2317 2318 2369 2368; 2715 2318 2319 2370 2369; 2716 2319 2320 2371 2370;
2717 2320 2321 2372 2371; 2718 2321 2322 2373 2372; 2719 2322 2323 2374 2373;
2720 2323 2324 2375 2374; 2721 2324 2325 2376 2375; 2722 2325 2326 2377 2376;
2723 2326 2327 2378 2377; 2724 2327 2328 2379 2378; 2725 2328 2329 2380 2379;
2726 2329 2330 2381 2380; 2727 2330 2331 2382 2381; 2728 2331 2332 2383 2382;
2729 2332 2333 2384 2383; 2730 2333 2334 2385 2384; 2731 2334 2335 2386 2385;
2732 2335 2336 2387 2386; 2733 2336 2337 2388 2387; 2734 2337 2338 2389 2388;
2735 2338 2339 2390 2389; 2736 2339 2340 2391 2390; 2737 2340 2341 2392 2391;
2738 2341 2342 2393 2392; 2739 2342 2343 2394 2393; 2740 2343 2344 2395 2394;
2741 2344 2345 2396 2395; 2742 2345 2346 2397 2396; 2743 2346 2347 2398 2397;
2744 2347 2348 2399 2398; 2745 2348 2349 2400 2399; 2746 2349 2350 2401 2400;
2747 2350 2351 2402 2401; 2748 2351 2352 2403 2402; 2749 2352 2353 2404 2403;
2750 2353 2354 2405 2404; 2751 2354 2355 2406 2405; 2801 2356 2357 2407 6;
2802 2357 2358 2408 2407; 2803 2358 2359 2409 2408; 2804 2359 2360 2410 2409;
2805 2360 2361 2411 2410; 2806 2361 2362 2412 2411; 2807 2362 2363 2413 2412;
2808 2363 2364 2414 2413; 2809 2364 2365 2415 2414; 2810 2365 2366 2416 2415;
2811 2366 2367 2417 2416; 2812 2367 2368 2418 2417; 2813 2368 2369 2419 2418;
2814 2369 2370 2420 2419; 2815 2370 2371 2421 2420; 2816 2371 2372 2422 2421;
2817 2372 2373 2423 2422; 2818 2373 2374 2424 2423; 2819 2374 2375 2425 2424;
2820 2375 2376 2426 2425; 2821 2376 2377 2427 2426; 2822 2377 2378 2428 2427;
2823 2378 2379 2429 2428; 2824 2379 2380 2430 2429; 2825 2380 2381 2431 2430;
2826 2381 2382 2432 2431; 2827 2382 2383 2433 2432; 2828 2383 2384 2434 2433;
2829 2384 2385 2435 2434; 2830 2385 2386 2436 2435; 2831 2386 2387 2437 2436;
2832 2387 2388 2438 2437; 2833 2388 2389 2439 2438; 2834 2389 2390 2440 2439;
2835 2390 2391 2441 2440; 2836 2391 2392 2442 2441; 2837 2392 2393 2443 2442;
2838 2393 2394 2444 2443; 2839 2394 2395 2445 2444; 2840 2395 2396 2446 2445;
2841 2396 2397 2447 2446; 2842 2397 2398 2448 2447; 2843 2398 2399 2449 2448;
2844 2399 2400 2450 2449; 2845 2400 2401 2451 2450; 2846 2401 2402 2452 2451;
2847 2402 2403 2453 2452; 2848 2403 2404 2454 2453; 2849 2404 2405 2455 2454;
2850 2405 2406 24 2455; 2853 6 2407 2457 2456; 2854 2407 2408 2458 2457;
2855 2408 2409 2459 2458; 2856 2409 2410 2460 2459; 2857 2410 2411 2461 2460;
2858 2411 2412 2462 2461; 2859 2412 2413 2463 2462; 2860 2413 2414 2464 2463;
2861 2414 2415 2465 2464; 2862 2415 2416 2466 2465; 2863 2416 2417 2467 2466;
2864 2417 2418 2468 2467; 2865 2418 2419 2469 2468; 2866 2419 2420 2470 2469;
2867 2420 2421 2471 2470; 2868 2421 2422 2472 2471; 2869 2422 2423 2473 2472;
2870 2423 2424 2474 2473; 2871 2424 2425 2475 2474; 2872 2425 2426 2476 2475;
2873 2426 2427 2477 2476; 2874 2427 2428 2478 2477; 2875 2428 2429 2479 2478;
2876 2429 2430 2480 2479; 2877 2430 2431 2481 2480; 2878 2431 2432 2482 2481;
2879 2432 2433 2483 2482; 2880 2433 2434 2484 2483; 2881 2434 2435 2485 2484;
2882 2435 2436 2486 2485; 2883 2436 2437 2487 2486; 2884 2437 2438 2488 2487;
2885 2438 2439 2489 2488; 2886 2439 2440 2490 2489; 2887 2440 2441 2491 2490;
2888 2441 2442 2492 2491; 2889 2442 2443 2493 2492; 2890 2443 2444 2494 2493;
2891 2444 2445 2495 2494; 2892 2445 2446 2496 2495; 2893 2446 2447 2497 2496;
2894 2447 2448 2498 2497; 2895 2448 2449 2499 2498; 2896 2449 2450 2500 2499;
2897 2450 2451 2501 2500; 2898 2451 2452 2502 2501; 2899 2452 2453 2503 2502;
2900 2453 2454 2504 2503; 2901 2454 2455 2505 2504; 2902 2455 24 2506 2505;
2905 2456 2457 2508 2507; 2906 2457 2458 2509 2508; 2907 2458 2459 2510 2509;
2908 2459 2460 2511 2510; 2909 2460 2461 2512 2511; 2910 2461 2462 2513 2512;
2911 2462 2463 2514 2513; 2912 2463 2464 2515 2514; 2913 2464 2465 2516 2515;
2914 2465 2466 2517 2516; 2915 2466 2467 2518 2517; 2916 2467 2468 2519 2518;
2917 2468 2469 2520 2519; 2918 2469 2470 2521 2520; 2919 2470 2471 2522 2521;
2920 2471 2472 2523 2522; 2921 2472 2473 2524 2523; 2922 2473 2474 2525 2524;
2923 2474 2475 2526 2525; 2924 2475 2476 2527 2526; 2925 2476 2477 2528 2527;
2926 2477 2478 2529 2528; 2927 2478 2479 2530 2529; 2928 2479 2480 2531 2530;
2929 2480 2481 2532 2531; 2930 2481 2482 2533 2532; 2931 2482 2483 2534 2533;
2932 2483 2484 2535 2534; 2933 2484 2485 2536 2535; 2934 2485 2486 2537 2536;
2935 2486 2487 2538 2537; 2936 2487 2488 2539 2538; 2937 2488 2489 2540 2539;
2938 2489 2490 2541 2540; 2939 2490 2491 2542 2541; 2940 2491 2492 2543 2542;
2941 2492 2493 2544 2543; 2942 2493 2494 2545 2544; 2943 2494 2495 2546 2545;
2944 2495 2496 2547 2546; 2945 2496 2497 2548 2547; 2946 2497 2498 2549 2548;
2947 2498 2499 2550 2549; 2948 2499 2500 2551 2550; 2949 2500 2501 2552 2551;
2950 2501 2502 2553 2552; 2951 2502 2503 2554 2553; 2952 2503 2504 2555 2554;
2953 2504 2505 2556 2555; 2954 2505 2506 2557 2556; 2957 2507 2508 2559 2558;
2958 2508 2509 2560 2559; 2959 2509 2510 2561 2560; 2960 2510 2511 2562 2561;
2961 2511 2512 2563 2562; 2962 2512 2513 2564 2563; 2963 2513 2514 2565 2564;
2964 2514 2515 2566 2565; 2965 2515 2516 2567 2566; 2966 2516 2517 2568 2567;
2967 2517 2518 2569 2568; 2968 2518 2519 2570 2569; 2969 2519 2520 2571 2570;
2970 2520 2521 2572 2571; 2971 2521 2522 2573 2572; 2972 2522 2523 2574 2573;
2973 2523 2524 2575 2574; 2974 2524 2525 2576 2575; 2975 2525 2526 2577 2576;
2976 2526 2527 2578 2577; 2977 2527 2528 2579 2578; 2978 2528 2529 2580 2579;
2979 2529 2530 2581 2580; 2980 2530 2531 2582 2581; 2981 2531 2532 2583 2582;
2982 2532 2533 2584 2583; 2983 2533 2534 2585 2584; 2984 2534 2535 2586 2585;
2985 2535 2536 2587 2586; 2986 2536 2537 2588 2587; 2987 2537 2538 2589 2588;
2988 2538 2539 2590 2589; 2989 2539 2540 2591 2590; 2990 2540 2541 2592 2591;
2991 2541 2542 2593 2592; 2992 2542 2543 2594 2593; 2993 2543 2544 2595 2594;
2994 2544 2545 2596 2595; 2995 2545 2546 2597 2596; 2996 2546 2547 2598 2597;
2997 2547 2548 2599 2598; 2998 2548 2549 2600 2599; 2999 2549 2550 2601 2600;
3000 2550 2551 2602 2601; 3001 2551 2552 2603 2602; 3002 2552 2553 2604 2603;
3003 2553 2554 2605 2604; 3004 2554 2555 2606 2605; 3005 2555 2556 2607 2606;
3006 2556 2557 2608 2607; 3009 2558 2559 2610 2609; 3010 2559 2560 2611 2610;
3011 2560 2561 2612 2611; 3012 2561 2562 2613 2612; 3013 2562 2563 2614 2613;
3014 2563 2564 2615 2614; 3015 2564 2565 2616 2615; 3016 2565 2566 2617 2616;
3017 2566 2567 2618 2617; 3018 2567 2568 2619 2618; 3019 2568 2569 2620 2619;
3020 2569 2570 2621 2620; 3021 2570 2571 2622 2621; 3022 2571 2572 2623 2622;
3023 2572 2573 2624 2623; 3024 2573 2574 2625 2624; 3025 2574 2575 2626 2625;
3026 2575 2576 2627 2626; 3027 2576 2577 2628 2627; 3028 2577 2578 2629 2628;
3029 2578 2579 2630 2629; 3030 2579 2580 2631 2630; 3031 2580 2581 2632 2631;
3032 2581 2582 2633 2632; 3033 2582 2583 2634 2633; 3034 2583 2584 2635 2634;
3035 2584 2585 2636 2635; 3036 2585 2586 2637 2636; 3037 2586 2587 2638 2637;
3038 2587 2588 2639 2638; 3039 2588 2589 2640 2639; 3040 2589 2590 2641 2640;
3041 2590 2591 2642 2641; 3042 2591 2592 2643 2642; 3043 2592 2593 2644 2643;
3044 2593 2594 2645 2644; 3045 2594 2595 2646 2645; 3046 2595 2596 2647 2646;
3047 2596 2597 2648 2647; 3048 2597 2598 2649 2648; 3049 2598 2599 2650 2649;
3050 2599 2600 2651 2650; 3051 2600 2601 2652 2651; 3052 2601 2602 2653 2652;
3053 2602 2603 2654 2653; 3054 2603 2604 2655 2654; 3055 2604 2605 2656 2655;
3056 2605 2606 2657 2656; 3057 2606 2607 2658 2657; 3058 2607 2608 2659 2658;
3059 2609 2610 2660 10; 3060 2610 2611 2661 2660; 3061 2611 2612 2662 2661;
3062 2612 2613 2663 2662; 3063 2613 2614 2664 2663; 3064 2614 2615 2665 2664;
3065 2615 2616 2666 2665; 3066 2616 2617 2667 2666; 3067 2617 2618 2668 2667;
3068 2618 2619 2669 2668; 3069 2619 2620 2670 2669; 3070 2620 2621 2671 2670;
3071 2621 2622 2672 2671; 3072 2622 2623 2673 2672; 3073 2623 2624 2674 2673;
3074 2624 2625 2675 2674; 3075 2625 2626 2676 2675; 3076 2626 2627 2677 2676;
3077 2627 2628 2678 2677; 3078 2628 2629 2679 2678; 3079 2629 2630 2680 2679;
3080 2630 2631 2681 2680; 3081 2631 2632 2682 2681; 3082 2632 2633 2683 2682;
3083 2633 2634 2684 2683; 3084 2634 2635 2685 2684; 3085 2635 2636 2686 2685;
3086 2636 2637 2687 2686; 3087 2637 2638 2688 2687; 3088 2638 2639 2689 2688;
3089 2639 2640 2690 2689; 3090 2640 2641 2691 2690; 3091 2641 2642 2692 2691;
3092 2642 2643 2693 2692; 3093 2643 2644 2694 2693; 3094 2644 2645 2695 2694;
3095 2645 2646 2696 2695; 3096 2646 2647 2697 2696; 3097 2647 2648 2698 2697;
3098 2648 2649 2699 2698; 3099 2649 2650 2700 2699; 3100 2650 2651 2701 2700;
3101 2651 2652 2702 2701; 3102 2652 2653 2703 2702; 3103 2653 2654 2704 2703;
3104 2654 2655 2705 2704; 3105 2655 2656 2706 2705; 3106 2656 2657 2707 2706;
3107 2657 2658 2708 2707; 3108 2658 2659 25 2708;
START GROUP DEFINITION
MEMBER
_MAINGIRDERS 23 TO 30 239 TO 287 598 TO 646 957 TO 1005 1316 TO 1364 1675 -
1676 TO 1723 2034 TO 2082 2393 TO 2441 2752 TO 2800
_PIERS 1 2 12 13
_GIRDERSUPPORT 1 TO 31 81 83 84 135 136 187 188 239 TO 287 338 339 390 391 -
442 443 494 495 546 547 598 TO 646 697 698 749 750 801 802 853 854 905 906 -
957 TO 1005 1056 1057 1108 1109 1160 1161 1212 1213 1264 1265 1316 TO 1364 -
1415 1416 1467 1468 1519 1520 1571 1572 1623 1624 1675 TO 1723 1774 1775 -
1826 1827 1878 1879 1930 1931 1982 1983 2034 TO 2082 2133 2134 2185 2186 -
2237 2238 2289 2290 2341 2342 2393 TO 2441 2492 2493 2544 2545 2596 2597 -
2648 2649 2700 2701 2752 TO 2800 2851 2852 2903 2904 2955 2956 3007 3008
ELEMENT
_DECKSLAB 32 TO 80 82 85 TO 134 137 TO 186 189 TO 238 288 TO 337 340 TO 389 -
392 TO 441 444 TO 493 496 TO 545 548 TO 597 647 TO 696 699 TO 748 -
751 TO 800 803 TO 852 855 TO 904 907 TO 956 1006 TO 1055 1058 TO 1107 1110 -
1111 TO 1159 1162 TO 1211 1214 TO 1263 1266 TO 1315 1365 TO 1414 1417 TO 1466 -
1469 TO 1518 1521 TO 1570 1573 TO 1622 1625 TO 1674 1724 TO 1773 -
1776 TO 1825 1828 TO 1877 1880 TO 1929 1932 TO 1981 1984 TO 2033 -
2083 TO 2132 2135 TO 2184 2187 TO 2236 2239 TO 2288 2291 TO 2340 -
2343 TO 2392 2442 TO 2491 2494 TO 2543 2546 TO 2595 2598 TO 2647 -
2650 TO 2699 2702 TO 2751 2801 TO 2850 2853 TO 2902 2905 TO 2954 -
2957 TO 3006 3009 TO 3108
END GROUP DEFINITION
ELEMENT PROPERTY
32 TO 80 82 85 TO 134 137 TO 186 189 TO 238 288 TO 337 340 TO 389 392 TO 441 -
444 TO 493 496 TO 545 548 TO 597 647 TO 696 699 TO 748 751 TO 800 -
803 TO 852 855 TO 904 907 TO 956 1006 TO 1055 1058 TO 1107 1110 TO 1159 1162 -
1163 TO 1211 1214 TO 1263 1266 TO 1315 1365 TO 1414 1417 TO 1466 1469 TO 1518 -
1521 TO 1570 1573 TO 1622 1625 TO 1674 1724 TO 1773 1776 TO 1825 -
1828 TO 1877 1880 TO 1929 1932 TO 1981 1984 TO 2033 2083 TO 2132 -
2135 TO 2184 2187 TO 2236 2239 TO 2288 2291 TO 2340 2343 TO 2392 -
2442 TO 2491 2494 TO 2543 2546 TO 2595 2598 TO 2647 2650 TO 2699 -
2702 TO 2751 2801 TO 2850 2853 TO 2902 2905 TO 2954 2957 TO 3006 -
3009 TO 3108 THICKNESS 0.5
DEFINE MATERIAL START
ISOTROPIC CONCRETE
E 3150
POISSON 0.17
DENSITY 8.68e-05
ALPHA 5.5e-06
DAMP 0.05
TYPE CONCRETE
STRENGTH FCU 4
END DEFINE MATERIAL
MEMBER PROPERTY
23 TO 30 239 TO 287 598 TO 646 957 TO 1005 1316 TO 1364 1675 TO 1723 2034 -
2035 TO 2082 2393 TO 2441 2752 TO 2800 PRIS YD 1.9 ZD 1.2 YB 1.4 ZB 0.5
1 2 12 13 PRIS YD 2.3 ZD 2.3
3 TO 11 14 TO 22 31 81 83 84 135 136 187 188 338 339 390 391 442 443 494 495 -
546 547 697 698 749 750 801 802 853 854 905 906 1056 1057 1108 1109 1160 -
1161 1212 1213 1264 1265 1415 1416 1467 1468 1519 1520 1571 1572 1623 1624 -
1774 1775 1826 1827 1878 1879 1930 1931 1982 1983 2133 2134 2185 2186 2237 -
2238 2289 2290 2341 2342 2492 2493 2544 2545 2596 2597 2648 2649 2700 2701 -
2851 2852 2903 2904 2955 2956 3007 3008 PRIS YD 1.9 ZD 0.3
CONSTANTS
MATERIAL CONCRETE ALL
SUPPORTS
12 13 15 17 FIXED
DEFINE MOVING LOAD
TYPE 1 LOAD 170 170 170 170
DIST 2.2 12.4 2.2 WID 1.8
TYPE 2 LOAD 74.5 74.5 74.5 74.5 74.5 74.5
DIST 0.914 0.914 2.743 0.914 0.914 WID 1
LOAD GENERATION 50
TYPE 1 0 0 -6.5 XINC 0.5
LOAD GENERATION 50
TYPE 1 0 0 6.5 XINC 0.5
PERFORM ANALYSIS
FINISH
