Week 2 Challenge

Aim of The Challenge : To Model & Analyse the Given RCC TBeam Girder Section with 4 Cross Girders in the Staad Pro and Brielfy Identify The Bending Moments, Shear Forces and Displacement Directions of the Members.

Introduction : As we Know Staad Pro is Desinged and Maintained by Bentley Systems Software Company, Staad Pro is used for Structural Analysis and Design Purposes, As the Given Structure is a RCC T Beam Girder Bridge Slab we have to analyse the structure for different Live Loads acting on it Such as : Class A Vehicle, Class B Vehicle, 70R Wheeled.

Procedure :

• Modeling :
• 1. Open Staad Pro and Create a new Project and select English in Unit.
• 2. Input the origin node as 0,0,0 for Main Girders (Interior Girders) add node as 0.950 & -0.950 in Z direction.
• 3. Now from the origin point (0,0,0) for Main Girders (Exterior Girders) add node as 2.850 & -2.850 in Z direction.
• 4. Now from the origin point (0,0,0) for Deck Slab add node as 3.50 & -3.50 in Z direction.

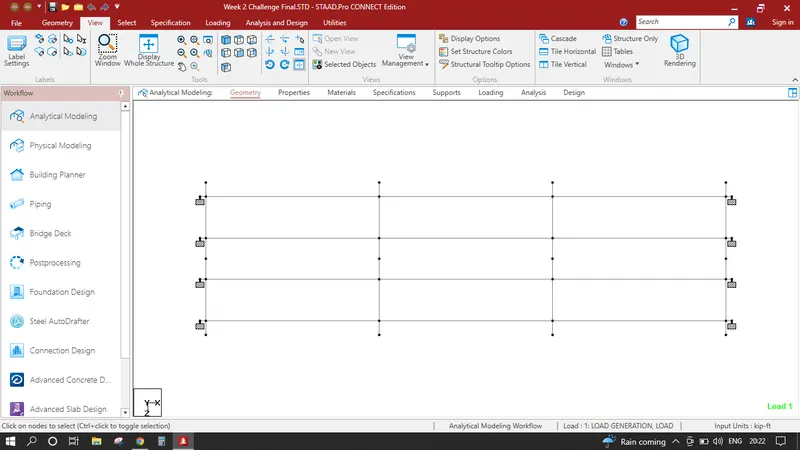

• 5. Click in View and select the Top View. Select all the nodes and Press CTRL C + CTRL V input 0.250 in X Value press ok which creates our first Cross Girder.
• 6. There are 2 lines of nodes the 1st is the start of the Deck Slab and 2nd line will be Cross Girder. Select the second line and use Translational repeat in geometry tab and enter default step spacing 8.0 and Number of steps 3, press ok This will create our 4 Cross Girders. Below image shows the arrangement.
•
• 7. Now we have to create the deck slab, Select the Node (x-0,y-0,z- -3.5) and press CTRL C + CTRL V input 0.5 in X and press Ok, again select the node mentioned and the node just created repeat the command in Z direction, it creates the the square of nodes add a plate in these nodes and create the first deck slab plate.
• 8. Select the Newly created Plate and start the translational repeat in default step spacing 0.5 and number of steps 48 press ok, similarly select all the plates in line and again repeat the process in z direction default step spacing will be 0.5 and number of steps 13 press ok which creates the whole Deck slab

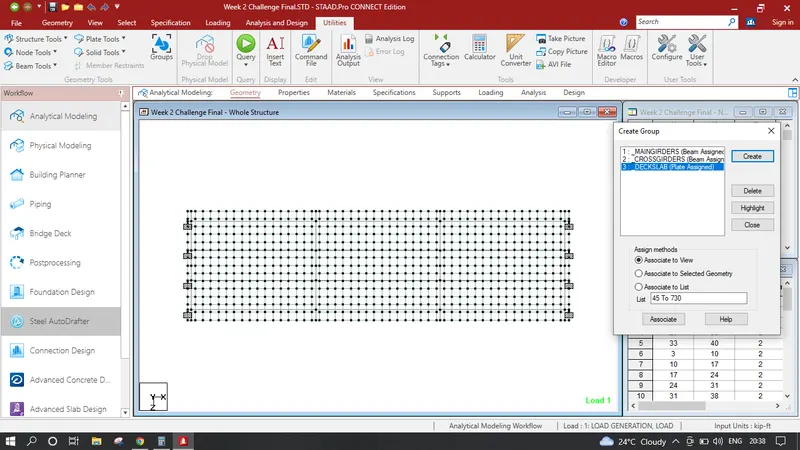

• 9. Click on utility then groups click create name - MainGirders and in type select beams, Again Create CrossGirders type - Beams, Again Create DeckSlab type - Plate, Hence you have created 3 Groups now click on Select in upper tab and under beams category click on parallel and click on X which selects all the main girders Assign these beams to MainGirders group, Similarly click on paralel to z and it selects all the Cross Girders assign it to CrossGirders Group, Finally select the plate cursor and select the the plates and assign it to DeckSlab Group.
•

• Assingning Specifications :

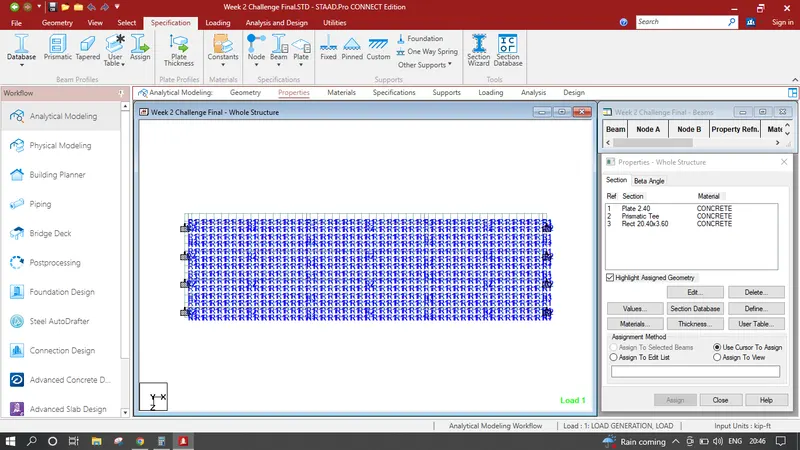

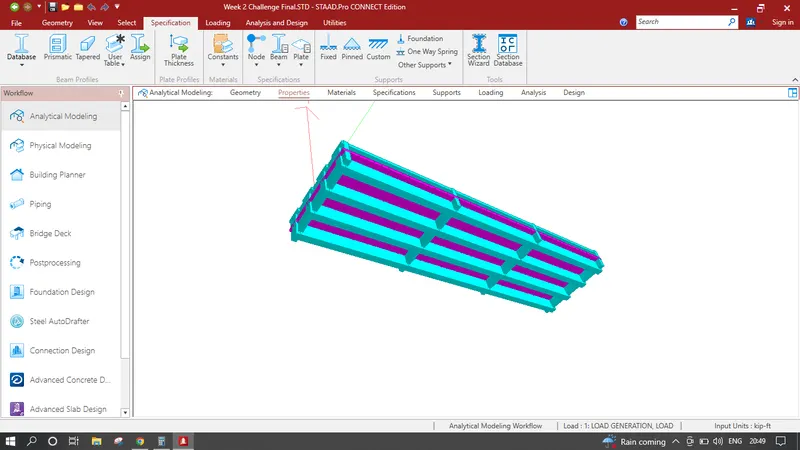

• 1. Click on Specification Tab click on Plate Thickness add 0.2 click ok, similarly click on define then Tee add YD-1.9, ZD-1.2, YB-1.7, ZB-0.5, again click on define select rectangle add YD - 1.7, ZD-0.3.
• 2. Select the plate specification , then go to groups click on DeckSlab assign it to selected plates, again select the Tee Specification and click on MainGirders in groups assign to selected Beams, Similarly select the rectangle specification select the CrossGirders from Groups assign it to selected beams. As all the Specifications are assigned we have to add supports in Main girders.
•
• 3. Select the Main Girders from Group and click on fixed under specification tab on the extreme ends of the main girders add Fixed end support. After assigning the mdoeling and Assigning specification has been done the model should look like the image attached below.
•
•

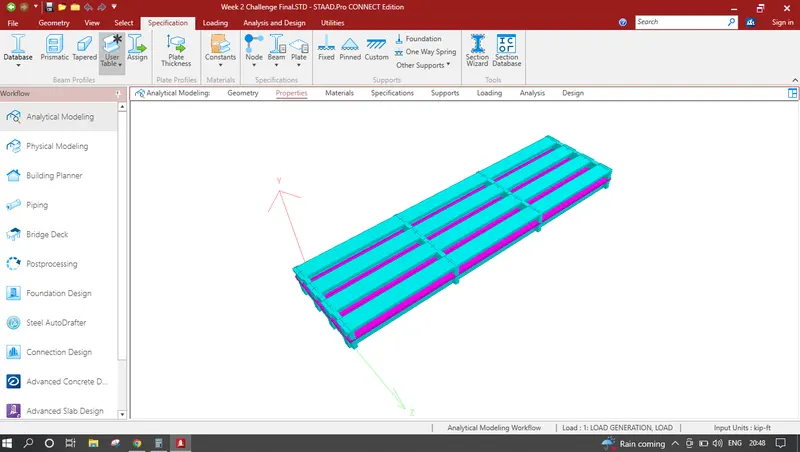

• Adding Live Loads:
• 1. Click on Loadings click on definitions again click on vehicle definition press add

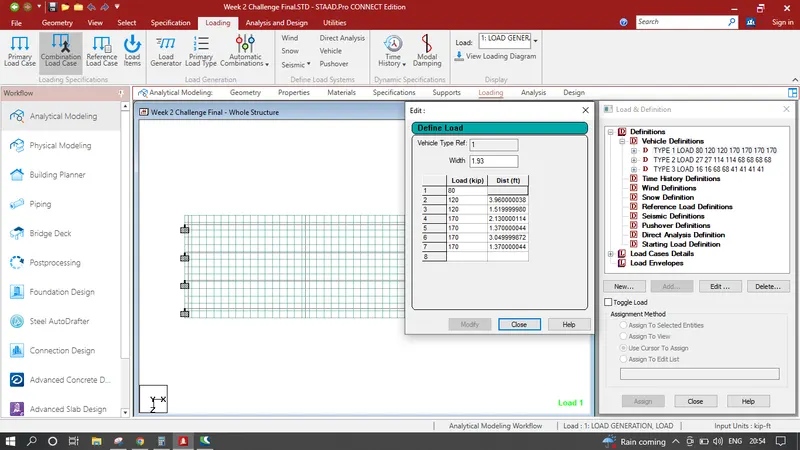

• For Class A Vehicle Follow this input attached below
•

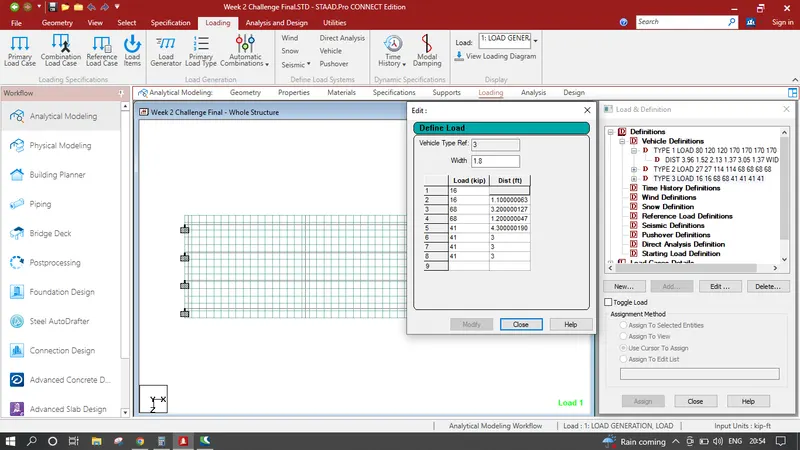

• For Class B Vehicle Follow this input attached below
•
• For Class 70R Wheeled Vehicle Follow this input attached below
•
• 2. After adding definitions click on Load cases details and click add, click on load generation on left and in no. of loads to be generated enter 50 press add.
• 3. Under load cases details there is the 1-50 generated load file we have to assign the starting point for this load generation. select the file again click on add under initial point of load enter x-0, y-0, z- -2 and x increment will be 1.
• 4. Repeat the 2 & 3 points again this load generate file should have initial points x-0, y-0, z- 2 and x increment will be 1.
• 5. click on Load cases details click add name the load self weight, add the load press add again in selfweight category enter factor -1 in y direction.
• Analysis & Results :
• 1. Click on analysis and design run analysis, again go to post processing

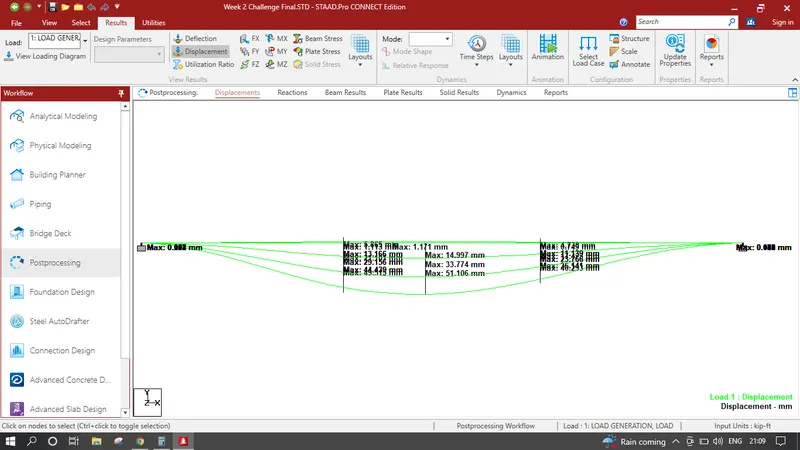

In Results Tab Displacement Pattern show in the image below

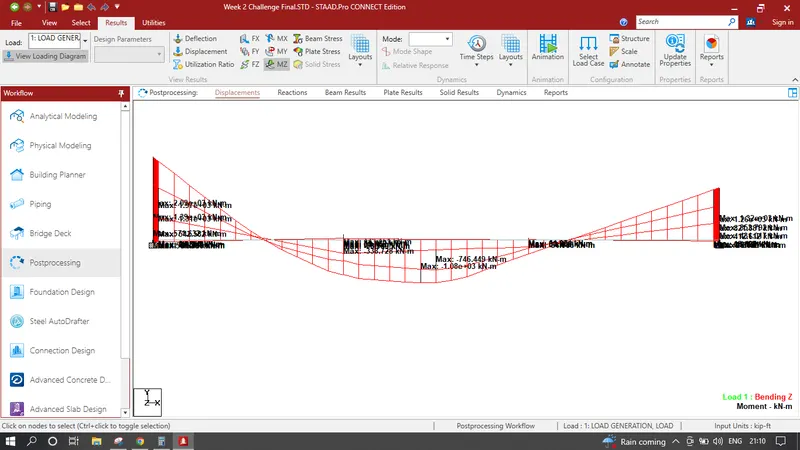

In Results Bending Moments shown in the image below

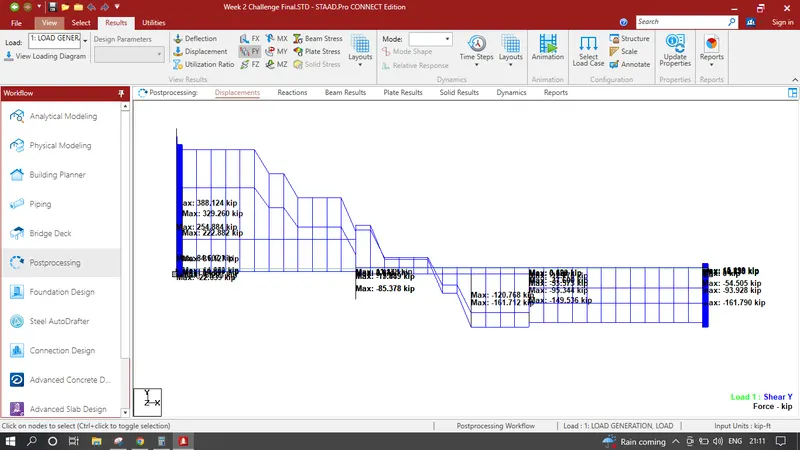

In Results Shear Forces shown in the image below

As we can see there are 100 generated loads and while hovering over dfferent loads the load position changes as well as Displacement, Bending Moments and Shear Forces values also differ. We use these Annotated Maximum Values for the Detailed Design of the Structure.

Below is the Staad Input as well as i am attaching the staad file

STAAD SPACE
START JOB INFORMATION
END JOB INFORMATION
INPUT WIDTH 79
UNIT FEET KIP
JOINT COORDINATES
1 0 0 0; 2 0 0 0.95; 3 0 0 -0.95; 4 0 0 2.85; 5 0 0 -2.85; 6 0 0 -3.5;
7 0 0 3.5; 8 0.25 0 0; 9 0.25 0 0.95; 10 0.25 0 -0.95; 11 0.25 0 2.85;
12 0.25 0 -2.85; 13 0.25 0 -3.5; 14 0.25 0 3.5; 15 8.25 0 0;
16 8.25 0 0.95; 17 8.25 0 -0.95; 18 8.25 0 2.85; 19 8.25 0 -2.85;
20 8.25 0 -3.5; 21 8.25 0 3.5; 22 16.25 0 0; 23 16.25 0 0.95;
24 16.25 0 -0.95; 25 16.25 0 2.85; 26 16.25 0 -2.85; 27 16.25 0 -3.5;
28 16.25 0 3.5; 29 24.25 0 0; 30 24.25 0 0.95; 31 24.25 0 -0.95;
32 24.25 0 2.85; 33 24.25 0 -2.85; 34 24.25 0 -3.5; 35 24.25 0 3.5;
36 24.5 0 0; 37 24.5 0 0.95; 38 24.5 0 -0.95; 39 24.5 0 2.85;
40 24.5 0 -2.85; 41 24.5 0 -3.5; 42 24.5 0 3.5; 43 0.5 0 -3.5;
44 0 0 -3; 45 0.5 0 -3; 46 1 0 -3.5; 47 1 0 -3; 48 1.5 0 -3.5;
49 1.5 0 -3; 50 2 0 -3.5; 51 2 0 -3; 52 2.5 0 -3.5; 53 2.5 0 -3;
54 3 0 -3.5; 55 3 0 -3; 56 3.5 0 -3.5; 57 3.5 0 -3; 58 4 0 -3.5;
59 4 0 -3; 60 4.5 0 -3.5; 61 4.5 0 -3; 62 5 0 -3.5; 63 5 0 -3;
64 5.5 0 -3.5; 65 5.5 0 -3; 66 6 0 -3.5; 67 6 0 -3; 68 6.5 0 -3.5;
69 6.5 0 -3; 70 7 0 -3.5; 71 7 0 -3; 72 7.5 0 -3.5; 73 7.5 0 -3;
74 8 0 -3.5; 75 8 0 -3; 76 8.5 0 -3.5; 77 8.5 0 -3; 78 9 0 -3.5;
79 9 0 -3; 80 9.5 0 -3.5; 81 9.5 0 -3; 82 10 0 -3.5; 83 10 0 -3;
84 10.5 0 -3.5; 85 10.5 0 -3; 86 11 0 -3.5; 87 11 0 -3; 88 11.5 0 -3.5;
89 11.5 0 -3; 90 12 0 -3.5; 91 12 0 -3; 92 12.5 0 -3.5; 93 12.5 0 -3;
94 13 0 -3.5; 95 13 0 -3; 96 13.5 0 -3.5; 97 13.5 0 -3; 98 14 0 -3.5;
99 14 0 -3; 100 14.5 0 -3.5; 101 14.5 0 -3; 102 15 0 -3.5; 103 15 0 -3;
104 15.5 0 -3.5; 105 15.5 0 -3; 106 16 0 -3.5; 107 16 0 -3;
108 16.5 0 -3.5; 109 16.5 0 -3; 110 17 0 -3.5; 111 17 0 -3;
112 17.5 0 -3.5; 113 17.5 0 -3; 114 18 0 -3.5; 115 18 0 -3;
116 18.5 0 -3.5; 117 18.5 0 -3; 118 19 0 -3.5; 119 19 0 -3;
120 19.5 0 -3.5; 121 19.5 0 -3; 122 20 0 -3.5; 123 20 0 -3;
124 20.5 0 -3.5; 125 20.5 0 -3; 126 21 0 -3.5; 127 21 0 -3;
128 21.5 0 -3.5; 129 21.5 0 -3; 130 22 0 -3.5; 131 22 0 -3;
132 22.5 0 -3.5; 133 22.5 0 -3; 134 23 0 -3.5; 135 23 0 -3;
136 23.5 0 -3.5; 137 23.5 0 -3; 138 24 0 -3.5; 139 24 0 -3;
140 24.5 0 -3; 141 0 0 -2.5; 142 0.5 0 -2.5; 143 1 0 -2.5;
144 1.5 0 -2.5; 145 2 0 -2.5; 146 2.5 0 -2.5; 147 3 0 -2.5;
148 3.5 0 -2.5; 149 4 0 -2.5; 150 4.5 0 -2.5; 151 5 0 -2.5;
152 5.5 0 -2.5; 153 6 0 -2.5; 154 6.5 0 -2.5; 155 7 0 -2.5;
156 7.5 0 -2.5; 157 8 0 -2.5; 158 8.5 0 -2.5; 159 9 0 -2.5;
160 9.5 0 -2.5; 161 10 0 -2.5; 162 10.5 0 -2.5; 163 11 0 -2.5;
164 11.5 0 -2.5; 165 12 0 -2.5; 166 12.5 0 -2.5; 167 13 0 -2.5;
168 13.5 0 -2.5; 169 14 0 -2.5; 170 14.5 0 -2.5; 171 15 0 -2.5;
172 15.5 0 -2.5; 173 16 0 -2.5; 174 16.5 0 -2.5; 175 17 0 -2.5;
176 17.5 0 -2.5; 177 18 0 -2.5; 178 18.5 0 -2.5; 179 19 0 -2.5;
180 19.5 0 -2.5; 181 20 0 -2.5; 182 20.5 0 -2.5; 183 21 0 -2.5;
184 21.5 0 -2.5; 185 22 0 -2.5; 186 22.5 0 -2.5; 187 23 0 -2.5;
188 23.5 0 -2.5; 189 24 0 -2.5; 190 24.5 0 -2.5; 191 0 0 -2;
192 0.5 0 -2; 193 1 0 -2; 194 1.5 0 -2; 195 2 0 -2; 196 2.5 0 -2;
197 3 0 -2; 198 3.5 0 -2; 199 4 0 -2; 200 4.5 0 -2; 201 5 0 -2;
202 5.5 0 -2; 203 6 0 -2; 204 6.5 0 -2; 205 7 0 -2; 206 7.5 0 -2;
207 8 0 -2; 208 8.5 0 -2; 209 9 0 -2; 210 9.5 0 -2; 211 10 0 -2;
212 10.5 0 -2; 213 11 0 -2; 214 11.5 0 -2; 215 12 0 -2; 216 12.5 0 -2;
217 13 0 -2; 218 13.5 0 -2; 219 14 0 -2; 220 14.5 0 -2; 221 15 0 -2;
222 15.5 0 -2; 223 16 0 -2; 224 16.5 0 -2; 225 17 0 -2; 226 17.5 0 -2;
227 18 0 -2; 228 18.5 0 -2; 229 19 0 -2; 230 19.5 0 -2; 231 20 0 -2;
232 20.5 0 -2; 233 21 0 -2; 234 21.5 0 -2; 235 22 0 -2; 236 22.5 0 -2;
237 23 0 -2; 238 23.5 0 -2; 239 24 0 -2; 240 24.5 0 -2; 241 0 0 -1.5;
242 0.5 0 -1.5; 243 1 0 -1.5; 244 1.5 0 -1.5; 245 2 0 -1.5;
246 2.5 0 -1.5; 247 3 0 -1.5; 248 3.5 0 -1.5; 249 4 0 -1.5;
250 4.5 0 -1.5; 251 5 0 -1.5; 252 5.5 0 -1.5; 253 6 0 -1.5;
254 6.5 0 -1.5; 255 7 0 -1.5; 256 7.5 0 -1.5; 257 8 0 -1.5;
258 8.5 0 -1.5; 259 9 0 -1.5; 260 9.5 0 -1.5; 261 10 0 -1.5;
262 10.5 0 -1.5; 263 11 0 -1.5; 264 11.5 0 -1.5; 265 12 0 -1.5;
266 12.5 0 -1.5; 267 13 0 -1.5; 268 13.5 0 -1.5; 269 14 0 -1.5;
270 14.5 0 -1.5; 271 15 0 -1.5; 272 15.5 0 -1.5; 273 16 0 -1.5;
274 16.5 0 -1.5; 275 17 0 -1.5; 276 17.5 0 -1.5; 277 18 0 -1.5;
278 18.5 0 -1.5; 279 19 0 -1.5; 280 19.5 0 -1.5; 281 20 0 -1.5;
282 20.5 0 -1.5; 283 21 0 -1.5; 284 21.5 0 -1.5; 285 22 0 -1.5;
286 22.5 0 -1.5; 287 23 0 -1.5; 288 23.5 0 -1.5; 289 24 0 -1.5;
290 24.5 0 -1.5; 291 0 0 -1; 292 0.5 0 -1; 293 1 0 -1; 294 1.5 0 -1;
295 2 0 -1; 296 2.5 0 -1; 297 3 0 -1; 298 3.5 0 -1; 299 4 0 -1;
300 4.5 0 -1; 301 5 0 -1; 302 5.5 0 -1; 303 6 0 -1; 304 6.5 0 -1;
305 7 0 -1; 306 7.5 0 -1; 307 8 0 -1; 308 8.5 0 -1; 309 9 0 -1;
310 9.5 0 -1; 311 10 0 -1; 312 10.5 0 -1; 313 11 0 -1; 314 11.5 0 -1;
315 12 0 -1; 316 12.5 0 -1; 317 13 0 -1; 318 13.5 0 -1; 319 14 0 -1;
320 14.5 0 -1; 321 15 0 -1; 322 15.5 0 -1; 323 16 0 -1; 324 16.5 0 -1;
325 17 0 -1; 326 17.5 0 -1; 327 18 0 -1; 328 18.5 0 -1; 329 19 0 -1;
330 19.5 0 -1; 331 20 0 -1; 332 20.5 0 -1; 333 21 0 -1; 334 21.5 0 -1;
335 22 0 -1; 336 22.5 0 -1; 337 23 0 -1; 338 23.5 0 -1; 339 24 0 -1;
340 24.5 0 -1; 341 0 0 -0.5; 342 0.5 0 -0.5; 343 1 0 -0.5;
344 1.5 0 -0.5; 345 2 0 -0.5; 346 2.5 0 -0.5; 347 3 0 -0.5;
348 3.5 0 -0.5; 349 4 0 -0.5; 350 4.5 0 -0.5; 351 5 0 -0.5;
352 5.5 0 -0.5; 353 6 0 -0.5; 354 6.5 0 -0.5; 355 7 0 -0.5;
356 7.5 0 -0.5; 357 8 0 -0.5; 358 8.5 0 -0.5; 359 9 0 -0.5;
360 9.5 0 -0.5; 361 10 0 -0.5; 362 10.5 0 -0.5; 363 11 0 -0.5;
364 11.5 0 -0.5; 365 12 0 -0.5; 366 12.5 0 -0.5; 367 13 0 -0.5;
368 13.5 0 -0.5; 369 14 0 -0.5; 370 14.5 0 -0.5; 371 15 0 -0.5;
372 15.5 0 -0.5; 373 16 0 -0.5; 374 16.5 0 -0.5; 375 17 0 -0.5;
376 17.5 0 -0.5; 377 18 0 -0.5; 378 18.5 0 -0.5; 379 19 0 -0.5;
380 19.5 0 -0.5; 381 20 0 -0.5; 382 20.5 0 -0.5; 383 21 0 -0.5;
384 21.5 0 -0.5; 385 22 0 -0.5; 386 22.5 0 -0.5; 387 23 0 -0.5;
388 23.5 0 -0.5; 389 24 0 -0.5; 390 24.5 0 -0.5; 391 0.5 0 0; 392 1 0 0;
393 1.5 0 0; 394 2 0 0; 395 2.5 0 0; 396 3 0 0; 397 3.5 0 0; 398 4 0 0;
399 4.5 0 0; 400 5 0 0; 401 5.5 0 0; 402 6 0 0; 403 6.5 0 0; 404 7 0 0;
405 7.5 0 0; 406 8 0 0; 407 8.5 0 0; 408 9 0 0; 409 9.5 0 0; 410 10 0 0;
411 10.5 0 0; 412 11 0 0; 413 11.5 0 0; 414 12 0 0; 415 12.5 0 0;
416 13 0 0; 417 13.5 0 0; 418 14 0 0; 419 14.5 0 0; 420 15 0 0;
421 15.5 0 0; 422 16 0 0; 423 16.5 0 0; 424 17 0 0; 425 17.5 0 0;
426 18 0 0; 427 18.5 0 0; 428 19 0 0; 429 19.5 0 0; 430 20 0 0;
431 20.5 0 0; 432 21 0 0; 433 21.5 0 0; 434 22 0 0; 435 22.5 0 0;
436 23 0 0; 437 23.5 0 0; 438 24 0 0; 439 0 0 0.5; 440 0.5 0 0.5;
441 1 0 0.5; 442 1.5 0 0.5; 443 2 0 0.5; 444 2.5 0 0.5; 445 3 0 0.5;
446 3.5 0 0.5; 447 4 0 0.5; 448 4.5 0 0.5; 449 5 0 0.5; 450 5.5 0 0.5;
451 6 0 0.5; 452 6.5 0 0.5; 453 7 0 0.5; 454 7.5 0 0.5; 455 8 0 0.5;
456 8.5 0 0.5; 457 9 0 0.5; 458 9.5 0 0.5; 459 10 0 0.5; 460 10.5 0 0.5;
461 11 0 0.5; 462 11.5 0 0.5; 463 12 0 0.5; 464 12.5 0 0.5;
465 13 0 0.5; 466 13.5 0 0.5; 467 14 0 0.5; 468 14.5 0 0.5;
469 15 0 0.5; 470 15.5 0 0.5; 471 16 0 0.5; 472 16.5 0 0.5;
473 17 0 0.5; 474 17.5 0 0.5; 475 18 0 0.5; 476 18.5 0 0.5;
477 19 0 0.5; 478 19.5 0 0.5; 479 20 0 0.5; 480 20.5 0 0.5;
481 21 0 0.5; 482 21.5 0 0.5; 483 22 0 0.5; 484 22.5 0 0.5;
485 23 0 0.5; 486 23.5 0 0.5; 487 24 0 0.5; 488 24.5 0 0.5; 489 0 0 1;
490 0.5 0 1; 491 1 0 1; 492 1.5 0 1; 493 2 0 1; 494 2.5 0 1; 495 3 0 1;
496 3.5 0 1; 497 4 0 1; 498 4.5 0 1; 499 5 0 1; 500 5.5 0 1; 501 6 0 1;
502 6.5 0 1; 503 7 0 1; 504 7.5 0 1; 505 8 0 1; 506 8.5 0 1; 507 9 0 1;
508 9.5 0 1; 509 10 0 1; 510 10.5 0 1; 511 11 0 1; 512 11.5 0 1;
513 12 0 1; 514 12.5 0 1; 515 13 0 1; 516 13.5 0 1; 517 14 0 1;
518 14.5 0 1; 519 15 0 1; 520 15.5 0 1; 521 16 0 1; 522 16.5 0 1;
523 17 0 1; 524 17.5 0 1; 525 18 0 1; 526 18.5 0 1; 527 19 0 1;
528 19.5 0 1; 529 20 0 1; 530 20.5 0 1; 531 21 0 1; 532 21.5 0 1;
533 22 0 1; 534 22.5 0 1; 535 23 0 1; 536 23.5 0 1; 537 24 0 1;
538 24.5 0 1; 539 0 0 1.5; 540 0.5 0 1.5; 541 1 0 1.5; 542 1.5 0 1.5;
543 2 0 1.5; 544 2.5 0 1.5; 545 3 0 1.5; 546 3.5 0 1.5; 547 4 0 1.5;
548 4.5 0 1.5; 549 5 0 1.5; 550 5.5 0 1.5; 551 6 0 1.5; 552 6.5 0 1.5;
553 7 0 1.5; 554 7.5 0 1.5; 555 8 0 1.5; 556 8.5 0 1.5; 557 9 0 1.5;
558 9.5 0 1.5; 559 10 0 1.5; 560 10.5 0 1.5; 561 11 0 1.5;
562 11.5 0 1.5; 563 12 0 1.5; 564 12.5 0 1.5; 565 13 0 1.5;
566 13.5 0 1.5; 567 14 0 1.5; 568 14.5 0 1.5; 569 15 0 1.5;
570 15.5 0 1.5; 571 16 0 1.5; 572 16.5 0 1.5; 573 17 0 1.5;
574 17.5 0 1.5; 575 18 0 1.5; 576 18.5 0 1.5; 577 19 0 1.5;
578 19.5 0 1.5; 579 20 0 1.5; 580 20.5 0 1.5; 581 21 0 1.5;
582 21.5 0 1.5; 583 22 0 1.5; 584 22.5 0 1.5; 585 23 0 1.5;
586 23.5 0 1.5; 587 24 0 1.5; 588 24.5 0 1.5; 589 0 0 2; 590 0.5 0 2;
591 1 0 2; 592 1.5 0 2; 593 2 0 2; 594 2.5 0 2; 595 3 0 2; 596 3.5 0 2;
597 4 0 2; 598 4.5 0 2; 599 5 0 2; 600 5.5 0 2; 601 6 0 2; 602 6.5 0 2;
603 7 0 2; 604 7.5 0 2; 605 8 0 2; 606 8.5 0 2; 607 9 0 2; 608 9.5 0 2;
609 10 0 2; 610 10.5 0 2; 611 11 0 2; 612 11.5 0 2; 613 12 0 2;
614 12.5 0 2; 615 13 0 2; 616 13.5 0 2; 617 14 0 2; 618 14.5 0 2;
619 15 0 2; 620 15.5 0 2; 621 16 0 2; 622 16.5 0 2; 623 17 0 2;
624 17.5 0 2; 625 18 0 2; 626 18.5 0 2; 627 19 0 2; 628 19.5 0 2;
629 20 0 2; 630 20.5 0 2; 631 21 0 2; 632 21.5 0 2; 633 22 0 2;
634 22.5 0 2; 635 23 0 2; 636 23.5 0 2; 637 24 0 2; 638 24.5 0 2;
639 0 0 2.5; 640 0.5 0 2.5; 641 1 0 2.5; 642 1.5 0 2.5; 643 2 0 2.5;
644 2.5 0 2.5; 645 3 0 2.5; 646 3.5 0 2.5; 647 4 0 2.5; 648 4.5 0 2.5;
649 5 0 2.5; 650 5.5 0 2.5; 651 6 0 2.5; 652 6.5 0 2.5; 653 7 0 2.5;
654 7.5 0 2.5; 655 8 0 2.5; 656 8.5 0 2.5; 657 9 0 2.5; 658 9.5 0 2.5;
659 10 0 2.5; 660 10.5 0 2.5; 661 11 0 2.5; 662 11.5 0 2.5;
663 12 0 2.5; 664 12.5 0 2.5; 665 13 0 2.5; 666 13.5 0 2.5;
667 14 0 2.5; 668 14.5 0 2.5; 669 15 0 2.5; 670 15.5 0 2.5;
671 16 0 2.5; 672 16.5 0 2.5; 673 17 0 2.5; 674 17.5 0 2.5;
675 18 0 2.5; 676 18.5 0 2.5; 677 19 0 2.5; 678 19.5 0 2.5;
679 20 0 2.5; 680 20.5 0 2.5; 681 21 0 2.5; 682 21.5 0 2.5;
683 22 0 2.5; 684 22.5 0 2.5; 685 23 0 2.5; 686 23.5 0 2.5;
687 24 0 2.5; 688 24.5 0 2.5; 689 0 0 3; 690 0.5 0 3; 691 1 0 3;
692 1.5 0 3; 693 2 0 3; 694 2.5 0 3; 695 3 0 3; 696 3.5 0 3; 697 4 0 3;
698 4.5 0 3; 699 5 0 3; 700 5.5 0 3; 701 6 0 3; 702 6.5 0 3; 703 7 0 3;
704 7.5 0 3; 705 8 0 3; 706 8.5 0 3; 707 9 0 3; 708 9.5 0 3; 709 10 0 3;
710 10.5 0 3; 711 11 0 3; 712 11.5 0 3; 713 12 0 3; 714 12.5 0 3;
715 13 0 3; 716 13.5 0 3; 717 14 0 3; 718 14.5 0 3; 719 15 0 3;
720 15.5 0 3; 721 16 0 3; 722 16.5 0 3; 723 17 0 3; 724 17.5 0 3;
725 18 0 3; 726 18.5 0 3; 727 19 0 3; 728 19.5 0 3; 729 20 0 3;
730 20.5 0 3; 731 21 0 3; 732 21.5 0 3; 733 22 0 3; 734 22.5 0 3;
735 23 0 3; 736 23.5 0 3; 737 24 0 3; 738 24.5 0 3; 739 0.5 0 3.5;
740 1 0 3.5; 741 1.5 0 3.5; 742 2 0 3.5; 743 2.5 0 3.5; 744 3 0 3.5;
745 3.5 0 3.5; 746 4 0 3.5; 747 4.5 0 3.5; 748 5 0 3.5; 749 5.5 0 3.5;
750 6 0 3.5; 751 6.5 0 3.5; 752 7 0 3.5; 753 7.5 0 3.5; 754 8 0 3.5;
755 8.5 0 3.5; 756 9 0 3.5; 757 9.5 0 3.5; 758 10 0 3.5; 759 10.5 0 3.5;
760 11 0 3.5; 761 11.5 0 3.5; 762 12 0 3.5; 763 12.5 0 3.5;
764 13 0 3.5; 765 13.5 0 3.5; 766 14 0 3.5; 767 14.5 0 3.5;
768 15 0 3.5; 769 15.5 0 3.5; 770 16 0 3.5; 771 16.5 0 3.5;
772 17 0 3.5; 773 17.5 0 3.5; 774 18 0 3.5; 775 18.5 0 3.5;
776 19 0 3.5; 777 19.5 0 3.5; 778 20 0 3.5; 779 20.5 0 3.5;
780 21 0 3.5; 781 21.5 0 3.5; 782 22 0 3.5; 783 22.5 0 3.5;
784 23 0 3.5; 785 23.5 0 3.5; 786 24 0 3.5;
MEMBER INCIDENCES
1 5 12; 2 12 19; 3 19 26; 4 26 33; 5 33 40; 6 3 10; 7 10 17; 8 17 24;
9 24 31; 10 31 38; 11 2 9; 12 9 16; 13 16 23; 14 23 30; 15 30 37;
16 4 11; 17 11 18; 18 18 25; 19 25 32; 20 32 39; 21 13 12; 22 12 10;
23 10 8; 24 8 9; 25 9 11; 26 11 14; 27 20 19; 28 19 17; 29 17 15;
30 15 16; 31 16 18; 32 18 21; 33 27 26; 34 26 24; 35 24 22; 36 22 23;
37 23 25; 38 25 28; 39 34 33; 40 33 31; 41 31 29; 42 29 30; 43 30 32;
44 32 35;
ELEMENT INCIDENCES SHELL
45 6 43 45 44; 46 43 46 47 45; 47 46 48 49 47; 48 48 50 51 49;
49 50 52 53 51; 50 52 54 55 53; 51 54 56 57 55; 52 56 58 59 57;
53 58 60 61 59; 54 60 62 63 61; 55 62 64 65 63; 56 64 66 67 65;
57 66 68 69 67; 58 68 70 71 69; 59 70 72 73 71; 60 72 74 75 73;
61 74 76 77 75; 62 76 78 79 77; 63 78 80 81 79; 64 80 82 83 81;
65 82 84 85 83; 66 84 86 87 85; 67 86 88 89 87; 68 88 90 91 89;
69 90 92 93 91; 70 92 94 95 93; 71 94 96 97 95; 72 96 98 99 97;
73 98 100 101 99; 74 100 102 103 101; 75 102 104 105 103;
76 104 106 107 105; 77 106 108 109 107; 78 108 110 111 109;
79 110 112 113 111; 80 112 114 115 113; 81 114 116 117 115;
82 116 118 119 117; 83 118 120 121 119; 84 120 122 123 121;
85 122 124 125 123; 86 124 126 127 125; 87 126 128 129 127;
88 128 130 131 129; 89 130 132 133 131; 90 132 134 135 133;
91 134 136 137 135; 92 136 138 139 137; 93 138 41 140 139;
94 44 45 142 141; 95 45 47 143 142; 96 47 49 144 143; 97 49 51 145 144;
98 51 53 146 145; 99 53 55 147 146; 100 55 57 148 147;
101 57 59 149 148; 102 59 61 150 149; 103 61 63 151 150;
104 63 65 152 151; 105 65 67 153 152; 106 67 69 154 153;
107 69 71 155 154; 108 71 73 156 155; 109 73 75 157 156;
110 75 77 158 157; 111 77 79 159 158; 112 79 81 160 159;
113 81 83 161 160; 114 83 85 162 161; 115 85 87 163 162;
116 87 89 164 163; 117 89 91 165 164; 118 91 93 166 165;
119 93 95 167 166; 120 95 97 168 167; 121 97 99 169 168;
122 99 101 170 169; 123 101 103 171 170; 124 103 105 172 171;
125 105 107 173 172; 126 107 109 174 173; 127 109 111 175 174;
128 111 113 176 175; 129 113 115 177 176; 130 115 117 178 177;
131 117 119 179 178; 132 119 121 180 179; 133 121 123 181 180;
134 123 125 182 181; 135 125 127 183 182; 136 127 129 184 183;
137 129 131 185 184; 138 131 133 186 185; 139 133 135 187 186;
140 135 137 188 187; 141 137 139 189 188; 142 139 140 190 189;
143 141 142 192 191; 144 142 143 193 192; 145 143 144 194 193;
146 144 145 195 194; 147 145 146 196 195; 148 146 147 197 196;
149 147 148 198 197; 150 148 149 199 198; 151 149 150 200 199;
152 150 151 201 200; 153 151 152 202 201; 154 152 153 203 202;
155 153 154 204 203; 156 154 155 205 204; 157 155 156 206 205;
158 156 157 207 206; 159 157 158 208 207; 160 158 159 209 208;
161 159 160 210 209; 162 160 161 211 210; 163 161 162 212 211;
164 162 163 213 212; 165 163 164 214 213; 166 164 165 215 214;
167 165 166 216 215; 168 166 167 217 216; 169 167 168 218 217;
170 168 169 219 218; 171 169 170 220 219; 172 170 171 221 220;
173 171 172 222 221; 174 172 173 223 222; 175 173 174 224 223;
176 174 175 225 224; 177 175 176 226 225; 178 176 177 227 226;
179 177 178 228 227; 180 178 179 229 228; 181 179 180 230 229;
182 180 181 231 230; 183 181 182 232 231; 184 182 183 233 232;
185 183 184 234 233; 186 184 185 235 234; 187 185 186 236 235;
188 186 187 237 236; 189 187 188 238 237; 190 188 189 239 238;
191 189 190 240 239; 192 191 192 242 241; 193 192 193 243 242;
194 193 194 244 243; 195 194 195 245 244; 196 195 196 246 245;
197 196 197 247 246; 198 197 198 248 247; 199 198 199 249 248;
200 199 200 250 249; 201 200 201 251 250; 202 201 202 252 251;
203 202 203 253 252; 204 203 204 254 253; 205 204 205 255 254;
206 205 206 256 255; 207 206 207 257 256; 208 207 208 258 257;
209 208 209 259 258; 210 209 210 260 259; 211 210 211 261 260;
212 211 212 262 261; 213 212 213 263 262; 214 213 214 264 263;
215 214 215 265 264; 216 215 216 266 265; 217 216 217 267 266;
218 217 218 268 267; 219 218 219 269 268; 220 219 220 270 269;
221 220 221 271 270; 222 221 222 272 271; 223 222 223 273 272;
224 223 224 274 273; 225 224 225 275 274; 226 225 226 276 275;
227 226 227 277 276; 228 227 228 278 277; 229 228 229 279 278;
230 229 230 280 279; 231 230 231 281 280; 232 231 232 282 281;
233 232 233 283 282; 234 233 234 284 283; 235 234 235 285 284;
236 235 236 286 285; 237 236 237 287 286; 238 237 238 288 287;
239 238 239 289 288; 240 239 240 290 289; 241 241 242 292 291;
242 242 243 293 292; 243 243 244 294 293; 244 244 245 295 294;
245 245 246 296 295; 246 246 247 297 296; 247 247 248 298 297;
248 248 249 299 298; 249 249 250 300 299; 250 250 251 301 300;
251 251 252 302 301; 252 252 253 303 302; 253 253 254 304 303;
254 254 255 305 304; 255 255 256 306 305; 256 256 257 307 306;
257 257 258 308 307; 258 258 259 309 308; 259 259 260 310 309;
260 260 261 311 310; 261 261 262 312 311; 262 262 263 313 312;
263 263 264 314 313; 264 264 265 315 314; 265 265 266 316 315;
266 266 267 317 316; 267 267 268 318 317; 268 268 269 319 318;
269 269 270 320 319; 270 270 271 321 320; 271 271 272 322 321;
272 272 273 323 322; 273 273 274 324 323; 274 274 275 325 324;
275 275 276 326 325; 276 276 277 327 326; 277 277 278 328 327;
278 278 279 329 328; 279 279 280 330 329; 280 280 281 331 330;
281 281 282 332 331; 282 282 283 333 332; 283 283 284 334 333;
284 284 285 335 334; 285 285 286 336 335; 286 286 287 337 336;
287 287 288 338 337; 288 288 289 339 338; 289 289 290 340 339;
290 291 292 342 341; 291 292 293 343 342; 292 293 294 344 343;
293 294 295 345 344; 294 295 296 346 345; 295 296 297 347 346;
296 297 298 348 347; 297 298 299 349 348; 298 299 300 350 349;
299 300 301 351 350; 300 301 302 352 351; 301 302 303 353 352;
302 303 304 354 353; 303 304 305 355 354; 304 305 306 356 355;
305 306 307 357 356; 306 307 308 358 357; 307 308 309 359 358;
308 309 310 360 359; 309 310 311 361 360; 310 311 312 362 361;
311 312 313 363 362; 312 313 314 364 363; 313 314 315 365 364;
314 315 316 366 365; 315 316 317 367 366; 316 317 318 368 367;
317 318 319 369 368; 318 319 320 370 369; 319 320 321 371 370;
320 321 322 372 371; 321 322 323 373 372; 322 323 324 374 373;
323 324 325 375 374; 324 325 326 376 375; 325 326 327 377 376;
326 327 328 378 377; 327 328 329 379 378; 328 329 330 380 379;
329 330 331 381 380; 330 331 332 382 381; 331 332 333 383 382;
332 333 334 384 383; 333 334 335 385 384; 334 335 336 386 385;
335 336 337 387 386; 336 337 338 388 387; 337 338 339 389 388;
338 339 340 390 389; 339 341 342 391 1; 340 342 343 392 391;
341 343 344 393 392; 342 344 345 394 393; 343 345 346 395 394;
344 346 347 396 395; 345 347 348 397 396; 346 348 349 398 397;
347 349 350 399 398; 348 350 351 400 399; 349 351 352 401 400;
350 352 353 402 401; 351 353 354 403 402; 352 354 355 404 403;
353 355 356 405 404; 354 356 357 406 405; 355 357 358 407 406;
356 358 359 408 407; 357 359 360 409 408; 358 360 361 410 409;
359 361 362 411 410; 360 362 363 412 411; 361 363 364 413 412;
362 364 365 414 413; 363 365 366 415 414; 364 366 367 416 415;
365 367 368 417 416; 366 368 369 418 417; 367 369 370 419 418;
368 370 371 420 419; 369 371 372 421 420; 370 372 373 422 421;
371 373 374 423 422; 372 374 375 424 423; 373 375 376 425 424;
374 376 377 426 425; 375 377 378 427 426; 376 378 379 428 427;
377 379 380 429 428; 378 380 381 430 429; 379 381 382 431 430;
380 382 383 432 431; 381 383 384 433 432; 382 384 385 434 433;
383 385 386 435 434; 384 386 387 436 435; 385 387 388 437 436;
386 388 389 438 437; 387 389 390 36 438; 388 1 391 440 439;
389 391 392 441 440; 390 392 393 442 441; 391 393 394 443 442;
392 394 395 444 443; 393 395 396 445 444; 394 396 397 446 445;
395 397 398 447 446; 396 398 399 448 447; 397 399 400 449 448;
398 400 401 450 449; 399 401 402 451 450; 400 402 403 452 451;
401 403 404 453 452; 402 404 405 454 453; 403 405 406 455 454;
404 406 407 456 455; 405 407 408 457 456; 406 408 409 458 457;
407 409 410 459 458; 408 410 411 460 459; 409 411 412 461 460;
410 412 413 462 461; 411 413 414 463 462; 412 414 415 464 463;
413 415 416 465 464; 414 416 417 466 465; 415 417 418 467 466;
416 418 419 468 467; 417 419 420 469 468; 418 420 421 470 469;
419 421 422 471 470; 420 422 423 472 471; 421 423 424 473 472;
422 424 425 474 473; 423 425 426 475 474; 424 426 427 476 475;
425 427 428 477 476; 426 428 429 478 477; 427 429 430 479 478;
428 430 431 480 479; 429 431 432 481 480; 430 432 433 482 481;
431 433 434 483 482; 432 434 435 484 483; 433 435 436 485 484;
434 436 437 486 485; 435 437 438 487 486; 436 438 36 488 487;
437 439 440 490 489; 438 440 441 491 490; 439 441 442 492 491;
440 442 443 493 492; 441 443 444 494 493; 442 444 445 495 494;
443 445 446 496 495; 444 446 447 497 496; 445 447 448 498 497;
446 448 449 499 498; 447 449 450 500 499; 448 450 451 501 500;
449 451 452 502 501; 450 452 453 503 502; 451 453 454 504 503;
452 454 455 505 504; 453 455 456 506 505; 454 456 457 507 506;
455 457 458 508 507; 456 458 459 509 508; 457 459 460 510 509;
458 460 461 511 510; 459 461 462 512 511; 460 462 463 513 512;
461 463 464 514 513; 462 464 465 515 514; 463 465 466 516 515;
464 466 467 517 516; 465 467 468 518 517; 466 468 469 519 518;
467 469 470 520 519; 468 470 471 521 520; 469 471 472 522 521;
470 472 473 523 522; 471 473 474 524 523; 472 474 475 525 524;
473 475 476 526 525; 474 476 477 527 526; 475 477 478 528 527;
476 478 479 529 528; 477 479 480 530 529; 478 480 481 531 530;
479 481 482 532 531; 480 482 483 533 532; 481 483 484 534 533;
482 484 485 535 534; 483 485 486 536 535; 484 486 487 537 536;
485 487 488 538 537; 486 489 490 540 539; 487 490 491 541 540;
488 491 492 542 541; 489 492 493 543 542; 490 493 494 544 543;
491 494 495 545 544; 492 495 496 546 545; 493 496 497 547 546;
494 497 498 548 547; 495 498 499 549 548; 496 499 500 550 549;
497 500 501 551 550; 498 501 502 552 551; 499 502 503 553 552;
500 503 504 554 553; 501 504 505 555 554; 502 505 506 556 555;
503 506 507 557 556; 504 507 508 558 557; 505 508 509 559 558;
506 509 510 560 559; 507 510 511 561 560; 508 511 512 562 561;
509 512 513 563 562; 510 513 514 564 563; 511 514 515 565 564;
512 515 516 566 565; 513 516 517 567 566; 514 517 518 568 567;
515 518 519 569 568; 516 519 520 570 569; 517 520 521 571 570;
518 521 522 572 571; 519 522 523 573 572; 520 523 524 574 573;
521 524 525 575 574; 522 525 526 576 575; 523 526 527 577 576;
524 527 528 578 577; 525 528 529 579 578; 526 529 530 580 579;
527 530 531 581 580; 528 531 532 582 581; 529 532 533 583 582;
530 533 534 584 583; 531 534 535 585 584; 532 535 536 586 585;
533 536 537 587 586; 534 537 538 588 587; 535 539 540 590 589;
536 540 541 591 590; 537 541 542 592 591; 538 542 543 593 592;
539 543 544 594 593; 540 544 545 595 594; 541 545 546 596 595;
542 546 547 597 596; 543 547 548 598 597; 544 548 549 599 598;
545 549 550 600 599; 546 550 551 601 600; 547 551 552 602 601;
548 552 553 603 602; 549 553 554 604 603; 550 554 555 605 604;
551 555 556 606 605; 552 556 557 607 606; 553 557 558 608 607;
554 558 559 609 608; 555 559 560 610 609; 556 560 561 611 610;
557 561 562 612 611; 558 562 563 613 612; 559 563 564 614 613;
560 564 565 615 614; 561 565 566 616 615; 562 566 567 617 616;
563 567 568 618 617; 564 568 569 619 618; 565 569 570 620 619;
566 570 571 621 620; 567 571 572 622 621; 568 572 573 623 622;
569 573 574 624 623; 570 574 575 625 624; 571 575 576 626 625;
572 576 577 627 626; 573 577 578 628 627; 574 578 579 629 628;
575 579 580 630 629; 576 580 581 631 630; 577 581 582 632 631;
578 582 583 633 632; 579 583 584 634 633; 580 584 585 635 634;
581 585 586 636 635; 582 586 587 637 636; 583 587 588 638 637;
584 589 590 640 639; 585 590 591 641 640; 586 591 592 642 641;
587 592 593 643 642; 588 593 594 644 643; 589 594 595 645 644;
590 595 596 646 645; 591 596 597 647 646; 592 597 598 648 647;
593 598 599 649 648; 594 599 600 650 649; 595 600 601 651 650;
596 601 602 652 651; 597 602 603 653 652; 598 603 604 654 653;
599 604 605 655 654; 600 605 606 656 655; 601 606 607 657 656;
602 607 608 658 657; 603 608 609 659 658; 604 609 610 660 659;
605 610 611 661 660; 606 611 612 662 661; 607 612 613 663 662;
608 613 614 664 663; 609 614 615 665 664; 610 615 616 666 665;
611 616 617 667 666; 612 617 618 668 667; 613 618 619 669 668;
614 619 620 670 669; 615 620 621 671 670; 616 621 622 672 671;
617 622 623 673 672; 618 623 624 674 673; 619 624 625 675 674;
620 625 626 676 675; 621 626 627 677 676; 622 627 628 678 677;
623 628 629 679 678; 624 629 630 680 679; 625 630 631 681 680;
626 631 632 682 681; 627 632 633 683 682; 628 633 634 684 683;
629 634 635 685 684; 630 635 636 686 685; 631 636 637 687 686;
632 637 638 688 687; 633 639 640 690 689; 634 640 641 691 690;
635 641 642 692 691; 636 642 643 693 692; 637 643 644 694 693;
638 644 645 695 694; 639 645 646 696 695; 640 646 647 697 696;
641 647 648 698 697; 642 648 649 699 698; 643 649 650 700 699;
644 650 651 701 700; 645 651 652 702 701; 646 652 653 703 702;
647 653 654 704 703; 648 654 655 705 704; 649 655 656 706 705;
650 656 657 707 706; 651 657 658 708 707; 652 658 659 709 708;
653 659 660 710 709; 654 660 661 711 710; 655 661 662 712 711;
656 662 663 713 712; 657 663 664 714 713; 658 664 665 715 714;
659 665 666 716 715; 660 666 667 717 716; 661 667 668 718 717;
662 668 669 719 718; 663 669 670 720 719; 664 670 671 721 720;
665 671 672 722 721; 666 672 673 723 722; 667 673 674 724 723;
668 674 675 725 724; 669 675 676 726 725; 670 676 677 727 726;
671 677 678 728 727; 672 678 679 729 728; 673 679 680 730 729;
674 680 681 731 730; 675 681 682 732 731; 676 682 683 733 732;
677 683 684 734 733; 678 684 685 735 734; 679 685 686 736 735;
680 686 687 737 736; 681 687 688 738 737; 682 689 690 739 7;
683 690 691 740 739; 684 691 692 741 740; 685 692 693 742 741;
686 693 694 743 742; 687 694 695 744 743; 688 695 696 745 744;
689 696 697 746 745; 690 697 698 747 746; 691 698 699 748 747;
692 699 700 749 748; 693 700 701 750 749; 694 701 702 751 750;
695 702 703 752 751; 696 703 704 753 752; 697 704 705 754 753;
698 705 706 755 754; 699 706 707 756 755; 700 707 708 757 756;
701 708 709 758 757; 702 709 710 759 758; 703 710 711 760 759;
704 711 712 761 760; 705 712 713 762 761; 706 713 714 763 762;
707 714 715 764 763; 708 715 716 765 764; 709 716 717 766 765;
710 717 718 767 766; 711 718 719 768 767; 712 719 720 769 768;
713 720 721 770 769; 714 721 722 771 770; 715 722 723 772 771;
716 723 724 773 772; 717 724 725 774 773; 718 725 726 775 774;
719 726 727 776 775; 720 727 728 777 776; 721 728 729 778 777;
722 729 730 779 778; 723 730 731 780 779; 724 731 732 781 780;
725 732 733 782 781; 726 733 734 783 782; 727 734 735 784 783;
728 735 736 785 784; 729 736 737 786 785; 730 737 738 42 786;
START GROUP DEFINITION
MEMBER
_MAINGIRDERS 1 TO 20
_CROSSGIRDERS 21 TO 44
JOINT
ELEMENT
_DECKSLAB 45 TO 730
END GROUP DEFINITION
ELEMENT PROPERTY
45 TO 730 THICKNESS 0.2
DEFINE MATERIAL START
ISOTROPIC CONCRETE
E 453600
POISSON 0.17
DENSITY 0.14999
ALPHA 5.5e-06
DAMP 0.05
TYPE CONCRETE
STRENGTH FCU 576
END DEFINE MATERIAL
MEMBER PROPERTY
1 TO 20 PRIS YD 1.9 ZD 1.2 YB 1.7 ZB 0.5
21 TO 44 PRIS YD 1.7 ZD 0.3
CONSTANTS
MATERIAL CONCRETE ALL
SUPPORTS
2 TO 5 37 TO 40 FIXED
DEFINE MOVING LOAD
TYPE 1 LOAD 80 120 120 170 170 170 170
DIST 3.96 1.52 2.13 1.37 3.05 1.37 WID 1.93
TYPE 2 LOAD 27 27 114 114 68 68 68 68
DIST 1.1 3.2 1.2 4.3 3 3 3 WID 1.8
TYPE 3 LOAD 16 16 68 68 41 41 41 41
DIST 1.1 3.2 1.2 4.3 3 3 3 WID 1.8
LOAD GENERATION 50
TYPE 1 0 0 -2 XINC 1
LOAD GENERATION 50
TYPE 1 0 0 1.5 XINC 1
LOAD 101 LOADTYPE Dead TITLE Self Weight
SELFWEIGHT Y -1 LIST ALL
PERFORM ANALYSIS
FINISH
