Week 3.5 - Deriving 4th order approximation of a 2nd order derivative using Taylor Table method

AAnish Kumar Sharma22 Feb 2023
HTMLMATLAB

Aim:-

Derive the following 4th order approximations of the second-order derivative.

1. Central difference

2. Skewed right-sided difference

3. Skewed left-sided difference

After deriving these schemes, prove that your skewed schemes are fourth-order accurate i.e the thumb rule given

Theory:-

Taylor Series

The Taylor series of a function is an infinite sum of terms that are expressed in terms of the function's derivatives at a single point.

f(x)=f(a)+f'(a)1!(x−a)+f''(a)2!(x−a)2+f'''(a)3!(x−a)3+...,

1) Central Difference

The number of Nodes required for 4th order approximation of a second-order derivative can be given by the equation

N=P+Q−1 where

N is the number of nodes

Q is the order of derivative

P is the order of approximation

So, here we need 5 nodes in order to find the 2nd order derivative with the 4th order of approximation.

Consider the value of ∂^2y/∂x^2 with the 4th order of approximation is given by the equation

∂^2y/∂x^2=af(i−2)+bf(i−1)+cf(i)+df(i+1)+ef(i+2)

Consider Taylor Table for central difference

Taylor Table
Assumed Function Taylor Series Expansion
f(i) Δxf'(i) Δx2f''(i) Δx3f'''(i) Δx4f''''(i) Δx5f'''''(i)
Stencil
 af(i−2) a −2a 4a/2 −8a/6 16a/24 −32a/120
bf(i−1) b −b b/2 −b/6 b/24 −b/120
cf(i) c 0 0 0 0 0
df(i+1) d d d/2 d/6 d/24 −c/120
ef(i+2) e 2e 4e/2 −8e/6 16e/24 32e//120
Sum of Coefficients 0 0 1 0 0 ?

Solving using MATLAB to find the values of the coefficients

>> A=[1, 1, 1, 1, 1;-2, -1, 0, 1, 2;4/2, 1/2, 0, 1/2, 4/2;-8/6, -1/6, 0, 1/6, 8/6;16/24, 1/24, 0, 1/24, 16/24]
B=[0;0;1;0;0]
X=AB

A =

    1.0000    1.0000    1.0000    1.0000    1.0000
   -2.0000   -1.0000         0    1.0000    2.0000
    2.0000    0.5000         0    0.5000    2.0000
   -1.3333   -0.1667         0    0.1667    1.3333
    0.6667    0.0417         0    0.0417    0.6667


B =

     0
     0
     1
     0
     0


X =

   -0.0833
    1.3333
   -2.5000
    1.3333
   -0.0833

Now we can write the equation using the Taylors Table as

∂^2y/∂x^2=af(i−2)+bf(i−1)+cf(i)+df(i+1)+ef(i+2)/Δx^2

2) Skewed right-sided difference

The number of Nodes required for 4th order approximation of a second-order derivative can be given by the equation

N=P+Q where

N is the number of nodes

Q is the order of derivative

P is the order of approximation

So, here we need 6 nodes in order to find the 2nd order derivative with the 4th order of approximation.

Consider the value of ∂^2y/∂x^2 with the 4th order of approximation is given by the equation

∂2y∂x2=af(i)+bf(i+1)+cf(i+2)+df(i+3)+ef(i+4)+gf(i+5)

Now, using taylor series to find the values of discrete poits with repect to point i

af(i)=af(i)

bf(i+1)=bf(i)+bΔxf'(i)+(bΔx^2/2!)f''(i)+(bΔx^3/3!)f'''(i)+(bΔx^4/4!)f''''(i)+(bΔx^5/5!)f'''''(i)+(bΔx^6/6!)f''''''(i)+...

cf(i+2)=cf(i)+c(2Δx)f'(i)+(c(2Δx)^2/2!)f''(i)+(c(2Δx)^3/3!)f'''(i)+(c(2Δx)^4/4!)f''''(i)+(c(2Δx)^5/5!)f'''''(i)+(c(2Δx)^6/6!)f''''''(i)+...

df(i+3)=df(i)+d(3Δx)f'(i)+(d(3Δx)^2/2!)f''(i)+(d(3Δx)^3/3!)f'''(i)+(d(3Δx)^4/4!)f''''(i)+(d(3Δx)^5/5!)f'''''(i)+(d(3Δx)^6/6!)f''''''(i)+...

ef(i+4)=ef(i)+e(4Δx)f'(i)+(e(4Δx)^2/2!)f''(i)+(e(4Δx)^3/3!)f'''(i)+(e(4Δx)^4/4!)f''''(i)+(e(4Δx)^5/5!)f'''''(i)+(e(4Δx)^6/6!)f''''''(i)+...

gf(i+5)=gf(i)+g(5Δx)f'(i)+(g(5Δx)^2/2!)f''(i)+(g(5Δx)^3/3!)f'''(i)+(g(5Δx)^4/4!)f''''(i)+(g(5Δx)^5/5!)f'''''(i)+(g(5Δx)^6/6!)f''''''(i)+...

Adding the LHS and RHS of the above equations we get

af(i)+bf(i+1)+cf(i+2)+df(i+3)+ef(i+4)+gf(i+5)=f(i)[a+b+c+d+e+g]+Δxf'(i)[b+2c+3d+4e+5g]+Δx2f''(i)[b2+4c2+9d2+16e2+25g2]+Δx3f'''(i)[b6+8c6+27d6+64e6+125g6]+Δx4f''''(i)[b24+16c24+81d24+256e24+625g24]+Δx5f'''''(i)[b120+32c120+243d120+1024e120+3125g120]

In the above equations, we want only the coefficients of Δx2f''(i) and we assume the coefficient to be one and for the remaining terms we assume the coefficients to be zero.

a+b+c+d+e+g=0

b+2c+3d+4e+5g=0

b/2+4c/2+9d/2+16e/2+25g/2=1

b/6+8c/6+27d/6+64e/6+125g/6=0

b/24+16c/24+81d/24+256e/24+625g/24=0

b/120+32c/120+243d/120+1024e/120+3125g/120=0

Taylor Table
Assumed Function Taylor Series Expansion
f(i) Δf'(i) Δx2f''(i) Δx3f'''(i) Δx4f''''(i) Δx5f'''''(i) Δx6f''''''(i)
Stencil
 af(i) a 0 0 0 0 0 0
bf(i+1) b b b/2 b/6 b/24 b/120 b/720
cf(i+2) c 2c 4c/2 8c6 16c/24 32c/120 64c/720
df(i+3) d 3d 9d/2 27d/6 81d/24 243d/120 729d/720
ef(i+4) e 4e 16e/2 64e/6 256e/24 1024e/120 4096e/720
gf(i+5) g 5g 25g/2 125g/6 625g/24 3125g/120 15625g/720
Sum of Coefficients 0 0 1 0 0 0 ?

Solving using MATLAB to find the values of the coefficients

>> A=[1 1 1 1 1 1;0 1 2 3 4 5;0 1/2 4/2 9/2 16/2 25/2;0 1/6 8/6 27/6 64/6 125/6;0 1/24 16/24 81/24 256/24 625/24;0 1/120 32/120 243/120 1024/120 3125/120]
B=[0;0;1;0;0;0]
X=AB

A =

    1.0000    1.0000    1.0000    1.0000    1.0000    1.0000
         0    1.0000    2.0000    3.0000    4.0000    5.0000
         0    0.5000    2.0000    4.5000    8.0000   12.5000
         0    0.1667    1.3333    4.5000   10.6667   20.8333
         0    0.0417    0.6667    3.3750   10.6667   26.0417
         0    0.0083    0.2667    2.0250    8.5333   26.0417


B =

     0
     0
     1
     0
     0
     0


X =

    3.7500
  -12.8333
   17.8333
  -13.0000
    5.0833
   -0.8333

Now we can write the equation using the Taylors Table as ∂^2y/∂x^2=af(i)+bf(i+1)+cf(i+2)+df(i+3)+ef(i+4)+gf(i+5)/Δx^2

3) Skewed left-sided difference

The number of Nodes required for 4th order approximation of a second-order derivative can be given by the equation

N=P+Qwhere

N is the number of nodes

Q is the order of derivative

P is the order of approximation

So, here we need 6 nodes in order to find the 2nd order derivative with the 4th order of approximation.

Consider the value of ∂^2y/∂x^2 with the 4th order of approximation is given by the equation

∂^2y/∂x^2=af(i)+bf(i−1)+cf(i−2)+df(i−3)+ef(i−4)+gf(i−5)

Consider Taylor Table for left-sided difference

Taylor Table
Assumed Function Taylor Series Expansion
f(i) Δxf'(i) Δx2f''(i) Δx3f'''(i) Δx4f''''(i) Δx5f'''''(i) Δx6f''''''(i)
Stencil
 af(i) a 00 0 0 0 0 0
bf(i−1) b −b b/2 −b/6 b/24 −b/120 b/720
cf(i−2) c −2c 4c/2 −8c/6 16c/24 −32c/120 64c/720
df(i−3) d −3d 9d/2 −27d/6 81d/24 −243d/120 729d/720
ef(i−4) e −4e 16e/2 −64e/6 256e/24 −1024e/120 4096e/720
gf(i−5) g −5g 25g/2 −125g/6 625g/24 −3125g/120 15625g/720
Sum of Coefficients 0 0 1 0 0 0 ?

Solving using MATLAB to find the values of the coefficients

>> A=[1 1 1 1 1 1;0 -1 -2 -3 -4 -5;0 1/2 4/2 9/2 16/2 25/2;0 -1/6 -8/6 -27/6 -64/6 -125/6;0 1/24 16/24 81/24 256/24 625/24;0 -1/120 -32/120 -243/120 -1024/120 -3125/120]
B=[0;0;1;0;0;0]
X=AB

A =

    1.0000    1.0000    1.0000    1.0000    1.0000    1.0000
         0   -1.0000   -2.0000   -3.0000   -4.0000   -5.0000
         0    0.5000    2.0000    4.5000    8.0000   12.5000
         0   -0.1667   -1.3333   -4.5000  -10.6667  -20.8333
         0    0.0417    0.6667    3.3750   10.6667   26.0417
         0   -0.0083   -0.2667   -2.0250   -8.5333  -26.0417


B =

     0
     0
     1
     0
     0
     0


X =

    3.7500
  -12.8333
   17.8333
  -13.0000
    5.0833
   -0.8333

Now we can write the equation using the Taylors Table as ∂^2y/∂x^2=af(i)+bf(i−1)+cf(i−2)+df(i−3)+ef(i−4)+gf(i−5)

Solution:-

MATLAB Code for our main Problem

clear
close
clc
%analytical fucntion=(e^x)cos(x);
%analytical derivative
%f(x)=(e^x)cos(x)
%f'(x)=(e^x)cos(x)-(e^x)sin(x)=e^x[cosx-sinx]
%f''(x)=(e^x)cos(x)-(e^x)sin(x)-[(e^x)sin(x)+(e^x)cos(x)]
%f''(x)=-2*e^x*sin(x)
%given inputs
x=pi/3; %derivative to be computed at x=pi/3
dx=linspace(pi/4000,1.5*pi,2000); %grid spacing dx=(pi*(4000-1.5))/(4000*2000)
%analytical derivative
analytical_derivative=-2*exp(x)*sin(x);
%creating Anonymous Function
f=@(x) exp(x)*cos(x);
%Skewed right-sided(4th order approimation)
%Solving for the coefficients
A=[1 1 1 1 1 1;0 1 2 3 4 5;0 1/2 4/2 9/2 16/2 25/2;0 1/6 8/6 27/6 64/6 125/6;0 1/24 16/24 81/24 256/24 625/24;0 1/120 32/120 243/120 1024/120 3125/120];
B=[0;0;1;0;0;0];
x_r=A*B;
%Skewed left-sided(4th order approimation)
%Solving for the coefficients
C=[1 1 1 1 1 1;0 -1 -2 -3 -4 -5;0 1/2 4/2 9/2 16/2 25/2;0 -1/6 -8/6 -27/6 -64/6 -125/6;0 1/24 16/24 81/24 256/24 625/24;0 -1/120 -32/120 -243/120 -1024/120 -3125/120];
D=[0;0;1;0;0;0];
x_l=C*D;
%central differencing(4th order approimation)
%Solving for the coefficients
E=[1, 1, 1, 1, 1;-2, -1, 0, 1, 2;4/2, 1/2, 0, 1/2, 4/2;-8/6, -1/6, 0, 1/6, 8/6;16/24, 1/24, 0, 1/24, 16/24];
F=[0;0;1;0;0];
x_c=E*F;
for i=1:length(dx)
%numerical derivative
%Skewed right-sided(4th order approimation)
%f''(x)=af(i)+bf(i+1)+cf(i+2)+df(i+3)+ef(i+4)+gf(i+5)
nd_right_difference(i)= (x_r(1)*f(x)+x_r(2)*f(x+dx(i))+x_r(3)*f(x+2*dx(i))+x_r(4)*f(x+3*dx(i))+x_r(5)*f(x+4*dx(i))+x_r(6)*f(x+5*dx(i)))/(dx(i)^2);
%Skewed left-sided(4th order approimation)
%f''(x)=af(i)+bf(i-1)+cf(i-2)+df(i-3)+ef(i-4)+gf(i-5)
nd_left_difference(i)=(x_l(1)*f(x)+x_l(2)*f(x-dx(i))+x_l(3)*f(x-2*dx(i))+x_l(4)*f(x-3*dx(i))+x_l(5)*f(x-4*dx(i))+x_l(6)*f(x-5*dx(i)))/(dx(i)^2);
%central differencing(4th order approimation)
%f''(x)=af(i-2)+bf(i-1)+cf(i)+df(i+1)+ef(i+2)
nd_cent_difference(i)=(x_c(1)*f(x-2*dx(i))+x_c(2)*f(x-1*dx(i))+x_c(3)*f(x)+x_c(4)*f(x+dx(i))+x_c(5)*f(x+2*dx(i)))/(dx(i)^2);
%absolute error at x = pi/3
error_r(i)=abs(analytical_derivative-nd_right_difference(i));
error_l(i)=abs(analytical_derivative-nd_left_difference(i));
error_c(i)=abs(analytical_derivative-nd_cent_difference(i));
error=[error_r;error_l;error_c];
end
%Plotting the Absolute Error Curves
figure(1)
loglog(dx,error_r) %Plot both the axis on the log scale
grid on
hold on
loglog(dx,error_l)
loglog(dx,error_c)
ylabel('Absolute Error (Log Scale)')
xlabel('Grid Spacing (dx in Log Scale)')
legend('Right Differencing','Left Differencing','Central Differencing')
title('Absolute Error Comparison')

Conclusion:-

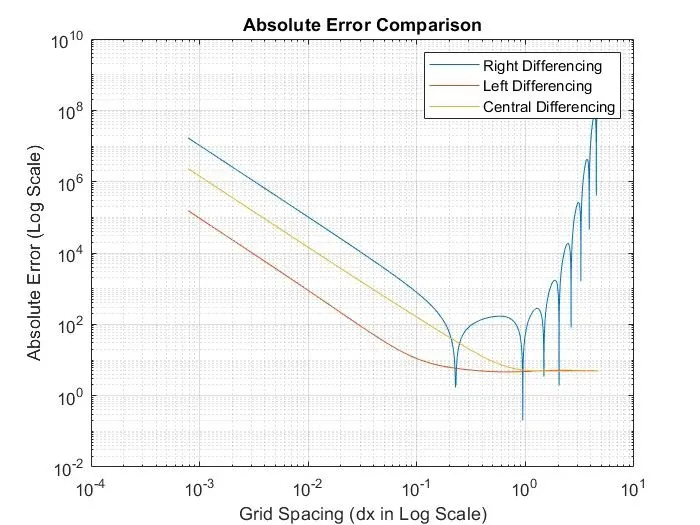

The comparison of absolute error for the left, right and central differencing scheme can be seen in the below graph. The graph shows that the central scheme is most accurate compared to the skewed differencing. The curves also show that when the value of dx is very small or large the approximating function becomes unstable. This instability is caused due to the combination of various errors such as roundoff error, residual error and truncation error.

From the below graph it is seen that the range of dx where the function is stable ranges from 0.1 to 0.01, beyond this range we see an abrupt rise or fall.
