Week 3 - 2D meshing for sheet metal

Aim: To take the mid surface for all the components after checking the geometrical errors and mesh the mid surface with the given element Quality criteria

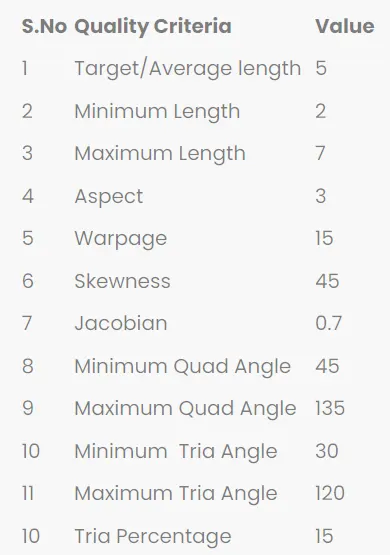

Quality criteria :

 Principle: The given model is a Hood of a vehicle. It is as shown below



In British terminology, a hood refers to a fabric cover over the passenger compartment of the car (known as the 'roof' or 'top' in the US). In many motor vehicles built in the 1930s and 1940s, the resemblance to an actual hood or bonnet is clear when open and viewed head-on; in modern vehicles, it continues to serve the same purpose but no longer resembles a head covering.

The hood release system is common on most vehicles and usually consists of an interior hood latch handle, hood release cable, and hood latch assembly. The hood latch handle is usually located below the steering wheel, beside the driver's seat, or set into the door frame. On race cars or cars with aftermarket hoods (that do not use the factory latch system) the hood may be held down by hood pins. Some aftermarket hoods that have a latch system are still equipped with hood pins to hold the hood buttoned down if the latch fails.

Procedure:

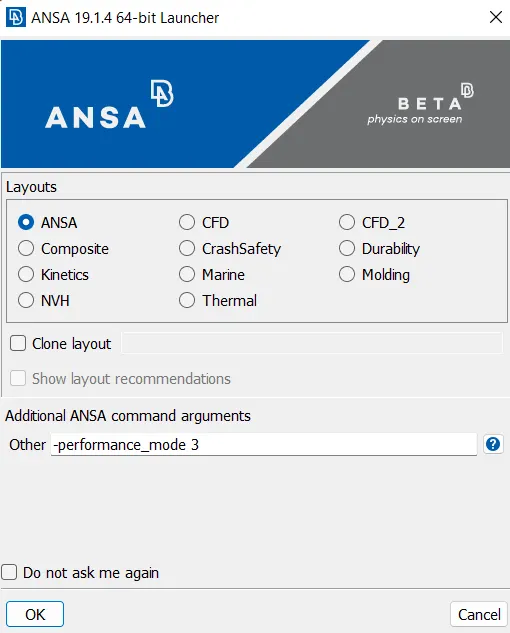

On opening, the Ansa software Icon pops up as shown below



Enter the code -performance_mode 3 before clicking the OK button. The reason for that is nodes are displayed otherwise some nodes may not be displayed.

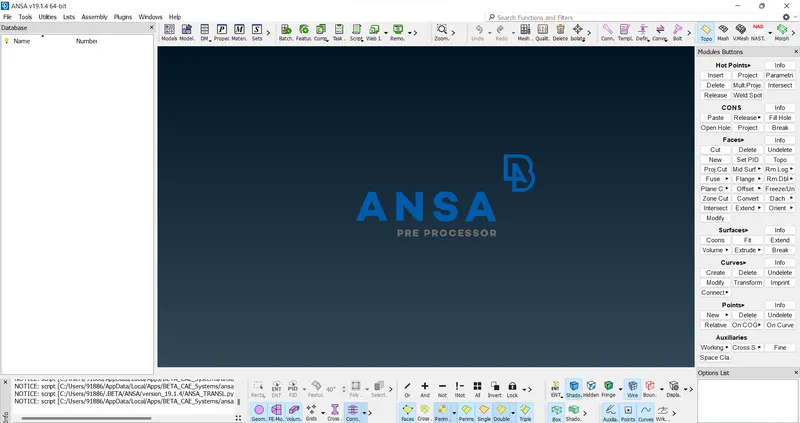

On clicking the OK button the ANSA workbench is displayed.

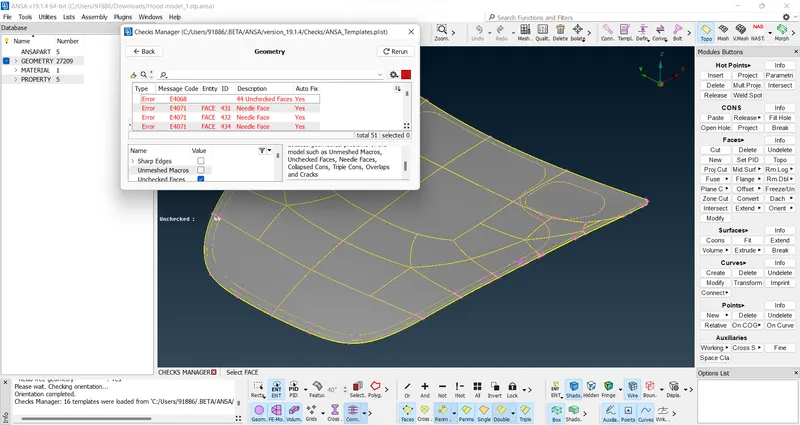

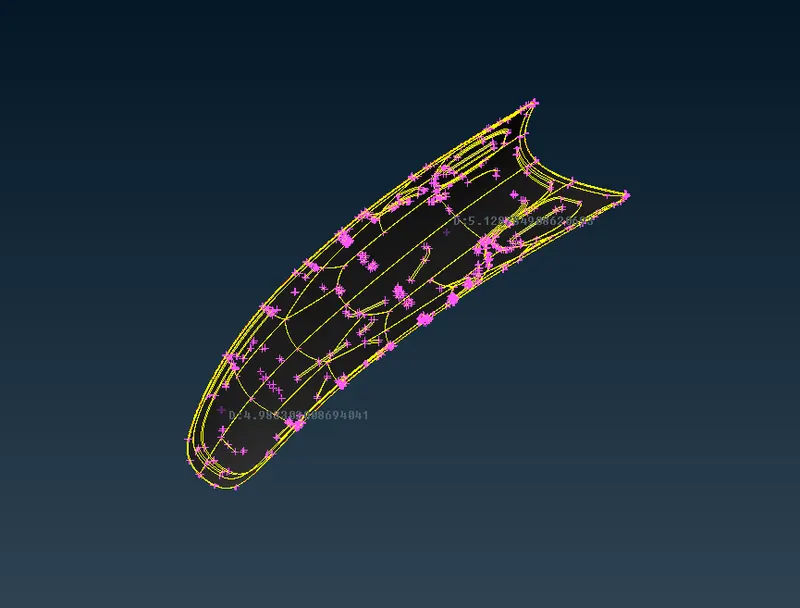

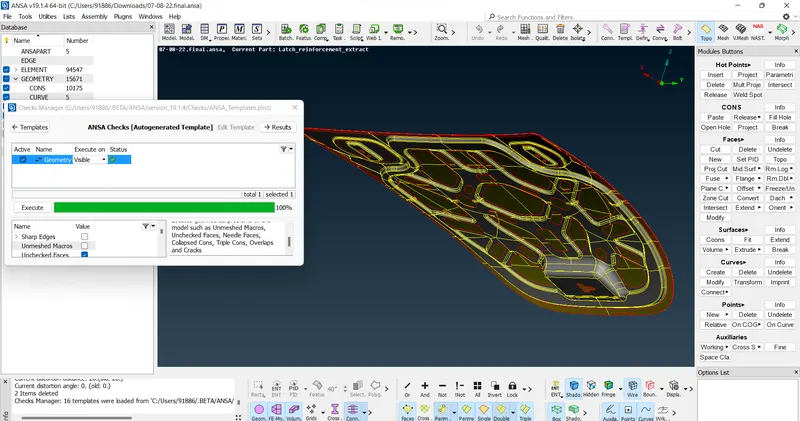

Load the Hood model and check for geometry errors. If there are any errors in the model. The error should be shown as below



The geometry errors can either be fixed manually by checking every error shown or by clicking the auto-fix option the errors can be resolved. After reruning the model it should show as error-free



Once the model is free of Geometrical errors. Mid-surfacing can be done.

Before Mid surfacing can be started we need to make sure that the entire model is of the same thickness. If the Model has parts of varying thickness then midsurfacing should be done individually for different parts.

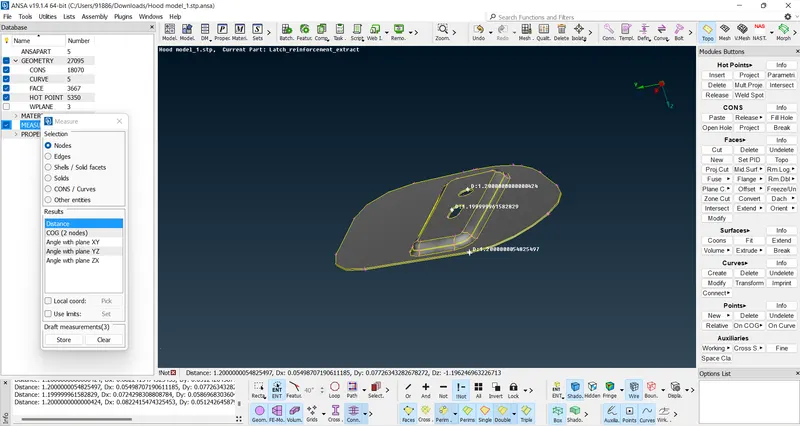

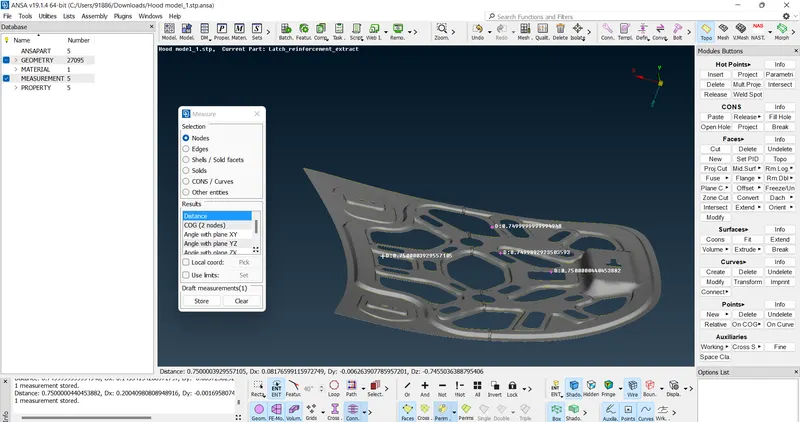

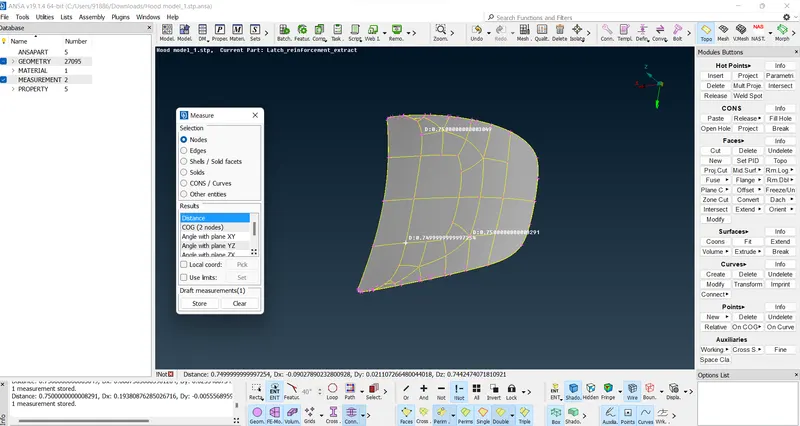

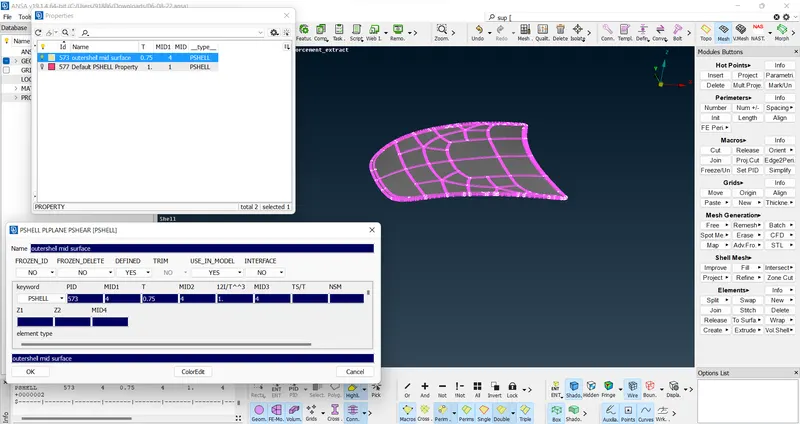

The outer and inner shell is found to be of the same thickness ie 0.75 as shown above.

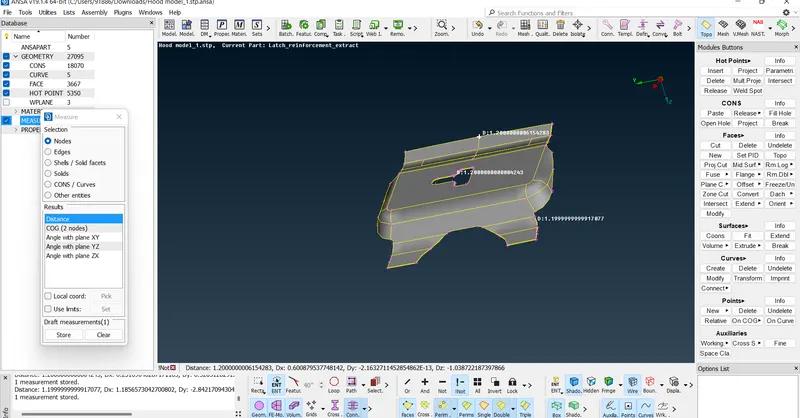

The lock and hinges are of different thicknesses ie 1.2. Hence midsurfacing is done on lock and hinges separately

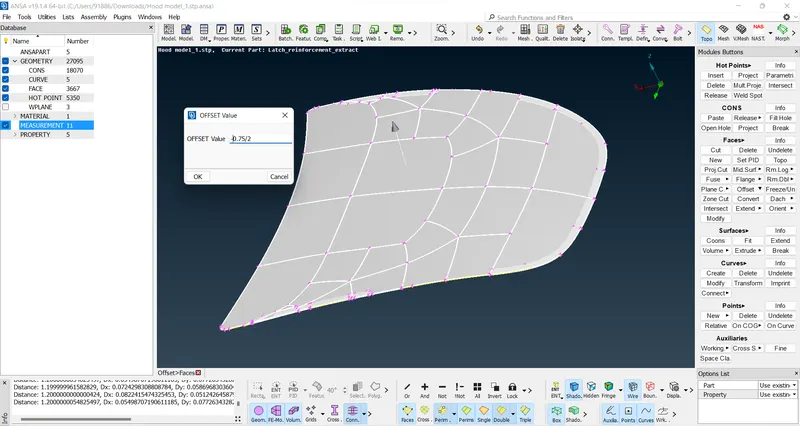

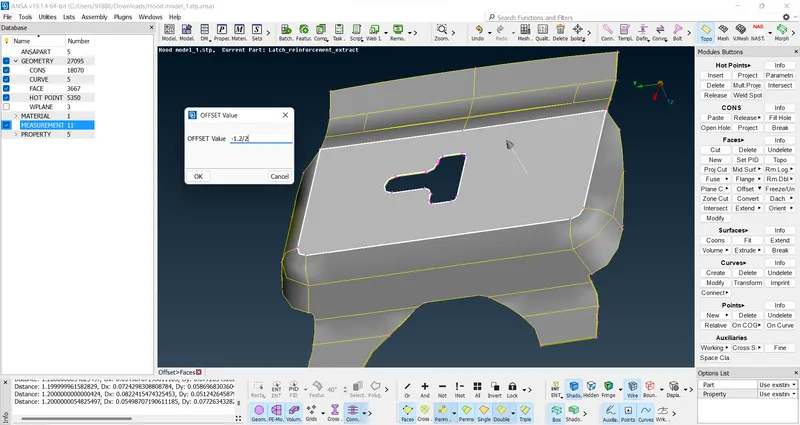

Mid-surfacing can be done by two methods either by the mid-surface method or by using the offset option. Here the mid surface is done by offsetting the planes individually



The offset of different thicknesses is as shown above

Once the offset of the plane is done the mid-surface of the model is completed

A geometry check up is run once again to make sure there are no errors

Checking the PID function

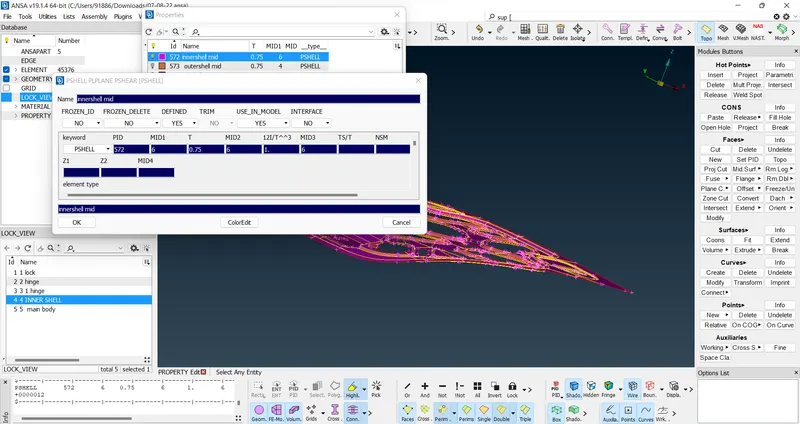

The PID is used to create a property of the particular model parts or the total model.To create a new PID or to check the existing PIDS. PID is created for the inner and outer shell



After assigning the PID next meshing operation is done

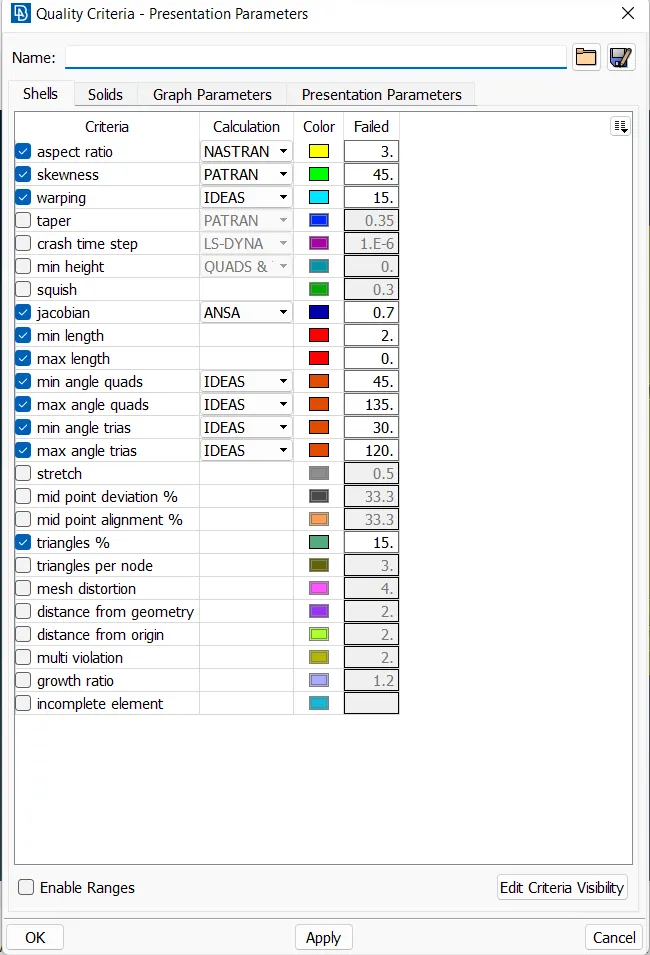

Before meshing quality criteria should be given

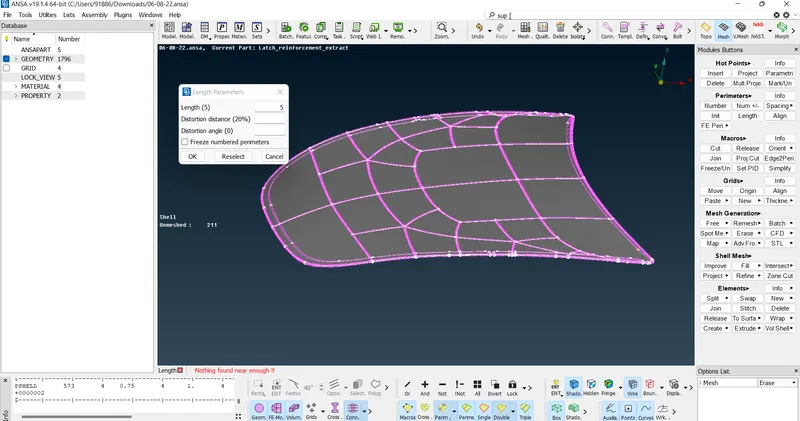

Since average length asked is 5 we must assign the length as 5 for the model

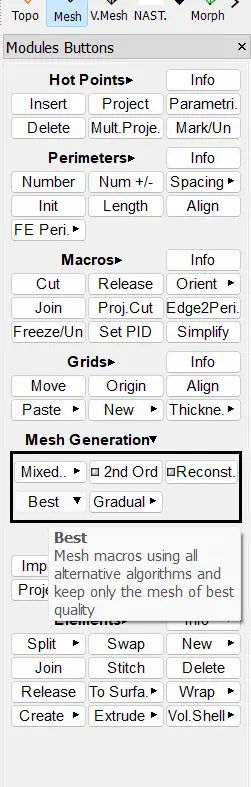

Meshing is done by clicking best option in the mesh function

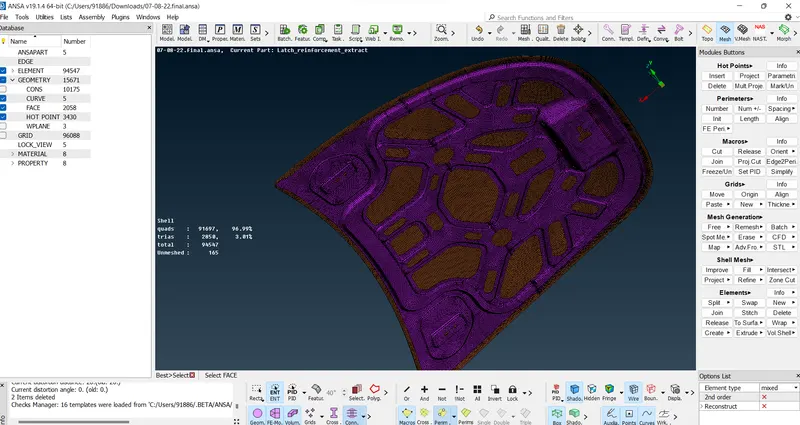

Meshing of the model is as shown below

                                Mesh of hinges

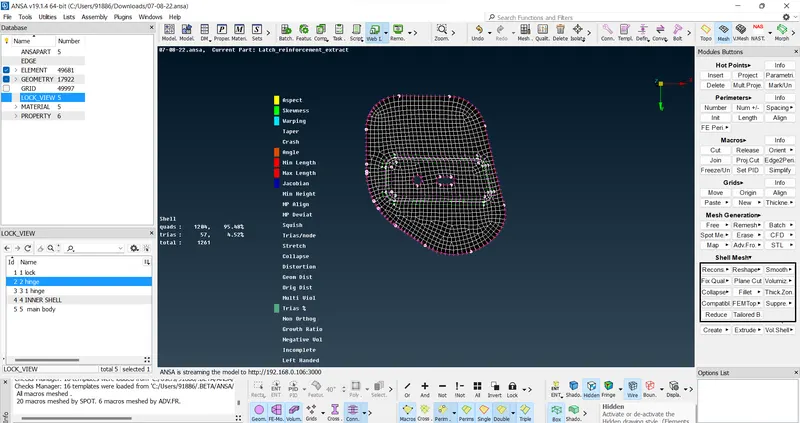

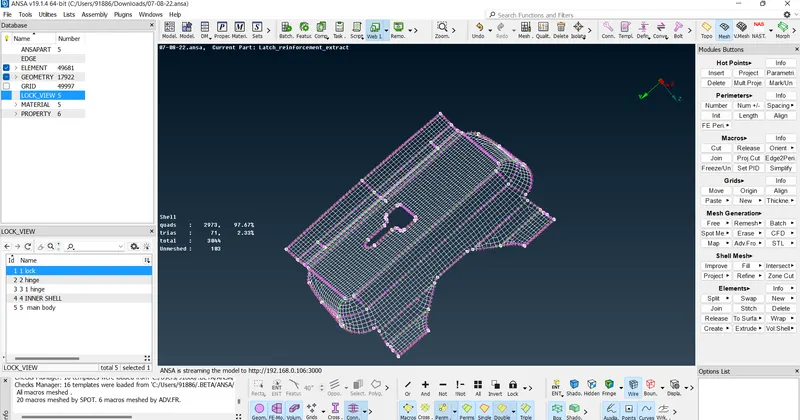

                                  Lock mesh

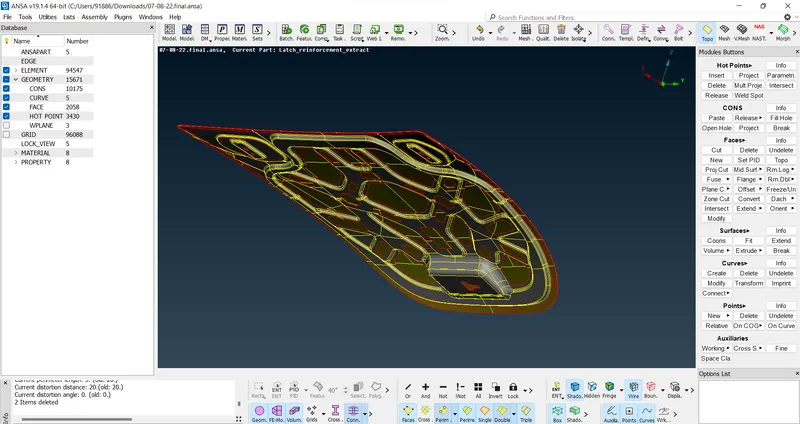

                                    Inner Shell of Hood

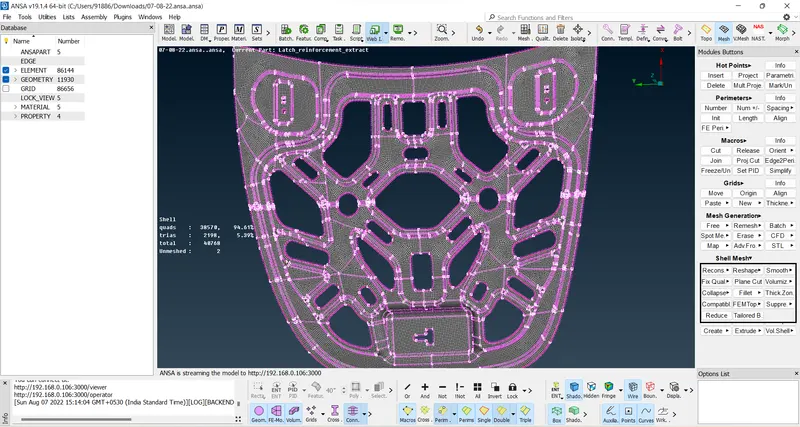

                                       Meshing of the model

Link for the model:https://drive.google.com/file/d/1KHxtlo9Y2tXvYEAvsGyrACIwiJ5tilyv/view?usp=sharing
