Week 2 Railwheel and Track

OBJECTIVE:

Perform a static structural analysis on the Railwheel and Track setup

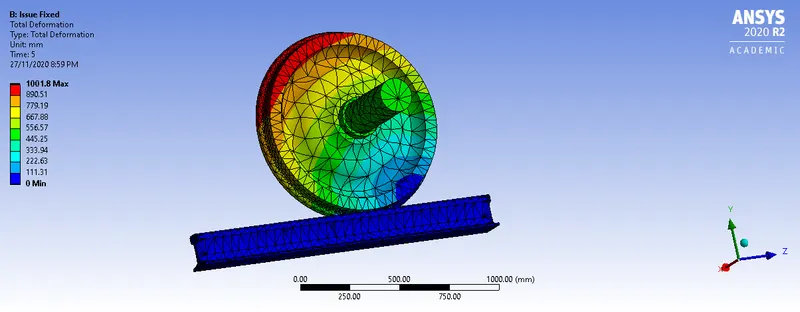

FOR 100000N BEARING LOAD TOTAL DEFORMATION:

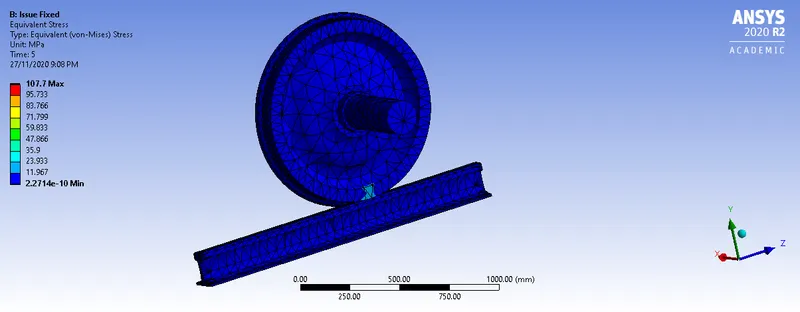

FOR 100000N BEARING LOAD STRESS:

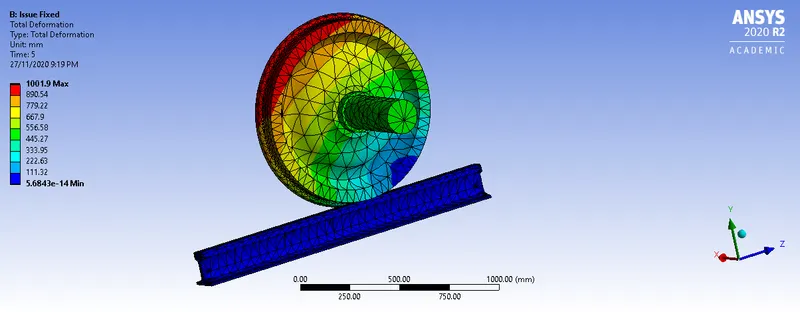

FOR 100000N BEARING LOAD TOTAL DEFORMATION:

FOR 100000N BEARING LOAD TOTAL STRESS:

comparison:

When comparing this Two 100000N and 500000N bearing loads the stress variation taking major play. You can see the above attached Results. For 1e5N the stress is 107.7Mpa and for 5e5N the stress is 446.75Mpa. There is some minor change only in the deformation side.
