Week 2 Railwheel and Track

OBJECTIVE Perform a static structural analysis on the railwheel and track setup

• Case 1 Multiply the bearing load by 5 times and compare the results with the load of 100000N .Compare the total deformation , Equivalent stress and the life under both the loads.
• Case 2 Implement a user defined results and calculate the Total deformation from this results and check if is the same as that obtained by the inbuilt result by ANSYS for a load of 100000N

PRODECURE

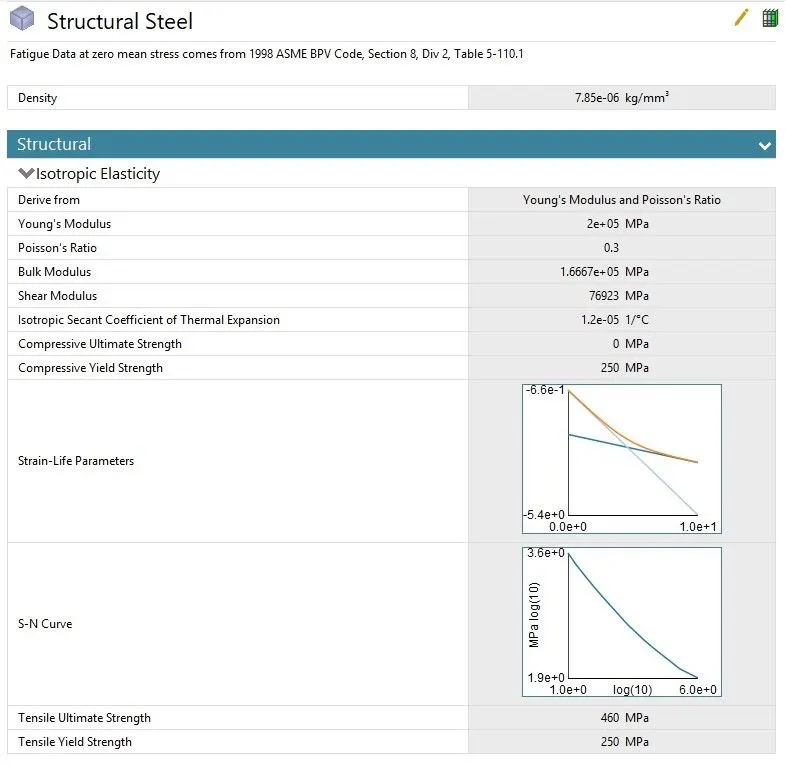

• Create Static Strutucal Analysis and in engineering data select the material as structural steel.

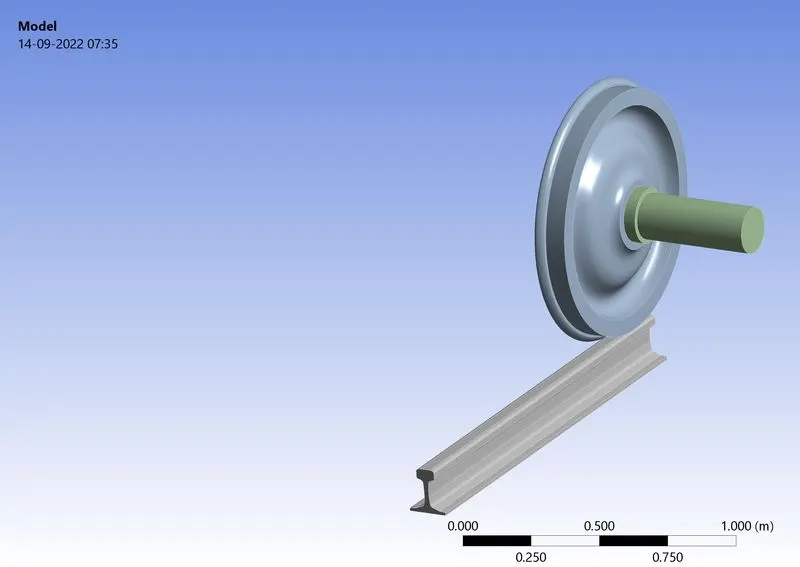

• Import the geometry and check in Spaceclaim for any irregularties
• Then open ANSYS mechanical

• Contacts Two contacts created between the railwheel and track by selecting the faces .The contact type is frictional with friction

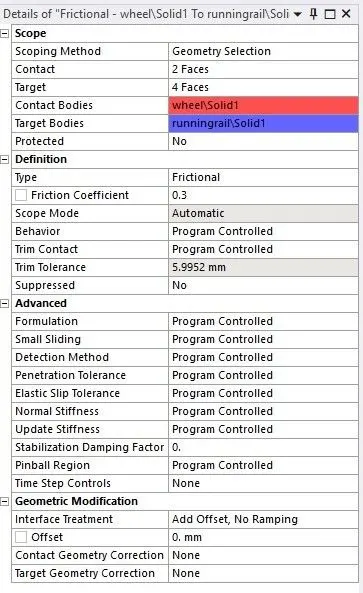

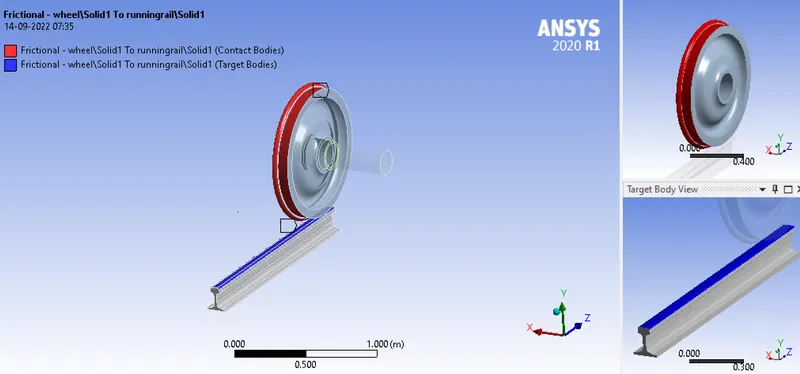

• First contacts created between the railwheel and track by selecting the faces .The Contact type is fritional with friction coefficient of 0.3

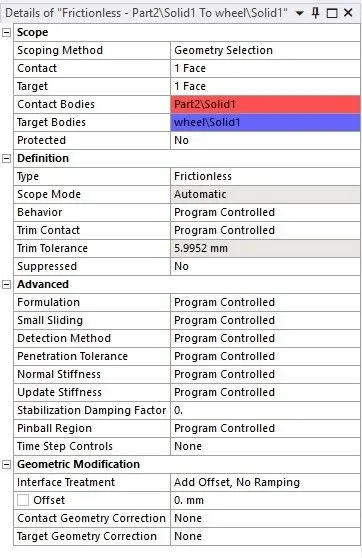

• Second contacts created between the railwheel and shaft .The contact type is frictionless

• Joints Three joints created in whole geometry

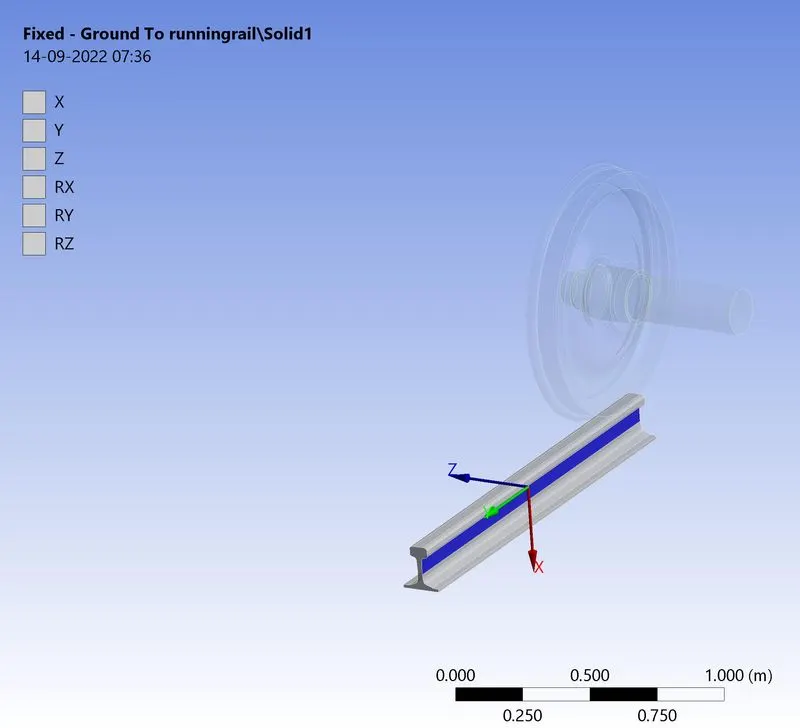

• create a fixed joint on track as it is fixed on which the wheel moves.

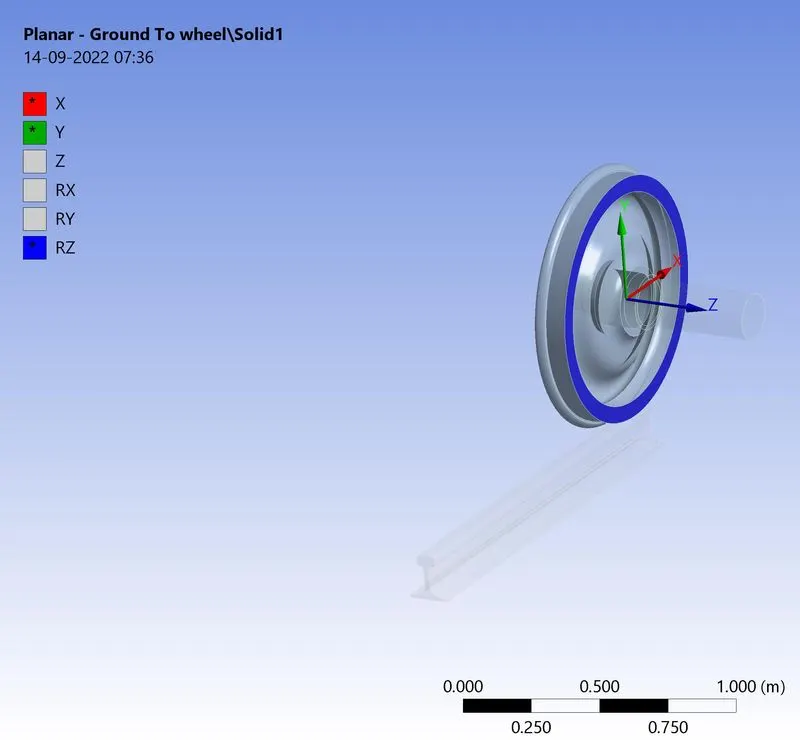

• Create a planar joint on the wheel as it moves in a straight line on the track.

• Create a translational joint on the shaft as it translates in the X - direction along with the wheel

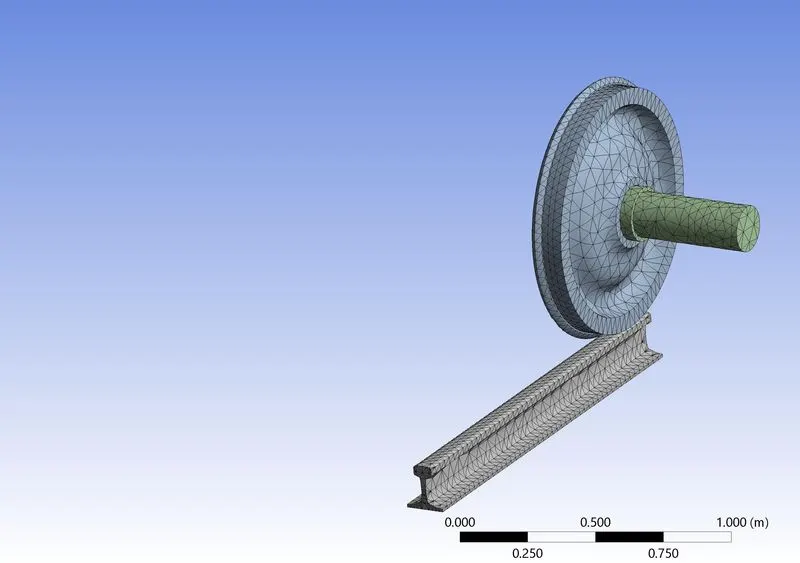

• Mesh Mesh the model with element size of 35mm and by using the face sizing option fac eof track and wheel also mesh in 35mm to get a proper mesh.

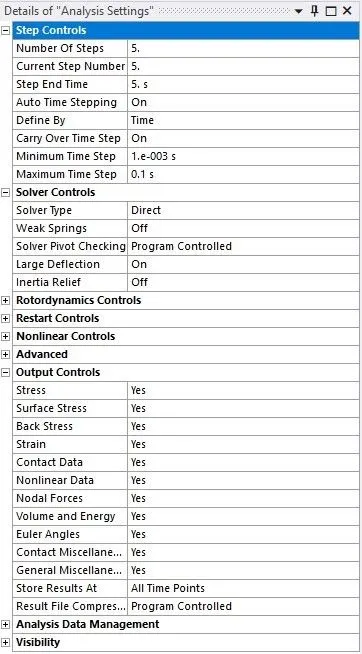

• Analysis Setting The simulation runs for 5 steps .So the number of steps is set as 5 Define by time large deflection is set to on solver type direct and output controls switch on for stress , strain , nodal force etc

RESULT The analysis runs successfully and results obtained

Case 1 In this case the result evaluated for the bearing load of 100000N and 500000n

A for load of 100000N

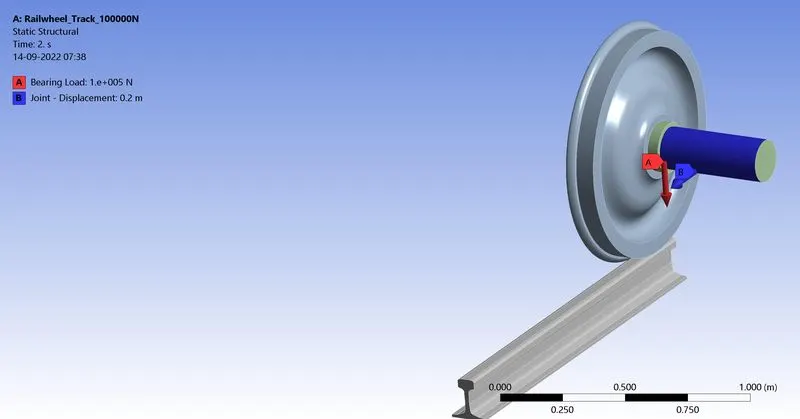

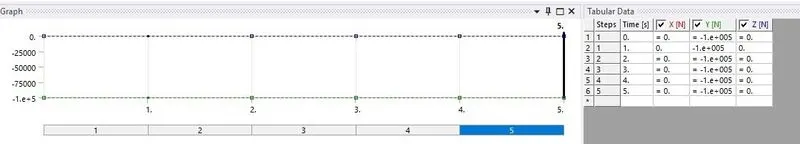

A bearing load of 100000N applied on the wheel.

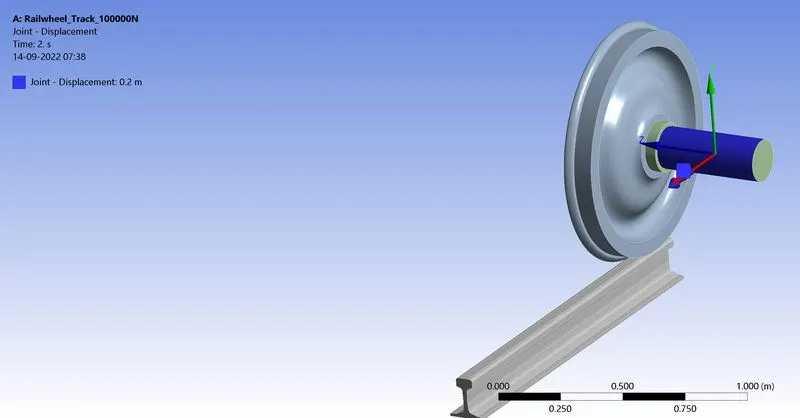

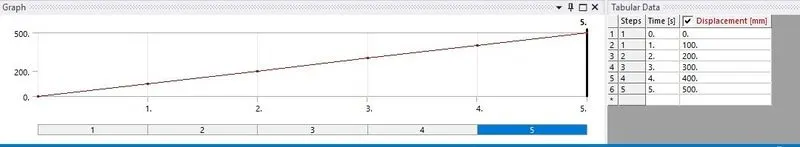

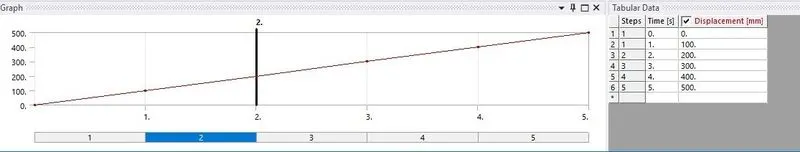

Join Displacement Translational of 500mm given to the shaft

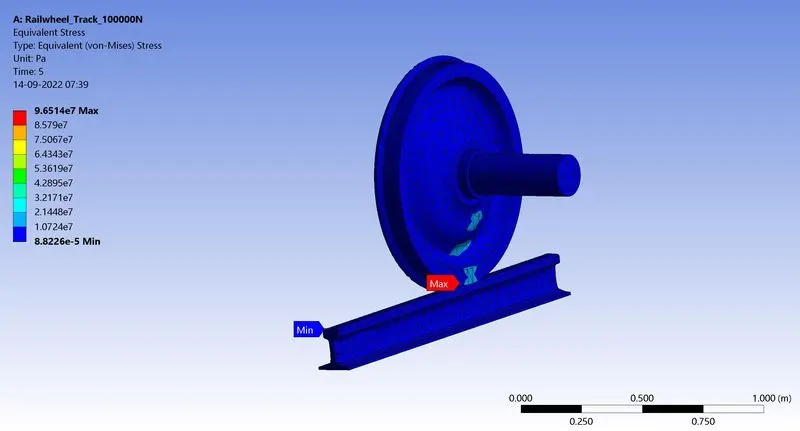

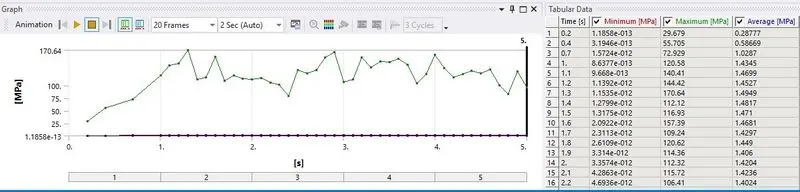

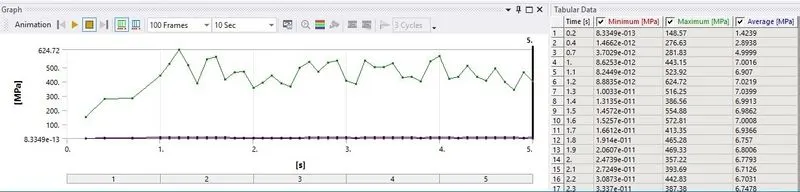

Equivalent Stress Max 96.514 Mpa

Total Deformation Max - 999.08mm

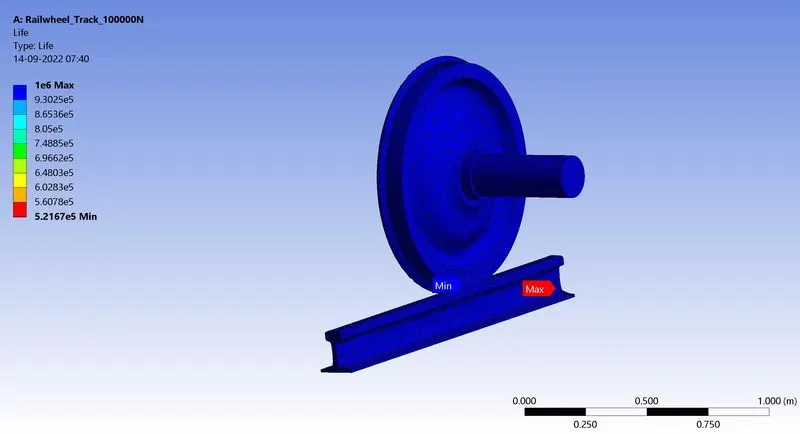

Life Minimum - 521670

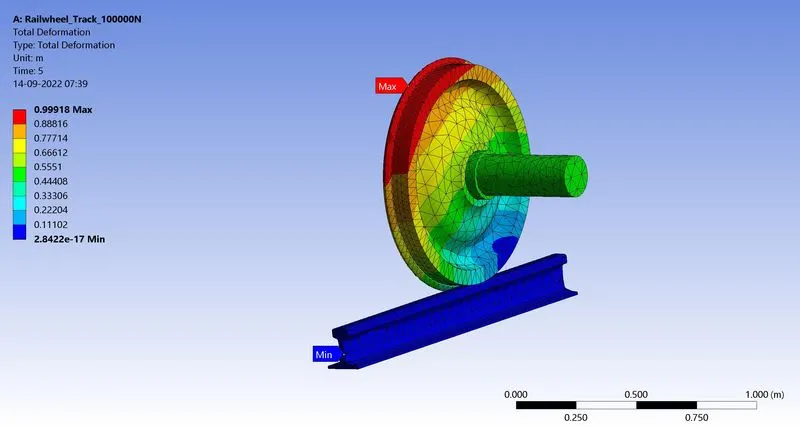

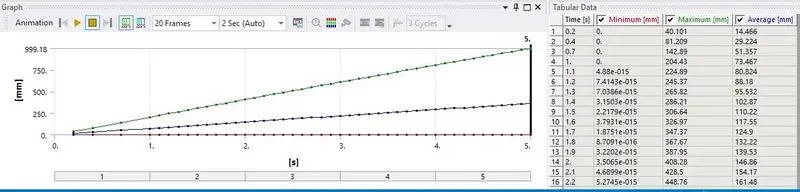

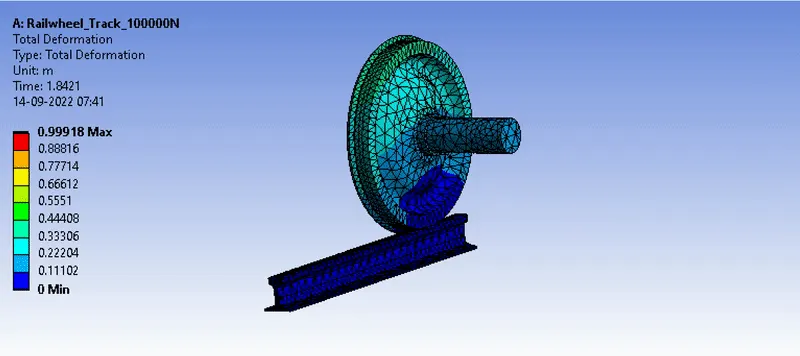

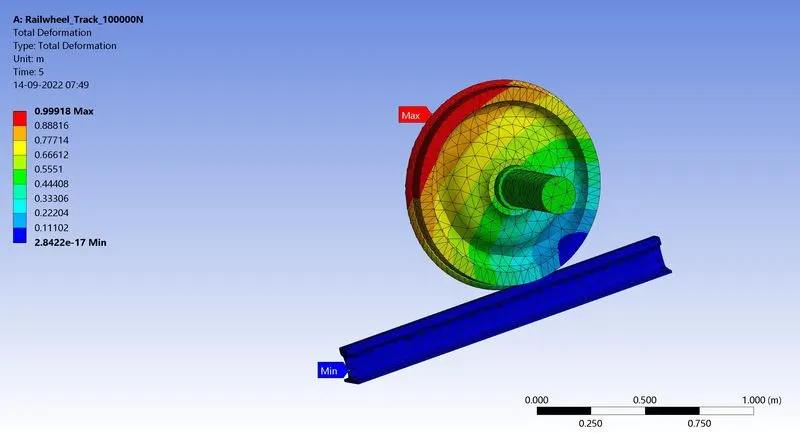

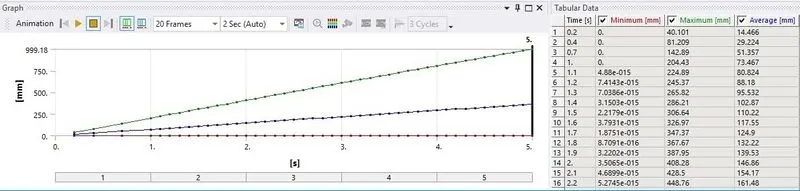

Total Deformation

B For load of 5x100000N = 500000N

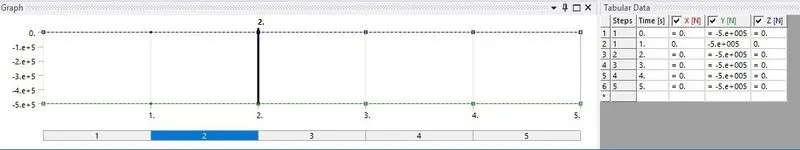

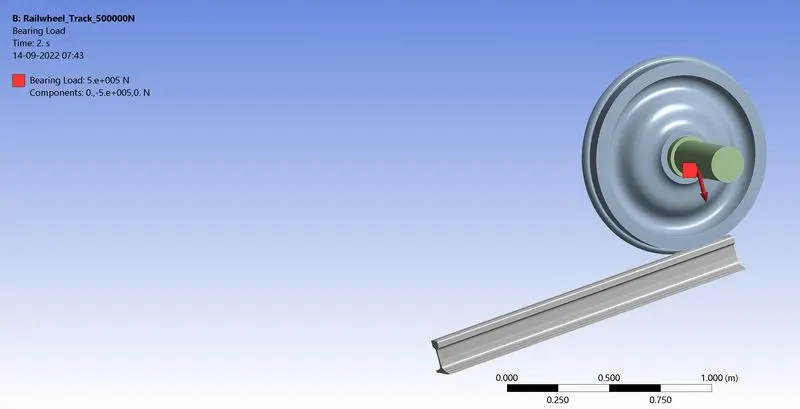

A bearing load of 500000N applied on the wheel .

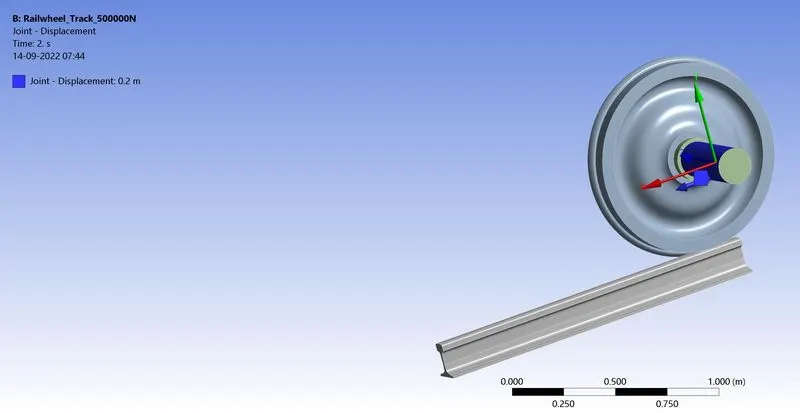

Joint Displacement Translational of 500mm given to the shaft

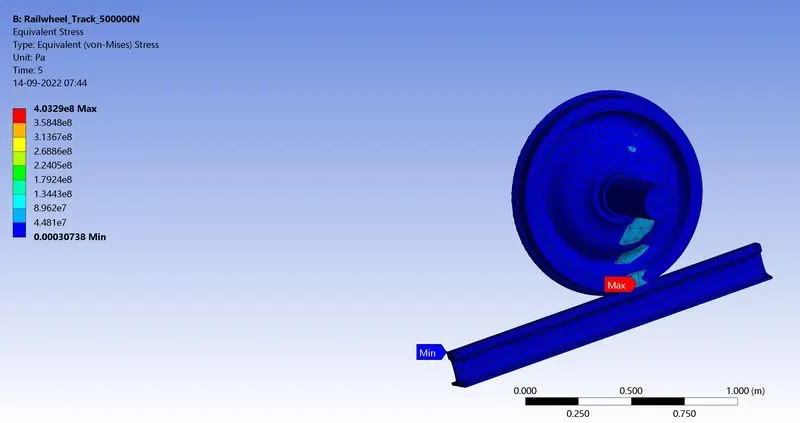

Equivalent Stress Max - 403.29Mpa

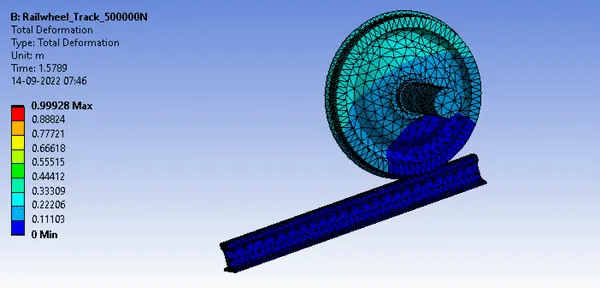

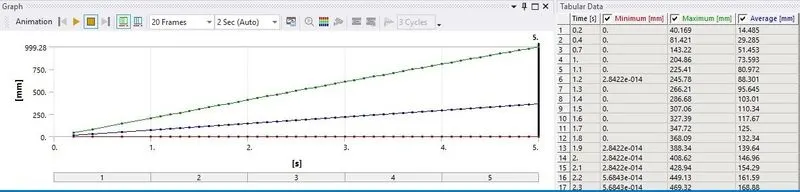

Total Deformation Max - 999.28mm

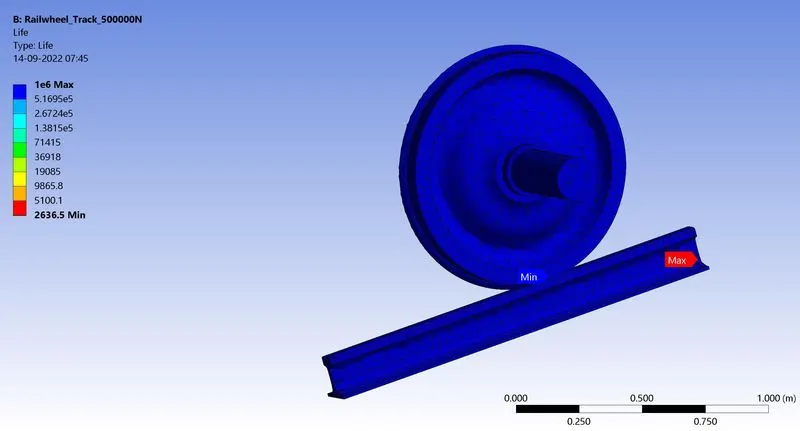

Life Minimum - 2636.5

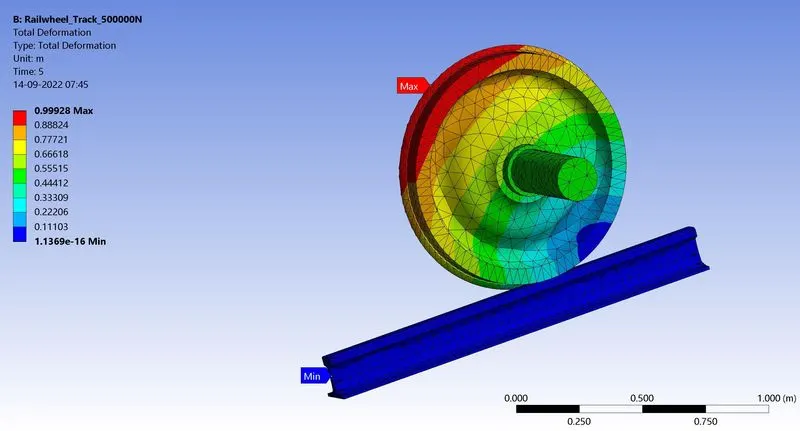

Total Deformation

Case 2 User Defined result for maximum deformation is taken out for 100000N bearing load and then compared with inbuilt ansys deformation result.

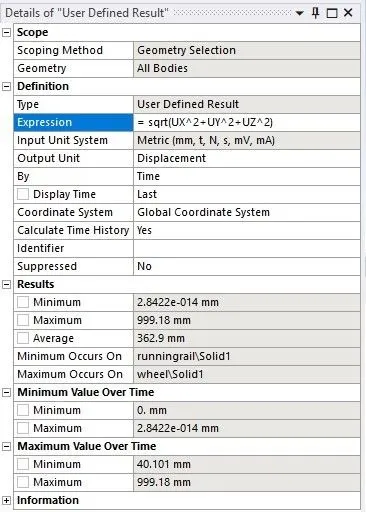

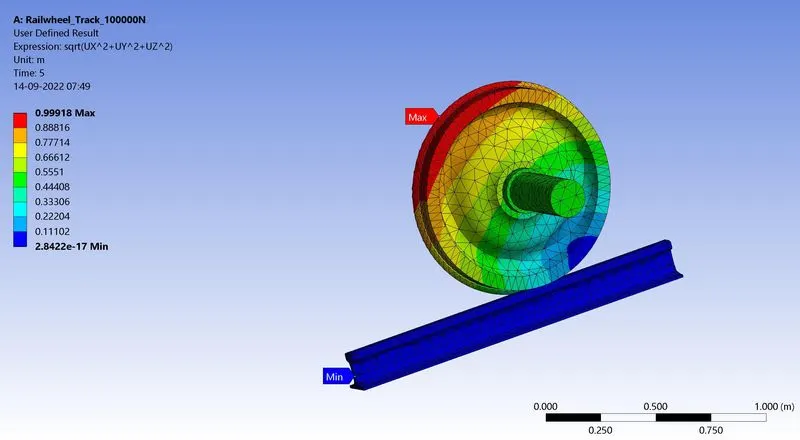

For user defined result for max deformation using a expression

Ansys Total Deformation result - 999.18mm

User defined Total Deformation result - 999.18mm

CONCLUSION

• Result evaluated for the bearing load of 100000N and 500000N
• User defined result for maximum deformation is taken out for 100000N bearing load
• The result is accurate and similar for both the ansys inbuilt result and user defined result

LINK : https://drive.google.com/file/d/11wlEAJW37vs2oi6K5FwbQrxekslIc5GD/view?usp=sharing
